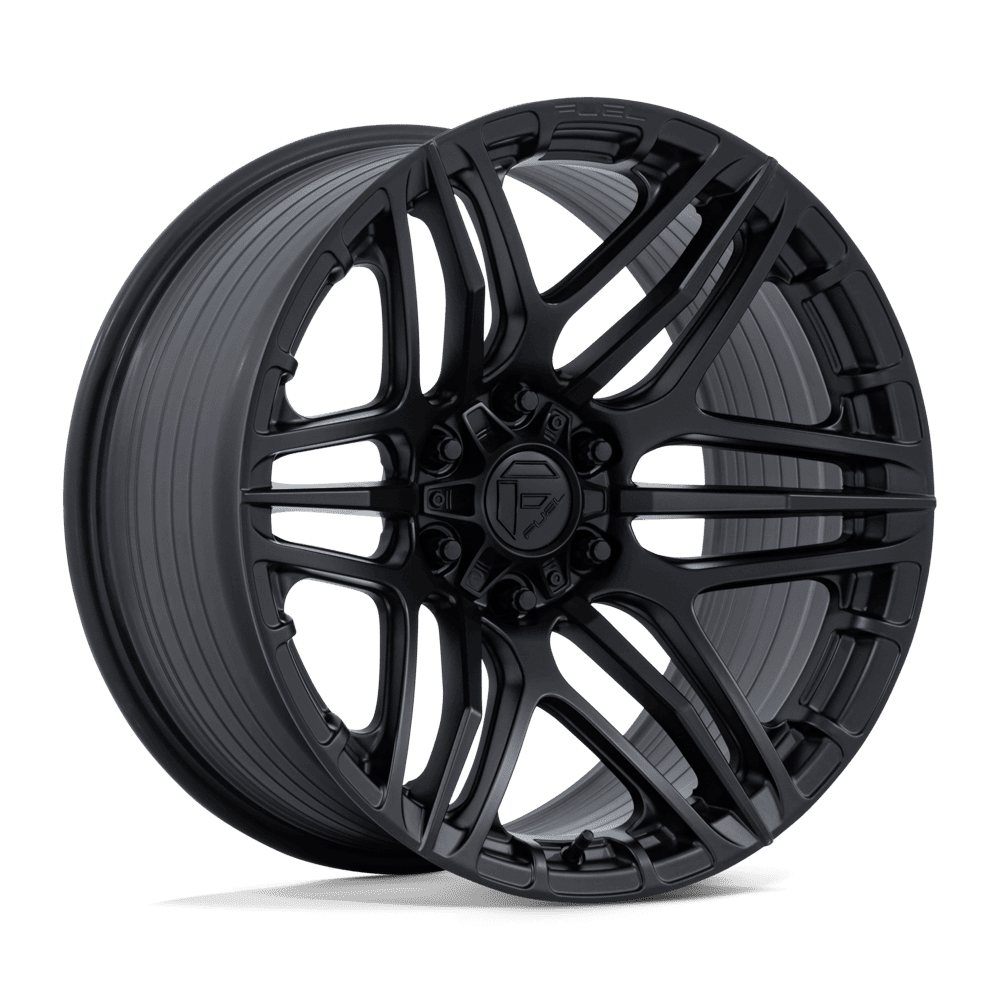

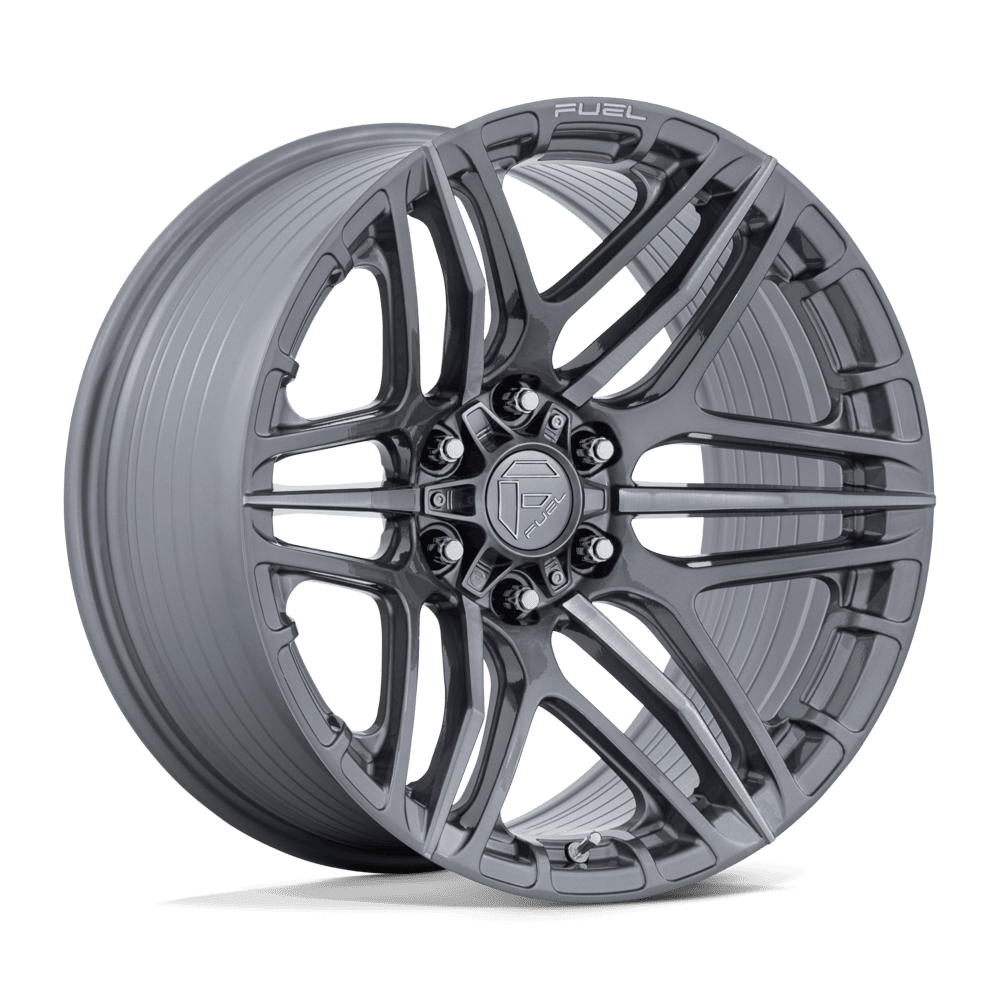

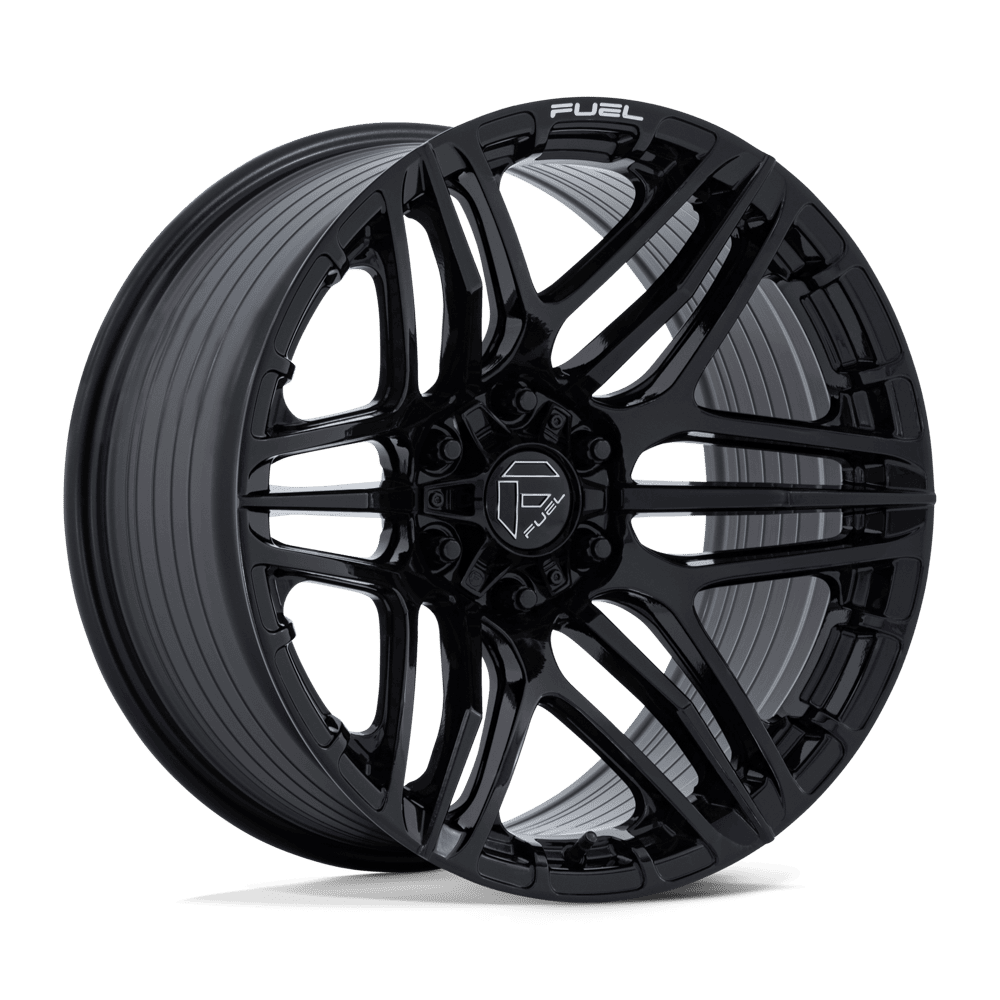

Fuel Weapon Wheel
Pack some heat with the Weapon’s deep concave profile and real off-road performance. The split-six design with a spider-leg twist gives your build a sharp, modern look that stands out in the dirt or on the street. Built using Flow Formed Technology, it's both lightweight and strong, so it can take a beating without slowing you down. Available in multiple sizes and offsets to fit a wide range of setups, it's ideal for everything from rocky climbs to fast desert runs. A solid pick for Tacomas, Wranglers, F150s, Broncos, and 4Runners looking for both performance and attitude.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| FC909MX20905001 | Blackout | 20x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 33.40 lbs |
| FC909MX20906301 | Blackout | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 30.75 lbs |
| FC909MX20906801 | Blackout | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 30.75 lbs |
| FC909BX20906801 | Gloss Black | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 30.75 lbs |
| FC909BX20906301 | Gloss Black | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 30.75 lbs |
| FC909AX20906301 | Platinum | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 30.75 lbs |
| FC909AX20906801 | Platinum | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 30.75 lbs |
| FC909MX20106318N | Blackout | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2650 lbs | 30.62 lbs |
| FC909MX20106818N | Blackout | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2650 lbs | 30.53 lbs |
| FC909MX20105018N | Blackout | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2650 lbs | 32.68 lbs |
| FC909BX20106318N | Gloss Black | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2650 lbs | 30.62 lbs |
| FC909BX20106818N | Gloss Black | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2650 lbs | 30.53 lbs |
| FC909BX20105018N | Gloss Black | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2650 lbs | 32.68 lbs |
| FC909AX20106818N | Platinum | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2650 lbs | 30.53 lbs |
| FC909MX22956800 | Blackout | 22x9.5 0mm | 6x139.7 | 5.25" | 106.10mm | 2650 lbs | 37.81 lbs |
| FC909MX22956300 | Blackout | 22x9.5 0mm | 6x135 | 5.25" | 87.10mm | 2650 lbs | 37.90 lbs |
| FC909BX22956800 | Gloss Black | 22x9.5 0mm | 6x139.7 | 5.25" | 106.10mm | 2650 lbs | 37.81 lbs |
| FC909BX22956300 | Gloss Black | 22x9.5 0mm | 6x135 | 5.25" | 87.10mm | 2650 lbs | 37.90 lbs |
| FC909AX22956800 | Platinum | 22x9.5 0mm | 6x139.7 | 5.25" | 106.10mm | 2650 lbs | 37.81 lbs |
| FC909AX22956300 | Platinum | 22x9.5 0mm | 6x135 | 5.25" | 87.10mm | 2650 lbs | 37.90 lbs |
| FC909MX22956820 | Blackout | 22x9.5 20mm | 6x139.7 | 6.04" | 106.10mm | 2650 lbs | 37.59 lbs |
| FC909MX22956320 | Blackout | 22x9.5 20mm | 6x135 | 6.04" | 87.10mm | 2650 lbs | 37.70 lbs |
| FC909BX22956820 | Gloss Black | 22x9.5 20mm | 6x139.7 | 6.04" | 106.10mm | 2650 lbs | 37.59 lbs |
| FC909BX22956320 | Gloss Black | 22x9.5 20mm | 6x135 | 6.04" | 87.10mm | 2650 lbs | 37.70 lbs |
| FC909AX22956820 | Platinum | 22x9.5 20mm | 6x139.7 | 6.04" | 106.10mm | 2650 lbs | 37.59 lbs |
| FC909AX22956320 | Platinum | 22x9.5 20mm | 6x135 | 6.04" | 87.10mm | 2650 lbs | 37.70 lbs |
