SKU: D78417908445
Fuel Unit Wheel
By Fuel
$370.00
Size
Bolt Pattern
180-Day ReturnsOn uninstalled, unused parts
Real humans who wheel(920) 249-7744
PayPal Credit acceptedFinancing option at checkout
Secure checkoutEncrypted payment

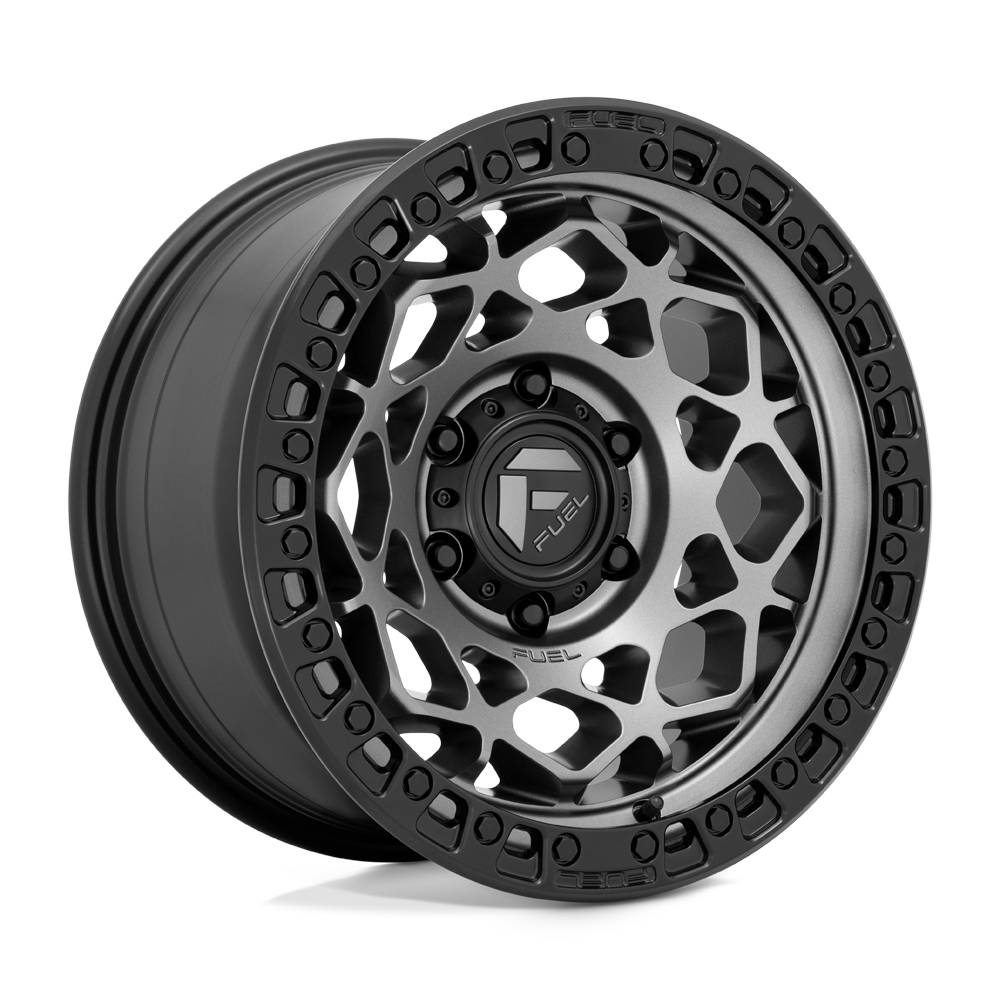

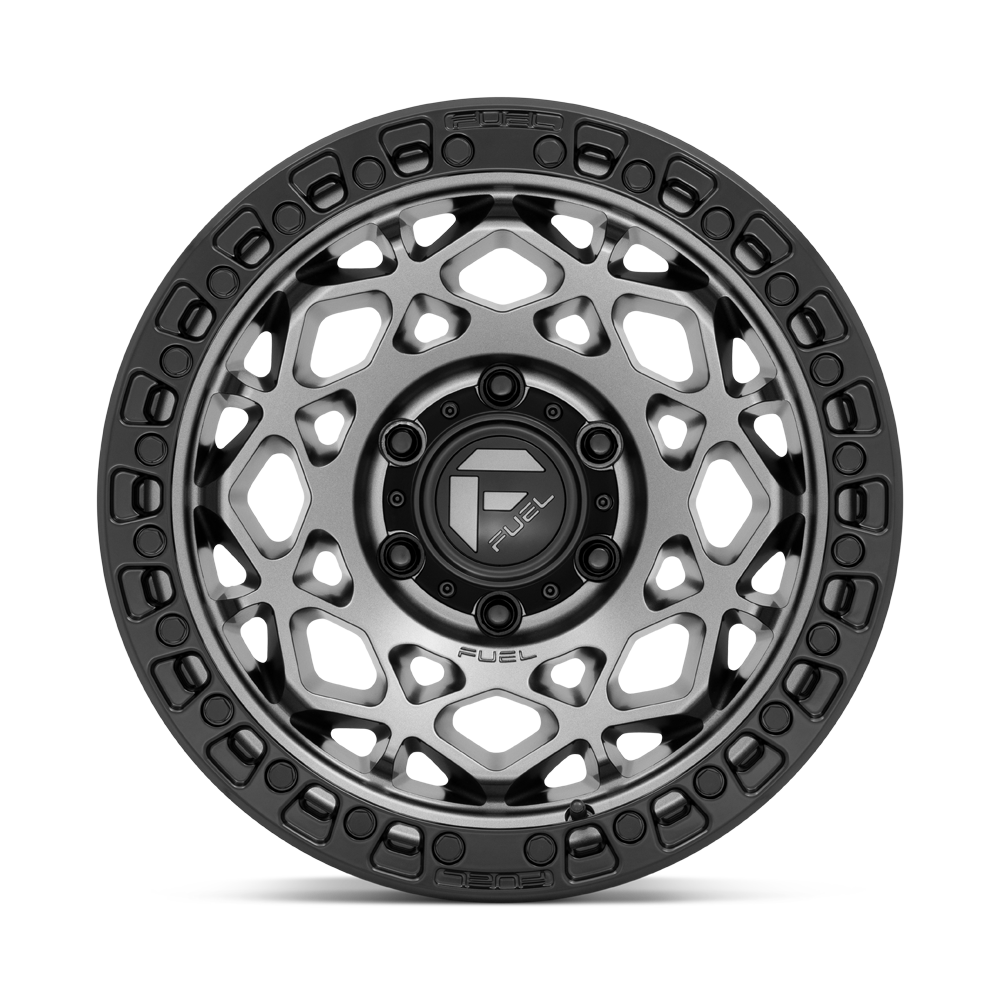

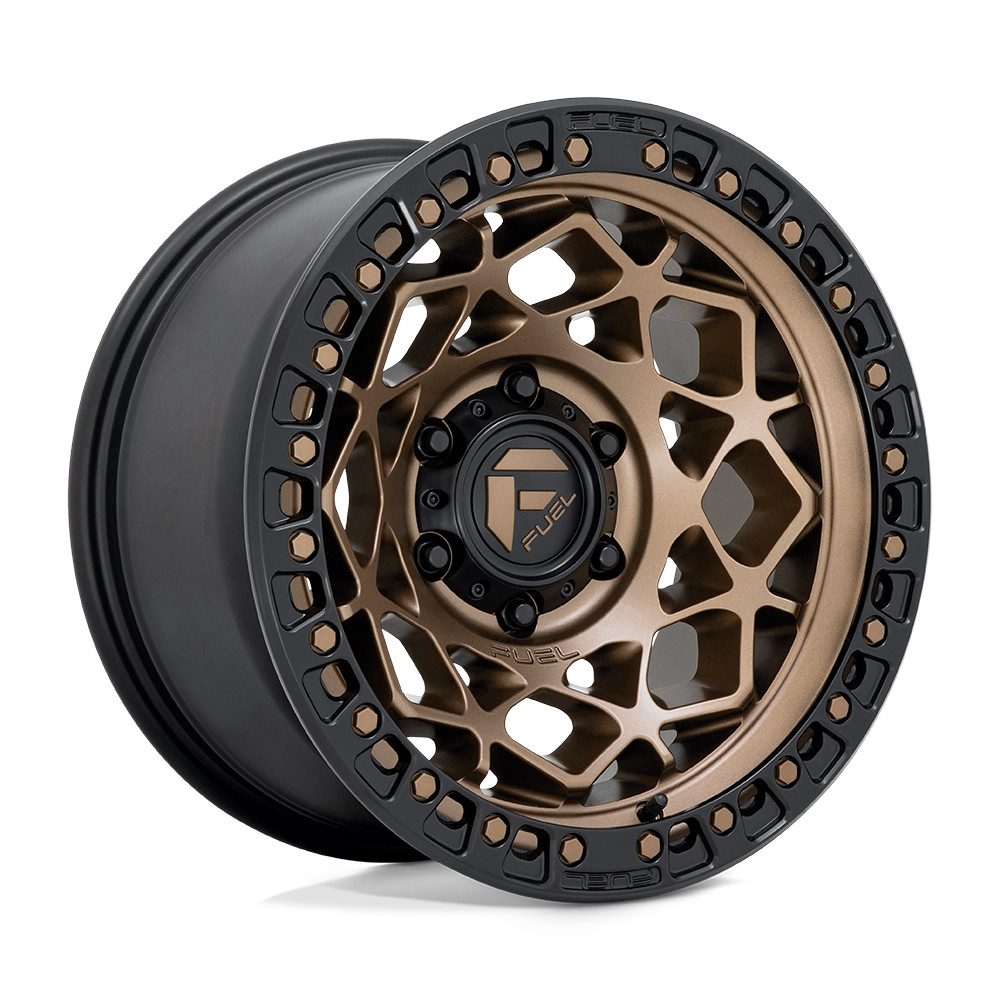

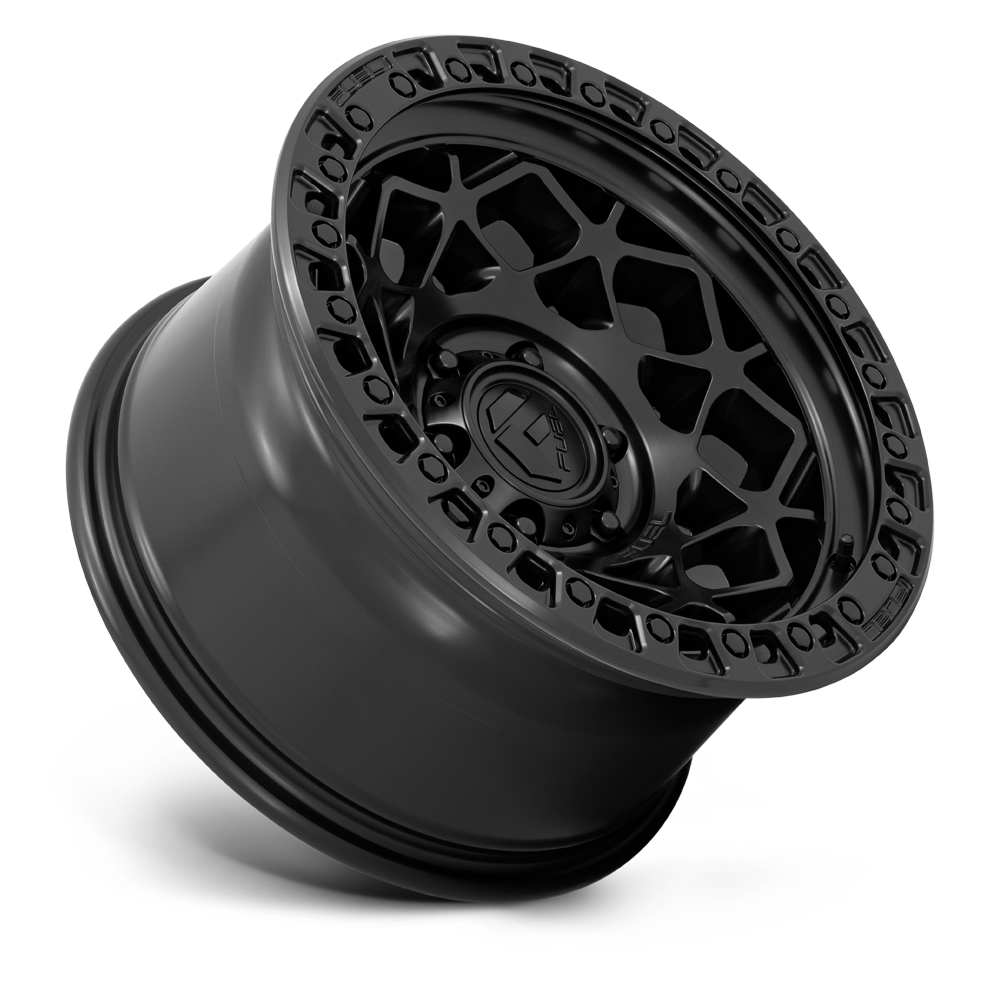

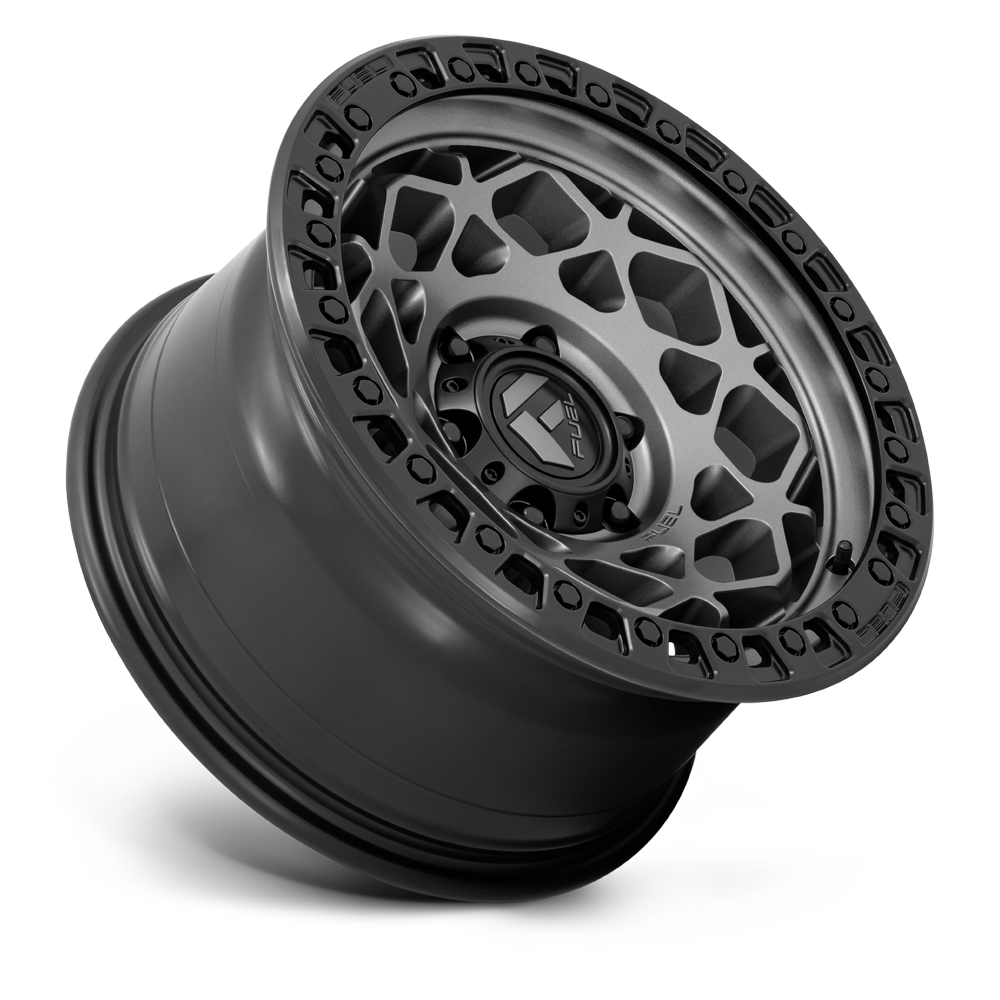

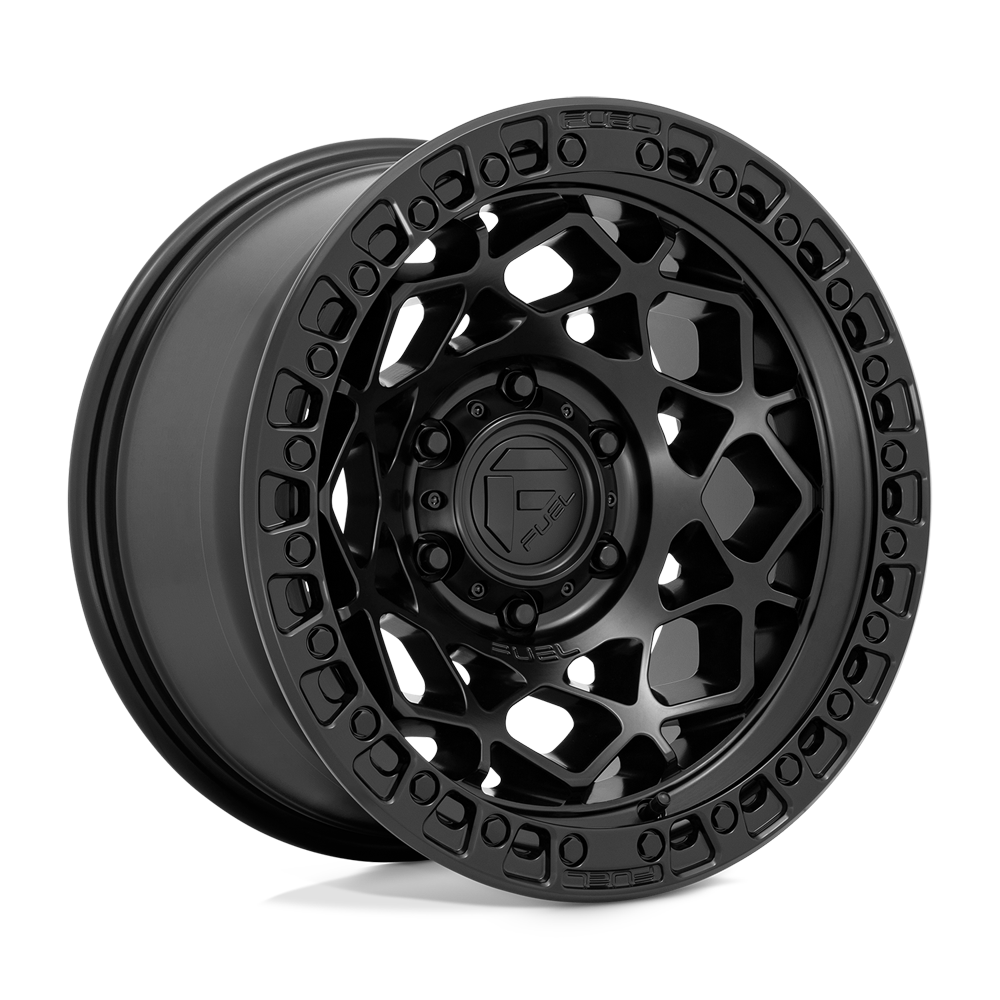

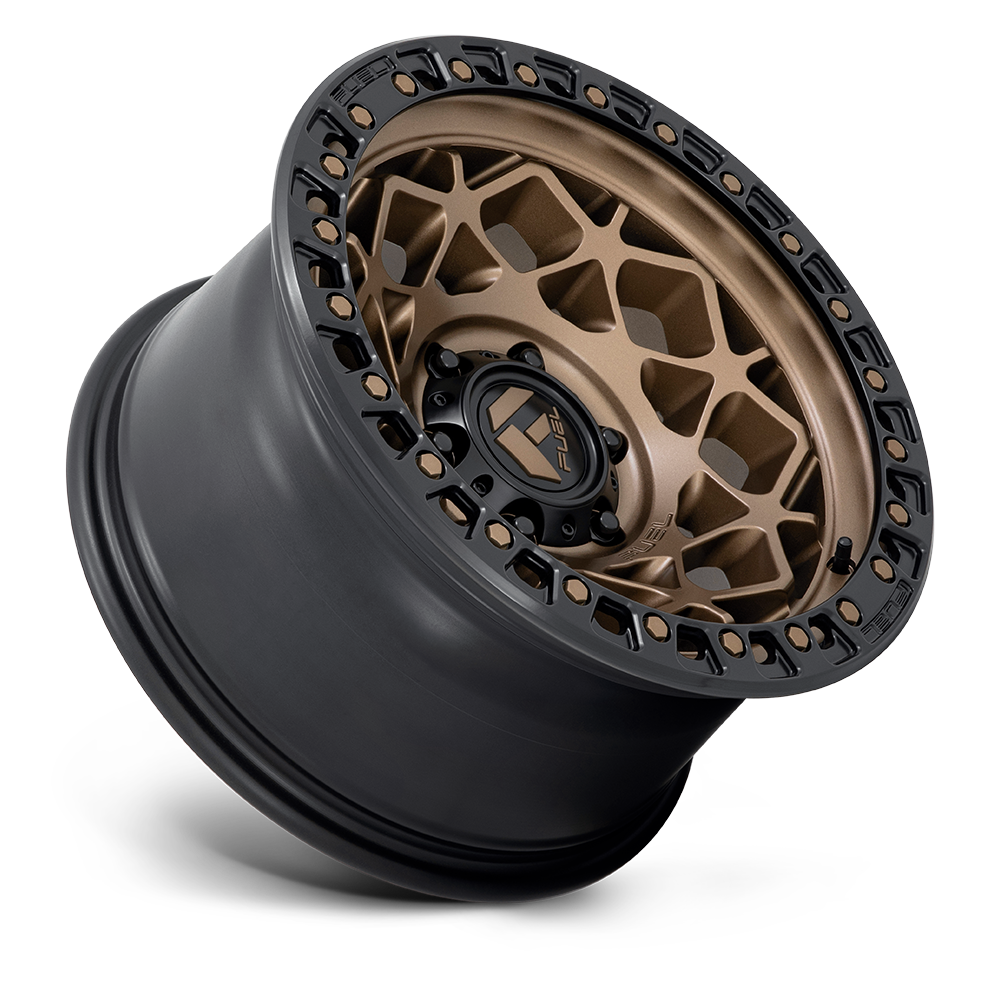

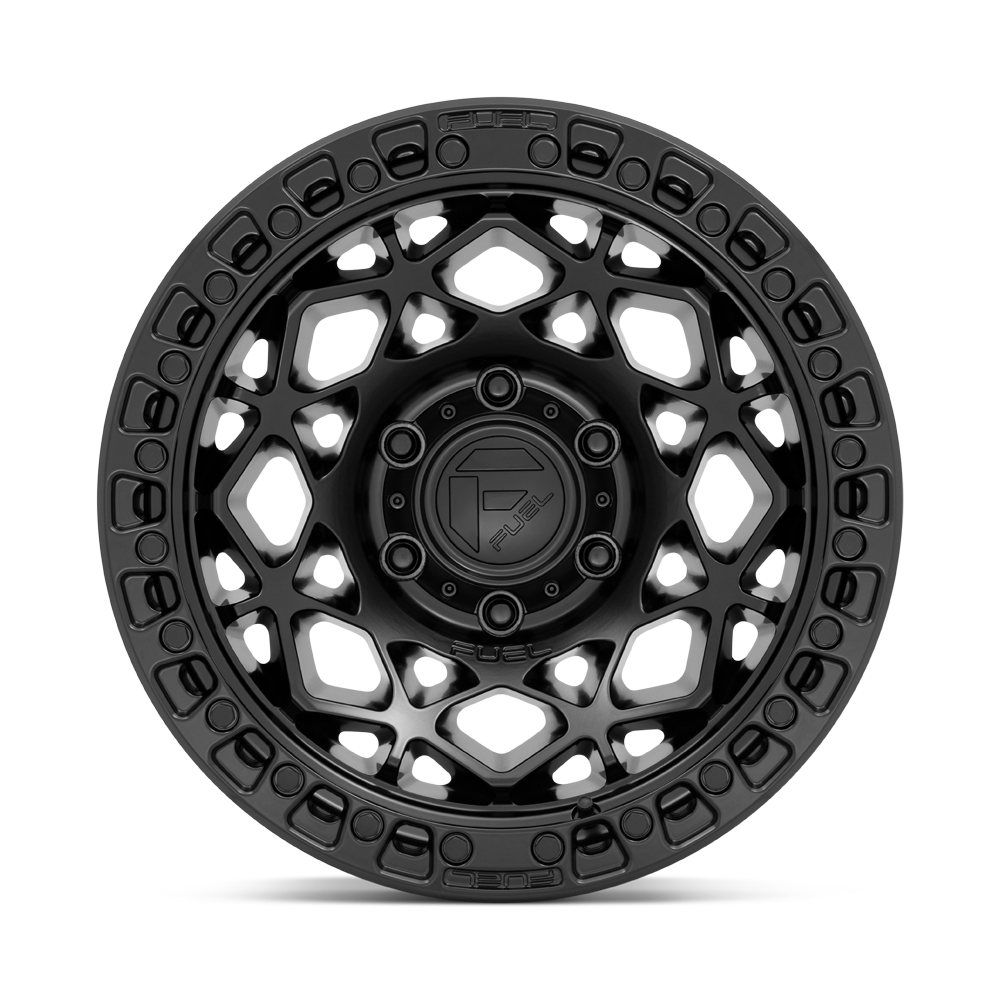

Built for rugged performance and bold style, the Fuel Off-Road Unit features a striking multi-spoke design with exposed hardware that gives any off-road build a tough, commanding look. Available in a 17x9 size with 5-lug and 6-lug bolt patterns, the Unit is optimized for ¼-ton and ½-ton trucks and Jeeps. It’s a perfect fit for builds like Jeep Wranglers, Toyota Tacomas, Ford Rangers, and Chevrolet Silverado 1500s, ready to handle whatever the trail throws your way.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D78517908445 | Bronze w/ Matte Black Ring | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 32.40 lbs |
| D78417908445 | Gunmetal w/ Matte Black Ring | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 32.40 lbs |
| D78417907545 | Gunmetal w/ Matte Black Ring | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 32.40 lbs |
| D78617908945 | Matte Black w/ Matte Black Ring | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2500 lbs | 32.40 lbs |
| D78617907545 | Matte Black w/ Matte Black Ring | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 32.40 lbs |
| D78617908445 | Matte Black w/ Matte Black Ring | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 32.40 lbs |
| D78517908450 | Bronze w/ Matte Black Ring | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 32.80 lbs |
| D78417908450 | Gunmetal w/ Matte Black Ring | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 32.80 lbs |
| D78617908450 | Matte Black w/ Matte Black Ring | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 32.80 lbs |
| D78617907550 | Matte Black w/ Matte Black Ring | 17x9 1mm | 5x127 | 5.04" | 71.50mm | 2500 lbs | 32.80 lbs |
