SKU: D75315808337

Fuel Reaction Wheel

By Fuel Off-Road

$310.00

Finish: Gloss Black Milled

Size

Bolt Pattern

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Warranty Information

Vendor warranty summary

Fuel Off-Road Warranty

At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish

Shop Fuel Off-Road Official Fuel Off-Road policy All warranty policies

This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Wheel structure	Lifetime (original retail purchaser)
PVD finishes (peeling/lifting)	2 years
Chrome aluminum finish (peeling/lifting; pitting excluded)	1 year
Painted aluminum finish (peeling/lifting)	1 year
Steel wheel paint or plating	90 days (surface rust/corrosion excluded)
Uncoated polished aluminum	Not covered

Original purchaser only — coverage does not transfer if you sell it.
Keep your NVMOS order confirmation — proof of purchase is required.

What's covered

Structural failure under normal, intended use for as long as the original buyer owns the wheels
Finish peeling or lifting within the finish's coverage period
Approved wheels are repaired or replaced

What's not covered

Wheels not installed per Fuel's installation guidelines
Damage from poor maintenance or harsh cleaning chemicals
Structural damage from accidents or road hazards
Racing or improper vehicle use
Use of unapproved accessories or adapters
Removal, mounting, installation and shipping costs

How to make a Fuel Off-Road warranty claim

Return the wheel with the original sales receipt to the retailer you bought it from
The wheel is inspected; approved claims are repaired or replaced
You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense

Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.

Shop Fuel Off-Road at NVMOS

Fuel Catalyst Wheel - 17"

Fuel Rebar Wheel - 22"

Fuel Cleaver Dually Wheel

See all Fuel Off-Road products, lead times and FAQs →

Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Fuel Off-Road

Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.

Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Fuel Off-Road warranty: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish. Read the full summary

Shop all 293 Fuel Off-Road Warranty All brands

Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

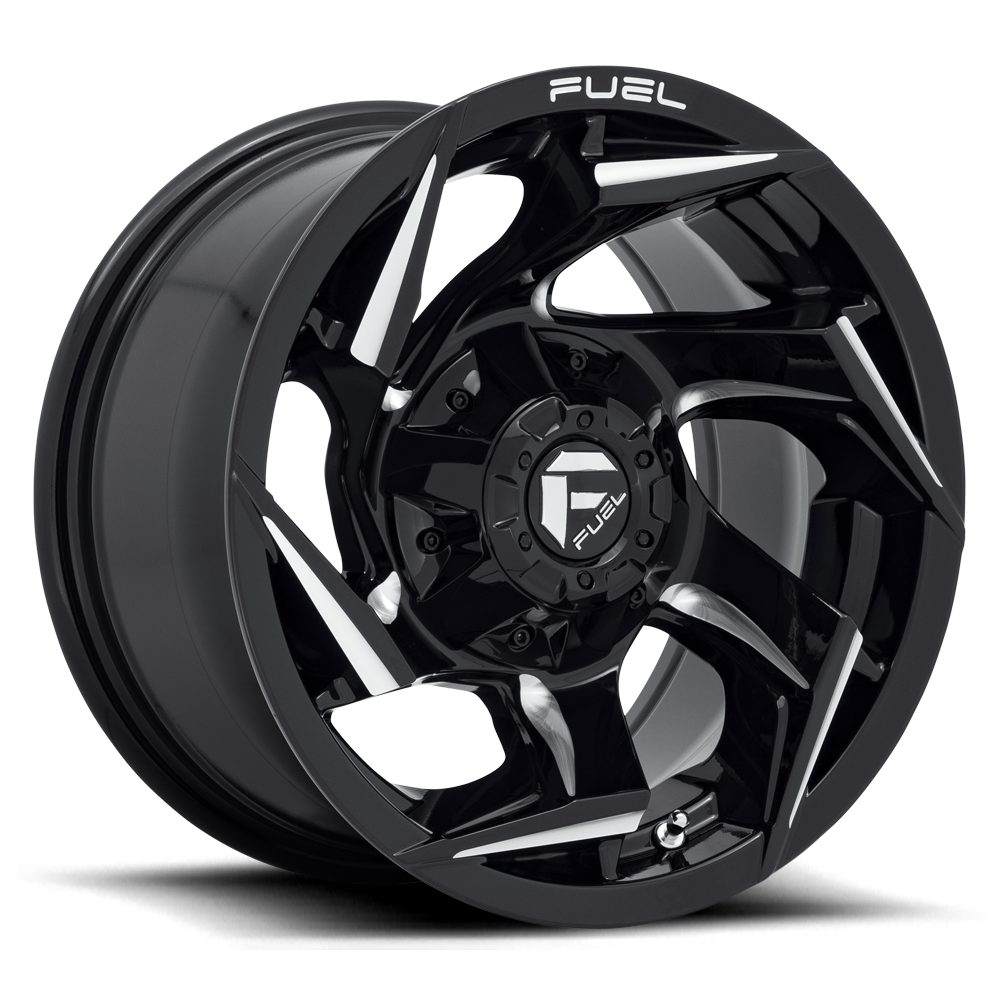

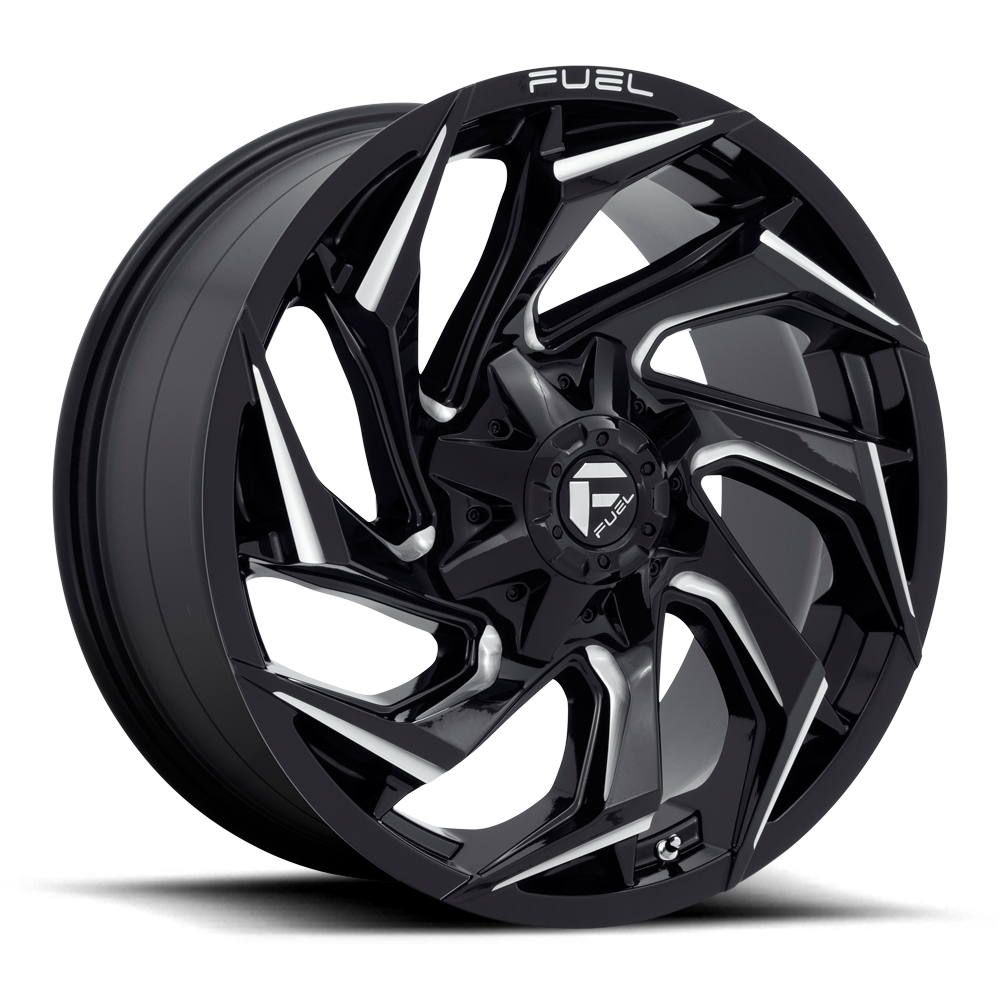

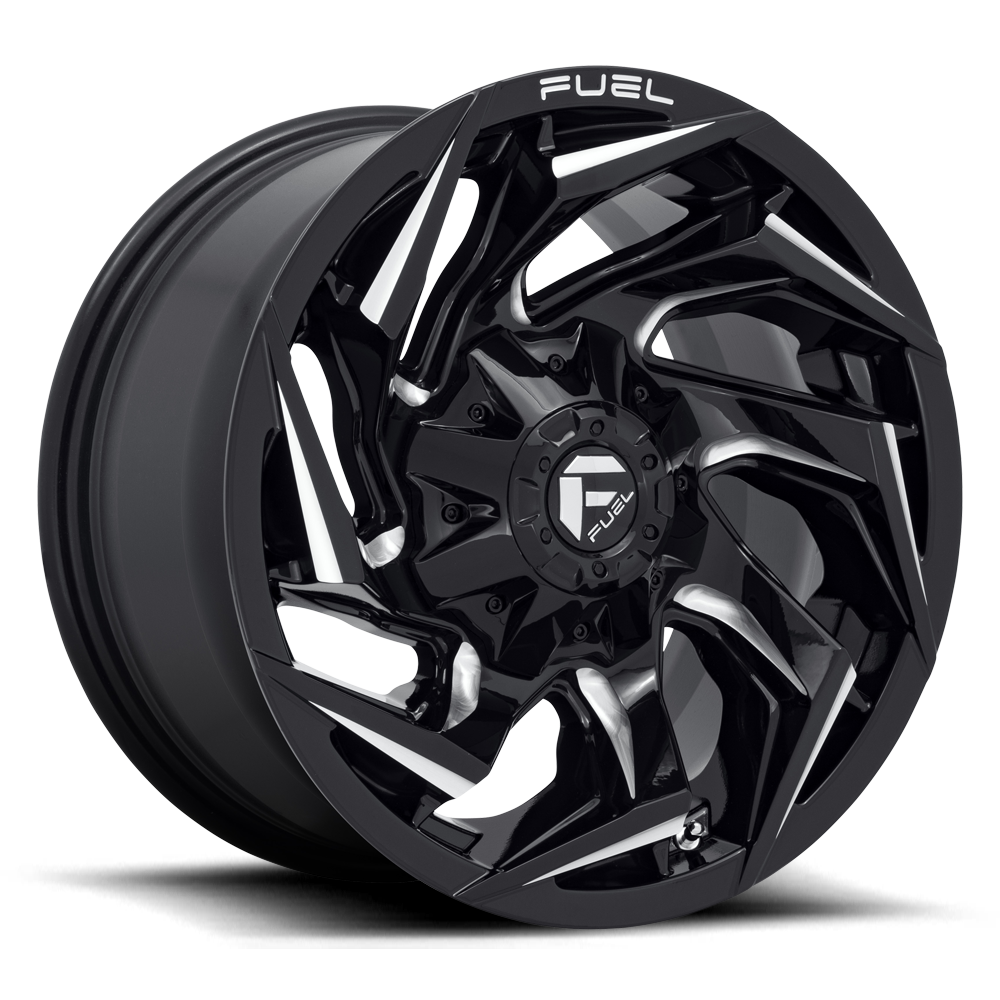

Fuel Reaction Wheel

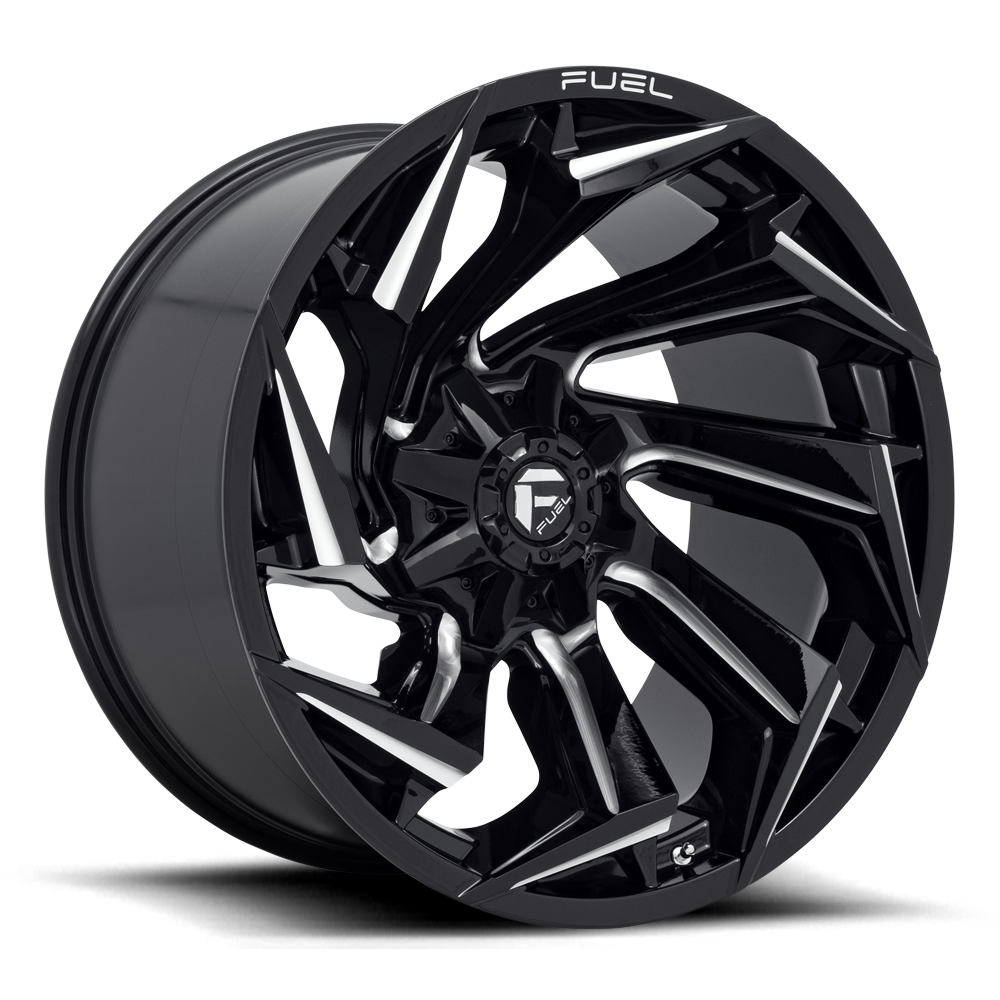

The Fuel Off-Road Reaction has a twisted, high-energy multi-spoke face and a deep profile. It suits the trail, the street or the show. Browse more Fuel off-road wheels.

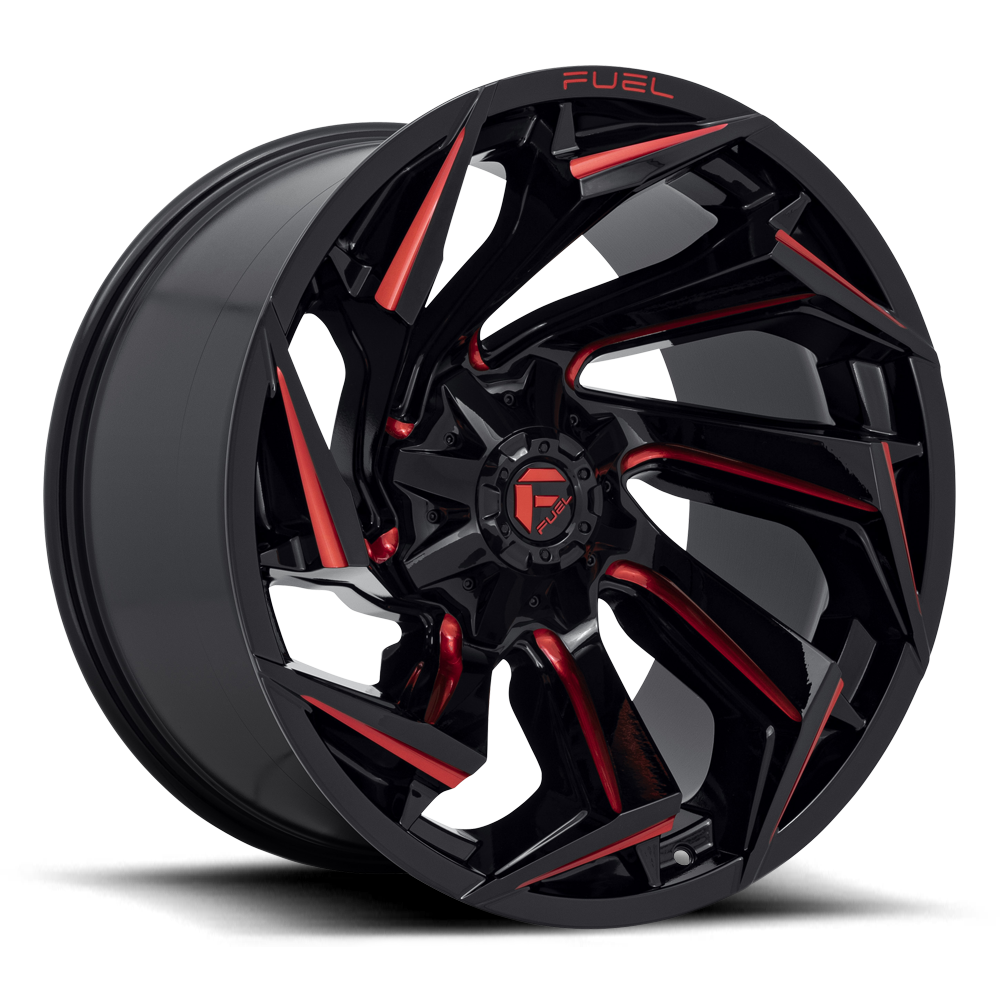

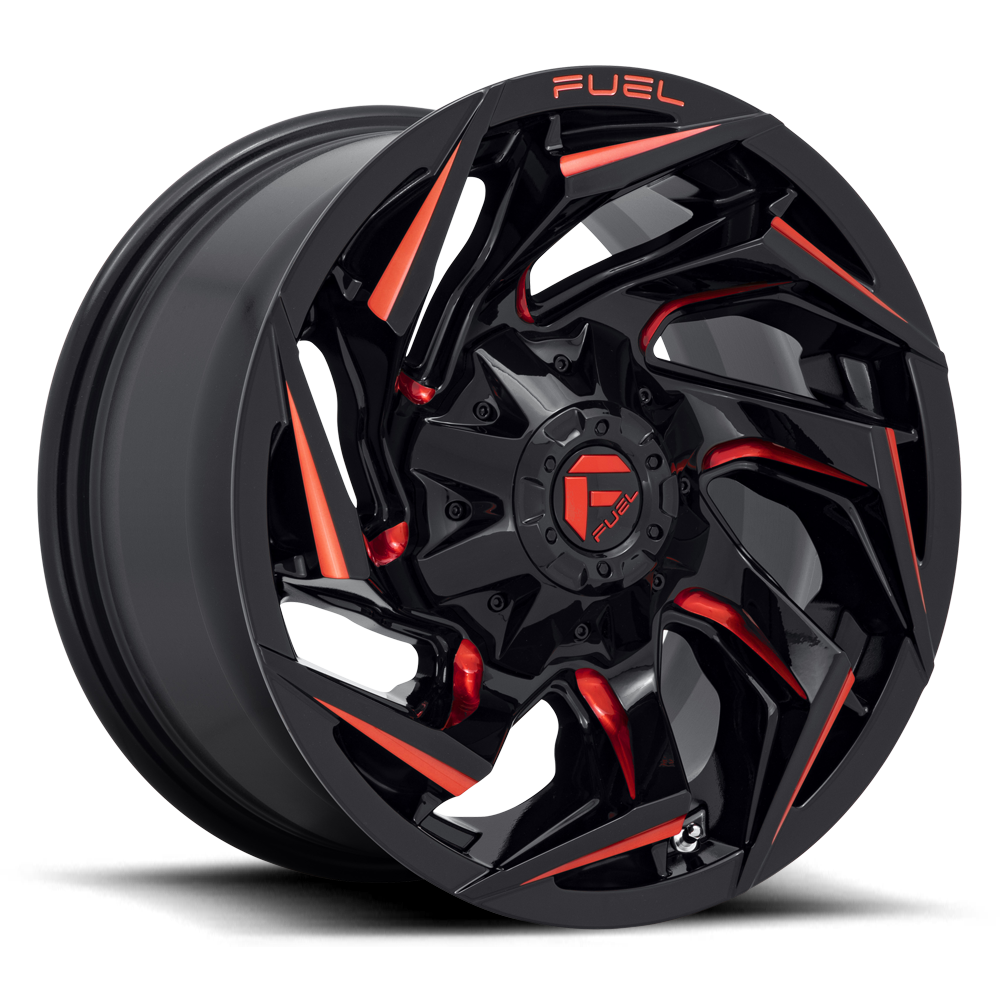

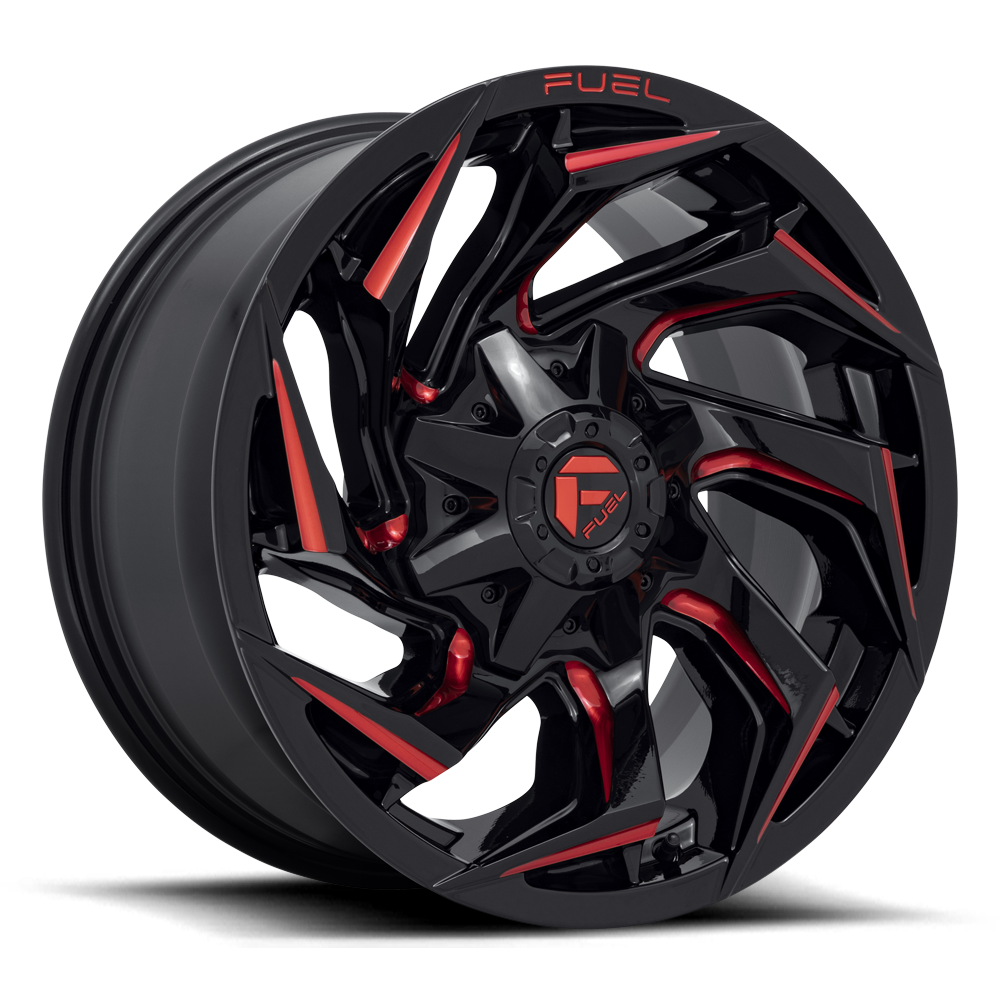

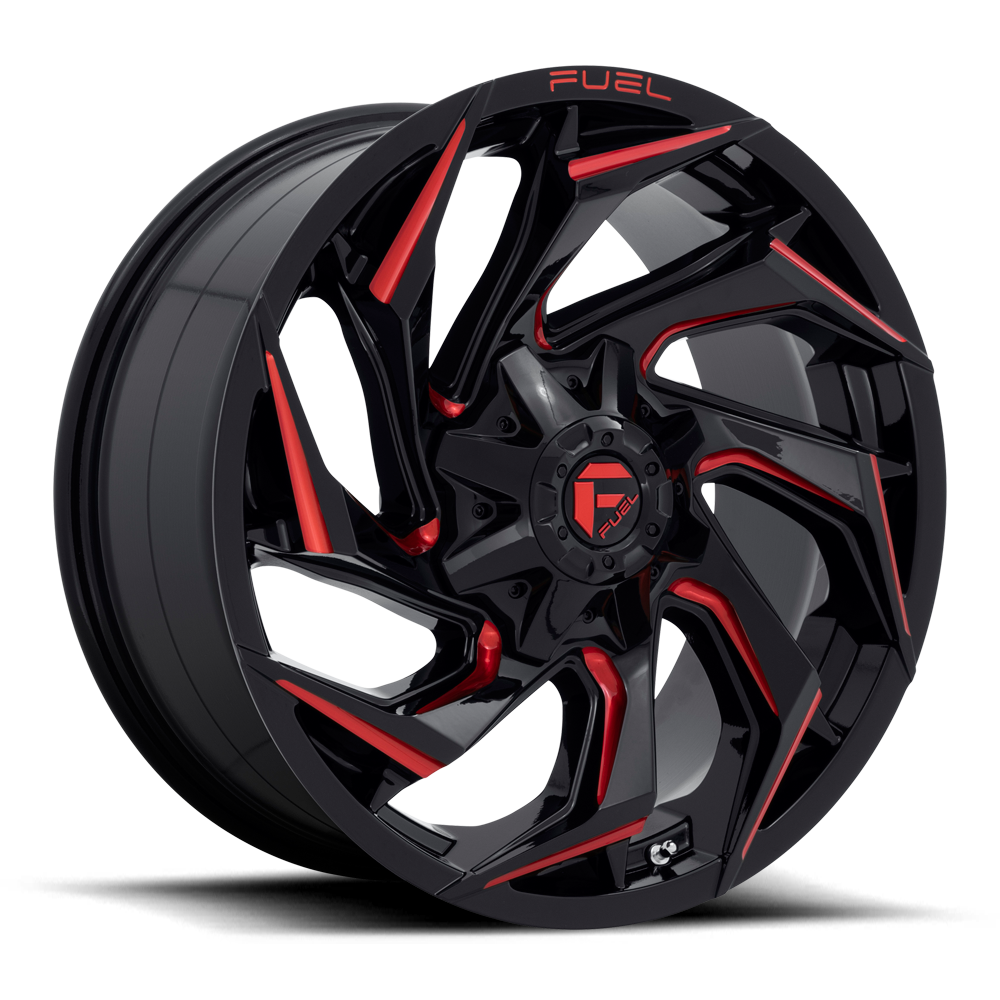

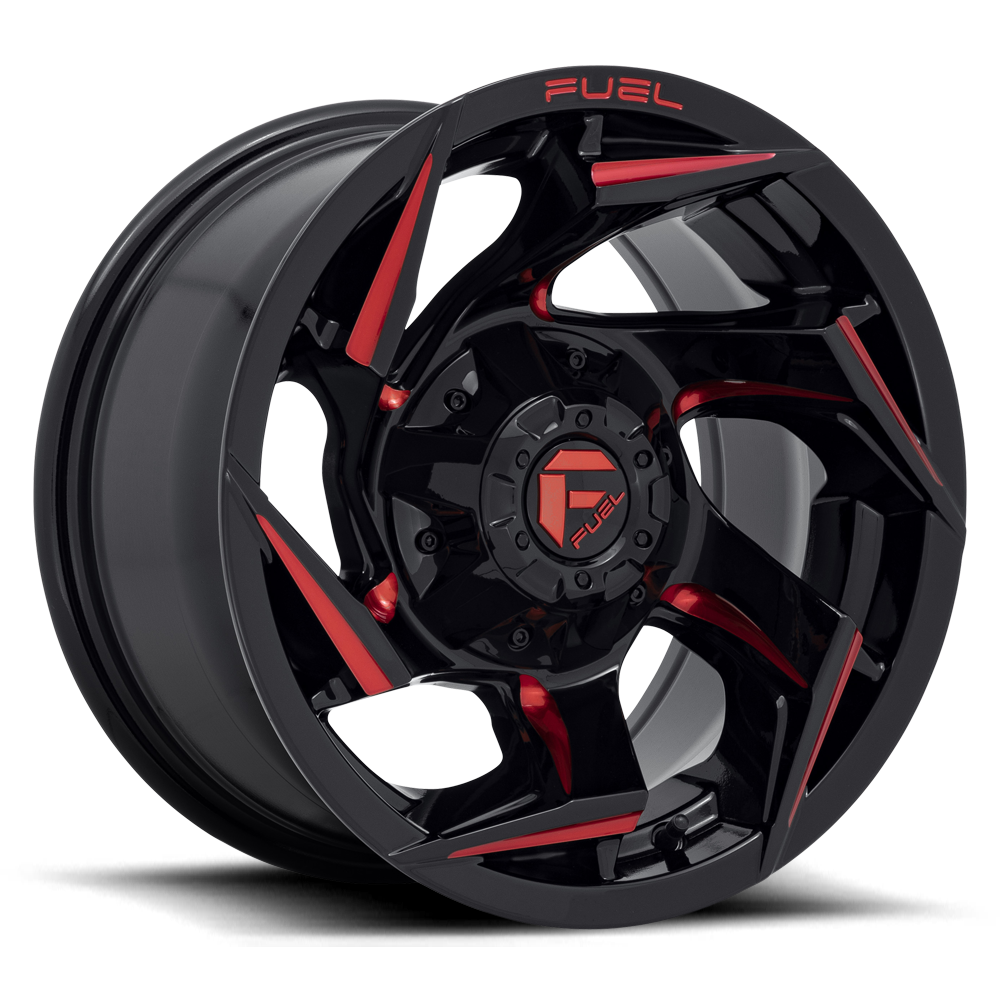

Fuel lists 15", 17", 18", 20", 22" and 24" sizes, with offsets from -44mm to +1mm. Patterns cover 5, 6 and 8-lug, from nimble Wranglers and Tacomas to F-150, F-250 and F-350 trucks and RAM and Chevy 2500s and 3500s. See more non-beadlock wheels. The red tinted finishes are what many buyers notice first. Because the family runs so many sizes, confirm your bolt pattern before choosing diameter.

Why it works

Twisted spoke faceA multi-spoke design that stands out.

Six diametersFrom 15" up to 24".

Light to heavy-duty5, 6 and 8-lug patterns.

Fitment

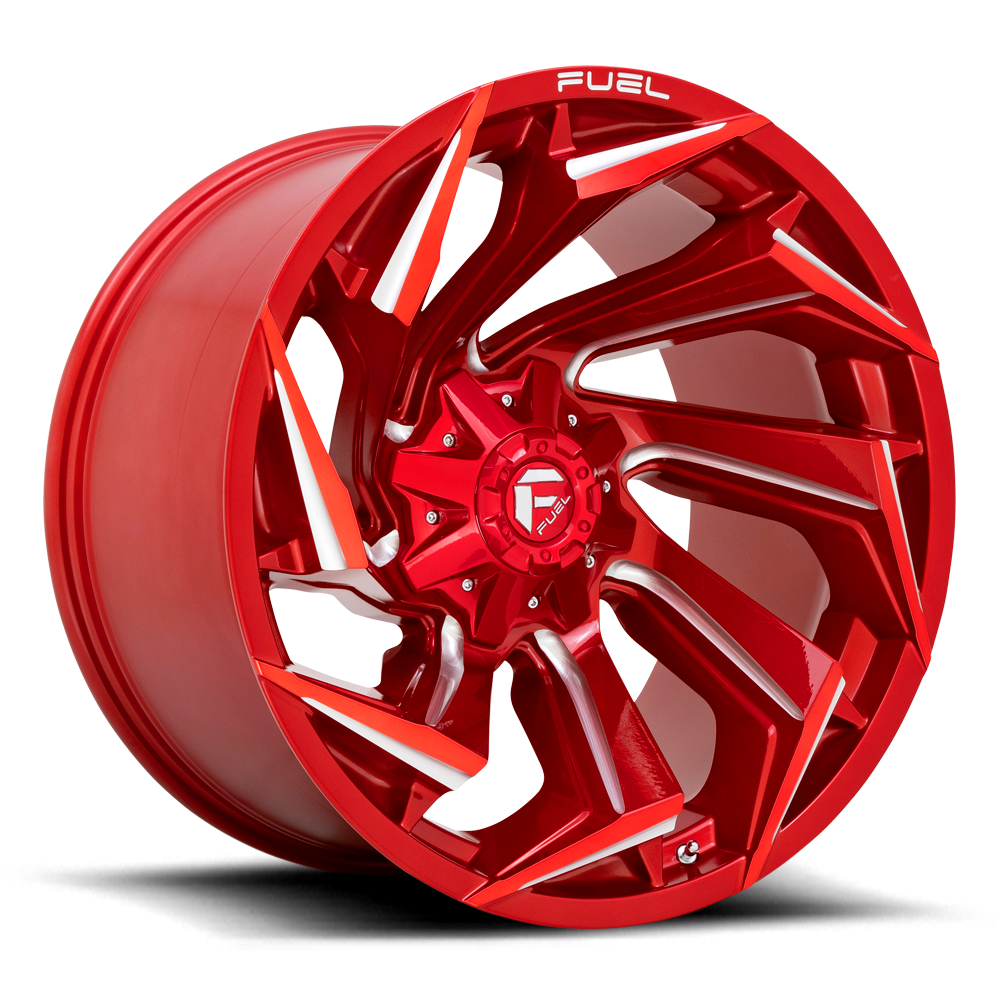

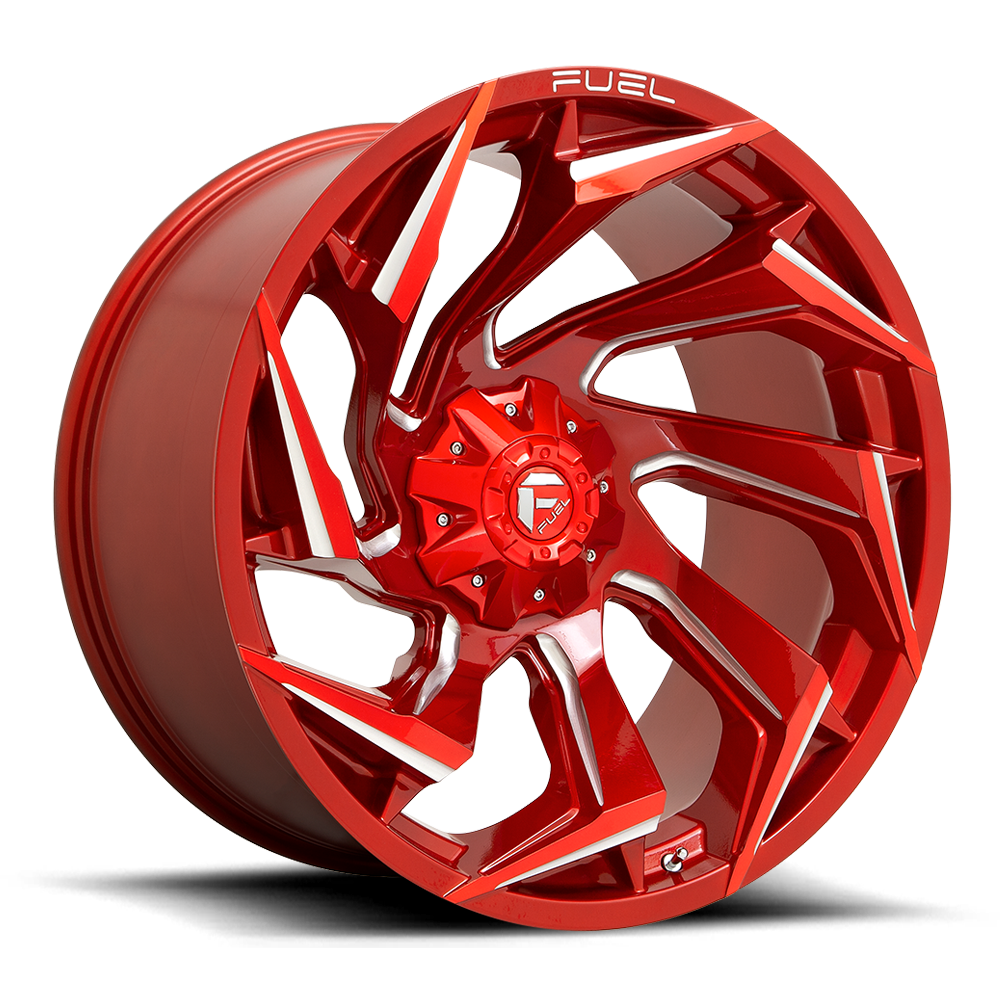

Sizes include 15x8 -18mm, 20x9 1mm, 20x9 8mm, 20x9 20mm, 20x10 -18mm, 22x10 -18mm, 22x12 -44mm and 24x12 -44mm. Finishes: Gloss Black Milled, Gloss Black Milled with Red Tint and Candy Red Milled. Fuel lists F-150, F-250 and F-350 trucks plus RAM and Chevy 2500s and 3500s.

Specifications

Part #	Finish	Size / Offset	Bolt Pattern	Backspace	Center Bore	Load Rating	Weight
D75315808337	Gloss Black Milled	15x8 -18mm	6x139.7	3.79"	108.00mm	1800 lbs	24.30 lbs
D75315800437	Gloss Black Milled	15x8 -18mm	5x114.3/5x120.65	3.79"	72.56mm	1800 lbs	24.30 lbs
D75515800437	Gloss Black Milled w/ Red Tint	15x8 -18mm	5x114.3/5x120.65	3.79"	72.56mm	1800 lbs	24.30 lbs
D75317902645	Gloss Black Milled	17x9 -12mm	5x114.3/5x127	4.53"	78.10mm	2500 lbs	39.90 lbs
D75517902645	Gloss Black Milled w/ Red Tint	17x9 -12mm	5x114.3/5x127	4.53"	78.10mm	2500 lbs	39.90 lbs
D75517909845	Gloss Black Milled w/ Red Tint	17x9 -12mm	6x135/6x139.7	4.53"	106.10mm	2500 lbs	39.90 lbs
D75317909850	Gloss Black Milled	17x9 1mm	6x135/6x139.7	5.04"	106.10mm	2500 lbs	39.90 lbs
D75517909850	Gloss Black Milled w/ Red Tint	17x9 1mm	6x135/6x139.7	5.04"	106.10mm	2500 lbs	39.90 lbs
D75517902650	Gloss Black Milled w/ Red Tint	17x9 1mm	5x114.3/5x127	5.04"	78.10mm	2500 lbs	39.90 lbs
D75318902645	Gloss Black Milled	18x9 -12mm	5x114.3/5x127	4.53"	78.10mm	2500 lbs	41.70 lbs
D75318909845	Gloss Black Milled	18x9 -12mm	6x135/6x139.7	4.53"	106.10mm	2500 lbs	41.70 lbs
D75518902645	Gloss Black Milled w/ Red Tint	18x9 -12mm	5x114.3/5x127	4.53"	78.10mm	2500 lbs	41.70 lbs
D75518909845	Gloss Black Milled w/ Red Tint	18x9 -12mm	6x135/6x139.7	4.53"	106.10mm	2500 lbs	41.70 lbs
D75318901750	Gloss Black Milled	18x9 1mm	8x170	5.04"	125.10mm	3700 lbs	41.70 lbs
D75318909850	Gloss Black Milled	18x9 1mm	6x135/6x139.7	5.04"	106.10mm	2500 lbs	41.70 lbs
D75318901850	Gloss Black Milled	18x9 1mm	8x180	5.04"	124.20mm	3700 lbs	41.70 lbs
D75518901850	Gloss Black Milled w/ Red Tint	18x9 1mm	8x180	5.04"	124.20mm	3700 lbs	41.70 lbs
D75518901750	Gloss Black Milled w/ Red Tint	18x9 1mm	8x170	5.04"	125.10mm	3700 lbs	41.70 lbs
D75518909850	Gloss Black Milled w/ Red Tint	18x9 1mm	6x135/6x139.7	5.04"	106.10mm	2500 lbs	41.70 lbs
D75320907050	Gloss Black Milled	20x9 1mm	5x139.7/5x150	5.04"	110.10mm	2500 lbs	44.00 lbs
D75320909850	Gloss Black Milled	20x9 1mm	6x135/6x139.7	5.04"	106.10mm	2500 lbs	44.00 lbs
D75320908250	Gloss Black Milled	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	44.00 lbs
D75320901750	Gloss Black Milled	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	44.00 lbs
D75320901850	Gloss Black Milled	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	44.00 lbs
D75520901750	Gloss Black Milled w/ Red Tint	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	44.00 lbs
D75520902650	Gloss Black Milled w/ Red Tint	20x9 1mm	5x114.3/5x127	5.04"	78.10mm	2500 lbs	44.00 lbs
D75520901850	Gloss Black Milled w/ Red Tint	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	44.00 lbs
D75520909850	Gloss Black Milled w/ Red Tint	20x9 1mm	6x135/6x139.7	5.04"	106.10mm	2500 lbs	44.00 lbs
D75520907050	Gloss Black Milled w/ Red Tint	20x9 1mm	5x139.7/5x150	5.04"	110.10mm	2500 lbs	44.00 lbs
D75320909452	Gloss Black Milled	20x9 8mm	6x120	5.31"	67.06mm	2500 lbs	45.60 lbs
D75520909452	Gloss Black Milled w/ Red Tint	20x9 8mm	6x120	5.31"	67.06mm	2500 lbs	45.60 lbs
D75320901757	Gloss Black Milled	20x9 20mm	8x170	5.79"	125.10mm	3700 lbs	44.10 lbs
D75320909857	Gloss Black Milled	20x9 20mm	6x135/6x139.7	5.79"	106.10mm	2500 lbs	45.60 lbs
D75320901857	Gloss Black Milled	20x9 20mm	8x180	5.79"	124.20mm	3700 lbs	44.10 lbs
D75520909857	Gloss Black Milled w/ Red Tint	20x9 20mm	6x135/6x139.7	5.79"	106.10mm	2500 lbs	45.60 lbs
D75520902657	Gloss Black Milled w/ Red Tint	20x9 20mm	5x114.3/5x127	5.79"	78.10mm	2500 lbs	45.60 lbs
D75520901857	Gloss Black Milled w/ Red Tint	20x9 20mm	8x180	5.79"	124.20mm	3700 lbs	44.10 lbs
D75320007047	Gloss Black Milled	20x10 -18mm	5x139.7/5x150	4.79"	110.10mm	2500 lbs	46.50 lbs
D75320008247	Gloss Black Milled	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	47.20 lbs
D75320001847	Gloss Black Milled	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	47.20 lbs
D75320009847	Gloss Black Milled	20x10 -18mm	6x135/6x139.7	4.79"	106.10mm	2500 lbs	46.50 lbs
D75320001747	Gloss Black Milled	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	47.20 lbs
D75520001747	Gloss Black Milled w/ Red Tint	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	47.20 lbs
D75520008247	Gloss Black Milled w/ Red Tint	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	47.20 lbs
D75520009847	Gloss Black Milled w/ Red Tint	20x10 -18mm	6x135/6x139.7	4.79"	106.10mm	2500 lbs	46.50 lbs
D75520001847	Gloss Black Milled w/ Red Tint	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	47.20 lbs
D75520002647	Gloss Black Milled w/ Red Tint	20x10 -18mm	5x114.3/5x127	4.79"	78.10mm	2500 lbs	46.50 lbs
D75520007047	Gloss Black Milled w/ Red Tint	20x10 -18mm	5x139.7/5x150	4.79"	110.10mm	2500 lbs	46.50 lbs
D75422001747	Candy Red Milled	22x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	51.40 lbs
D75322009847	Gloss Black Milled	22x10 -18mm	6x135/6x139.7	4.79"	106.10mm	2500 lbs	50.90 lbs
D75522009847	Gloss Black Milled w/ Red Tint	22x10 -18mm	6x135/6x139.7	4.79"	106.10mm	2500 lbs	50.90 lbs

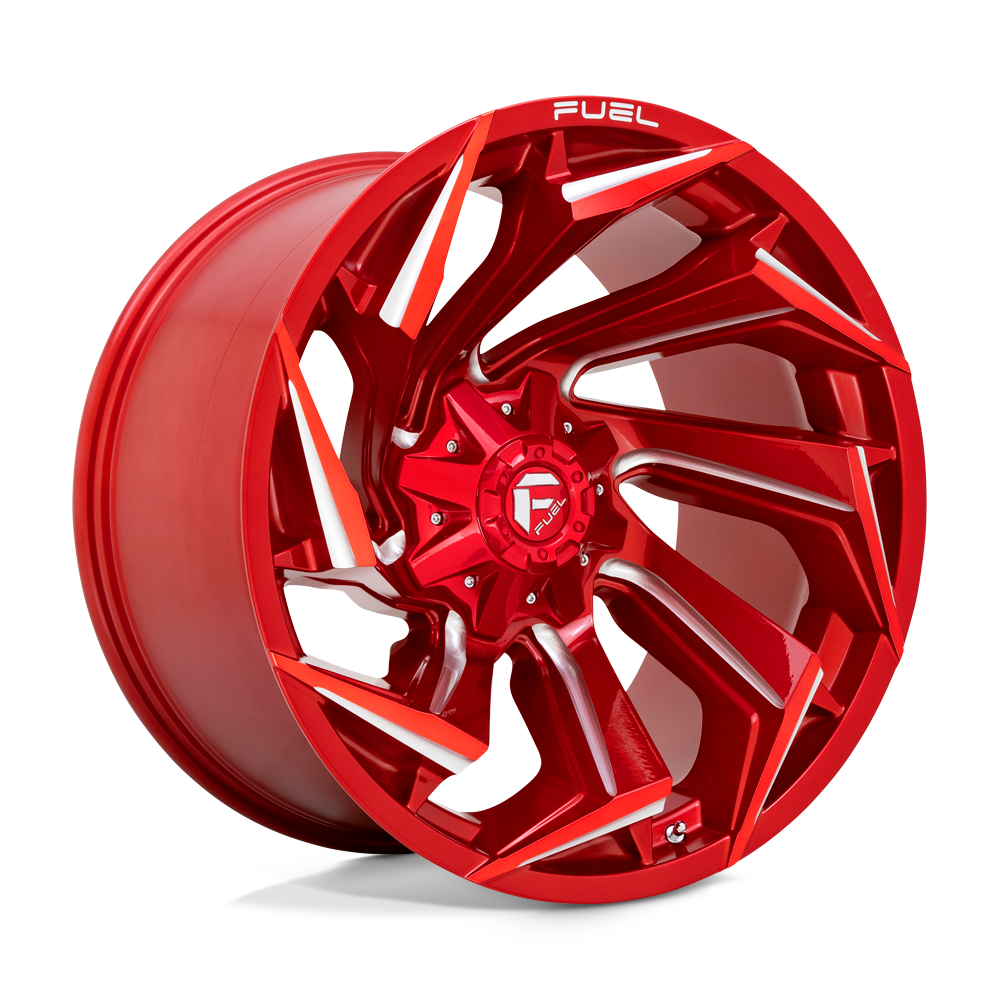

D75422208247	Candy Red Milled	22x12 -44mm	8x165.1	4.77"	125.10mm	3700 lbs	59.00 lbs
D75424208247	Candy Red Milled	24x12 -44mm	8x165.1	4.77"	125.10mm	3700 lbs	65.70 lbs
D75424201747	Candy Red Milled	24x12 -44mm	8x170	4.77"	125.10mm	3700 lbs	65.70 lbs

Finish the whole truck in one order

Complete your build

The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.

Fuel Reaction Wheel (this item) What you’re viewing $221.00

✓

ICON 2005-2023 Toyota Tacoma, Stage 3 RXT Suspension System $4,274.66

✓

ReadyLIFT 7/8" Wheel Spacers W/ Studs - GM 1500 $229.96

✓

Upper A Pillar Upper Overlays Finish $39.99

✓

C4 Fabrication Tundra Hybrid Front Bumper / Wide Fenders / 2nd Gen / 2007-2013 Finish $1,790.00

Build total (1 items)

$221.00

The complete look for your build.

Set any options above, then add them all in one click — one checkout, one shipment.

Specifications

Brand: Fuel Off-Road
Diameter: 15", 17", 18", 20", 22" and 24"
Sizes (diameter x width, offset): 15x8 -18mm, 17x9 -12mm, 17x9 1mm, 18x9 -12mm, 18x9 1mm, 20x9 1mm, 20x9 8mm, 20x9 20mm, 20x10 -18mm, 22x10 -18mm, 22x12 -44mm, 24x12 -44mm
Bolt patterns: 6x139.7, 5x114.3/5x120.65, 5x114.3/5x127, 6x135/6x139.7, 8x170, 8x180, 5x139.7/5x150, 8x165.1, 6x120
Finishes: Gloss Black Milled, Gloss Black Milled w/ Red Tint, Candy Red Milled
Backspace: 3.79" to 5.79"
Center bore: 67.06mm to 125.10mm
Load rating: 1800 lbs to 3700 lbs per wheel
Weight: 24.30 lbs to 65.70 lbs per wheel
Example fitment: Jeep Wrangler, Toyota Tacoma, Ford F-150/F-250/F-350, RAM and Chevy 2500/3500 (per Fuel)
