Fuel Injector Wheel
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Fuel Off-Road Warranty
At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish
This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Wheel structure | Lifetime (original retail purchaser) |
| PVD finishes (peeling/lifting) | 2 years |
| Chrome aluminum finish (peeling/lifting; pitting excluded) | 1 year |
| Painted aluminum finish (peeling/lifting) | 1 year |
| Steel wheel paint or plating | 90 days (surface rust/corrosion excluded) |
| Uncoated polished aluminum | Not covered |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use for as long as the original buyer owns the wheels
- Finish peeling or lifting within the finish's coverage period
- Approved wheels are repaired or replaced
What's not covered
- Wheels not installed per Fuel's installation guidelines
- Damage from poor maintenance or harsh cleaning chemicals
- Structural damage from accidents or road hazards
- Racing or improper vehicle use
- Use of unapproved accessories or adapters
- Removal, mounting, installation and shipping costs
How to make a Fuel Off-Road warranty claim
- Return the wheel with the original sales receipt to the retailer you bought it from
- The wheel is inspected; approved claims are repaired or replaced
- You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense
Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.
Shop Fuel Off-Road at NVMOS
See all Fuel Off-Road products, lead times and FAQs →
Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.
Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 309 Fuel Off-RoadWarrantyAll brands
Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

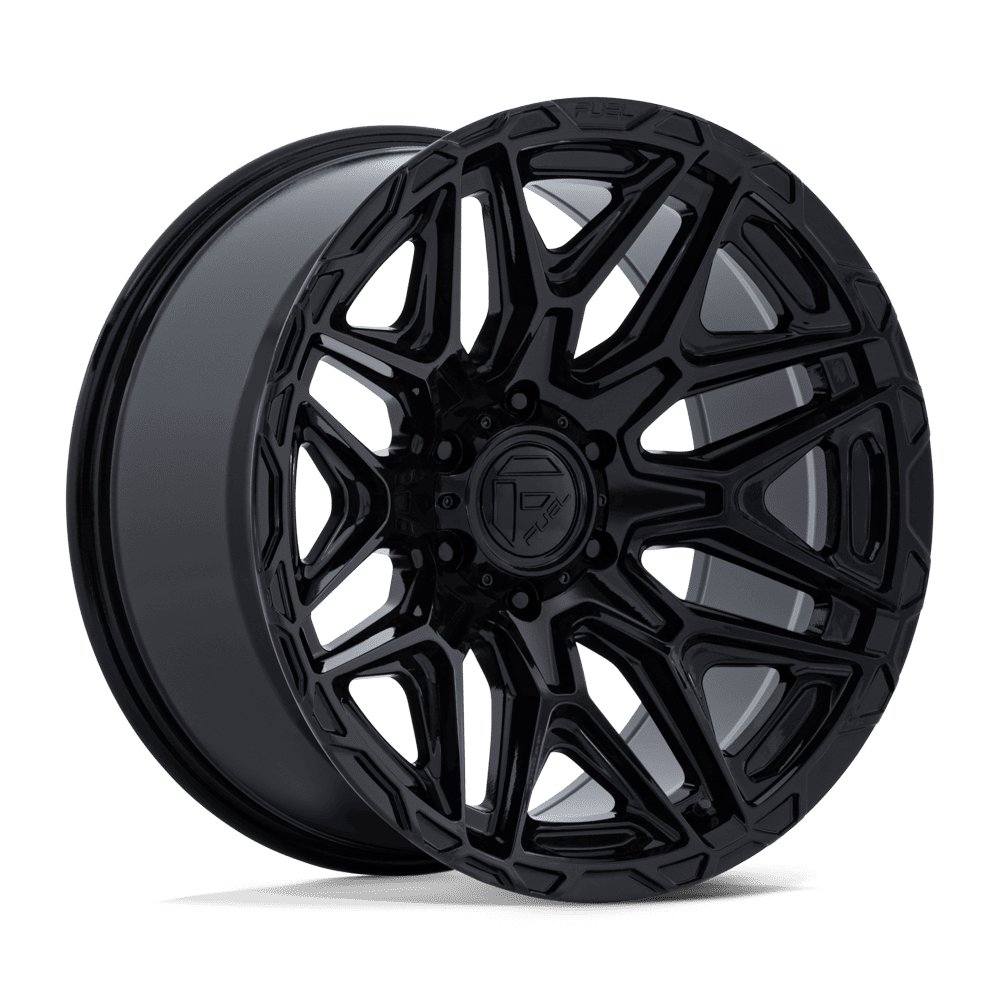

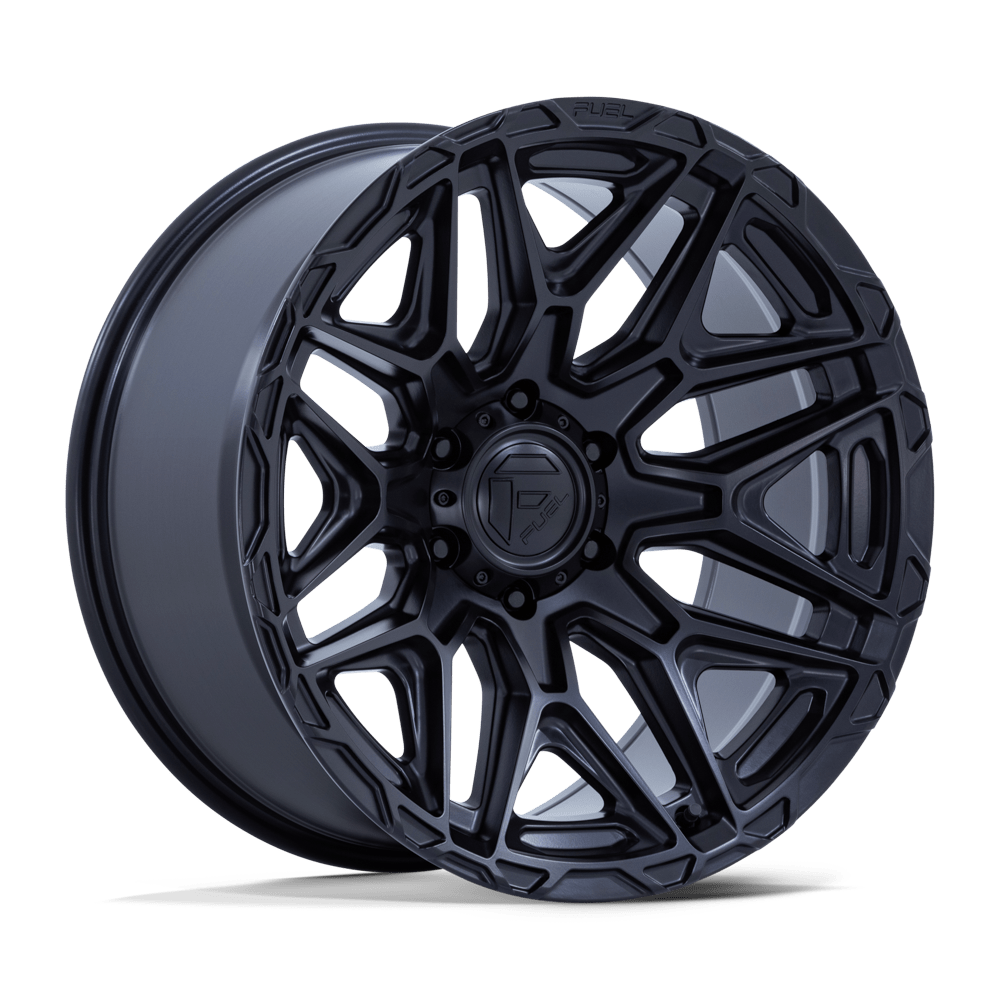

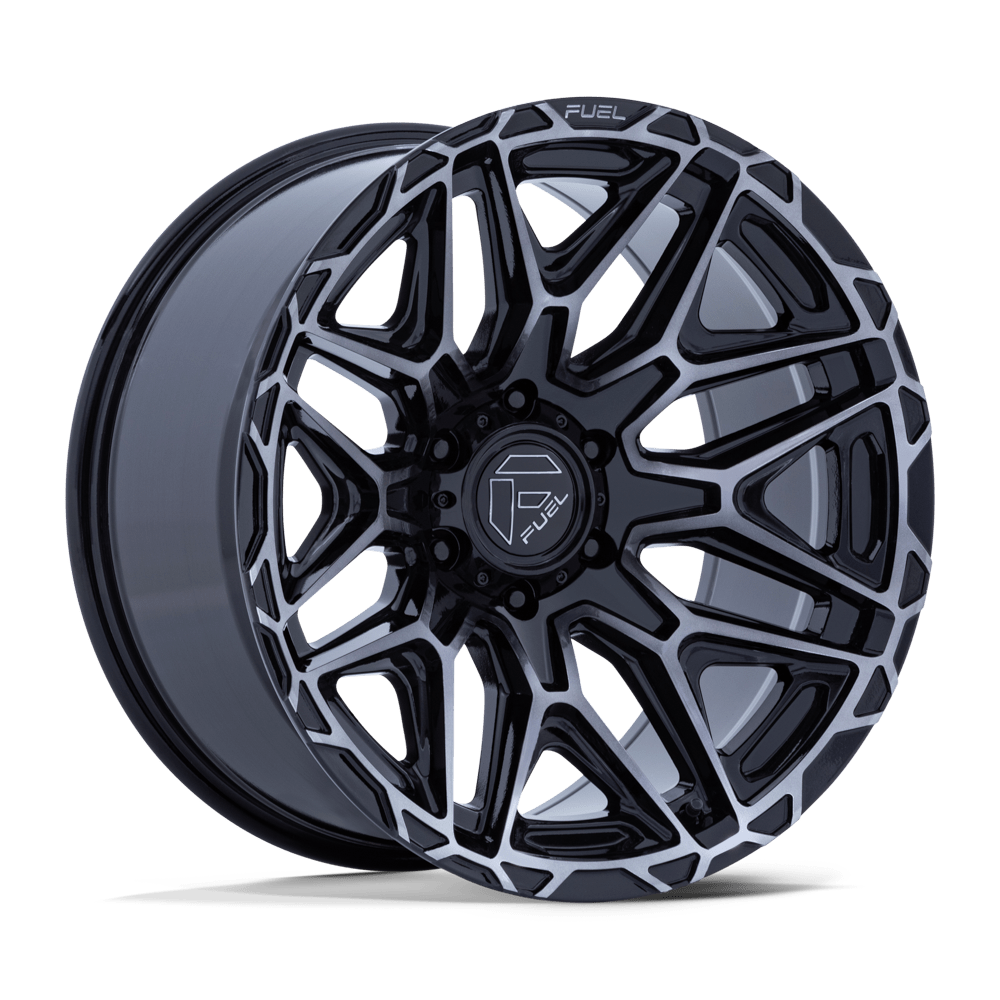

Fuel Injector (FC885) Wheel
The Fuel FC885 Injector is a deep-concave off-road wheel with a modern split-spoke face and a truss-inspired lip. It comes in 5, 6 and 8-lug patterns, so the same design covers light-duty trucks and heavy-duty rigs. Browse more Fuel off-road wheels to compare styles.
Cast monoblock construction keeps the Injector durable. Sizes run 20" and 22" with -18mm and +20mm offsets listed by Fuel. If you need to double-check lug count or width, see our full non-beadlock wheel selection. Pick your finish first, then match size and bolt pattern to your truck. Gloss Black Machined Face with DDT gives the Injector a two-tone face.
Universal fitment by bolt pattern: 5x127, 6x135, 6x139.7, 8x165.1, 8x170 and 8x180. Sizes include 20x10 -18mm, 20x9 20mm, 20x9 1mm and 22x9 1mm. Fuel lists Jeep Wrangler, Toyota Tacoma, Ford F-150, F-250, F-350, RAM 2500/3500 and Silverado/Sierra 2500/3500 as examples. Always match the lug count and width to your hub and fender clearance.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| FC885BX20906801 | Gloss Black | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 36.14 lbs |
| FC885BX20905001 | Gloss Black | 20x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 36.60 lbs |
| FC885BX20908701 | Gloss Black | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 41.14 lbs |
| FC885BX20906301 | Gloss Black | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 36.30 lbs |
| FC885BX20908801 | Gloss Black | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 41.58 lbs |
| FC885BX20908001 | Gloss Black | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 41.16 lbs |
| FC885BT20908001 | Gloss Black Machined Face w/ DDT | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 41.16 lbs |
| FC885BT20905001 | Gloss Black Machined Face w/ DDT | 20x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 36.60 lbs |
| FC885BT20906301 | Gloss Black Machined Face w/ DDT | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 36.30 lbs |
| FC885BT20908801 | Gloss Black Machined Face w/ DDT | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 41.58 lbs |
| FC885BT20908701 | Gloss Black Machined Face w/ DDT | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 41.14 lbs |
| FC885BT20906801 | Gloss Black Machined Face w/ DDT | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 36.14 lbs |
| FC885MX20906801 | Matte Black | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 36.14 lbs |
| FC885MX20908801 | Matte Black | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 41.58 lbs |
| FC885MX20908701 | Matte Black | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 41.14 lbs |
| FC885MX20905001 | Matte Black | 20x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 36.60 lbs |
| FC885MX20908001 | Matte Black | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 41.16 lbs |
| FC885MX20906301 | Matte Black | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 36.30 lbs |
| FC885BX20905020 | Gloss Black | 20x9 20mm | 5x127 | 5.79" | 71.50mm | 2650 lbs | 36.74 lbs |
| FC885BX20908720 | Gloss Black | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 41.91 lbs |
| FC885BX20906320 | Gloss Black | 20x9 20mm | 6x135 | 5.79" | 87.10mm | 2650 lbs | 36.52 lbs |
| FC885BX20908820 | Gloss Black | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 42.24 lbs |
| FC885BX20906820 | Gloss Black | 20x9 20mm | 6x139.7 | 5.79" | 106.10mm | 2650 lbs | 36.30 lbs |
| FC885BX20908020 | Gloss Black | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 41.91 lbs |
| FC885BT20906320 | Gloss Black Machined Face w/ DDT | 20x9 20mm | 6x135 | 5.79" | 87.10mm | 2650 lbs | 36.52 lbs |
| FC885BT20906820 | Gloss Black Machined Face w/ DDT | 20x9 20mm | 6x139.7 | 5.79" | 106.10mm | 2650 lbs | 36.30 lbs |
| FC885BT20908020 | Gloss Black Machined Face w/ DDT | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 41.91 lbs |
| FC885BT20908720 | Gloss Black Machined Face w/ DDT | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 41.91 lbs |
| FC885BT20908820 | Gloss Black Machined Face w/ DDT | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 42.24 lbs |
| FC885MX20908720 | Matte Black | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 41.91 lbs |
| FC885MX20908820 | Matte Black | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 42.24 lbs |
| FC885MX20906320 | Matte Black | 20x9 20mm | 6x135 | 5.79" | 87.10mm | 2650 lbs | 36.52 lbs |
| FC885MX20908020 | Matte Black | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 41.91 lbs |
| FC885MX20906820 | Matte Black | 20x9 20mm | 6x139.7 | 5.79" | 106.10mm | 2650 lbs | 36.30 lbs |
| FC885MX20905020 | Matte Black | 20x9 20mm | 5x127 | 5.79" | 71.50mm | 2650 lbs | 36.74 lbs |
| FC885BX20106818N | Gloss Black | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2650 lbs | 37.62 lbs |
| FC885BX20106318N | Gloss Black | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2650 lbs | 37.84 lbs |
| FC885BX20108718N | Gloss Black | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 41.80 lbs |
| FC885BX20105018N | Gloss Black | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2650 lbs | 38.14 lbs |
| FC885BT20106318N | Gloss Black Machined Face w/ DDT | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2650 lbs | 37.84 lbs |
| FC885BT20108018N | Gloss Black Machined Face w/ DDT | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 41.82 lbs |
| FC885BT20105018N | Gloss Black Machined Face w/ DDT | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2650 lbs | 38.14 lbs |
| FC885BT20108718N | Gloss Black Machined Face w/ DDT | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 41.80 lbs |
| FC885BT20106818N | Gloss Black Machined Face w/ DDT | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2650 lbs | 37.62 lbs |
| FC885MX20106318N | Matte Black | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2650 lbs | 37.84 lbs |
| FC885MX20106818N | Matte Black | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2650 lbs | 37.62 lbs |
| FC885MX20105018N | Matte Black | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2650 lbs | 38.14 lbs |
| FC885MX20108718N | Matte Black | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 41.80 lbs |
| FC885BX22908701 | Gloss Black | 22x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 46.20 lbs |
| FC885BX22908801 | Gloss Black | 22x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 46.42 lbs |
| FC885BX22906801 | Gloss Black | 22x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 39.60 lbs |
| FC885BX22908001 | Gloss Black | 22x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 46.13 lbs |
| FC885BX22906301 | Gloss Black | 22x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 39.82 lbs |
| FC885BT22906801 | Gloss Black Machined Face w/ DDT | 22x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 39.60 lbs |
| FC885BT22906301 | Gloss Black Machined Face w/ DDT | 22x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 39.82 lbs |
| FC885BT22908801 | Gloss Black Machined Face w/ DDT | 22x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 46.42 lbs |
| FC885BT22908001 | Gloss Black Machined Face w/ DDT | 22x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 46.13 lbs |
| FC885BT22908701 | Gloss Black Machined Face w/ DDT | 22x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 46.20 lbs |
| FC885MX22908801 | Matte Black | 22x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 46.42 lbs |
| FC885MX22906301 | Matte Black | 22x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 39.82 lbs |
| FC885MX22908001 | Matte Black | 22x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 46.13 lbs |
| FC885MX22906801 | Matte Black | 22x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 39.60 lbs |
| FC885MX22908701 | Matte Black | 22x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 46.20 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$460.00
$8,235.89
$249.95
$1,045.95
Fuel Injector Wheel FAQs
Which trucks does the Injector fit?
Fuel lists Jeep Wranglers, Toyota Tacomas, Ford F-150s, F-250s and F-350s, RAM 2500 and 3500, and Silverado and Sierra 2500 and 3500. Pick the bolt pattern that matches your truck.
What finishes can I choose?
Matte Black, Gloss Black and Gloss Black Machined Face with DDT.
Is the Injector a cast wheel?
Yes. It is a cast monoblock wheel.
Will it fit my vehicle?
Use the vehicle selector on the page or email support@nvmos.com with your year, trim and current setup and we’ll confirm fitment.
