SKU: FC854MX20906820

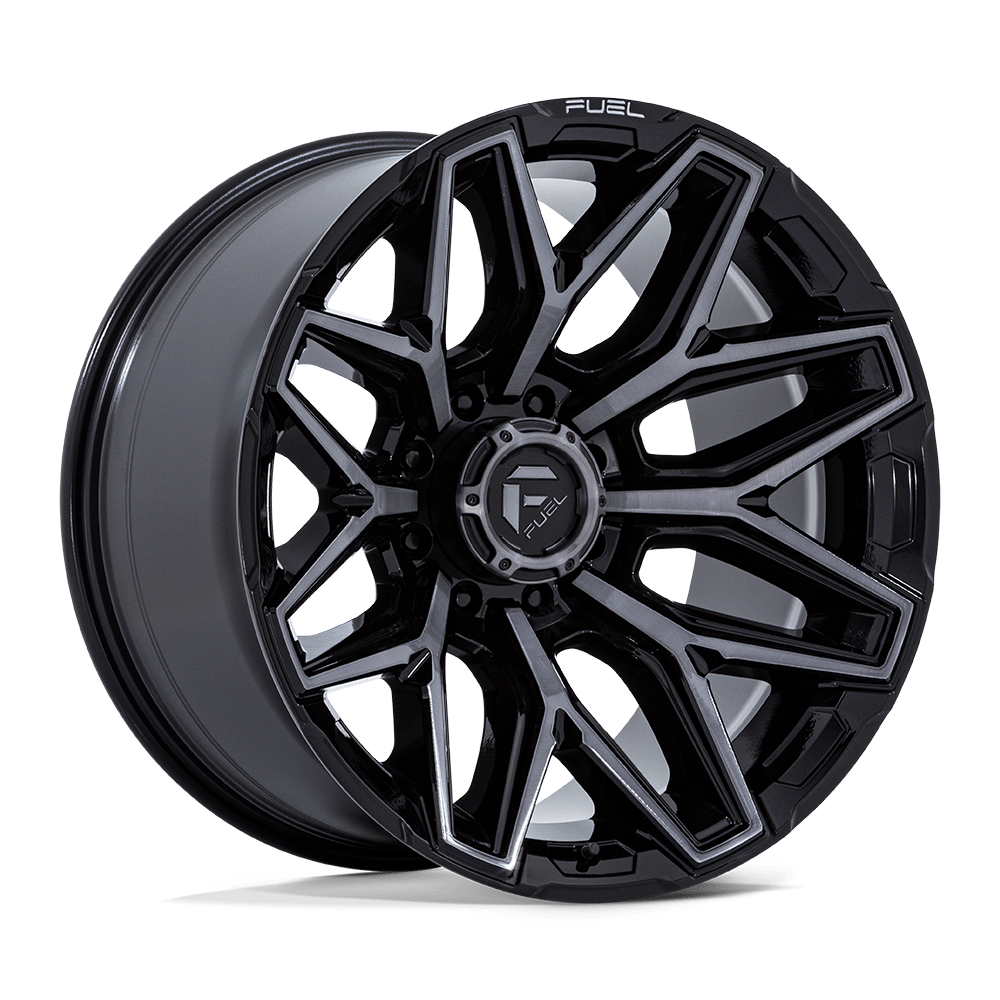

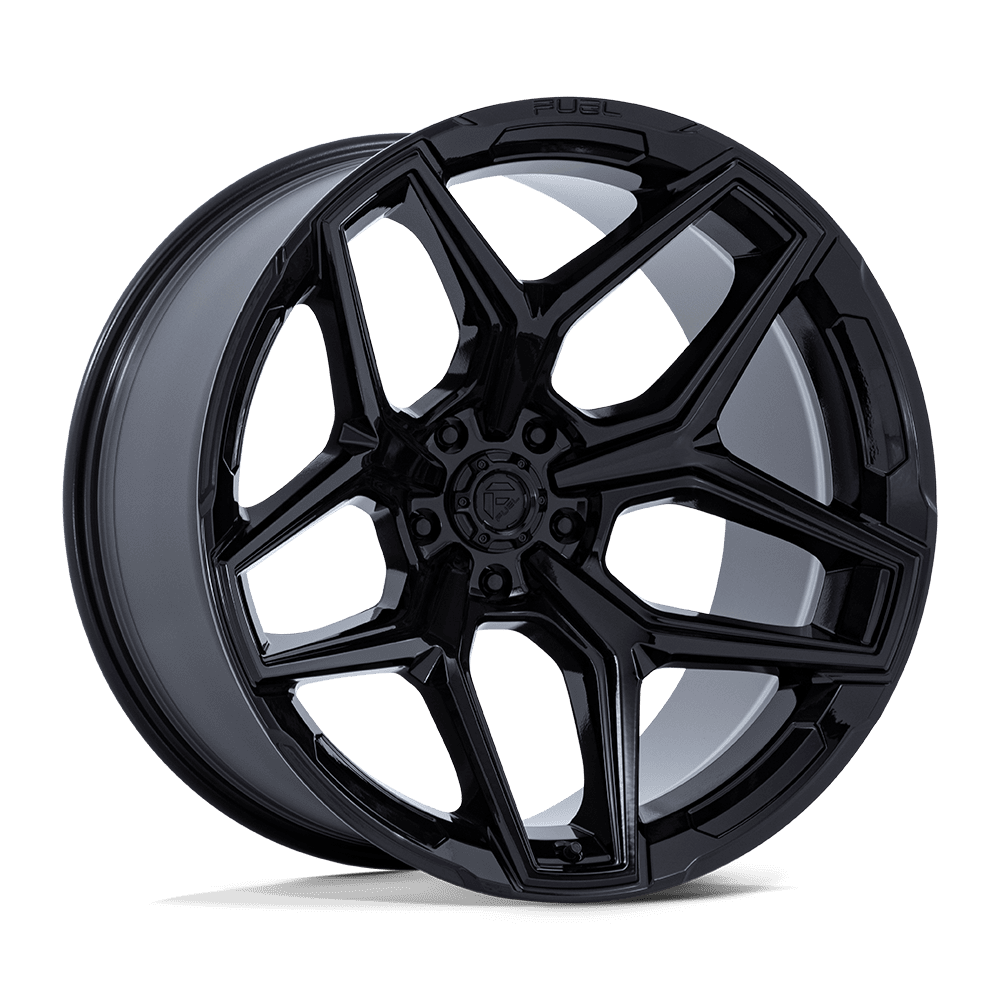

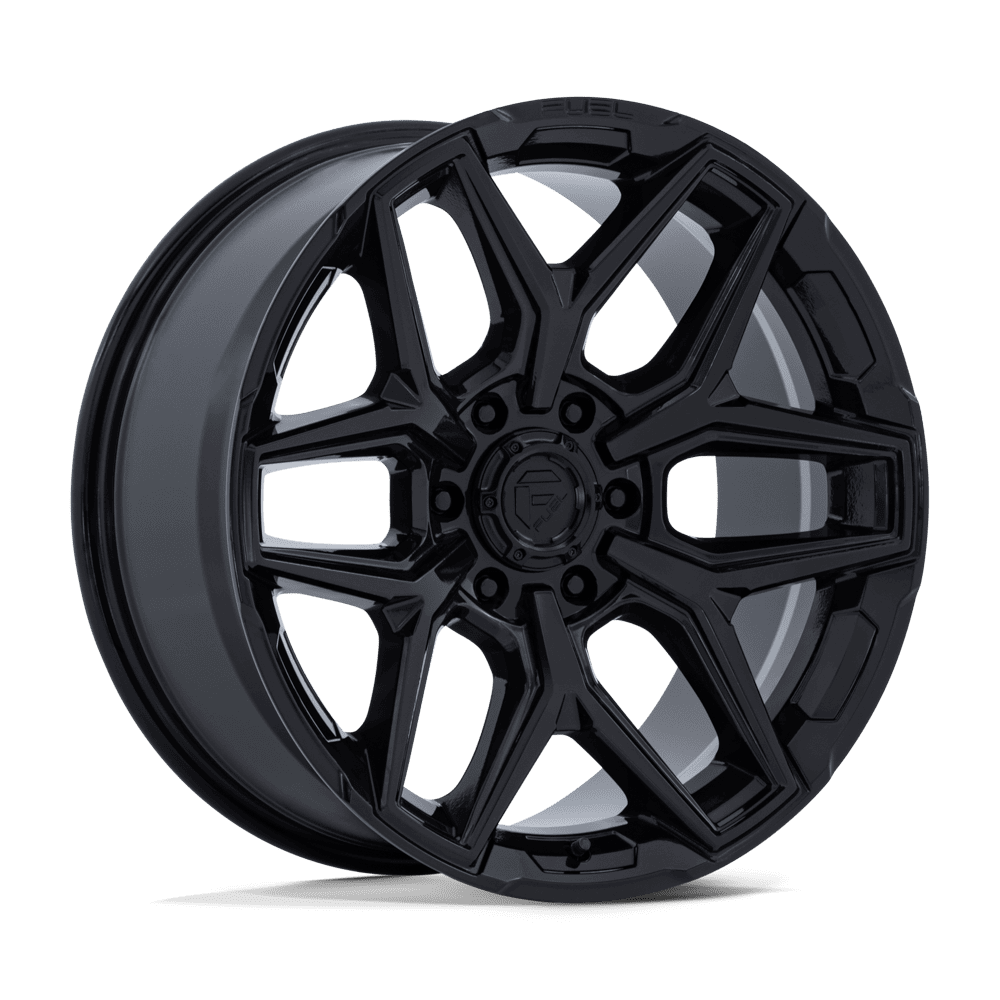

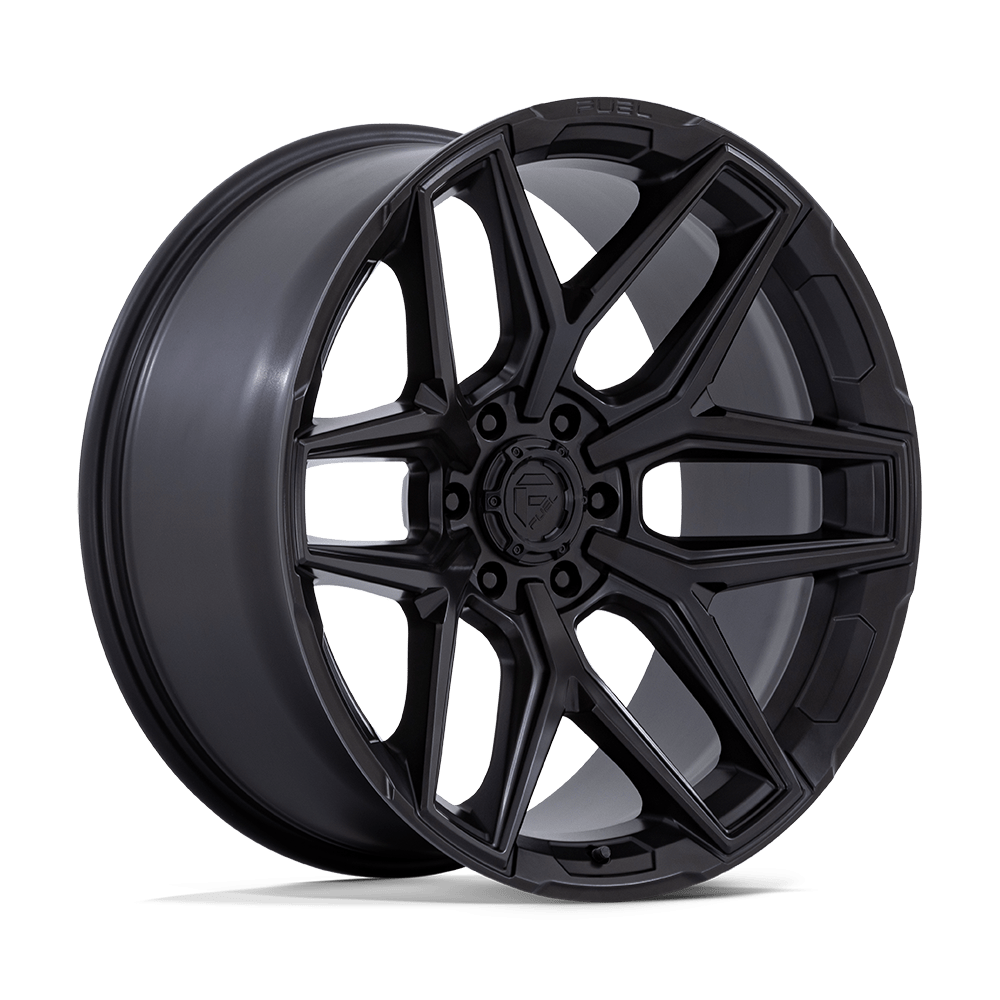

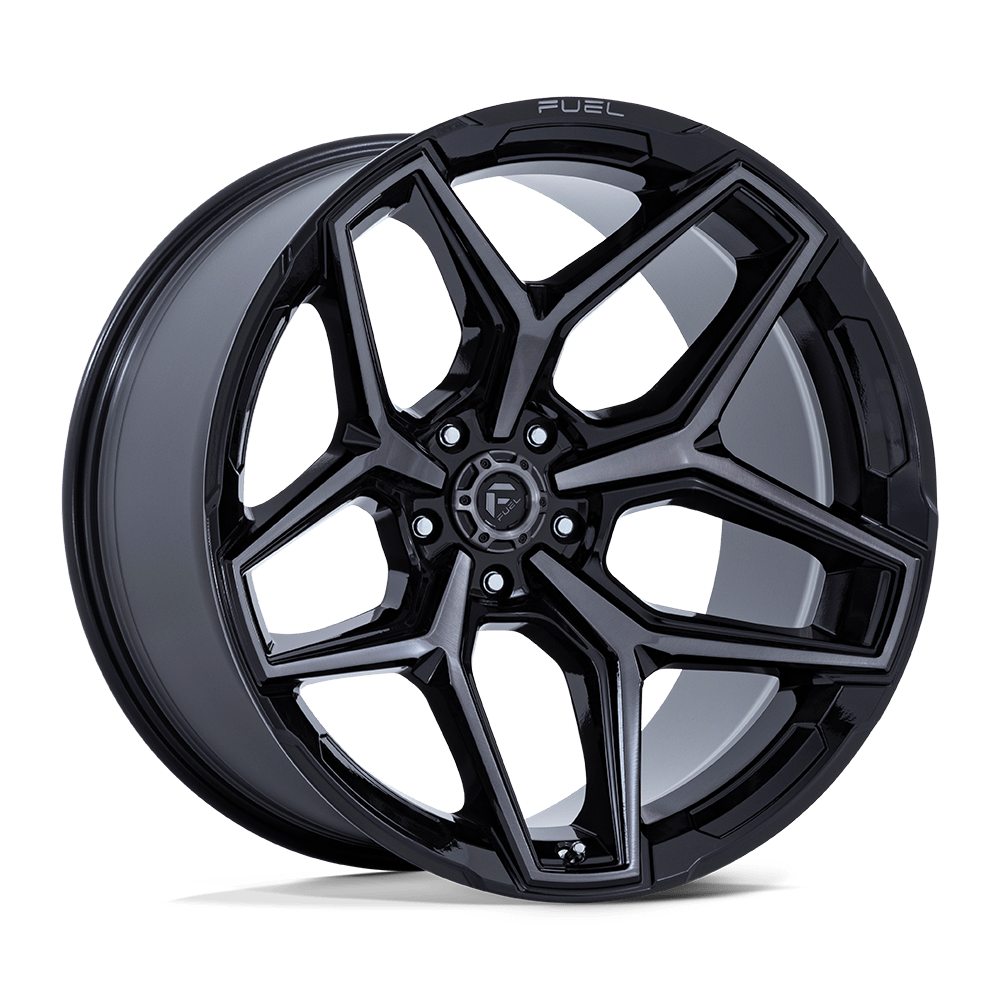

Fuel Flux Wheel - 20"

By Fuel Off-Road

$399.00

Finish: Blackout

Size

Bolt Pattern

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Warranty Information

Vendor warranty summary

Fuel Off-Road Warranty

At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish

Shop Fuel Off-Road Official Fuel Off-Road policy All warranty policies

This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Wheel structure	Lifetime (original retail purchaser)
PVD finishes (peeling/lifting)	2 years
Chrome aluminum finish (peeling/lifting; pitting excluded)	1 year
Painted aluminum finish (peeling/lifting)	1 year
Steel wheel paint or plating	90 days (surface rust/corrosion excluded)
Uncoated polished aluminum	Not covered

Original purchaser only — coverage does not transfer if you sell it.
Keep your NVMOS order confirmation — proof of purchase is required.

What's covered

Structural failure under normal, intended use for as long as the original buyer owns the wheels
Finish peeling or lifting within the finish's coverage period
Approved wheels are repaired or replaced

What's not covered

Wheels not installed per Fuel's installation guidelines
Damage from poor maintenance or harsh cleaning chemicals
Structural damage from accidents or road hazards
Racing or improper vehicle use
Use of unapproved accessories or adapters
Removal, mounting, installation and shipping costs

How to make a Fuel Off-Road warranty claim

Return the wheel with the original sales receipt to the retailer you bought it from
The wheel is inspected; approved claims are repaired or replaced
You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense

Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.

Shop Fuel Off-Road at NVMOS

Fuel Catalyst Wheel - 17"

Fuel Rebar Wheel - 22"

Fuel Cleaver Dually Wheel

See all Fuel Off-Road products, lead times and FAQs →

Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Fuel Off-Road

Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.

Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Fuel Off-Road warranty: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish. Read the full summary

Shop all 293 Fuel Off-Road Warranty All brands

Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

Fuel Flux Wheel, 20"

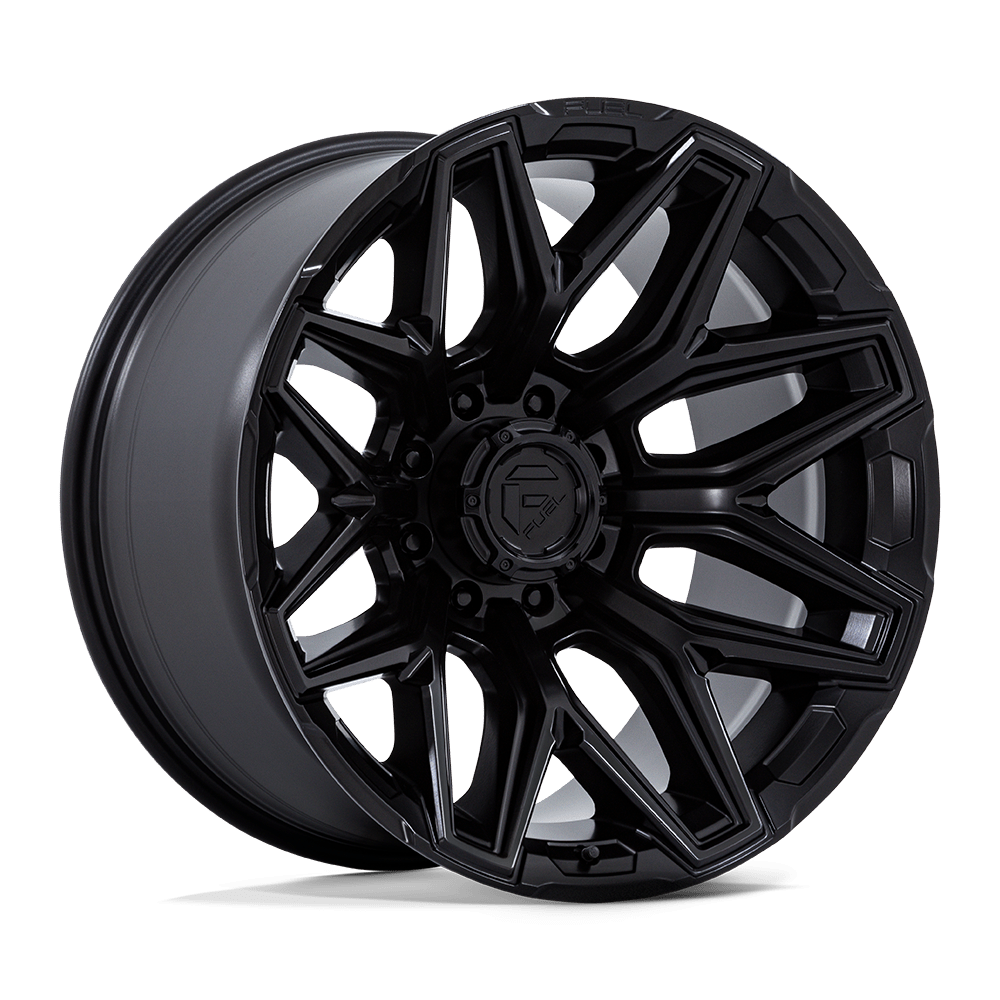

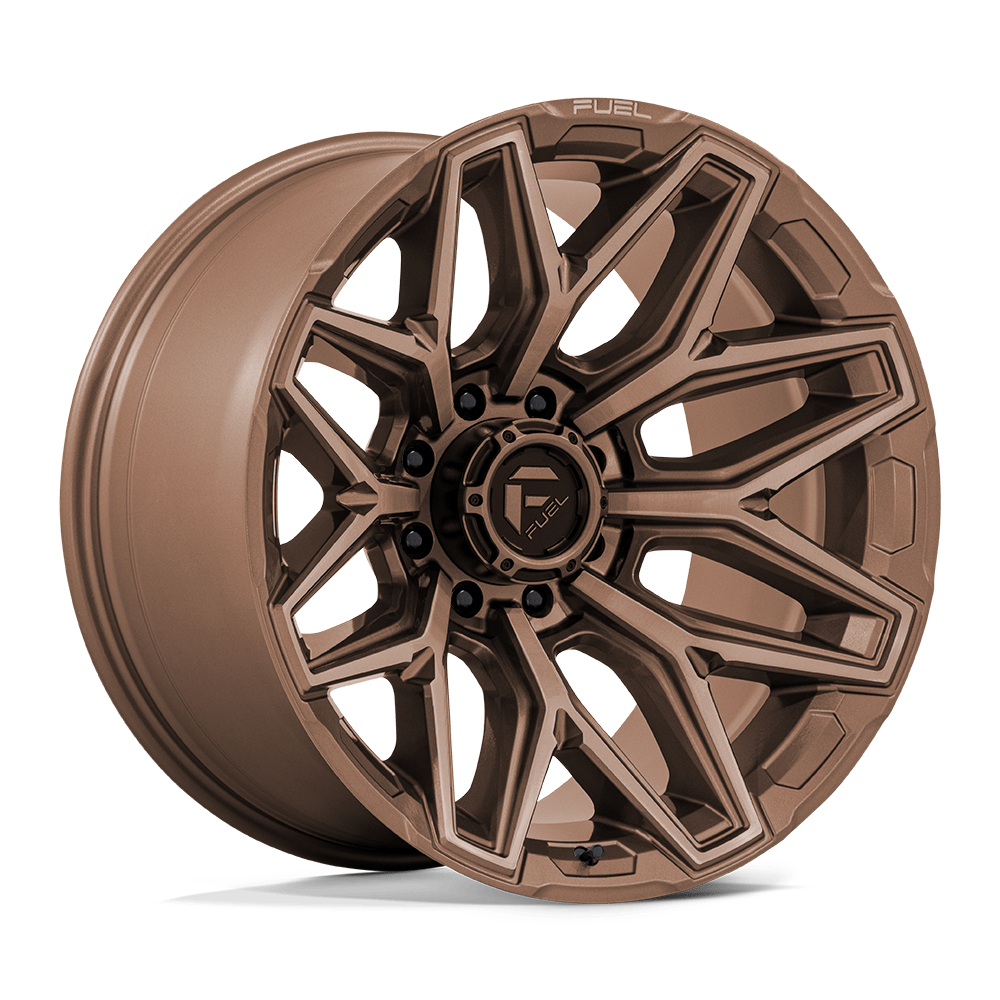

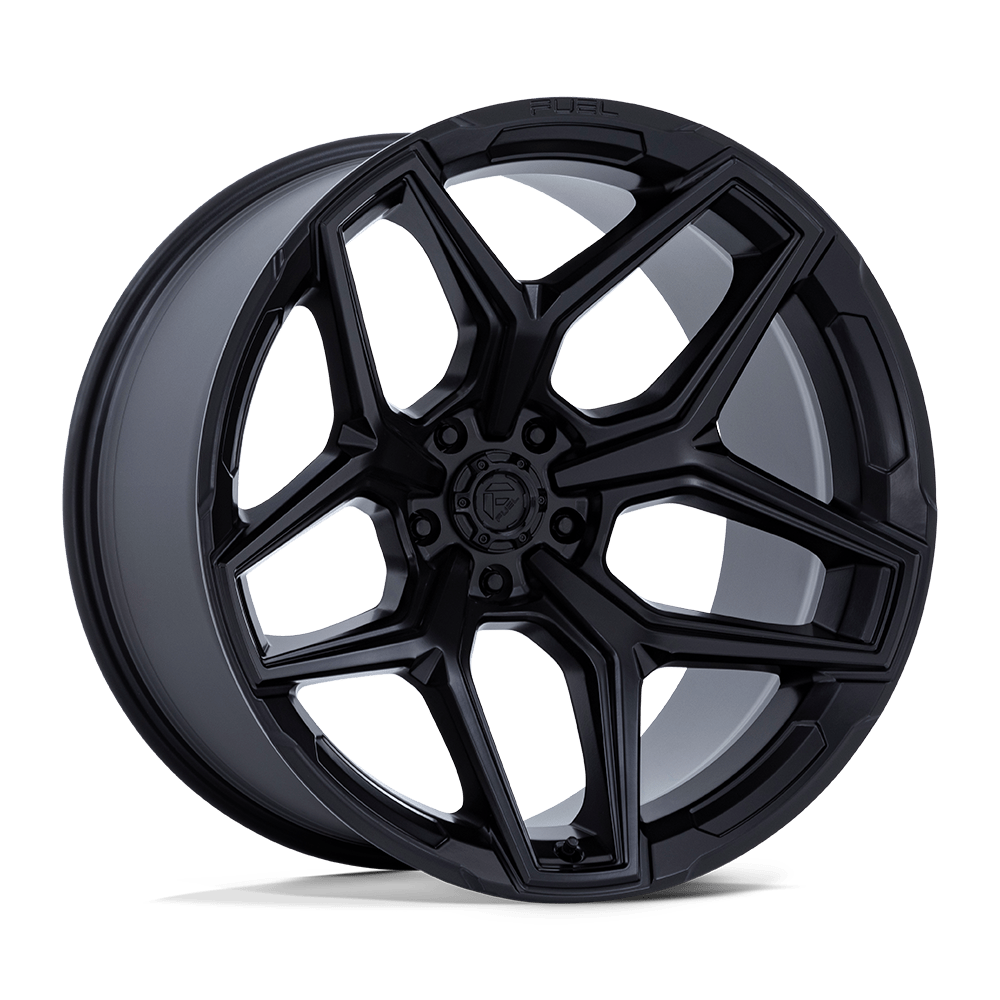

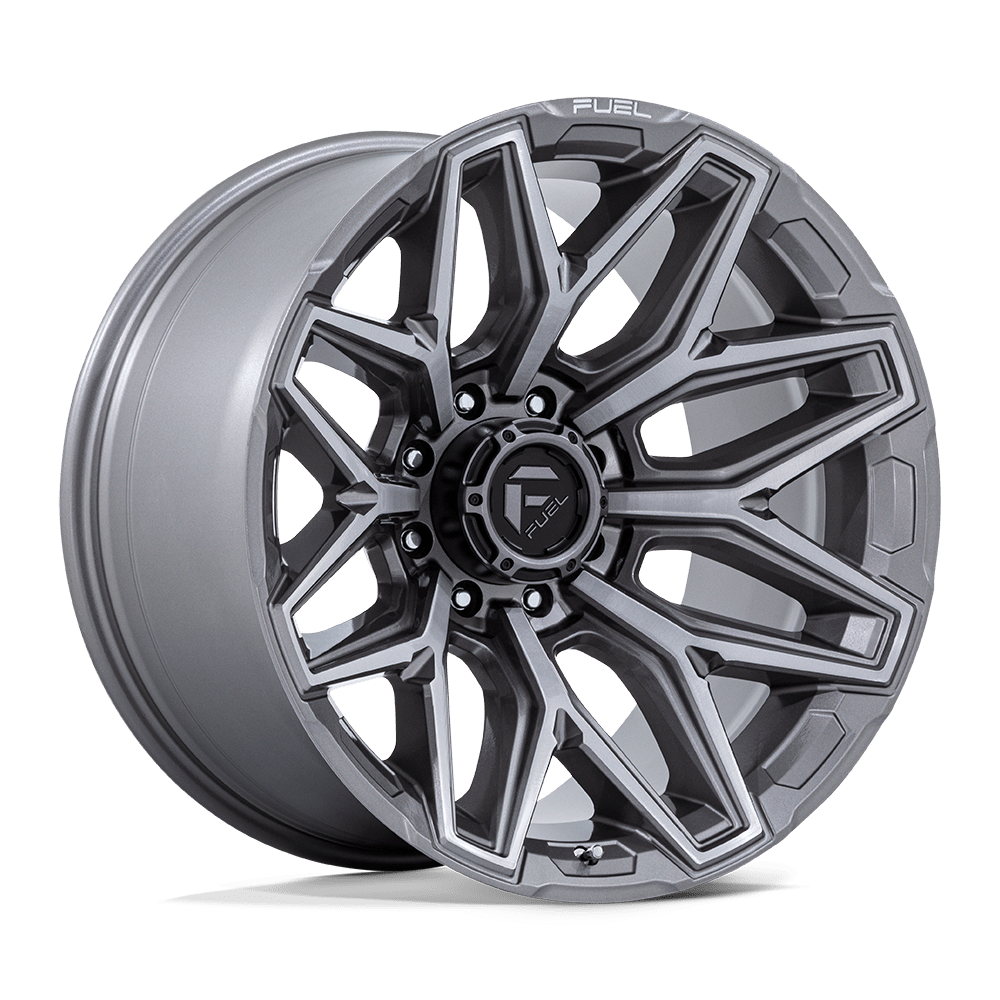

The 20-inch Fuel Flux has a split-spoke, concave design with angular accents. It comes in five finishes. Browse off-road wheels.

This listing has 20x9 20mm, 20x10 -18mm and 20x9 1mm, with eight bolt patterns across 5, 6 and 8-lug. Fuel lists Wranglers, Tacomas, F-150s and the Silverado 2500 and RAM 2500. See non-beadlock wheels. Confirm your bolt pattern before ordering. This 20-inch listing has eight options.

Why it works

Eight bolt patternsCovers 5, 6 and 8-lug.

Three sizes20x9 20mm, 20x10 -18mm and 20x9 1mm.

Five finishesBlackout, Platinum Bronze and more.

Fitment

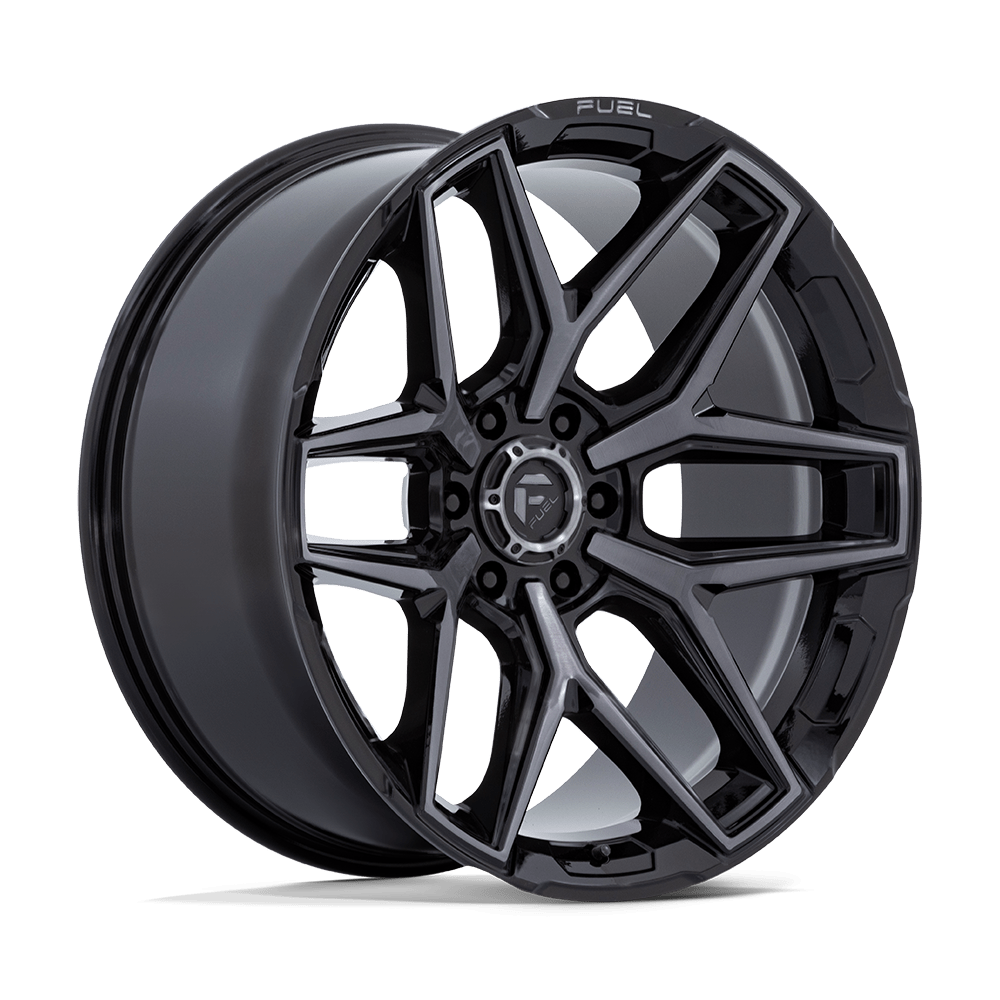

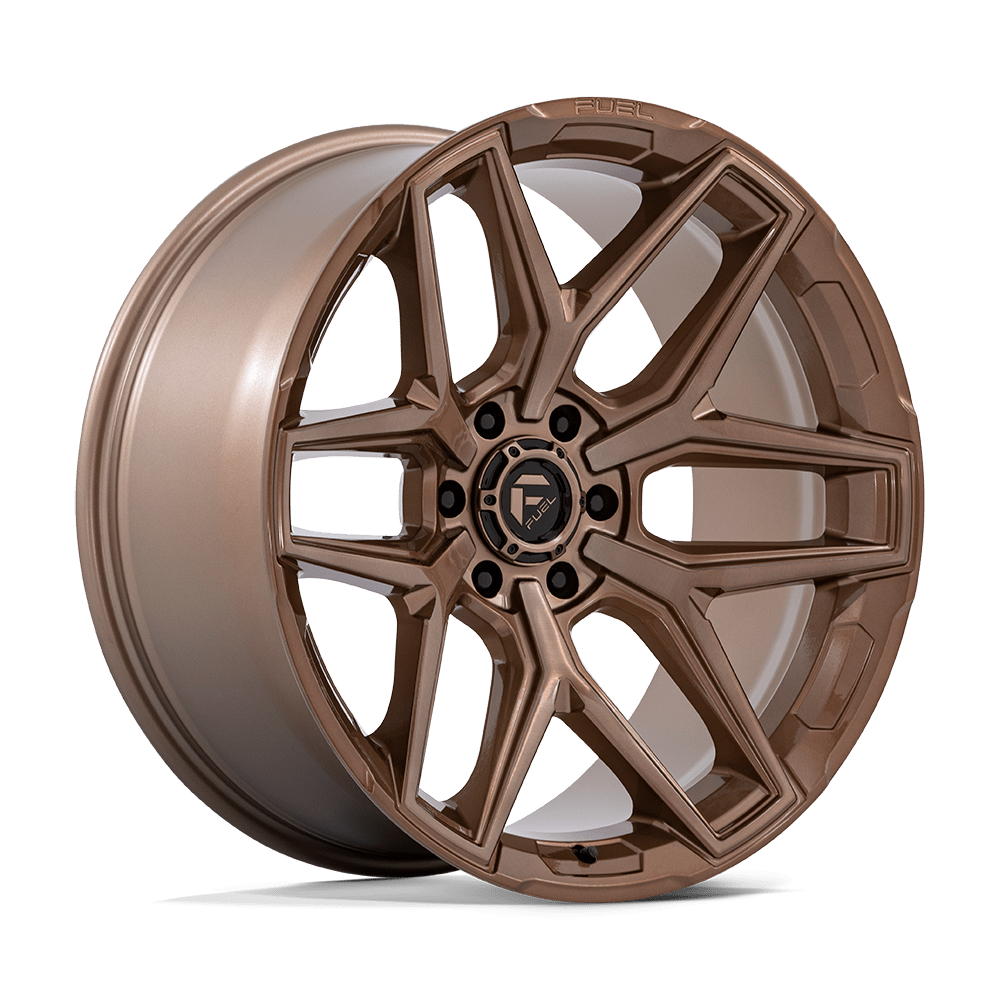

Finishes: Blackout, Gloss Black Brushed Face Gray DDDT, Platinum Bronze, Platinum, Gloss Black. Sizes (diameter x width, offset): 20x9 20mm, 20x10 -18mm, 20x9 1mm. Bolt patterns: 6x139.7, 6x135, 6x120, 6x114.3, 5x127, 8x170, 8x165.1, 8x180.

Specifications

Part #	Finish	Size / Offset	Bolt Pattern	Backspace	Center Bore	Load Rating	Weight
FC854MX20906301	Blackout	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	38.30 lbs
FC854MX20906801	Blackout	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	37.86 lbs
FC854MX20908001	Blackout	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854MX20908701	Blackout	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854MX20908801	Blackout	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	46.00 lbs
FC854BX20906301	Gloss Black	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	38.30 lbs
FC854BX20906801	Gloss Black	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	37.86 lbs
FC854BX20908001	Gloss Black	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854BX20908701	Gloss Black	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854BX20908801	Gloss Black	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	46.00 lbs
FC854BT20906301	Gloss Black Brushed Face Gray DDDT	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	38.30 lbs
FC854BT20906801	Gloss Black Brushed Face Gray DDDT	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	37.86 lbs
FC854BT20908701	Gloss Black Brushed Face Gray DDDT	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854BT20908801	Gloss Black Brushed Face Gray DDDT	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	46.00 lbs
FC854BT20908001	Gloss Black Brushed Face Gray DDDT	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854AX20906301	Platinum	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	38.30 lbs
FC854AX20906801	Platinum	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	37.86 lbs
FC854AX20908001	Platinum	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854AX20908801	Platinum	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	46.00 lbs
FC854AX20908701	Platinum	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854ZR20906801	Platinum Bronze	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	37.86 lbs
FC854ZR20908701	Platinum Bronze	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	45.78 lbs
FC854ZR20908801	Platinum Bronze	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	46.00 lbs
FC854MX20906820	Blackout	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	37.82 lbs
FC854MX20906320	Blackout	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	38.26 lbs
FC854MX20907720	Blackout	20x9 20mm	6x120	5.79"	66.90mm	2500 lbs	38.70 lbs
FC854MX20906420	Blackout	20x9 20mm	6x114.3	5.79"	66.06mm	2500 lbs	38.70 lbs
FC854BX20906320	Gloss Black	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	38.26 lbs
FC854BX20906820	Gloss Black	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	37.82 lbs
FC854BT20906820	Gloss Black Brushed Face Gray DDDT	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	37.82 lbs
FC854BT20906320	Gloss Black Brushed Face Gray DDDT	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	38.26 lbs
FC854BT20906420	Gloss Black Brushed Face Gray DDDT	20x9 20mm	6x114.3	5.79"	66.06mm	2500 lbs	38.70 lbs
FC854AX20906820	Platinum	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	37.82 lbs
FC854AX20906320	Platinum	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	38.26 lbs
FC854AX20906420	Platinum	20x9 20mm	6x114.3	5.79"	66.06mm	2500 lbs	38.70 lbs
FC854ZR20906320	Platinum Bronze	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	38.26 lbs
FC854ZR20906820	Platinum Bronze	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	37.82 lbs
FC854ZR20907720	Platinum Bronze	20x9 20mm	6x120	5.79"	66.90mm	2500 lbs	38.70 lbs
FC854ZR20906420	Platinum Bronze	20x9 20mm	6x114.3	5.79"	66.06mm	2500 lbs	38.70 lbs
FC854MX20106818N	Blackout	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	37.16 lbs
FC854MX20106318N	Blackout	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	37.60 lbs
FC854MX20105018N	Blackout	20x10 -18mm	5x127	4.79"	71.50mm	2500 lbs	38.80 lbs
FC854MX20108818N	Blackout	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	46.90 lbs
FC854MX20108018N	Blackout	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	46.68 lbs
FC854MX20108718N	Blackout	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	46.68 lbs
FC854BX20106818N	Gloss Black	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	37.16 lbs
FC854BX20106318N	Gloss Black	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	37.60 lbs
FC854BX20105018N	Gloss Black	20x10 -18mm	5x127	4.79"	71.50mm	2500 lbs	38.80 lbs
FC854BX20108818N	Gloss Black	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	46.90 lbs
FC854BX20108718N	Gloss Black	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	46.68 lbs
FC854BX20108018N	Gloss Black	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	46.68 lbs
FC854BT20106818N	Gloss Black Brushed Face Gray DDDT	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	37.16 lbs
FC854BT20106318N	Gloss Black Brushed Face Gray DDDT	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	37.60 lbs
FC854BT20105018N	Gloss Black Brushed Face Gray DDDT	20x10 -18mm	5x127	4.79"	71.50mm	2500 lbs	38.80 lbs
FC854BT20108018N	Gloss Black Brushed Face Gray DDDT	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	46.68 lbs
FC854BT20108718N	Gloss Black Brushed Face Gray DDDT	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	46.68 lbs
FC854BT20108818N	Gloss Black Brushed Face Gray DDDT	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	46.90 lbs
FC854AX20106818N	Platinum	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	37.16 lbs
FC854AX20106318N	Platinum	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	37.60 lbs
FC854AX20108718N	Platinum	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	46.68 lbs
FC854AX20108818N	Platinum	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	46.90 lbs
FC854ZR20106318N	Platinum Bronze	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	37.60 lbs
FC854ZR20108018N	Platinum Bronze	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	46.68 lbs
FC854ZR20108718N	Platinum Bronze	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	46.68 lbs

Finish the whole truck in one order

Complete your build

The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.

Fuel Flux Wheel - 20" (this item) What you’re viewing $399.00

✓

ICON 2023-2026 GMC Canyon AT4, Denali, & Elevation/Chevrolet Colorado Trail Boss, 1.75-2.5" Lift, Stage 1 Suspension System $2,117.55

✓

ReadyLIFT 7/8" Wheel Spacers W/ Studs - GM 1500 $229.96

✓

Chevy Colorado/GMC Canyon Prinsu Pro Top Rack | 2015-2024 Finish $1,020.00

✓

Morimoto Ford (11-16) F-350 Super Duty XB LED Fog Lights $269.00

Build total (1 items)

$399.00

The complete look for your build.

Set any options above, then add them all in one click — one checkout, one shipment.

Specifications

Brand: Fuel Off-Road
Model: FC854
Diameter: 20"
Sizes (diameter x width, offset): 20x9 1mm, 20x9 20mm, 20x10 -18mm
Bolt patterns: 6x139.7, 6x135, 6x120, 6x114.3, 5x127, 8x170, 8x165.1, 8x180
Finishes: Blackout, Gloss Black, Gloss Black Brushed Face Gray DDDT, Platinum, Platinum Bronze
Backspace: 4.79" to 5.79"
Load rating: 2500 lbs to 3700 lbs per wheel
Weight: 37.16 lbs to 46.90 lbs per wheel
Example fitment: Jeep Wrangler, Toyota Tacoma, Ford F-150, Silverado 2500, RAM 2500 (per Fuel)
