Fuel Flame Wheel - 22"
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Fuel Off-Road Warranty
At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish
This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Wheel structure | Lifetime (original retail purchaser) |
| PVD finishes (peeling/lifting) | 2 years |
| Chrome aluminum finish (peeling/lifting; pitting excluded) | 1 year |
| Painted aluminum finish (peeling/lifting) | 1 year |
| Steel wheel paint or plating | 90 days (surface rust/corrosion excluded) |
| Uncoated polished aluminum | Not covered |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use for as long as the original buyer owns the wheels
- Finish peeling or lifting within the finish's coverage period
- Approved wheels are repaired or replaced
What's not covered
- Wheels not installed per Fuel's installation guidelines
- Damage from poor maintenance or harsh cleaning chemicals
- Structural damage from accidents or road hazards
- Racing or improper vehicle use
- Use of unapproved accessories or adapters
- Removal, mounting, installation and shipping costs
How to make a Fuel Off-Road warranty claim
- Return the wheel with the original sales receipt to the retailer you bought it from
- The wheel is inspected; approved claims are repaired or replaced
- You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense
Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.
Shop Fuel Off-Road at NVMOS
See all Fuel Off-Road products, lead times and FAQs →
Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.
Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 293 Fuel Off-RoadWarrantyAll brands
Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

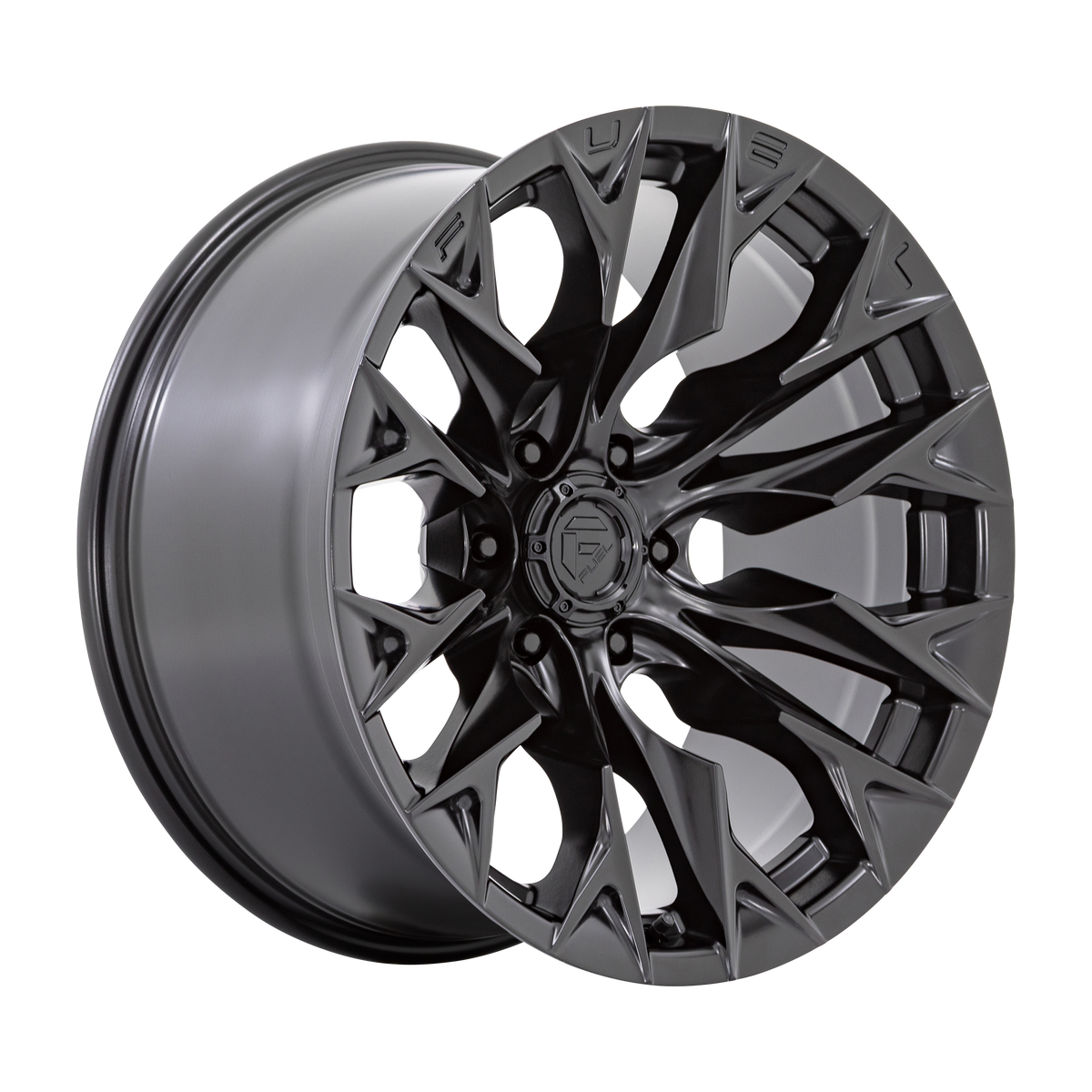

Fuel Flame Wheel, 22"
The 22-inch Fuel Flame is a one-piece monoblock with a fiery asymmetrical spoke design. Tapered edges and milled accents give it a dynamic look. See more off-road wheels.
Sizes are 22x10 -18mm and 22x12 -44mm, with 6x139.7, 5x127 and 6x135 bolt patterns. Fuel lists the F-150, Silverado 1500, Tacoma and HD trucks for the Flame. Compare non-beadlock wheels. Check the width and offset against your tire size and fender clearance before ordering.
Finishes: Gloss Black Milled, Gloss Black Milled w/ Candy Red, Blackout, Platinum Bronze, Platinum. Sizes (diameter x width, offset): 22x10 -18mm, 22x12 -44mm. Bolt patterns: 6x139.7, 5x127, 6x135.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|

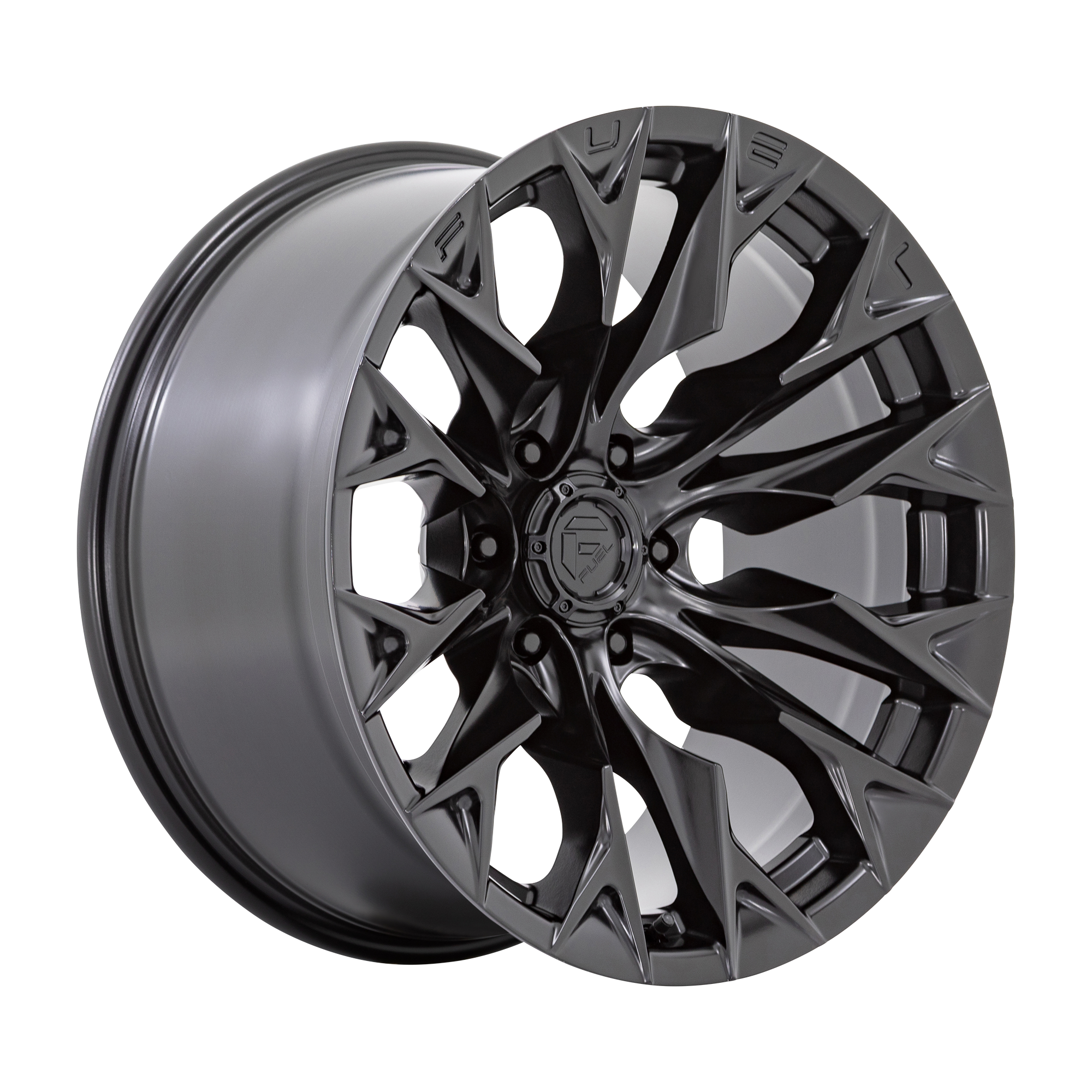

| D80422008947 | Blackout | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 46.70 lbs |
| D80422008447 | Blackout | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 46.30 lbs |

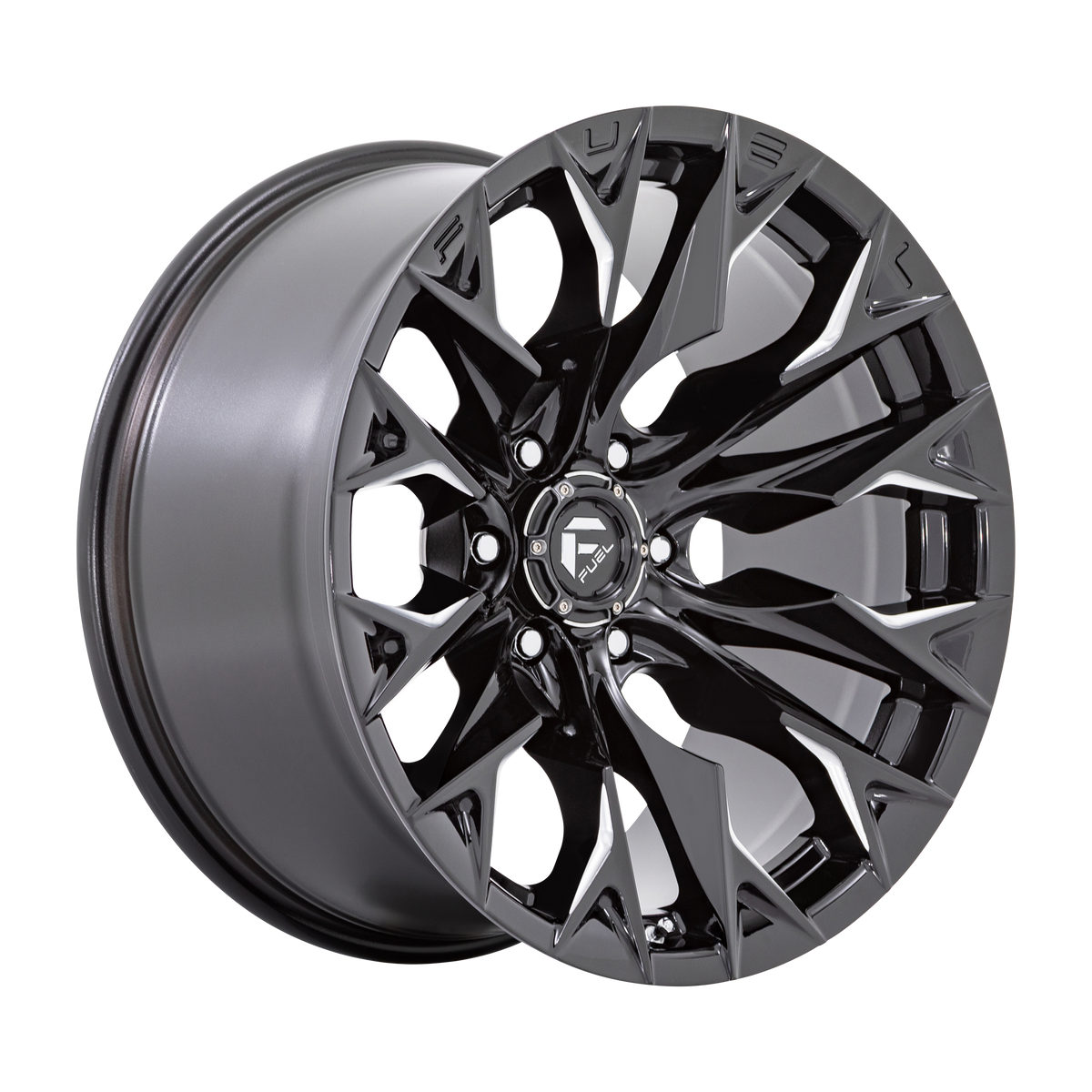

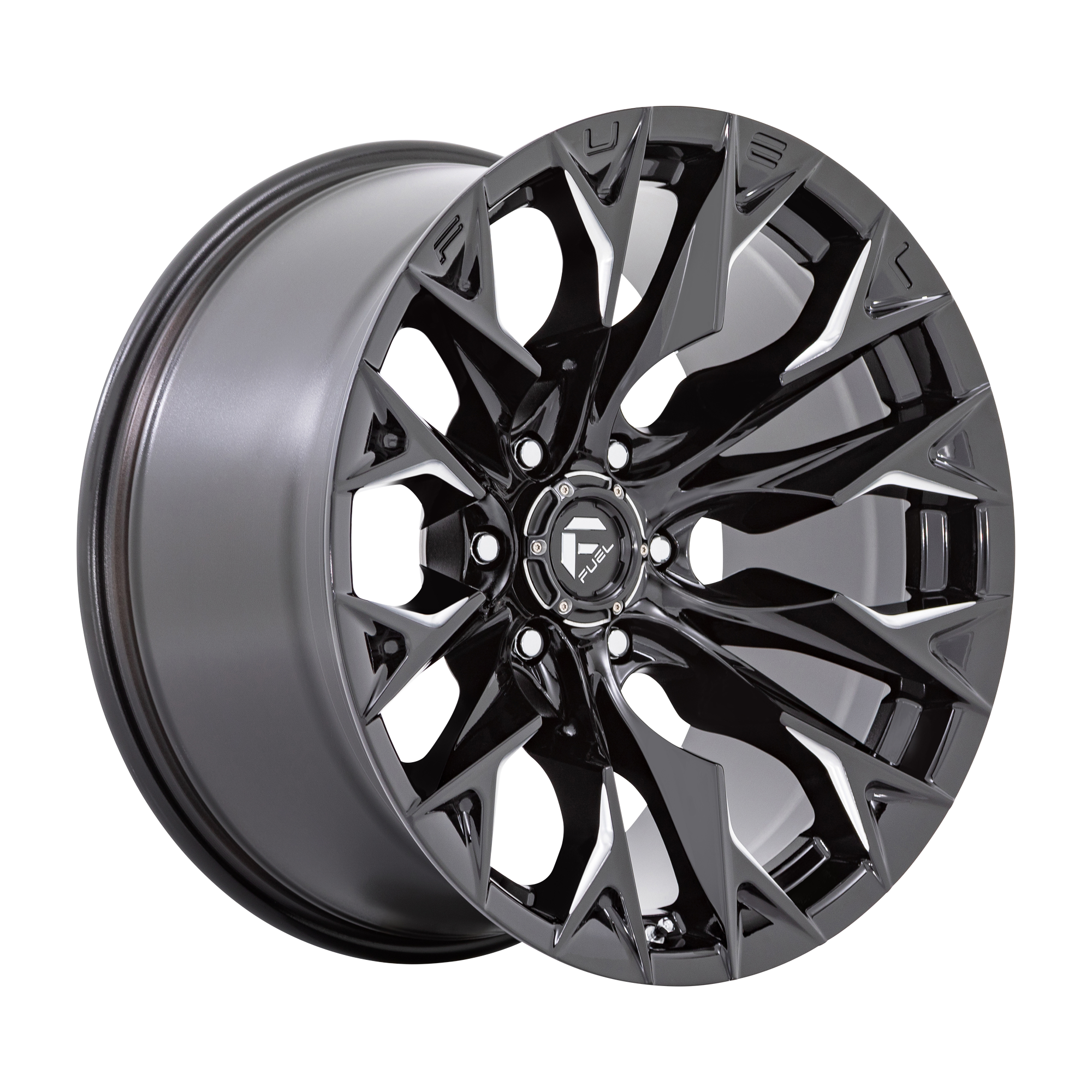

| D80322008447 | Gloss Black Milled | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 46.30 lbs |
| D80322008947 | Gloss Black Milled | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 46.70 lbs |

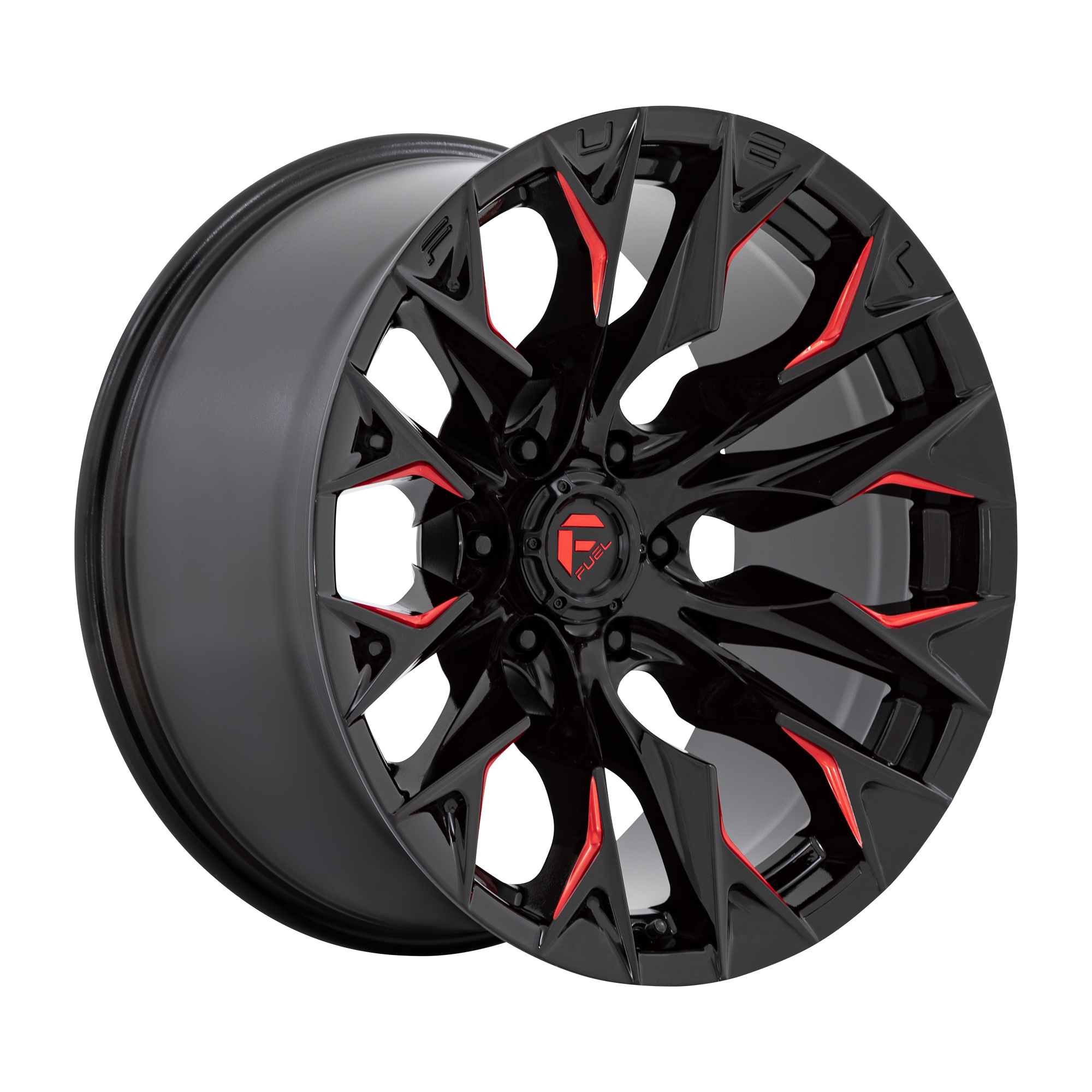

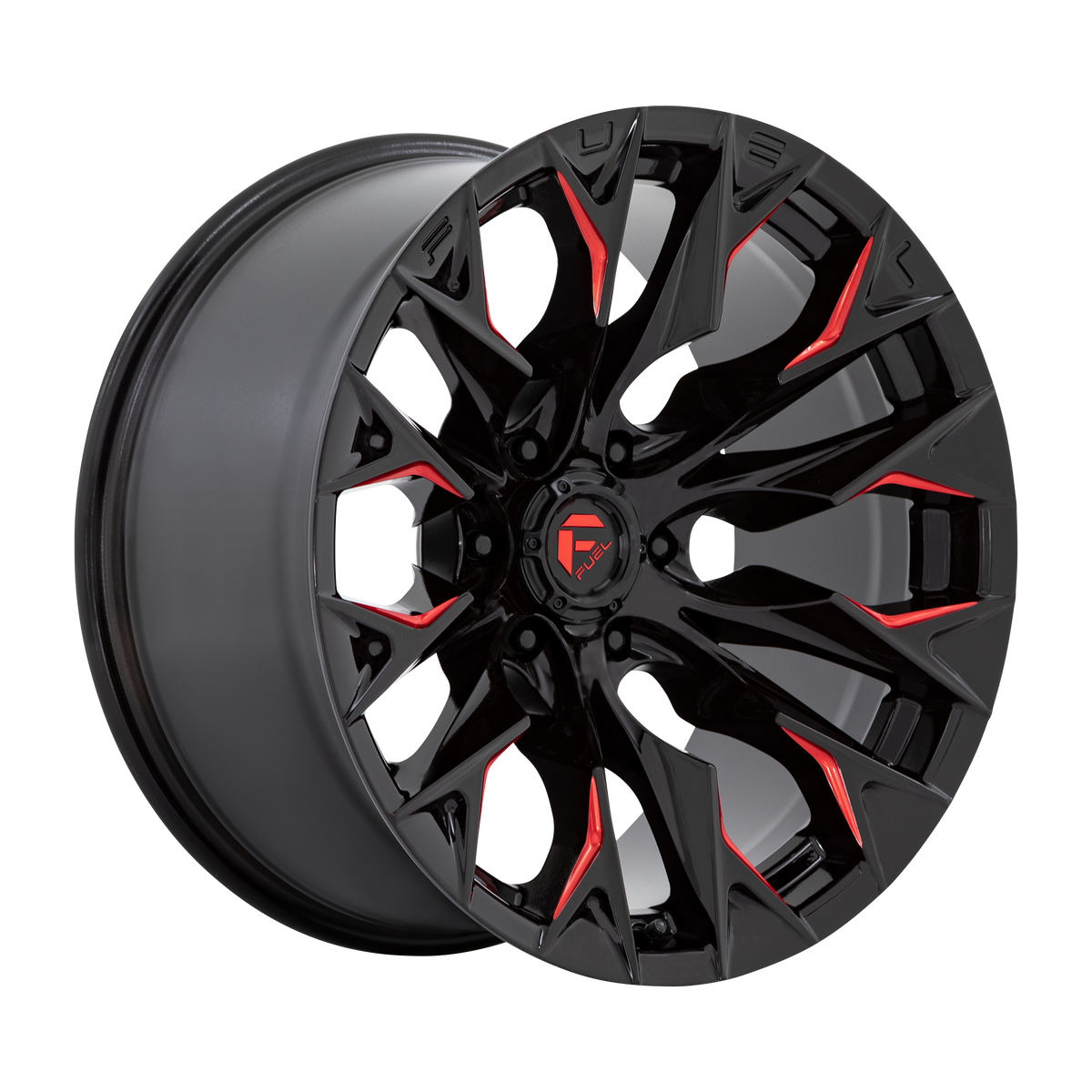

| D82322008947 | Gloss Black Milled w/ Candy Red | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 46.70 lbs |
| D82322008447 | Gloss Black Milled w/ Candy Red | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 46.30 lbs |

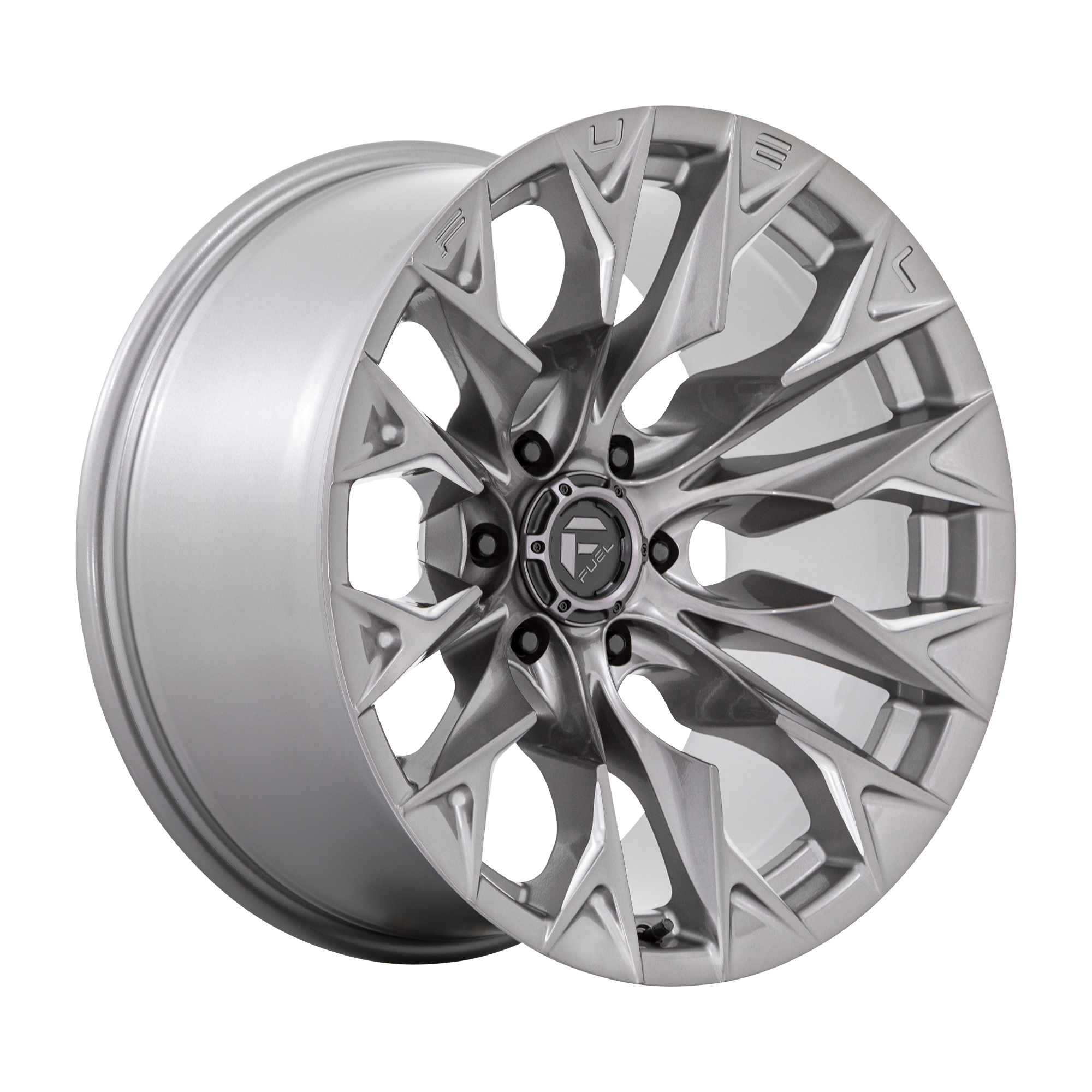

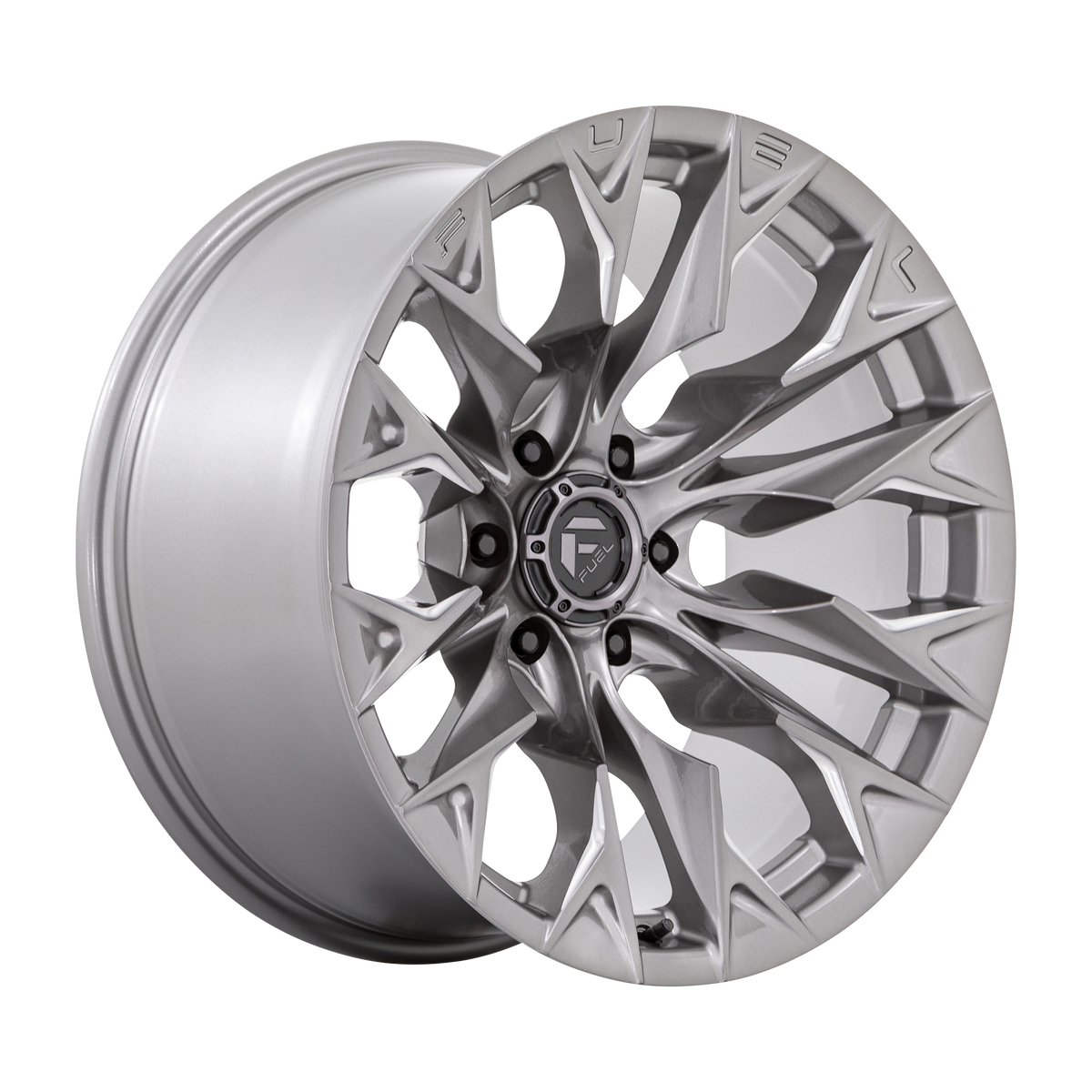

| D80622008447 | Platinum | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 46.30 lbs |
| D80622008947 | Platinum | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 46.70 lbs |

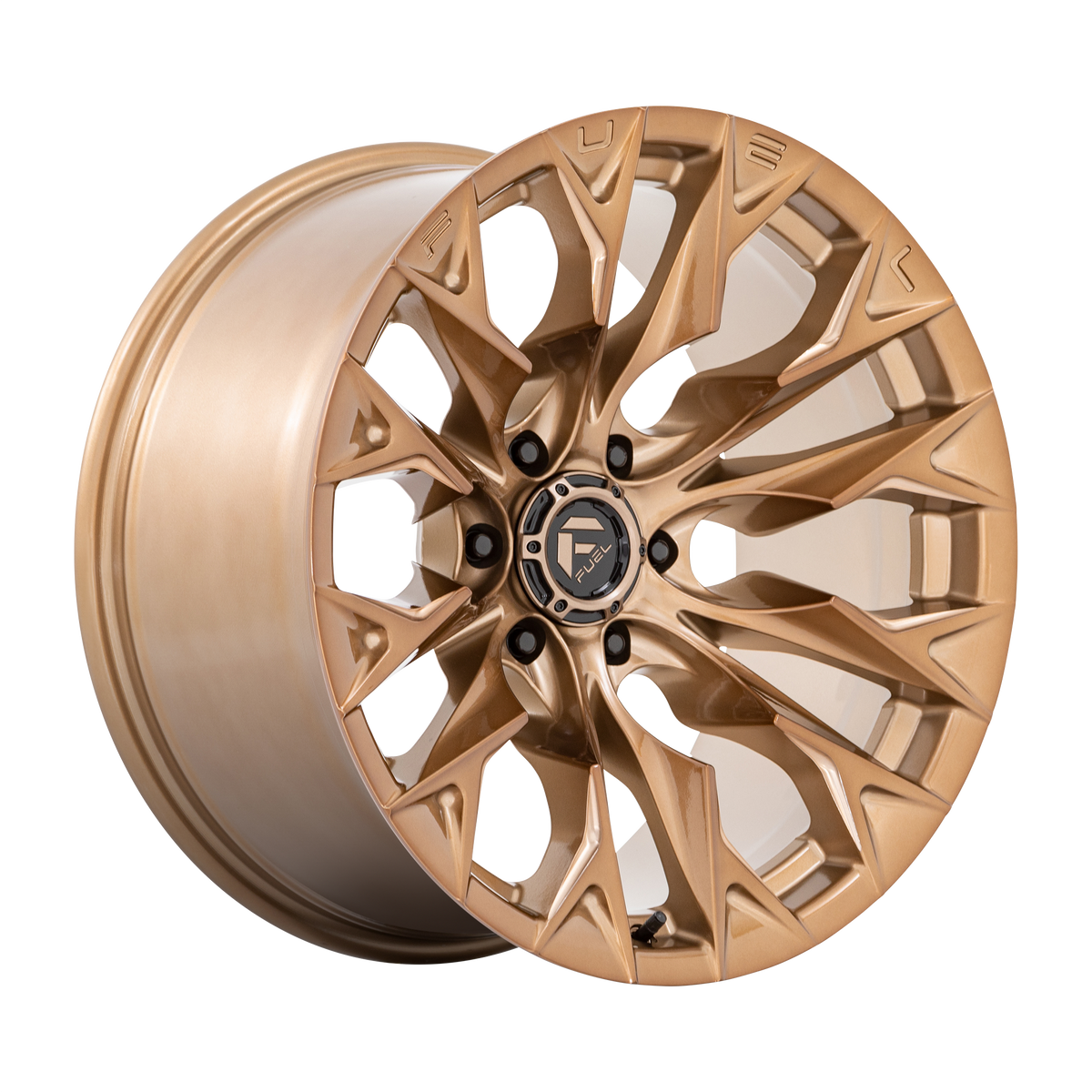

| D80522008947 | Platinum Bronze | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 46.70 lbs |
| D80522008447 | Platinum Bronze | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 46.30 lbs |
| D80422208447 | Blackout | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 52.10 lbs |
| D80422208947 | Blackout | 22x12 -44mm | 6x135 | 4.77" | 87.10mm | 2500 lbs | 52.50 lbs |
| D80422207547 | Blackout | 22x12 -44mm | 5x127 | 4.77" | 71.50mm | 2500 lbs | 50.20 lbs |
| D80322207547 | Gloss Black Milled | 22x12 -44mm | 5x127 | 4.77" | 71.50mm | 2500 lbs | 50.20 lbs |
| D80322208447 | Gloss Black Milled | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 52.10 lbs |
| D80322208947 | Gloss Black Milled | 22x12 -44mm | 6x135 | 4.77" | 87.10mm | 2500 lbs | 52.50 lbs |
| D82322207547 | Gloss Black Milled w/ Candy Red | 22x12 -44mm | 5x127 | 4.77" | 71.50mm | 2500 lbs | 50.20 lbs |
| D82322208447 | Gloss Black Milled w/ Candy Red | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 52.10 lbs |
| D80622207547 | Platinum | 22x12 -44mm | 5x127 | 4.77" | 71.50mm | 2500 lbs | 50.20 lbs |
| D80522207547 | Platinum Bronze | 22x12 -44mm | 5x127 | 4.77" | 71.50mm | 2500 lbs | 50.20 lbs |
| D80522208447 | Platinum Bronze | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 52.10 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$360.00
$4,542.06
$229.96
$89.99
$88.00
Specifications
Fuel Flame Wheel FAQs
What sizes?
22x10 -18mm and 22x12 -44mm.
What bolt patterns?
6x139.7, 5x127 and 6x135.
What finishes?
Gloss Black Milled, Gloss Black Milled with Candy Red, Blackout, Platinum Bronze and Platinum.
Is it a monoblock?
Yes, one-piece monoblock construction.
