SKU: D80620008447

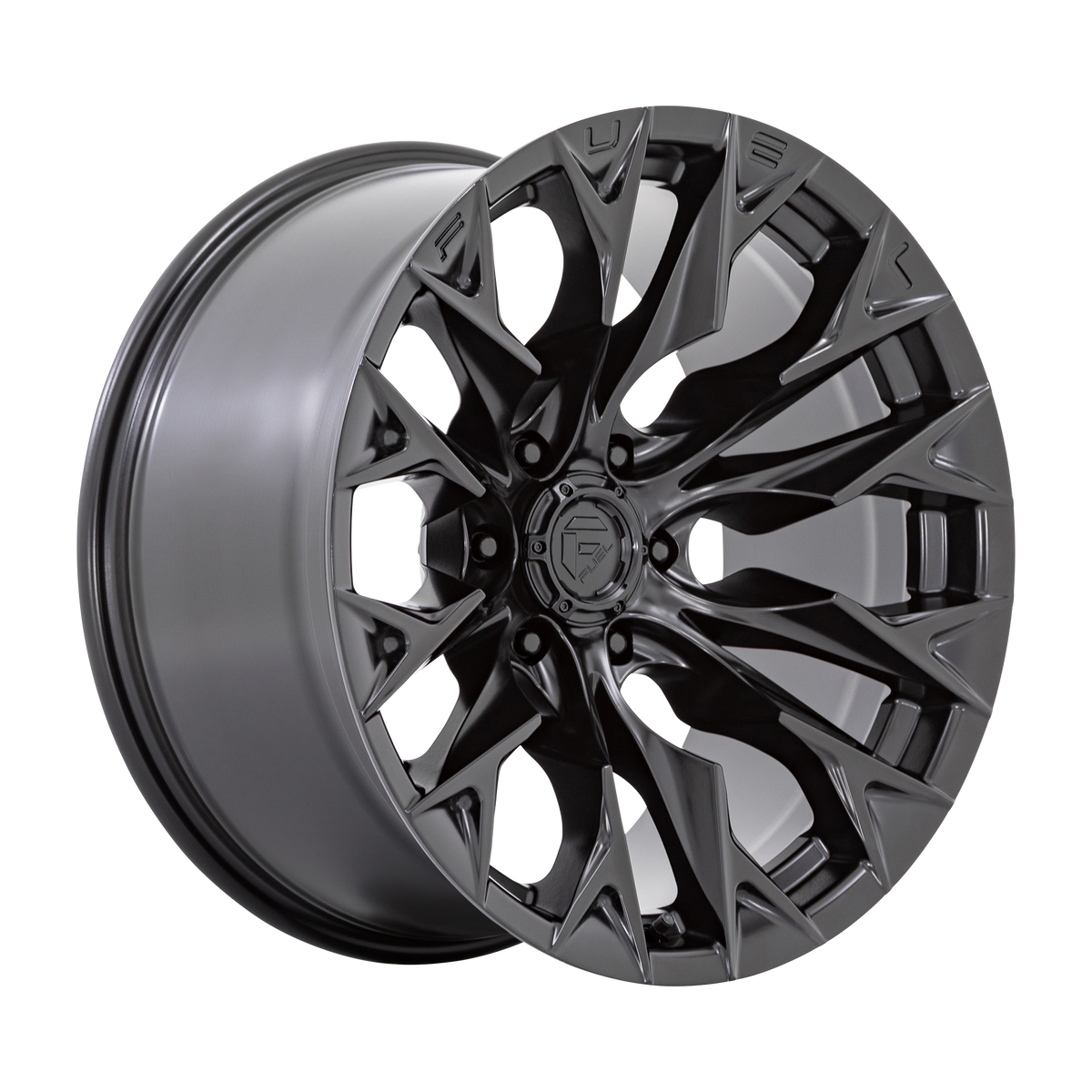

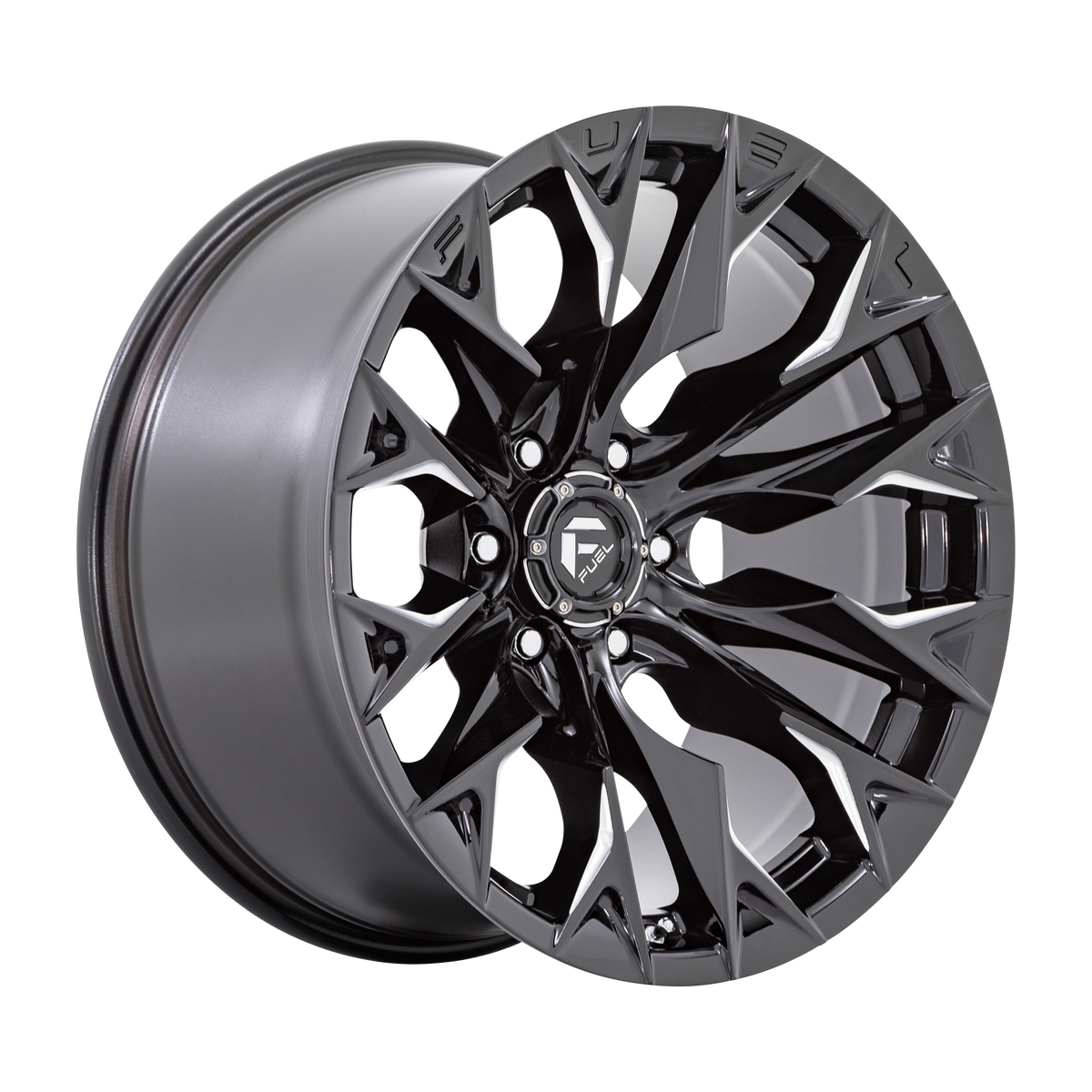

Fuel Flame Wheel - 20"

By Fuel Off-Road

$550.00

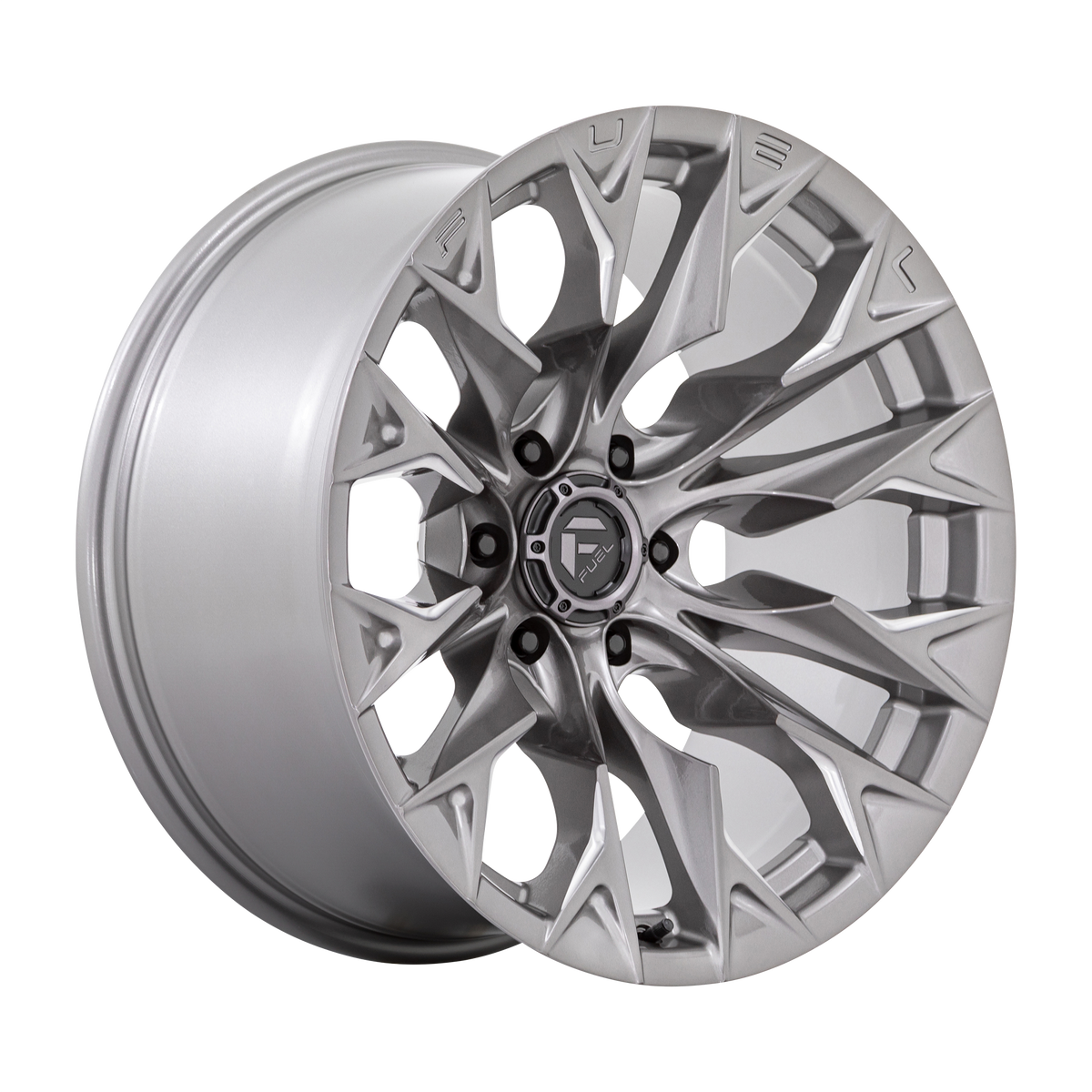

Finish: Platinum

Size

Bolt Pattern

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Warranty Information

Vendor warranty summary

Fuel Off-Road Warranty

At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish

Shop Fuel Off-Road Official Fuel Off-Road policy All warranty policies

This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Wheel structure	Lifetime (original retail purchaser)
PVD finishes (peeling/lifting)	2 years
Chrome aluminum finish (peeling/lifting; pitting excluded)	1 year
Painted aluminum finish (peeling/lifting)	1 year
Steel wheel paint or plating	90 days (surface rust/corrosion excluded)
Uncoated polished aluminum	Not covered

Original purchaser only — coverage does not transfer if you sell it.
Keep your NVMOS order confirmation — proof of purchase is required.

What's covered

Structural failure under normal, intended use for as long as the original buyer owns the wheels
Finish peeling or lifting within the finish's coverage period
Approved wheels are repaired or replaced

What's not covered

Wheels not installed per Fuel's installation guidelines
Damage from poor maintenance or harsh cleaning chemicals
Structural damage from accidents or road hazards
Racing or improper vehicle use
Use of unapproved accessories or adapters
Removal, mounting, installation and shipping costs

How to make a Fuel Off-Road warranty claim

Return the wheel with the original sales receipt to the retailer you bought it from
The wheel is inspected; approved claims are repaired or replaced
You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense

Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.

Shop Fuel Off-Road at NVMOS

Fuel Catalyst Wheel - 17"

Fuel Rebar Wheel - 22"

Fuel Cleaver Dually Wheel

See all Fuel Off-Road products, lead times and FAQs →

Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Fuel Off-Road

Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.

Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Fuel Off-Road warranty: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish. Read the full summary

Shop all 293 Fuel Off-Road Warranty All brands

Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

Fuel Flame Wheel, 20"

The 20-inch Fuel Flame is an inferno-inspired monoblock built to handle the trail. Its asymmetrical spoke design has tapered edges and dynamic milled accents. Browse off-road wheels.

This listing has 20x10, 20x12 and 20x9 sizes in seven bolt patterns across 5, 6 and 8-lug. Fuel lists the F-150, Silverado 1500, Tacoma and heavy-duty F-250, F-350, RAM 2500 and 3500. See non-beadlock wheels.

Why it works

Asymmetrical spokesTapered edges with milled accents.

One-piece monoblockA one-piece cast build.

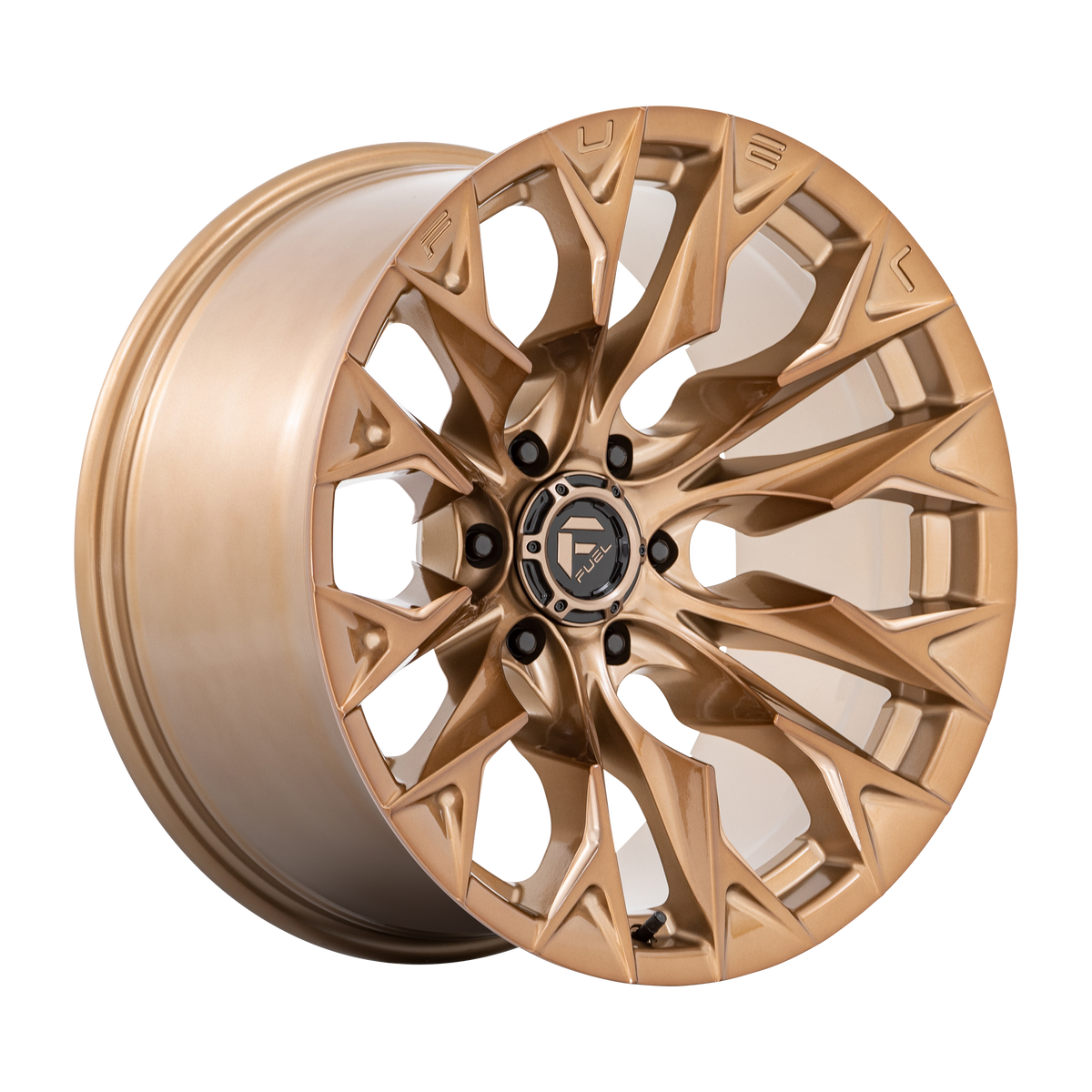

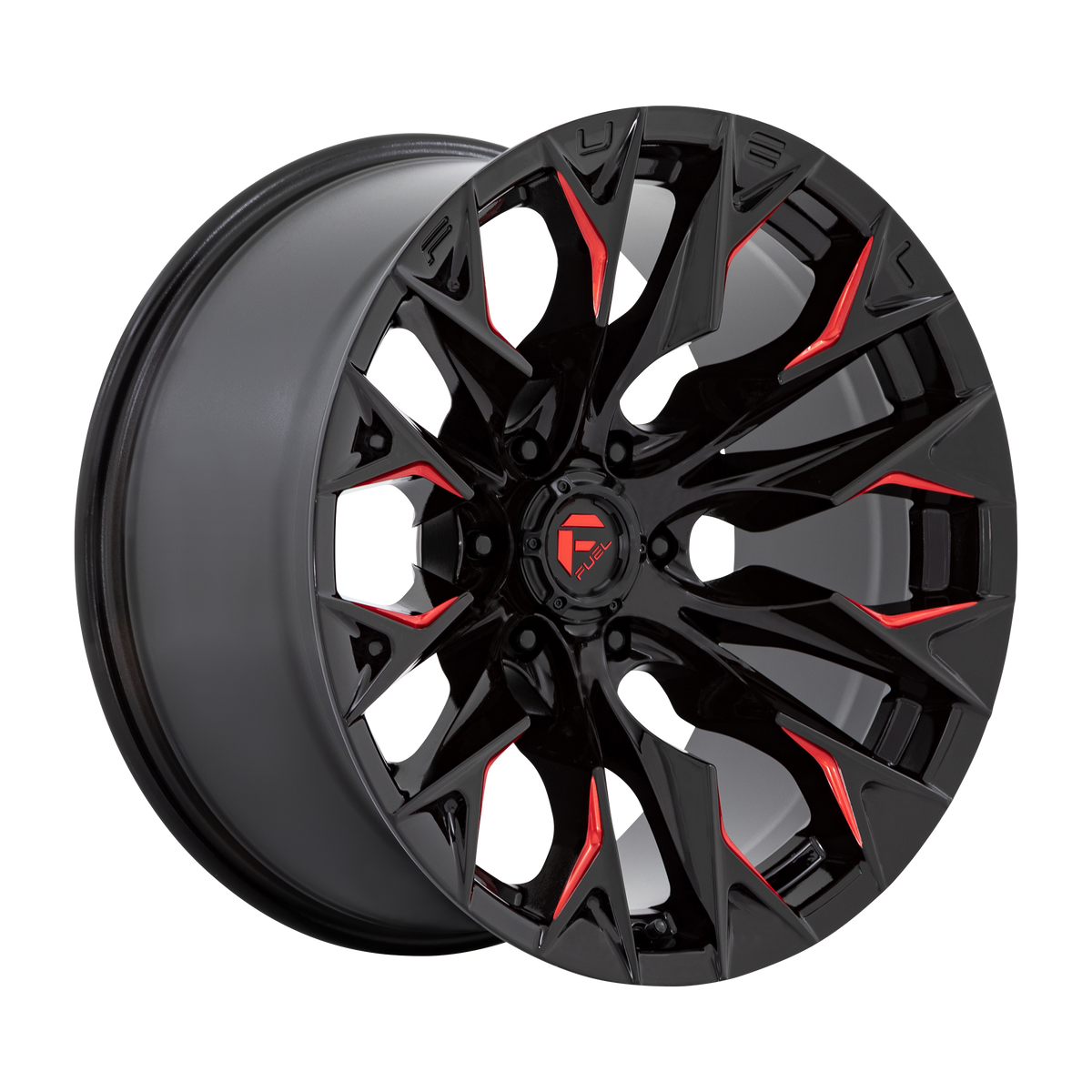

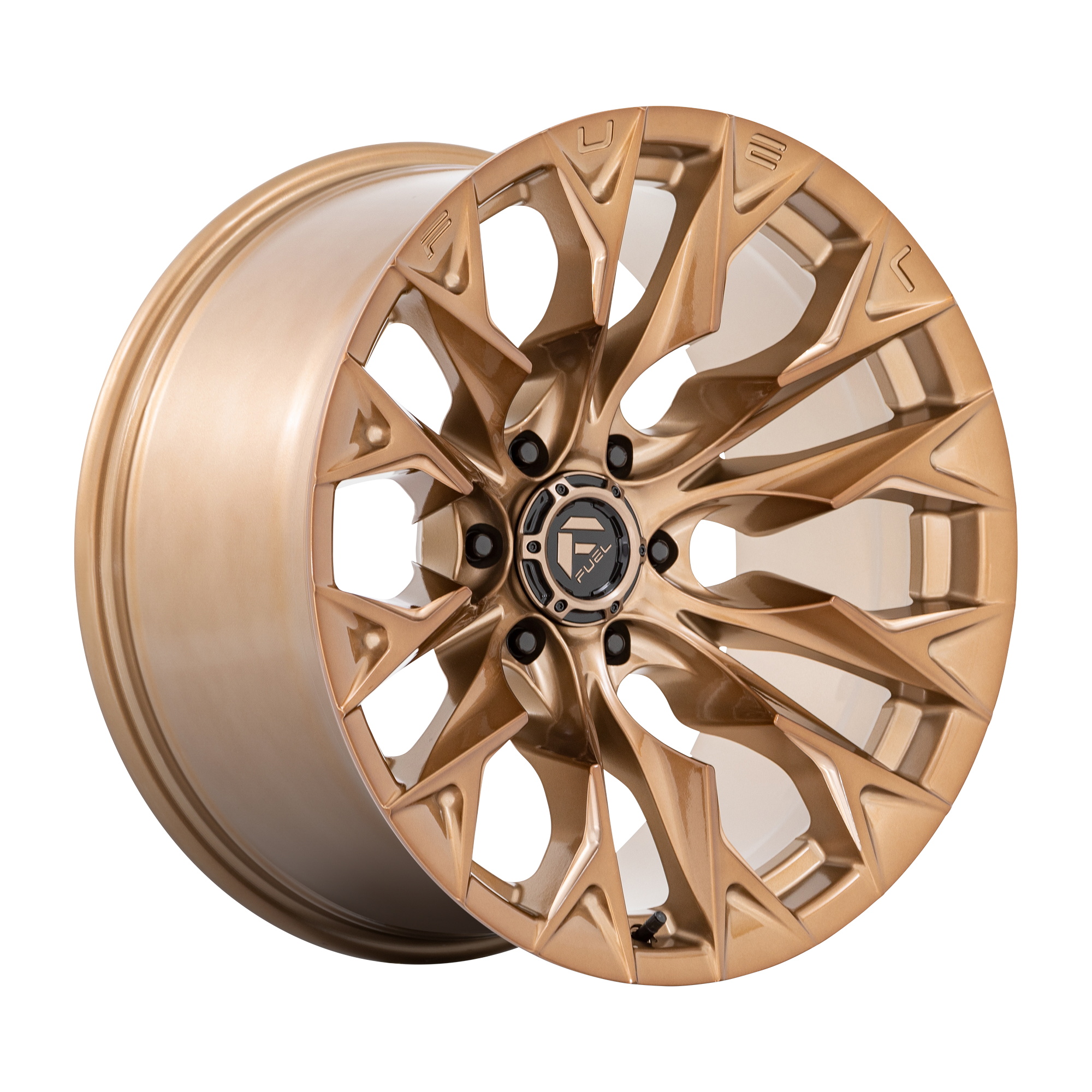

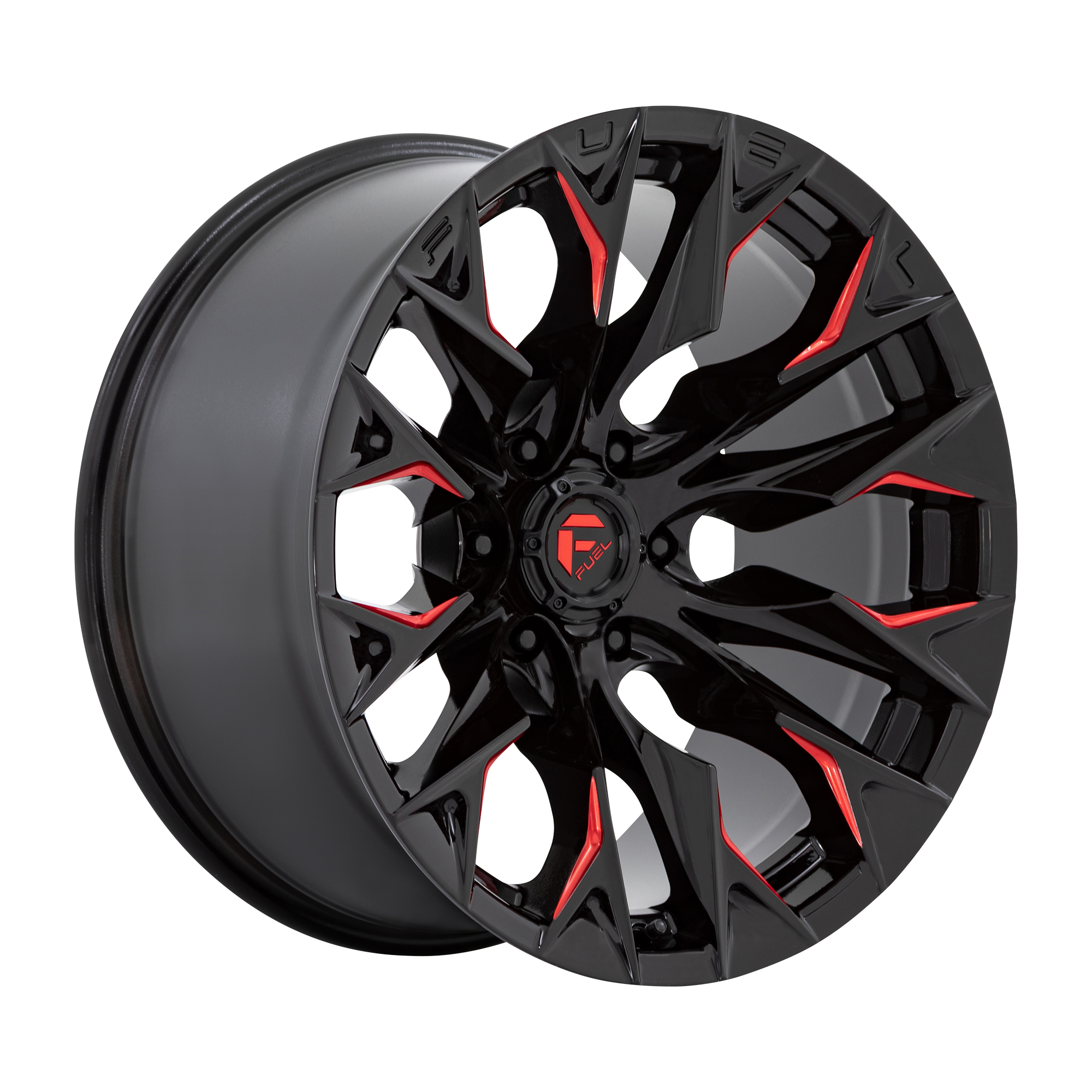

Five finishesIncluding Candy Red accent and Platinum Bronze.

Fitment

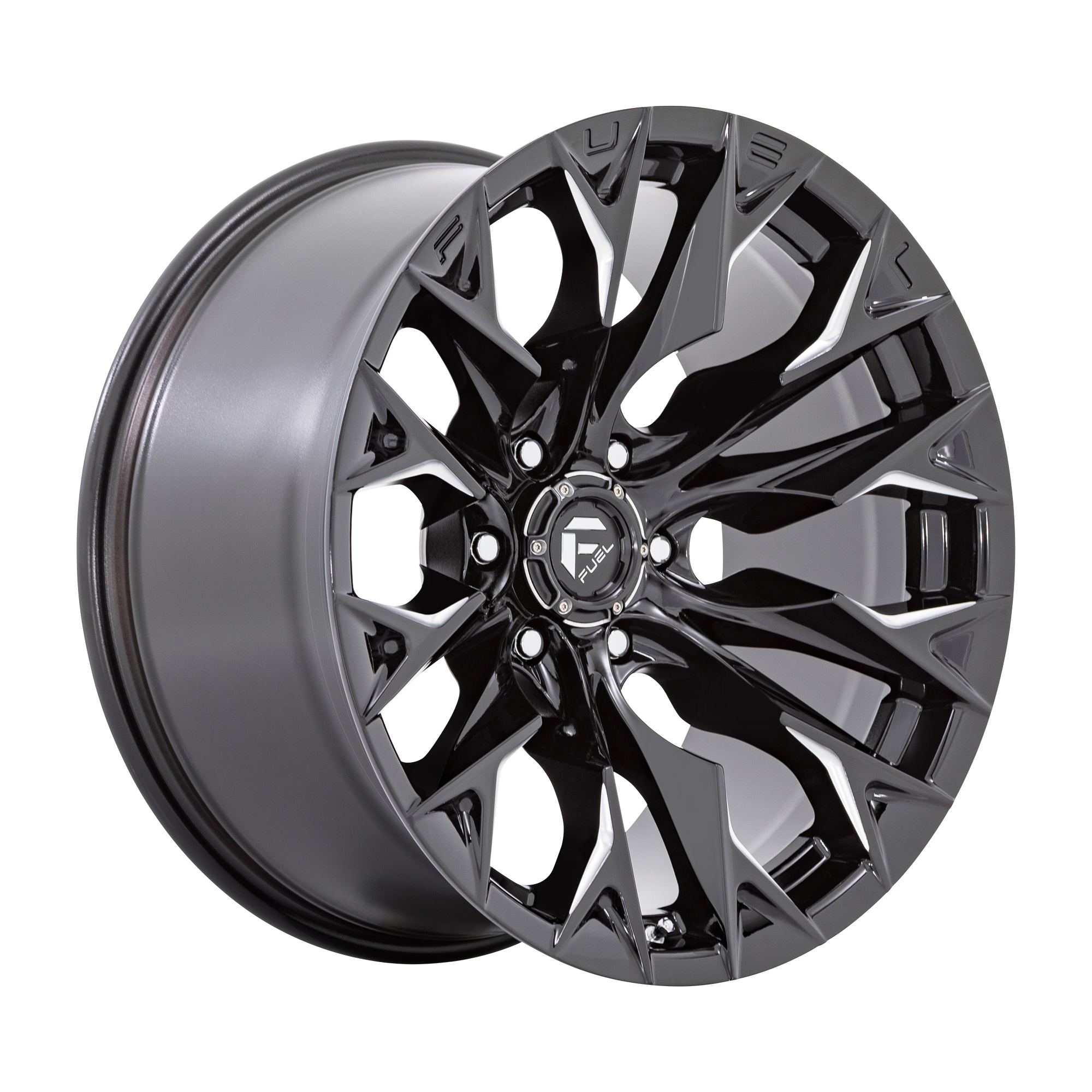

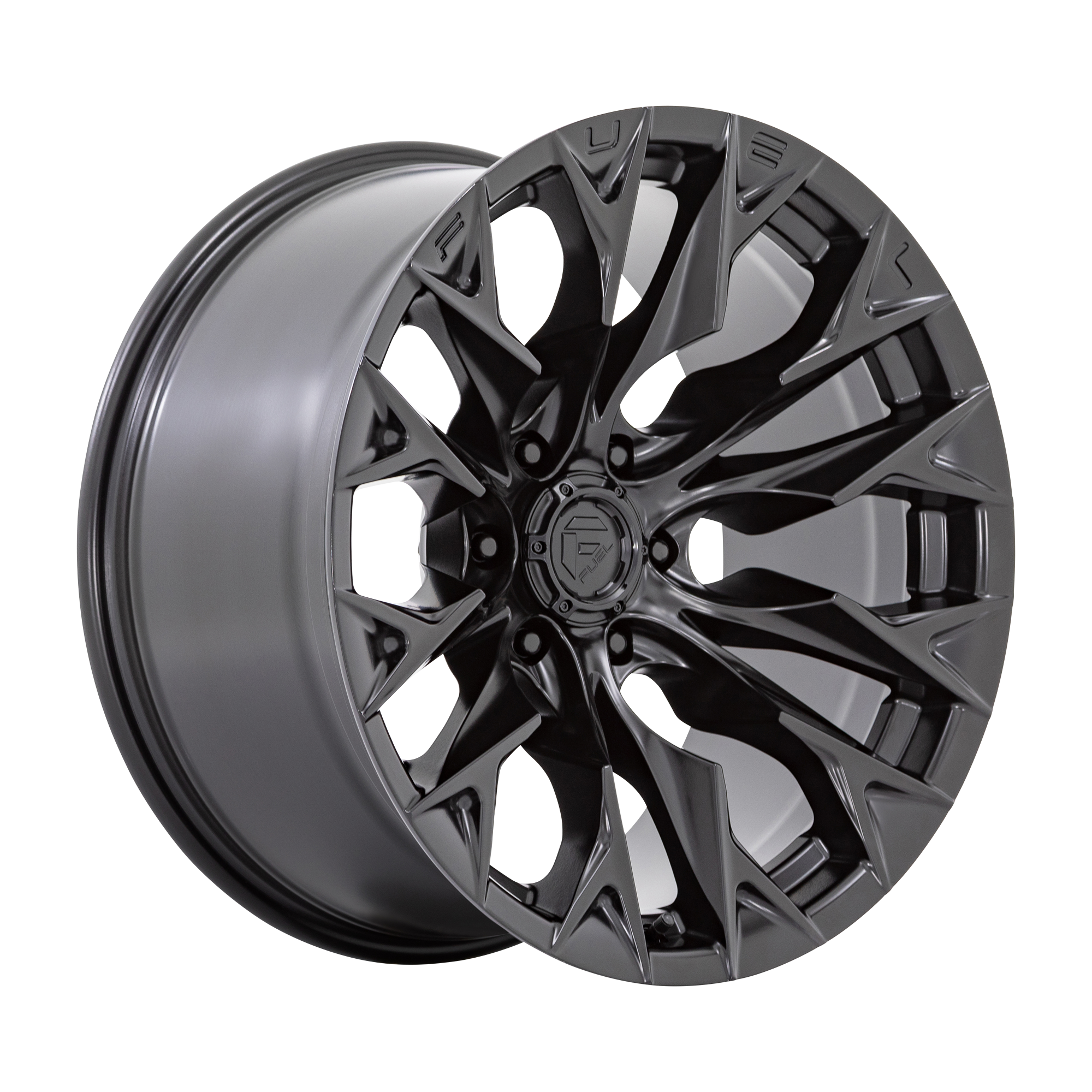

Finishes: Platinum, Gloss Black Milled, Blackout, Platinum Bronze, Gloss Black Milled w/ Candy Red. Sizes (diameter x width, offset): 20x10 -18mm, 20x12 -44mm, 20x9 20mm, 20x9 1mm. Bolt patterns: 6x139.7, 6x135, 5x139.7, 5x127, 8x165.1, 8x170, 8x180.

Specifications

Part #	Finish	Size / Offset	Bolt Pattern	Backspace	Center Bore	Load Rating	Weight
D80420907550	Blackout	20x9 1mm	5x127	5.04"	71.50mm	2500 lbs	39.00 lbs
D80420908950	Blackout	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	41.90 lbs
D80420908450	Blackout	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	41.44 lbs
D8042090B450	Blackout	20x9 1mm	5x139.7	5.04"	78.10mm	2500 lbs	38.90 lbs
D80420908250	Blackout	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	47.20 lbs
D80420901850	Blackout	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	47.20 lbs
D80420901750	Blackout	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	47.20 lbs
D8032090B450	Gloss Black Milled	20x9 1mm	5x139.7	5.04"	78.10mm	2500 lbs	38.90 lbs
D80320908950	Gloss Black Milled	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	41.90 lbs
D80320907550	Gloss Black Milled	20x9 1mm	5x127	5.04"	71.50mm	2500 lbs	39.00 lbs
D80320908450	Gloss Black Milled	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	41.44 lbs
D80320901750	Gloss Black Milled	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	47.20 lbs
D80320901850	Gloss Black Milled	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	47.20 lbs
D80320908250	Gloss Black Milled	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	47.20 lbs
D8232090B450	Gloss Black Milled w/ Candy Red	20x9 1mm	5x139.7	5.04"	78.10mm	2500 lbs	38.90 lbs
D82320908450	Gloss Black Milled w/ Candy Red	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	41.44 lbs
D82320908950	Gloss Black Milled w/ Candy Red	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	41.90 lbs
D82320907550	Gloss Black Milled w/ Candy Red	20x9 1mm	5x127	5.04"	71.50mm	2500 lbs	39.00 lbs
D82320901750	Gloss Black Milled w/ Candy Red	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	47.20 lbs
D82320901850	Gloss Black Milled w/ Candy Red	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	47.20 lbs
D82320908250	Gloss Black Milled w/ Candy Red	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	47.20 lbs
D80620908450	Platinum	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	41.44 lbs
D80620908950	Platinum	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	41.90 lbs
D80620901750	Platinum	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	47.20 lbs
D80620901850	Platinum	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	47.20 lbs
D80620908250	Platinum	20x9 1mm	8x165.1	5.04"	125.10mm	3700 lbs	47.20 lbs
D80520907550	Platinum Bronze	20x9 1mm	5x127	5.04"	71.50mm	2500 lbs	39.00 lbs
D80520908450	Platinum Bronze	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	41.44 lbs
D80520908950	Platinum Bronze	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	41.90 lbs
D80520901750	Platinum Bronze	20x9 1mm	8x170	5.04"	125.10mm	3700 lbs	47.20 lbs
D80520901850	Platinum Bronze	20x9 1mm	8x180	5.04"	124.20mm	3700 lbs	47.20 lbs
D80420908457	Blackout	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	41.00 lbs
D80420908957	Blackout	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	41.40 lbs
D80420901857	Blackout	20x9 20mm	8x180	5.79"	124.20mm	3700 lbs	48.90 lbs
D80420901757	Blackout	20x9 20mm	8x170	5.79"	125.10mm	3700 lbs	48.90 lbs
D80420908257	Blackout	20x9 20mm	8x165.1	5.79"	125.10mm	3700 lbs	48.90 lbs
D80320908457	Gloss Black Milled	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	34.83 lbs
D80320908957	Gloss Black Milled	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	34.17 lbs
D80320901857	Gloss Black Milled	20x9 20mm	8x180	5.79"	124.20mm	3700 lbs	48.90 lbs
D80320908257	Gloss Black Milled	20x9 20mm	8x165.1	5.79"	125.10mm	3700 lbs	48.90 lbs
D80320901757	Gloss Black Milled	20x9 20mm	8x170	5.79"	125.10mm	3700 lbs	48.90 lbs
D82320908957	Gloss Black Milled w/ Candy Red	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	41.40 lbs
D82320908457	Gloss Black Milled w/ Candy Red	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	41.00 lbs
D82320901857	Gloss Black Milled w/ Candy Red	20x9 20mm	8x180	5.79"	124.20mm	3700 lbs	48.90 lbs
D82320901757	Gloss Black Milled w/ Candy Red	20x9 20mm	8x170	5.79"	125.10mm	3700 lbs	48.90 lbs
D80620908957	Platinum	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	41.40 lbs
D80620908457	Platinum	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	41.00 lbs
D80620901757	Platinum	20x9 20mm	8x170	5.79"	125.10mm	3700 lbs	48.90 lbs
D80620908257	Platinum	20x9 20mm	8x165.1	5.79"	125.10mm	3700 lbs	48.90 lbs
D80620901857	Platinum	20x9 20mm	8x180	5.79"	124.20mm	3700 lbs	48.90 lbs
D80520908457	Platinum Bronze	20x9 20mm	6x139.7	5.79"	106.10mm	2500 lbs	41.00 lbs
D80520908957	Platinum Bronze	20x9 20mm	6x135	5.79"	87.10mm	2500 lbs	41.40 lbs
D80520901757	Platinum Bronze	20x9 20mm	8x170	5.79"	125.10mm	3700 lbs	48.90 lbs
D80420008447	Blackout	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	41.70 lbs
D80420008947	Blackout	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	42.10 lbs
D80420007547	Blackout	20x10 -18mm	5x127	4.79"	71.50mm	2500 lbs	39.00 lbs
D8042000B447	Blackout	20x10 -18mm	5x139.7	4.79"	78.10mm	2500 lbs	38.90 lbs
D80420008247	Blackout	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	50.50 lbs
D80420001747	Blackout	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	50.50 lbs
D80420001847	Blackout	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	50.50 lbs
D80320008947	Gloss Black Milled	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	42.10 lbs
D80320008447	Gloss Black Milled	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	41.70 lbs
D8032000B447	Gloss Black Milled	20x10 -18mm	5x139.7	4.79"	78.10mm	2500 lbs	38.90 lbs
D80320007547	Gloss Black Milled	20x10 -18mm	5x127	4.79"	71.50mm	2500 lbs	39.00 lbs
D80320001747	Gloss Black Milled	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	50.50 lbs
D80320008247	Gloss Black Milled	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	50.50 lbs
D80320001847	Gloss Black Milled	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	50.50 lbs
D82320007547	Gloss Black Milled w/ Candy Red	20x10 -18mm	5x127	4.79"	71.50mm	2500 lbs	39.00 lbs
D82320008447	Gloss Black Milled w/ Candy Red	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	41.70 lbs
D82320008947	Gloss Black Milled w/ Candy Red	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	42.10 lbs
D82320001847	Gloss Black Milled w/ Candy Red	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	50.50 lbs
D80620008447	Platinum	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	41.70 lbs
D80620008947	Platinum	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	42.10 lbs
D80620007547	Platinum	20x10 -18mm	5x127	4.79"	71.50mm	2500 lbs	39.00 lbs
D8062000B447	Platinum	20x10 -18mm	5x139.7	4.79"	78.10mm	2500 lbs	38.90 lbs
D80620001747	Platinum	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	50.50 lbs
D80620008247	Platinum	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	50.50 lbs
D80620001847	Platinum	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	50.50 lbs
D80520008447	Platinum Bronze	20x10 -18mm	6x139.7	4.79"	106.10mm	2500 lbs	41.70 lbs
D80520008947	Platinum Bronze	20x10 -18mm	6x135	4.79"	87.10mm	2500 lbs	42.10 lbs
D80520007547	Platinum Bronze	20x10 -18mm	5x127	4.79"	71.50mm	2500 lbs	39.00 lbs
D80520001847	Platinum Bronze	20x10 -18mm	8x180	4.79"	124.20mm	3700 lbs	50.50 lbs
D80520001747	Platinum Bronze	20x10 -18mm	8x170	4.79"	125.10mm	3700 lbs	50.50 lbs
D80520008247	Platinum Bronze	20x10 -18mm	8x165.1	4.79"	125.10mm	3700 lbs	50.50 lbs
D80420207547	Blackout	20x12 -44mm	5x127	4.77"	71.50mm	2500 lbs	44.80 lbs
D80320207547	Gloss Black Milled	20x12 -44mm	5x127	4.77"	71.50mm	2500 lbs	44.80 lbs
D82320207547	Gloss Black Milled w/ Candy Red	20x12 -44mm	5x127	4.77"	71.50mm	2500 lbs	44.80 lbs
D80620207547	Platinum	20x12 -44mm	5x127	4.77"	71.50mm	2500 lbs	44.80 lbs

Finish the whole truck in one order

Complete your build

The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.

Fuel Flame Wheel - 20" (this item) What you’re viewing $435.00

✓

ReadyLIFT 3"F / 2"R SST Lift Kit - Toyota Tacoma TRD / SR5 / Rock Warrior 2005-2023 $409.95

✓

ReadyLIFT 7/8" Wheel Spacers W/ Studs - GM 1500 $229.96

✓

Toyota Tundra Ditch Light Brackets | 2007-2021 $62.00

✓

2021-2026 Ford Bronco | Capable Bumper Front License Plate Mount $89.99

Build total (1 items)

$435.00

The complete look for your build.

Set any options above, then add them all in one click — one checkout, one shipment.

Specifications

Part numbers: one Fuel part number per finish, size and bolt pattern (listed in the size table below)
Construction: One-piece monoblock
Design: Asymmetrical spokes with milled accents
Finishes: Blackout, Gloss Black Milled, Gloss Black Milled w/ Candy Red, Platinum, Platinum Bronze
Sizes (diameter x width, offset): 20x9 1mm, 20x9 20mm, 20x10 -18mm, 20x12 -44mm
Bolt patterns: 5x127, 6x135, 6x139.7, 5x139.7, 8x165.1, 8x180, 8x170
Backspace: 4.77 to 5.79"
Center bore: 71.50 to 125.10 mm
Load rating: 2,500 to 3,700 lbs per wheel, depending on size and bolt pattern
Weight: 34.17 to 50.50 lbs per wheel, depending on size
