SKU: D76120008447

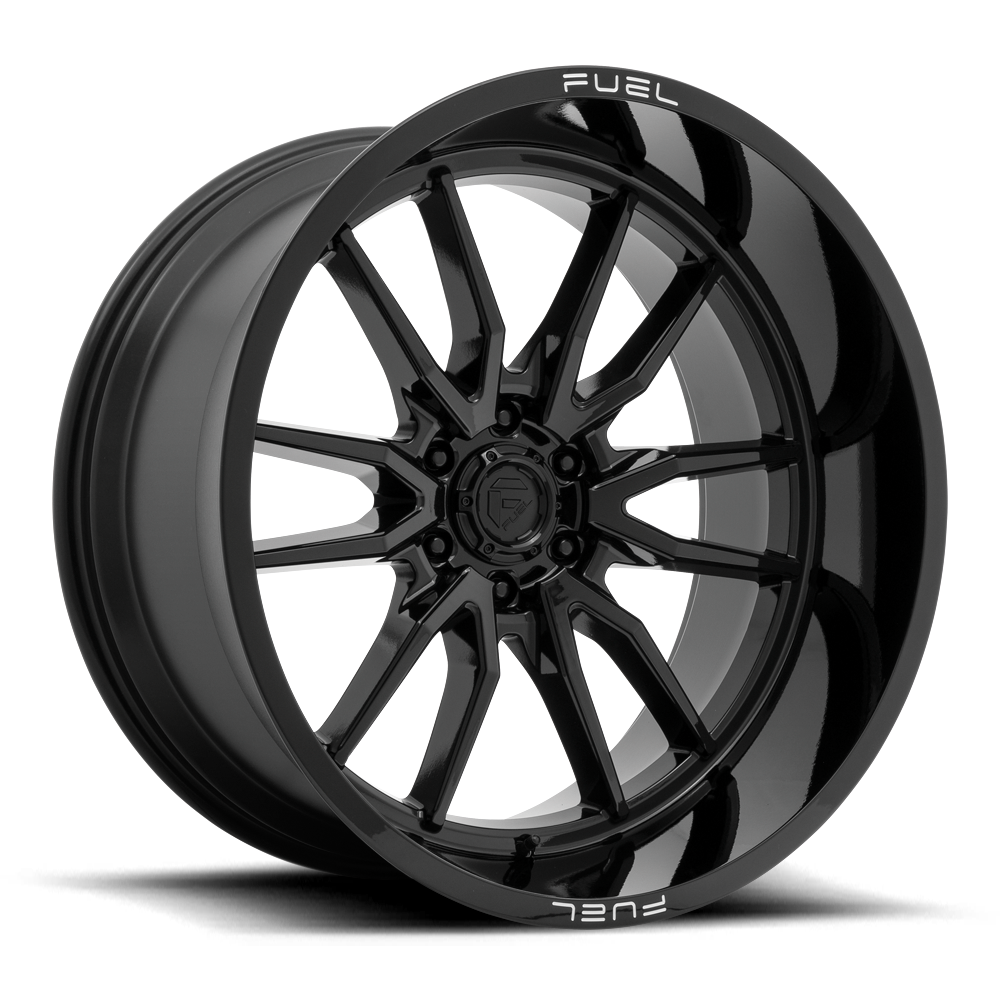

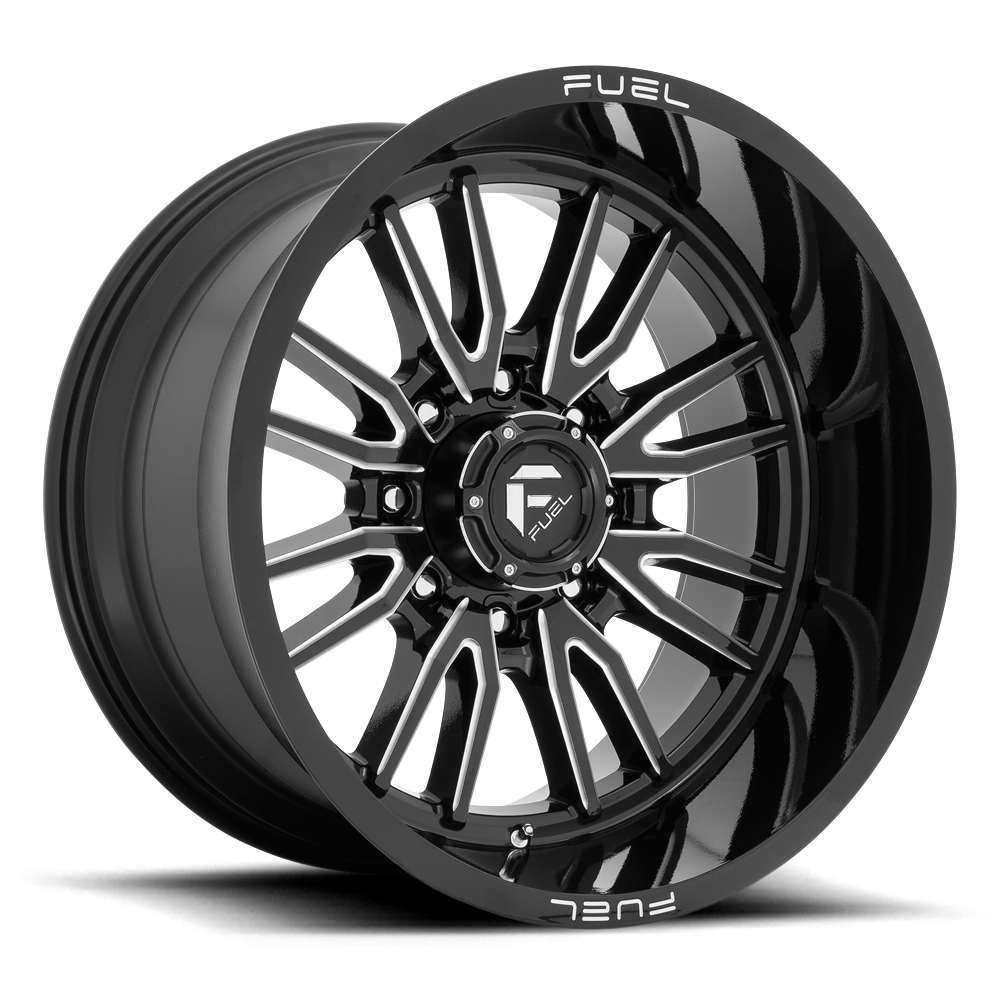

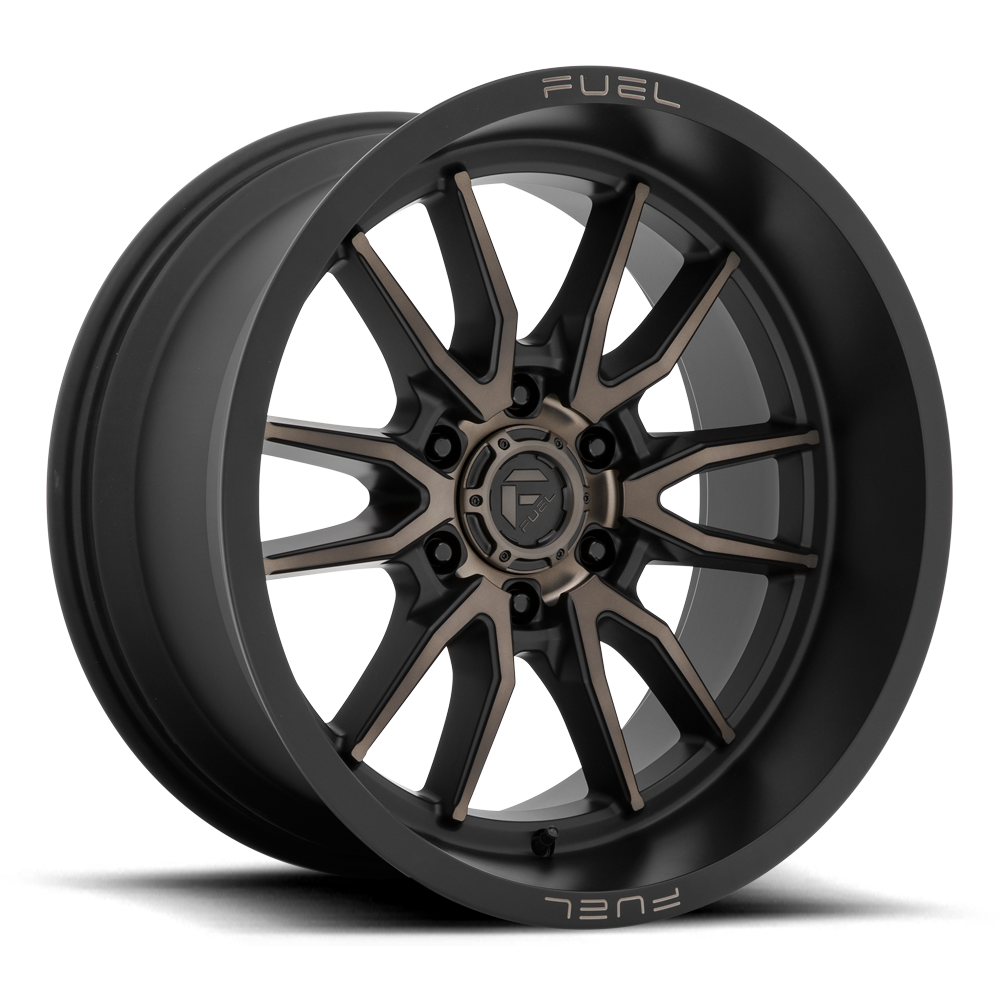

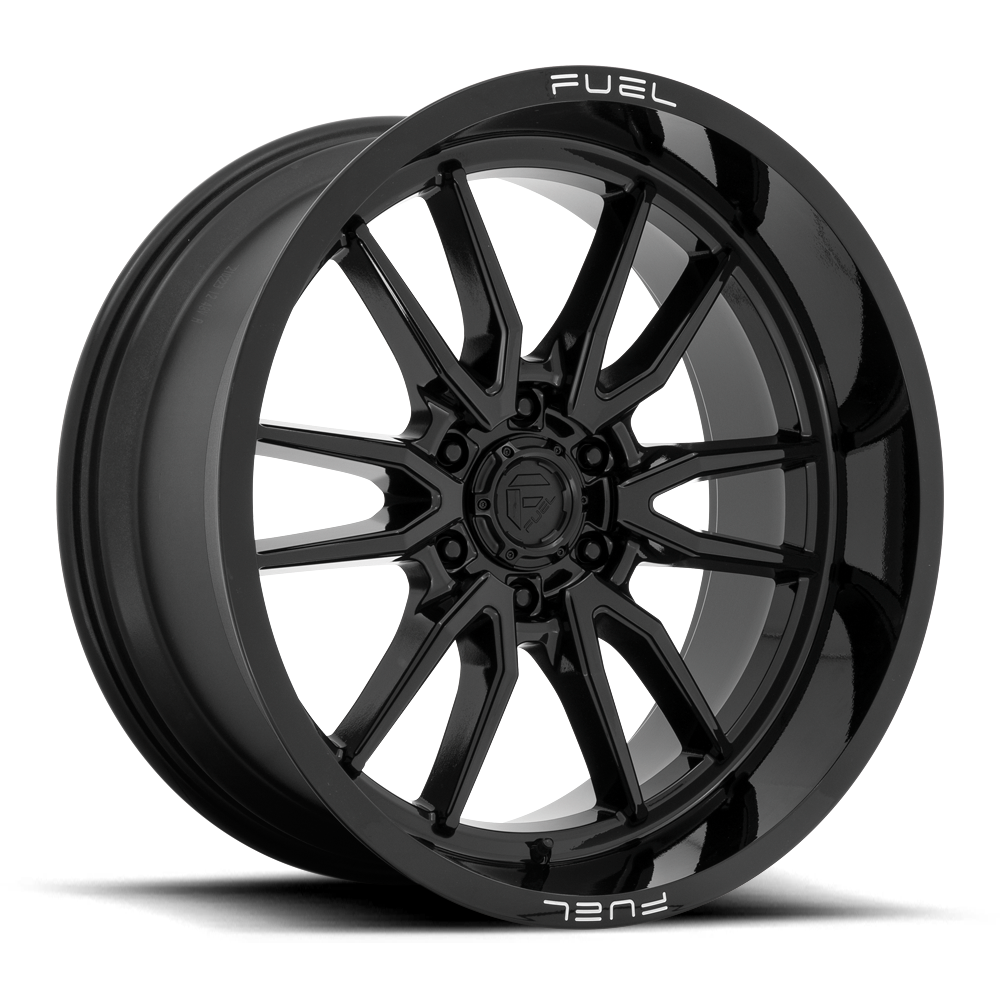

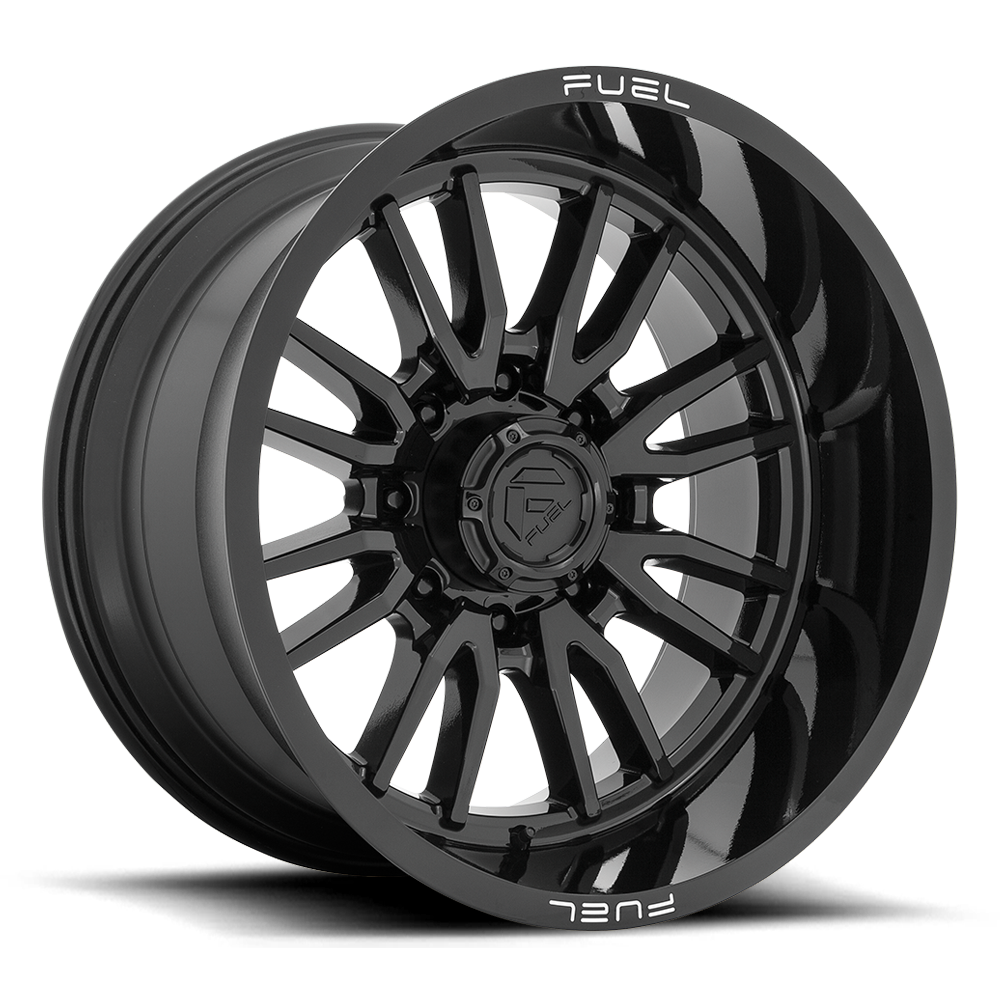

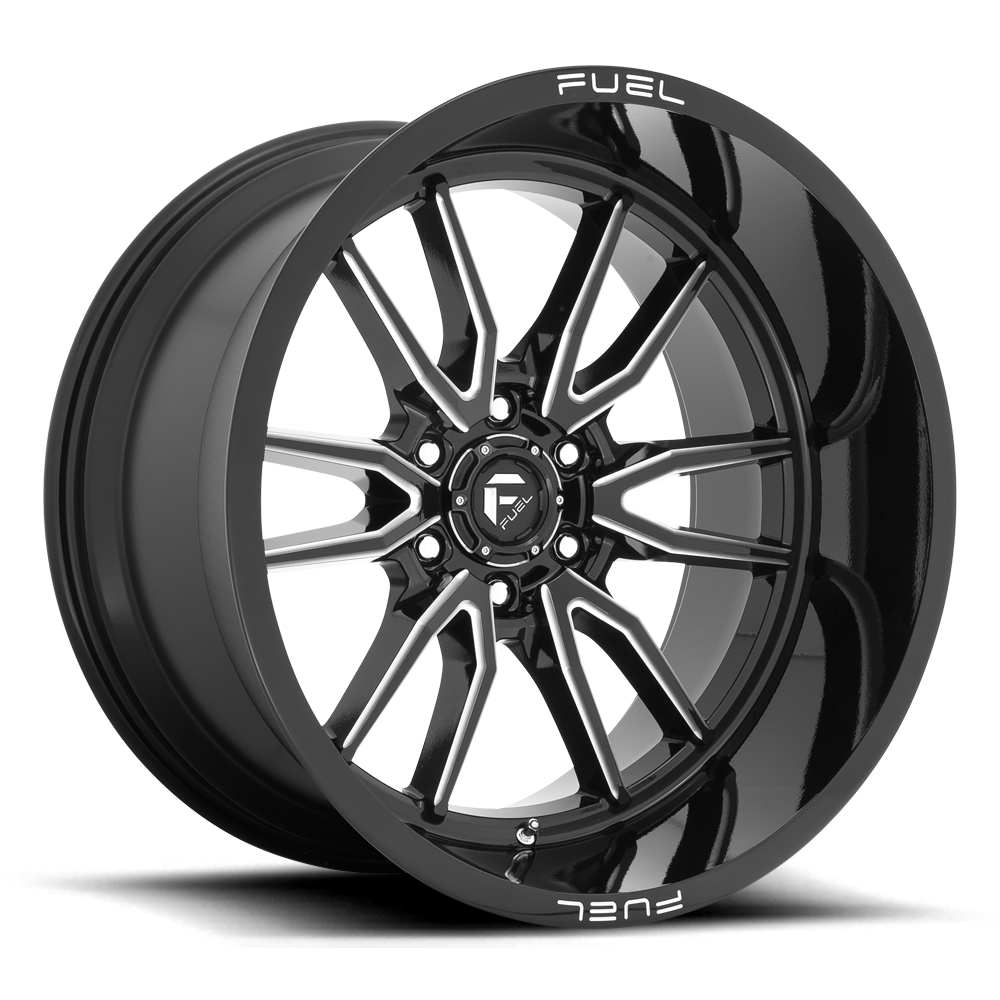

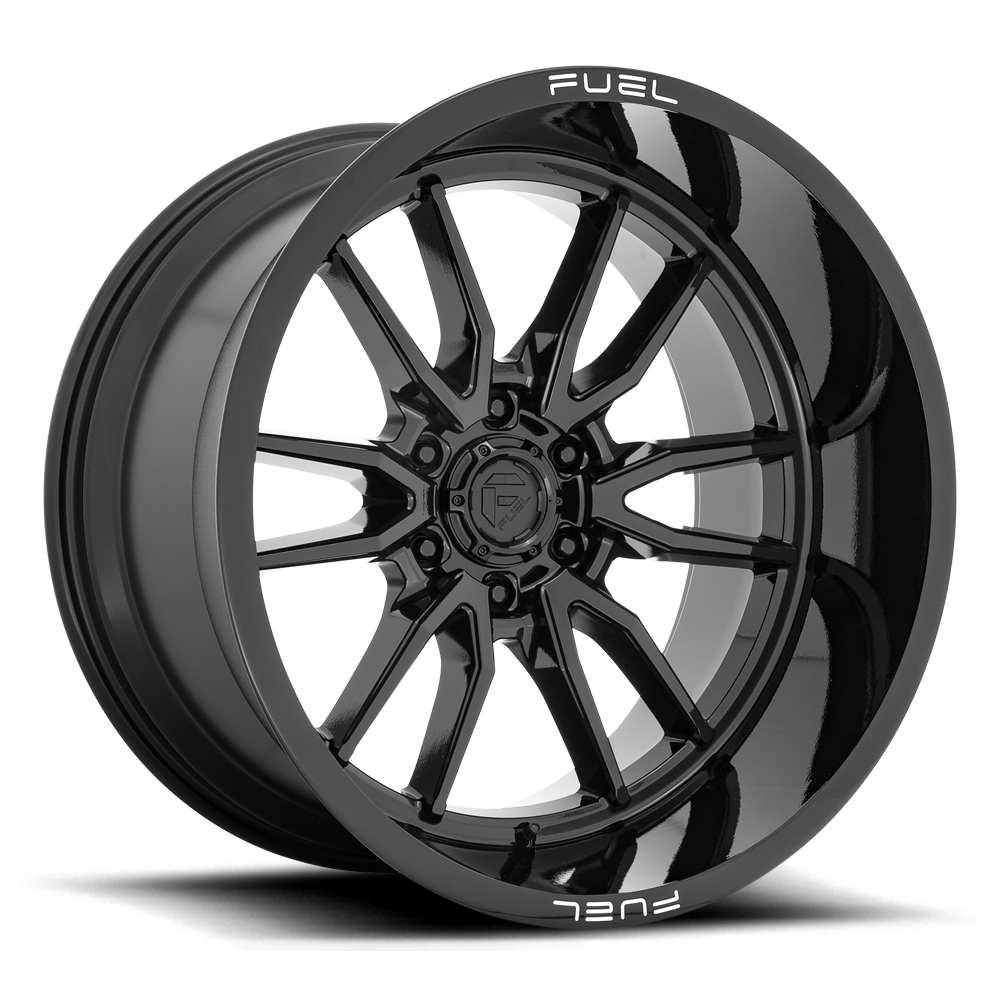

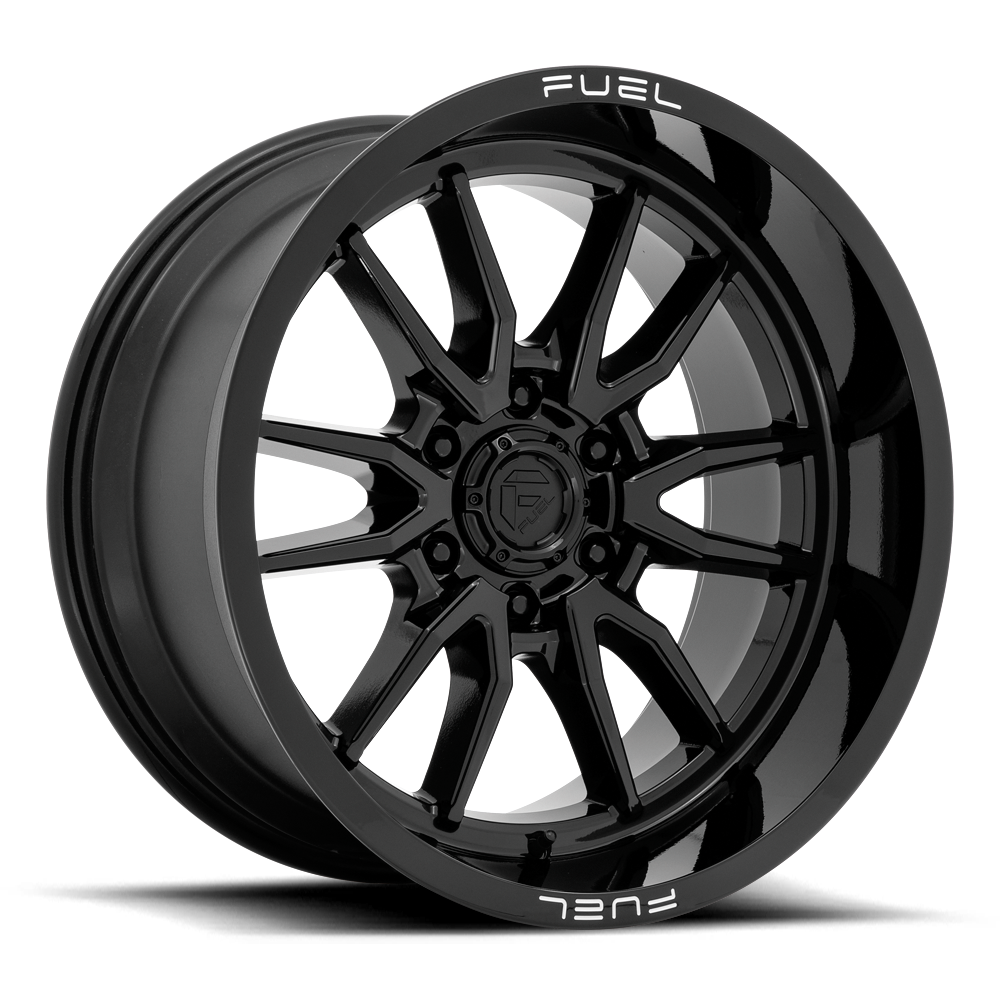

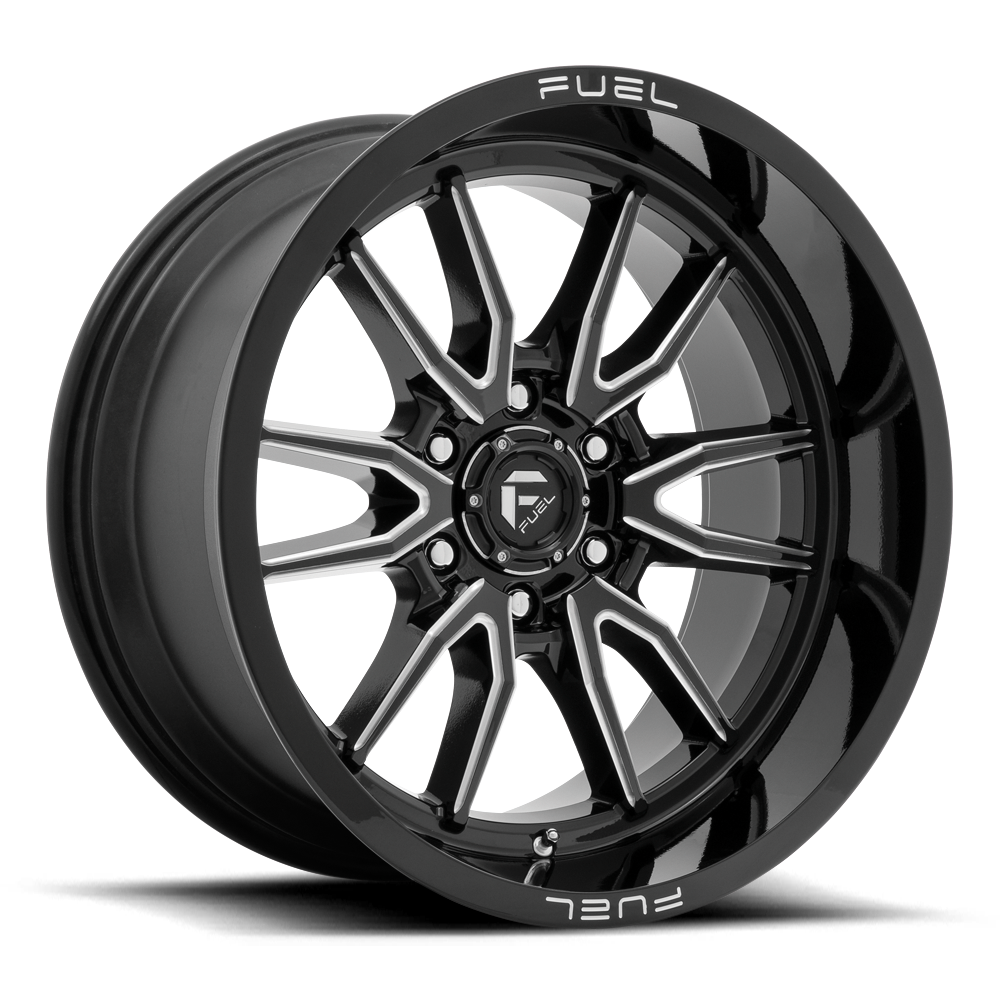

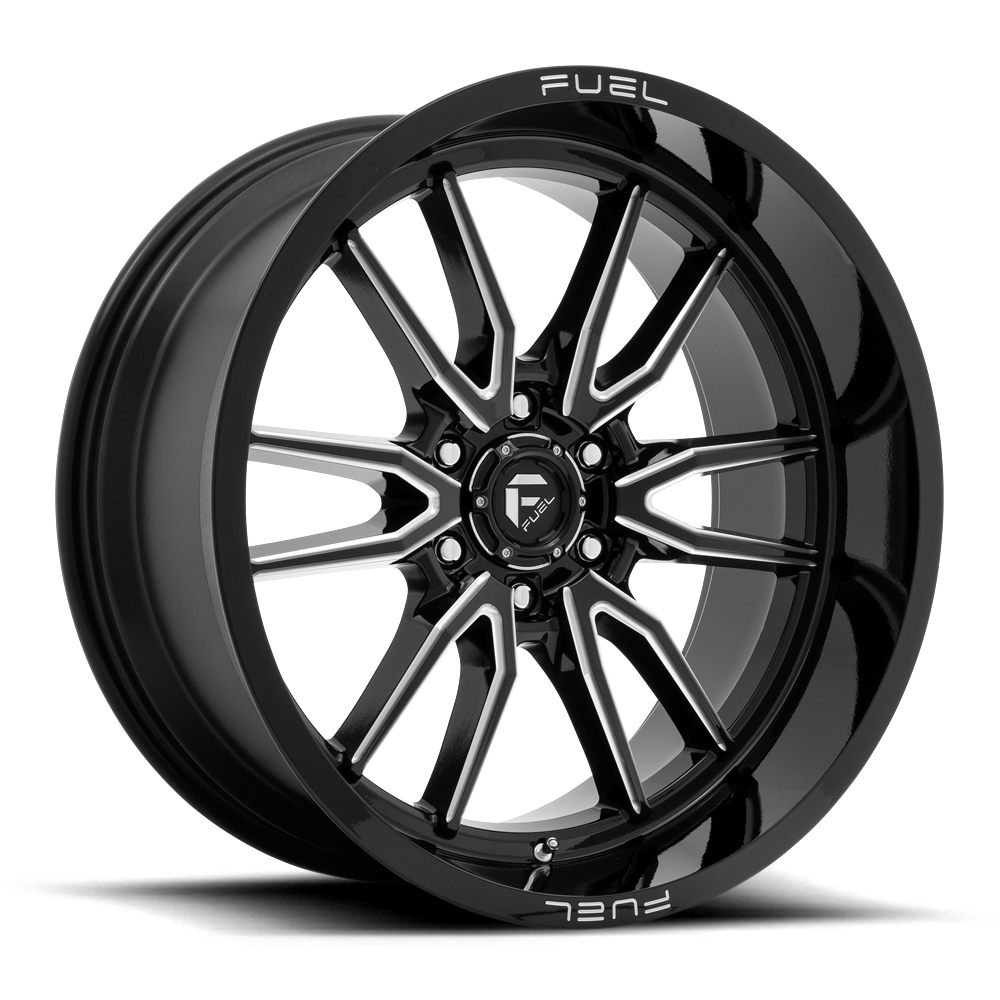

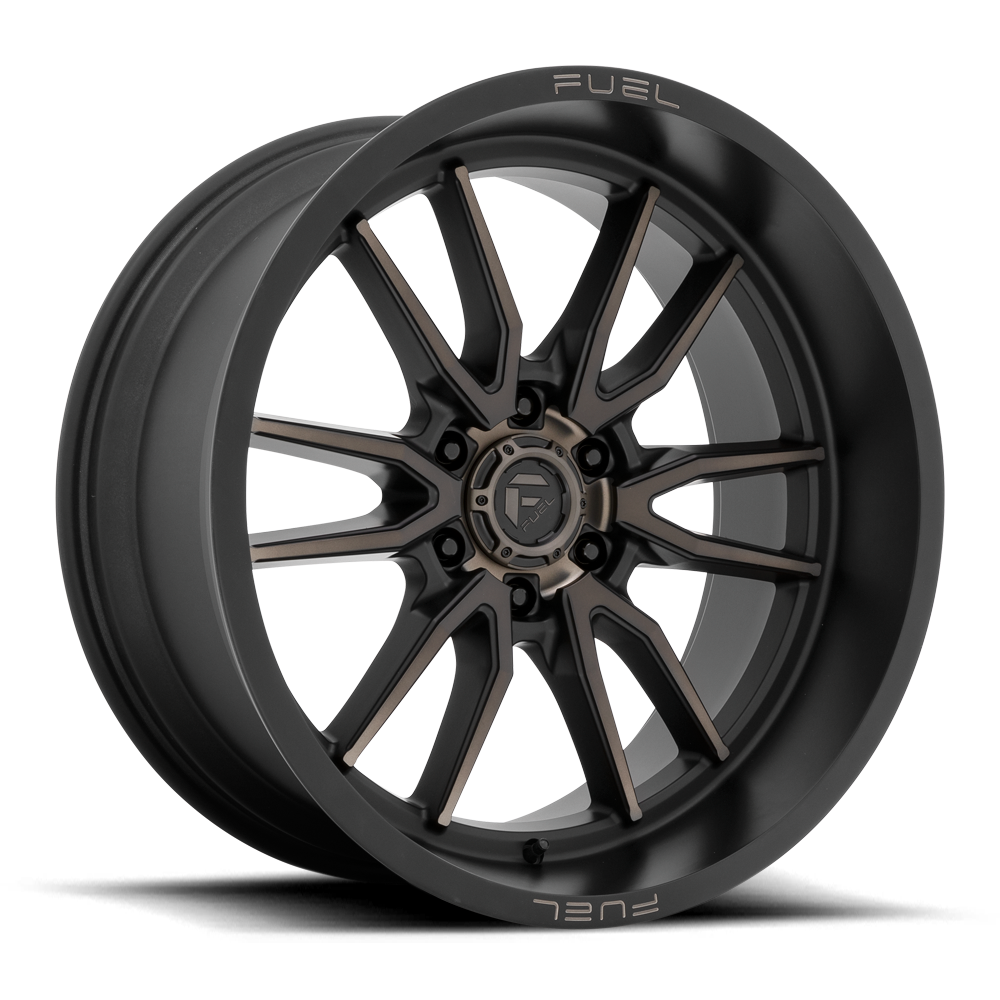

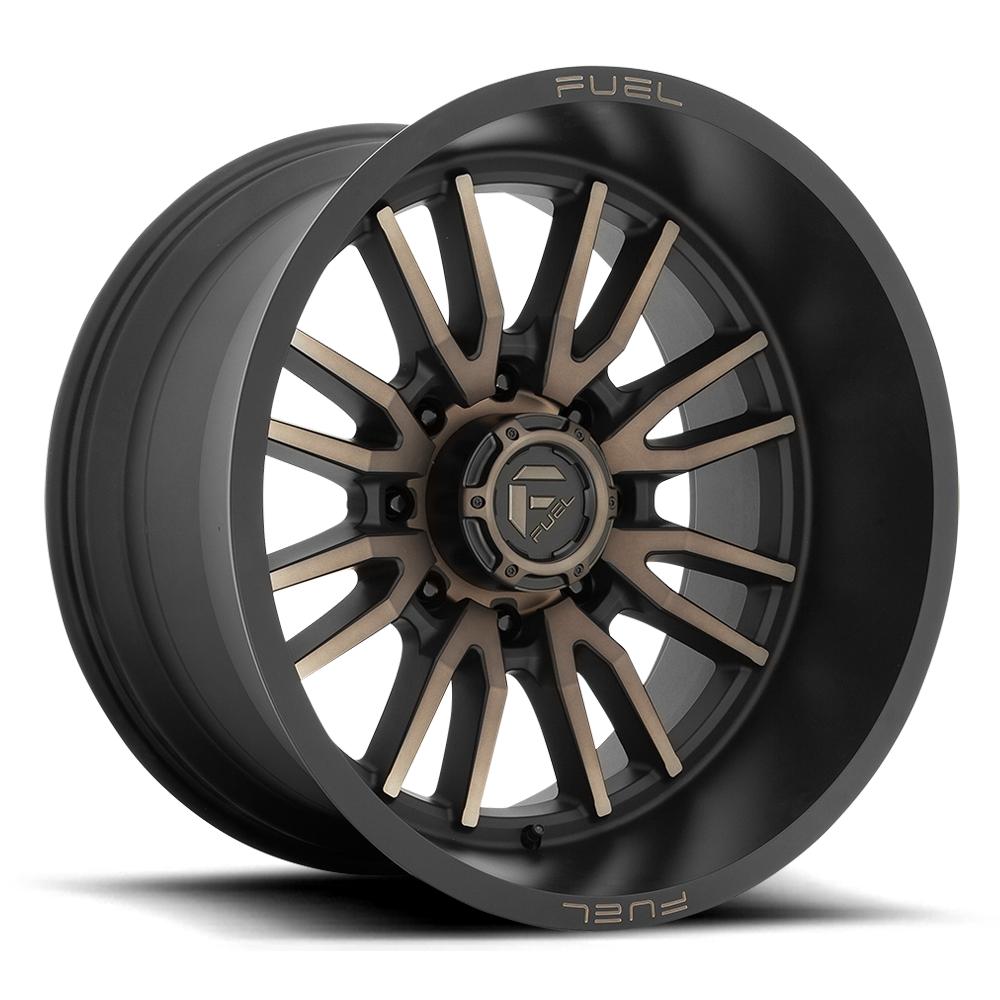

Fuel Clash Wheel
By Fuel
$525.00
Size
Bolt Pattern
180-Day ReturnsOn uninstalled, unused parts
Real humans who wheel(920) 249-7744
PayPal Credit acceptedFinancing option at checkout
Secure checkoutEncrypted payment
The Fuel Off-Road Clash combines rugged performance with sleek style for various 4X4 applications. Its dynamic multi-spoke "tuning fork" pattern enhances both aesthetics and capability. Available in 5, 6, and 8-lug bolt patterns, it fits everything from Jeeps and Tacomas to ½-ton trucks like the Ford F-150, Silverado 1500, RAM 1500, and Sierra 1500. It also suits ¾-ton and 1-ton builds like the Ford F-250 and F-350, RAM 2500 and 3500, and Silverado 2500 and 3500. With sizes from 17” to 24” and offsets ranging from -44mm to +35mm, the Clash adapts to a wide range of off-road builds.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D76017908945 | Gloss Black | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2500 lbs | 31.70 lbs |
| D76217908445 | Matte Black Double Dark Tint | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 31.70 lbs |
| D76017908950 | Gloss Black | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 31.70 lbs |
| D76017908450 | Gloss Black | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 31.70 lbs |
| D76117909450 | Gloss Black Milled | 17x9 1mm | 6x120 | 5.04" | 67.06mm | 2500 lbs | 31.70 lbs |
| D76117908450 | Gloss Black Milled | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 31.70 lbs |
| D76217908450 | Matte Black Double Dark Tint | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 31.70 lbs |
| D76217908950 | Matte Black Double Dark Tint | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 31.70 lbs |
| D76018908445 | Gloss Black | 18x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 33.50 lbs |
| D76118908445 | Gloss Black Milled | 18x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 33.50 lbs |
| D76218908945 | Matte Black Double Dark Tint | 18x9 -12mm | 6x135 | 4.53" | 87.10mm | 2500 lbs | 33.50 lbs |
| D76218908445 | Matte Black Double Dark Tint | 18x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 33.50 lbs |
| D76018908450 | Gloss Black | 18x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 33.50 lbs |
| D76118908450 | Gloss Black Milled | 18x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 33.50 lbs |
| D76118909450 | Gloss Black Milled | 18x9 1mm | 6x120 | 5.04" | 67.06mm | 2500 lbs | 33.50 lbs |
| D76218908450 | Matte Black Double Dark Tint | 18x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 33.50 lbs |
| D76218909450 | Matte Black Double Dark Tint | 18x9 1mm | 6x120 | 5.04" | 67.06mm | 2500 lbs | 33.50 lbs |
| D76020908450 | Gloss Black | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 37.50 lbs |
| D76020908950 | Gloss Black | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 37.50 lbs |
| D76020901850 | Gloss Black | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 43.20 lbs |
| D76020901750 | Gloss Black | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 43.20 lbs |
| D76020908250 | Gloss Black | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 43.20 lbs |
| D76120908950 | Gloss Black Milled | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 37.50 lbs |
| D76120908450 | Gloss Black Milled | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 37.50 lbs |
| D76120901750 | Gloss Black Milled | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 43.20 lbs |
| D76120908250 | Gloss Black Milled | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 43.20 lbs |
| D76120901850 | Gloss Black Milled | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 43.20 lbs |
| D76220908450 | Matte Black Double Dark Tint | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 37.50 lbs |
| D76220908950 | Matte Black Double Dark Tint | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 37.50 lbs |
| D76220901850 | Matte Black Double Dark Tint | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 43.20 lbs |
| D76220901750 | Matte Black Double Dark Tint | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 43.20 lbs |
| D76020908257 | Gloss Black | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 42.50 lbs |
| D76020901857 | Gloss Black | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 42.50 lbs |
| D76020901757 | Gloss Black | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 42.50 lbs |
| D76120908257 | Gloss Black Milled | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 42.50 lbs |
| D76120901757 | Gloss Black Milled | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 42.50 lbs |
| D76120901857 | Gloss Black Milled | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 42.50 lbs |
| D76220901857 | Matte Black Double Dark Tint | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 42.50 lbs |
| D76020008947 | Gloss Black | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 39.20 lbs |
| D76020008447 | Gloss Black | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 39.20 lbs |
| D76020008247 | Gloss Black | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 45.42 lbs |
| D76020001847 | Gloss Black | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 45.42 lbs |
| D76020001747 | Gloss Black | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 45.42 lbs |
| D76120008447 | Gloss Black Milled | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 39.20 lbs |
| D76120008947 | Gloss Black Milled | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 39.20 lbs |
| D76120001847 | Gloss Black Milled | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 45.42 lbs |
| D76120001747 | Gloss Black Milled | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 45.42 lbs |
| D76120008247 | Gloss Black Milled | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 45.42 lbs |
| D76220008947 | Matte Black Double Dark Tint | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 39.20 lbs |
| D76220008447 | Matte Black Double Dark Tint | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 39.20 lbs |
| D76220001847 | Matte Black Double Dark Tint | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 45.42 lbs |
| D76220001747 | Matte Black Double Dark Tint | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 45.42 lbs |
| D76022008947 | Gloss Black | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 43.20 lbs |
| D76022008447 | Gloss Black | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 43.20 lbs |
| D76122008447 | Gloss Black Milled | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 43.20 lbs |
| D76222008447 | Matte Black Double Dark Tint | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 43.20 lbs |
| D76022208247 | Gloss Black | 22x12 -44mm | 8x165.1 | 4.77" | 125.10mm | 3700 lbs | 51.40 lbs |
| D76022208947 | Gloss Black | 22x12 -44mm | 6x135 | 4.77" | 87.10mm | 2500 lbs | 46.30 lbs |
| D76022201747 | Gloss Black | 22x12 -44mm | 8x170 | 4.77" | 125.10mm | 3700 lbs | 51.40 lbs |
| D76022201847 | Gloss Black | 22x12 -44mm | 8x180 | 4.77" | 124.20mm | 3700 lbs | 51.40 lbs |
| D76022208447 | Gloss Black | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 46.30 lbs |
| D76122201747 | Gloss Black Milled | 22x12 -44mm | 8x170 | 4.77" | 125.10mm | 3700 lbs | 51.40 lbs |
| D76122201847 | Gloss Black Milled | 22x12 -44mm | 8x180 | 4.77" | 124.20mm | 3700 lbs | 51.40 lbs |
| D76122208447 | Gloss Black Milled | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 46.30 lbs |
| D76222201747 | Matte Black Double Dark Tint | 22x12 -44mm | 8x170 | 4.77" | 125.10mm | 3700 lbs | 51.40 lbs |
| D76222201847 | Matte Black Double Dark Tint | 22x12 -44mm | 8x180 | 4.77" | 124.20mm | 3700 lbs | 51.40 lbs |
| D76024208447 | Gloss Black | 24x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 51.80 lbs |
