Warranty Information
Vendor warranty summary
Fuel Off-Road Warranty
At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish
This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Wheel structure | Lifetime (original retail purchaser) |
| PVD finishes (peeling/lifting) | 2 years |
| Chrome aluminum finish (peeling/lifting; pitting excluded) | 1 year |
| Painted aluminum finish (peeling/lifting) | 1 year |
| Steel wheel paint or plating | 90 days (surface rust/corrosion excluded) |
| Uncoated polished aluminum | Not covered |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use for as long as the original buyer owns the wheels
- Finish peeling or lifting within the finish's coverage period
- Approved wheels are repaired or replaced
What's not covered
- Wheels not installed per Fuel's installation guidelines
- Damage from poor maintenance or harsh cleaning chemicals
- Structural damage from accidents or road hazards
- Racing or improper vehicle use
- Use of unapproved accessories or adapters
- Removal, mounting, installation and shipping costs
How to make a Fuel Off-Road warranty claim
- Return the wheel with the original sales receipt to the retailer you bought it from
- The wheel is inspected; approved claims are repaired or replaced
- You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense
Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.
Shop Fuel Off-Road at NVMOS
See all Fuel Off-Road products, lead times and FAQs →
Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.
Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 293 Fuel Off-RoadWarrantyAll brands
Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

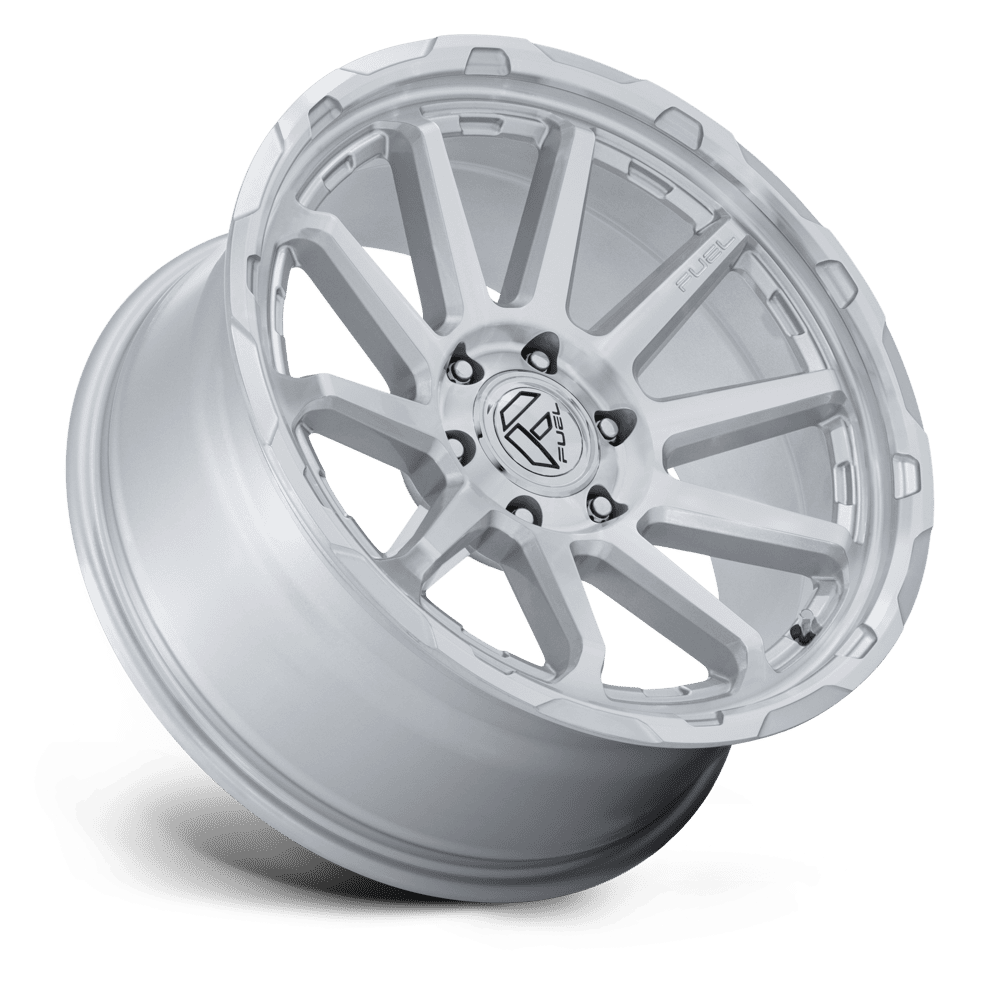

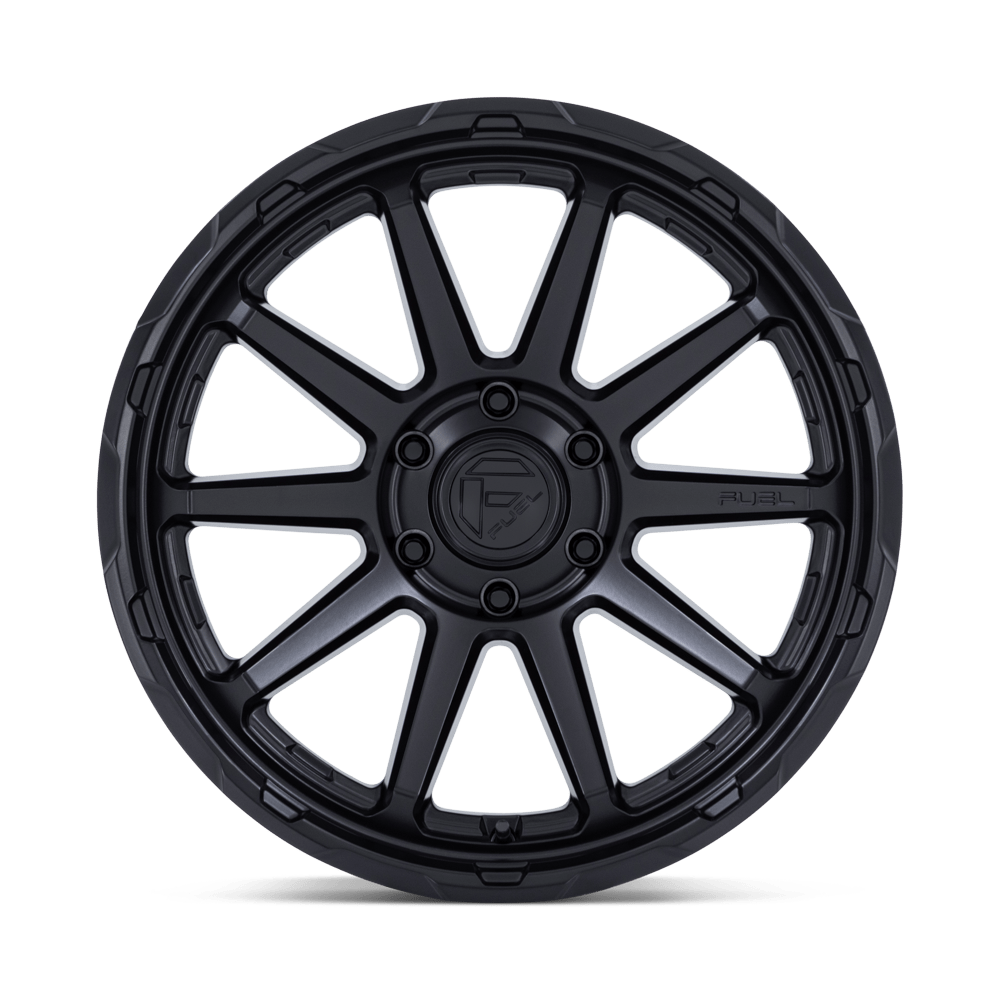

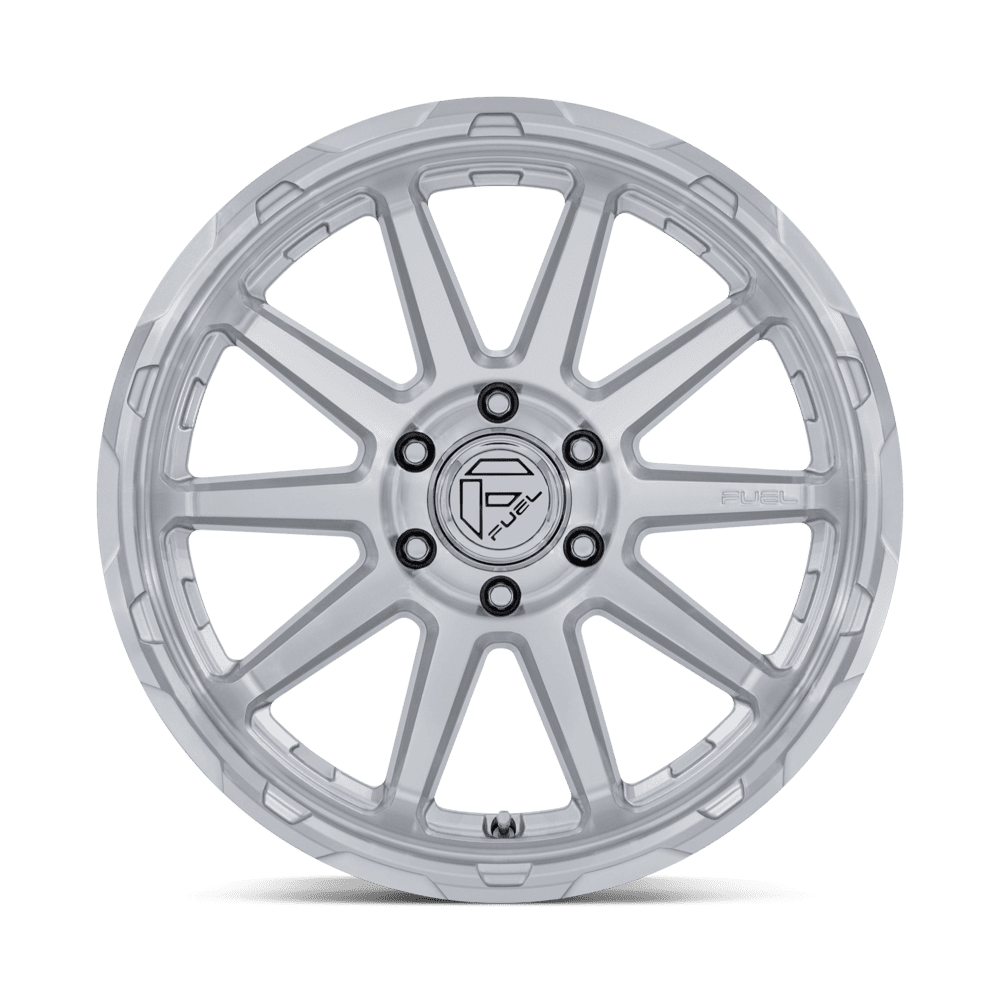

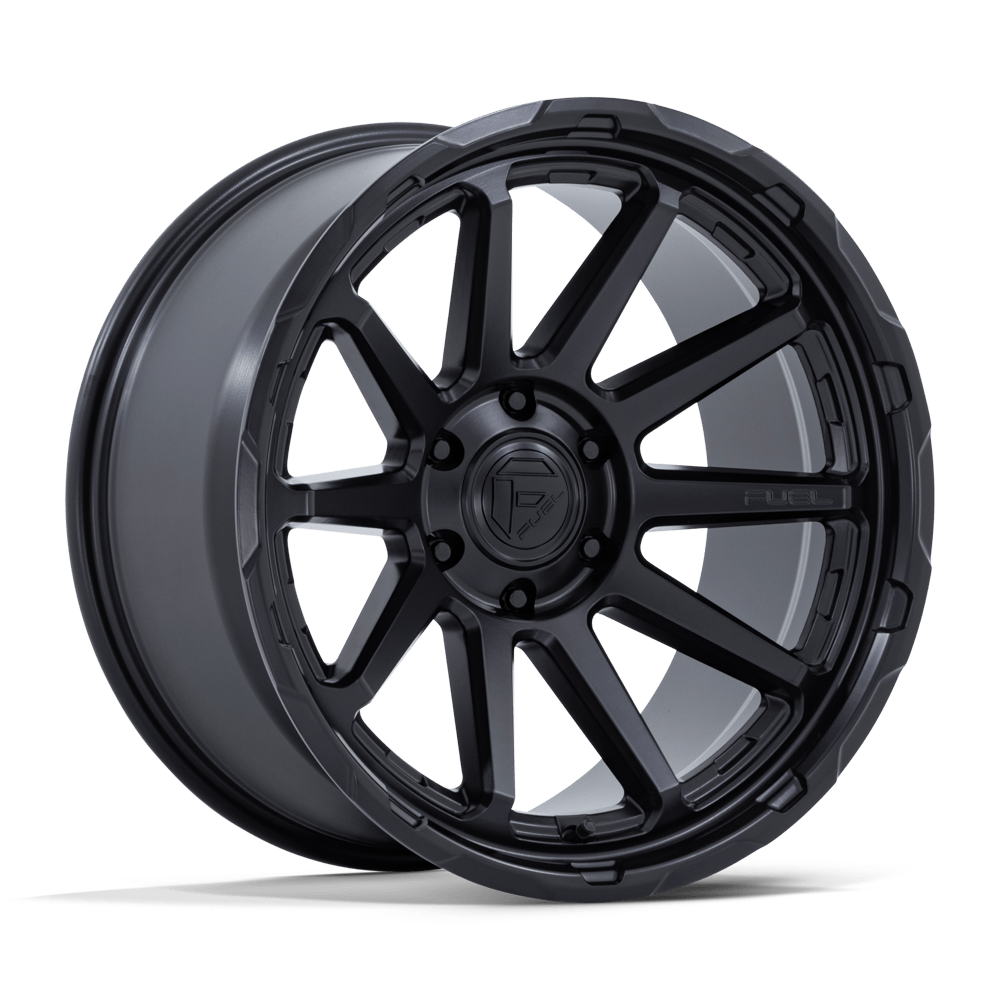

Fuel Circuit Wheel
The Fuel Circuit is a solid, no-nonsense wheel for any truck built to work or play. Its clean 10-spoke layout with wide open windows gives it a bold look. Browse more off-road wheels.
Sizes include 20x9, 20x10 and 22x9, plus 17 and 18-inch options, in 5 and 6-lug patterns. Fuel lists the Ford F-150, Toyota Tacoma, Chevy Silverado and Ram 1500. See non-beadlock wheels.
Finishes: Matte Black, Gloss Silver w/ Machined Face. Sizes (diameter x width, offset): 20x10 -18mm, 20x9 1mm, 22x9 1mm, 20x9 20mm, 17x9 1mm, 18x9 20mm, 18x9 1mm, 17x9 -12mm, 17x8.5 25mm. Bolt patterns: 5x127, 6x139.7, 6x135.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| FC887SD17856825 | Gloss Silver w/ Machined Face | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2650 lbs | 29.70 lbs |
| FC887MX17856825 | Matte Black | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2650 lbs | 29.70 lbs |
| FC887SD17905012N | Gloss Silver w/ Machined Face | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2650 lbs | 31.68 lbs |
| FC887SD17906812N | Gloss Silver w/ Machined Face | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2650 lbs | 31.02 lbs |
| FC887MX17906812N | Matte Black | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2650 lbs | 31.02 lbs |
| FC887MX17905012N | Matte Black | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2650 lbs | 31.68 lbs |
| FC887SD17906301 | Gloss Silver w/ Machined Face | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 30.58 lbs |
| FC887SD17906801 | Gloss Silver w/ Machined Face | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 30.14 lbs |
| FC887MX17906301 | Matte Black | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 30.58 lbs |
| FC887MX17906801 | Matte Black | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 30.14 lbs |
| FC887MX17905001 | Matte Black | 17x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 30.80 lbs |
| FC887SD18906801 | Gloss Silver w/ Machined Face | 18x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 33.22 lbs |
| FC887SD18906301 | Gloss Silver w/ Machined Face | 18x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 33.44 lbs |
| FC887SD18905001 | Gloss Silver w/ Machined Face | 18x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 33.66 lbs |
| FC887MX18906801 | Matte Black | 18x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 33.22 lbs |
| FC887MX18906301 | Matte Black | 18x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 33.44 lbs |
| FC887MX18905001 | Matte Black | 18x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 33.66 lbs |
| FC887SD18906320 | Gloss Silver w/ Machined Face | 18x9 20mm | 6x135 | 5.79" | 87.10mm | 2650 lbs | 32.78 lbs |
| FC887SD18906820 | Gloss Silver w/ Machined Face | 18x9 20mm | 6x139.7 | 5.79" | 106.10mm | 2650 lbs | 32.56 lbs |
| FC887MX18906820 | Matte Black | 18x9 20mm | 6x139.7 | 5.79" | 106.10mm | 2650 lbs | 32.56 lbs |
| FC887MX18905020 | Matte Black | 18x9 20mm | 5x127 | 5.79" | 71.50mm | 2650 lbs | 33.00 lbs |
| FC887MX18906320 | Matte Black | 18x9 20mm | 6x135 | 5.79" | 87.10mm | 2650 lbs | 32.78 lbs |
| FC887SD20905001 | Gloss Silver w/ Machined Face | 20x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 36.96 lbs |
| FC887SD20906801 | Gloss Silver w/ Machined Face | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 36.74 lbs |
| FC887SD20906301 | Gloss Silver w/ Machined Face | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 37.18 lbs |
| FC887MX20905001 | Matte Black | 20x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 36.96 lbs |
| FC887MX20906301 | Matte Black | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 37.18 lbs |
| FC887MX20906801 | Matte Black | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 36.74 lbs |
| FC887SD20906320 | Gloss Silver w/ Machined Face | 20x9 20mm | 6x135 | 5.79" | 87.10mm | 2650 lbs | 36.74 lbs |
| FC887SD20906820 | Gloss Silver w/ Machined Face | 20x9 20mm | 6x139.7 | 5.79" | 106.10mm | 2650 lbs | 36.08 lbs |
| FC887MX20906820 | Matte Black | 20x9 20mm | 6x139.7 | 5.79" | 106.10mm | 2650 lbs | 36.08 lbs |
| FC887MX20906320 | Matte Black | 20x9 20mm | 6x135 | 5.79" | 87.10mm | 2650 lbs | 36.74 lbs |
| FC887MX20905020 | Matte Black | 20x9 20mm | 5x127 | 5.79" | 71.50mm | 2650 lbs | 36.52 lbs |
| FC887SD20106818N | Gloss Silver w/ Machined Face | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2650 lbs | 36.30 lbs |
| FC887SD20106318N | Gloss Silver w/ Machined Face | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2650 lbs | 36.96 lbs |
| FC887SD20105018N | Gloss Silver w/ Machined Face | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2650 lbs | 36.74 lbs |
| FC887MX20105018N | Matte Black | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2650 lbs | 36.74 lbs |
| FC887MX20106318N | Matte Black | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2650 lbs | 36.96 lbs |
| FC887MX20106818N | Matte Black | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2650 lbs | 36.30 lbs |
| FC887SD22906801 | Gloss Silver w/ Machined Face | 22x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 36.96 lbs |
| FC887SD22905001 | Gloss Silver w/ Machined Face | 22x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 36.52 lbs |
| FC887SD22906301 | Gloss Silver w/ Machined Face | 22x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 37.18 lbs |
| FC887MX22905001 | Matte Black | 22x9 1mm | 5x127 | 5.04" | 71.50mm | 2650 lbs | 36.52 lbs |
| FC887MX22906301 | Matte Black | 22x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 37.18 lbs |
| FC887MX22906801 | Matte Black | 22x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2650 lbs | 36.96 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$320.00
$4,593.28
$229.96
$749.99
$440.00
Fuel Circuit Wheel FAQs
What trucks does Fuel list?
Ford F-150, Toyota Tacoma, Chevy Silverado and Ram 1500.
What finishes?
Matte Black and Gloss Silver with Machined Face.
What bolt patterns?
5x127, 6x139.7 and 6x135.
Is there a dually Circuit?
Yes. The Circuit Dually is a separate listing.
