SKU: D868208292

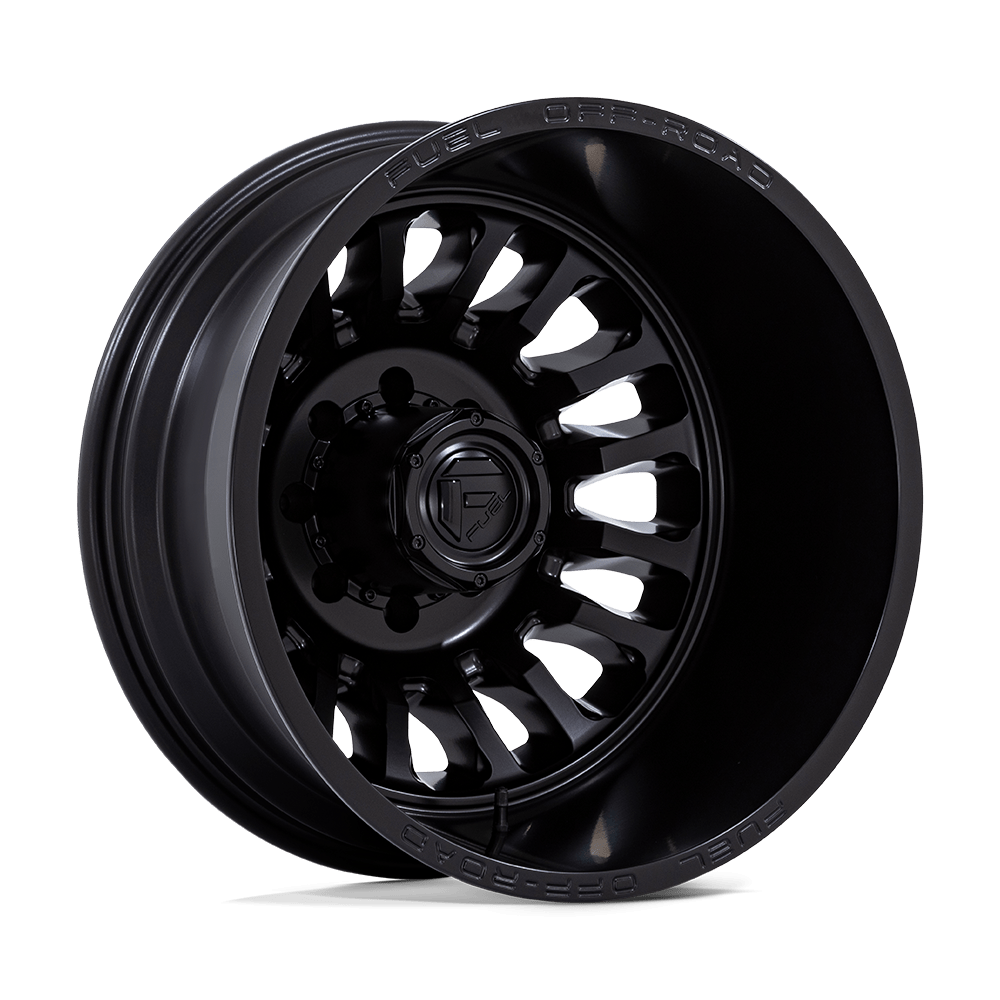

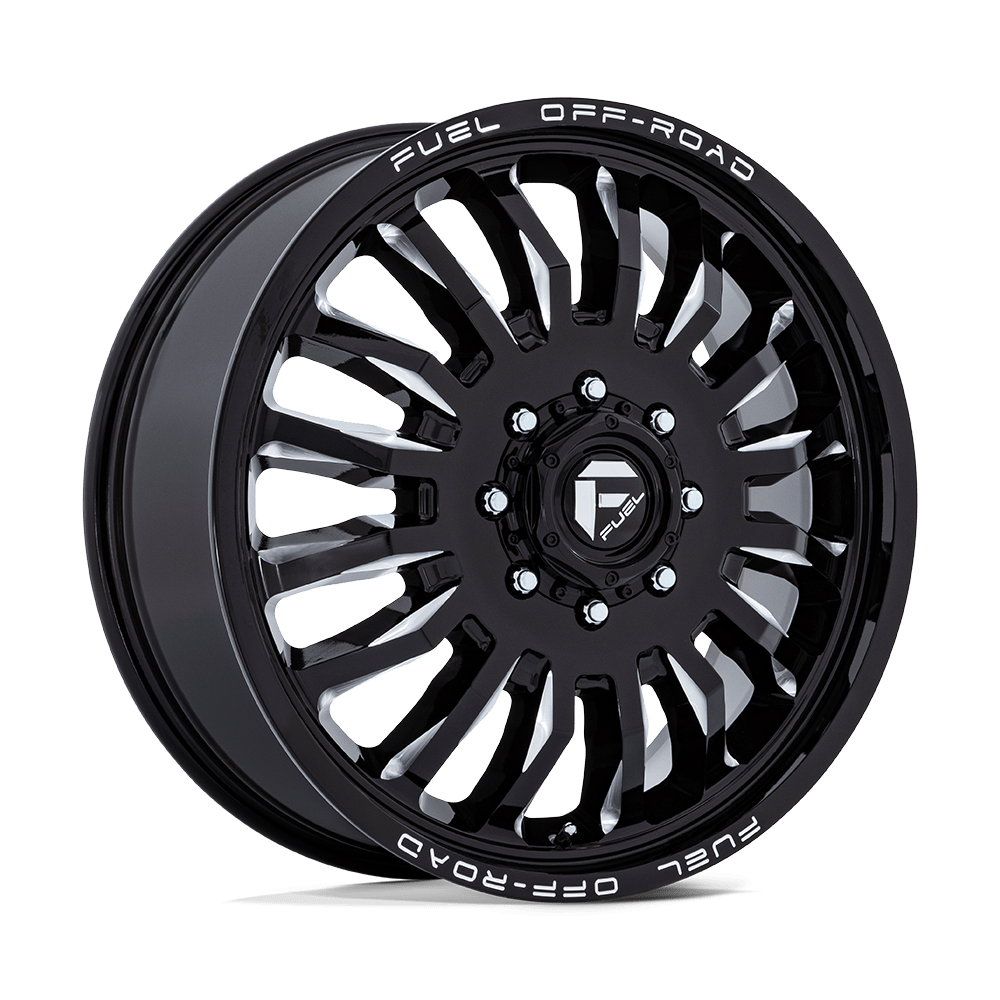

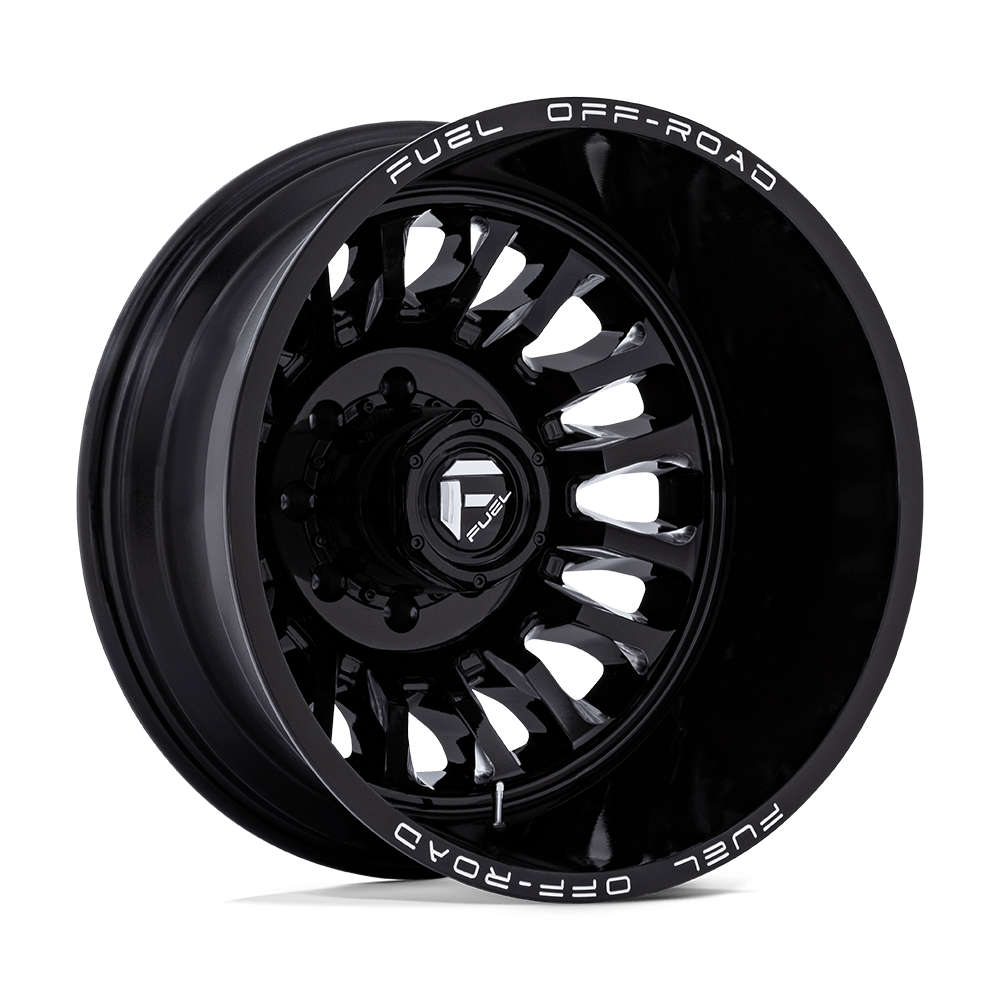

Fuel Arc Dually Wheel - 20"

By Fuel Off-Road

$579.00

Finish: Gloss Black Milled

Size

Bolt Pattern

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Warranty Information

Vendor warranty summary

Fuel Off-Road Warranty

At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish

Shop Fuel Off-Road Official Fuel Off-Road policy All warranty policies

This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Wheel structure	Lifetime (original retail purchaser)
PVD finishes (peeling/lifting)	2 years
Chrome aluminum finish (peeling/lifting; pitting excluded)	1 year
Painted aluminum finish (peeling/lifting)	1 year
Steel wheel paint or plating	90 days (surface rust/corrosion excluded)
Uncoated polished aluminum	Not covered

Original purchaser only — coverage does not transfer if you sell it.
Keep your NVMOS order confirmation — proof of purchase is required.

What's covered

Structural failure under normal, intended use for as long as the original buyer owns the wheels
Finish peeling or lifting within the finish's coverage period
Approved wheels are repaired or replaced

What's not covered

Wheels not installed per Fuel's installation guidelines
Damage from poor maintenance or harsh cleaning chemicals
Structural damage from accidents or road hazards
Racing or improper vehicle use
Use of unapproved accessories or adapters
Removal, mounting, installation and shipping costs

How to make a Fuel Off-Road warranty claim

Return the wheel with the original sales receipt to the retailer you bought it from
The wheel is inspected; approved claims are repaired or replaced
You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense

Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.

Shop Fuel Off-Road at NVMOS

Fuel Catalyst Wheel - 17"

Fuel Rebar Wheel - 22"

Fuel Cleaver Dually Wheel

See all Fuel Off-Road products, lead times and FAQs →

Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Fuel Off-Road

Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.

Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Fuel Off-Road warranty: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish. Read the full summary

Shop all 309 Fuel Off-Road Warranty All brands

Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

Fuel Arc Dually Wheel, 20"

The Fuel Arc Dually brings the Arc line to dual-rear-wheel trucks. It pairs a convex front wheel with a deep concave rear wheel and emphasizes heavy-duty load capacity. Browse more dually wheels.

Fuel lists it for payload and towing on trucks like the Chevy Silverado 3500HD, GMC Sierra 3500HD, RAM 3500 and Ford F-350 Super Duty. It is a non-beadlock design. See all non-beadlock wheels.

Why it works

Dually specificFront convex and rear deep concave wheels.

Load focusEmphasizes heavy-duty load capacity.

Many fitmentsSix size/offset options and five bolt patterns.

Fitment

20x8.25 in offsets 104mm, -201mm, -227mm, -240mm, -246mm and -265mm. Bolt patterns: 8x200, 8x210, 8x165.1, 10x225, 8x170. Finishes: Gloss Black Milled, Blackout, Polished.

Specifications

Part #	Finish	Size / Offset	Bolt Pattern	Backspace	Center Bore	Load Rating	Weight
D86720829235	Blackout	20x8.25 -201mm	8x200	-3.29"	142.00mm	3000 lbs	47.63 lbs
D86720829325	Blackout	20x8.25 -201mm	8x210	-3.29"	154.30mm	3000 lbs	46.97 lbs
D86720827225	Blackout	20x8.25 -201mm	8x165.1	-3.29"	117.00mm	3000 lbs	48.95 lbs
D8672082A935	Blackout	20x8.25 -201mm	10x225	-3.29"	170.10mm	3750 lbs	45.18 lbs
D86820829235	Gloss Black Milled	20x8.25 -201mm	8x200	-3.29"	142.00mm	3000 lbs	47.63 lbs
D86820827225	Gloss Black Milled	20x8.25 -201mm	8x165.1	-3.29"	117.00mm	3000 lbs	48.95 lbs
D86820829325	Gloss Black Milled	20x8.25 -201mm	8x210	-3.29"	154.30mm	3000 lbs	46.97 lbs
D8682082A935	Gloss Black Milled	20x8.25 -201mm	10x225	-3.29"	170.10mm	3750 lbs	45.18 lbs
D89120827225	Polished	20x8.25 -201mm	8x165.1	-3.29"	117.00mm	3000 lbs	48.95 lbs
D89120821735	Polished	20x8.25 -201mm	8x170	-3.29"	125.10mm	3000 lbs	48.51 lbs
D89120829235	Polished	20x8.25 -201mm	8x200	-3.29"	142.00mm	3000 lbs	47.63 lbs
D89120829325	Polished	20x8.25 -201mm	8x210	-3.29"	154.30mm	3000 lbs	46.97 lbs
D8912082A935	Polished	20x8.25 -201mm	10x225	-3.29"	170.10mm	3750 lbs	45.18 lbs
D86720829245	Blackout	20x8.25 -227mm	8x200	-4.31"	142.00mm	3000 lbs	51.82 lbs
D86720829335	Blackout	20x8.25 -227mm	8x210	-4.31"	154.30mm	3000 lbs	50.49 lbs
D86720827235	Blackout	20x8.25 -227mm	8x165.1	-4.31"	117.00mm	3000 lbs	53.80 lbs
D86820829245	Gloss Black Milled	20x8.25 -227mm	8x200	-4.31"	142.00mm	3000 lbs	51.82 lbs
D86820829335	Gloss Black Milled	20x8.25 -227mm	8x210	-4.31"	154.30mm	3000 lbs	50.49 lbs
D86820827235	Gloss Black Milled	20x8.25 -227mm	8x165.1	-4.31"	117.00mm	3000 lbs	53.80 lbs
D89120829335	Polished	20x8.25 -227mm	8x210	-4.31"	154.30mm	3000 lbs	50.49 lbs
D89120821745	Polished	20x8.25 -227mm	8x170	-4.31"	125.10mm	3000 lbs	53.14 lbs
D89120829245	Polished	20x8.25 -227mm	8x200	-4.31"	142.00mm	3000 lbs	51.82 lbs
D89120827235	Polished	20x8.25 -227mm	8x165.1	-4.31"	117.00mm	3000 lbs	53.80 lbs
D86720828D35	Blackout	20x8.25 -240mm	8x165.1	-4.82"	121.50mm	3000 lbs	51.48 lbs
D86820828D35	Gloss Black Milled	20x8.25 -240mm	8x165.1	-4.82"	121.50mm	3000 lbs	51.48 lbs
D89120828D35	Polished	20x8.25 -240mm	8x165.1	-4.82"	121.50mm	3000 lbs	50.90 lbs
D86720829345	Blackout	20x8.25 -246mm	8x210	-5.06"	154.30mm	3000 lbs	49.94 lbs
D86820827245	Gloss Black Milled	20x8.25 -246mm	8x165.1	-5.06"	117.00mm	3000 lbs	52.58 lbs
D89120829345	Polished	20x8.25 -246mm	8x210	-5.06"	154.30mm	3000 lbs	48.92 lbs
D89120827245	Polished	20x8.25 -246mm	8x165.1	-5.06"	117.00mm	3000 lbs	52.00 lbs
D89120828D45	Polished	20x8.25 -265mm	8x165.1	-5.81"	121.50mm	3000 lbs	55.30 lbs
D867208292	Blackout	20x8.25 104mm	8x200	8.72"	142.00mm	3000 lbs	43.20 lbs
D867208293	Blackout	20x8.25 104mm	8x210	8.72"	154.30mm	3000 lbs	42.80 lbs
D867208272	Blackout	20x8.25 104mm	8x165.1	8.72"	117.00mm	3000 lbs	44.30 lbs
D8672082A9	Blackout	20x8.25 104mm	10x225	8.72"	170.10mm	3750 lbs	45.90 lbs
D868208292	Gloss Black Milled	20x8.25 104mm	8x200	8.72"	142.00mm	3000 lbs	43.20 lbs
D868208293	Gloss Black Milled	20x8.25 104mm	8x210	8.72"	154.30mm	3000 lbs	42.80 lbs
D86820828D	Gloss Black Milled	20x8.25 104mm	8x165.1	8.72"	121.50mm	3000 lbs	44.10 lbs
D8682082A9	Gloss Black Milled	20x8.25 104mm	10x225	8.72"	170.10mm	3750 lbs	45.90 lbs
D8912082A9	Polished	20x8.25 104mm	10x225	8.72"	170.10mm	3750 lbs	45.90 lbs
D89120828D	Polished	20x8.25 104mm	8x165.1	8.72"	121.50mm	3000 lbs	44.10 lbs
D891208293	Polished	20x8.25 104mm	8x210	8.72"	154.30mm	3000 lbs	42.80 lbs
D891208217	Polished	20x8.25 104mm	8x170	8.72"	125.10mm	3000 lbs	43.90 lbs
D891208292	Polished	20x8.25 104mm	8x200	8.72"	142.00mm	3000 lbs	43.20 lbs

Finish the whole truck in one order

Complete your build

The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.

Fuel Arc Dually Wheel - 20" (this item) What you’re viewing $579.00

✓

ReadyLIFT 4" Rear Block Kit - Ford Super Duty (1-pc Drive Shaft Only) 1999-2010 $189.95

Build total (1 items)

$579.00

The complete look for your build.

Set any options above, then add them all in one click — one checkout, one shipment.

Specifications

Part numbers: one Fuel part number per finish, size and bolt pattern (listed in the size table below)
Design: Convex front, deep concave rear (dually)
Finishes: Blackout, Gloss Black Milled, Polished
Sizes (diameter x width, offset): 20x8.25 -201mm, 20x8.25 -227mm, 20x8.25 -240mm, 20x8.25 -246mm, 20x8.25 -265mm, 20x8.25 104mm
Bolt patterns: 8x200, 8x210, 8x165.1, 10x225, 8x170
Backspace: -5.81 to 8.72"
Center bore: 117.00 to 170.10 mm
Load rating: 3,000 to 3,750 lbs per wheel, depending on size and bolt pattern
Weight: 42.80 to 55.30 lbs per wheel, depending on size
