FOX 3.0 Factory Race Series Front Internal Bypass Coilover Pair (2-2.25 in. Lift), fits Toyota Tundra

SKU: 883-06-219

FOX 3.0 Factory Race Series Front Internal Bypass Coilover Pair (2-2.25 in. Lift) for Toyota Tundra (2022-2026)

By FOX

$3,899.95

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Confirmed fit: 2022–2026 Toyota Tundra

Verified to fit the 2022–2026 Toyota Tundra.

Warranty Information

FOX warranty summary coming soon.

More details

FOX 3.0 Factory Race Series Front Internal Bypass Coilover Pair (2-2.25 in. Lift) for Toyota Tundra (2022-2026)

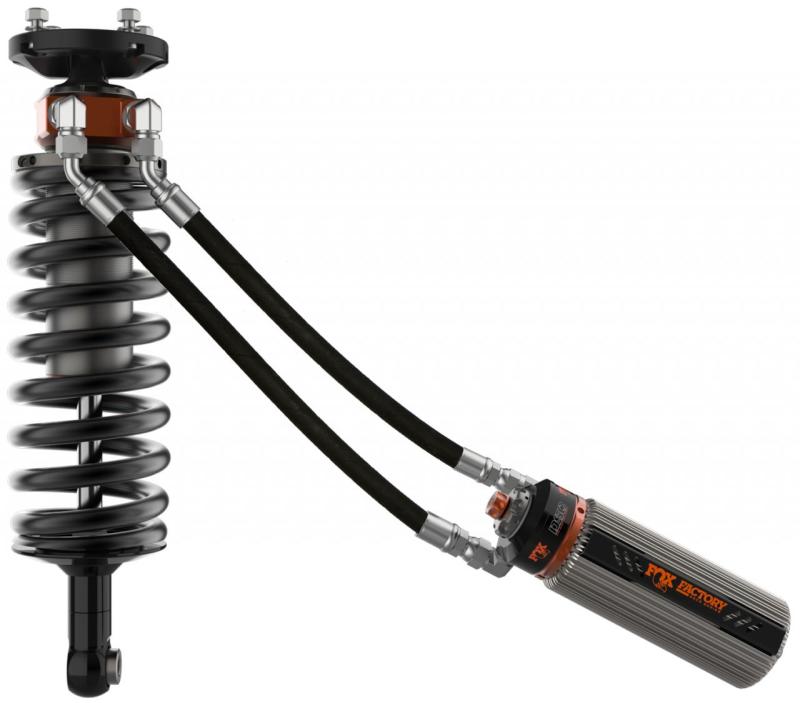

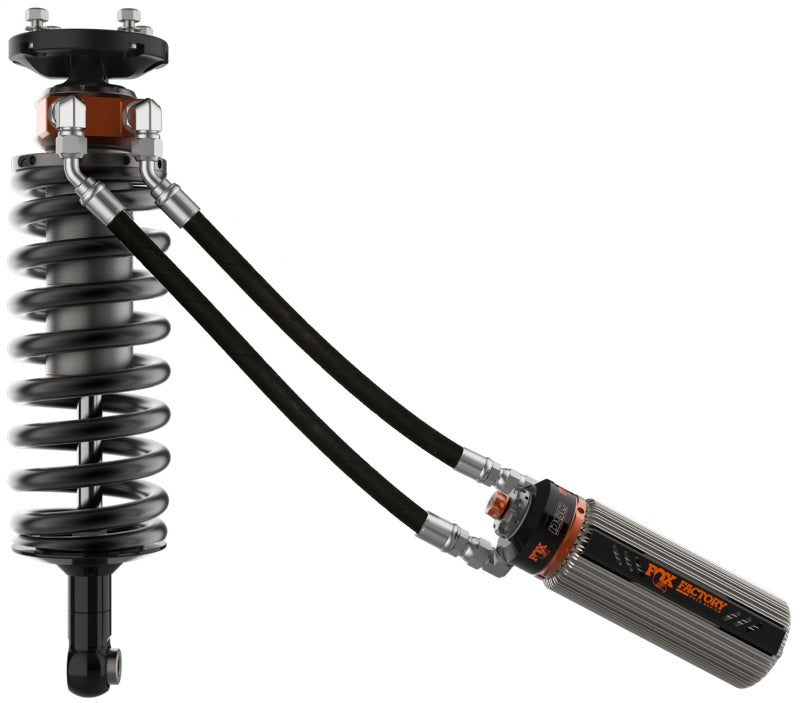

A pair of adjustable front internal bypass coilover reservoir shocks with a 3 inch body for 2022-and-newer Toyota Tundra with upper control arms and 2 to 2.25 inches of lift. They have 5.37 inches of travel. Non-TRD Off-Road and PRO trims need extended CV axles.

Why it works

Internal BypassBypass damping gives a progressive feel.

Large BodyA 3 in. aluminum body.

UCA FitMade for trucks with upper control arms.

Coilover PairTwo pieces.

Specifications

Spec	Detail
Fitment	Toyota Tundra, 2022-2026
Position	Front coilover (pair)
Lift Range	2-2.25 in. (one note says 2-2.5 in.)
Body Diameter	3 in.
Travel	5.37 in.
Compressed / Extended	15.65 in. / 21.69 in.
Top Mount	OEM
Bottom Mount	Eyelet

Before you order

Requires an upper control arm. Extended CV axles are required for non-TRD Off-Road/PRO trims. FOX install instructions: download the PDF. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.

Frequently asked questions

Upper control arm?

Required.

CV axles?

Extended axles are required for non-TRD Off-Road/PRO trims.

What lift?

2 to 2.25 inches.

What is the warranty?

Coverage depends on the product line; see our FOX warranty page for the term that applies.
