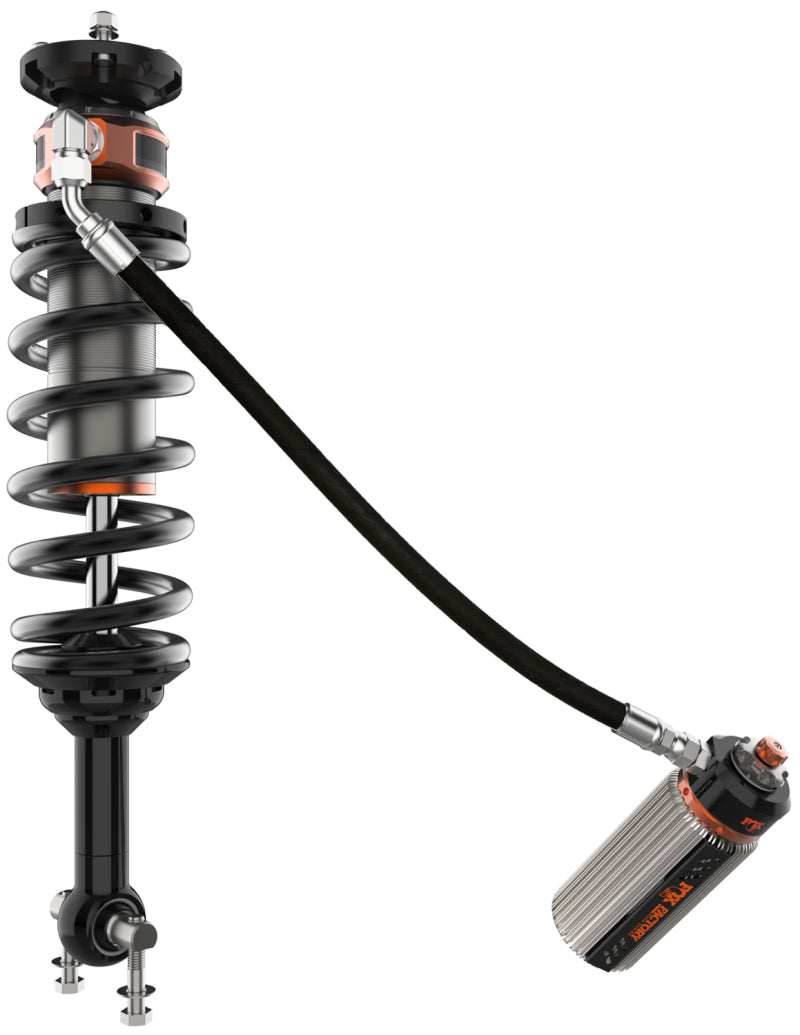

FOX 3.0 Factory Race Internal Bypass Front Coilovers, DSC (3-4.5 in. Lift) for Ford Bronco (2021-2026)
Front internal bypass coilovers with remote reservoirs for the 2021-2026 Ford Bronco, built for an upper control arm setup. Base trucks run a 4 to 4.5 in. lift and Sasquatch trucks 3 to 3.5 in.
| Spec | Detail |
|---|---|
| Fitment | Ford Bronco 2021-2026, excludes Raptor |
| Lift Height | 4-4.5 in. (base), 3-3.5 in. (Sasquatch) |
| Position | Front |
| Quantity | Pair |
| Body Diameter | 3 in. |
| Extended / Compressed | 23.44 in. / 17.95 in. |
| Travel | 5.42 in. |
| Adjuster | DSC (Dual Speed Compression) |
| Reservoir | Remote |
Requires an upper control arm and excludes the Raptor. Maximum 4.5 in. wheel back spacing is required to clear the suspension components. FOX install instructions: download the PDF. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.
Do I need an upper control arm?
Yes. An upper control arm is required.
What lift does the Sasquatch package use?
3 to 3.5 in. Base trucks use 4 to 4.5 in.
Does it fit the Raptor?
No, the Raptor is excluded.
Is there a wheel restriction?
Yes. A maximum of 4.5 in. back spacing is required to clear suspension components.
What is the warranty?
Coverage depends on the product line; see our FOX warranty page for the term that applies.
