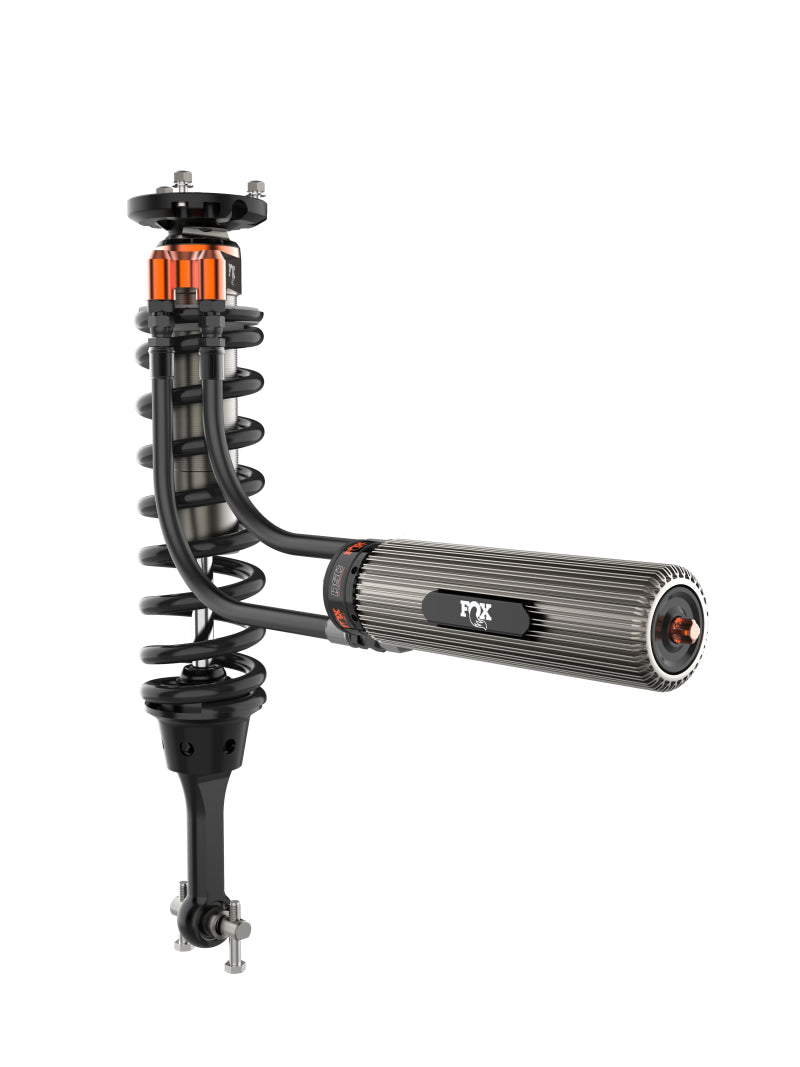

FOX 3.0 Factory Race Internal Bypass Front Coilovers (2.5 in. Lift), fits Ford F-150

SKU: 883-06-191

FOX 3.0 Factory Race Internal Bypass Front Coilovers (2.5 in. Lift) for Ford F-150 (2021-2026)

By FOX

$3,899.95

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Confirmed fit: 2021–2026 Ford F-150

Verified to fit the 2021–2026 Ford F-150.

Warranty Information

FOX warranty summary coming soon.

More details

FOX 3.0 Factory Race Internal Bypass Front Coilovers (2.5 in. Lift) for Ford F-150 (2021-2026)

A pair of 3-inch-body internal bypass coilovers for the front of a 2021-2026 Ford F-150, built around a 2.5 in. lift. The bypass design gives the shock different damping zones through its stroke, so the truck stays composed on washboard and still catches big hits. A dual speed compression adjuster lets you tune it for load and terrain.

Why it works

Bypass damping zonesInternal bypass ports change how much force the shock makes at different points in its stroke, which helps both ride quality and bottom-out control.

Adjustable compressionThe dual speed compression adjuster lets you firm up or soften the truck for towing, loaded beds or rough trails.

Heat managementA finned external reservoir with a recirculating bridge moves fluid between the reservoir and the body to keep temperatures in check.

Vehicle-specific kitEach pair is built for the F-150 front end, so it goes in without custom fabrication.

Specifications

Spec	Detail
Fitment	Ford F-150 2021-2026, 4WD, excludes single cab trucks
Lift Height	2.5 in. (about 1 in. on Tremor)
Position	Front
Quantity	Pair
Body Diameter	3 in.
Extended / Collapsed	22.49 in. / 17.25 in.
Travel	5.24 in.
Adjuster	DSC (Dual Speed Compression)
Reservoir	Remote, recirculating

Before you order

Not for single cab trucks. The Tremor only gains about 1 in. of lift with this kit. Made for trucks with an upper control arm setup, so confirm your front suspension configuration before ordering. FOX install instructions: download the PDF. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.

Frequently asked questions

What lift does this coilover give on an F-150?

It is built for a 2.5 in. front lift. On the Tremor the lift works out to about 1 in.

Will it fit a single cab F-150?

No. Single cab trucks are excluded.

Is the compression adjustable?

Yes. It uses a dual speed compression (DSC) adjuster, so you can tune the compression damping to your load and terrain.

What years does it cover?

The 2021-2026 Ford F-150.

What is the warranty?

Coverage depends on the product line; see our FOX warranty page for the term that applies.
