Diode Dynamics Ultra Heavy Duty Single Output 4-pin Wiring Harness
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

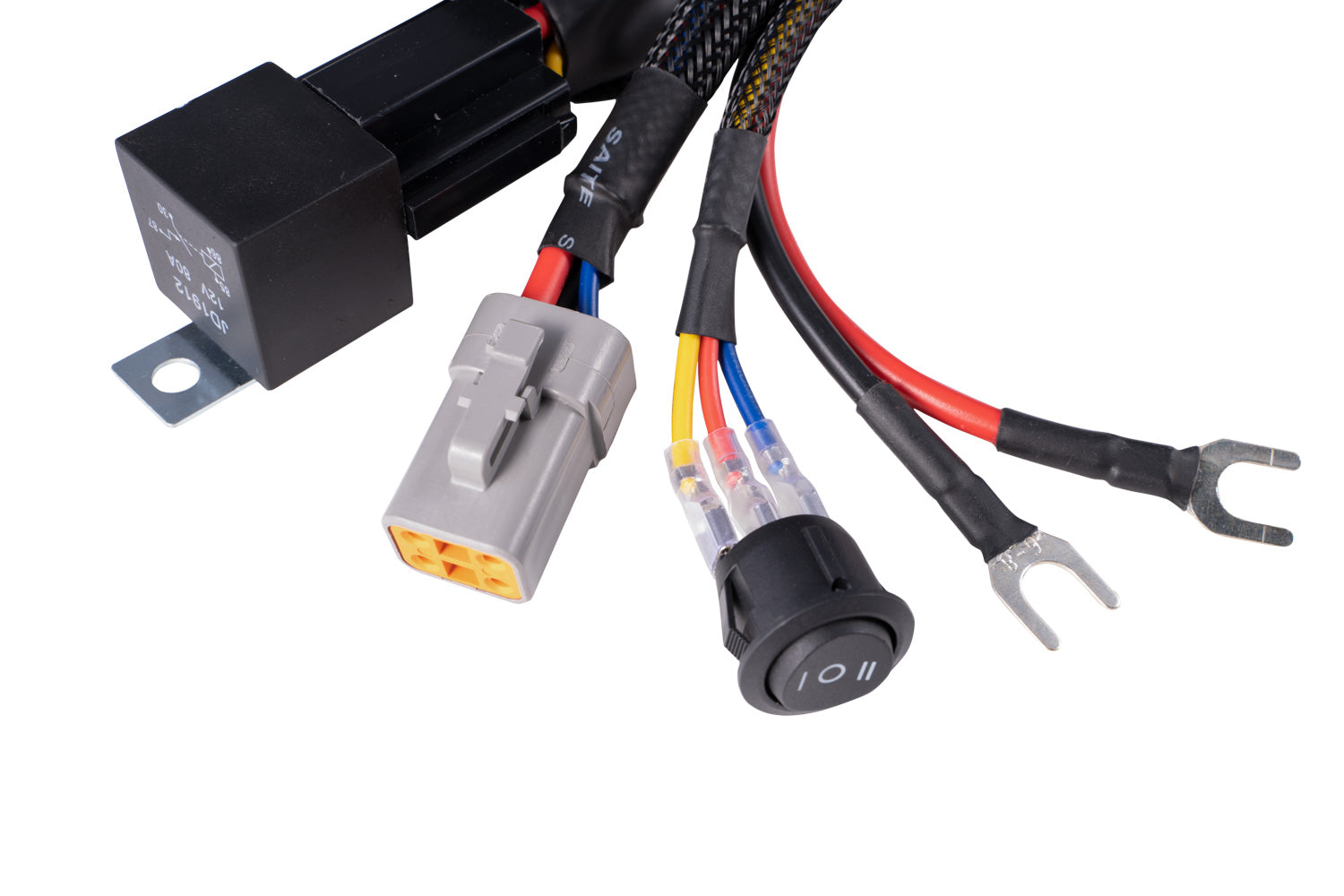

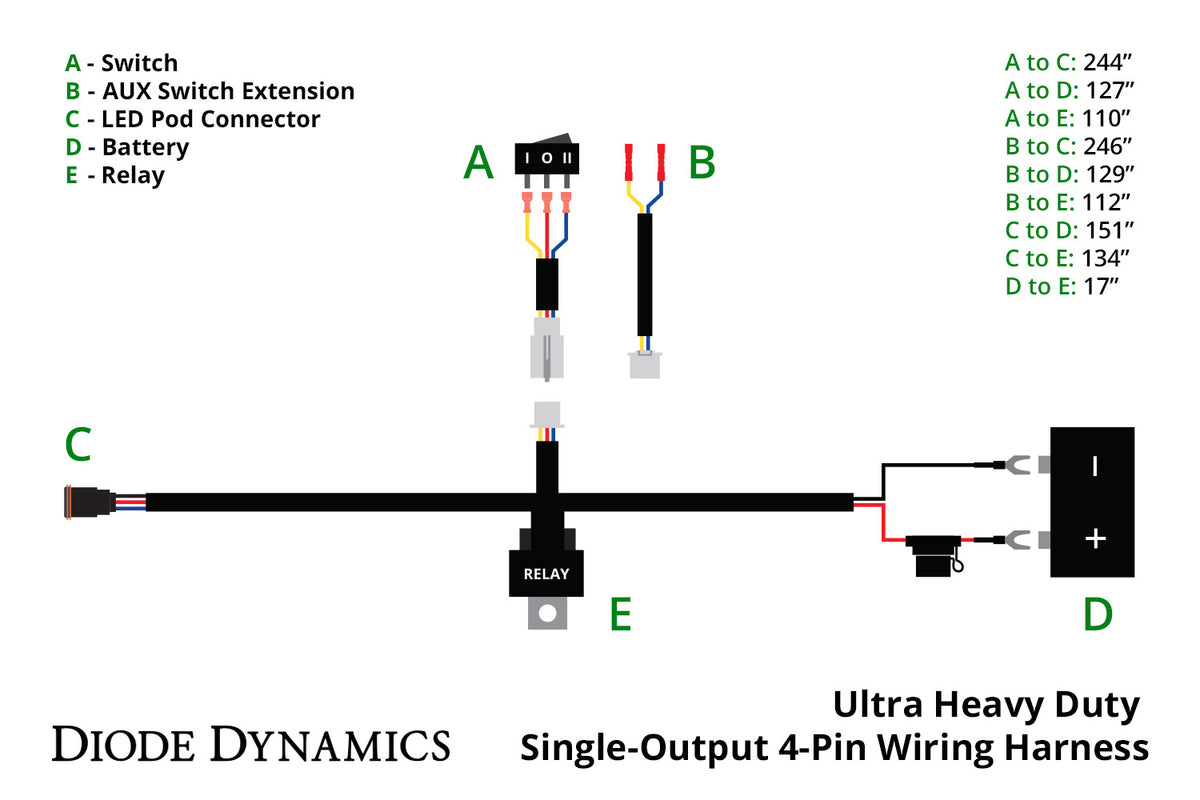

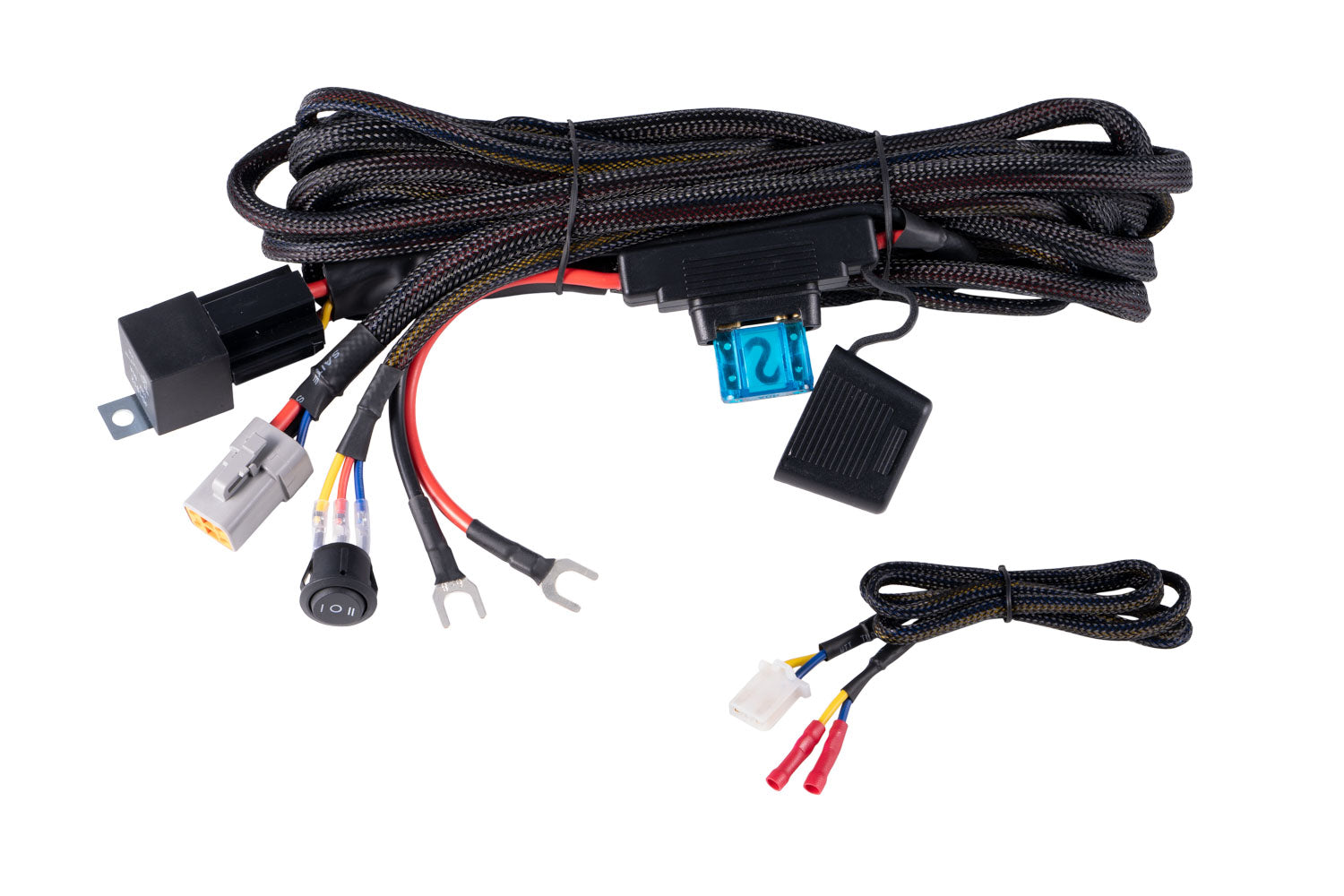

The Diode Dynamics Ultra Heavy Duty Single Output 4-pin Wiring Harness is the power harness for big SS5 CrossLink Pro light bars, the 5 to 8 pod builds. It runs 10AWG wire from the battery to a single Deutsch DT-P 4-pin output, protected by a 60A waterproof fuse and an 80A 12V relay. It is universal for any truck or SUV running one of those bars.
Why it works
A long Pro-level CrossLink bar pulls more current than a standard pod harness is built for. This one steps up to 10AWG wire, a 60A fuse and an 80A relay so the bar gets the feed it needs without heat or voltage drop eating into output. It connects directly to the battery, so the bar is not leaning on any factory circuit.
What it pairs with
It is meant for 5 to 8 pod SS5 CrossLink Pro light bars. If your mounting spot is farther from the battery than the harness reaches, Diode makes Ultra Heavy Duty DT-P extension wires in 1 and 3 meter lengths that plug right in.
Specs at a glance
- Wire: 10AWG

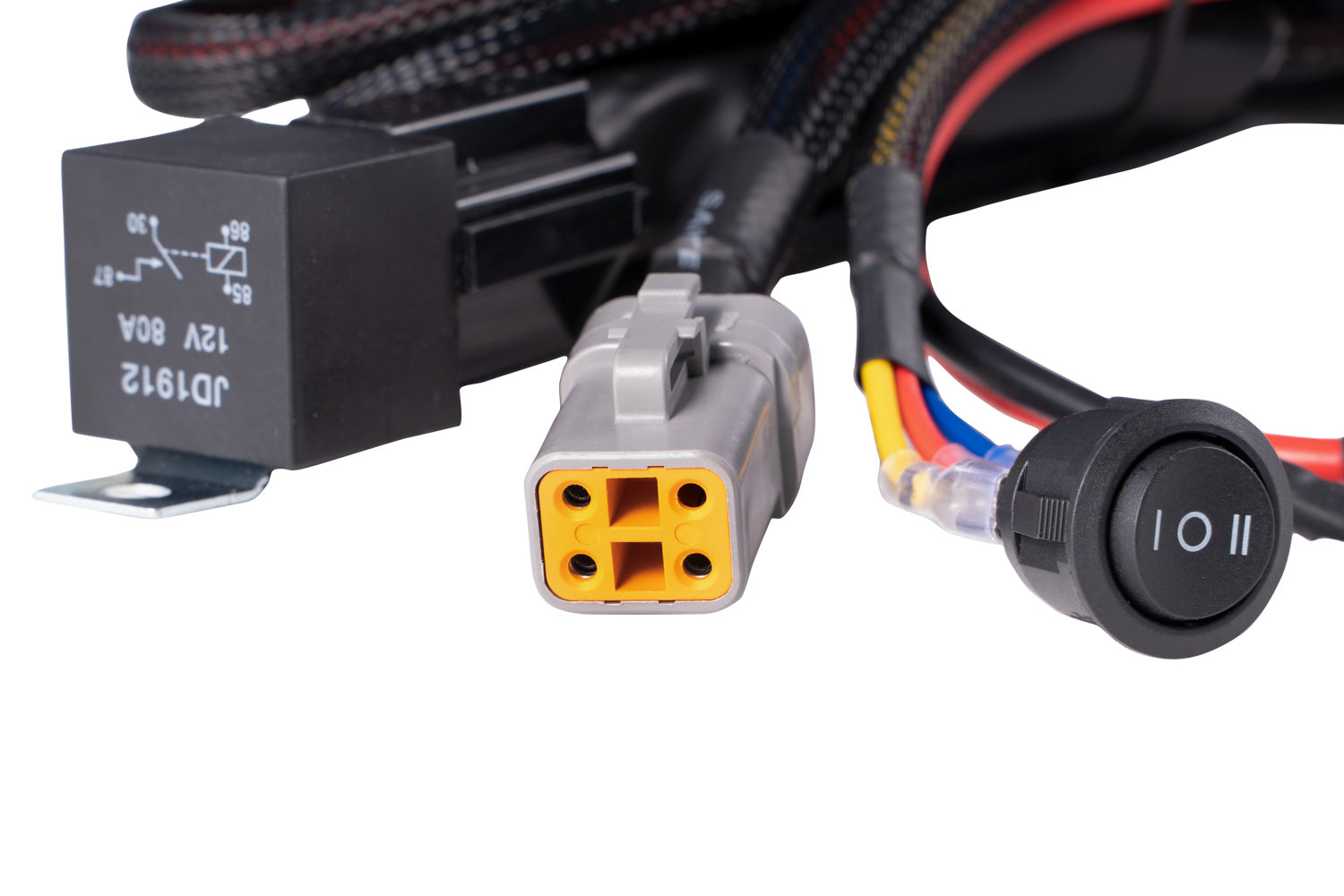

- Output: single Deutsch DT-P 4-pin

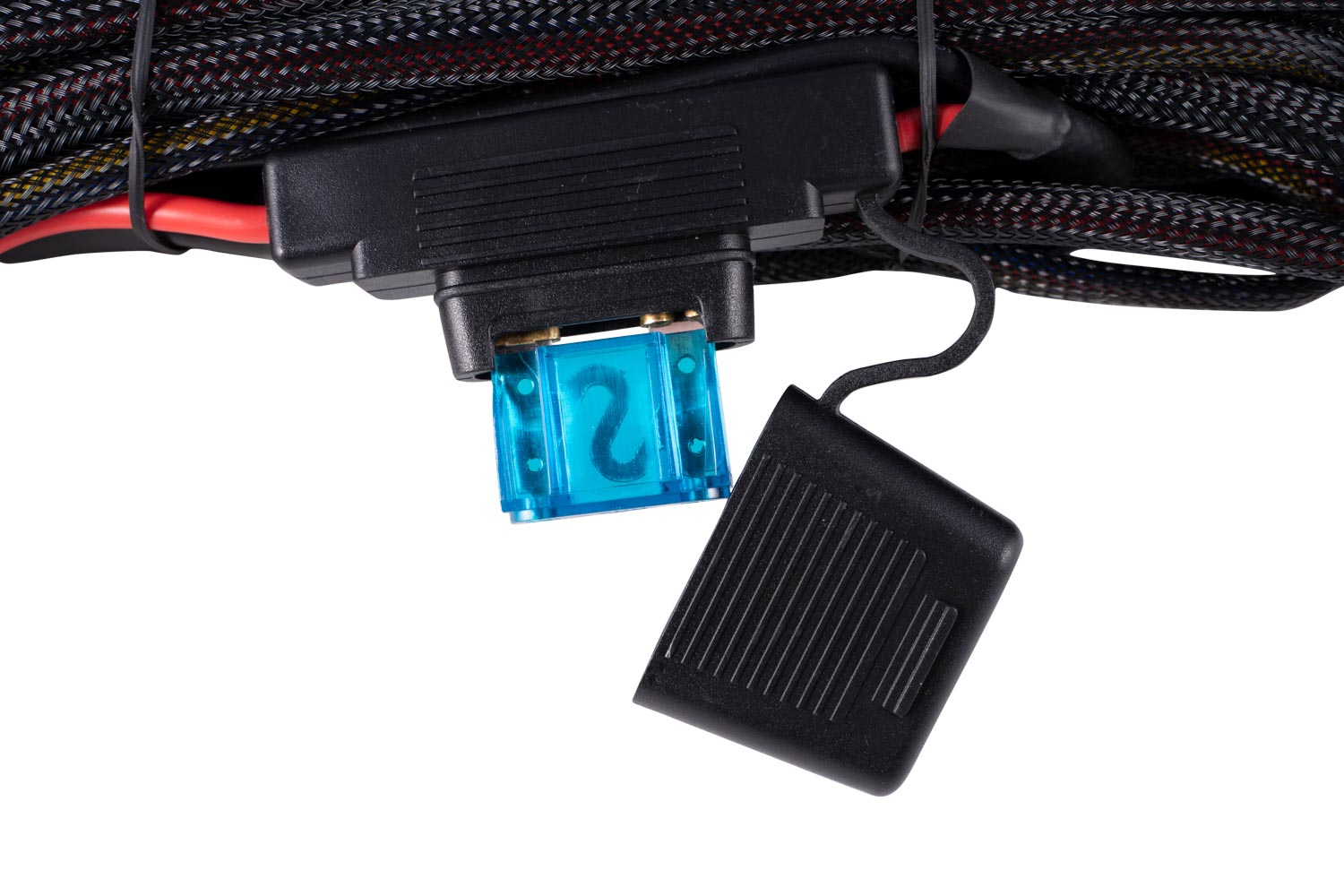

- Fuse: 60A waterproof
- Relay: 80A 12V
- Operating temperature: -40F to 185F
- Weight: 2.05 lb
- Part number: DD4123
Warranty
Covered by Diode Dynamics' 3-year replacement limited warranty. The details are on our Diode Dynamics warranty page, and the rest of the lineup is in the Diode Dynamics collection.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics Ultra Heavy Duty Single Output 4-pin Wiring Harness FAQs
Which light bars is this for?
SS5 CrossLink Pro light bars with 5 to 8 pods.
What if it does not reach my bar?
Diode makes Ultra Heavy Duty DT-P 4-pin extension wires in 1 meter and 3 meter lengths.
How is it protected?
It uses a 60A waterproof fuse and an 80A 12V relay, with power pulled directly from the battery.
Is it vehicle specific?
No, it is universal. Call or text the real humans at NVMOS, (920) 249-7744, if you want a second opinion on your bar and wiring.
