Diode Dynamics Stage Series 50" White Classic Light Bar
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

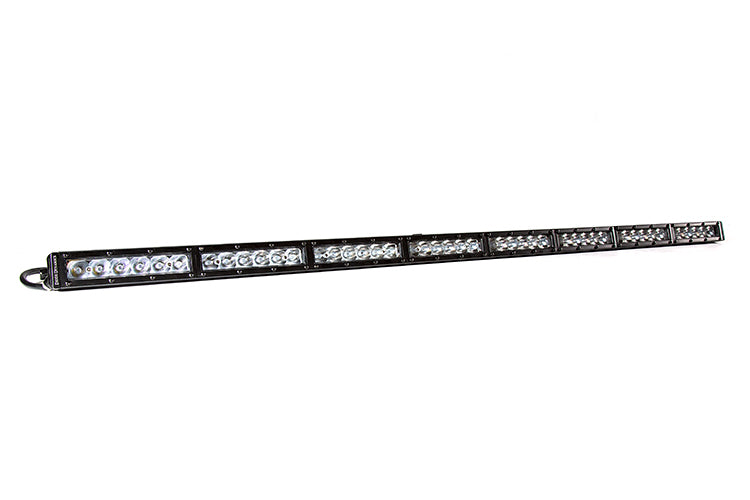

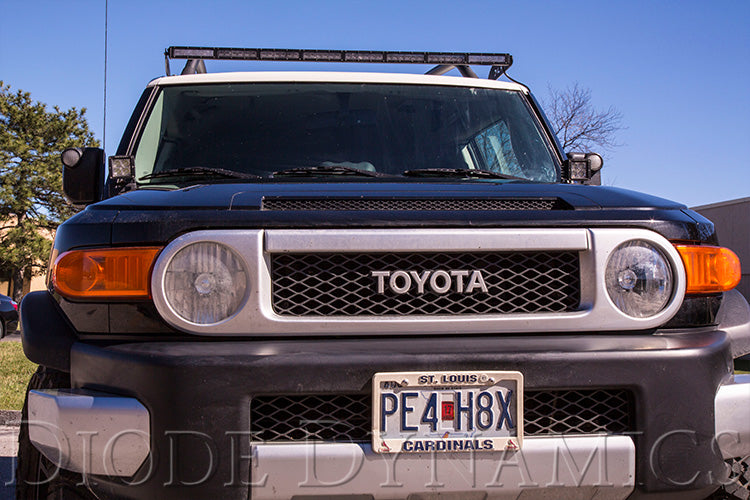

The Stage Series 50-inch Classic light bar in white is a full-width bar for roof, bumper or hood mounting on trucks and SUVs. It pairs TIR optics with high-intensity automotive LEDs in a slim housing, and it is the bar to look at when you want serious reach and width from one light.
Why it works

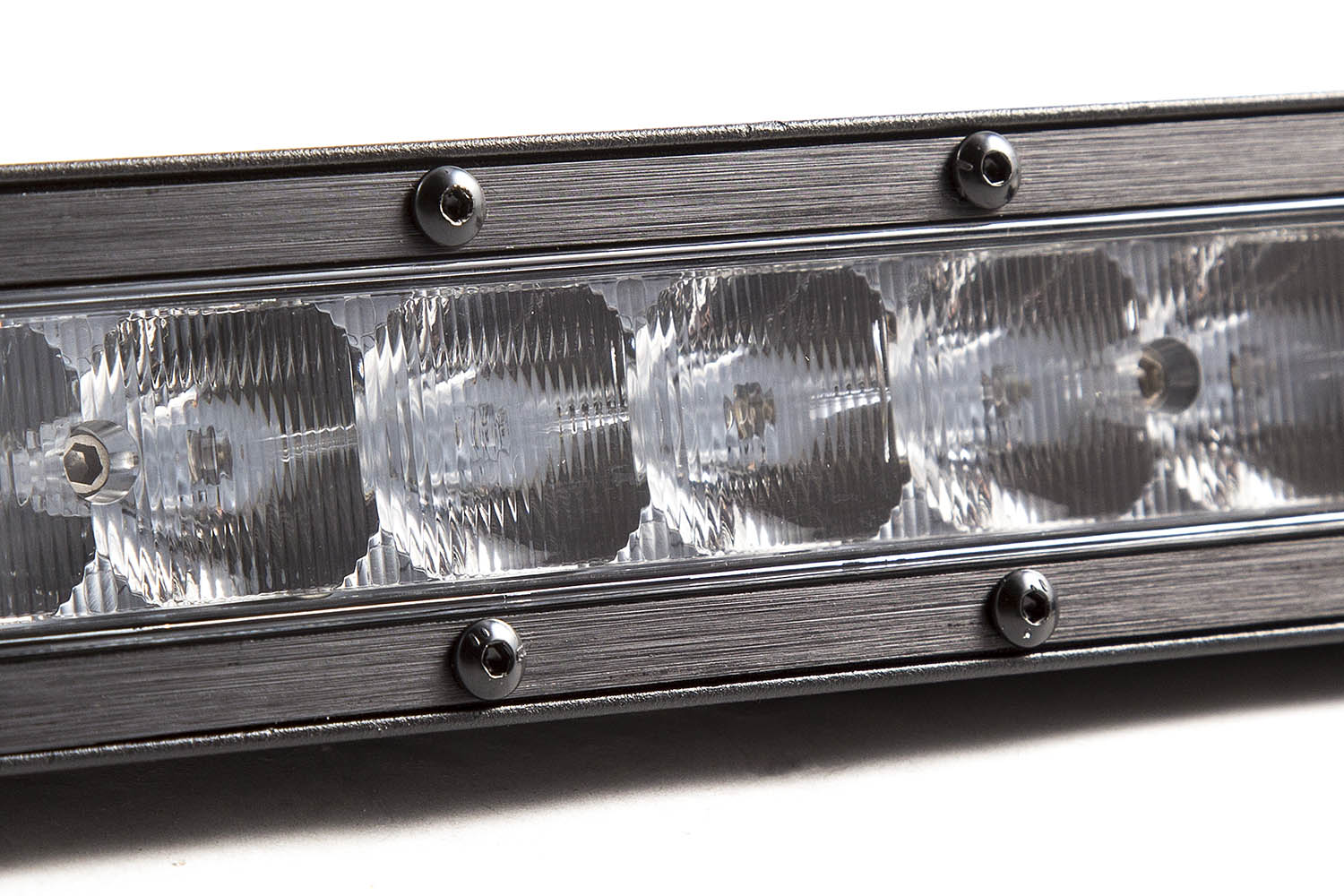

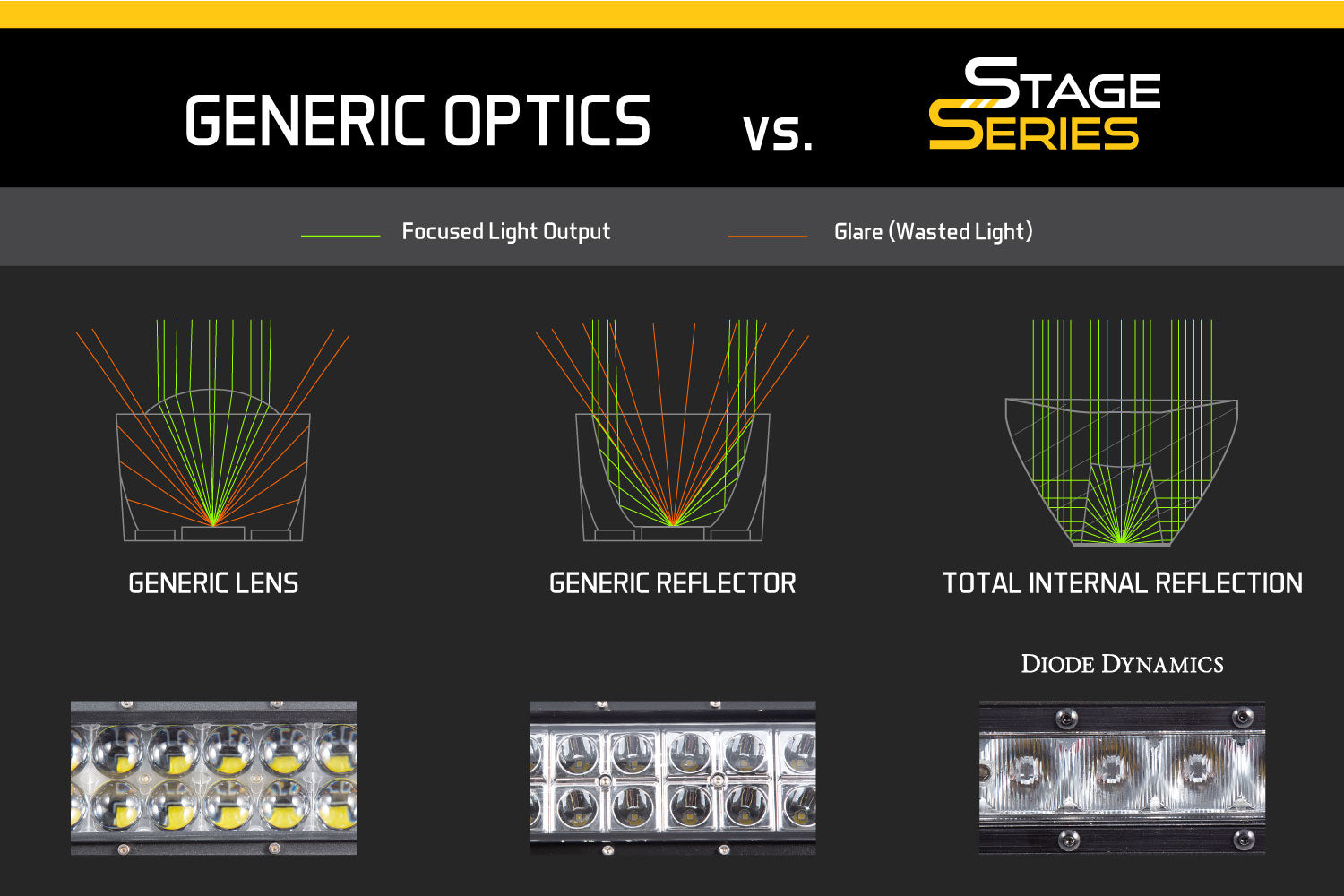

- TIR optics put more of the LED output where you aim it.
- A slim 42mm-tall housing keeps the profile low on a bumper or roof.
- Matte powdercoated aluminum extrusion with a passive heatsink — no fan to fail.
- IP69K rated for high-pressure water.
- Comes with a universal bracket set and a Deutsch DT input.
Options
- Combo — driving and flood optics combined: reach down the trail plus fill to the sides.
- Flood — wide, short-range light for work areas and slow technical driving.
Rated white combo output: 325,000 cd peak beam intensity, 3,340 lux, 11,200 measured lumens (18,240 raw), 6000K.
Fitment
Universal. Measure the mounting location first — the bar is about 49 x 3 x 1.63 inches. To power it, pair it with a Diode Dynamics heavy duty 2-pin offroad wiring harness.
Specs at a glance
- Power: 259 W; 18.5 A @ 14V
- Operating voltage: 9-24V, polarity specific
- LED: Luxeon Z ES, 6000K
- Connector: Deutsch DT input
- Hardware: two M6 hex screws (main mount), two M5 hex screws (rear mount)
Warranty
Covered by Diode Dynamics' manufacturer warranty. Full terms are on our Diode Dynamics warranty page, and the rest of the line is in our Diode Dynamics collection.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics Stage Series 50" White Classic Light Bar FAQs
Combo or flood?
Combo mixes driving and flood optics for distance plus side fill. Flood is wide and short for work areas and slow-speed trails.
What comes with the bar?
A universal bracket set and mounting hardware. For power, the Diode Dynamics heavy duty 2-pin offroad wiring harness is the matching harness.
How big is it?
About 49 x 3 x 1.63 inches, with a 42mm-tall housing.
What does it draw?
259 W, or 18.5 A at 14V, so size the wiring and fuse for it. Call or text the real humans at NVMOS, (920) 249-7744.
