Diode Dynamics SSC1 Yellow SAE Fog LED Pod (Single)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

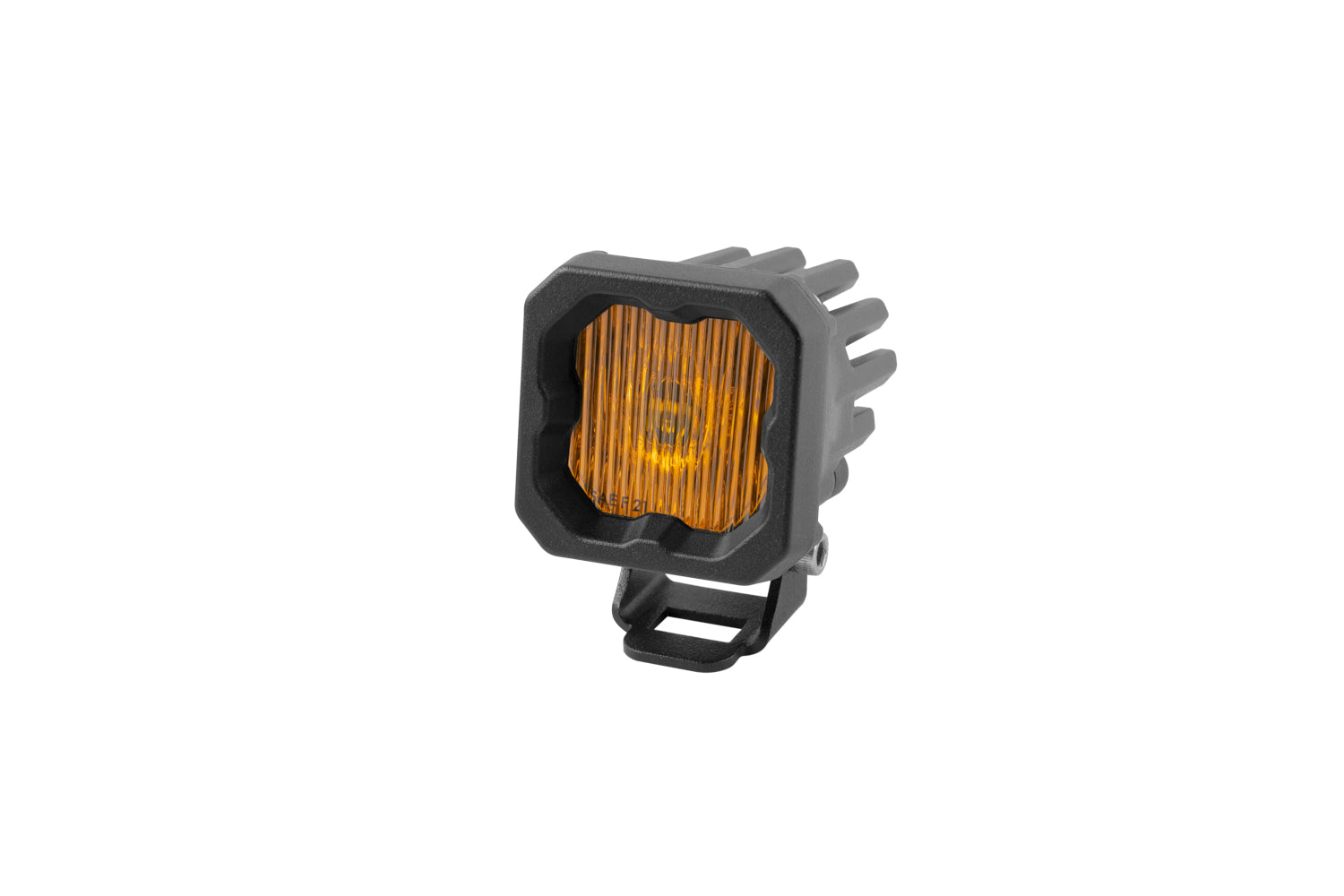

The Diode Dynamics SSC1 Yellow SAE Fog LED Pod is one pod from the Stage Series C1 family: an ultra-compact, single-LED light running a 20-watt Osram Boost HX LED. Its SAE-compliant fog beam keeps it road-legal, and the 3000K yellow output fits trucks and SUVs that need small, serious light where a big pod won't fit.
Why it works
- Small footprint. One LED in a compact housing means it fits cowls, pillars, bumpers and other tight spots.
- Road-legal fog beam. The SAE-compliant fog pattern is wide and flat (98° x 9°), throwing light low and to the sides instead of up into the weather.
- Color with a purpose. 3000K yellow is the choice when weather is part of the plan, since warmer light throws less glare back off rain, snow and dust.
- Steady output. A constant-current driver, rated to operate from -40°F to 185°F.
- Plug-in wiring. An integrated Deutsch-style (DT) connector makes for a clean, serviceable connection.
Designed, torture-tested and assembled in the USA.
Options
- Beam pattern: SAE Fog only on this listing.
- Backlight: Amber. It's a low-draw accent glow that runs separately from the main beam.
- Quantity: one pod. Diode Dynamics also sells this pod as a pair if you need a different count.
Fitment
Universal. This is not a vehicle-specific light — it mounts wherever you can get a solid surface and a wiring path. For a standard mount, the SSC1 Universal Bracket Kit holds one or two C1 pods. Runs on 9–16V and is polarity specific, so wire it positive to positive.
Specs at a glance
- Color temperature: 3000K
- Beam: SAE fog, 98° x 9°
- Output (per pod): 1,980 raw lm, 4,200 cd
- Power (watts): Main Beam: 19.2, Backlight: .3
- Current @ 12.8V (amps): Main Beam: 1.5A, Backlight: 0.025A
- LED: Osram Boost HX
- Connector: Deutsch DT input
- Operating range: 9–16V, -40°F to 185°F
Per pod, Diode Dynamics lists 1,980 raw lumens and 4,200 cd peak intensity.
Warranty
Covered by Diode Dynamics' limited lifetime warranty: if a defect shows up, it gets diagnosed with Diode Dynamics and the light is replaced if necessary. Details are on our Diode Dynamics warranty page, and the rest of the Diode Dynamics lineup is a click away.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SSC1 Yellow SAE Fog LED Pod (Single) FAQs
Is this one pod or two?
This listing is a single pod. Specs are listed per pod. Diode Dynamics also offers it as a pair.
Is it street legal?
Diode Dynamics lists the beam as SAE-compliant, road-legal fog output (98° x 9°). Local rules on mounting height and use still apply, so check yours.
What do I need to wire it?
The pod has a Deutsch DT input and runs on 9–16V; it's polarity specific. Diode Dynamics sells DT-ready harnesses such as the Light Duty Dual Output 4-pin harness, which powers pods with backlight. Call or text the real humans at NVMOS, (920) 249-7744.
What does the backlight do?
It's a low-power accent glow (about 0.3 watts) on its own circuit, so you can run it with or without the main beam when the harness supports it.
