Diode Dynamics SS6 White LED Light Bar (Single)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

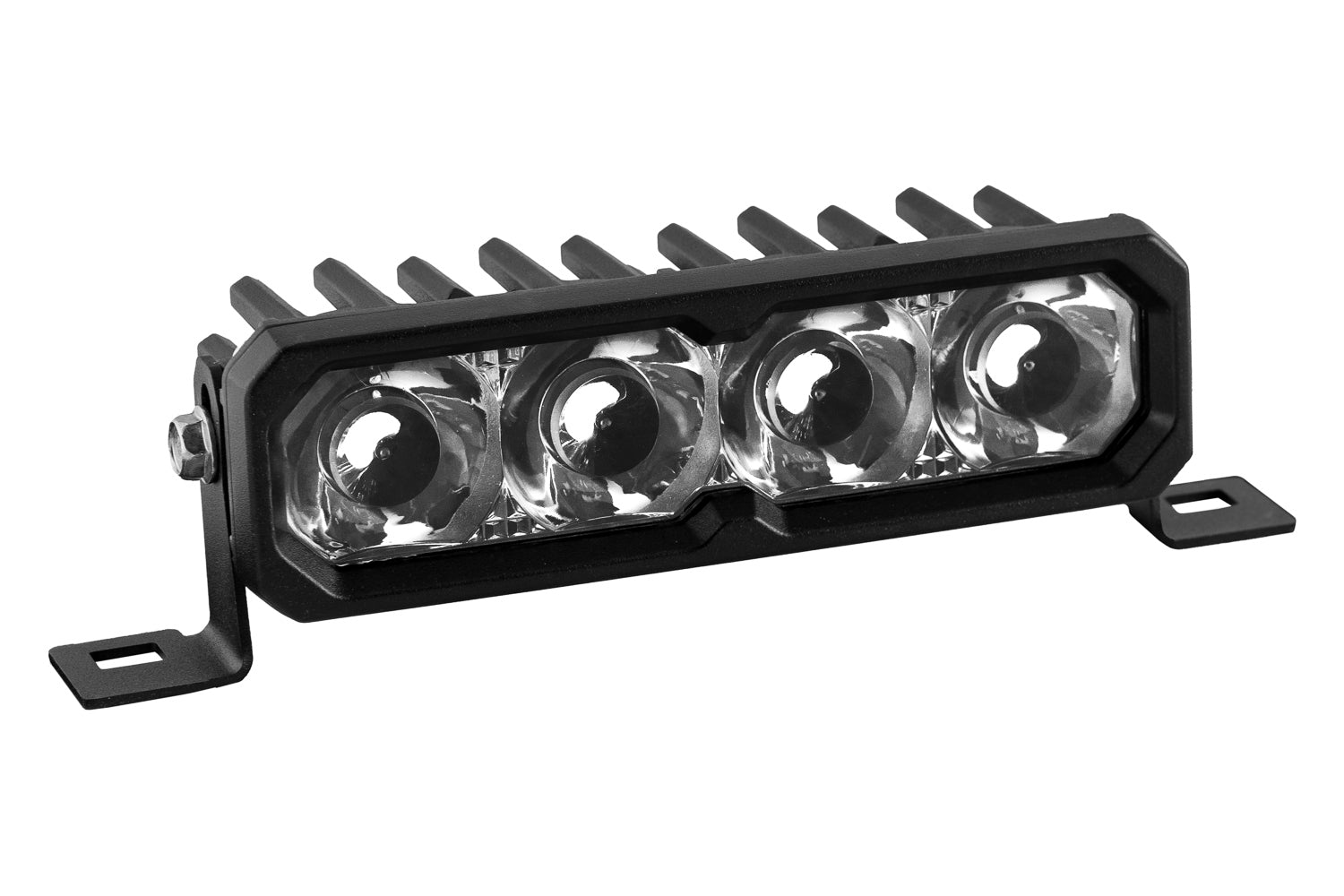

The Diode Dynamics SS6 White LED Light Bar is a compact Stage Series bar, just under 7 inches long, with 6000K white output and stainless mounting brackets. This listing is a single bar; it is universal-fit and comes in 5 beam patterns and three power levels.
Why it works
Small bars like this earn their keep as fog lights, ditch lights, bumper accents or reverse/work lights where a big bar would be overkill. Diode Dynamics builds the SS6 with patented TIR optics to keep the beam controlled, a powdercoated aluminum housing, and an IP69K rating against high-pressure washdown. Cooling is passive, and the backlight gives you an accent light you can run separately from the main beam.

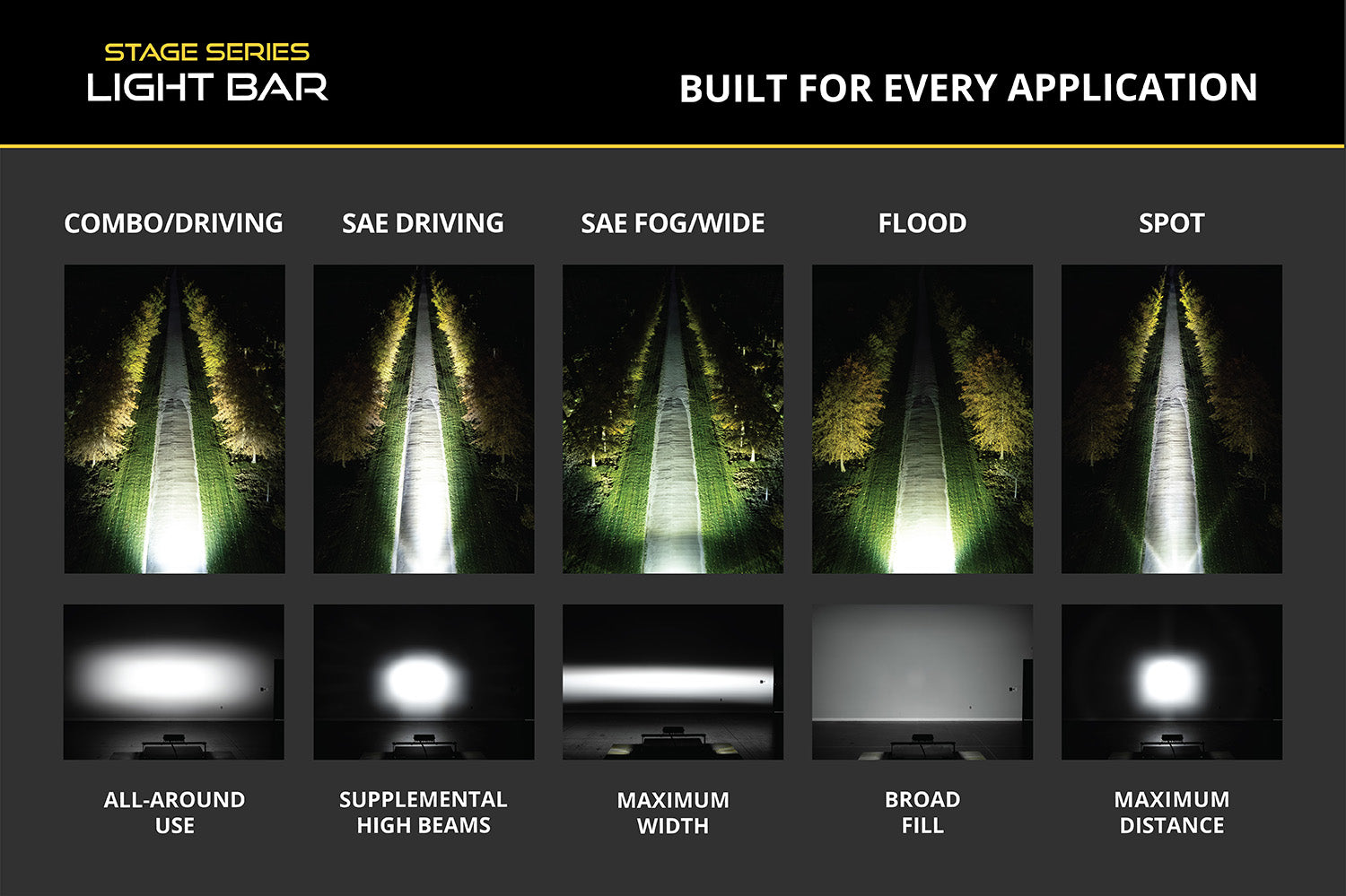

Options
- SAE Driving (20°x12°): concentrated, long-reaching light.
- SAE Fog/Wide (90°x10°): a wide, flat beam that stays low — the fog-light pattern.
- Combo/Driving (60°x30°): reach plus width; the all-rounder.
- Flood (100°x80°): broad close-range light for trails and work areas.
- Spot (8°x8°): a tight beam for maximum distance.

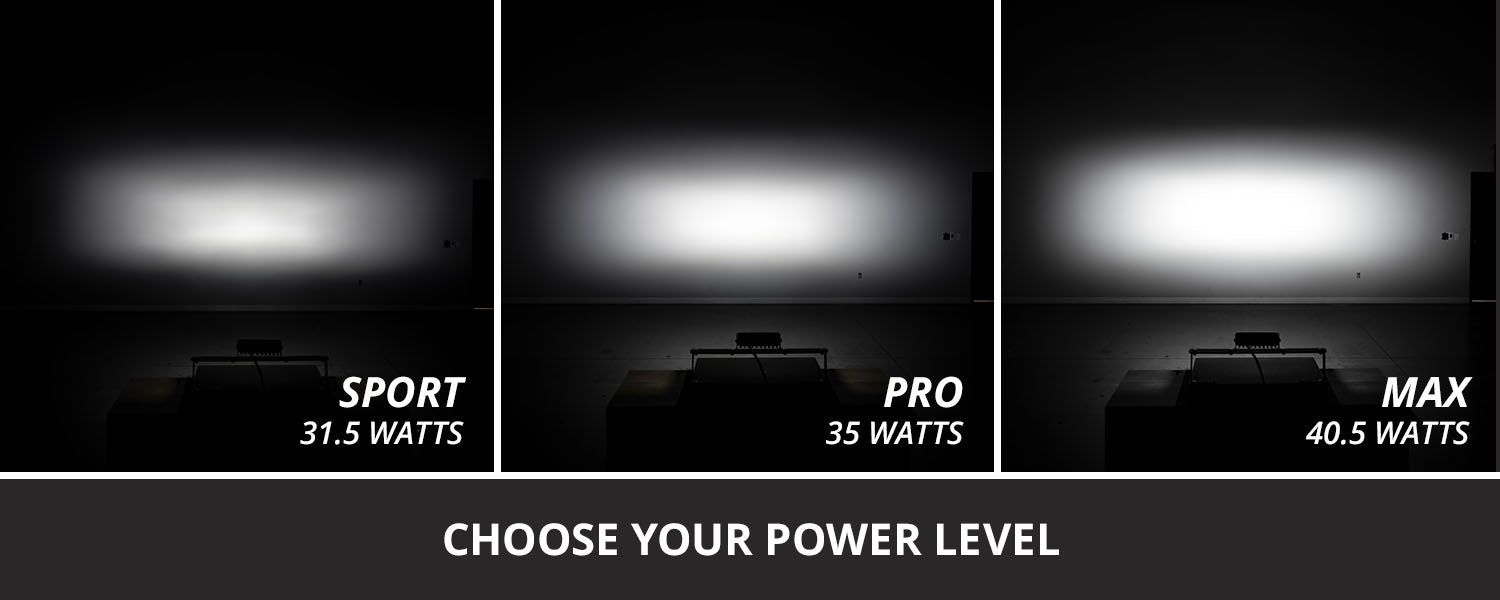

- Power level: Sport (31.5 W), Pro (35 W) or Max (40.5 W). Higher levels produce more output and draw slightly more current (2.46 / 2.73 / 3.16 A at 12.8V).

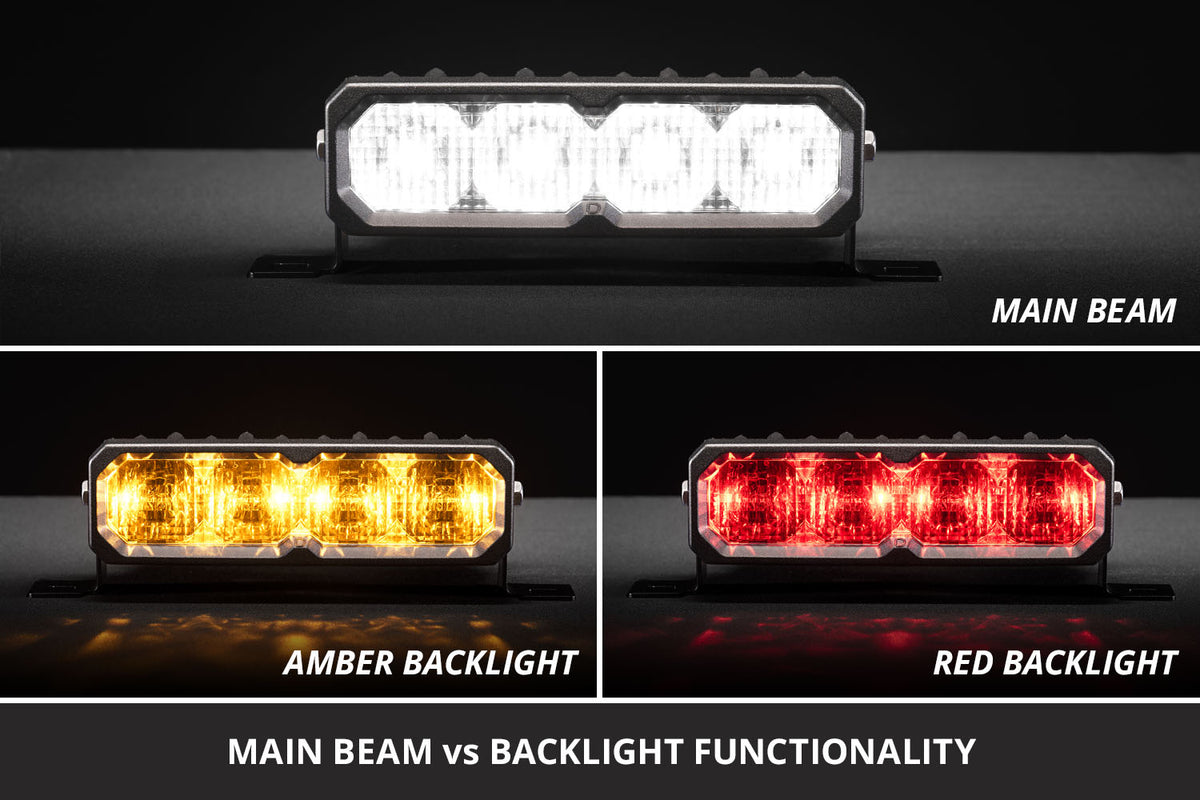

- Backlight: amber on every beam pattern; red is offered with the Combo/Driving and Flood patterns. Pick what matches the rest of your lighting.
Fitment
Universal. Each bar uses a Deutsch DT input, runs on 9–30V and is polarity specific. Body dimensions are 2.01 x 6.77 x 2.37 in.
Specs at a glance
- SAE Driving, Sport: 60,400 cd peak
- SAE Driving, Pro: 74,000 cd peak
- Raw output: Sport 1,844 lm, Pro 6,272 lm
- LEDs: Osram Boost HX, Osram Ostar Projection Compact, Lumileds automotive-grade
- Operating temperature: -40°F to 185°F
Warranty
Diode Dynamics covers this with a limited lifetime warranty. If something fails, the problem gets diagnosed with Diode Dynamics and the part is replaced if it needs to be. Full terms are on our Diode Dynamics warranty page, and the rest of the lineup is in the Diode Dynamics collection.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SS6 White LED Light Bar (Single) FAQs
Is this one bar or two?
This listing is a single. If you want a matched set, order the pair version.
Which beam pattern should I pick?
Combo/Driving is the safest all-round choice. Use SAE Fog/Wide for a low, wide fog-style beam, Flood suits trails and work areas, and Spot or SAE Driving is for reach.
What is the difference between Sport, Pro and Max?
They are power levels: 31.5, 35 and 40.5 watts. More watts means more light and slightly more current draw. All three share the same housing and connector.
How does it wire up?
Each bar has a Deutsch DT input and runs on 9–30V; it is polarity specific. Pair it with a Diode Dynamics harness or your own switched circuit. Call or text the real humans at NVMOS, (920) 249-7744.
