Diode Dynamics SS5 Yellow Sport LED Pod (Pair)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

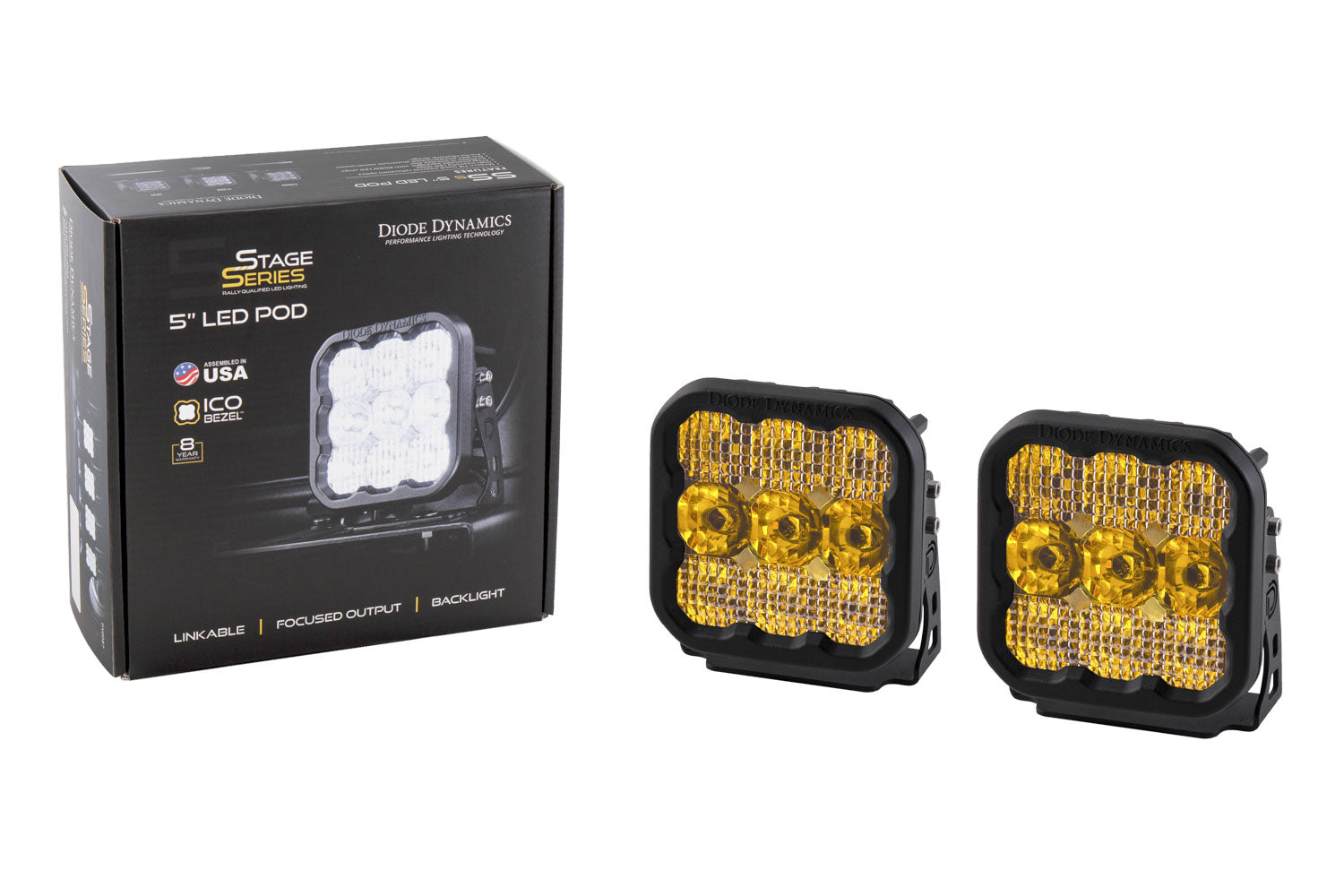

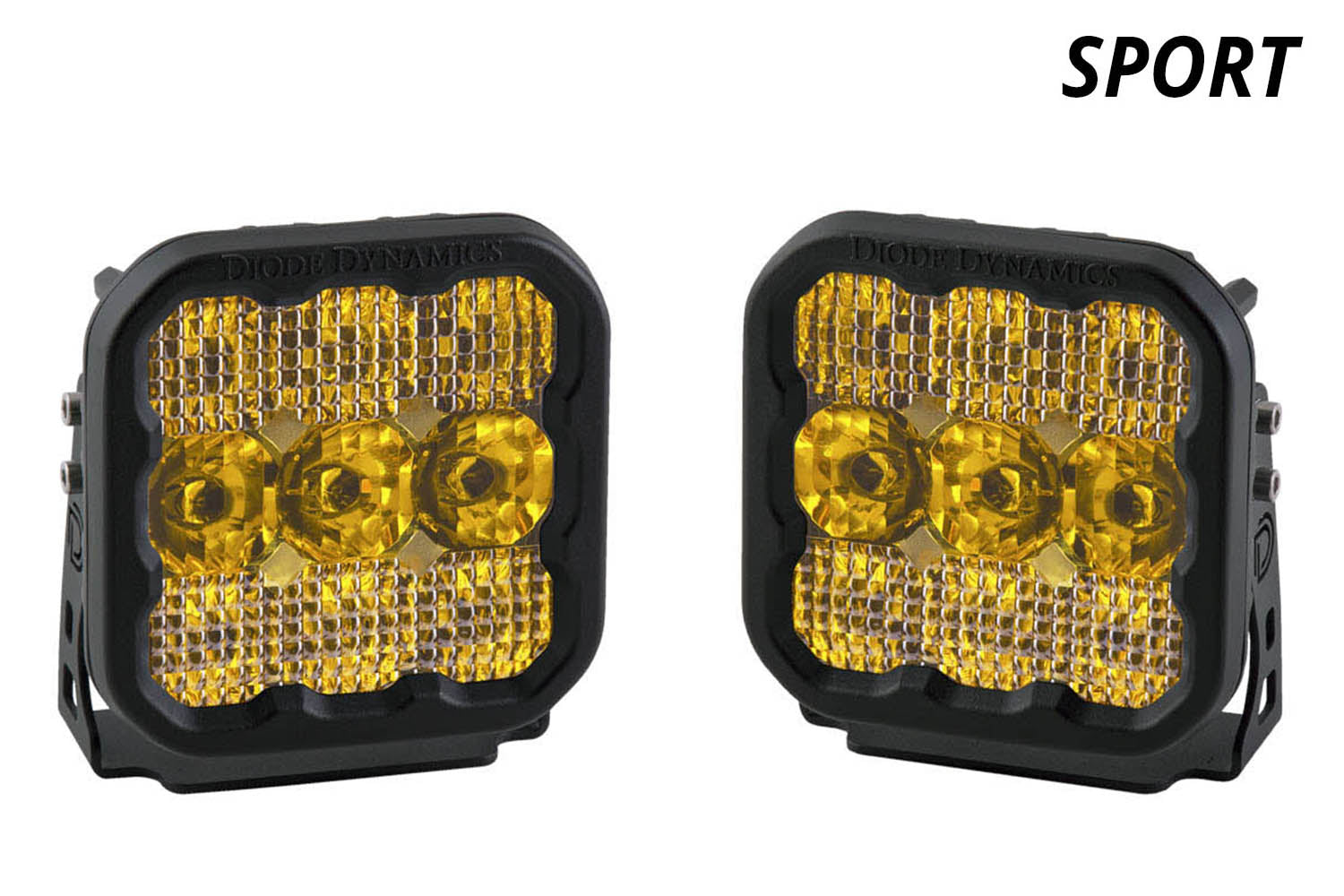

The Diode Dynamics SS5 Yellow Sport LED Pod is a pair of 5-inch Stage Series pods at the Sport power level, using engineered TIR optics with an amber backlight accent. It's a universal light for trucks and SUVs, and the built-in linking feature means SS5 pods can be joined into a bar up to 50 inches long later on.
Why it works
- Reach. Diode Dynamics rates the SS5 to throw light almost a mile with the right optic.
- Color with a purpose. 3000K yellow is the choice when weather is part of the plan, since warmer light throws less glare back off rain, snow and dust.
- Grows with the build. The built-in CrossLink feature lets you link SS5 pods side by side into a light bar up to 50 inches.
- Built to take abuse. Aluminum casting, polycarbonate lens, rubber gasket, pin-fin passive cooling, IP69K high-pressure waterproof rating and SAE J575 durability testing.
- Clean wiring. Deutsch DT input and a constant-current driver; assembled in USA.
Options

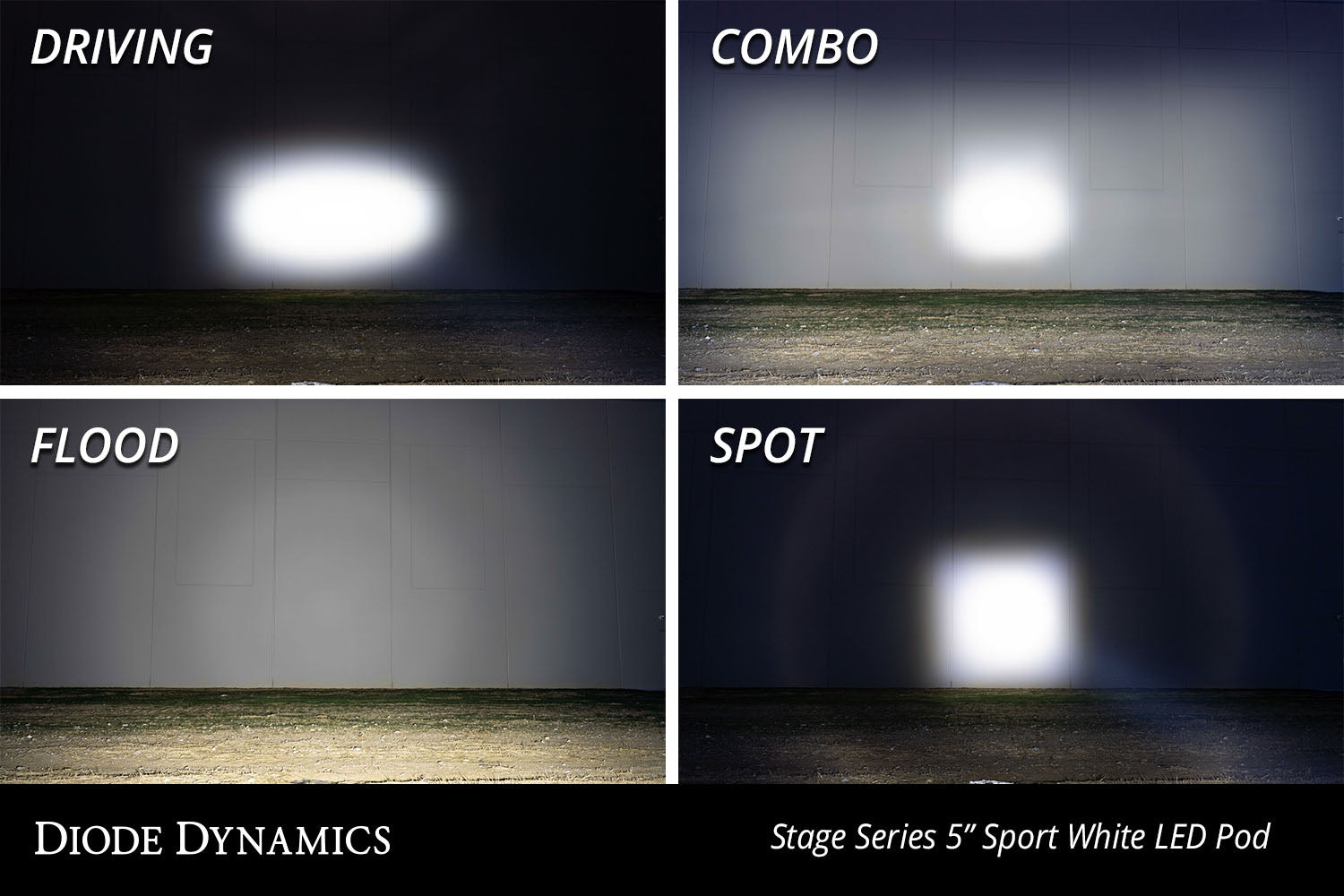

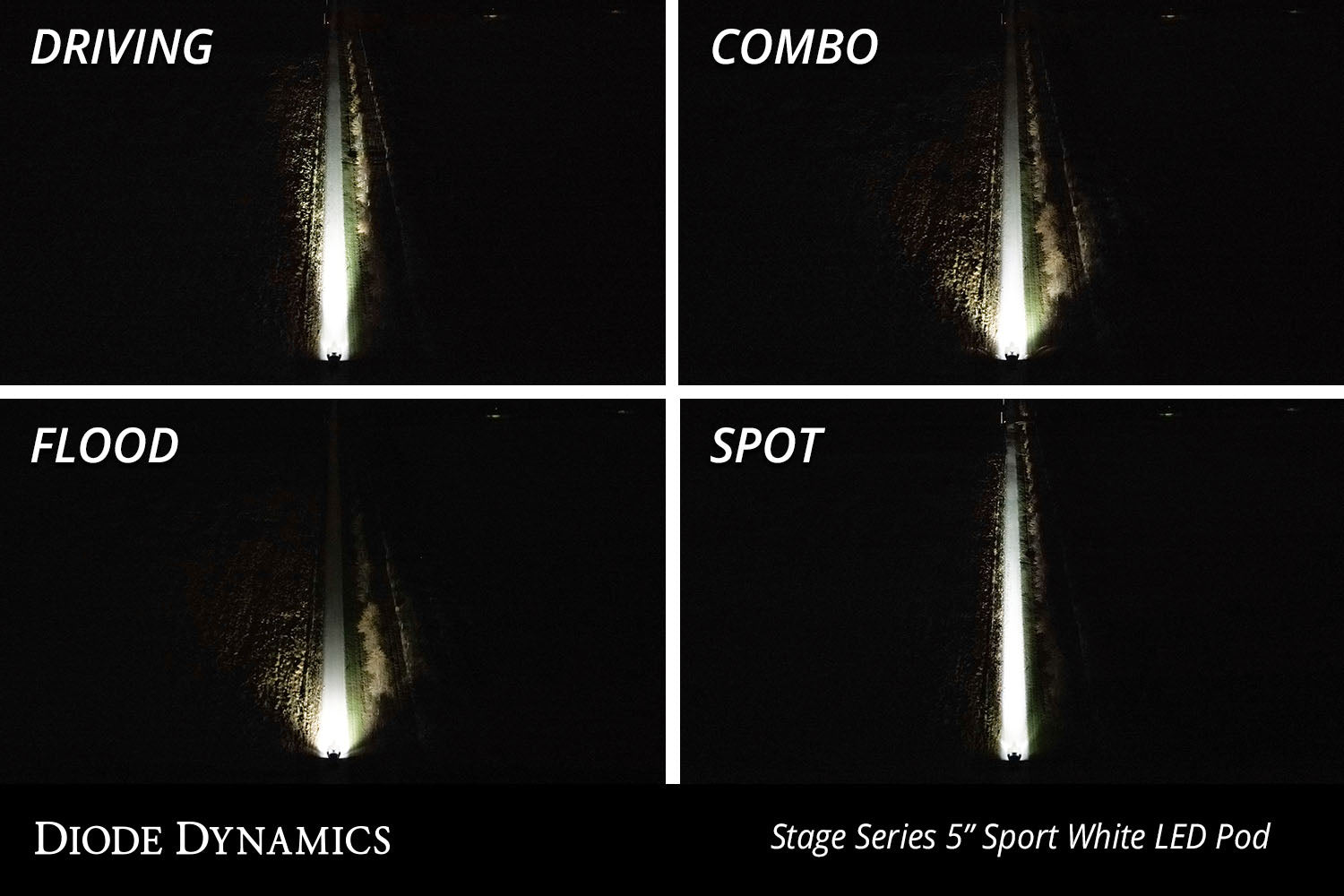

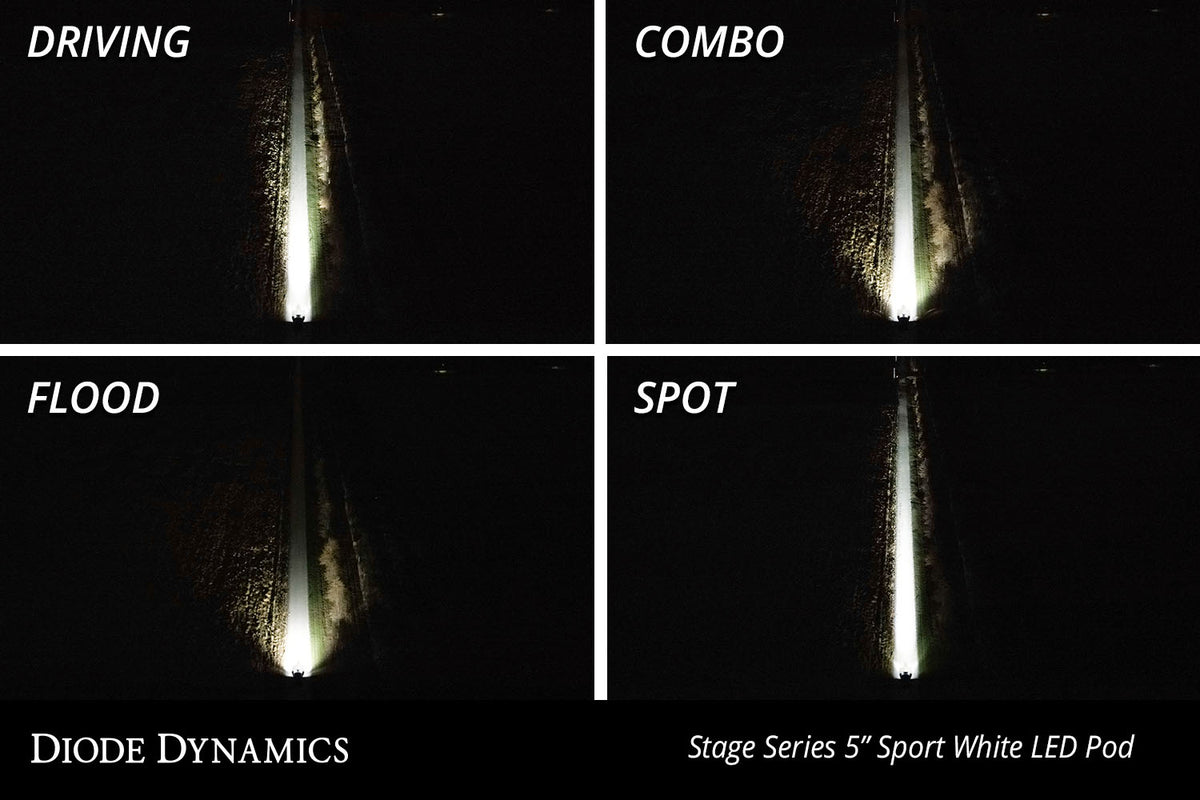

- Beam pattern: Spot — a tight beam that reaches the farthest down the trail; Combo — mixes spot reach with flood spread in one light; Flood — a broad, even spread for lighting up close to the vehicle; Driving — a long-reach pattern with some side spill, the usual pick for forward lighting.
- Backlight: amber accent for extra visibility and looks.
- Power level: Sport (40 watts main beam). Pro is the higher-output version if you need more.
- Quantity: two pods; Diode Dynamics also sells it as a single.
Fitment
Universal. Mount it on a bumper, rack or bracket on any truck or SUV with a solid surface and a wiring path. It runs on 9–16V and is polarity specific, so wire it positive to positive.
Specs at a glance
- Color temperature: 3000K
- Power (watts): Main Beam: 40, Backlight: 3.07
- Current @ 12.8V (amps): Main Beam: 2.8, Backlight: 0.24
- Driving output (Sport, per pod): 3,700 lm measured, 103,000 cd peak
- LED: Luxeon Z ES
- Connector: Deutsch DT input
- Ingress rating: IP69K (high-pressure waterproof)
- Compliance: SAE J575 durability test
- Operating range: 9–16V, -40°F to 185°F
With the driving optic at Sport power, Diode Dynamics lists 3,700 lm measured (4,800 lm raw) and 103,000 cd peak intensity per pod. The flood optic spreads 3,700 lm measured with 3,500 cd peak.
Warranty
Covered by Diode Dynamics' limited lifetime warranty: if a defect shows up, it gets diagnosed with Diode Dynamics and the light is replaced if necessary. Details are on our Diode Dynamics warranty page, and the rest of the Diode Dynamics lineup is a click away.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SS5 Yellow Sport LED Pod (Pair) FAQs
Is this one pod or two?
This listing is a pair — two pods. Diode Dynamics also sells it as a single.
Which beam pattern should I choose?
Spot for maximum distance, Driving for long reach with some side spill, Combo for a mix of reach and spread, Flood for area lighting close to the vehicle.
Sport or Pro?
Sport runs a 40-watt main beam; Pro runs 90 watts with substantially more output, and draws about 6.7 amps instead of roughly 2.8. Same size and connector.
Can I turn these into a light bar later?
Yes. SS5 pods have a built-in linking feature, and Diode Dynamics' CrossLink hardware joins them into a bar up to 50 inches. Call or text the real humans at NVMOS, (920) 249-7744.
