Diode Dynamics SS5 Add-On LED Pod (Single)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

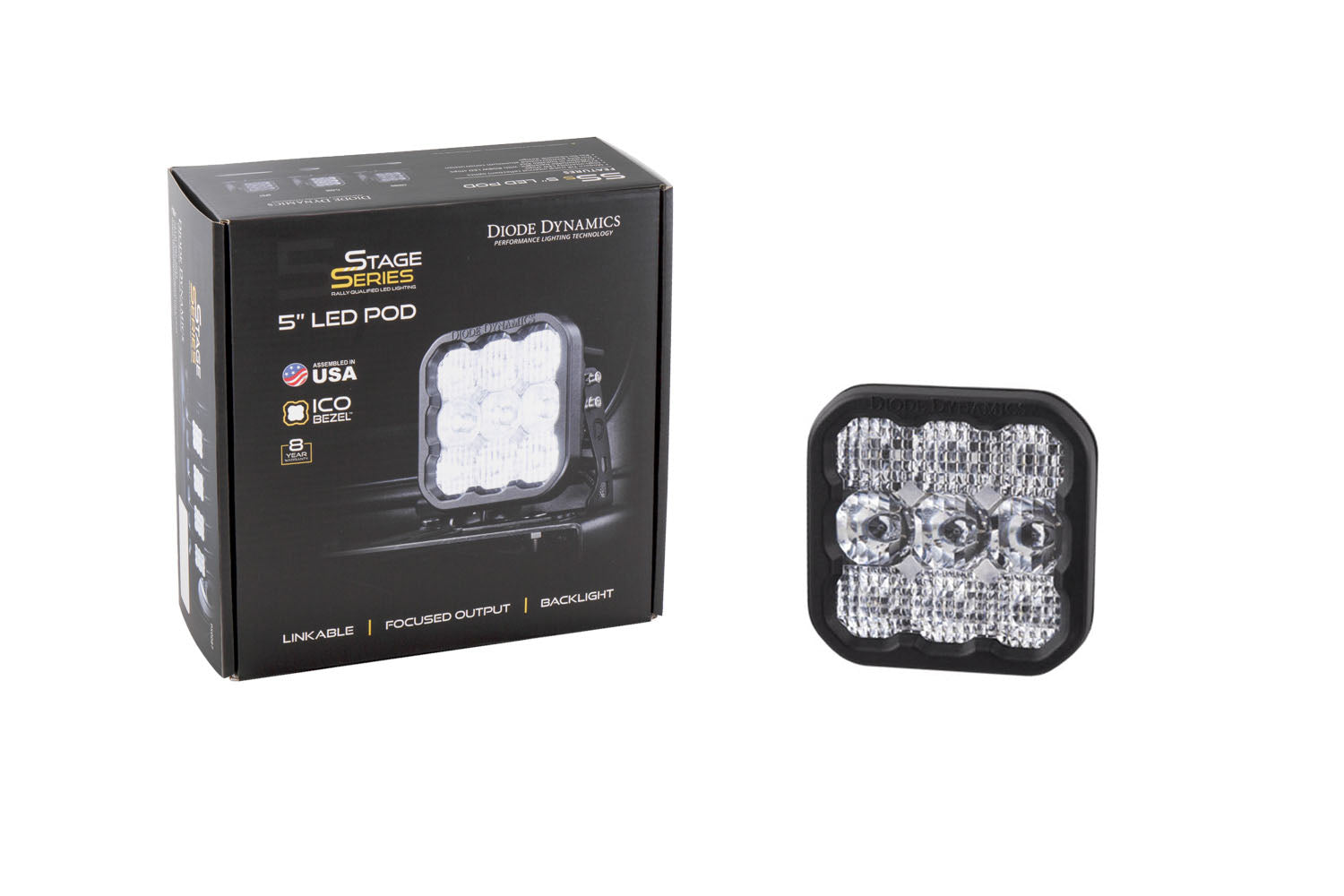

The Diode Dynamics SS5 Add-On LED Pod is a single Stage Series SS5 pod, sold without brackets, for adding to an existing setup or building your own. It uses engineered TIR optics, an IP69K-rated housing and a built-in linking feature that lets SS5 pods join into a bar up to 50 inches. It is universal and fits any truck or SUV you can mount it to.
Why it works

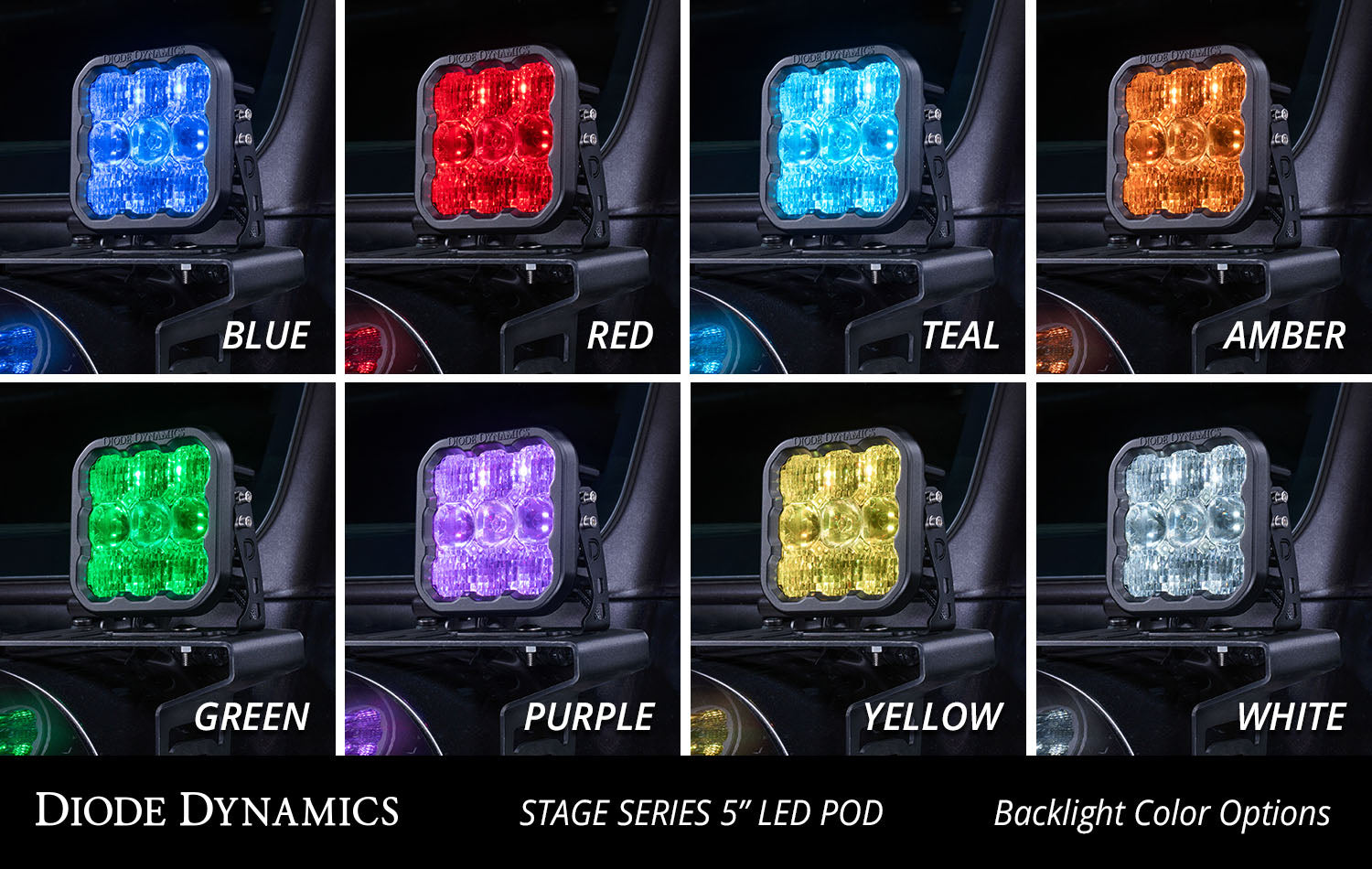

The SS5 is the big pod in the Stage Series. Total internal reflection optics shape the beam instead of just throwing light around, and the pin-fin heatsink keeps the LEDs cool passively. It has passed the SAE J575 durability test and carries an IP69K high-pressure waterproof rating. The backlight is selectable across eight colors. Because this is the no-bracket version, it makes sense when you are adding a pod to a CrossLink bar or already have mounts.
Options
Pick an optic and color, then a power level:
- Optic: Spot for distance, Flood for wide close-in light, Combo for a mix, and Driving for a road-style pattern.
- Color: White (6000K) or Yellow (3000K). Yellow is easier on the eyes in snow, dust and fog.
- Sport (40 watts) or Pro (90 watts). In white driving, Sport measures 3,800 lm and Pro measures 9,600 lm.
Specs at a glance
- Power: Sport 40W, Pro 90W
- Current at 12.8V: Sport White 2.75A, Sport Yellow 2.8A, Pro 6.7A
- Color temp: 6000K white, 3000K yellow
- Peak intensity (white driving): Sport 131,300 cd, Pro 170,000 cd

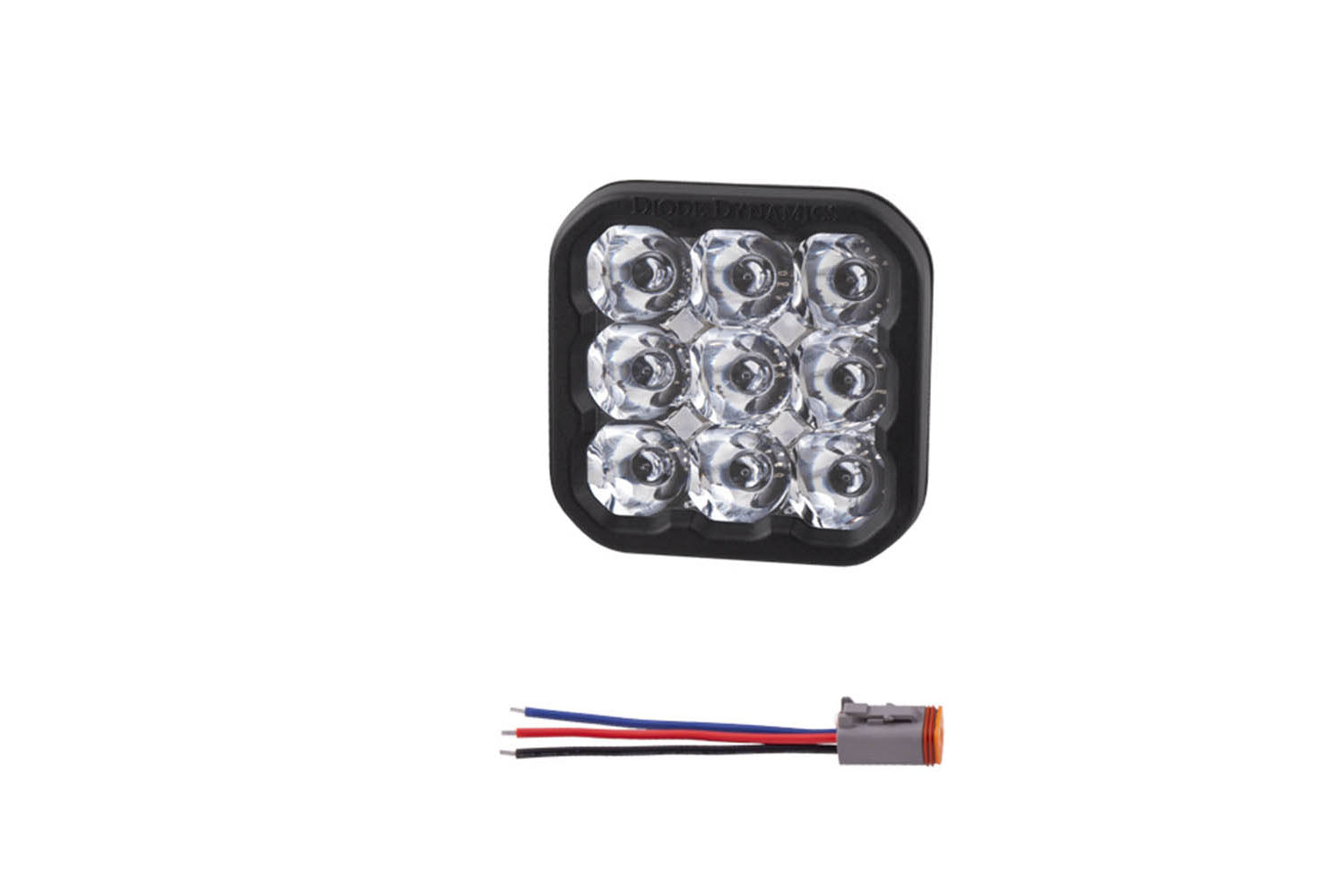

- Input: Deutsch DT, polarity specific
- Construction: aluminum casting, polycarbonate lens, rubber gasket
- Ratings: IP69K, SAE J575 durability
- Dimensions: 5.1 x 5.1 x 2.7 in
Warranty
Diode Dynamics covers this pod with a limited lifetime warranty. If something goes wrong, the defect is diagnosed with Diode Dynamics and the pod is replaced if needed. Details are on our Diode Dynamics warranty page.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SS5 Add-On LED Pod (Single) FAQs
Does this come with brackets?
No. This is the no-bracket version, meant for adding to a linked SS5 bar or to mounts you already have. Diode sells an SS5 Universal Bracket Kit separately.
Sport or Pro?
Sport draws 40 watts and Pro draws 90. In the white driving optic, Sport measures 3,800 lumens and Pro measures 9,600.
Can I link several of these together?
Yes. The SS5 has a built-in linking feature to build a bar of up to 50 inches.
How should I wire it?
It has a Deutsch DT input and is polarity specific. A Diode Dynamics harness keeps it plug and play. Call or text the real humans at NVMOS, (920) 249-7744, for help picking one.
