Diode Dynamics SS40 Yellow LED Light Bar (Single)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

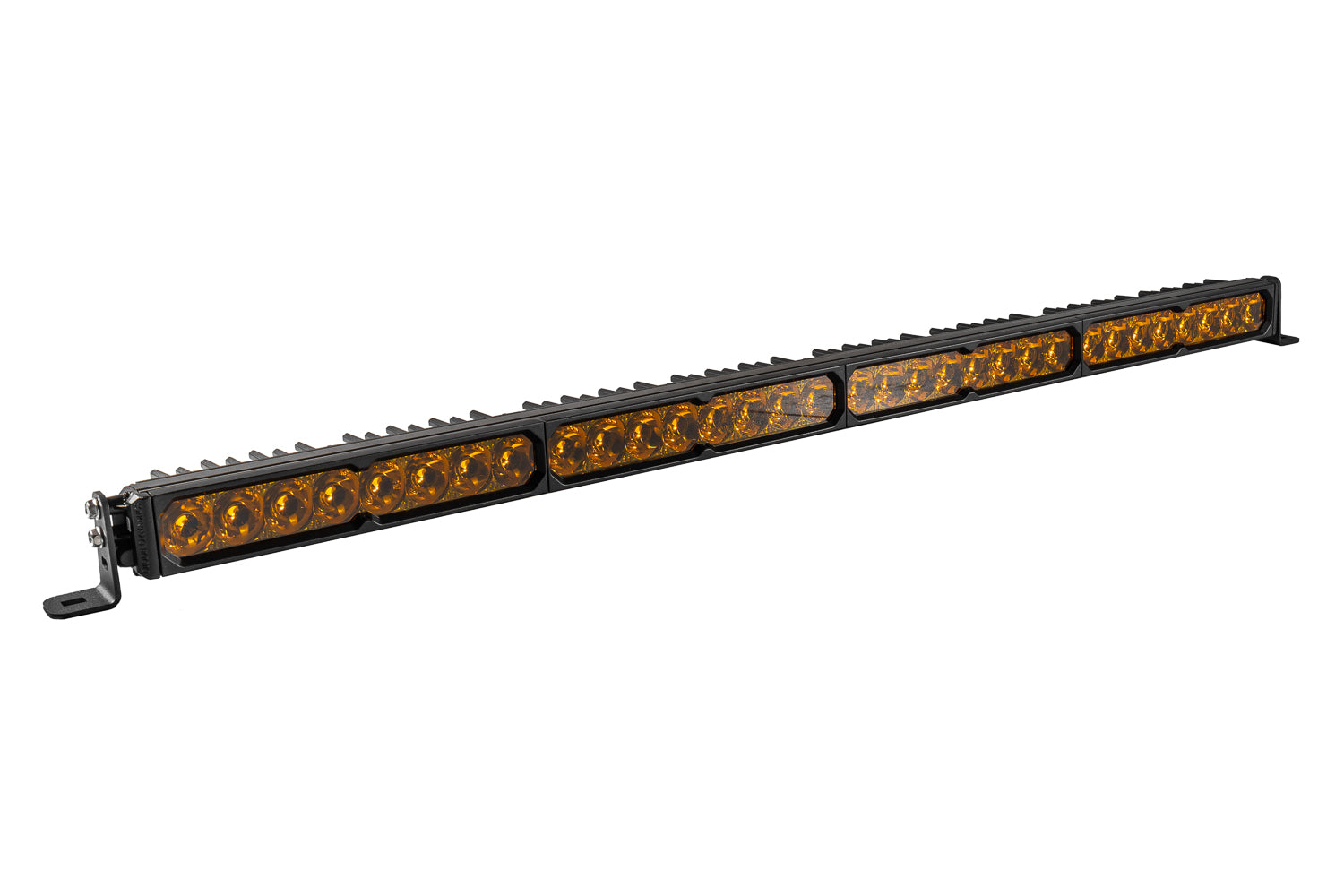

The Diode Dynamics SS40 Yellow is a Stage Series LED light bar about 41.6 inches long, running 3000K selective-yellow output with a true amber backlight. It is universal, so it goes wherever you can bolt a bar — bumper, roof, rack — and it comes in four beam patterns and two power levels so you can match it to how you actually drive.
Why it works
Diode Dynamics uses its patented TIR (total internal reflection) optics to steer more of the LED output into the beam you picked instead of spilling it everywhere. The housing is aluminum with an ASTM-standard powdercoat, the brackets are stainless steel, and the bar carries an IP69K rating, which means it is tested against high-pressure washdown — not just rain. Cooling is passive through the aluminum heatsink, so there is no fan to fail. The amber backlight is a separate accent you can run on its own.
Options
- SAE Driving (20°x12°): a tight, long-reaching pattern built around SAE driving-beam standards.
- Combo/Driving (60°x30°): distance down the middle with useful width on both sides — the most versatile pick.
- Flood (100°x80°): wide, close-in light for trails, work areas and camp.
- Spot (8°x8°): a narrow pencil beam for maximum reach.

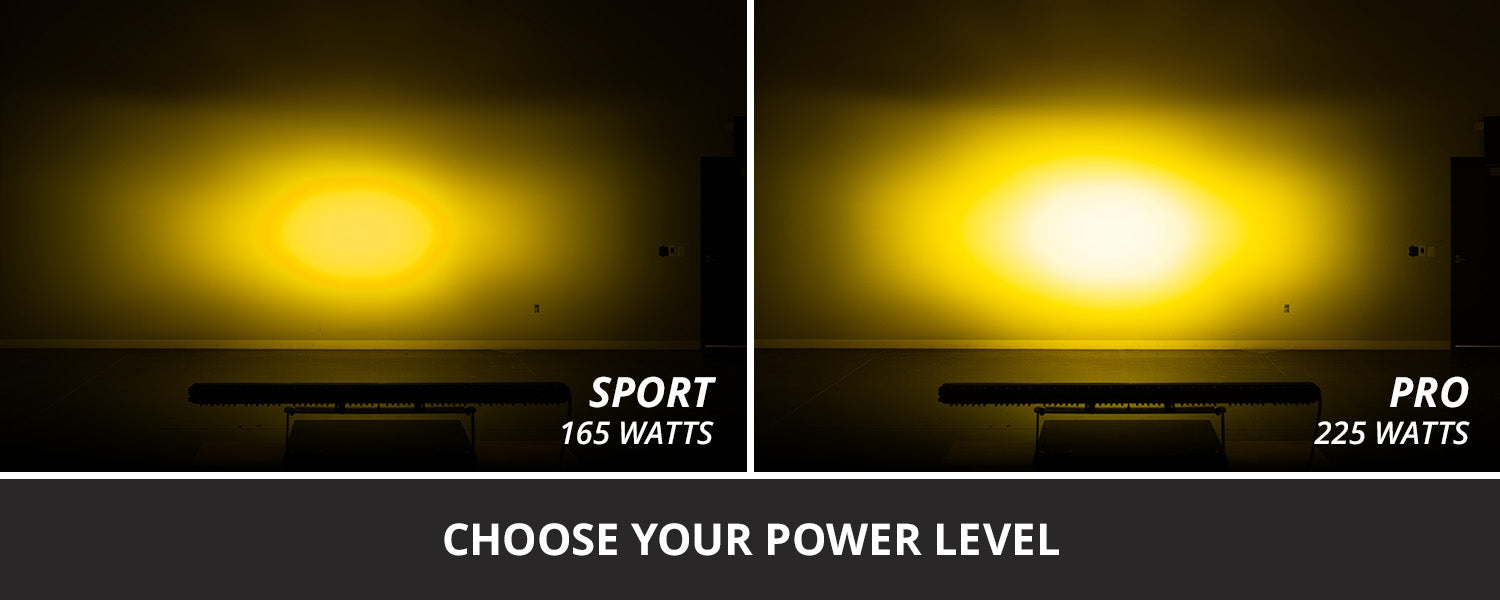

- Sport (165 W) vs. Pro (225 W): Pro draws more power and puts out considerably more light; Sport is the lighter electrical load.
Fitment

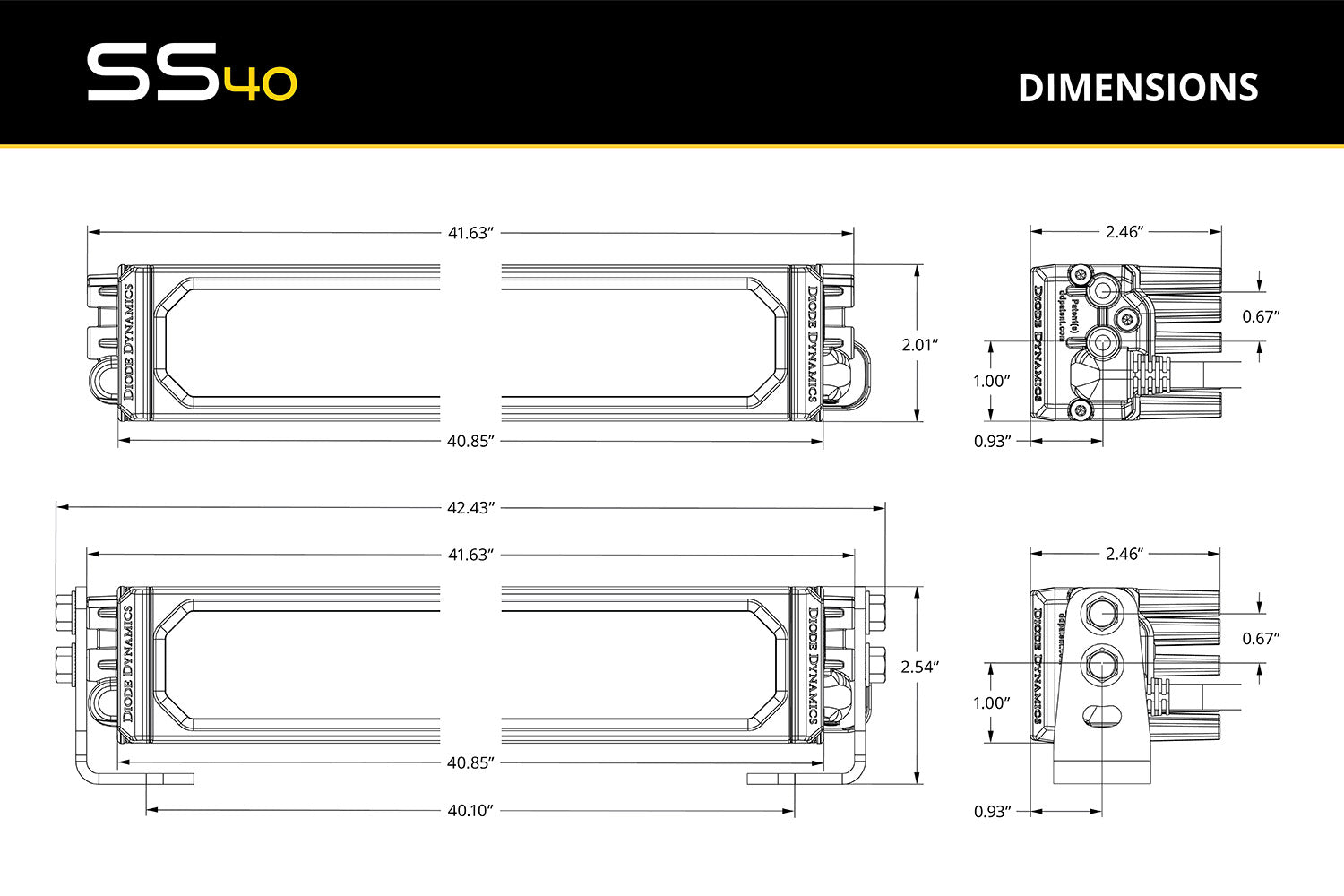

Universal. The bar uses a Deutsch DT-P input connector, runs on 9–30V, and is polarity specific, so plan your wiring and switch accordingly. Check the dimensions (2.01 x 41.63 x 2.46 in) against your mounting location before you order.
Specs at a glance
- SAE Driving, Sport: 250,500 cd peak, 14,752 raw lumens
- SAE Driving, Pro: 331,000 cd peak, 50,176 raw lumens
- Current draw @ 12.8V: Sport 12.90 A, Pro 17.58 A
- LEDs: Osram Ostar Projection Compact and Lumileds automotive-grade
- Operating temperature: -40°F to 185°F
Warranty
Diode Dynamics covers this with a limited lifetime warranty. If something fails, the problem gets diagnosed with Diode Dynamics and the part is replaced if it needs to be. Full terms are on our Diode Dynamics warranty page, and the rest of the lineup is in the Diode Dynamics collection.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SS40 Yellow LED Light Bar (Single) FAQs
What does the SS40 Yellow fit?
It is a universal light bar. It mounts anywhere you have room for the bar and its stainless brackets, and wires in through a Deutsch DT-P connector on 9–30V systems.
Which beam pattern should I choose?
Combo/Driving is the all-rounder. Pick SAE Driving or Spot if distance is the priority, and Flood if you mostly need wide, close-in light on trails or at camp.
What is the difference between Sport and Pro?
Pro runs at 225 watts and produces more output; Sport runs at 165 watts and pulls less current (12.90 A vs. 17.58 A at 12.8V), which is easier on your wiring and charging system.
Can I run the amber backlight by itself?
The amber backlight is a separate accent light from the main yellow beam. How you control it depends on your harness and switch setup. Call or text the real humans at NVMOS, (920) 249-7744.
