Diode Dynamics SS40 White LED Light Bar (Single)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

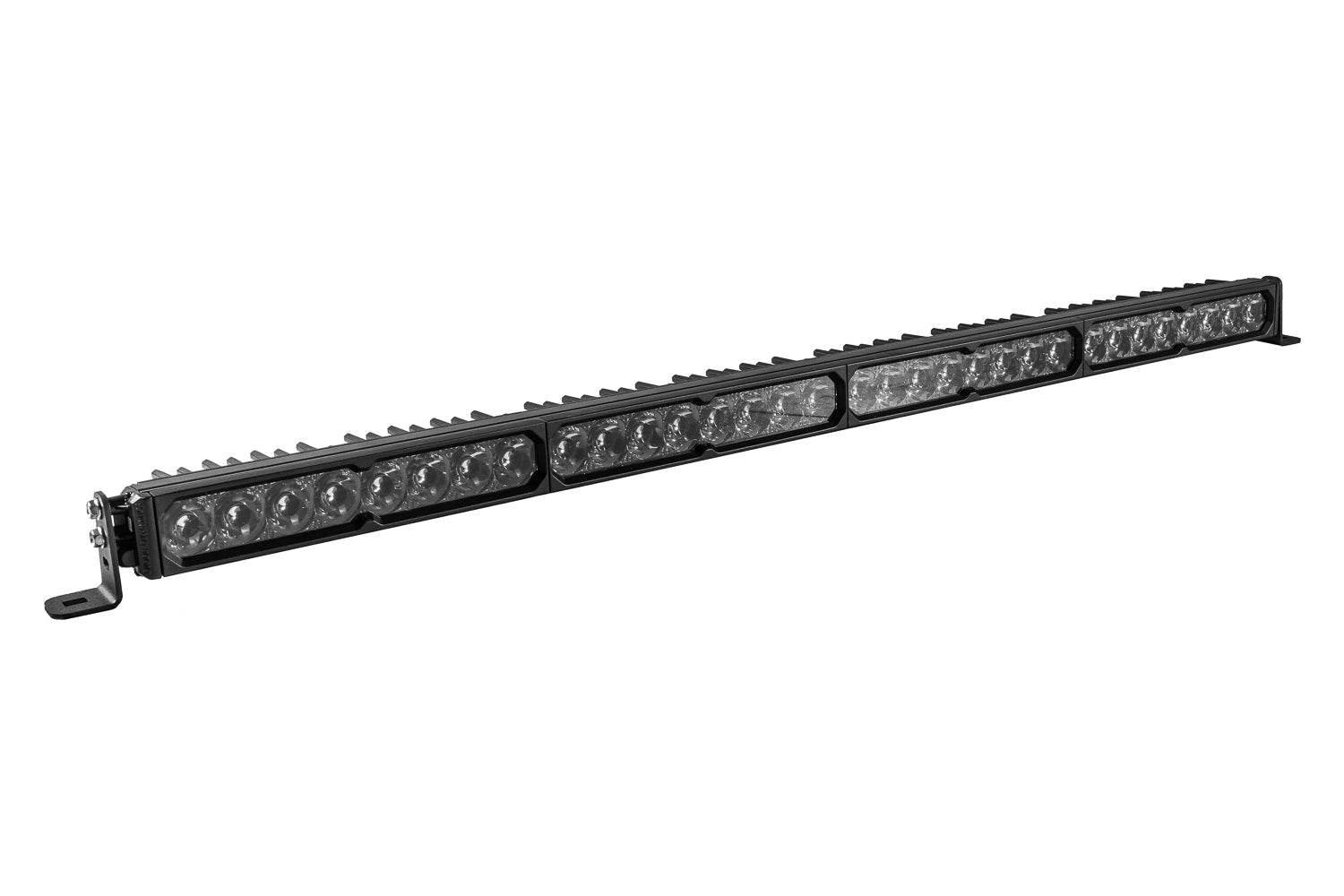

The Diode Dynamics SS40 White LED Light Bar is a 41.63-inch-long Stage Series bar for trucks and SUVs, with 6000K white output, patented TIR optics and a choice of beam patterns and power levels. It is universal and mounts with stainless steel brackets, so it works on a bumper, grille opening, roof or rack. It is built to take weather and pressure washing.
Why it works
- TIR optics. Patented total-internal-reflection optics for efficient, well-controlled beams.
- Real-world beam patterns. Four patterns engineered for real-world driving and work use.
- SmartSelect option. SmartSelect models add a welcome sequence and a selectable backlight color.
- Tough housing. Aluminum housing and heatsink with an ASTM-standard powdercoat, polycarbonate lens and stainless steel brackets.
- IP69K. Rated for high-pressure water intrusion, with passive heatsink cooling and a 9-30V operating range.
Options
Beam pattern:
- SAE Driving (20° x 12°) — a controlled, road-focused driving pattern
- Combo/Driving (60° x 30°) — reach plus spread; the all-around pick
- Flood (100° x 80°) — wide, close-range light for work and trail use
- Spot (8° x 8°) — tight and long-reaching for distance
Power level:
- Sport (165 watts)
- Pro (225 watts)
Model: Standard, or SmartSelect for the welcome sequence and selectable backlight color.
Current draw at 12.8V: Sport: 12.90, Pro: 17.58 A. Size your wiring and switch to the power level you choose.
Fitment
Universal. The bar measures 2.01x41.63x2.46 inches and connects with a Deutsch DT-P Input. Plan your wiring and switch for the power level you choose.
Specs at a glance
- Color temperature: 6000K
- Power: Sport: 165, Pro: 225 W
- Current (12.8V): Sport: 12.90, Pro: 17.58 A
- Voltage: 9-30V, polarity specific
- Connector: Deutsch DT-P Input
- Dimensions: 2.01x41.63x2.46 in
- LED: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Waterproofing: IP69K (high pressure)
- Operating temperature: -40F to 185F
- SAE Driving, Sport: 300,000 cd peak, 14,752 lm raw
- SAE Driving, Pro: 394,500 cd peak, 50,176 lm raw
Warranty
Covered by Diode Dynamics' limited lifetime warranty. If something fails, the defect gets diagnosed with Diode Dynamics and the part is replaced if needed. Full terms are on the Diode Dynamics warranty page.
See the full Diode Dynamics lineup for harnesses, mounts and matching pods.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SS40 White LED Light Bar (Single) FAQs
Will this fit my truck or SUV?
It is universal. The bar is 2.01x41.63x2.46 inches and mounts with stainless steel brackets, so it works anywhere you have room and a solid mounting surface. Plan your wiring for the Deutsch DT-P Input.
Sport or Pro — which power level?
Power levels on this bar: Sport (165 watts), Pro (225 watts). Higher power means more output and more current draw (Sport: 12.90, Pro: 17.58 A at 12.8V), so match it to your wiring and how you use the light.
Which beam pattern should I get?
Combo/Driving is the most versatile. Spot reaches farthest, Flood covers the widest area up close, and SAE Driving gives a controlled road-focused pattern.
What is SmartSelect?
SmartSelect models add a welcome sequence and let you select the backlight color. Standard models skip those features.
Not sure which size to run?
Call or text the real humans at NVMOS, (920) 249-7744.
