Diode Dynamics SS3 White Sport Flush Mount LED Pod (Pair)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

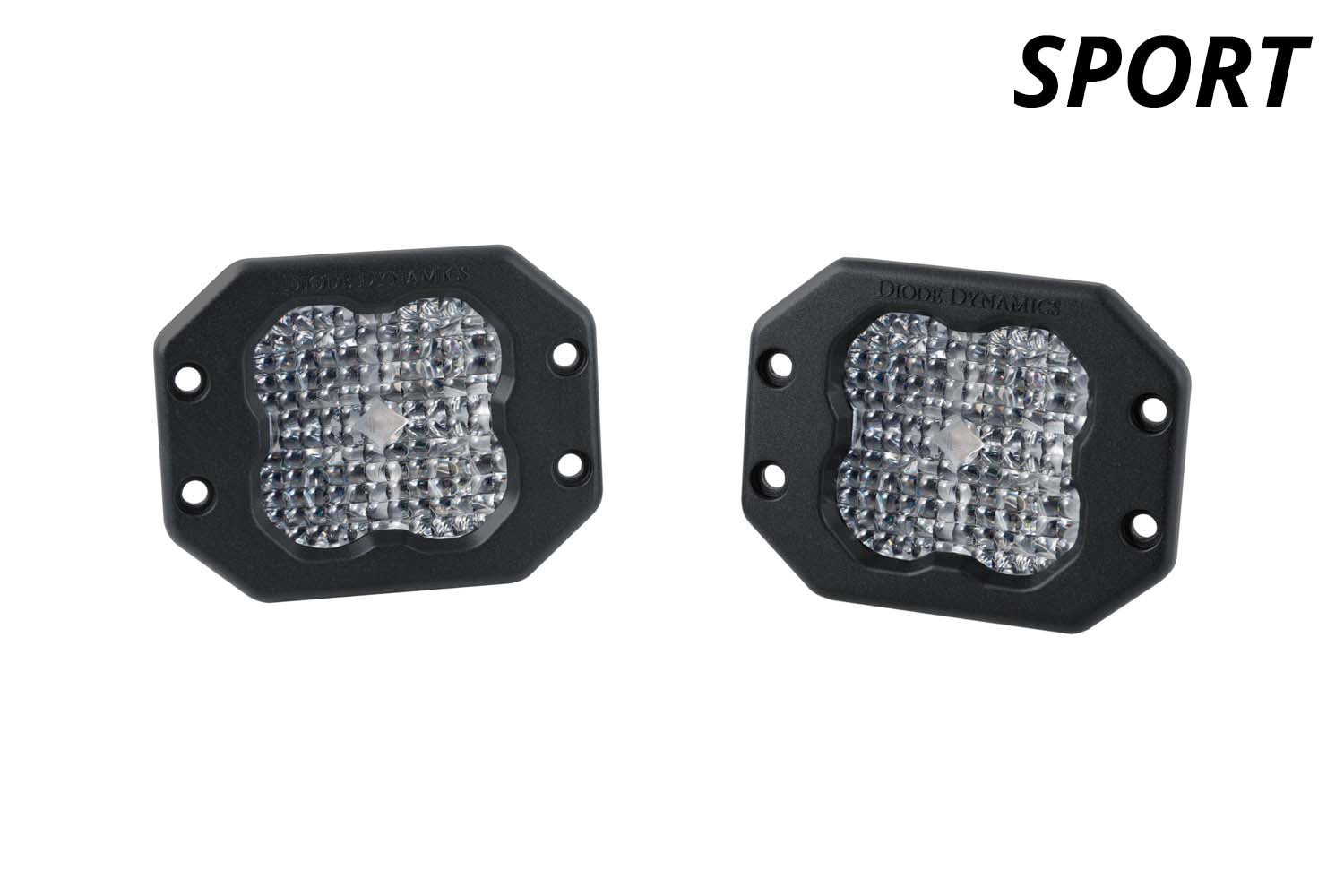

The Diode Dynamics SS3 White Sport Flush Mount LED Pod is a compact Stage Series LED pod that throws 6000K white light through TIR optics, with an amber or red backlight glow around the main beam. This listing is a matched pair of pods. The flush-mount housing is designed to sit flush in a bumper or truck bed, so the light looks built in instead of bolted on.
Why it works
- Optics: TIR optics built for efficiency and a well-focused beam, so the output goes into the pattern you picked instead of spilling everywhere.
- Housing: powdercoated aluminum casting, polycarbonate lens and a rubber gasket, rated IP69K for high-pressure water.
- Cooling: passive pin-fin heatsink, with a constant-current driver feeding the LEDs. No fan to fail.
- Connector: integrated Deutsch-style DT input, so wiring is plug-in rather than splice-and-hope.
- Origin: Made in USA with global materials.
Options

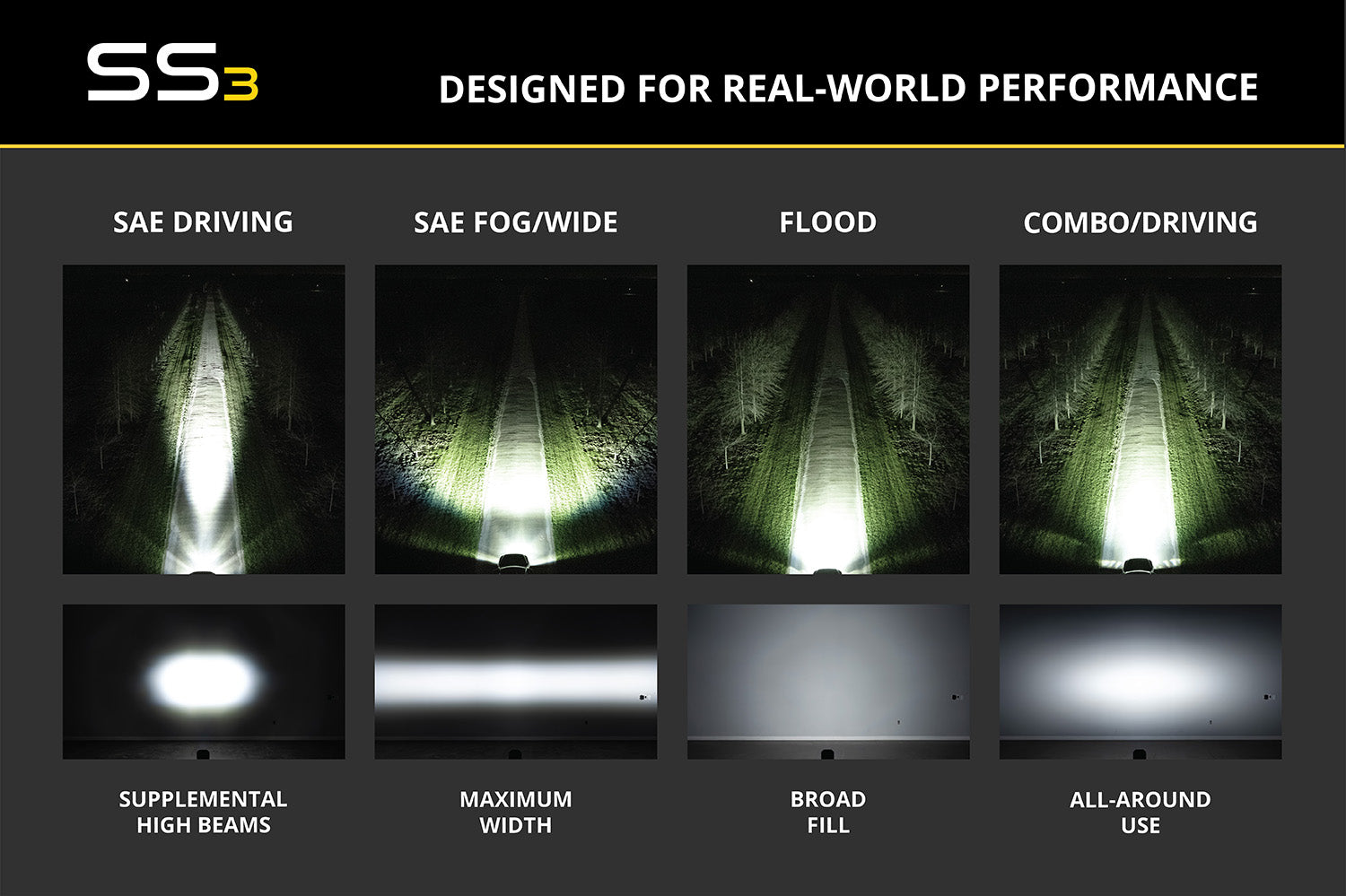

Pick the beam for the job:
- SAE Driving — a focused, long-reaching pattern built to the SAE driving-light standard.
- SAE Fog — a wide, low pattern built to the SAE fog standard, meant for rain, snow and fog where you want light on the ground rather than in your eyes.
- Flood — wide, even near-field light for work areas, camp and slow trail speeds.
- Combo/Driving — a blend of long-reaching center and wider spread, the all-rounder if you only run one set.
Backlight comes in amber or red, but not every beam is offered in both. The combinations available here:
- SAE Driving, amber backlight — DD6912P
- SAE Fog, amber backlight — DD6914P
- Flood, amber backlight — DD6916P
- Flood, red backlight — DD6917P
- Combo/Driving, amber backlight — DD6920P
- Combo/Driving, red backlight — DD6921P

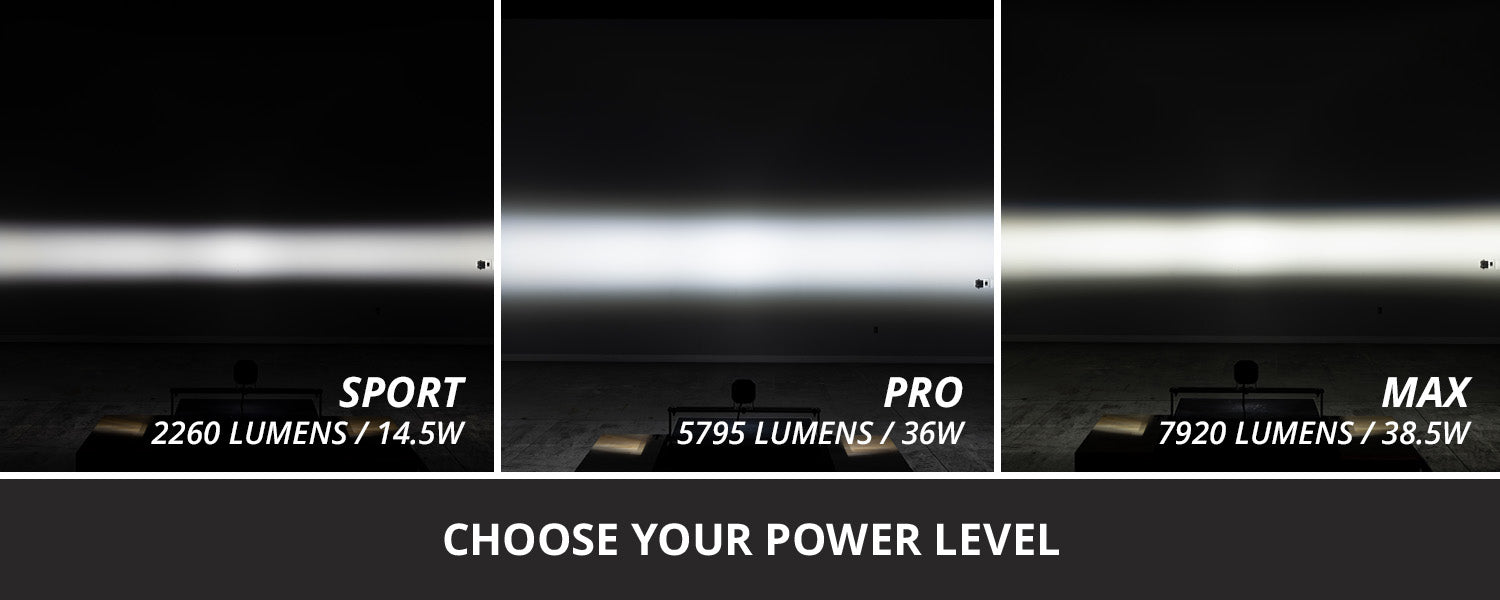

Sport vs Pro: this is the Sport, drawing 14.5 W on the main beam (1.1 A at 12.8V). For reference, Diode publishes these per-pod numbers for the white SS3 family:
- Sport driving: 1,520 lm measured (2,262 lm raw), 54,700 cd peak intensity
- Pro driving: 3,000 lm measured (5,796 lm raw), 66,500 cd peak intensity
Fitment
Universal. Flush installation means cutting a clean opening in a bumper or bed panel, so measure before you commit — the SS3 flush housing is 3.75 x 4.75 x 2.4 in. The pod is polarity specific, so mind positive and negative when you wire it.
Specs at a glance
- Part numbers: DD6912P, DD6914P, DD6916P, DD6917P, DD6920P, DD6921P
- Color temperature: 6000K
- Power (per pod): main beam 14.5 W, backlight 0.4 W
- Current @ 12.8V (per pod): main beam 1.1 A
- LED emitter: Luxeon Z ES
- Connector: Deutsch DT input
- Construction: aluminum casting, polycarbonate lens, rubber gasket
- Rating: IP69K waterproof, high pressure
- Operating temperature: -40C to 85C (-40F to 185F)
- Dimensions / weight: 3.75 x 4.75 x 2.4 in., 0.88 lb
Warranty
Diode Dynamics covers its Stage Series pods with a limited lifetime warranty: a defect is diagnosed with Diode and the pod is replaced if necessary. Full terms are on our Diode Dynamics warranty page, and the rest of the lineup is in our Diode Dynamics collection.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SS3 White Sport Flush Mount LED Pod (Pair) FAQs
Is this one pod or two?
Two. The pair is a matched set with the same beam pattern and backlight color on both pods.
Which beam pattern should I pick?
SAE Driving: a focused, long-reaching pattern built to the SAE driving-light standard. SAE Fog: a wide, low pattern built to the SAE fog standard, meant for rain, snow and fog where you want light on the ground rather than in your eyes. Flood: wide, even near-field light for work areas, camp and slow trail speeds. Combo/Driving: a blend of long-reaching center and wider spread, the all-rounder if you only run one set.

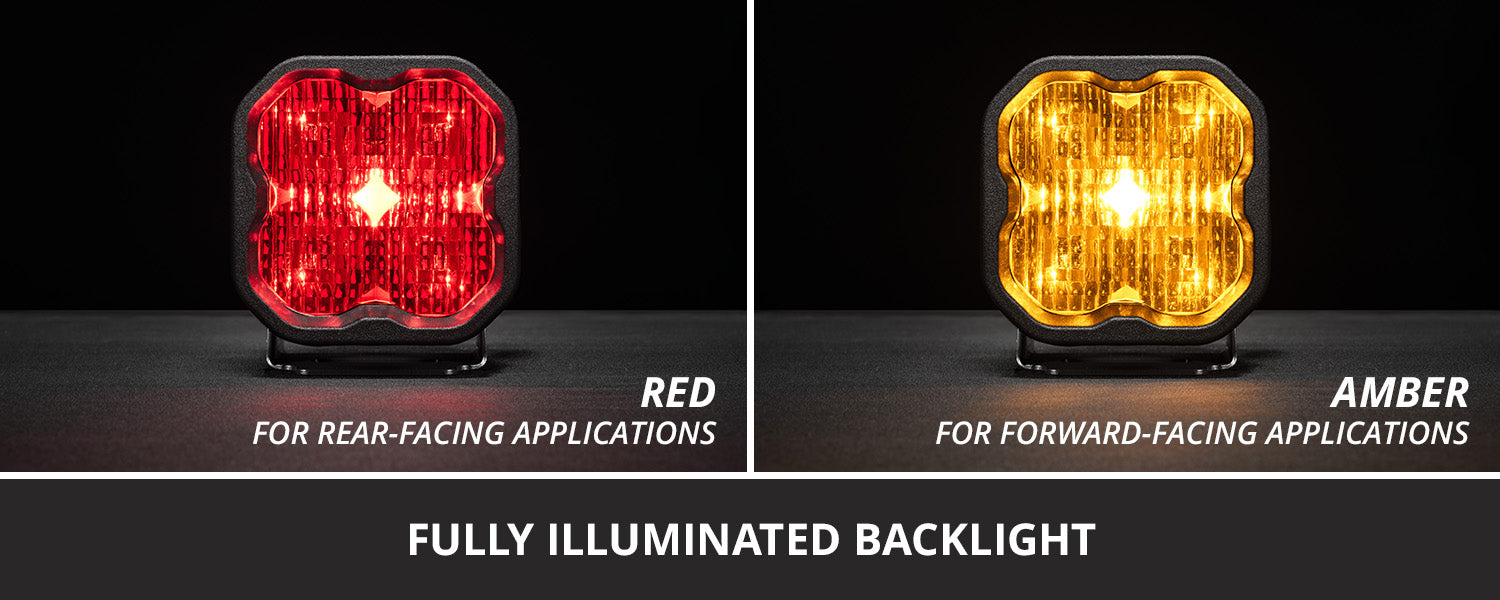

What does the backlight do?
It adds an amber or red accent glow to the pod. It is a low-draw circuit, 0.4 W versus 14.5 W for the main beam. Diode's Heavy Duty Dual Output 4-pin Wiring Harness is built to power its pods with backlight functionality.

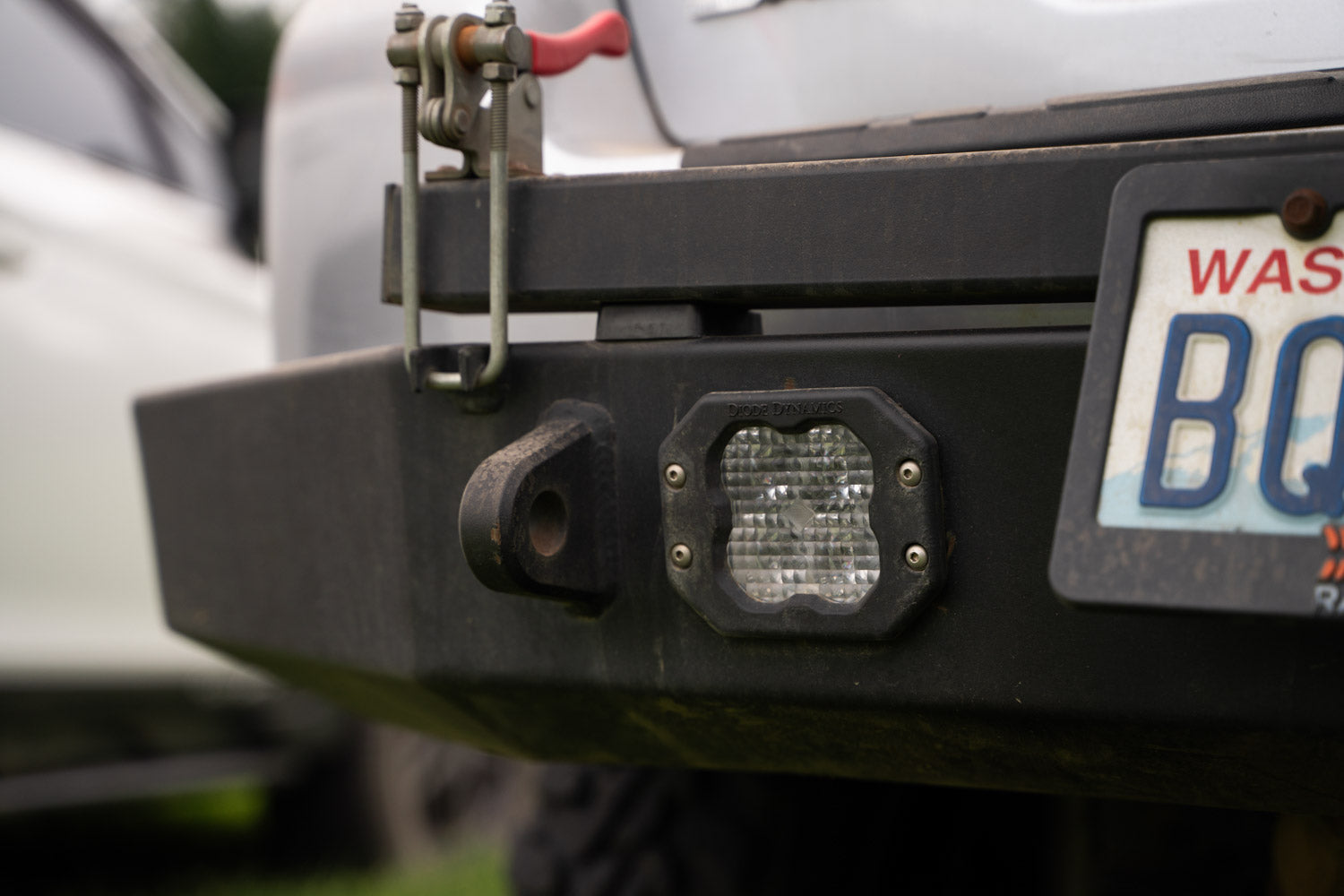

How does flush mounting work?
The flush housing is made to sit in an opening in a bumper or truck bed. That means cutting the panel, so measure carefully; the SS3 flush housing measures 3.75 x 4.75 x 2.4 in.
Is it waterproof?
Yes. It is rated IP69K, which covers high-pressure water, with a rubber-gasketed polycarbonate lens on an aluminum housing.
