Diode Dynamics SS3 White Max LED Pod (Single)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

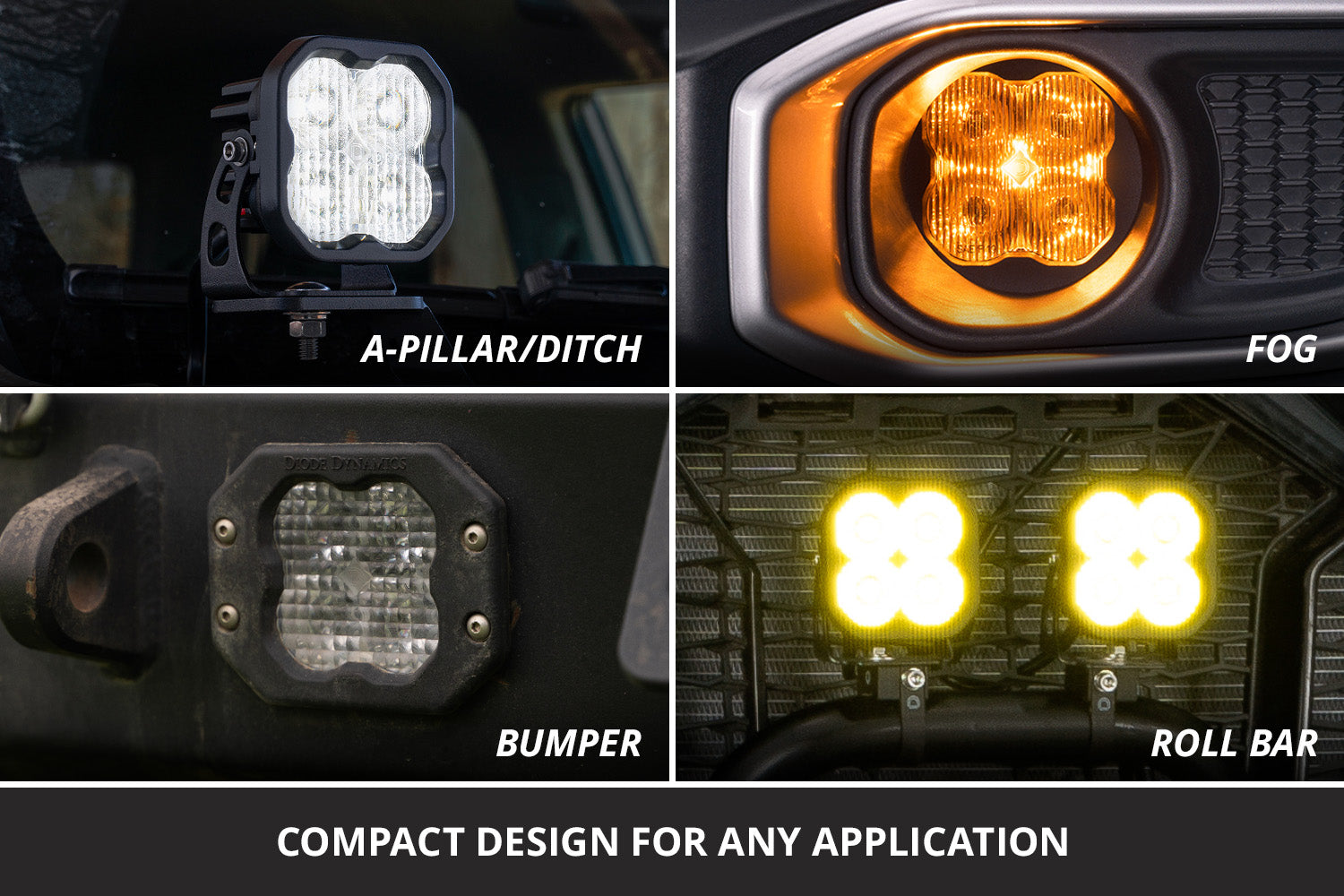

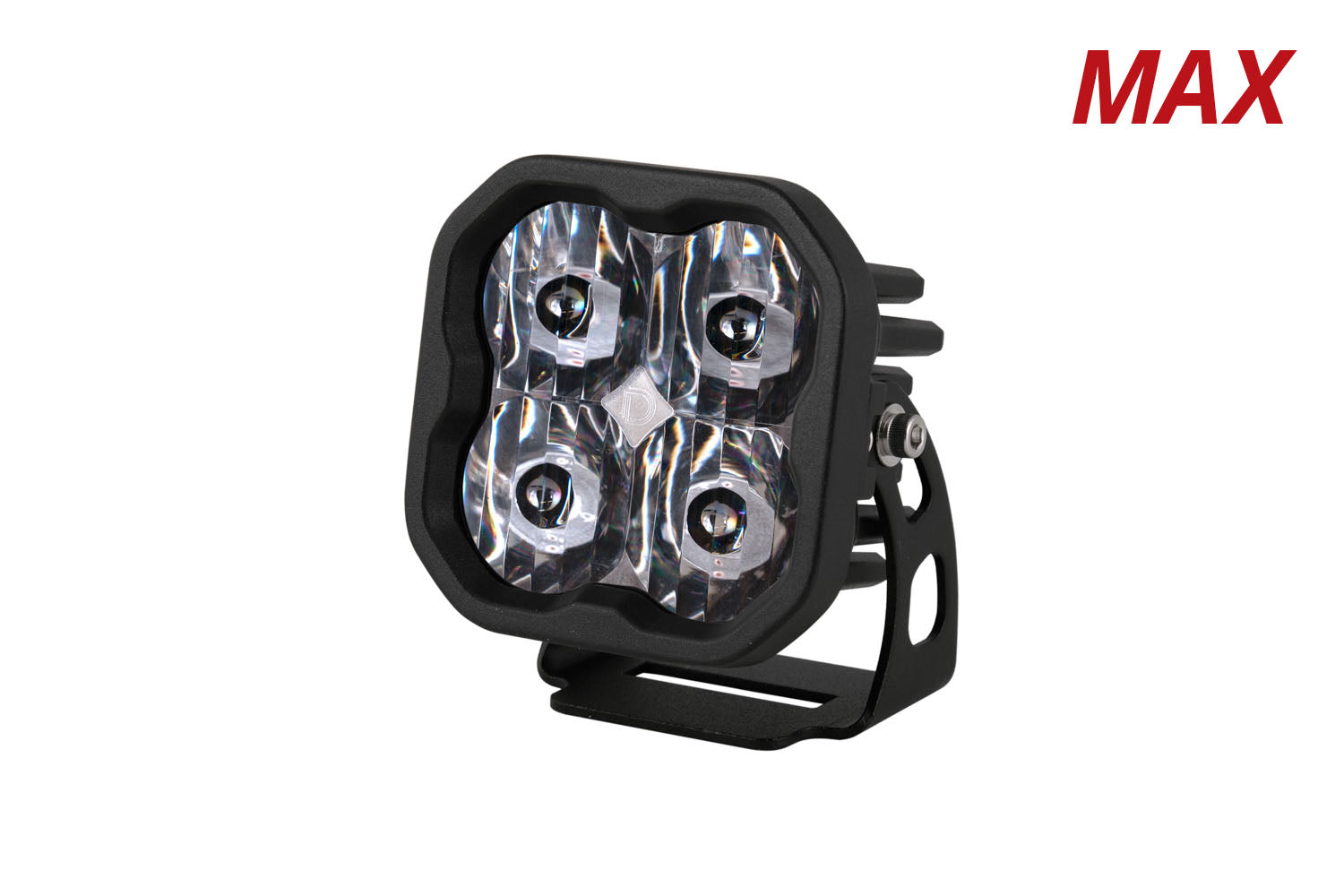

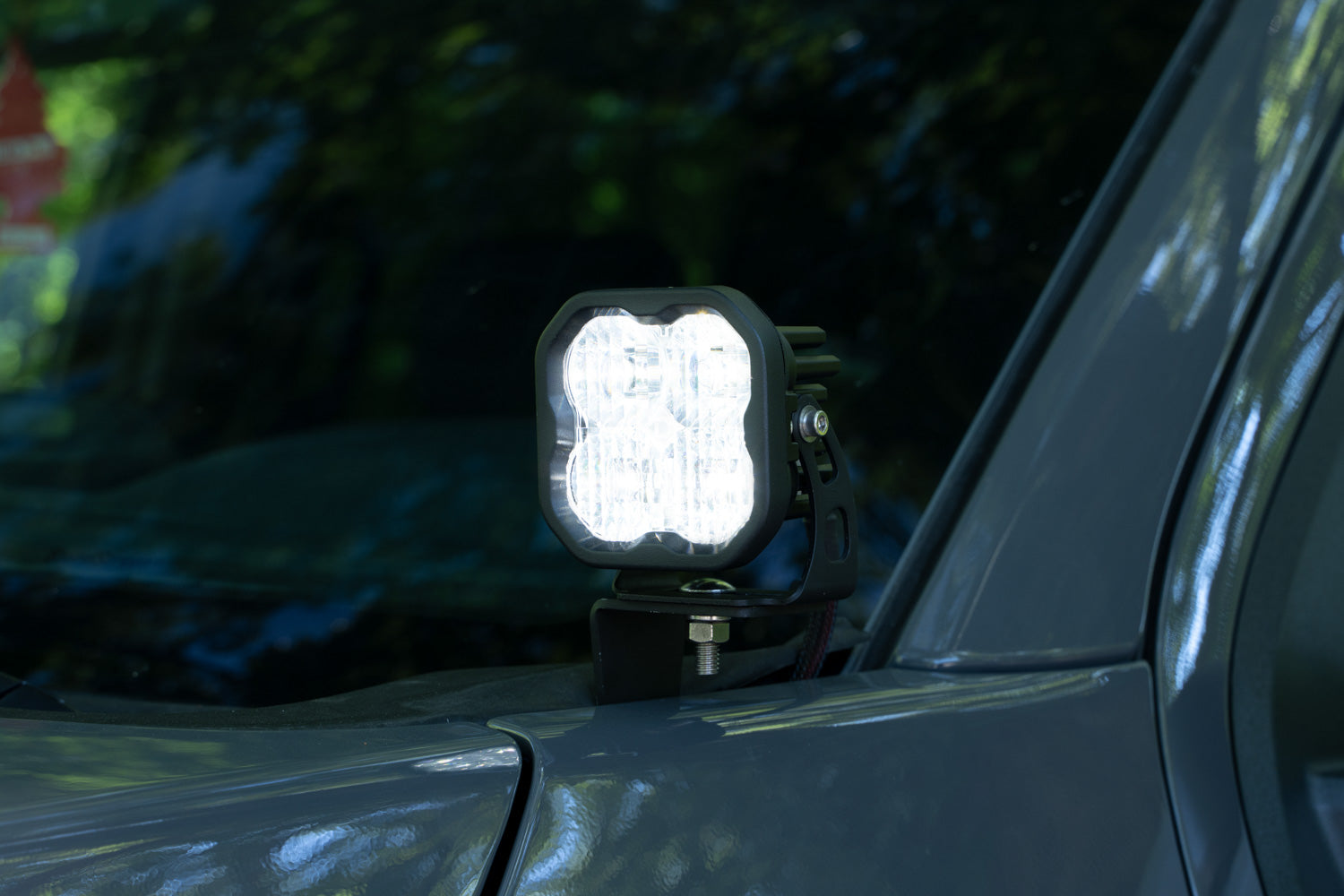

The Diode Dynamics SS3 White Max LED Pod is a single 3.3-inch-square auxiliary light at the SS3 Max power level, ready to bolt anywhere on a truck or SUV — bumper, grille, ditch-light bracket or rack. It pairs modern TIR optics with Osram Boost HX emitters and a backlight accent, so it works hard at night and still looks clean in daylight.
Why it works
- TIR optics deliver very high intensity — the SAE Driving Max version is rated at about 98,000 candela.
- Max power level: about 38.5 watts on the main beam, plus a 0.4-watt backlight.

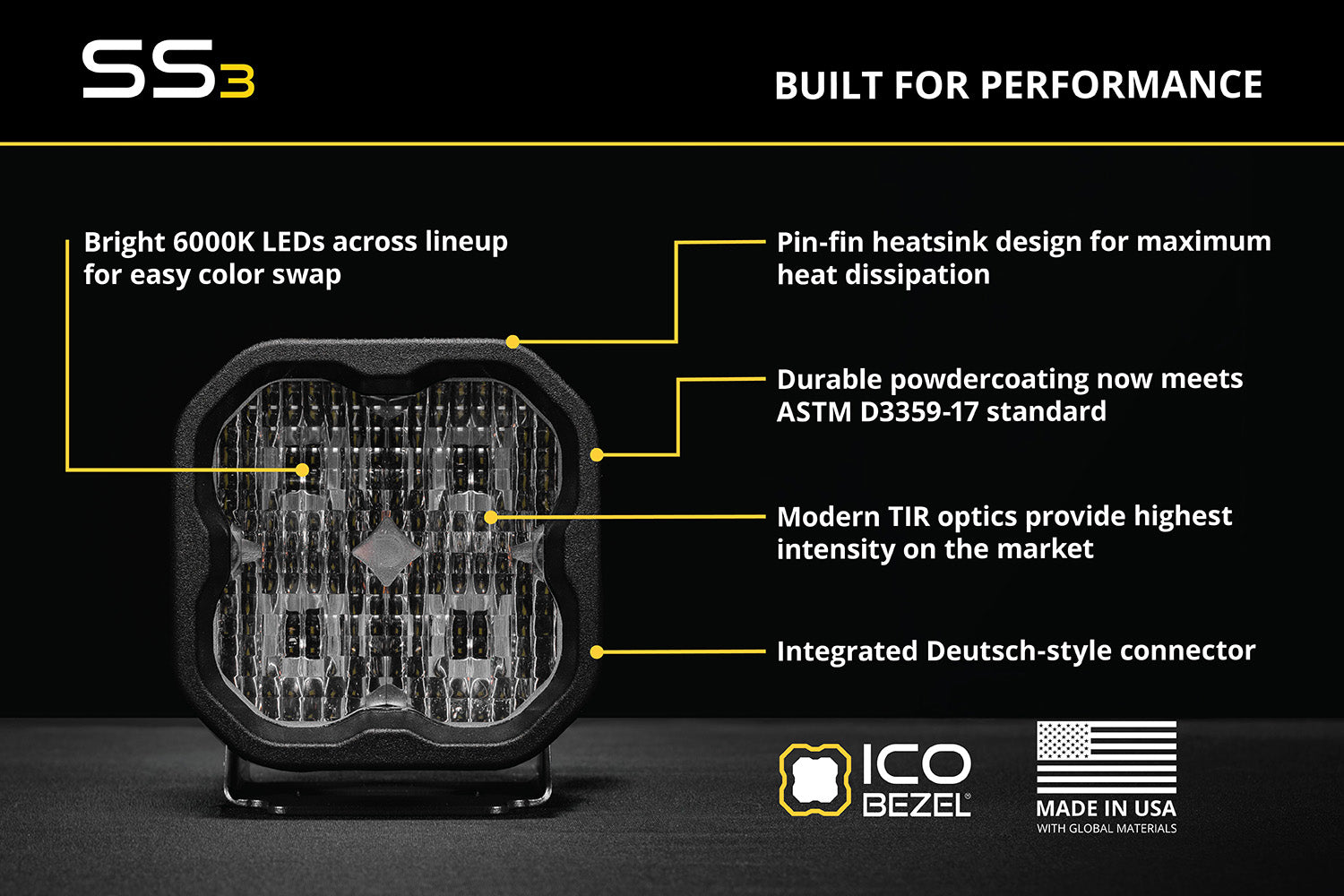

- Powdercoated aluminum casting, polycarbonate lens and rubber gasket, rated IP69K for high-pressure water.
- Passive pin-fin heatsink — no fan, nothing to clog.
- Integrated Deutsch-style DT connector for clean, sealed wiring.
- Made in the USA with global materials.
Options

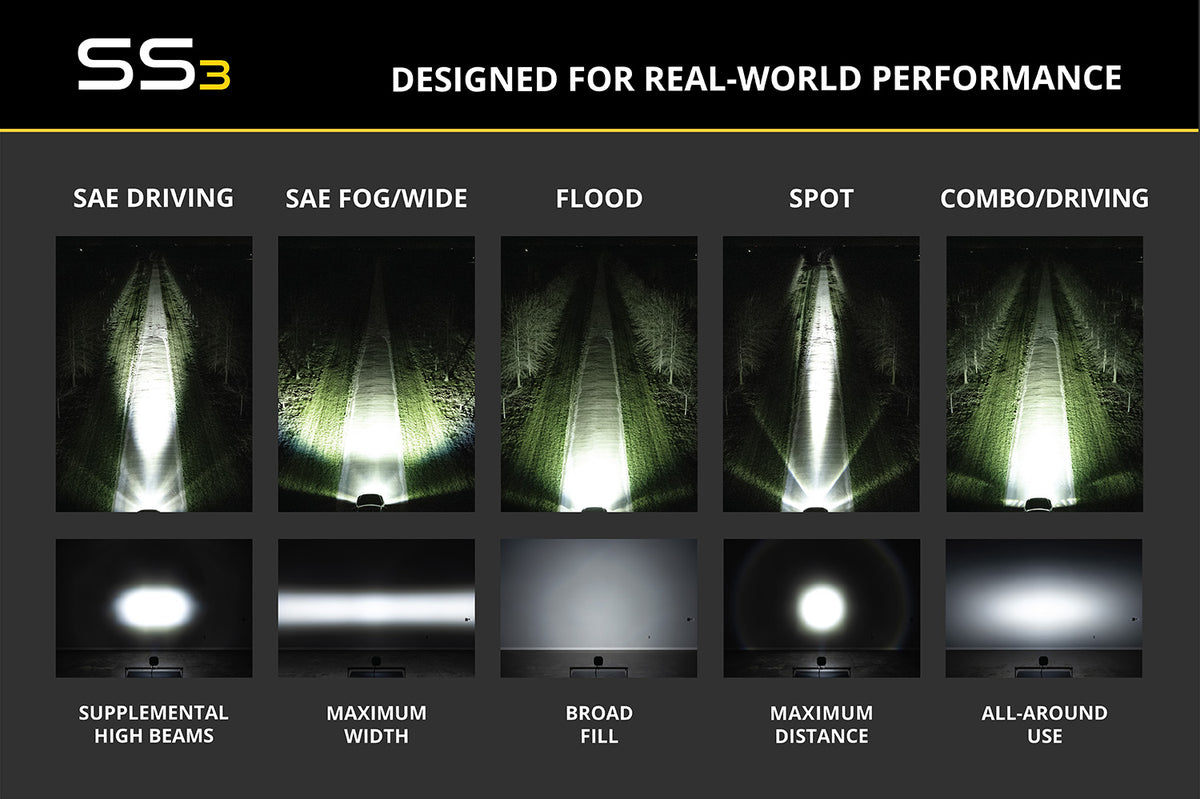

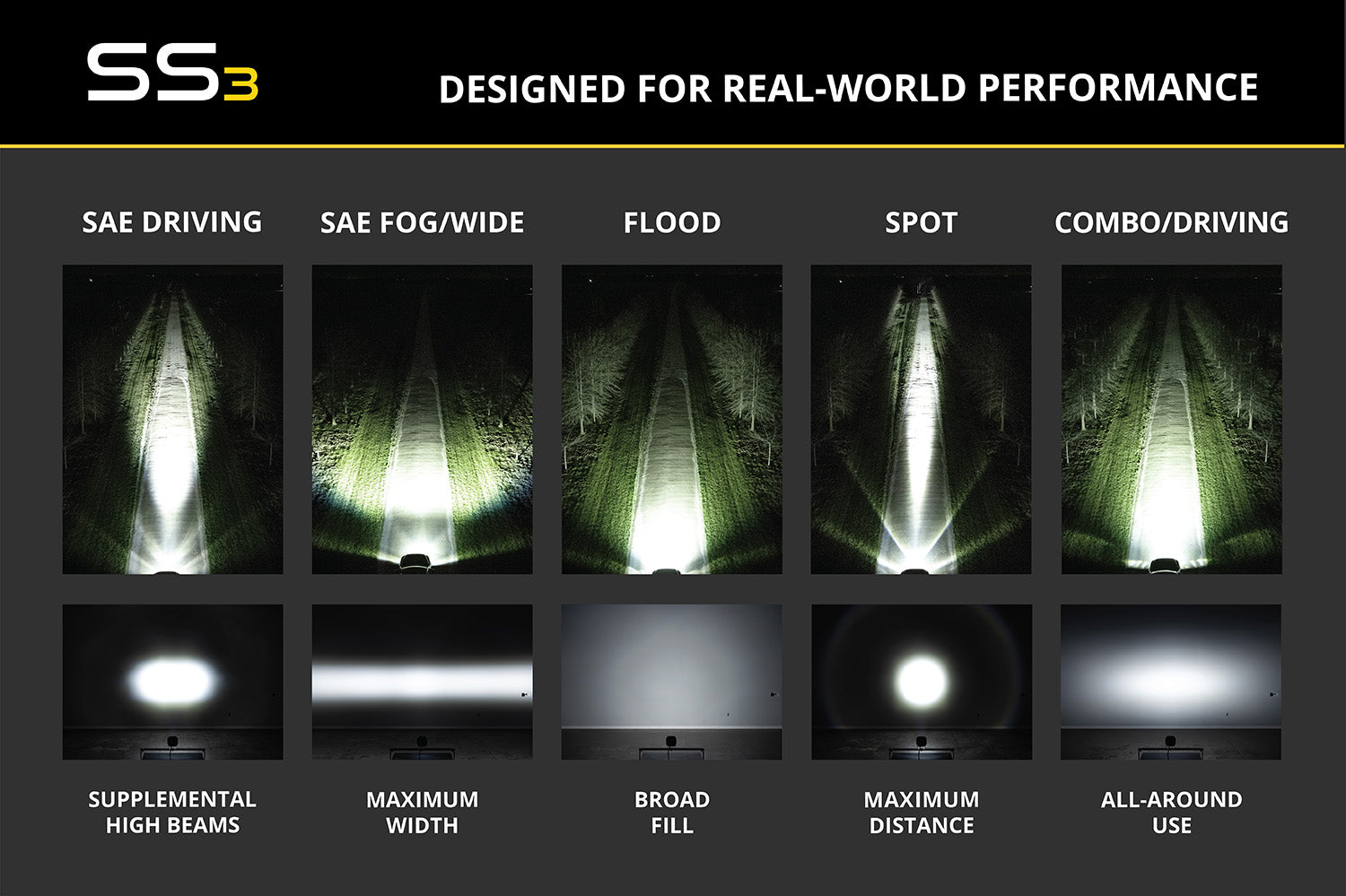

Pick a beam, then a backlight color. SAE Driving and SAE Fog are the road-legal patterns; Flood spreads light wide for work areas and trails, Spot reaches far down the road, and Combo/Driving blends the two. The backlight comes in Amber or Red — amber is offered on every beam, red on Flood, Spot and Combo/Driving. This listing is one pod; order two for a matched pair.
Fitment
Universal. The SS3 pod mounts wherever you have a solid bracket and switched 12V power, and connects through its Deutsch DT input. It is polarity specific, so wire positive and negative correctly.
Specs at a glance
- Color temperature: 6000K white
- Power: 38.5 W main beam, 0.4 W backlight
- Current: 3 A main beam, 0.03 A backlight (at 12.8V)
- Dimensions: 3.3 x 3.3 x 2.4 in
- Weight: 0.75 lb per pod
- Operating temperature: -40°F to 185°F
- IP69K waterproof, high pressure
Warranty
Diode Dynamics covers the SS3 Max pod with a limited lifetime warranty. If something fails, the defect gets diagnosed with Diode Dynamics and the part is replaced if necessary. Full terms are on our Diode Dynamics warranty page, and the rest of the brand lives in our Diode Dynamics lineup.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SS3 White Max LED Pod (Single) FAQs
Is this one pod or a pair?
One pod. Order two if you want a matched pair.
Which beam pattern should I pick?
SAE Driving or SAE Fog if you want road-legal patterns; Flood for wide work or trail light; Spot for distance; Combo/Driving for a mix of reach and spread.

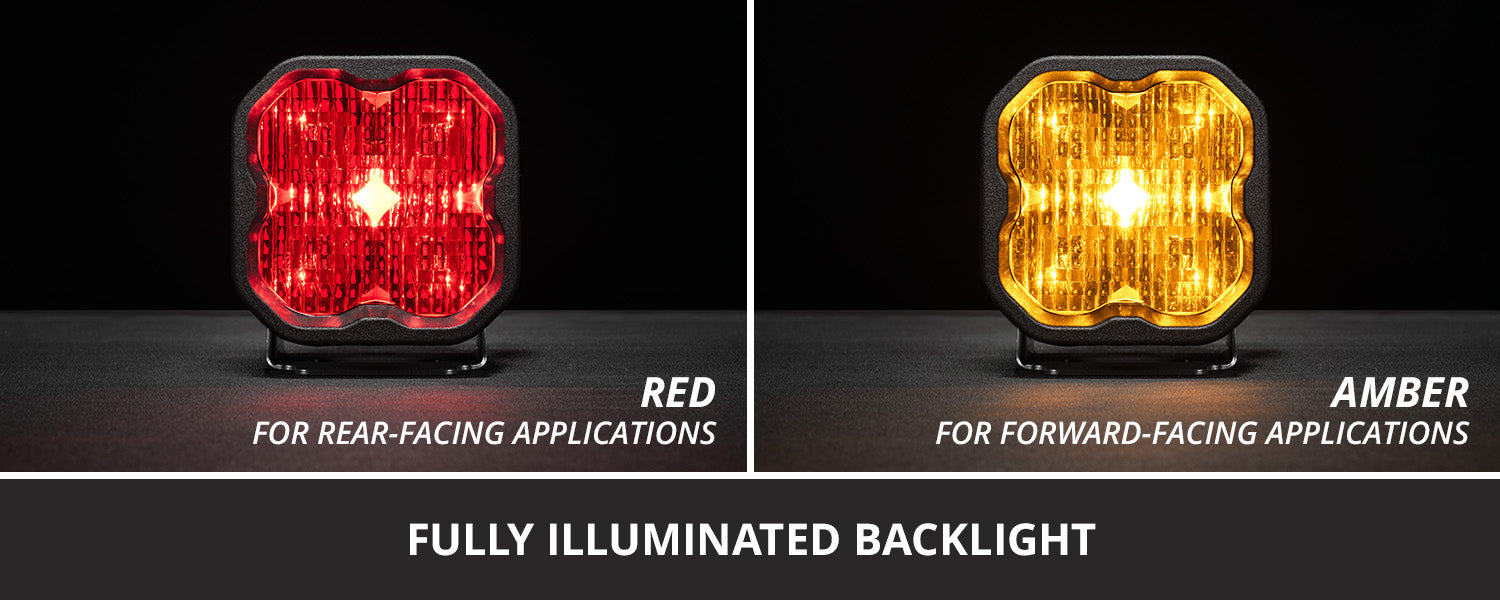

What does the backlight color do?
It is a low-power accent (about 0.4 watts) that glows amber or red around the main beam. Amber is available on every beam; red on Flood, Spot and Combo/Driving.
Will it fit my truck?
It is universal — it mounts on any suitable bracket and wires through a Deutsch DT connector. Want help picking brackets or wiring? Call or text the real humans at NVMOS, (920) 249-7744.
