Diode Dynamics SS3 White Max LED Pod (Pair)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

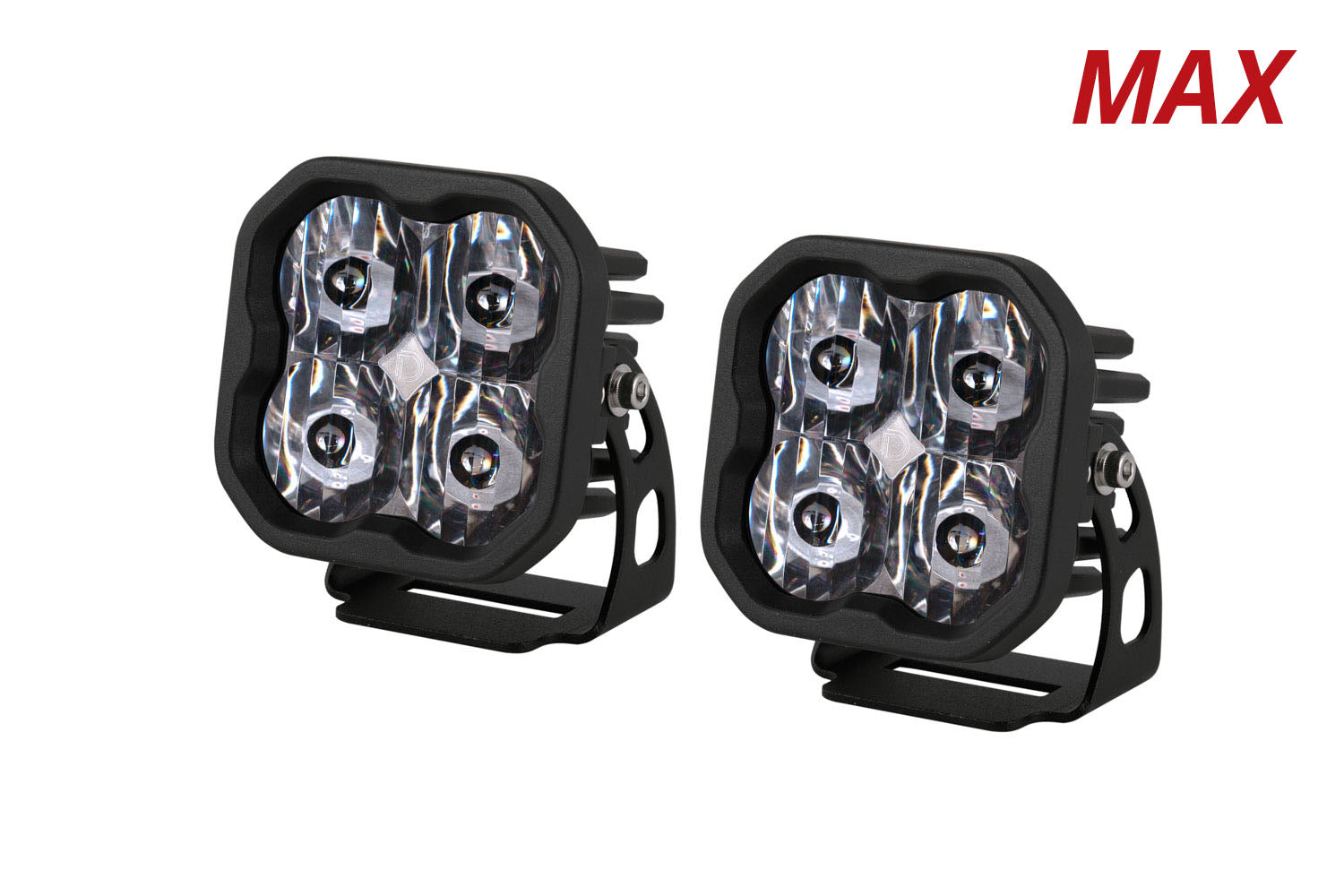

The Diode Dynamics SS3 White Max LED Pod is a pair of 3-inch Stage Series pods at the top Max power level, using modern TIR optics and Osram Boost HX LEDs. It's a universal light for trucks and SUVs, and the 6000K white output with an amber or red backlight gives you real forward or fog lighting from a compact cube.

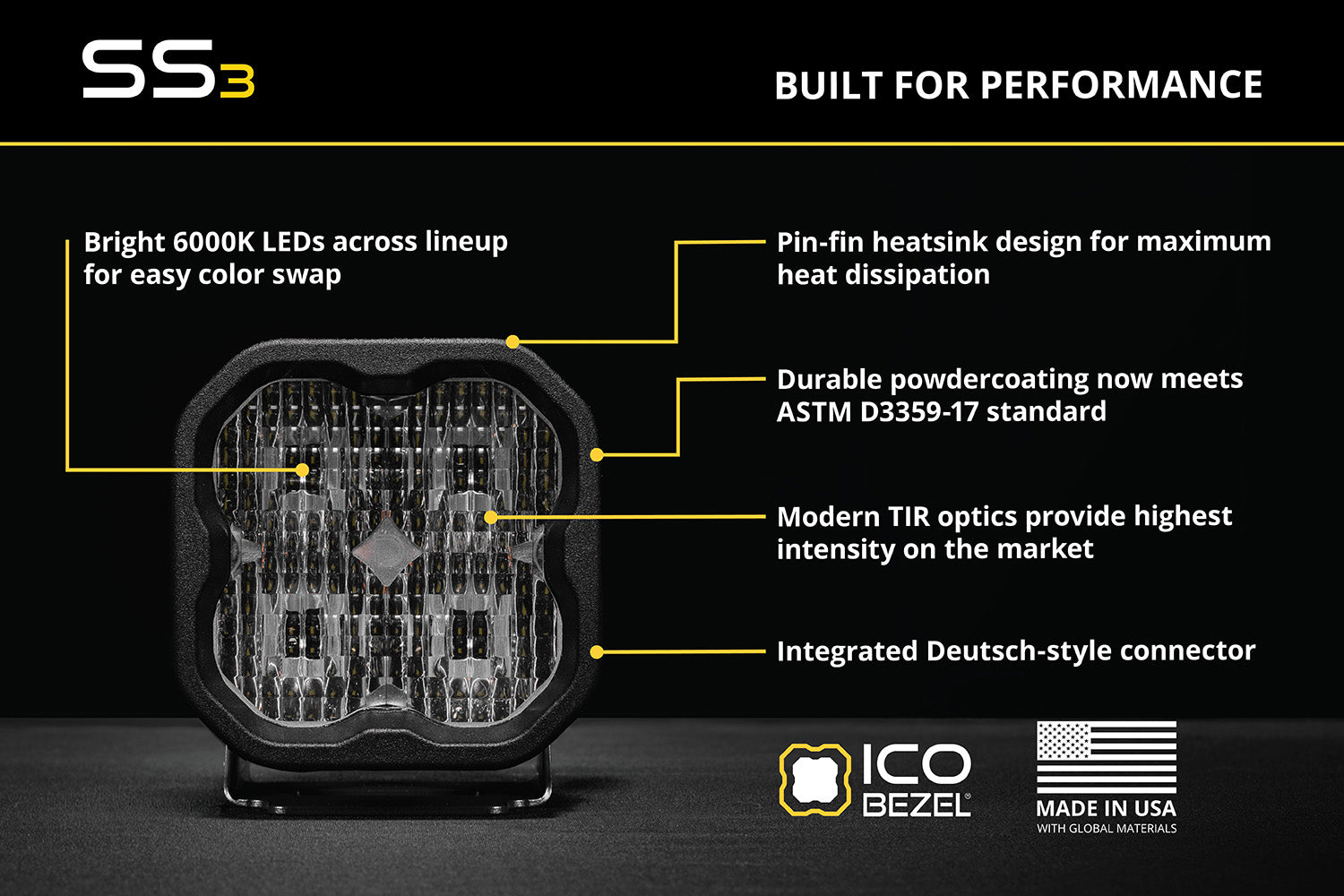

Why it works
- TIR optics. Total internal reflection optics shape the beam tightly, which Diode Dynamics credits for the SS3's class-leading intensity.
- Color with a purpose. 6000K white is the crisp, daylight-style color most people pick for picking out detail on a trail or job site.
- Tough housing. Powder-coated aluminum casting, polycarbonate lens, rubber gasket, passive pin-fin heatsink and an IP69K high-pressure waterproof rating.
- Clean wiring. Integrated Deutsch-style DT connector; runs -40°F to 185°F.
- Made in USA with global materials, per Diode Dynamics.
Options
- Beam pattern: SAE Driving — an SAE-compliant driving beam for use on the road; SAE Fog — a wide, flat, low-cutoff beam built to the SAE fog standard for road use; Flood — a broad, even spread for lighting up close to the vehicle; Spot — a tight beam that reaches the farthest down the trail; Combo/Driving — reach plus a wider fill, a strong all-round forward pattern.

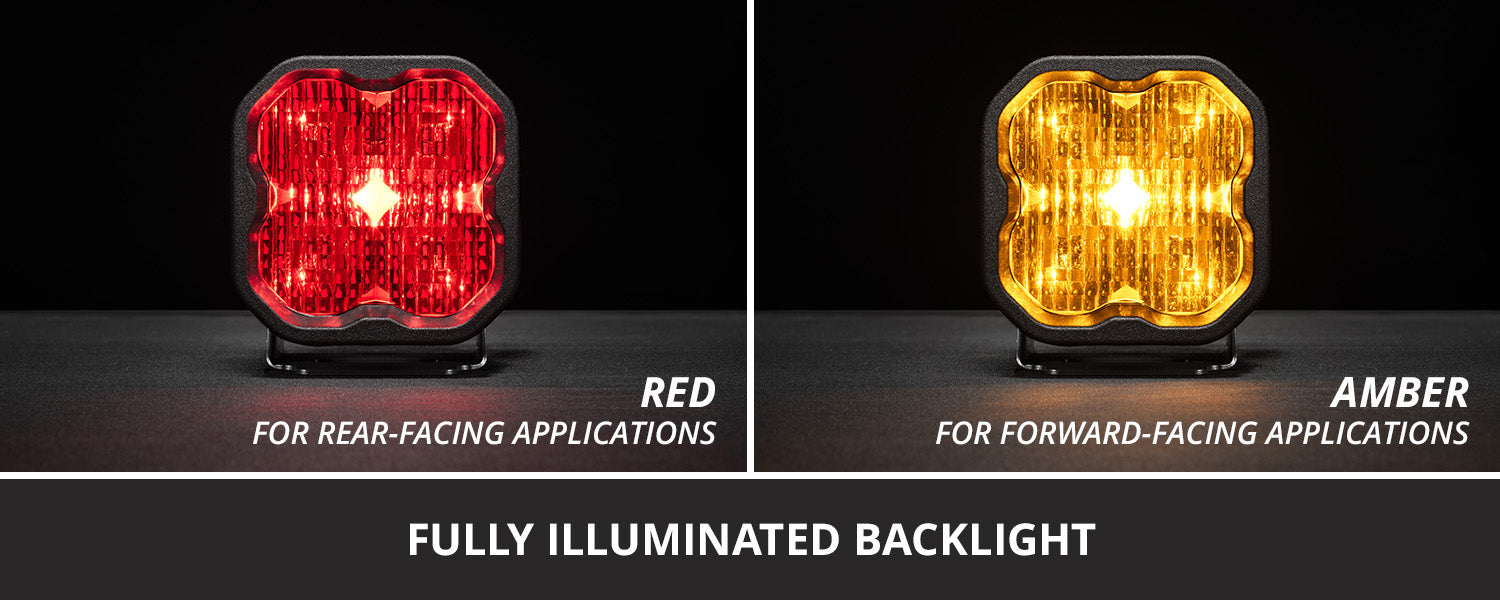

- Backlight: amber or red accent glow, drawing about 0.4 watts on its own circuit.
- Quantity: two pods; Diode Dynamics also sells the SS3 Max as a single.
- Not every beam and backlight combination is offered; the selector shows the ones that exist.
Fitment

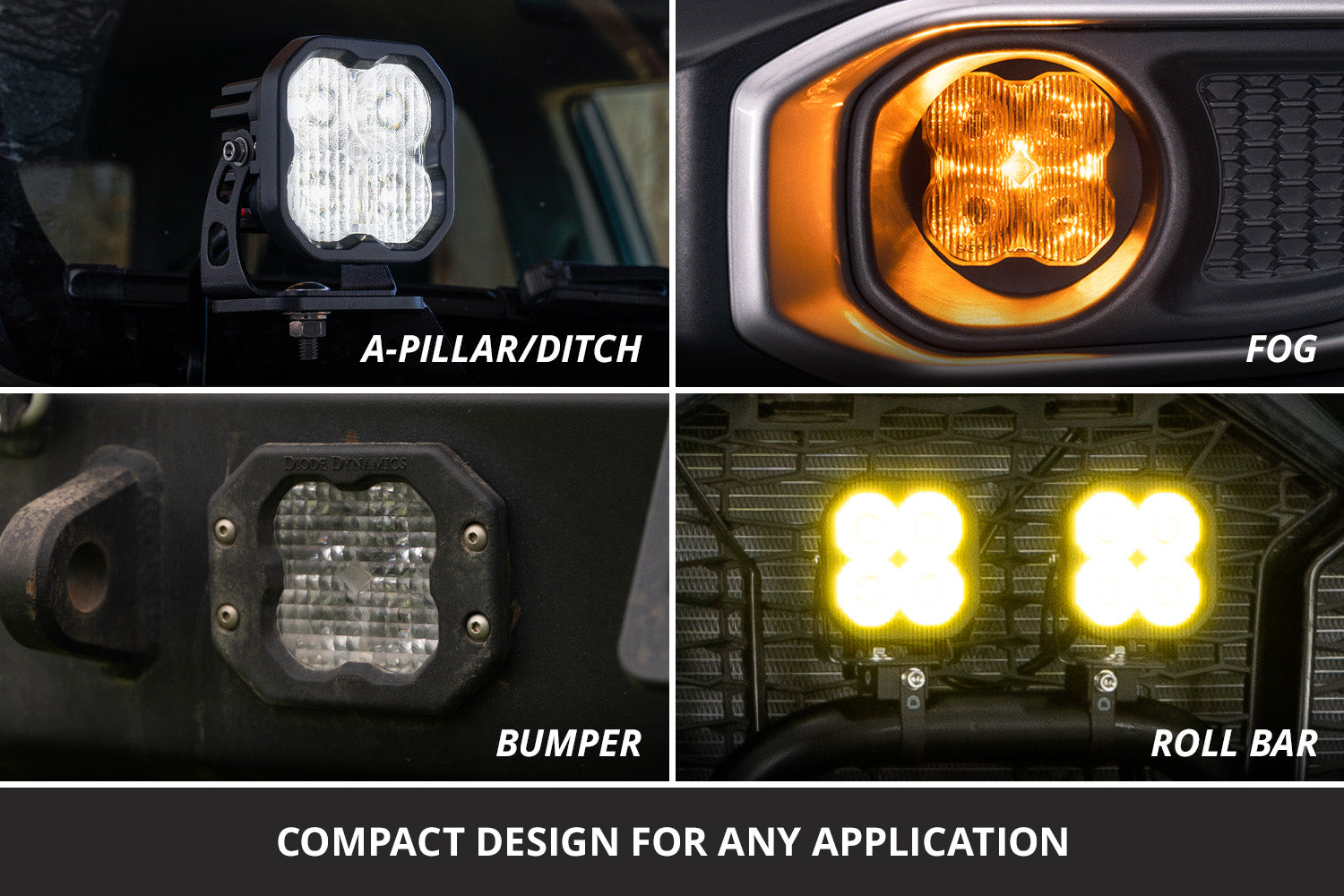

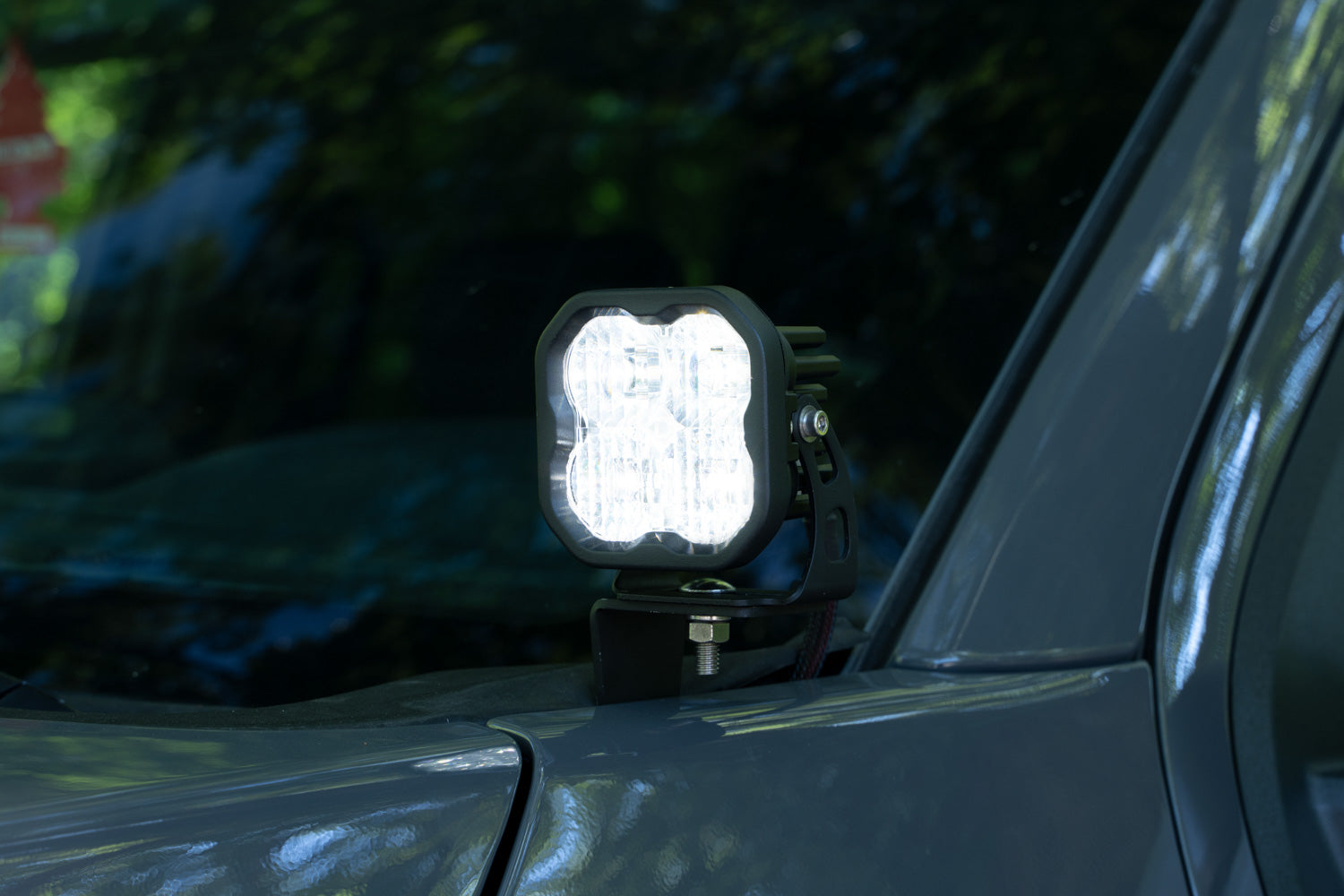

Universal — bumper, A-pillar, grille or fog pocket, wherever you can mount it solidly. Two SS3 pods can be joined into one unit with the SS3 Dual-Pod Bracket Kit. The pod is polarity specific, so wire it positive to positive.
Specs at a glance
- Color temperature: 6000K
- Power (watts): Main Beam: 38.5, Backlight: 0.4
- Current @ 12.8V (amps): Main Beam: 3, Backlight: 0.03
- Driving Max output (per pod): 3,500 lm measured, 98,000 cd peak
- LED: Osram Boost HX
- Connector: Deutsch DT input
- Ingress rating: IP69K (high-pressure waterproof)
- Dimensions: 3.3 x 3.3 x 2.4 in; 0.75 lb per pod
- Operating temperature: -40°F to 185°F
At Max power with the driving optic, Diode Dynamics lists 3,500 lm measured (7,920 lm raw) and 98,000 cd peak intensity per pod.
Warranty
Covered by Diode Dynamics' limited lifetime warranty: if a defect shows up, it gets diagnosed with Diode Dynamics and the light is replaced if necessary. Details are on our Diode Dynamics warranty page, and the rest of the Diode Dynamics lineup is a click away.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics SS3 White Max LED Pod (Pair) FAQs
Is this one pod or two?
This listing is a pair — two pods. Diode Dynamics also offers it as a single.
Which beam pattern should I choose?
The SAE Fog and SAE Driving patterns are the road-compliant choices. Combo/Driving mixes reach and spread for off-road forward lighting. Spot reaches farthest and Flood covers the area close to the truck.
How much power does it draw?
Diode Dynamics lists 38.5 watts and about 3 amps at 12.8V for the main beam, plus 0.4 watts for the backlight, per pod.
Can I mount two together?
Yes. The SS3 Dual-Pod Bracket Kit joins two SS3 pods into one unit and includes a DT splitter. Call or text the real humans at NVMOS, (920) 249-7744.
