Diode Dynamics C2 2.0 White Max Flush Mount LED Pod (Single)
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

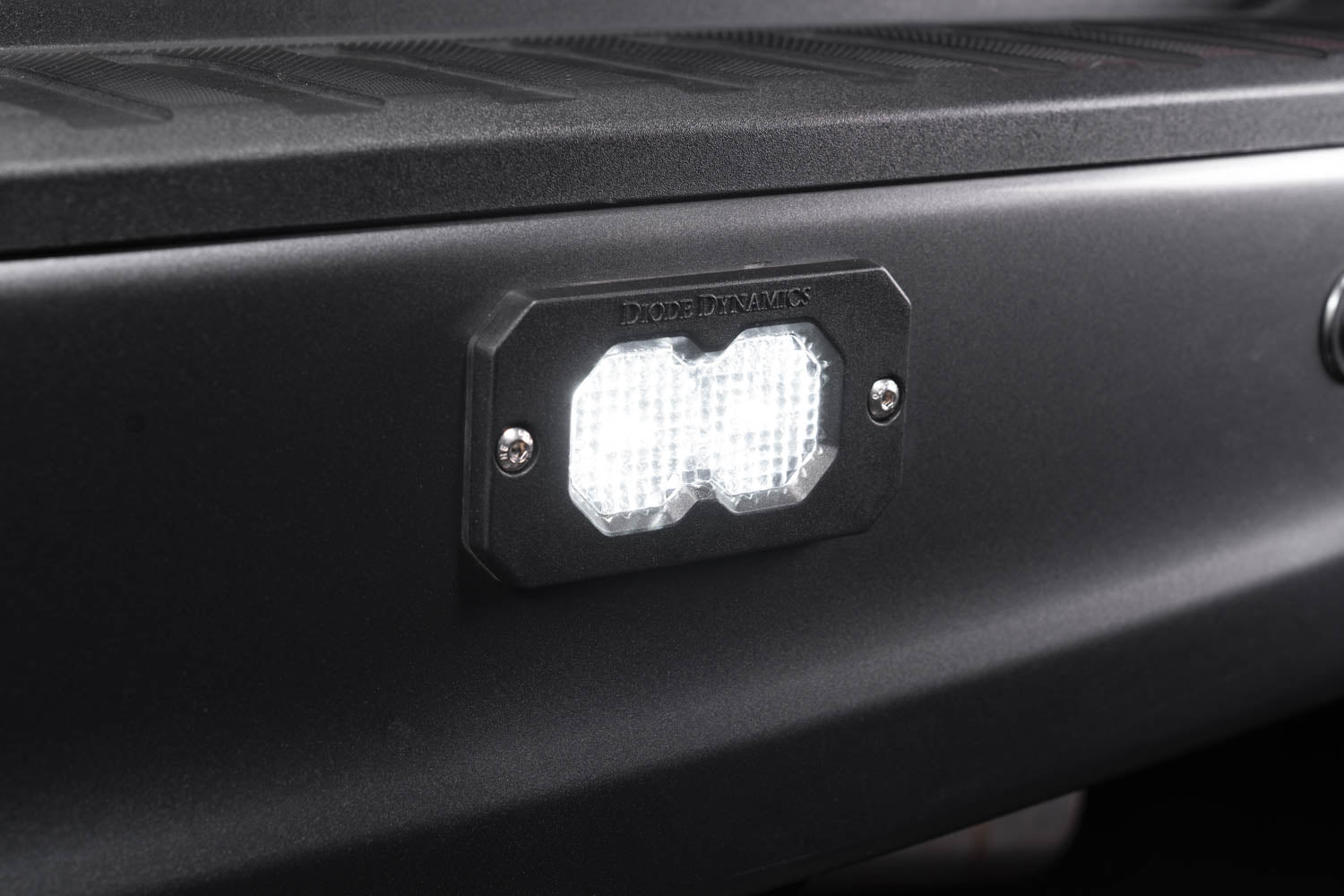

The Diode Dynamics C2 2.0 White Max Flush Mount LED Pod (single pod) is a compact Stage Series pod that sits flush in a bumper, bed or panel cutout instead of on a bracket. It puts out 3,960 lm of raw 6000K white light from 30 watts, and it is universal, so it fits any truck or SUV where you can cut a clean opening. Max is the top of the C2 2.0 range, built around an Osram Boost HX emitter for the highest raw output in the C2 2.0 lineup.
Why it works
- TIR optics. Diode Dynamics' patented total-internal-reflection optics shape the beam so more of the LED's output lands where you aim it.
- More power than the original. The 2.0 generation delivers up to 95% more power than the first C2.
- Built for weather. IP69K high-pressure waterproof rating, a pin-fin passive heatsink, and a constant-current driver that runs on 9-30V.
- Osram Boost HX emitter behind a polycarbonate lens in an aluminum casting with a rubber gasket.
- Low profile. Flush mounting keeps the pod out of harm's way and gives a clean, factory-looking install.
- Origin. Made in USA with global materials.
Options

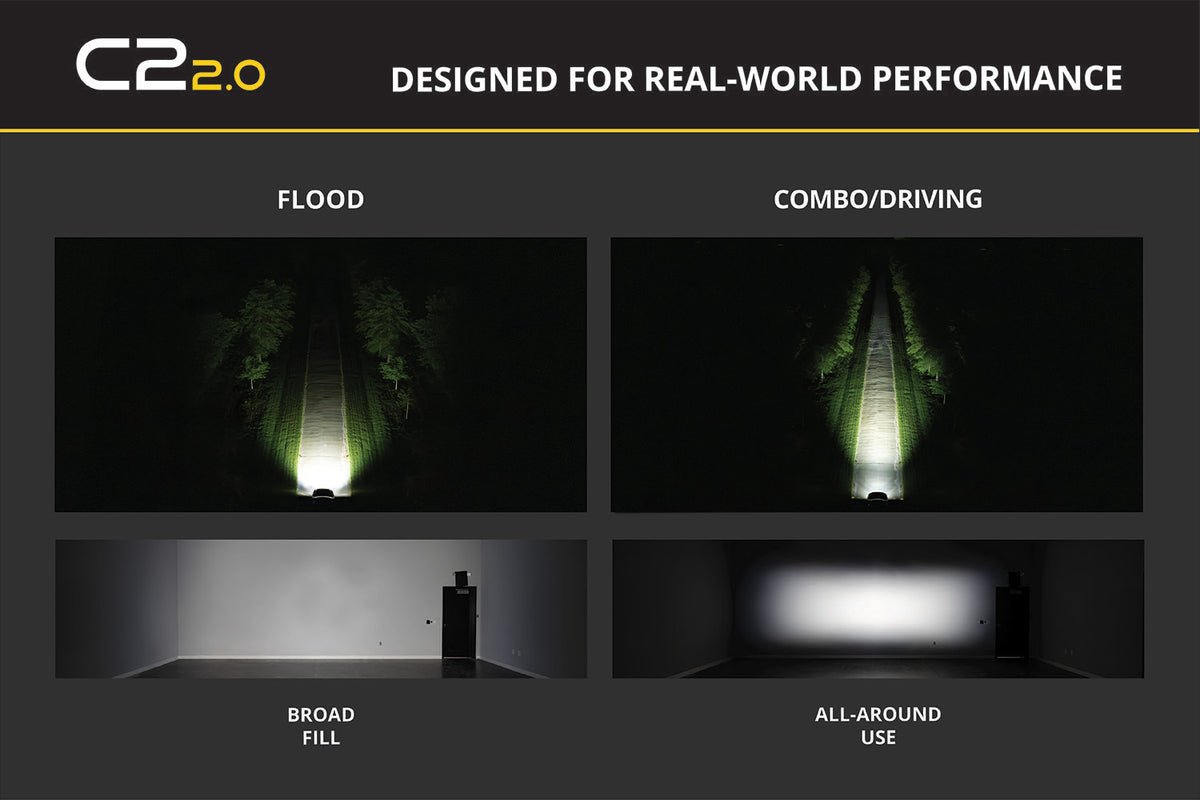

Pick a beam pattern:
- Flood — wide, close-range light for work areas, trails and reverse lighting
- Combo/Driving — a blend of reach and spread, the most versatile all-around choice
This version carries a red backlight (0.38 W) for a subtle accent glow.
This listing is the single pod. Running two? There is a pair version as well.
Fitment
Universal. These pods are not tied to one vehicle — they need a clean cutout in a bumper, bed, or panel. Plan your wiring and switch before you order.
Specs at a glance
- Raw output: 3,960 lm
- Color temperature: 6000K
- Power: 30 W main beam / 0.38 W backlight
- Current: 2.3 A main beam
- Voltage: 9-30V, polarity specific
- Connector: Deutsch DT Input
- Operating temperature: -40F to 185F
- Waterproofing: IP69K (high pressure)
- Durability: SAE J575 test
- Mounting: flush (cutout)
Warranty
Covered by Diode Dynamics' limited lifetime warranty. If something fails, the defect gets diagnosed with Diode Dynamics and the part is replaced if needed. Full terms are on the Diode Dynamics warranty page.
Browse the full Diode Dynamics lineup for harnesses, brackets and matching lights.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Diode Dynamics C2 2.0 White Max Flush Mount LED Pod (Single) FAQs
Does it fit my truck?
Yes, it is universal. You need a clean cutout to flush mount it, plus power to a Deutsch DT connector. Plan your wiring and switch before you order.

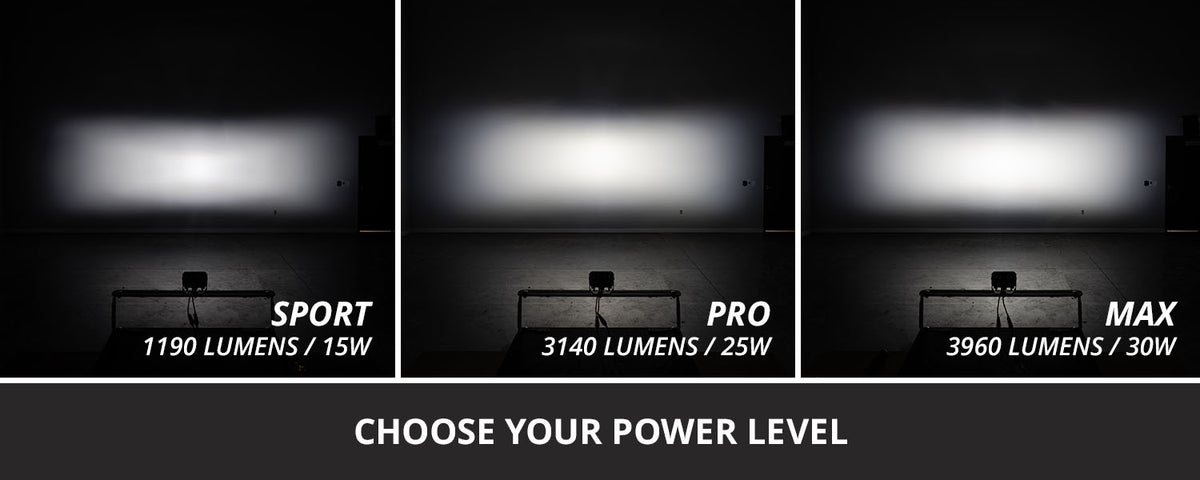

How does Max compare to the other C2 2.0 power levels?
C2 2.0 comes in Sport, Pro and Max. This Max version is rated at 3,960 lm raw output and 30 watts for the main beam. Sport is the lowest output, Max the highest.
Which beam pattern should I choose?
Flood for wide, close work light and reverse lighting; Combo/Driving for an all-around mix; flush versions come in Flood and Combo/Driving only.
What does the backlight do?
It is a low-power accent light (0.38 W) that adds a red glow to the pod.
Need help planning the wiring or a full setup?
Call or text the real humans at NVMOS, (920) 249-7744.
