DVA Mechanics · Rooftop Systems

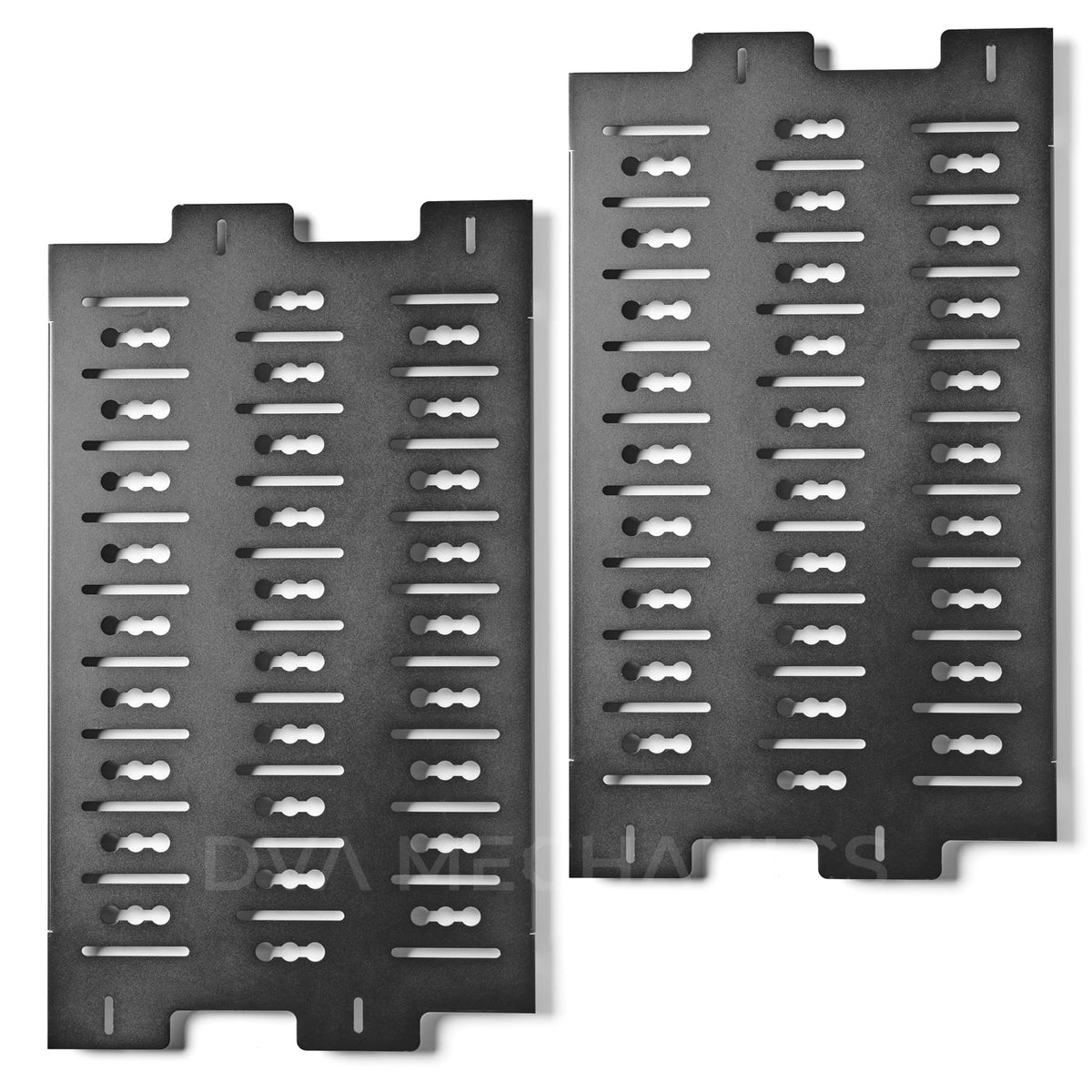

Universal Aluminum Roof Deck Panel
A flat, structural deck panel that turns any roof rack into a walkable, gear-ready platform. Machined from 5 mm formed aluminum and sized to mount, tie down, and stand on — without complaint. Sold individually, so you build exactly the deck you need.
Material
5 mm Aluminum
Panel Size
34 × 19.5″
Mounting
Universal
Engineered for the Sprinter
Three panels span the roof
At 19.5 in wide, three panels lay edge-to-edge across the full width of a Mercedes-Benz Sprinter rack — continuous, flat decking with no awkward gaps to design around. Run them front-to-back for a complete walkway, or space them to clear A/C units, fans, solar, and vents while keeping solid footing where you need it.
3 × 19.5″ = 58.5″ of continuous Sprinter-width deckingTruly universal mounting
Mounts to effectively any crossbar rail or roof rack. The slotted pattern drops onto 80/20-style extrusions and bolts to standard crossbars — fitting Sprinter, Transit, and Promaster builds alike, whatever rack you’re already running.
Built to be stood on
The 5 mm formed aluminum is a step up from the common 3/16 in (4.76 mm) decking on the market. Forming plus material thickness give each panel real rigidity, so it holds flat and resists bow and bend underfoot.
Tie down anywhere
Slots and L-track cut-outs run through the panel, giving you ready anchor points for straps, gear, and accessories across the entire deck — no separate hardware to design around.
Pairs best with
DualTrack-T Cross Bar Kit — Mercedes Sprinter
These panels mount to any rack, but the DualTrack-T is purpose-built to receive them. Its integrated channels let the panels drop in and lock down from the same system — a clean, repeatable mounting interface engineered to work together.
View the DualTrack-T Kit →Specifications
| Material | 5 mm formed aluminum |
| Panel size | 34 × 19.5 in |
| Sprinter coverage | 3 panels span full rack width (58.5 in) |
| Mounting | Universal — 80/20-style crossbars & standard roof racks; optimized for the DVA DualTrack-T |
| Tie-downs | Integrated slots and L-track cut-outs |
| Compatibility | Sprinter, Transit, Promaster, and most aftermarket racks |
| Sold | 2 per set — build the deck size you need |
How many do I need?
Measure the rack area you want to deck, then divide by the 19.5 in panel width. For a full-width Sprinter deck, plan on three panels per row and add rows front-to-back to reach your length. Need a hand spec’ing your layout? Start with the DualTrack-T or reach out before you order and we’ll size it with you.
