Black Rhino Shogun Wheel

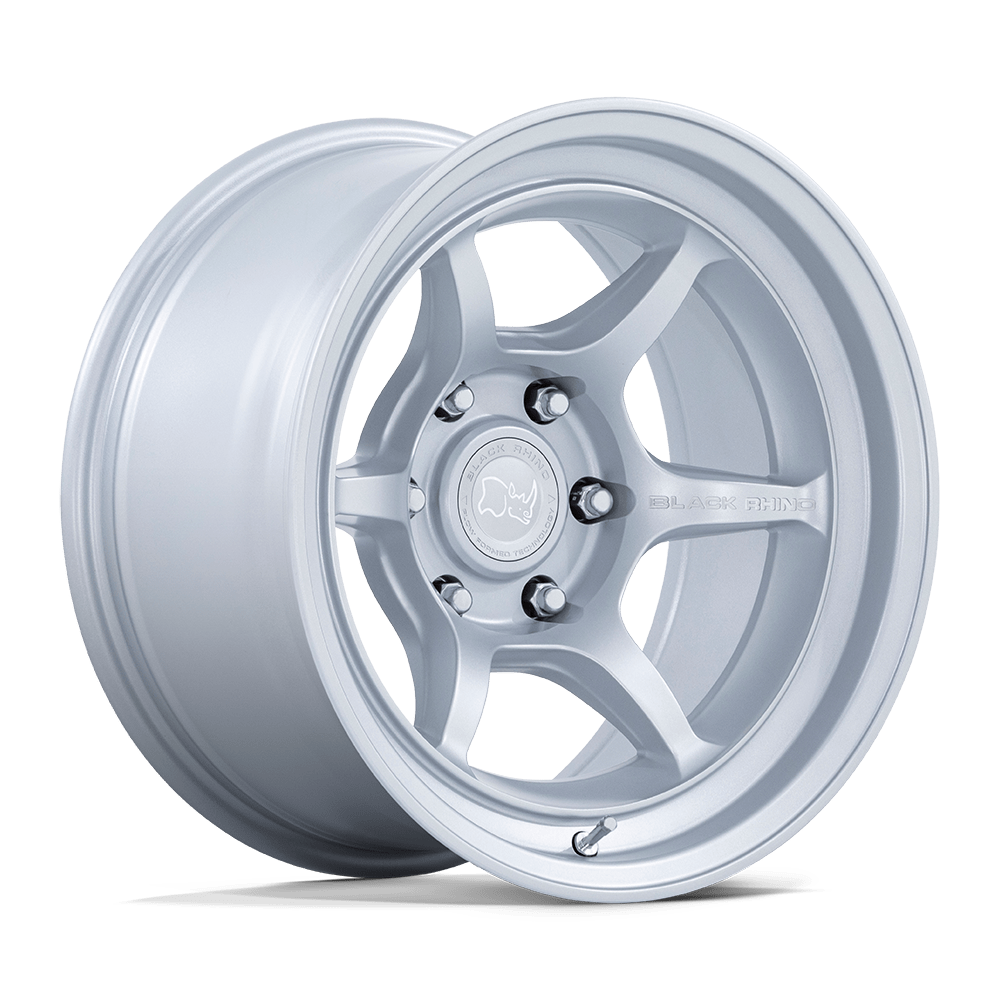

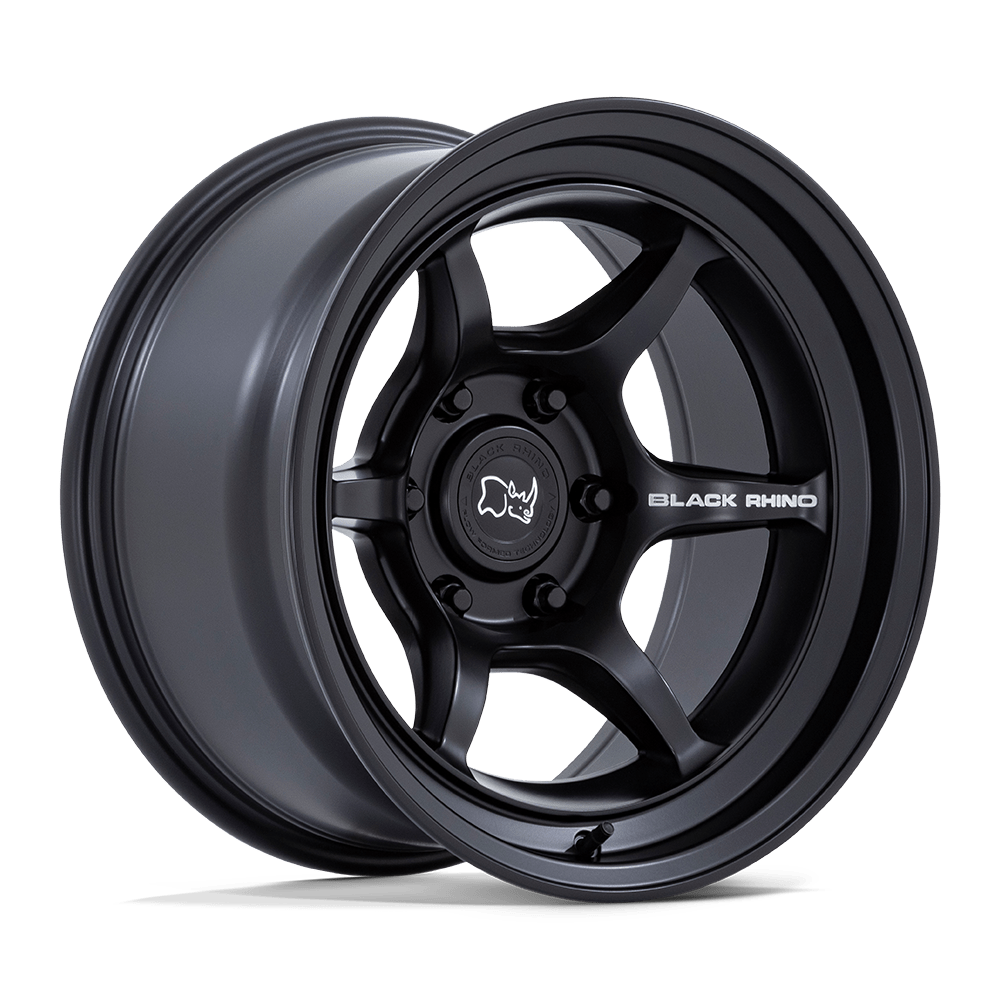

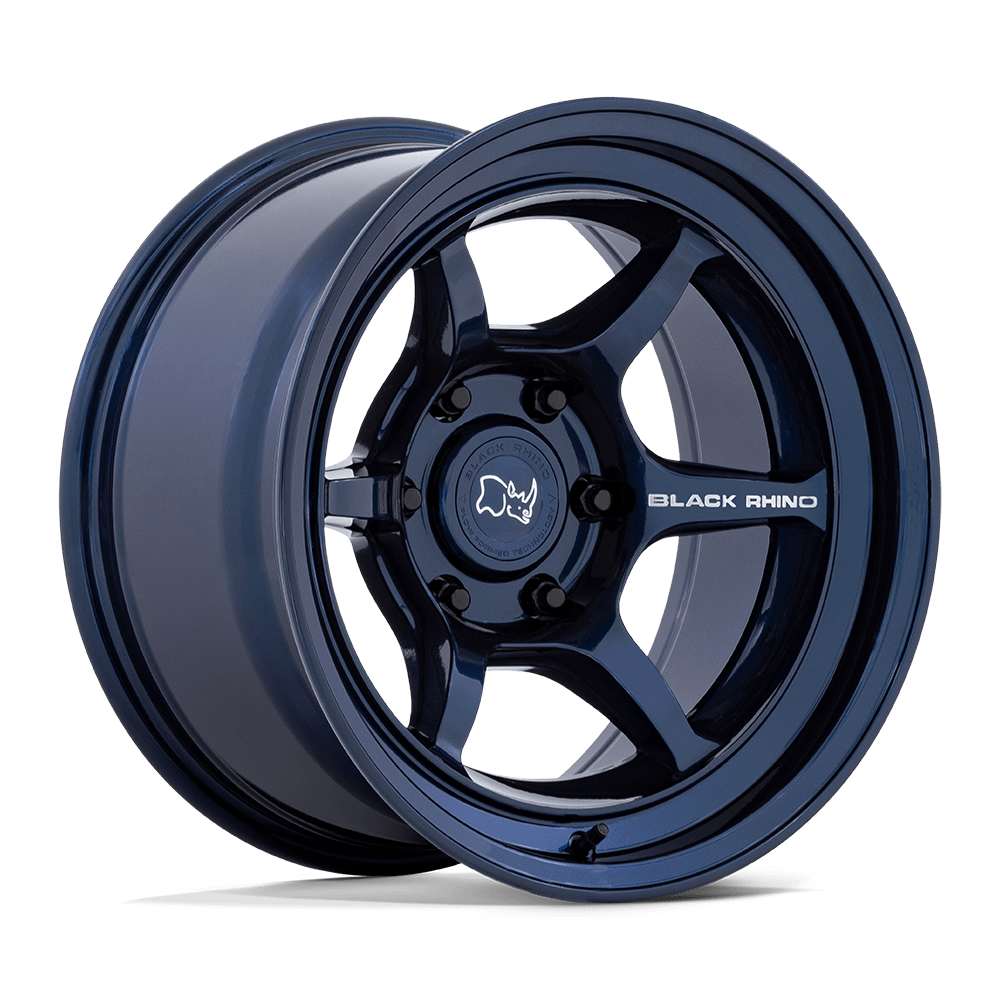

Be the chief of the trails with the Black Rhino Shogun. The Shogun features a monoblock Flow Formed construction and a deep concave profile made to command and conquer the off-road. With its 6-spoke design and multi-stepped lip, the Black Rhino Shogun fuses a motorsport-inspired aesthetic with off-road performance. Dial in the perfect fitment in 16” and 17” diameters with offsets ranging from -38mm to +20mm. The Shogun is available in Matte Black, Hyper Silver and Gloss Blue Midnight, and 5-lug and 6-lug bolt patterns.
We manufacture the Shogun using a highly advanced production technique called Flow Formed Technology (FFT). During this process, the wheel's rim is forged at high pressure while spinning at high speed. This process alters the molecular structure and enhances the strength of the alloy. The Flow Formed manufacturing process produces a much lighter weight than a regular cast wheel. Most importantly, the weight saving is in the wheel's outer rim, dramatically reducing rotational mass and enhancing vehicle performance.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR011LX16806810N | Gloss Midnight Blue | 16x8 -10mm | 6x139.7 | 4.11" | 106.10mm | 2500 lbs | 21.27 lbs |
| BR011MX16806810N | Matte Black | 16x8 -10mm | 6x139.7 | 4.11" | 106.10mm | 2500 lbs | 21.27 lbs |
| BR011LX17856810N | Gloss Midnight Blue | 17x8.5 -10mm | 6x139.7 | 4.36" | 106.10mm | 2500 lbs | 24.21 lbs |
| BR011SX17855010N | Hyper Silver | 17x8.5 -10mm | 5x127 | 4.36" | 71.50mm | 2500 lbs | 24.58 lbs |
| BR011SX17856810N | Hyper Silver | 17x8.5 -10mm | 6x139.7 | 4.36" | 106.10mm | 2500 lbs | 24.21 lbs |
| BR011MX17855010N | Matte Black | 17x8.5 -10mm | 5x127 | 4.36" | 71.50mm | 2500 lbs | 24.58 lbs |
| BR011MX17856810N | Matte Black | 17x8.5 -10mm | 6x139.7 | 4.36" | 106.10mm | 2500 lbs | 24.21 lbs |
| BR011SX17856820 | Hyper Silver | 17x8.5 20mm | 6x139.7 | 5.54" | 106.10mm | 2500 lbs | 23.37 lbs |
| BR011MX17857720 | Matte Black | 17x8.5 20mm | 6x120 | 5.54" | 66.90mm | 2500 lbs | 23.92 lbs |
| BR011MX17856420 | Matte Black | 17x8.5 20mm | 6x114.3 | 5.54" | 66.06mm | 2500 lbs | 23.92 lbs |
| BR011MX17856820 | Matte Black | 17x8.5 20mm | 6x139.7 | 5.54" | 106.10mm | 2500 lbs | 23.37 lbs |
| BR011LX17906838N | Gloss Midnight Blue | 17x9 -38mm | 6x139.7 | 3.50" | 106.10mm | 2500 lbs | 23.59 lbs |
| BR011LX17905038N | Gloss Midnight Blue | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2500 lbs | 24.80 lbs |
| BR011SX17906838N | Hyper Silver | 17x9 -38mm | 6x139.7 | 3.50" | 106.10mm | 2500 lbs | 23.59 lbs |
| BR011SX17905038N | Hyper Silver | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2500 lbs | 24.69 lbs |
| BR011MX17905038N | Matte Black | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2500 lbs | 24.80 lbs |
| BR011MX17906838N | Matte Black | 17x9 -38mm | 6x139.7 | 3.50" | 106.10mm | 2500 lbs | 23.59 lbs |
