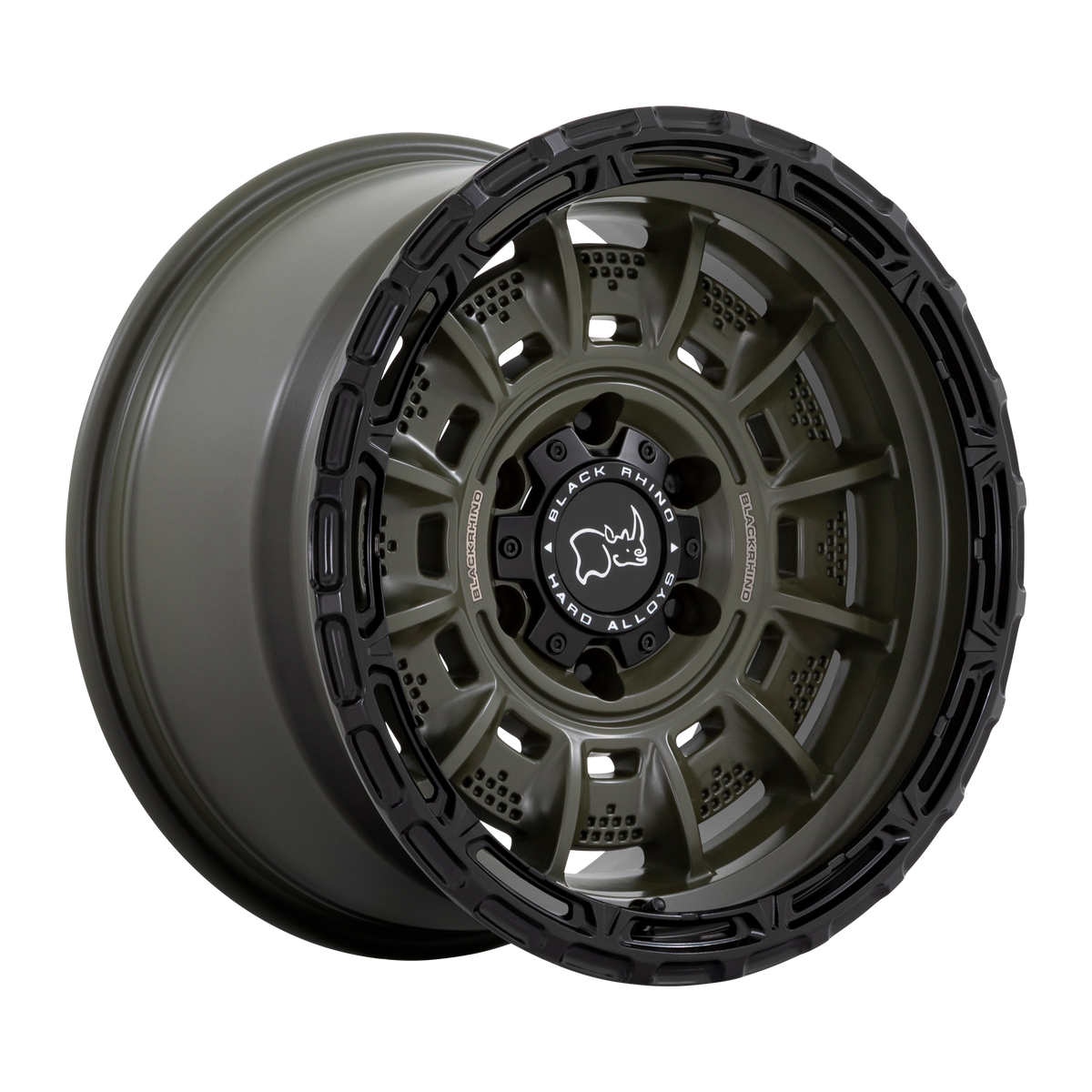

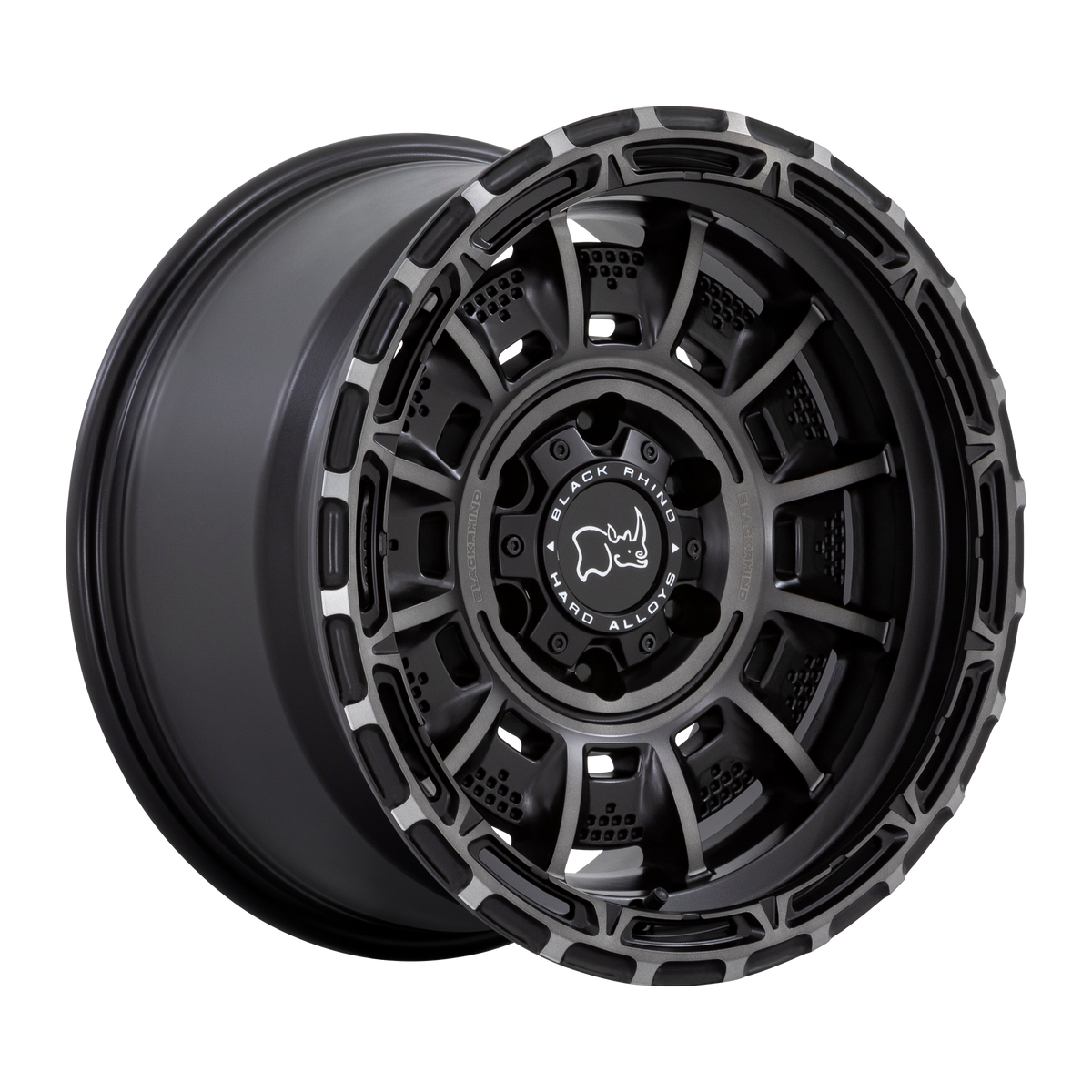

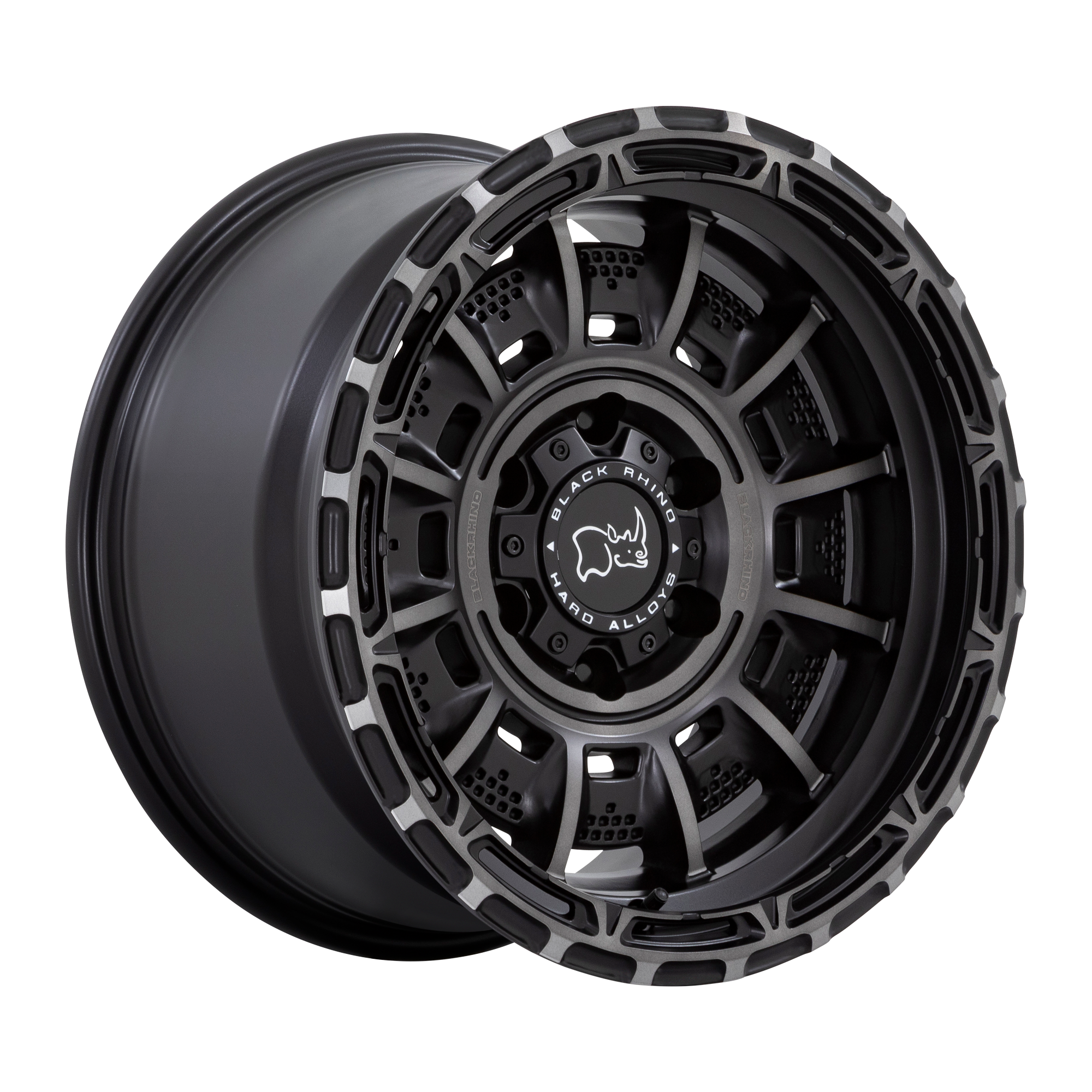

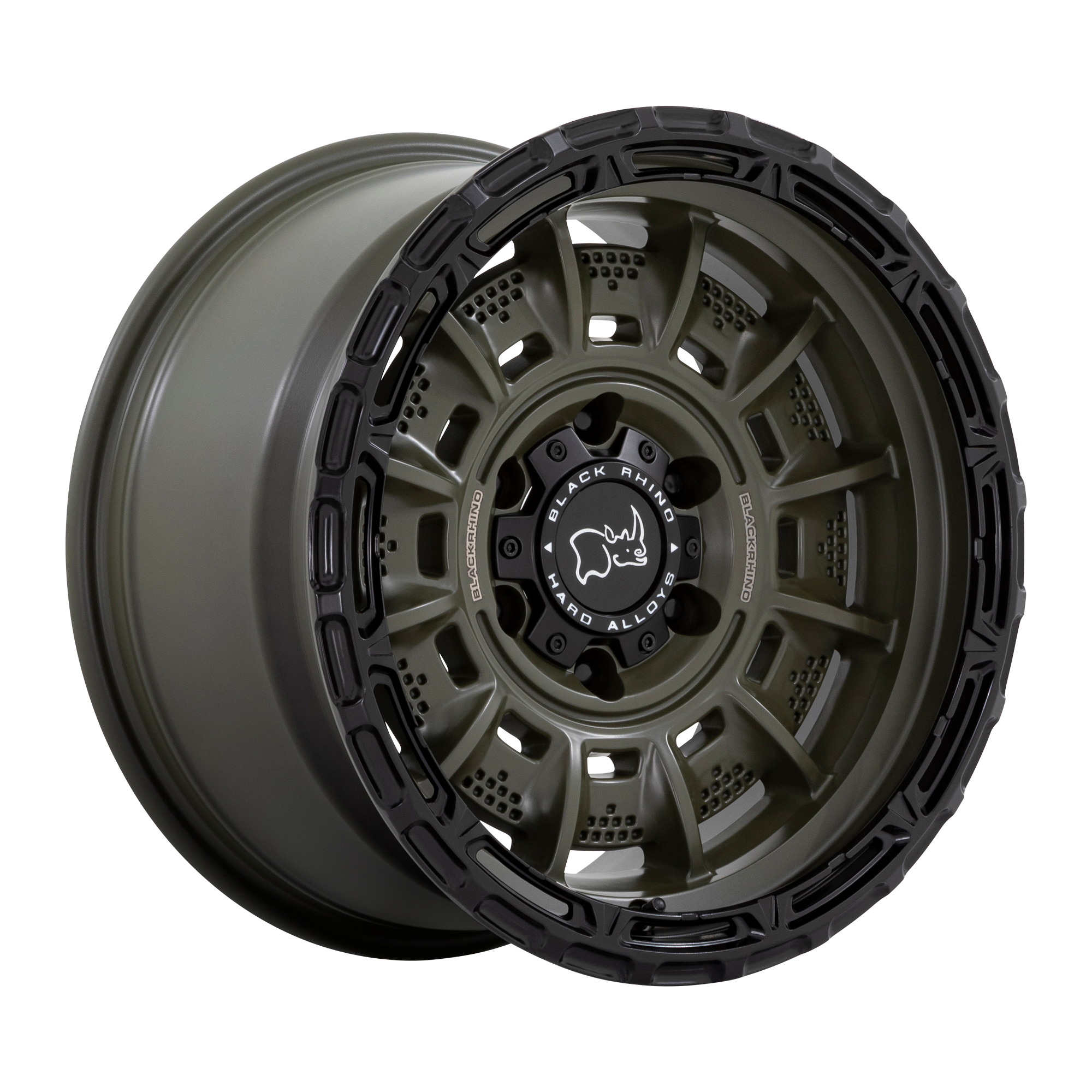

Black Rhino Legion Wheel
Command your fleet with bold style and performance prowess. The Black Rhino Legion wheel features an advanced full-face military-inspired design with unique geometric detailing. Boasting a robust monoblock construction with a simulated beadlock ring, the Black Rhino Legion fuses function and form for the trails. The Black Rhino logo is laser engraved in the face of the wheel and accentuated by three standard finishes: Olive Drab Green with Black Lip, Matte Black with Grey Tint, and Cobalt Blue with Black Lip. Sizes offered for the Legion wheels are 17x9 and 20x10 for 5-lug, 6-lug, and 8-lug trucks.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR002MA17906812N | Matte Black Gray Tint | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 31.24 lbs |
| BR002MA17905012N | Matte Black Gray Tint | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 31.24 lbs |
| BR002EB17905012N | Olive Drab Green w/ Black Lip | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 31.24 lbs |
| BR002EB17906812N | Olive Drab Green w/ Black Lip | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 31.24 lbs |
| BR002MA17906800 | Matte Black Gray Tint | 17x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 30.36 lbs |
| BR002MA17905000 | Matte Black Gray Tint | 17x9 0mm | 5x127 | 5.00" | 71.50mm | 2500 lbs | 30.36 lbs |
| BR002MA17906300 | Matte Black Gray Tint | 17x9 0mm | 6x135 | 5.00" | 87.10mm | 2500 lbs | 30.36 lbs |
| BR002EB17905000 | Olive Drab Green w/ Black Lip | 17x9 0mm | 5x127 | 5.00" | 71.50mm | 2500 lbs | 30.36 lbs |
| BR002EB17906800 | Olive Drab Green w/ Black Lip | 17x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 30.36 lbs |
| BR002MA20108518N | Matte Black Gray Tint | 20x10 -18mm | 5x139.7 | 4.79" | 78.10mm | 2500 lbs | 45.30 lbs |
| BR002MA20106818N | Matte Black Gray Tint | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 45.32 lbs |
| BR002MA20105018N | Matte Black Gray Tint | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2500 lbs | 45.32 lbs |
| BR002MA20106318N | Matte Black Gray Tint | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 45.32 lbs |
| BR002MA20108018N | Matte Black Gray Tint | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 45.98 lbs |
| BR002EB20106318N | Olive Drab Green w/ Black Lip | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 45.32 lbs |
| BR002EB20108018N | Olive Drab Green w/ Black Lip | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 45.98 lbs |
| BR002EB20105018N | Olive Drab Green w/ Black Lip | 20x10 -18mm | 5x127 | 4.79" | 71.50mm | 2500 lbs | 45.32 lbs |
