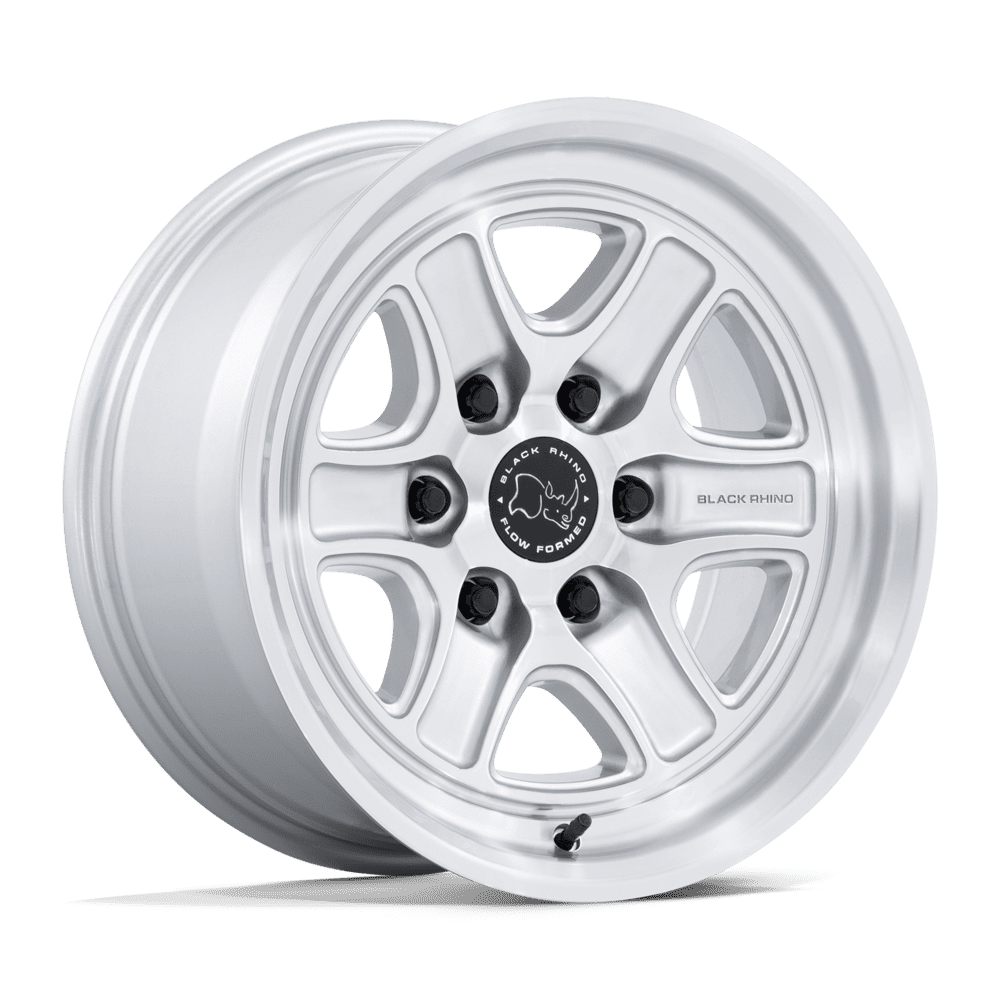

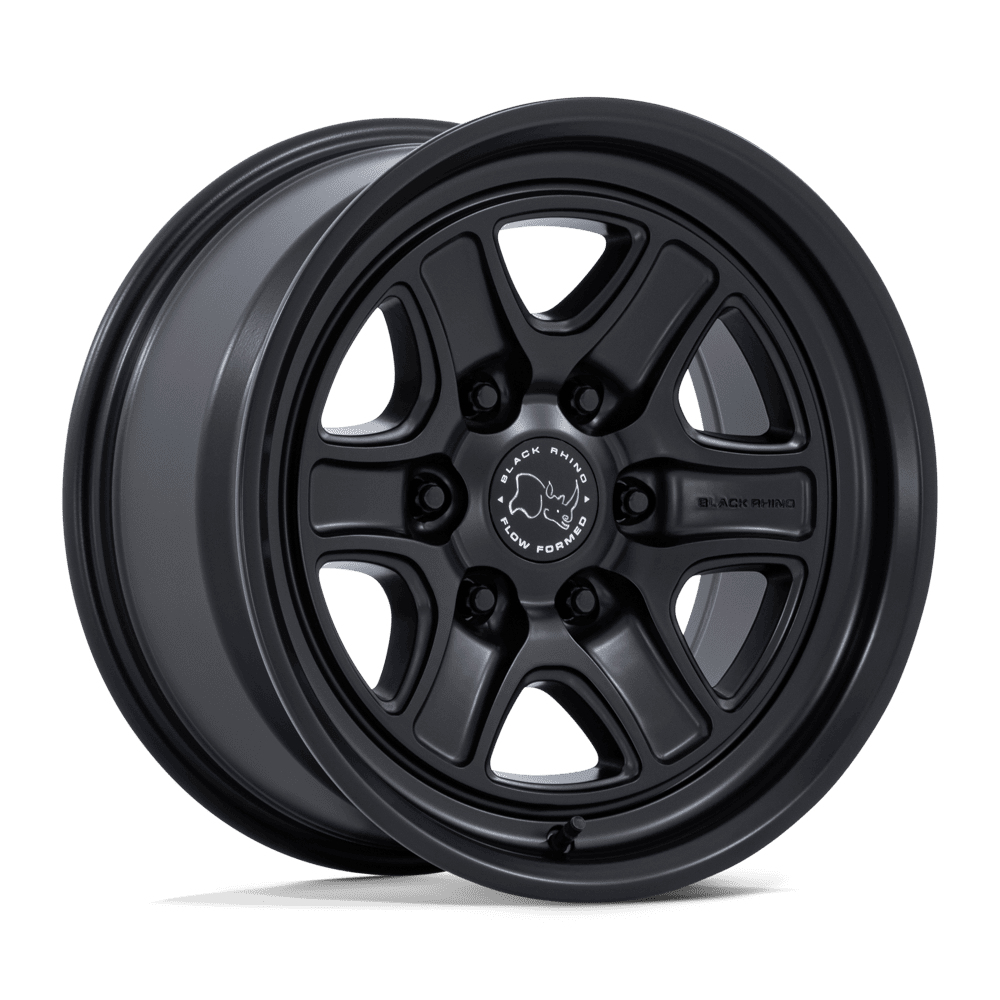

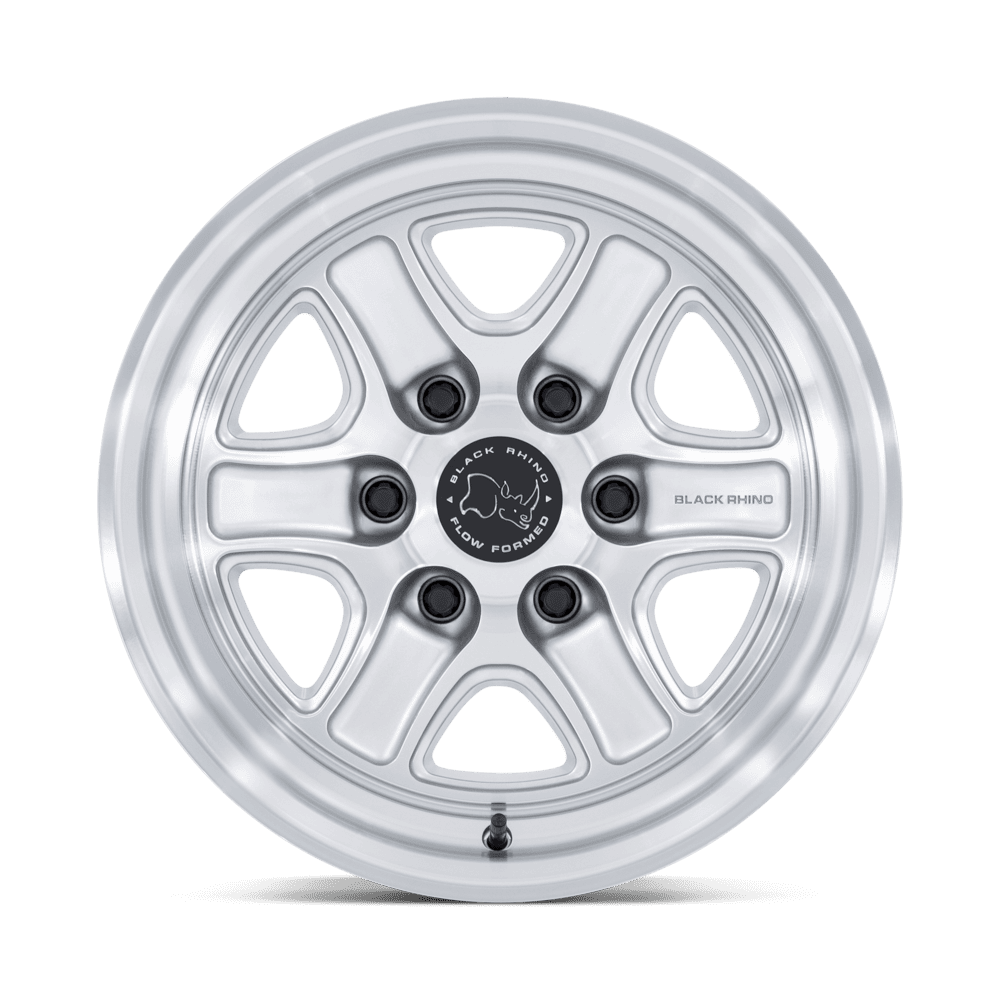

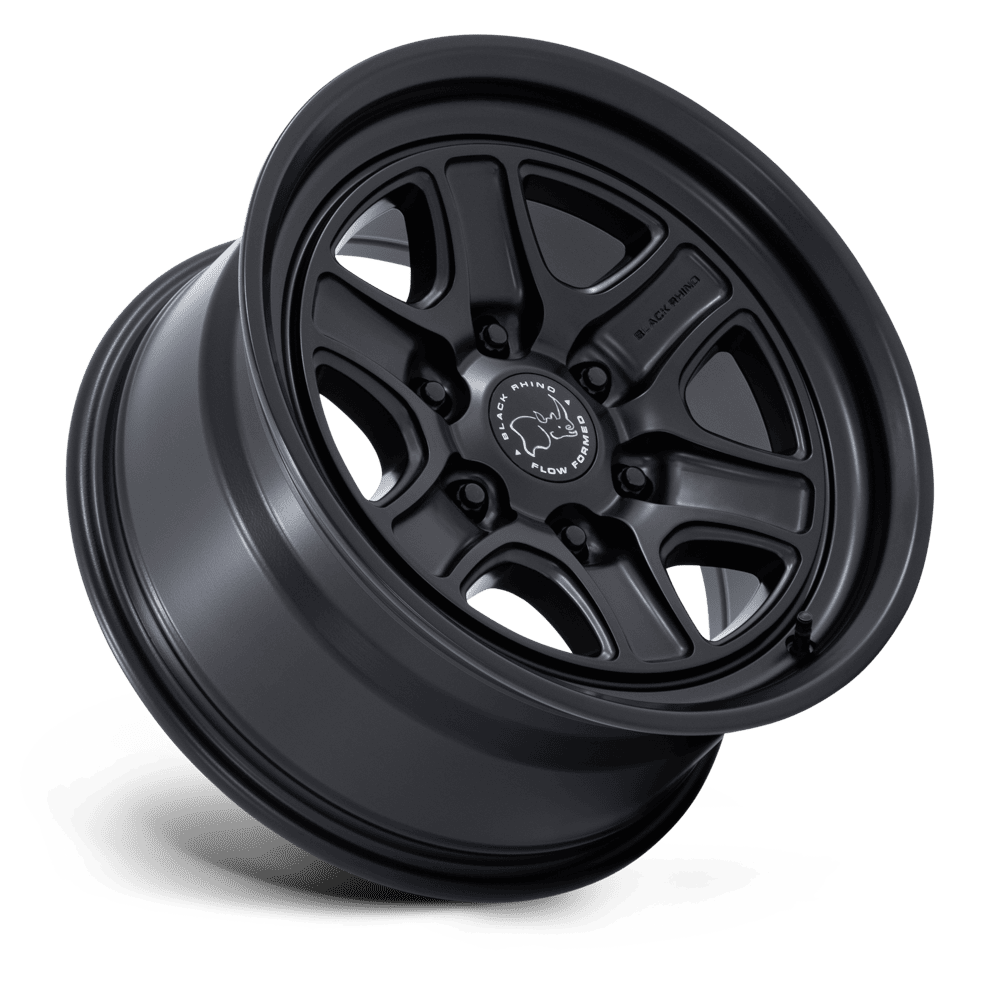

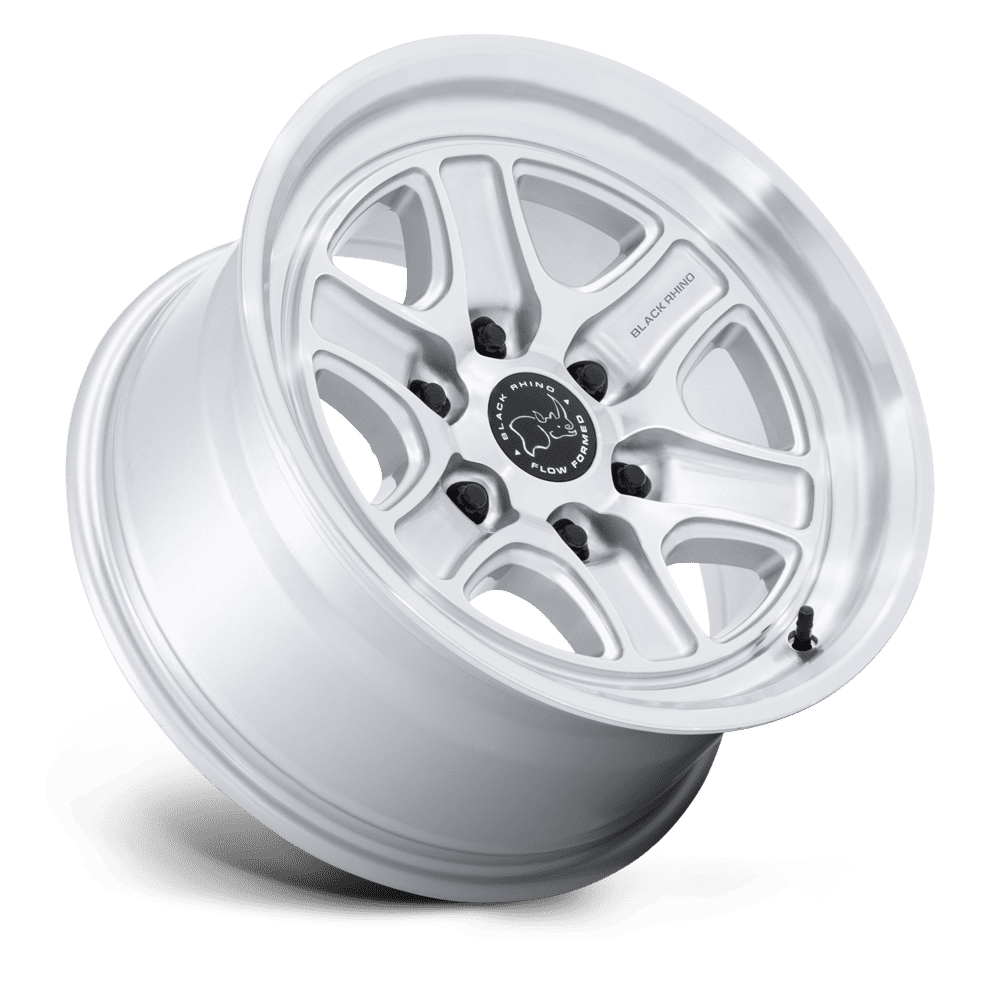

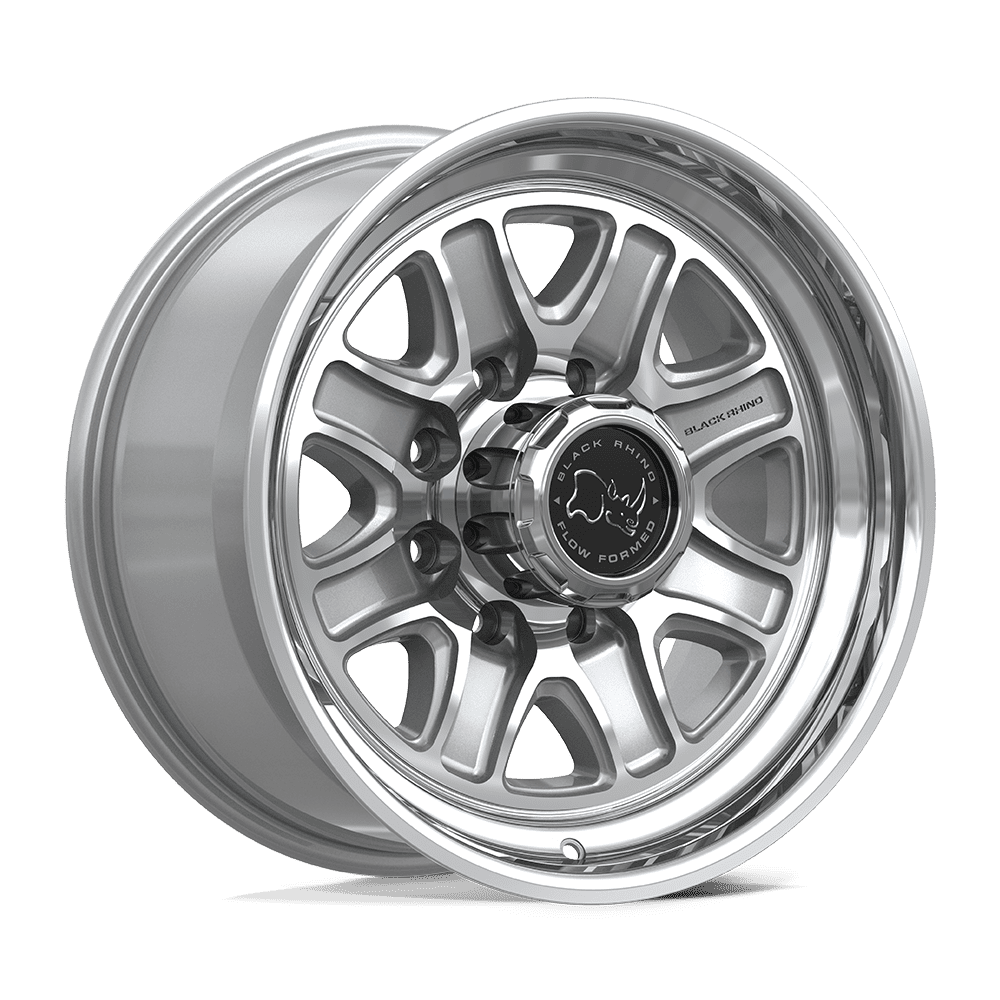

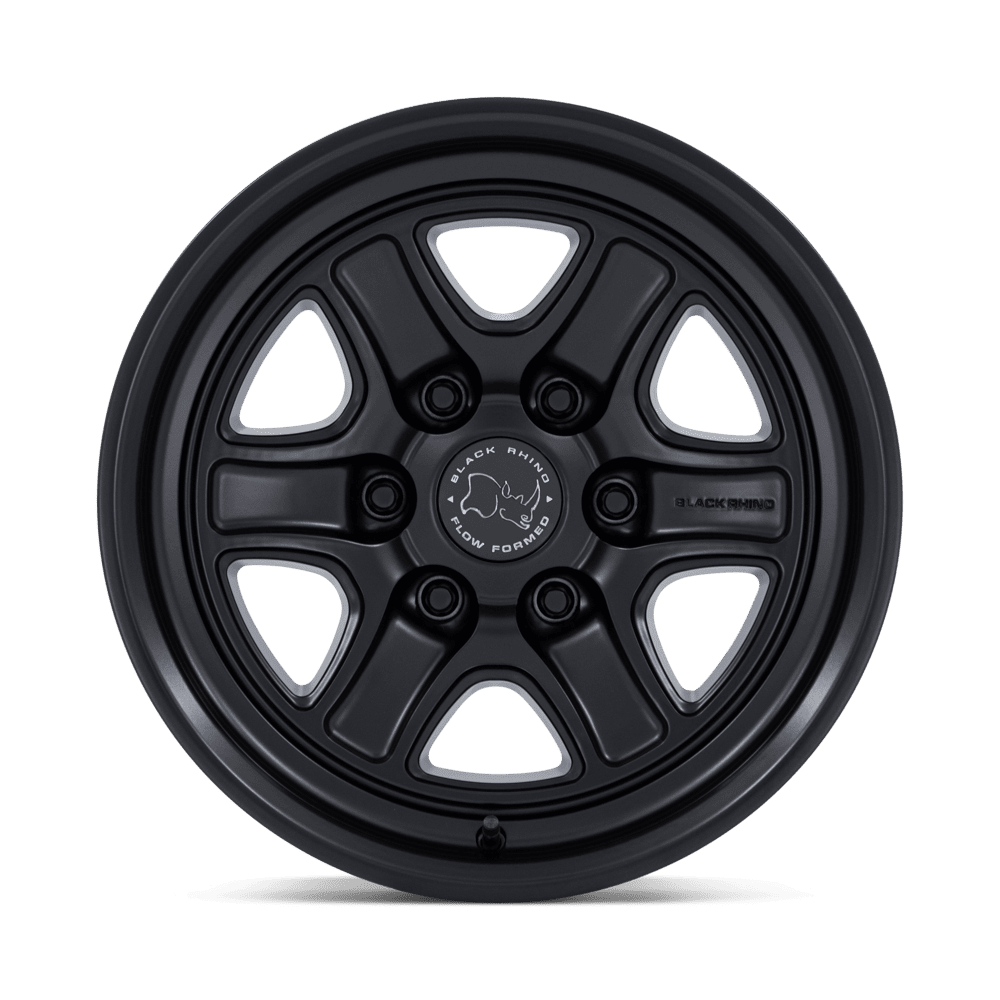

Black Rhino Echo Wheel
Take on the trails with the Black Rhino BR032 Echo, a rugged Flow Formed Technology wheel that blends classic off-road vibes with a clean, modern twist. The design hits with recessed spoke pockets and a smooth, throwback lip that channels old-school JDM style. Available in 17" and 18", with offsets ranging from 0mm to +25mm and a 4,500 lb load rating on 8-lug applications, it’s built to handle heavy overland setups and big tire loads without the weight. Whether you're crawling through rocky trails or loading up for long-distance expeditions, the Echo’s ready to go the distance. It's a perfect fit for everything from the Ford F-150 and Toyota Tacoma to ¾-ton and 1-ton trucks.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR032SD17856800 | Gloss Silver w/ Machined Face | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2750 lbs | 27.94 lbs |
| BR032MX17856800 | Matte Black | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2750 lbs | 27.94 lbs |
| BR032MX17856300 | Matte Black | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2750 lbs | 28.38 lbs |
| BR032SD17856825 | Gloss Silver w/ Machined Face | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2750 lbs | 30.58 lbs |
| BR032MX17856325 | Matte Black | 17x8.5 25mm | 6x135 | 5.73" | 87.10mm | 2750 lbs | 31.02 lbs |
| BR032MX17856825 | Matte Black | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2750 lbs | 30.58 lbs |
| BR032SD18908812 | Gloss Silver w/ Machined Face | 18x9 12mm | 8x180 | 5.47" | 124.20mm | 4500 lbs | 33.00 lbs |
| BR032SD18906312 | Gloss Silver w/ Machined Face | 18x9 12mm | 6x135 | 5.47" | 87.10mm | 2750 lbs | 31.02 lbs |
| BR032SD18908712 | Gloss Silver w/ Machined Face | 18x9 12mm | 8x170 | 5.47" | 125.10mm | 4500 lbs | 32.56 lbs |
| BR032SD18908012 | Gloss Silver w/ Machined Face | 18x9 12mm | 8x165.1 | 5.47" | 125.10mm | 4500 lbs | 32.56 lbs |
| BR032SD18906812 | Gloss Silver w/ Machined Face | 18x9 12mm | 6x139.7 | 5.47" | 106.10mm | 2750 lbs | 30.58 lbs |
| BR032MX18906812 | Matte Black | 18x9 12mm | 6x139.7 | 5.47" | 106.10mm | 2750 lbs | 30.58 lbs |
| BR032MX18906312 | Matte Black | 18x9 12mm | 6x135 | 5.47" | 87.10mm | 2750 lbs | 31.02 lbs |
| BR032MX18908712 | Matte Black | 18x9 12mm | 8x170 | 5.47" | 125.10mm | 4500 lbs | 32.56 lbs |
| BR032MX18908012 | Matte Black | 18x9 12mm | 8x165.1 | 5.47" | 125.10mm | 4500 lbs | 32.56 lbs |
| BR032MX18908812 | Matte Black | 18x9 12mm | 8x180 | 5.47" | 124.20mm | 4500 lbs | 33.00 lbs |
