Black Rhino Calico Wheel
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Black Rhino Warranty
At a glance: Structural warranty for as long as the original buyer owns the wheels; 1 year on defects and most finishes
This is Black Rhino's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: November 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Wheel structure (structural failure) | For as long as the original retail buyer owns the wheels |
| Defects in materials and workmanship | 1 year from retail purchase |
| Chrome aluminum finish (peeling/lifting; pitting excluded) | 1 year |
| Painted aluminum finish (peeling/lifting) | 1 year |
| PVD finish (peeling/lifting) | 2 years |
| Polished aluminum finish | Not covered |
| Steel wheels | 90 days |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use
- Factory defects in materials or workmanship for the first year
- Finish peeling or lifting within the periods listed by finish type
- Black Rhino repairs or replaces wheels it finds defective
What's not covered
- Damage from not following the installation guidelines
- Improper care or harsh cleaning chemicals
- Accidents, potholes and bad road conditions
- Racing or other improper vehicle use
- Use with non-approved accessories or adapters
- Pitting on chrome, any polished-aluminum finish issues
- Removal, mounting, installation and shipping costs; incidental or consequential damage
How to make a Black Rhino warranty claim
- Take or ship the wheel back to the retailer you bought it from
- Bring the original sales receipt
- The wheel is inspected and repaired or replaced if the claim is approved
- Claims that are denied are returned at the sender's cost
Black Rhino contact: Phone: 877-852-7720 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Black Rhino, and help it along either way.
Shop Black Rhino at NVMOS
See all Black Rhino products, lead times and FAQs →
Disclaimer: The information on this page describes Black Rhino's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Black Rhino official warranty information. Last updated on nvmos.com: November 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Black Rhino makes off-road wheels for trucks, SUVs and vans, from budget-friendly cast styles to flow-formed and beadlock designs. NVMOS carries dozens of Black Rhino styles, including dually and Trail Lock beadlock wheels, for Toyota, Jeep, Ford, RAM and Sprinter owners.
Part of: Wheel Pros (Hoonigan Group) · Lead time: In stock: ships in 24–48 hours
Shop all 109 Black RhinoWarrantyAll brands
Warranty terms are set by Black Rhino, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

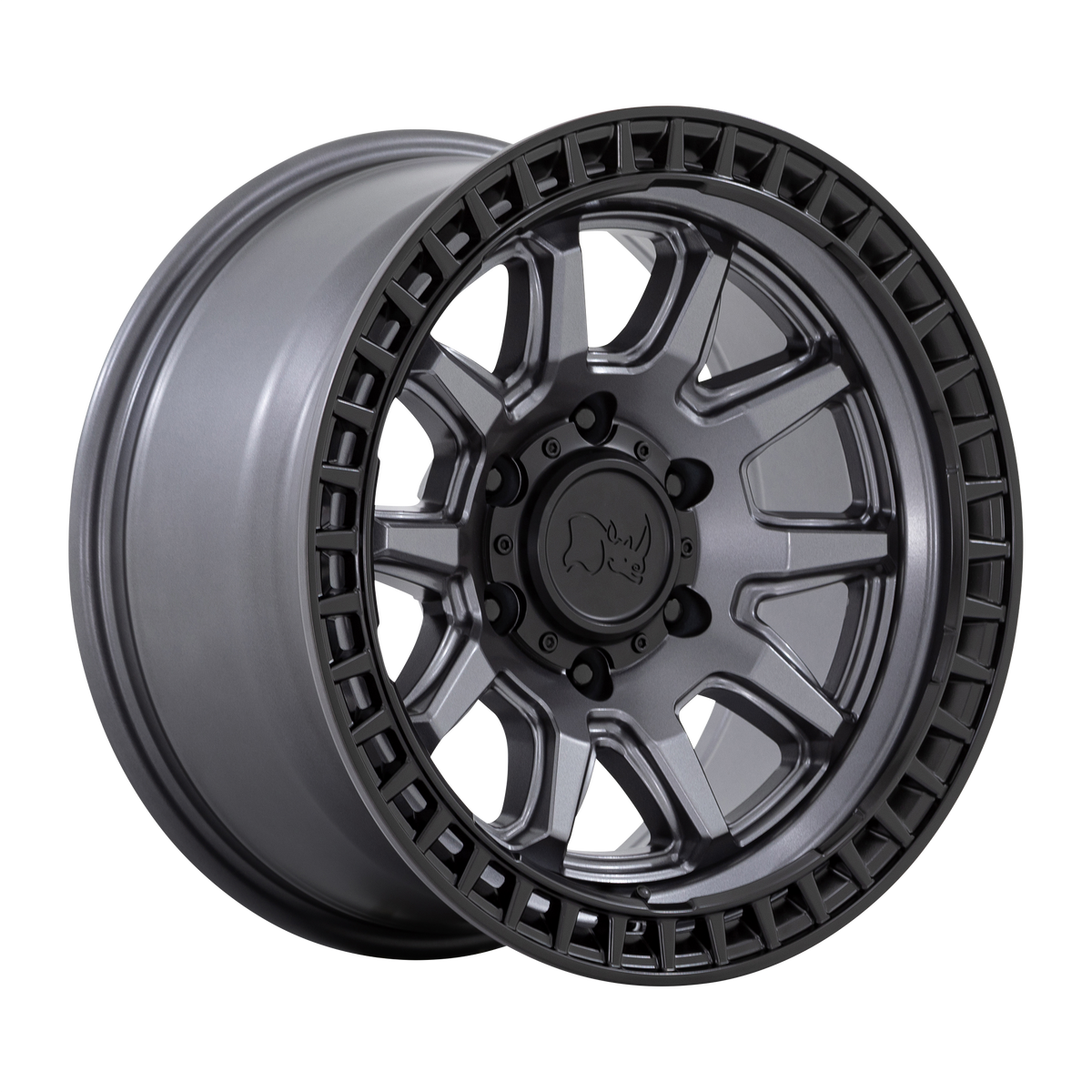

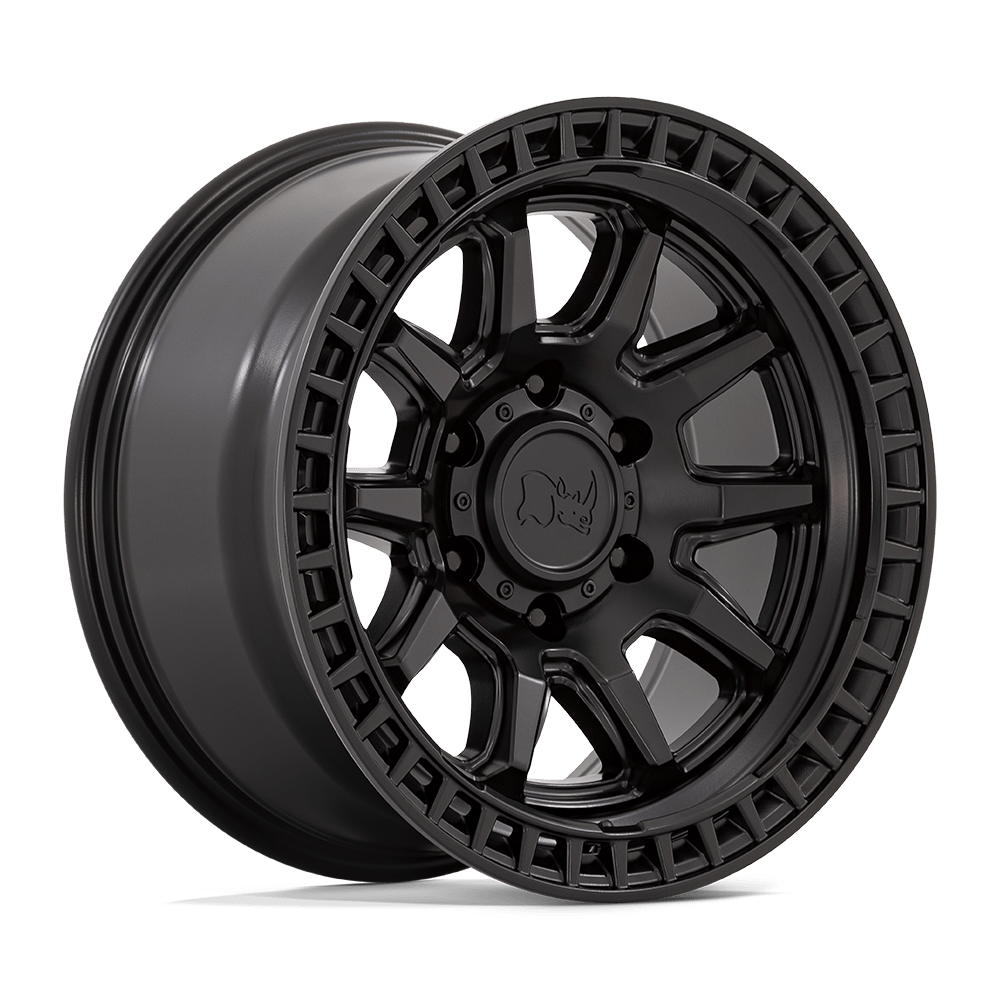

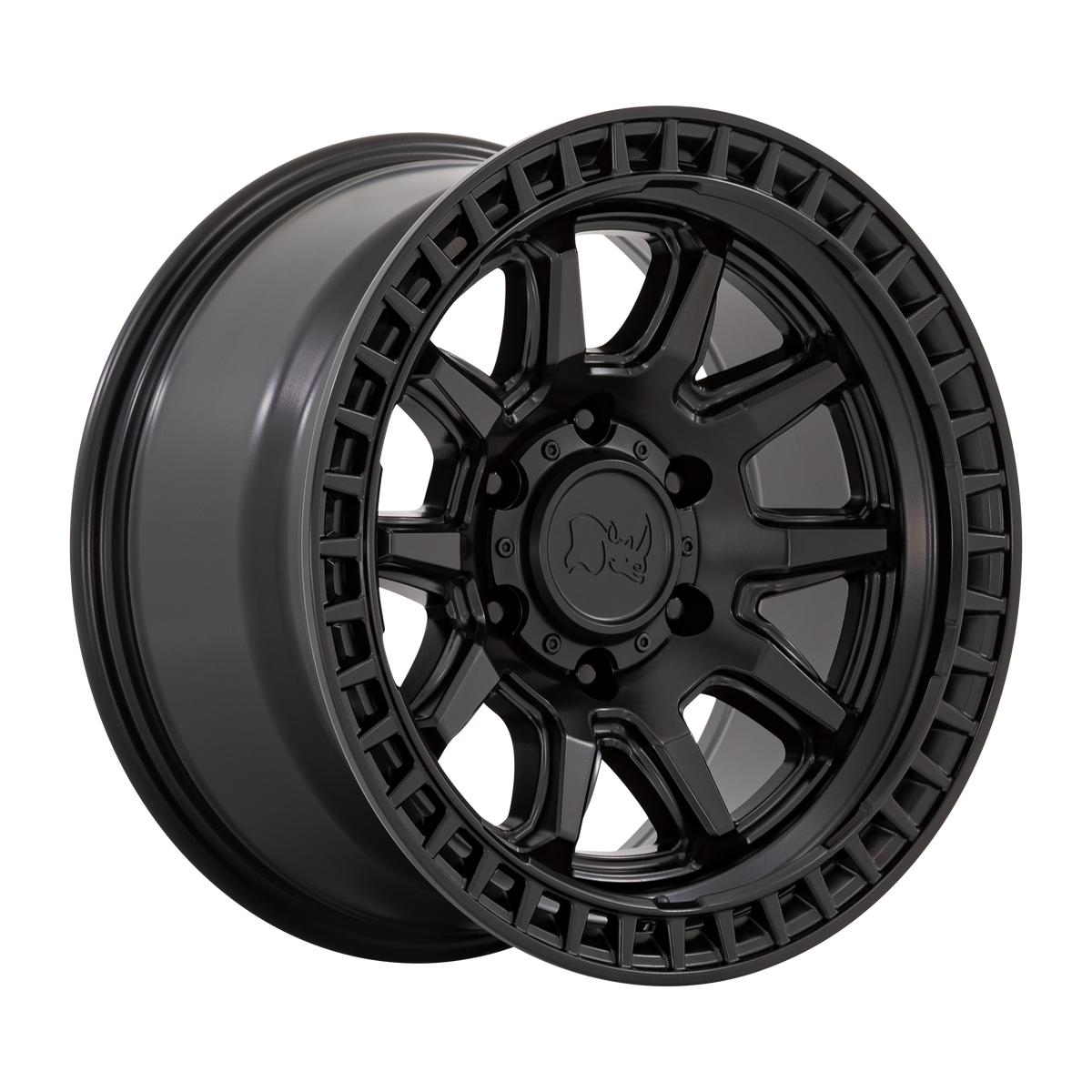

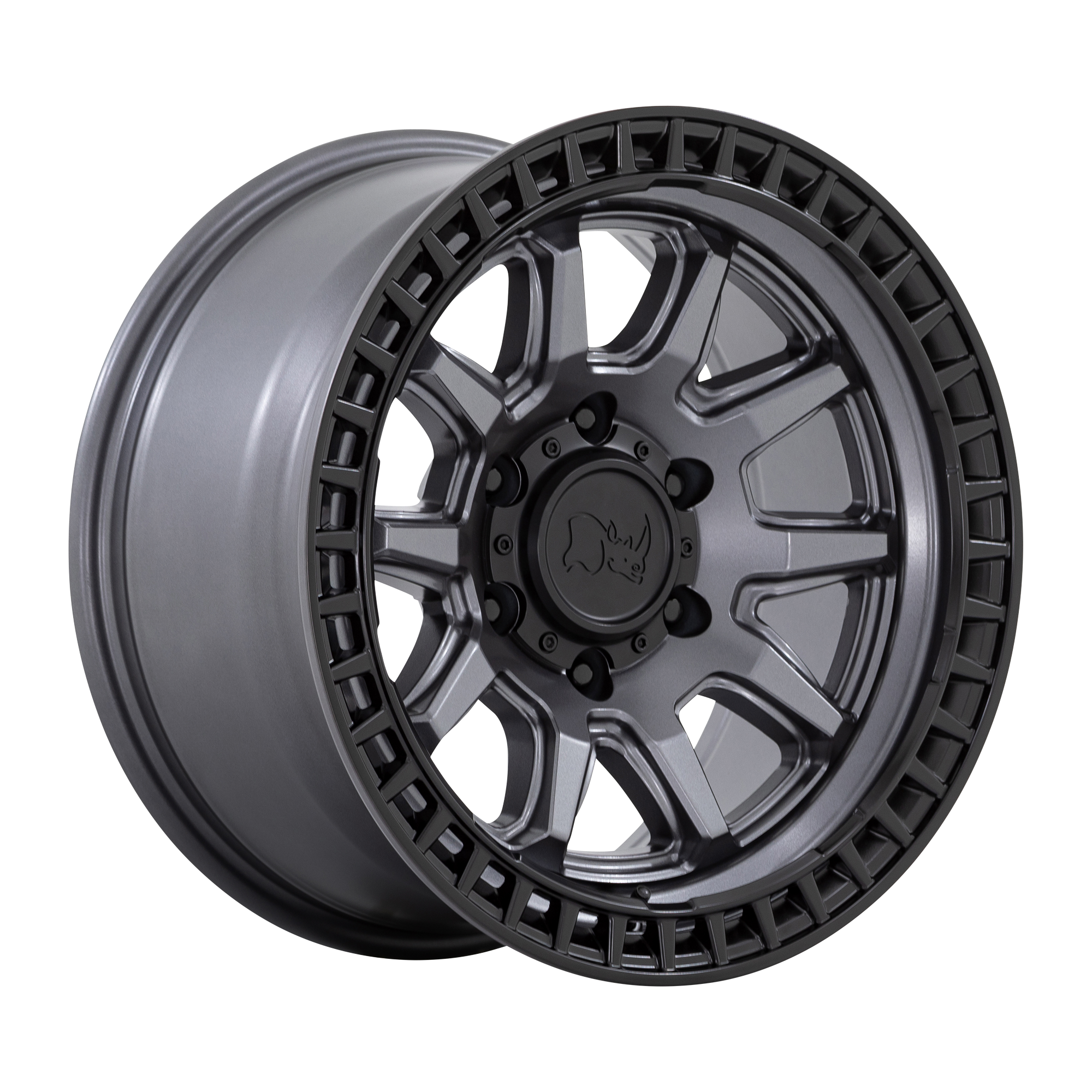

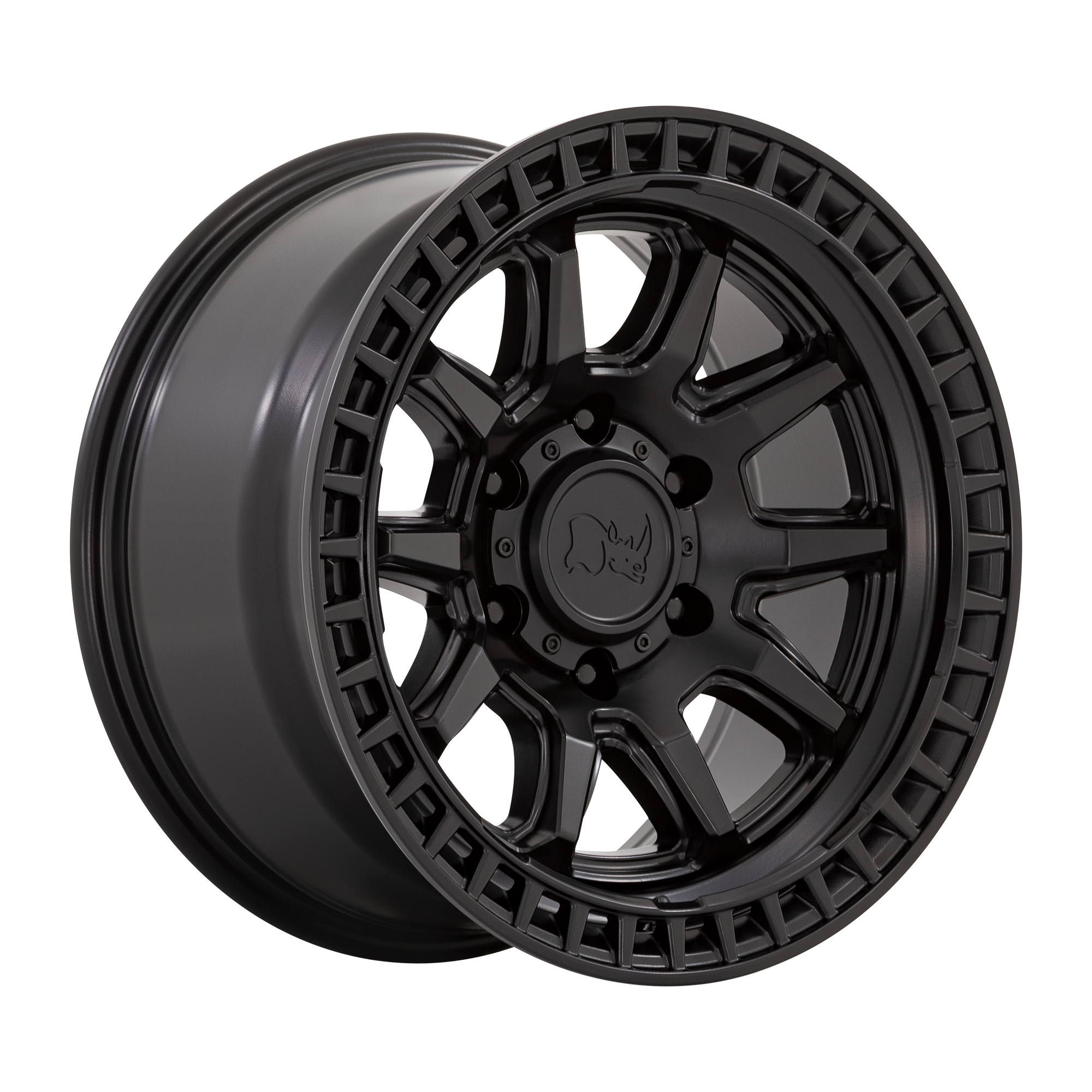

Black Rhino Calico Wheel
The Black Rhino Calico is a monoblock wheel with a rugged split five-spoke design. An aggressive outer ring carries large debris release slots for passthrough and ventilation.
A bolt-on style cap gives maximum hub clearance for a variety of vehicles. Sizes are 17x8.5 and 20x9 with offsets from -10mm to +34mm. Find other styles in our off-road wheels and non-beadlock wheels. The Calico is built for rigs that see dirt and debris. The ultra-aggressive outer ring and large release slots are there to keep the wheel clear, while the monoblock build and split five-spoke face keep things strong and visually sharp.
Sizes: 17x8.5 0mm, 20x9 0mm, 17x8.5 -10mm, 17x8.5 34mm. Bolt patterns: 6x135, 5x139.7, 5x127, 6x139.7, 5x120, 5x114.3. Finishes: Matte Black, Matte Gunmetal w/ Matte Black Lip.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR001MX17855010N | Matte Black | 17x8.5 -10mm | 5x127 | 4.36" | 71.50mm | 2500 lbs | 28.82 lbs |
| BR001MX17856810N | Matte Black | 17x8.5 -10mm | 6x139.7 | 4.36" | 106.10mm | 2500 lbs | 28.82 lbs |
| BR001AB17855010N | Matte Gunmetal w/ Matte Black Lip | 17x8.5 -10mm | 5x127 | 4.36" | 71.50mm | 2500 lbs | 28.82 lbs |
| BR001MX17856300 | Matte Black | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2500 lbs | 27.28 lbs |
| BR001MX17856800 | Matte Black | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2500 lbs | 27.28 lbs |
| BR001MX17855000 | Matte Black | 17x8.5 0mm | 5x127 | 4.75" | 71.50mm | 2500 lbs | 27.28 lbs |
| BR001AB17856800 | Matte Gunmetal w/ Matte Black Lip | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2500 lbs | 27.28 lbs |
| BR001MX17855234 | Matte Black | 17x8.5 34mm | 5x120 | 6.09" | 74.10mm | 2100 lbs | 25.96 lbs |
| BR001MX17855034 | Matte Black | 17x8.5 34mm | 5x127 | 6.09" | 71.50mm | 2100 lbs | 26.24 lbs |
| BR001MX17851234 | Matte Black | 17x8.5 34mm | 5x114.3 | 6.09" | 72.56mm | 2100 lbs | 25.96 lbs |
| BR001AB17855234 | Matte Gunmetal w/ Matte Black Lip | 17x8.5 34mm | 5x120 | 6.09" | 74.10mm | 2100 lbs | 25.96 lbs |
| BR001AB17851234 | Matte Gunmetal w/ Matte Black Lip | 17x8.5 34mm | 5x114.3 | 6.09" | 72.56mm | 2100 lbs | 25.96 lbs |
| BR001MX20908500 | Matte Black | 20x9 0mm | 5x139.7 | 5.00" | 78.10mm | 2500 lbs | 35.64 lbs |
| BR001MX20906800 | Matte Black | 20x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 34.98 lbs |
| BR001MX20906300 | Matte Black | 20x9 0mm | 6x135 | 5.00" | 87.10mm | 2500 lbs | 34.98 lbs |
| BR001AB20906300 | Matte Gunmetal w/ Matte Black Lip | 20x9 0mm | 6x135 | 5.00" | 87.10mm | 2500 lbs | 34.98 lbs |
| BR001AB20906800 | Matte Gunmetal w/ Matte Black Lip | 20x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 34.98 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$392.00
$2,117.55
$249.95
$1,035.95
$1,049.00
Specifications
Black Rhino Calico Wheel FAQs
Will the cap clear my hub?
The bolt-on style cap is designed for maximum hub clearance. Use the vehicle selector on the page or email support@nvmos.com with your year, trim and current setup and we'll confirm fitment.
Which finishes does the Calico come in?
Matte Black and Matte Gunmetal with Matte Black Lip.
What bolt patterns are available?
5-lug and 6-lug, from 5x114.3 to 6x139.7.
