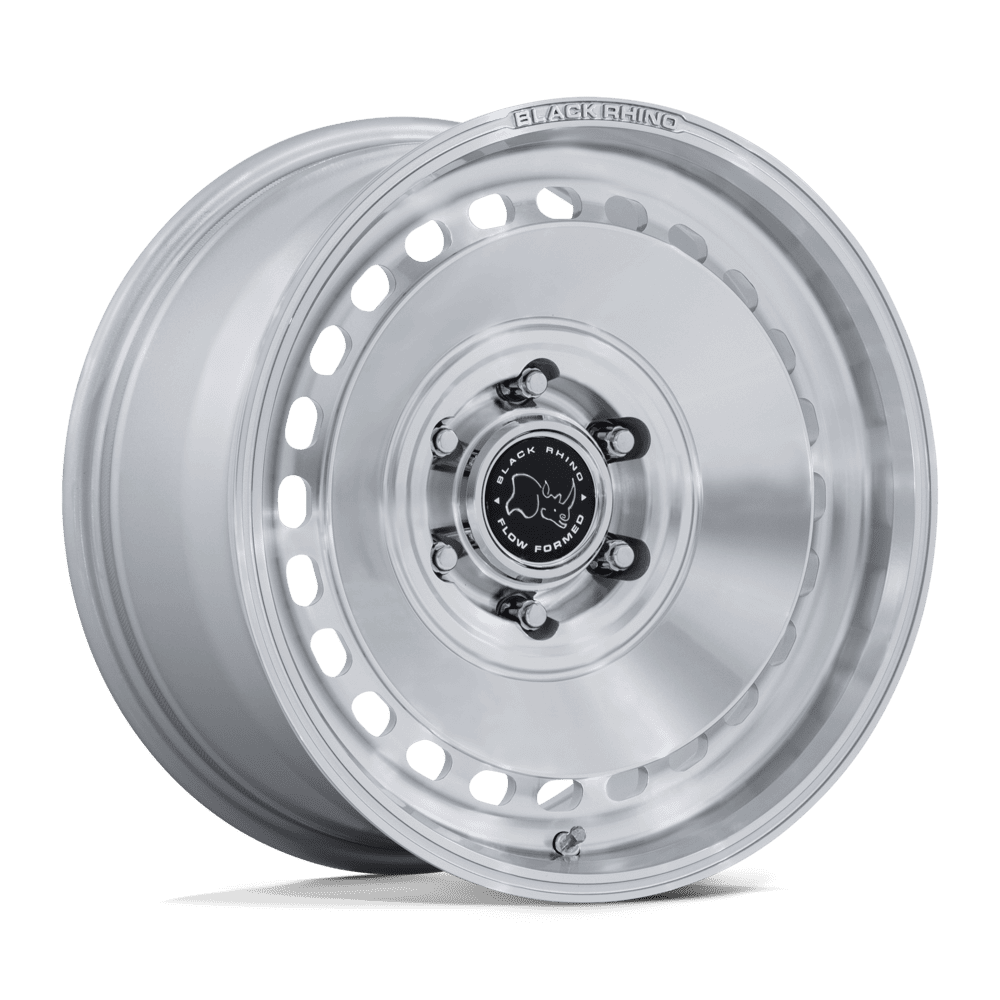

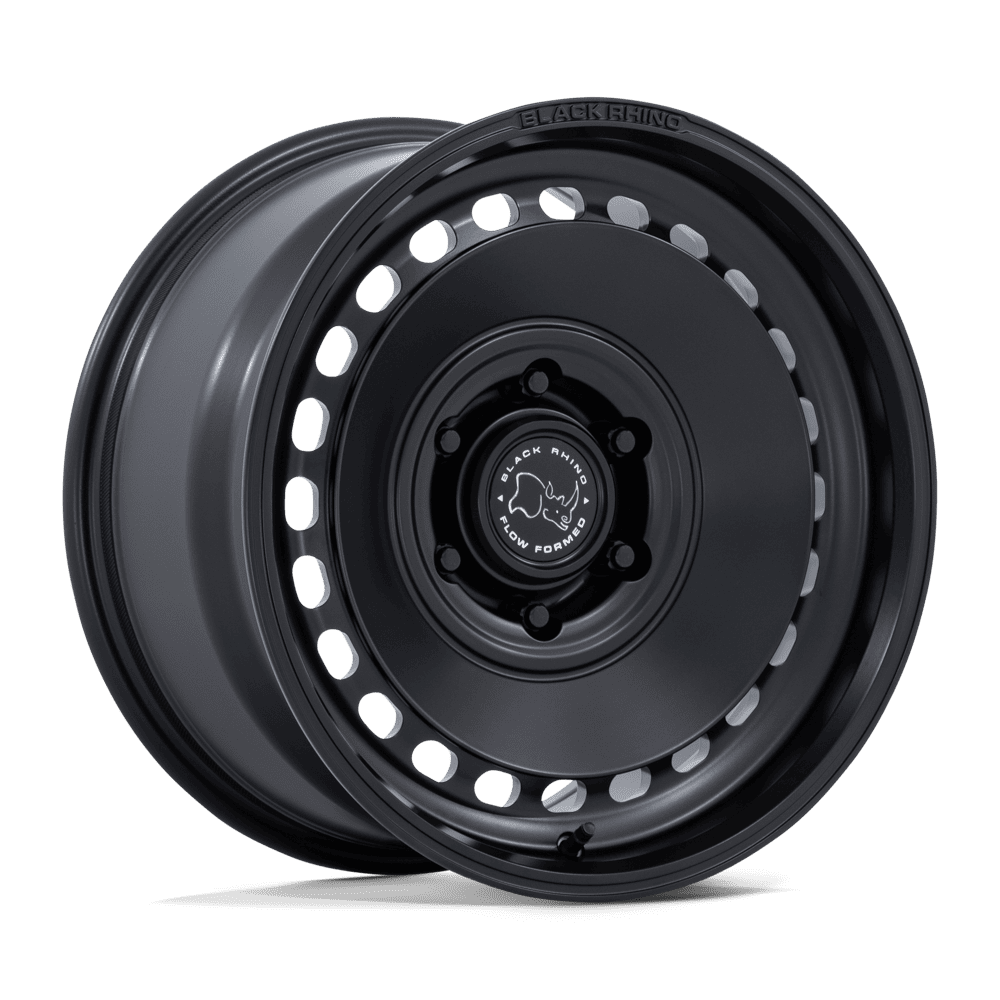

Black Rhino Basin Wheel
The Black Rhino BR036 Basin is all about rally-bred performance and rugged style made for real-world adventure. The Basin is a modern take on the traditional rally wheel. Think equal parts 'steelie' and full face Paris-Dakar aesthetics. It's built to look good on older and newer rigs seeking a clean, retro look with a modern twist: it's light, strong, and available in many widths, offsets, and bolt patterns. Built using our Flow Formed Technology process, the Basin offers lightweight performance and strength that exceed those of a typical cast wheel, with our all-new Bead Retention System tech keeping your tire secure when airing down on rough terrain. Speaking of airing down, the Basin features a recessed air valve for keeping your stem protected off-road. Available exclusively in 17” diameter with 5-lug and 6-lug bolt patterns, the Basin is great for performance trucks and SUVs. Sprinter and Ineos drivers, we didn’t forget about you. We offer the Basin with a 4,000 lb load rating to handle beefier build-outs.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR036SD17803832 | Gloss Silver w/ Machined Face | 17x8 32mm | 6x130 | 5.76" | 84.10mm | 4000 lbs | 27.34 lbs |
| BR036SD17806832 | Gloss Silver w/ Machined Face | 17x8 32mm | 6x139.7 | 5.76" | 106.10mm | 4000 lbs | 26.90 lbs |
| BR036AX17806832 | Grayspace | 17x8 32mm | 6x139.7 | 5.76" | 106.10mm | 4000 lbs | 26.90 lbs |
| BR036AX17803832 | Grayspace | 17x8 32mm | 6x130 | 5.76" | 84.10mm | 4000 lbs | 27.34 lbs |
| BR036MX17803832 | Matte Black | 17x8 32mm | 6x130 | 5.76" | 84.10mm | 4000 lbs | 27.34 lbs |
| BR036MX17806832 | Matte Black | 17x8 32mm | 6x139.7 | 5.76" | 106.10mm | 4000 lbs | 26.90 lbs |
| BR036SD17855000 | Gloss Silver w/ Machined Face | 17x8.5 0mm | 5x127 | 4.75" | 71.50mm | 2650 lbs | 25.35 lbs |
| BR036SD17856800 | Gloss Silver w/ Machined Face | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2650 lbs | 25.13 lbs |
| BR036SD17856300 | Gloss Silver w/ Machined Face | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2650 lbs | 25.79 lbs |
| BR036AX17856800 | Grayspace | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2650 lbs | 25.13 lbs |
| BR036MX17856800 | Matte Black | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2650 lbs | 25.13 lbs |
| BR036MX17855000 | Matte Black | 17x8.5 0mm | 5x127 | 4.75" | 71.50mm | 2650 lbs | 25.35 lbs |
| BR036MX17856300 | Matte Black | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2650 lbs | 25.79 lbs |
| BR036SD17856825 | Gloss Silver w/ Machined Face | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2650 lbs | 25.79 lbs |
| BR036SD17856325 | Gloss Silver w/ Machined Face | 17x8.5 25mm | 6x135 | 5.73" | 87.10mm | 2650 lbs | 26.23 lbs |
| BR036SD17856425 | Gloss Silver w/ Machined Face | 17x8.5 25mm | 6x114.3 | 5.73" | 66.06mm | 2650 lbs | 26.01 lbs |
| BR036AX17856825 | Grayspace | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2650 lbs | 25.79 lbs |
| BR036MX17856825 | Matte Black | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2650 lbs | 25.79 lbs |
| BR036MX17856425 | Matte Black | 17x8.5 25mm | 6x114.3 | 5.73" | 66.06mm | 2650 lbs | 26.01 lbs |
| BR036MX17856325 | Matte Black | 17x8.5 25mm | 6x135 | 5.73" | 87.10mm | 2650 lbs | 26.23 lbs |
