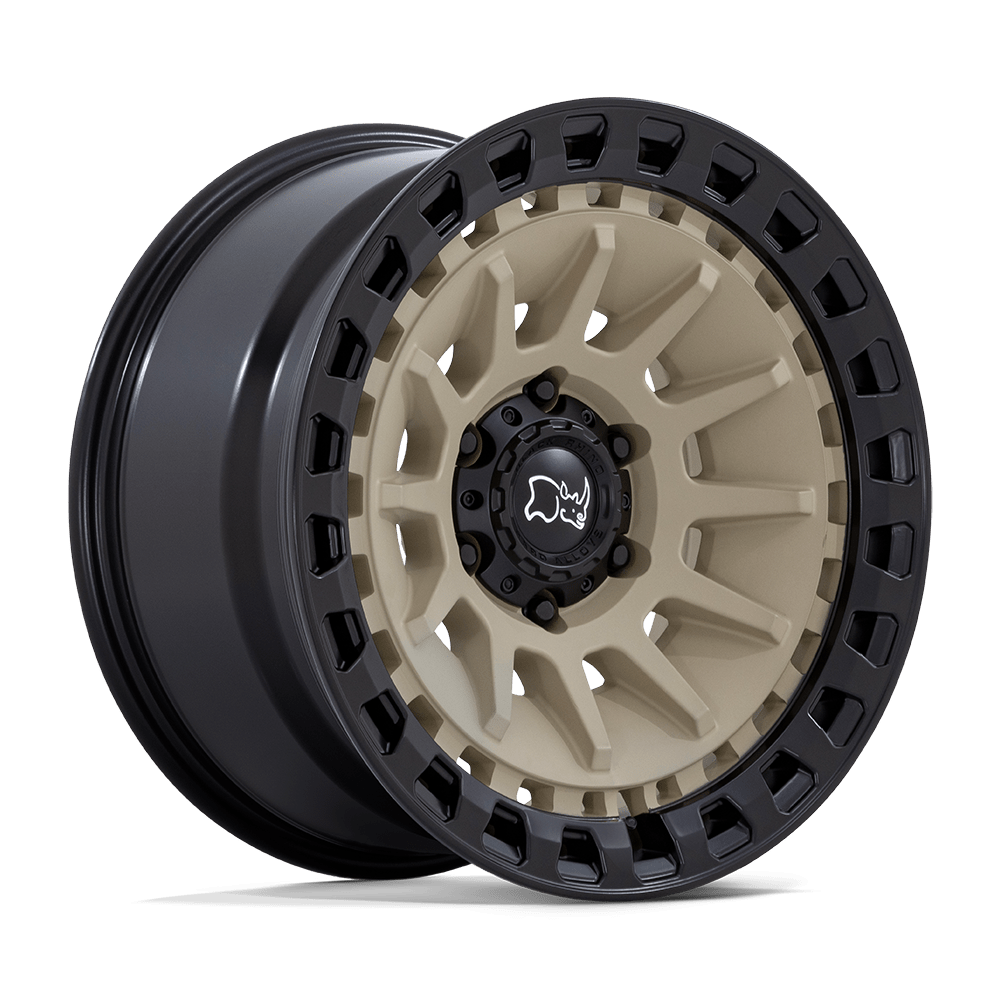

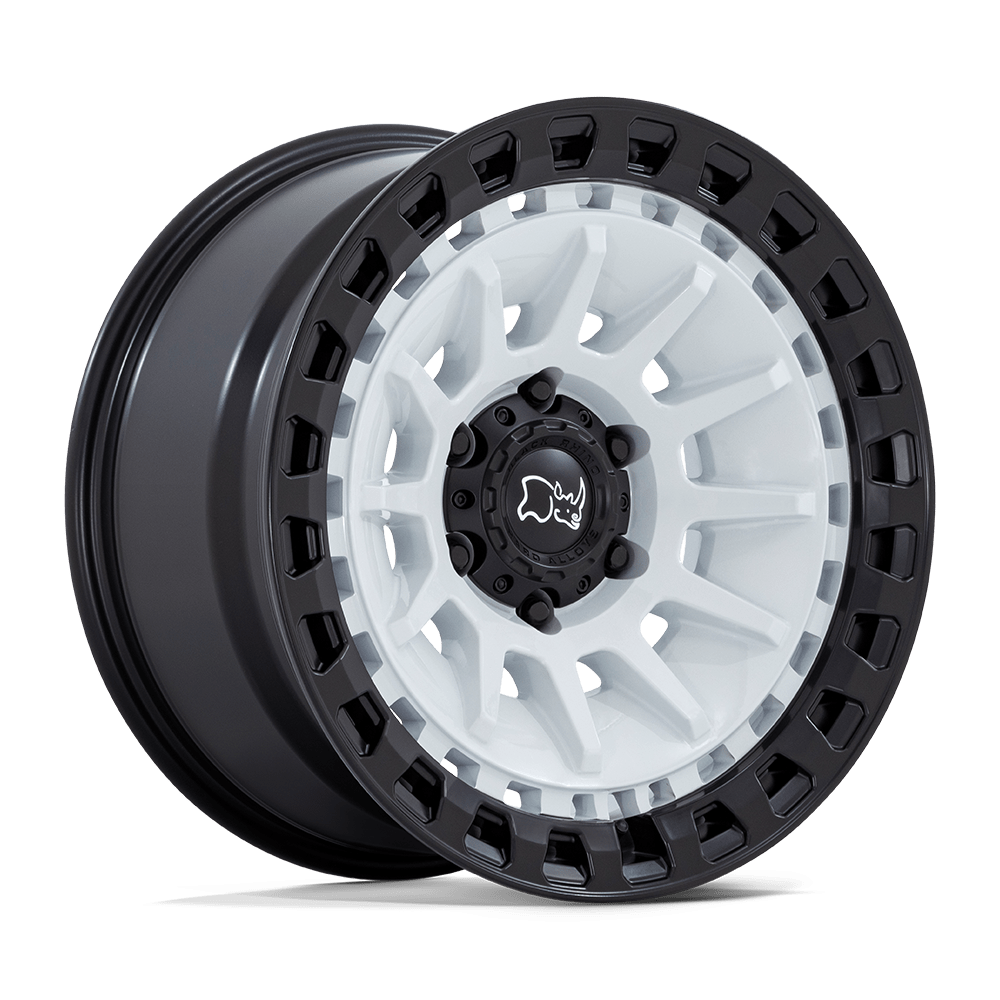

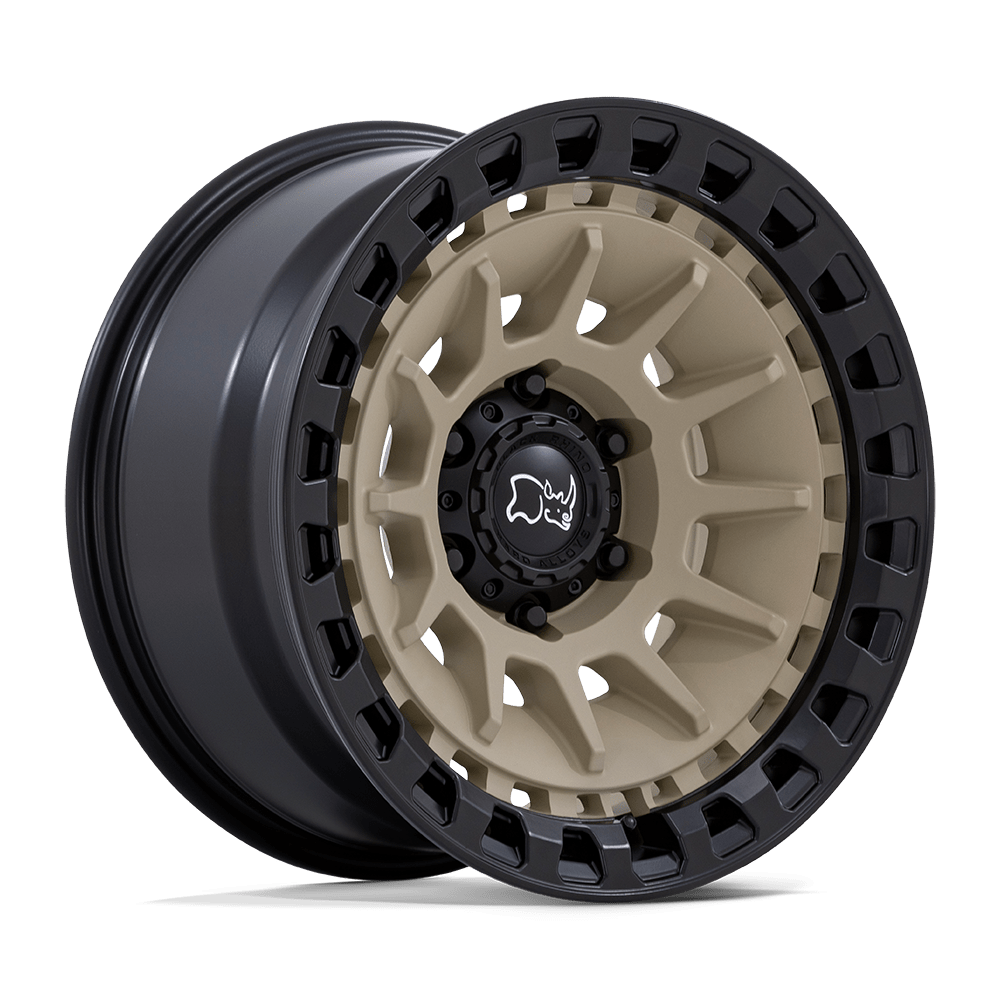

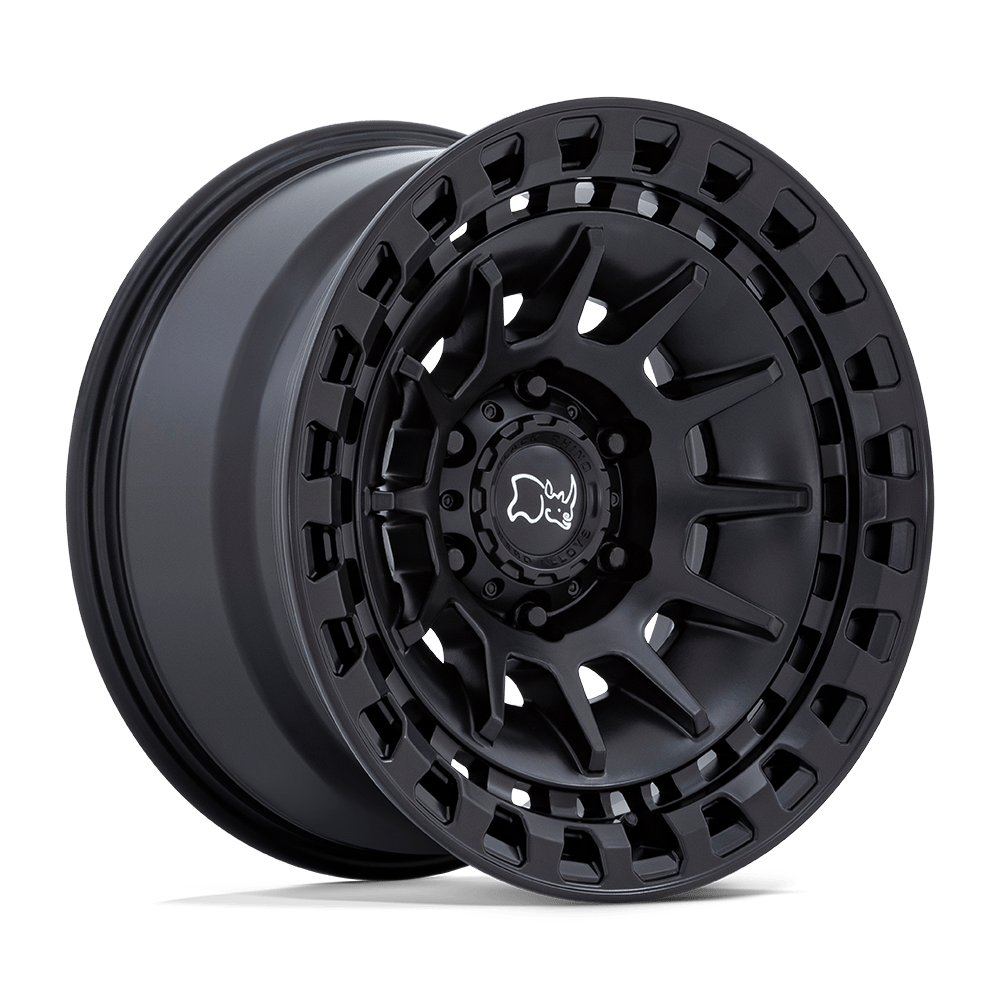

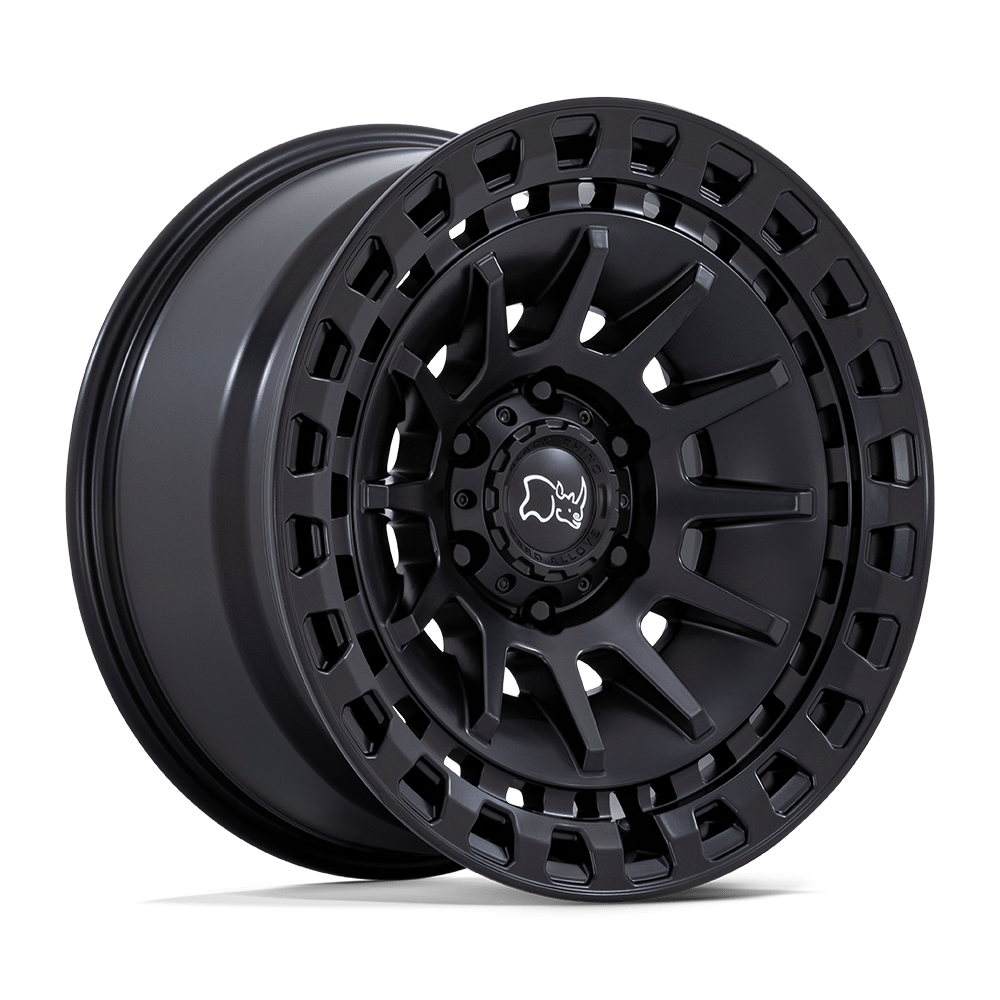

Black Rhino Barrage Wheel
Equip your lifted truck, Jeep or SUV with the Black Rhino Barrage and experience one of the most capable off-road wheels in our lineup. The Black Rhino Barrage features concave monoblock construction and a multi-spoke profile design. We outfitted the Barrage with a new lip treatment integrating brake cooling and valve stem protection in a durable, heavy-duty armored ring. We chose three standard finishes to complement the Barrage's rugged design: Matte Black, Desert Sand on Matte Black, and Gloss White on Matte Black. The Barrage off-road wheel is offered in 17” and 18” sizes for 5x127, 6x135 and 6x139.7 trucks with offsets ranging from -10mm to 0mm.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR009TM17855010N | Desert Sand on Matte Black | 17x8.5 -10mm | 5x127 | 4.36" | 71.50mm | 2500 lbs | 31.00 lbs |
| BR009TM17856810N | Desert Sand on Matte Black | 17x8.5 -10mm | 6x139.7 | 4.36" | 106.10mm | 2500 lbs | 31.00 lbs |
| BR009WM17855010N | Gloss White on Matte Black | 17x8.5 -10mm | 5x127 | 4.36" | 71.50mm | 2500 lbs | 31.00 lbs |
| BR009WM17856810N | Gloss White on Matte Black | 17x8.5 -10mm | 6x139.7 | 4.36" | 106.10mm | 2500 lbs | 31.00 lbs |
| BR009MX17856810N | Matte Black | 17x8.5 -10mm | 6x139.7 | 4.36" | 106.10mm | 2500 lbs | 31.00 lbs |
| BR009MX17855010N | Matte Black | 17x8.5 -10mm | 5x127 | 4.36" | 71.50mm | 2500 lbs | 31.00 lbs |
| BR009TM18906300 | Desert Sand on Matte Black | 18x9 0mm | 6x135 | 5.00" | 87.10mm | 2500 lbs | 35.00 lbs |
| BR009TM18906800 | Desert Sand on Matte Black | 18x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 35.00 lbs |
| BR009TM18905000 | Desert Sand on Matte Black | 18x9 0mm | 5x127 | 5.00" | 71.50mm | 2500 lbs | 35.00 lbs |
| BR009WM18905000 | Gloss White on Matte Black | 18x9 0mm | 5x127 | 5.00" | 71.50mm | 2500 lbs | 35.00 lbs |
| BR009WM18906800 | Gloss White on Matte Black | 18x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 35.00 lbs |
| BR009MX18906300 | Matte Black | 18x9 0mm | 6x135 | 5.00" | 87.10mm | 2500 lbs | 35.00 lbs |
| BR009MX18905000 | Matte Black | 18x9 0mm | 5x127 | 5.00" | 71.50mm | 2500 lbs | 35.00 lbs |
| BR009MX18906800 | Matte Black | 18x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 35.00 lbs |
