SKU: S5234-001

2007-2009 Jeep Wrangler H10 - ORACLE S3 LED Bulb Upgrade (Fog Light)

$90.95


ORACLE S3 LED Fog Light Conversion Bulbs deliver 3200 lumens of crystal-clear 6000K light in a sealed, fanless, waterproof design. Direct H10 plug-and-play upgrade for the 2007-2009 Jeep Wrangler Fog Light.
✓ 3200 Lumens ✓ 6000K Crystal White ✓ CSP LED Chip ✓ Sealed Fanless Design ✓ 130 lm/W Efficacy ✓ 1-Year Warranty

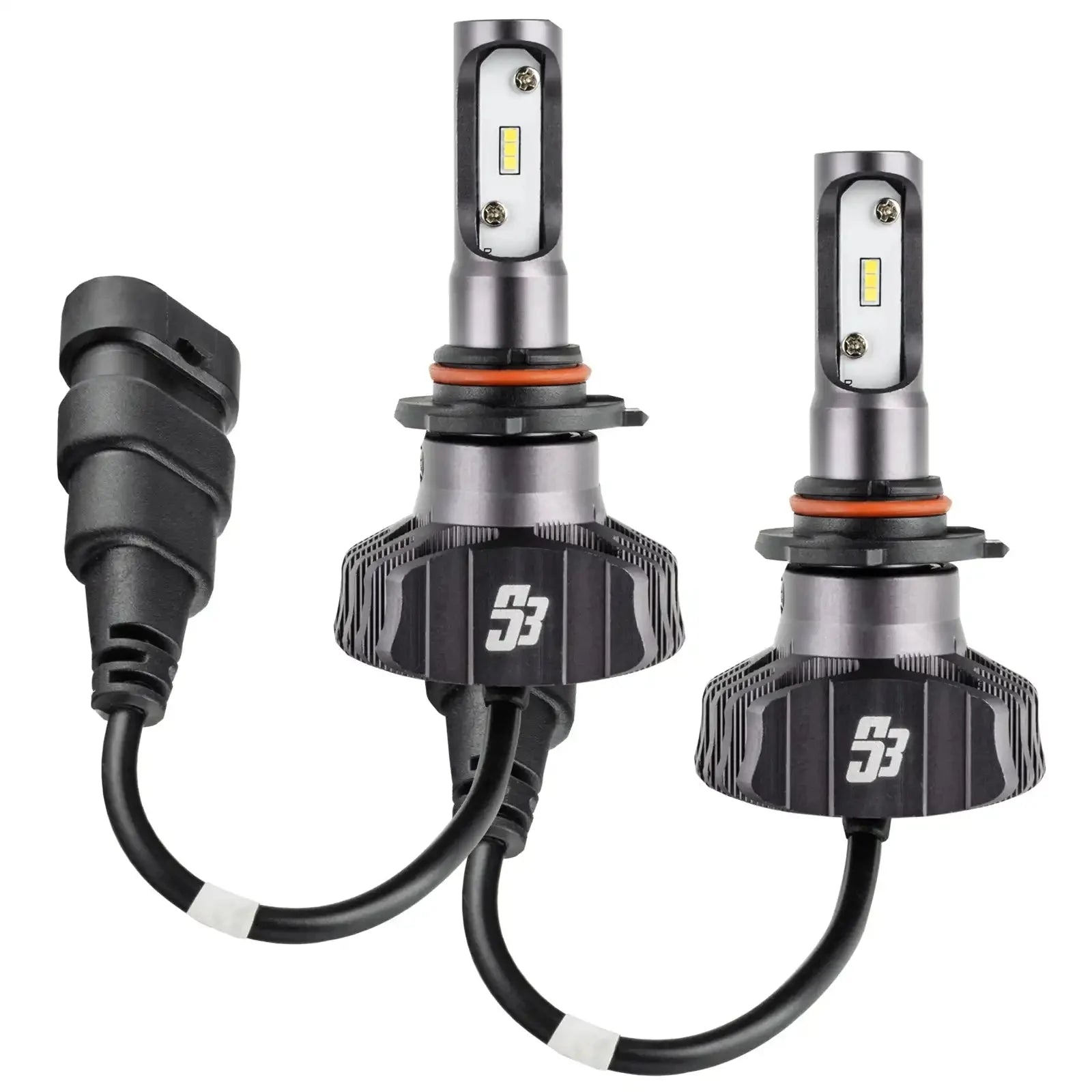

ORACLE Part #: S5234-001 | H10 | Sold as a Pair
Product Overview

The ORACLE S3 LED Conversion Bulb instantly upgrades your factory H10 fog light to 3200 lumens of crystal-clear 6000K output - no external drivers, no cooling fans, no hassle. The electronic components are housed in a sealed, waterproof heat-sink enclosure built from 6160 aluminum with a double-layer copper PCB for maximum thermal management and long-term reliability.

At the heart of the S3 is the CSP (Chip Scale Package) LED chip - a small-package, high-intensity design that delivers industry-leading luminous efficacy of 130 lm/W. This low-profile chip design also reduces common bulb fitment issues, making installation a true plug-and-play experience.

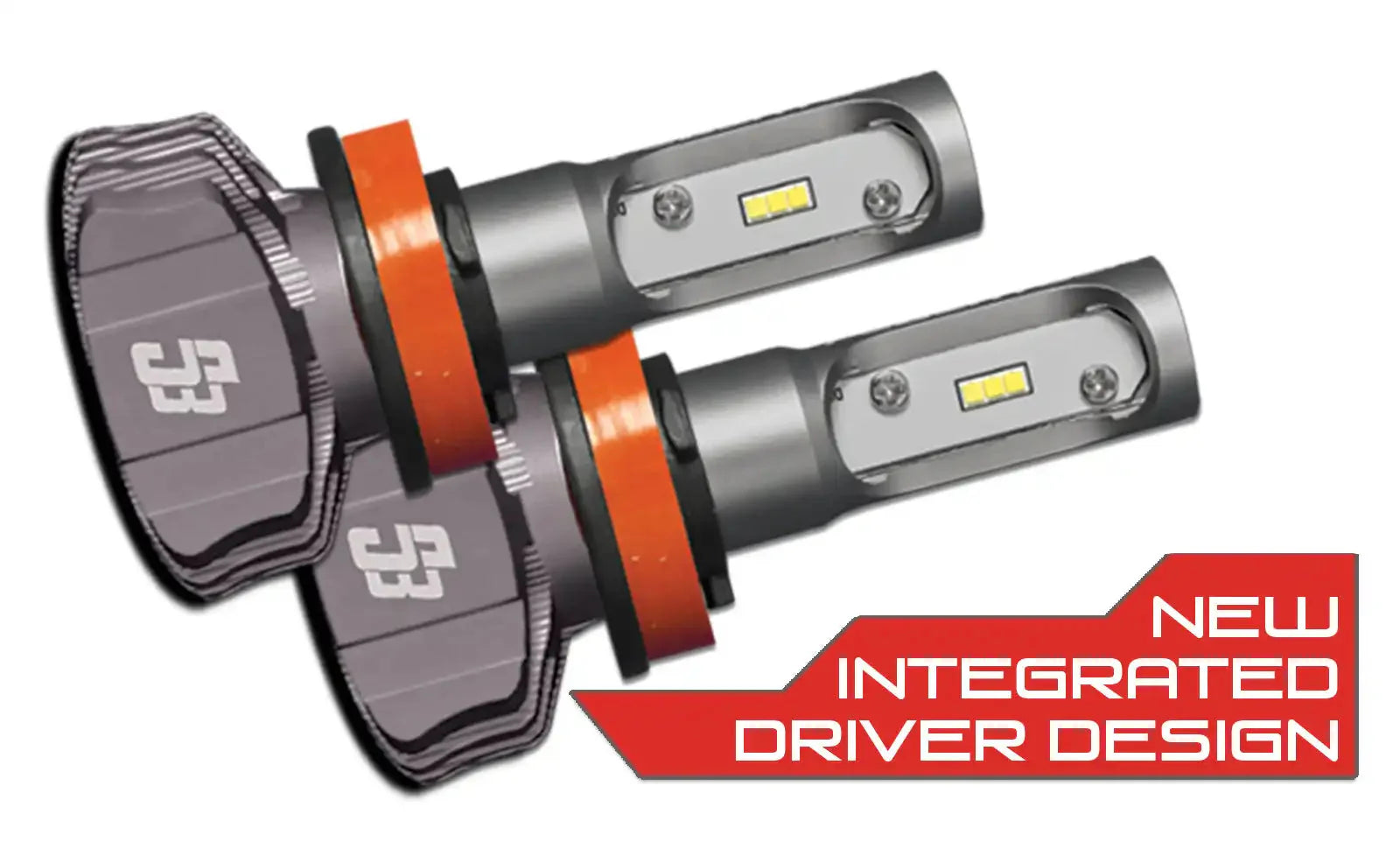

ORACLE S3 LED Integrated Design
Key Features
  • 3200 Lumens Per Bulb - Dramatically brighter than factory halogen fog lights
  • 6000K Crystal White Output - Clean, modern white light for improved visibility
  • CSP LED Chip Technology - Industry-leading 130 lm/W luminous efficacy
  • Sealed Fanless Design - Waterproof heat-sink housing eliminates external drivers and cooling fans
  • 6160 Aluminum Housing - Premium material for superior heat dissipation and durability
  • Double-Layer Copper PCB - Enhanced thermal management for long-term reliability
  • 12V/24V Compatible - Works with both standard and heavy-duty vehicle electrical systems
  • Only 12W Per Bulb - High output with ultra-low power draw
  • Plug-and-Play Install - Direct H10 replacement, no wiring modification needed
  • 1-Year Warranty - Backed by ORACLE Lighting
⚠️ CAN-BUS Notice: Dodge, Chrysler, Jeep, or later model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN-BUS decoder harnesses if flashing, strobing, or shutting down with engine ON occurs.
Performance & Technical Specifications
Brightness3200 Lumens
Color Temperature6000K
Power Draw12W per bulb
Luminous Efficacy130 lm/W
LED Chip TypeCSP (Chip Scale Package)
Operating Voltage12V / 24V
Current Demand<1 Amp
Housing Material6160 Aluminum
PCBDouble Layer Copper
Warranty1 Year Limited
Fitment

Designed for the 2007-2009 Jeep Wrangler Fog Light position using a standard H10 bulb socket. Also compatible with any vehicle using an H10 socket in fog light applications.

🔍 Verify your vehicle's fog light bulb size in your owner's manual before ordering to confirm H10 compatibility.
What's Included
  • (2) H10 ORACLE S3 LED Fog Light Conversion Bulbs
⚠️ CAN-BUS decoder harnesses sold separately if required for your vehicle.
