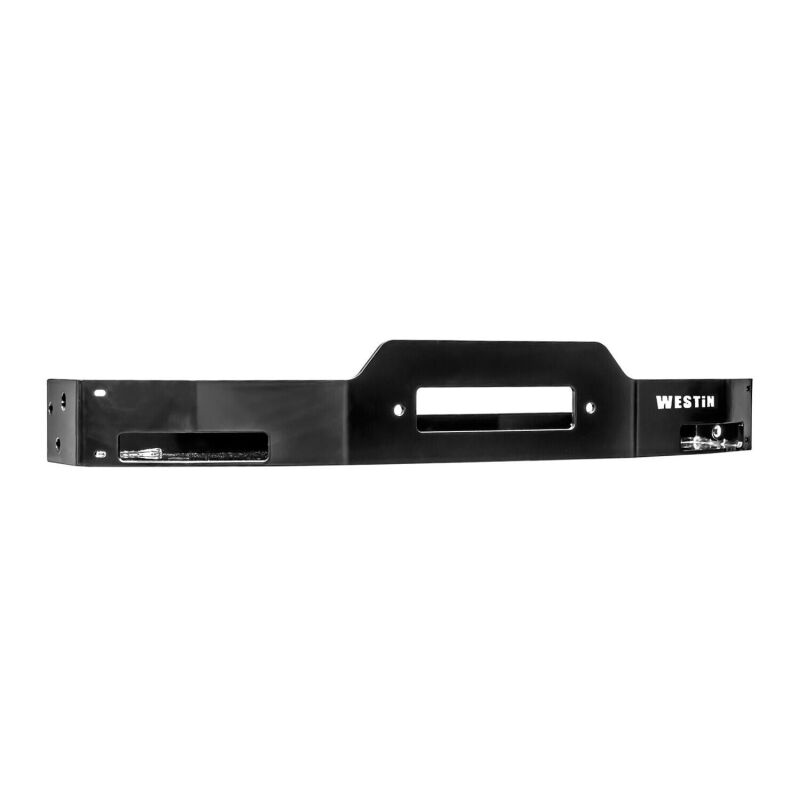

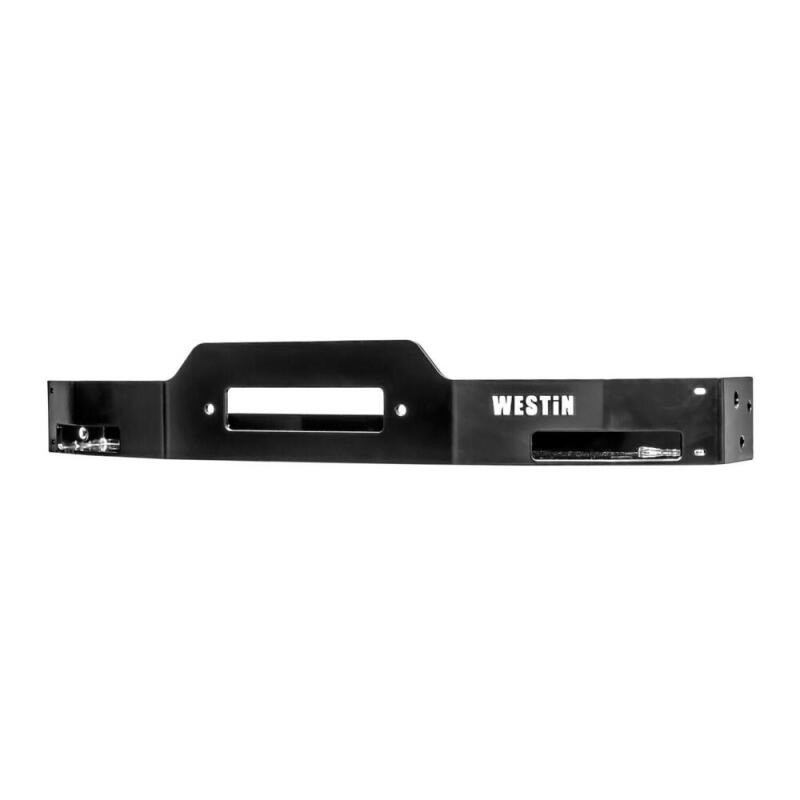

Westin MAX Winch Tray, fits Ram 1500
Westin MAX Winch Tray, fits Ram 1500
Westin MAX Winch Tray, fits Ram 1500
Westin MAX Winch Tray, fits Ram 1500
SKU: 46-23755

Westin MAX Winch Tray for Ram 1500 (2009-2024)

By Westin
$768.75
Minus Plus
180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing availableAffirmPayPal CreditFor qualified buyers at checkout Secure checkoutEncrypted payment
Confirmed fit: 2009–2024 RAM 1500
Verified to fit the 2009–2024 RAM 1500.
Warranty Information

Westin warranty summary coming soon.

More details Right

Westin MAX Winch Tray for Ram 1500 (2009-2024)

A steel winch tray for the Ram 1500 that mounts to the frame, takes medium frame winches up to 12,000 lbs and is tested to a 16,500 lb. straight line pull. It is the new low-profile design. Factory tow hooks cannot be reused.

Why it works
Frame mountedHeavy-duty brackets bolt directly to the vehicle frame.
Low profileMade for use with the new low-profile tray design.
Winch capacityFits most medium frame winches rated 8,000-12,000 lbs.
Fairlead readyPre-drilled for a hawse or roller fairlead.
Specifications
Spec Detail
Fitment Ram 1500 2009-2024
Material Steel
Finish Black powder coat
Winch depth 6.4 in.
Straight line pull 16,500 lbs. (tested)
Part number 46-23755
Before you order

On trucks without factory tow hooks, the front air dam must be trimmed or removed. Factory tow hooks cannot be reused. Confirm your exact year and model with us before ordering. Westin install instructions: download the PDF. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.

Frequently asked questions
Do I need to cut the air dam?

On vehicles without factory tow hooks, yes. It must be trimmed or removed.

Can I reuse my tow hooks?

No. Factory tow hooks cannot be reused.

What winch size does it take?

Most medium frame winches of 8,000-12,000 lbs, up to 10.25 in. tall.

What is the warranty?

Coverage depends on the product line; see our Westin warranty page for the term that applies.
