Westin MAX Winch Tray, fits Chevy Silverado 1500

SKU: 46-22275

Westin MAX Winch Tray for Chevy Silverado 1500 (2007-2013) & GMC Sierra 1500 (2007-2013)

By Westin

$467.50

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Confirmed fit: 2007–2013 Chevrolet Silverado

Verified to fit the 2007–2013 Chevrolet Silverado.

Warranty Information

Westin warranty summary coming soon.

More details

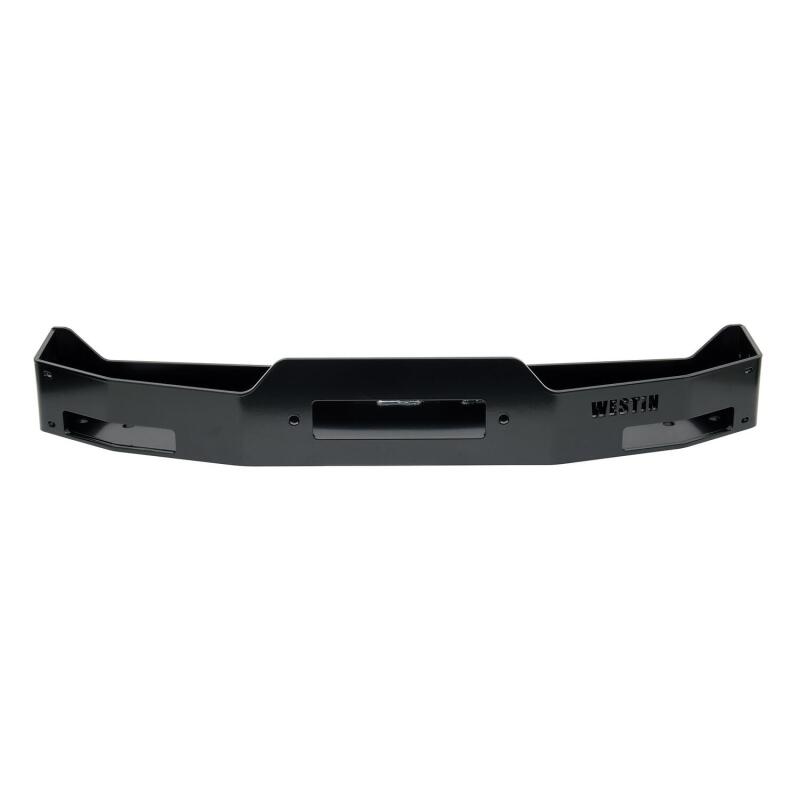

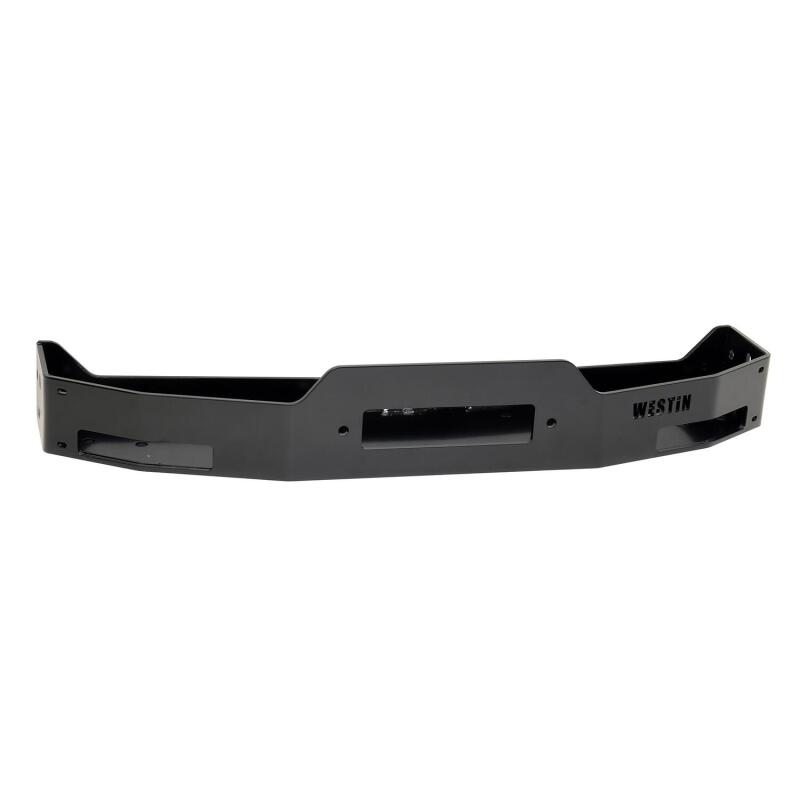

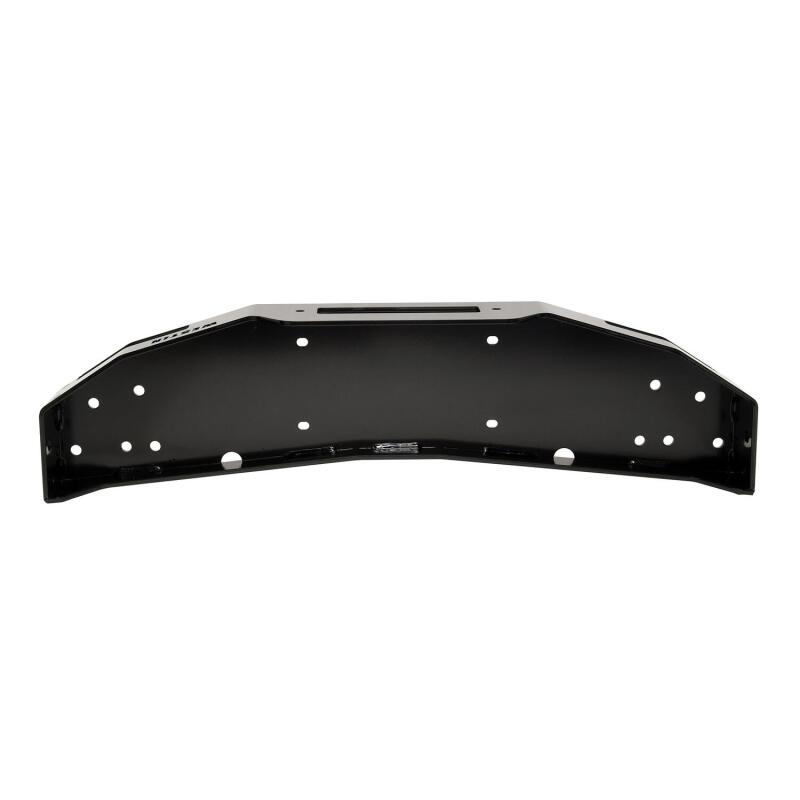

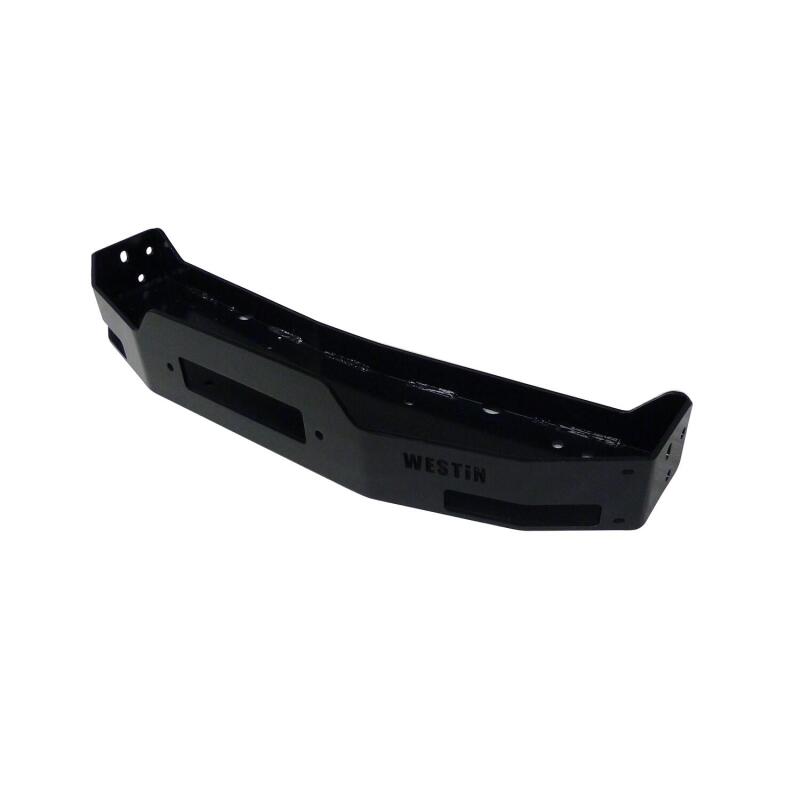

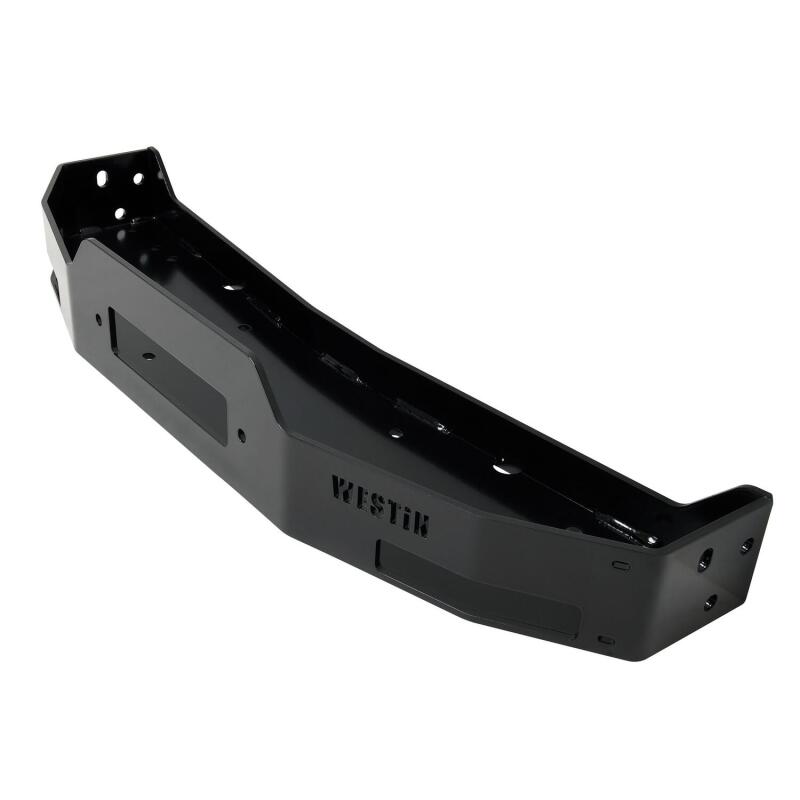

Westin MAX Winch Tray for Chevy Silverado 1500 (2007-2013) & GMC Sierra 1500 (2007-2013)

A steel winch tray for the 2007-2013 Chevy Silverado 1500 and GMC Sierra 1500. It bolts to the frame, takes medium frame winches up to 12,000 lbs and is tested to a 16,500 lb. straight line pull. The notes list some drilling and trimming for this application.

Why it works

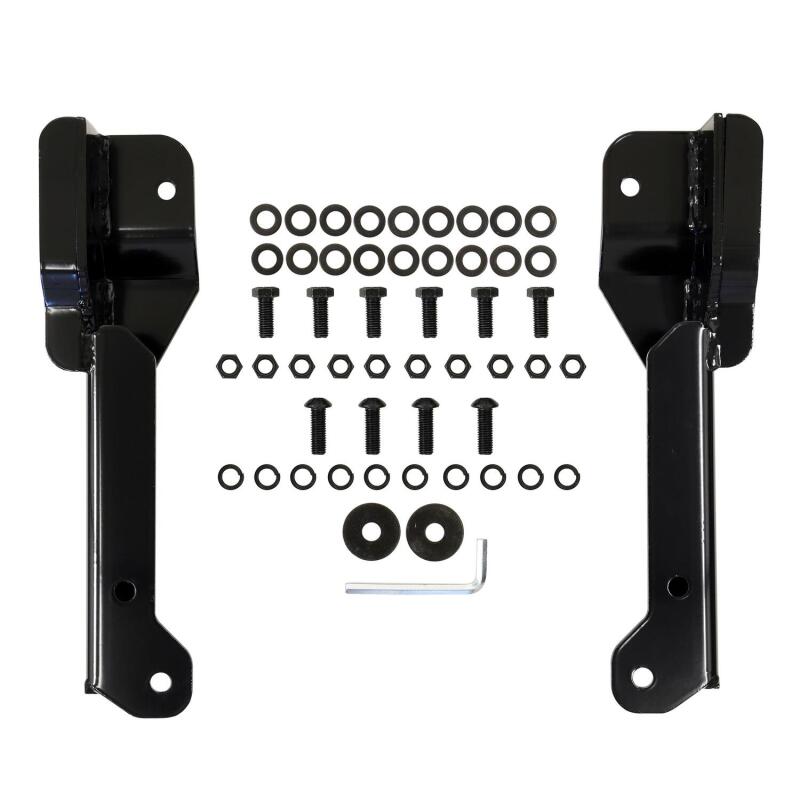

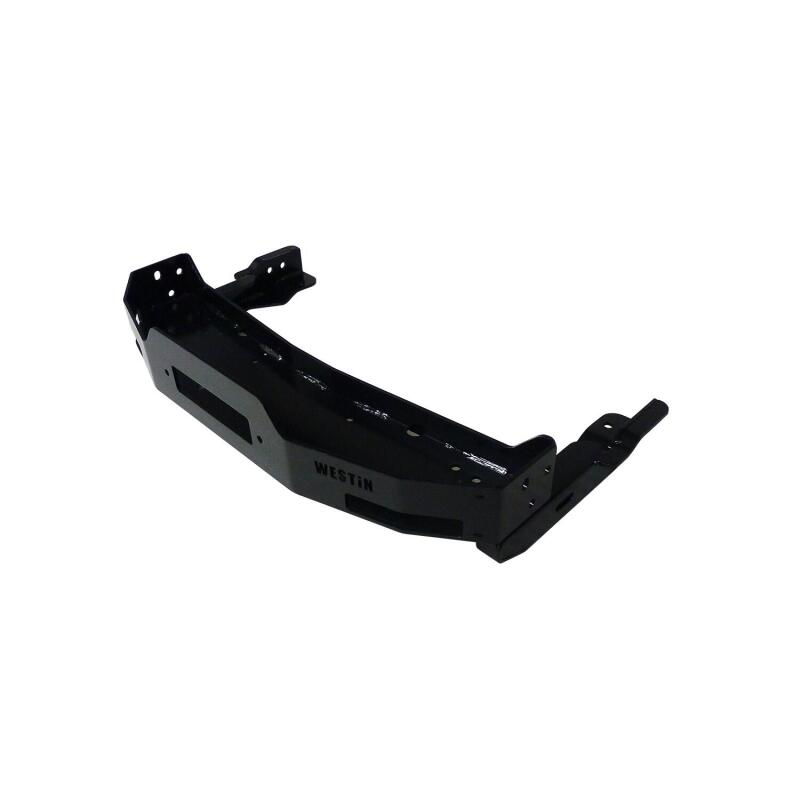

Frame mountedHeavy-duty brackets bolt directly to the vehicle frame.

Winch capacityFits most medium frame winches rated 8,000-12,000 lbs.

Fairlead readyPre-drilled for a hawse or roller fairlead.

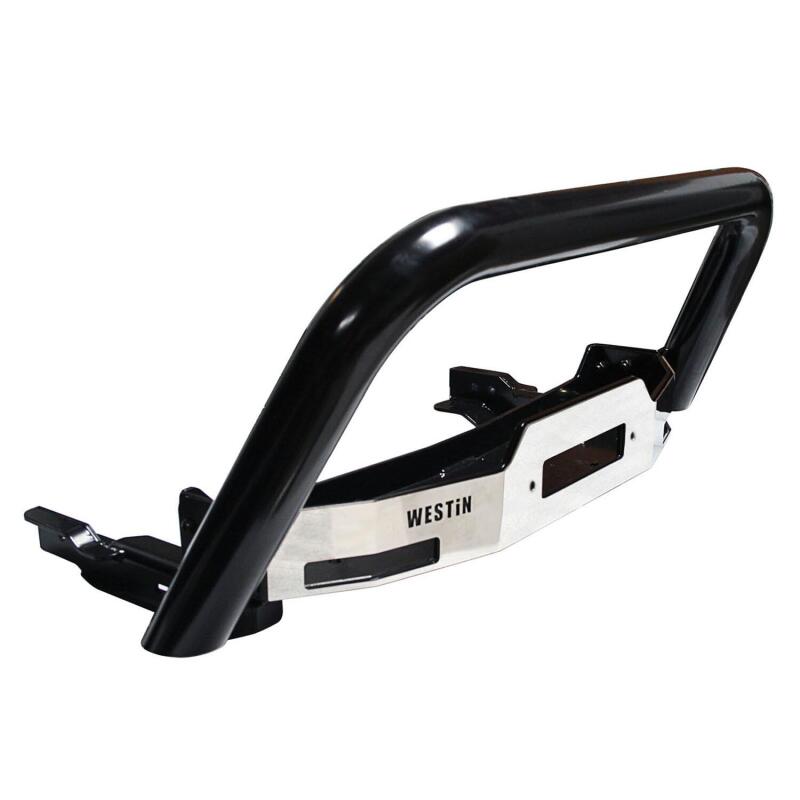

System readyMAX grille guards bolt directly to the tray.

Specifications

Spec	Detail
Fitment	Chevy Silverado 1500 and GMC Sierra 1500 2007-2013
Material	Steel
Finish	Black powder coat
Winch depth	6.75 in.
Straight line pull	16,500 lbs. (tested)
Part number	46-22275

Before you order

Requires minor trimming of the tow hook pockets and drilling, and factory tow hooks cannot be reused. Westin install instructions: download the PDF. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.

Frequently asked questions

Do I need to drill?

The fitment notes say this application requires drilling.

Do I need to trim anything?

Yes, minor trimming of the tow hook pockets is required.

Can I reuse my tow hooks?

No. Factory tow hooks cannot be reused.

What is the warranty?

Coverage depends on the product line; see our Westin warranty page for the term that applies.
