Westin MAX Winch Tray for Chevy Colorado (2015-2020) & GMC Canyon (2015-2020)

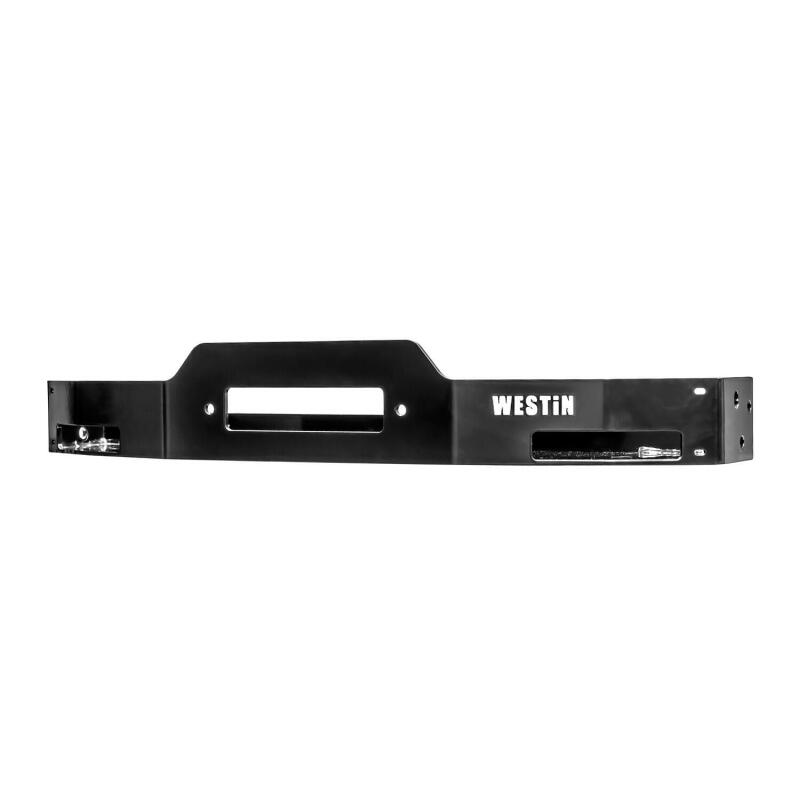

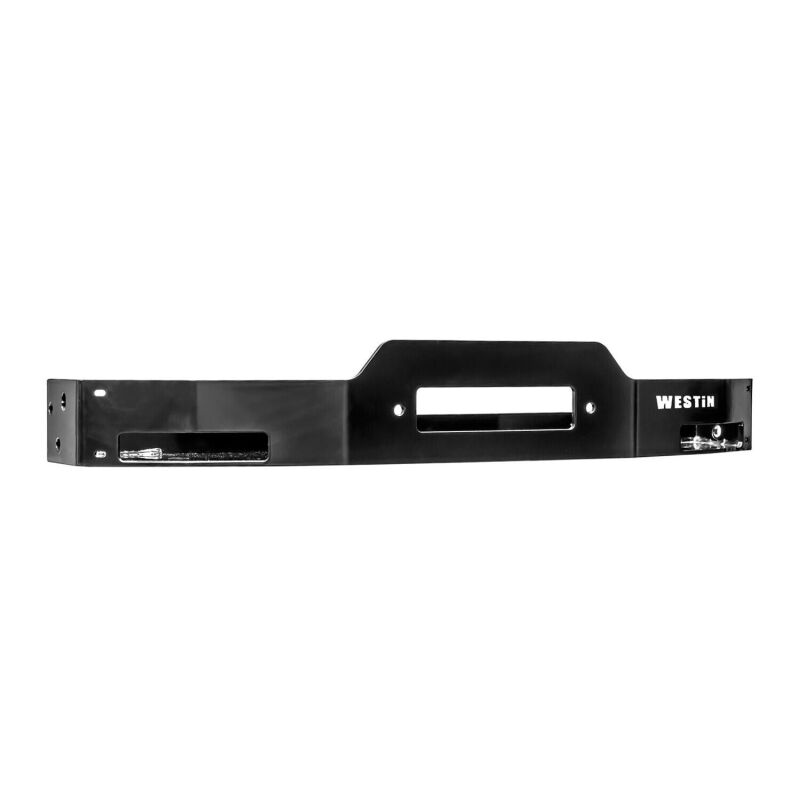

A steel winch tray for the Chevy Colorado and GMC Canyon. It mounts to the frame, takes medium frame winches up to 12,000 lbs and is tested to a 16,500 lb. straight line pull. The air dam may need trimming or removal on trucks without tow hooks.
| Spec | Detail |
|---|---|
| Fitment | Chevy Colorado and GMC Canyon 2015-2020 |
| Material | Steel |
| Finish | Black powder coat |
| Winch depth | 6.75 in. |
| Straight line pull | 16,500 lbs. (tested) |
| Part number | 46-23845 |
On vehicles without factory tow hooks, the front air dam must be trimmed or removed. Factory tow hooks cannot be reused. Confirm your exact year and model with us before ordering. Westin install instructions: download the PDF. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.
Do I need to cut the air dam?
On vehicles without factory tow hooks, yes. It must be trimmed or removed.
Can I reuse my tow hooks?
No. Factory tow hooks cannot be reused.
What winch size does it take?
Most medium frame winches of 8,000-12,000 lbs, up to 10.25 in. tall.
What is the warranty?
Coverage depends on the product line; see our Westin warranty page for the term that applies.
