Westin MAX Winch Tray, Black for Ram 2500/3500 (2019-2025)

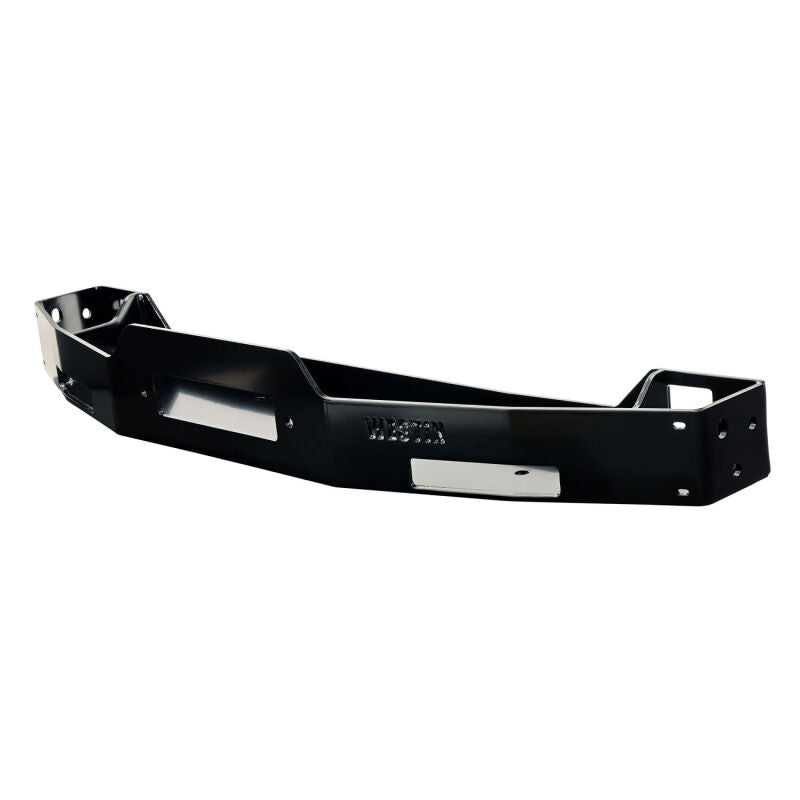

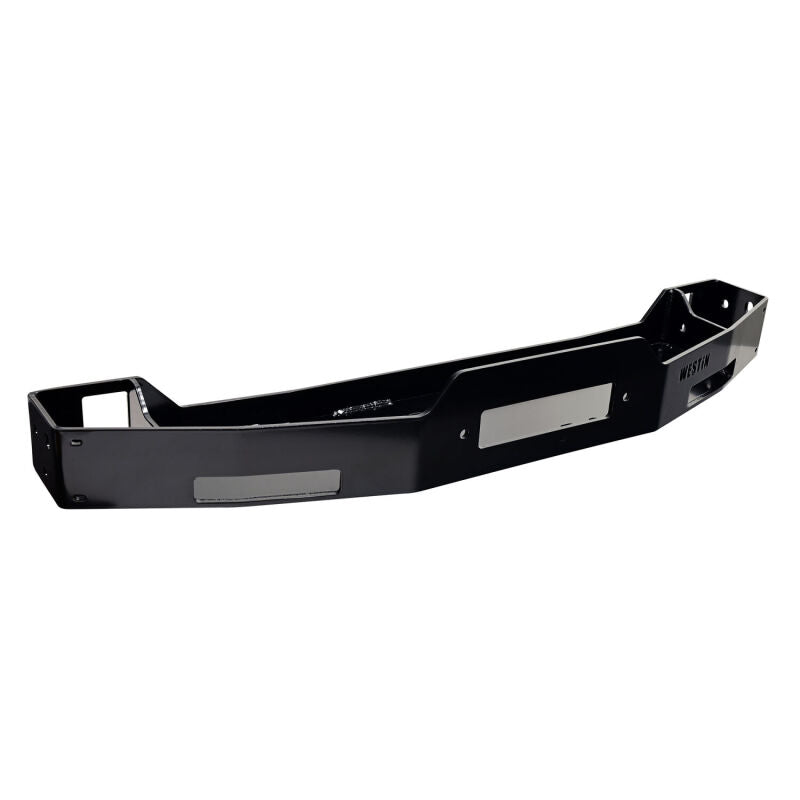

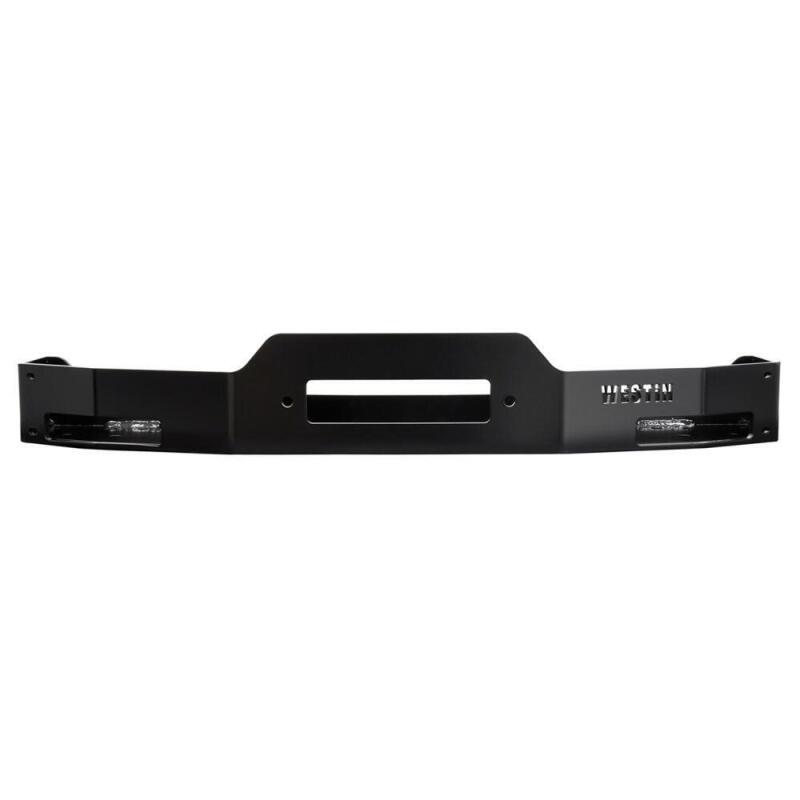

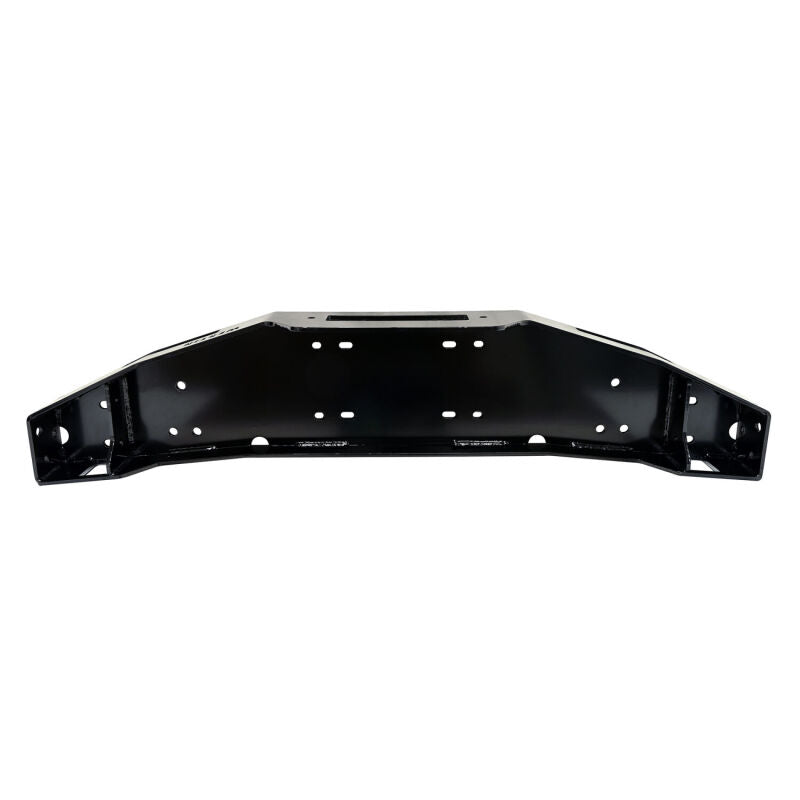

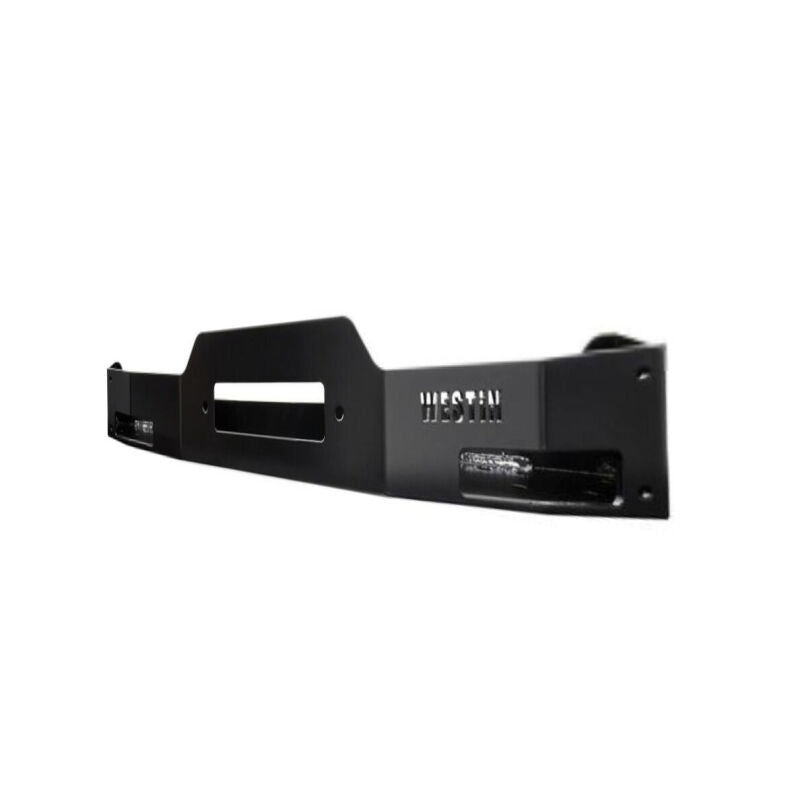

A black powder-coated steel winch tray for the Ram 2500/3500, fitted to the frame with heavy-duty brackets. It takes medium-frame winches up to 12,000 lb and is pre-drilled for a hawse or roller fairlead. MAX grille guards bolt directly to the tray.
| Spec | Detail |
|---|---|
| Fitment | Ram 2500/3500 2019-2025 |
| Material | Steel |
| Finish | Black powder coat |
| Winch Depth | 6.75 in. |
| Straight Line Pull | 16,500 lb tested |
| Winch Height | Medium frame, up to 10.25 in. tall |
No drilling is needed. Minor trimming of the tow hook pockets is required, and factory tow hooks cannot be reused. It can interfere with front parking sensors and may block the license plate, so a relocator is needed. Westin install instructions: download the PDF. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.
What winches fit?
Medium-frame winches of 8,000-12,000 lb, up to 10.25 in. tall.
Will my license plate be visible?
Not without a license plate relocator, which is needed to make the plate visible.
Can I reuse my tow hooks?
No, factory tow hooks cannot be reused.
What is the warranty?
Coverage depends on the product line; see our Westin warranty page for the term that applies.
Complete your RAM 2500/3500 build
More parts that fit your RAM 2500/3500 and pair well with this one — matched and ready to install.
$528.75
$539.99
$107.99
$242.50
$428.75
More for your RAM 2500/3500
Picked from the 616 parts we carry for the RAM 2500/3500, matched to 2019–2025 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Westin MAX Winch Tray, Black for Ram 2500/3500 (2019-2025) FAQs
What winches fit?
Medium-frame winches of 8,000-12,000 lb, up to 10.25 in. tall.
Will my license plate be visible?
Not without a license plate relocator, which is needed to make the plate visible.
Can I reuse my tow hooks?
No, factory tow hooks cannot be reused.
What is the warranty?
Coverage depends on the product line; see our Westin warranty page for the term that applies.
