Trail Grid Pro Sony Microphone Mount - Toyota Tacoma 2016-2023
Warranty Information
Vendor warranty summary
Trail Grid Pro Warranty
At a glance: 1- or 3-year limited warranty on most products (unless the maker specifies otherwise)
This is Trail Grid Pro's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Most products | 1 or 3 years limited (varies; manufacturer's terms apply where specified) |
| Returns, any reason | 30 days from shipment |
What's covered
- Defective or damaged items under warranty
- Only the specific defective component is replaced
What's not covered
- Cut, spliced or modified wiring
- Improper or third-party installation
- Physical damage such as scratches, dents or drops
- Damaged or punctured speakers
- Misuse or abuse
- Attempts to bypass parking-brake lockouts on Alpine units
How to make a Trail Grid Pro warranty claim
- Log into your Trail Grid Pro account and start a request in the self-service returns portal
- Inspection takes about 2-4 business days
- Contact technical support with questions
Trail Grid Pro contact: Phone: 301.835.9100 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Trail Grid Pro, and help it along either way.
Shop Trail Grid Pro at NVMOS
Tundra JBL Amp Bypass Harness | '14 - '21 Tundra
ZZAIR-PRO 2
Toyota Tacoma 10" Subwoofer Enclosure | '16 - '23 Tacoma
See all Trail Grid Pro products, lead times and FAQs →
Disclaimer: The information on this page describes Trail Grid Pro's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Trail Grid Pro official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Trail Grid Pro is a Toyota-focused parts company in Frederick, Maryland, known for plug-and-play audio upgrades. NVMOS carries its speaker bundles, subwoofer enclosures, amp bypass harnesses, camera kits and brackets for 4Runner, Tacoma, Tundra and Land Cruiser owners who want better sound without cutting factory wiring.
Based in: Frederick, Maryland · Founded: 2021 · Made in: Assembled to order in Maryland · Lead time: Assembled to order; see product page
Shop all 73 Trail Grid ProWarrantyAll brands
Warranty terms are set by Trail Grid Pro, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

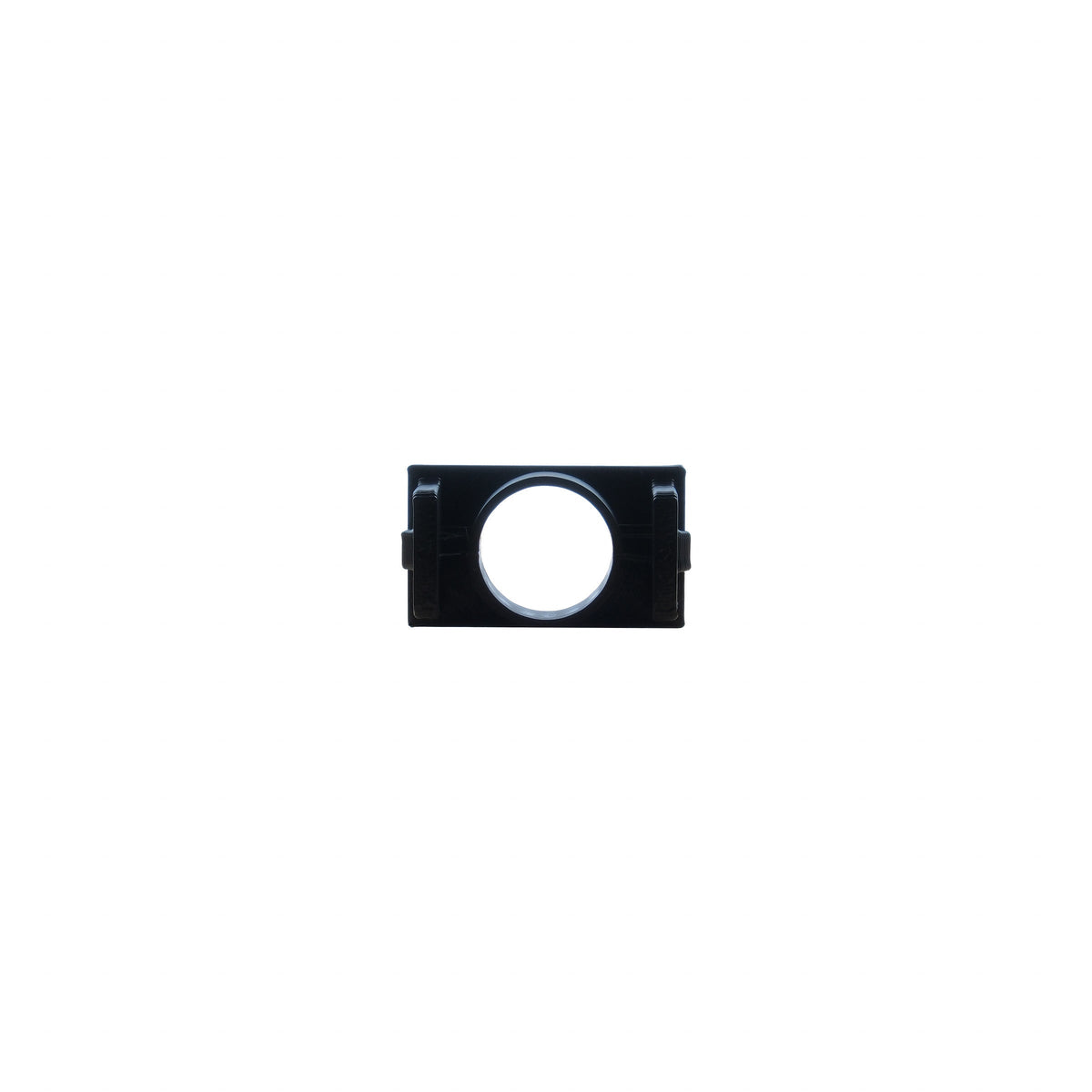

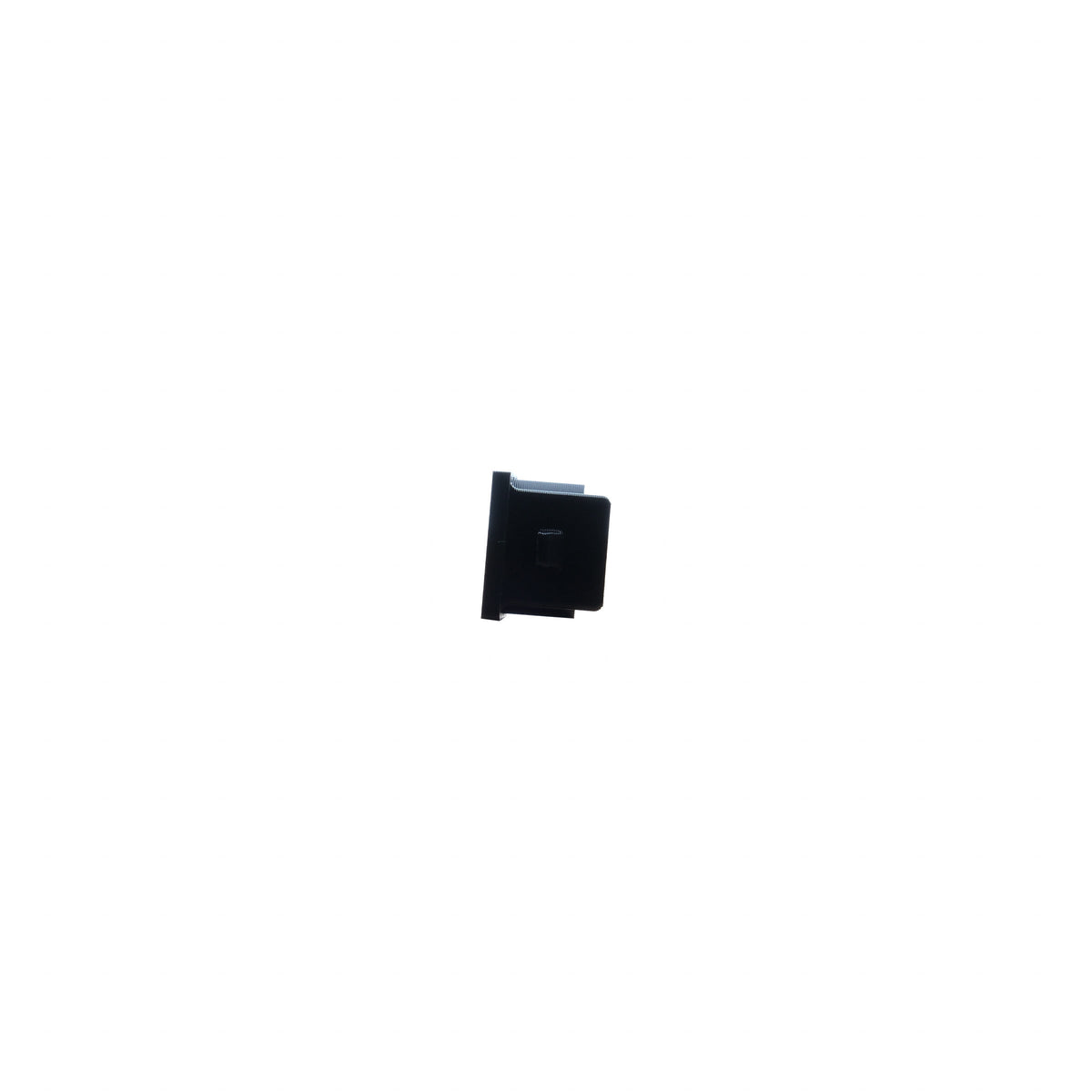

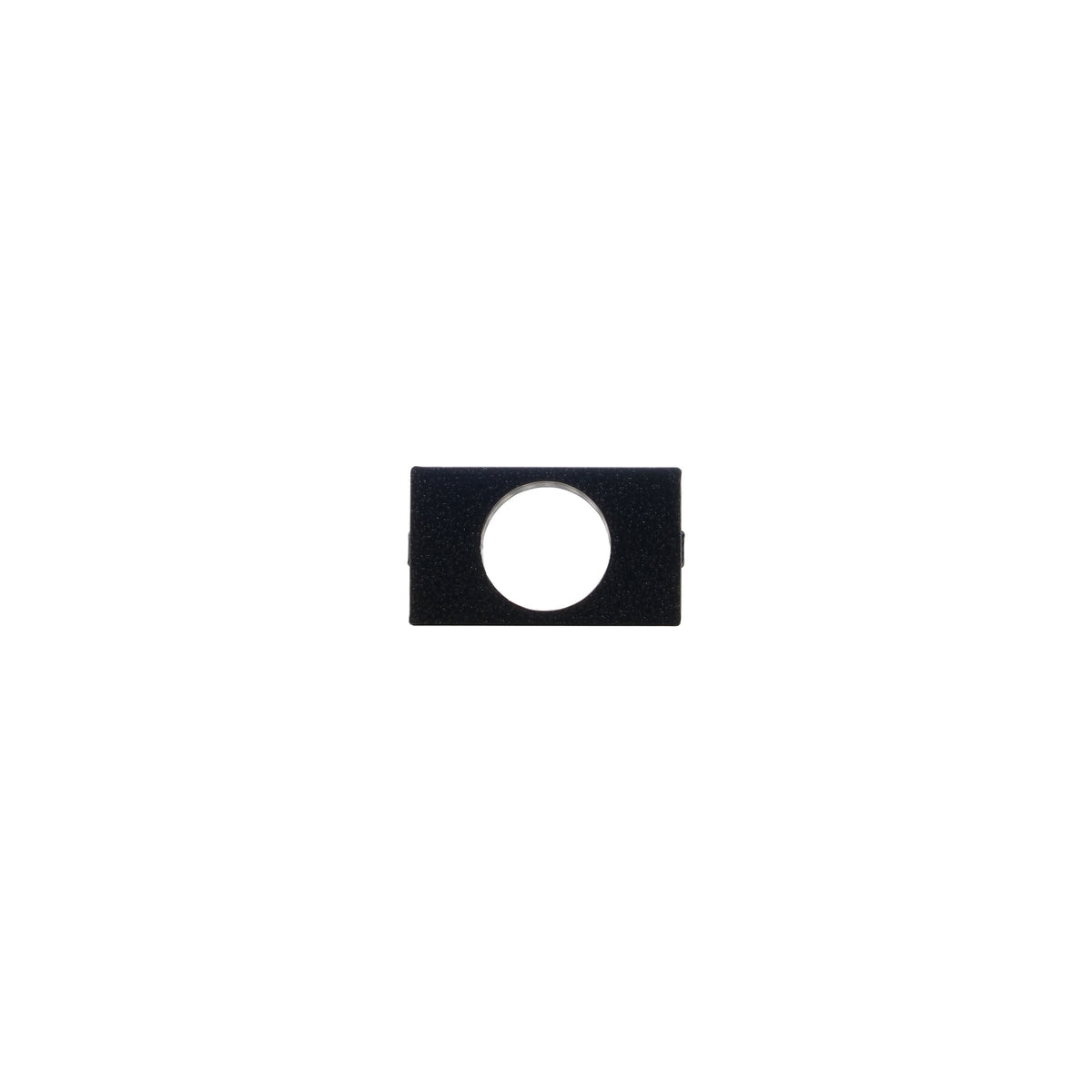

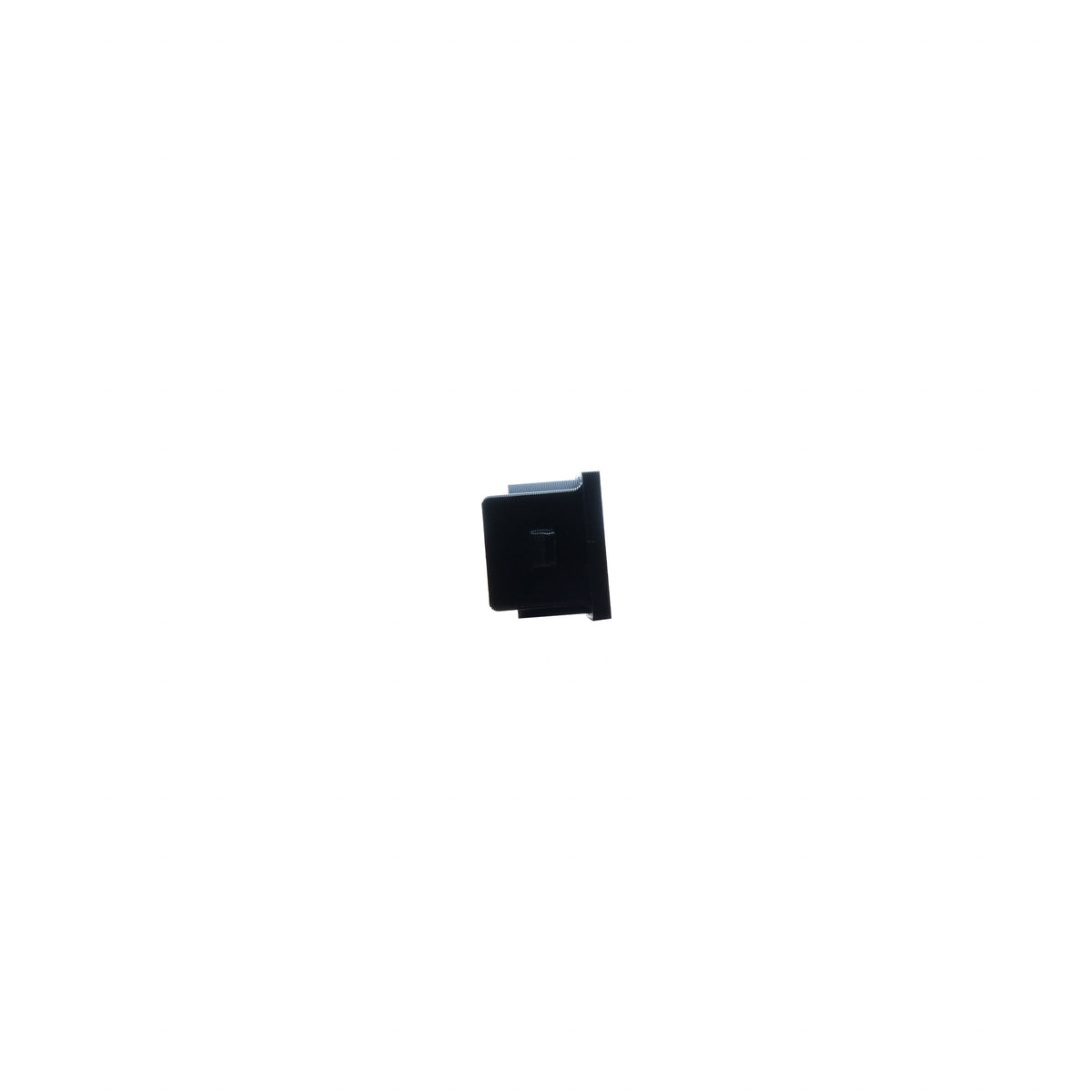

This Trail Grid Pro mount holds a Sony aftermarket microphone in the headliner console of a 2016-2023 Tacoma. It keeps the mic tucked away in the original spot and keeps the voice clarity you expect from a hands-free setup, without a visible stalk.

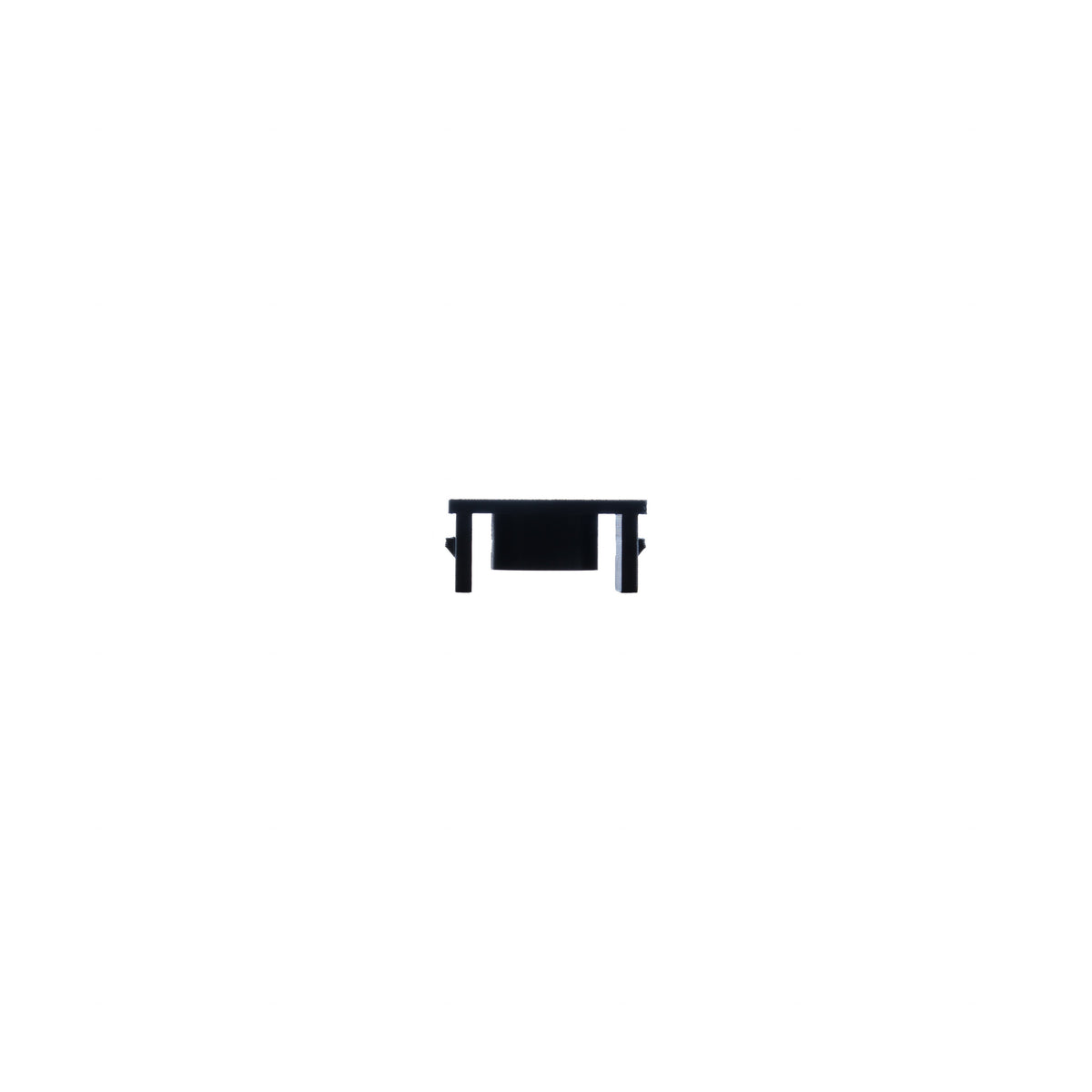

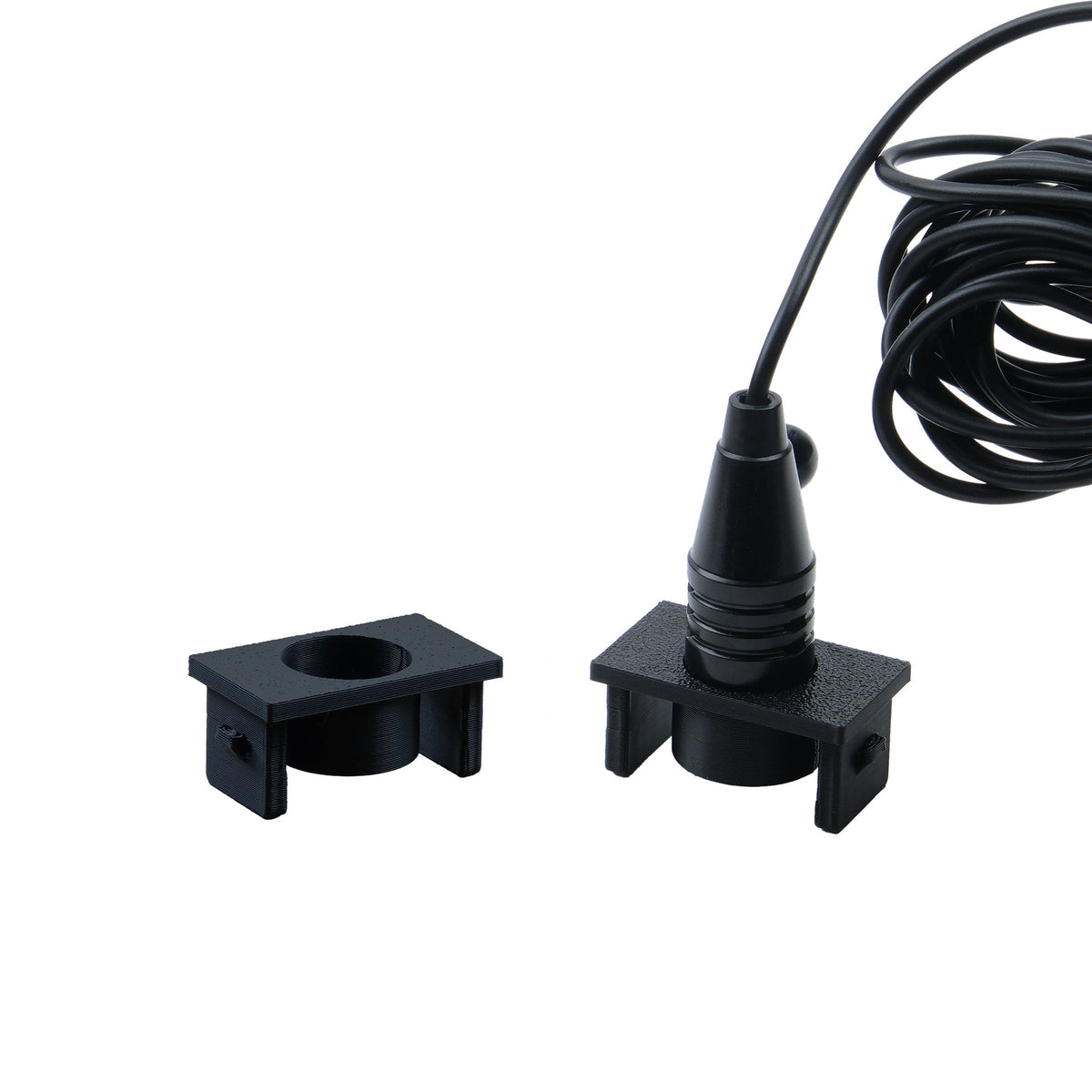

Fitting a Sony mic takes one extra step: the small mounting ball on the microphone has to come off, which Trail Grid Pro says is easy with side cutters or a utility knife. After that, the rounded end goes through the upper support of the mount, nearly level with the bottom of the two legs.
Fitment
2016-2023 Toyota Tacoma.
Install notes

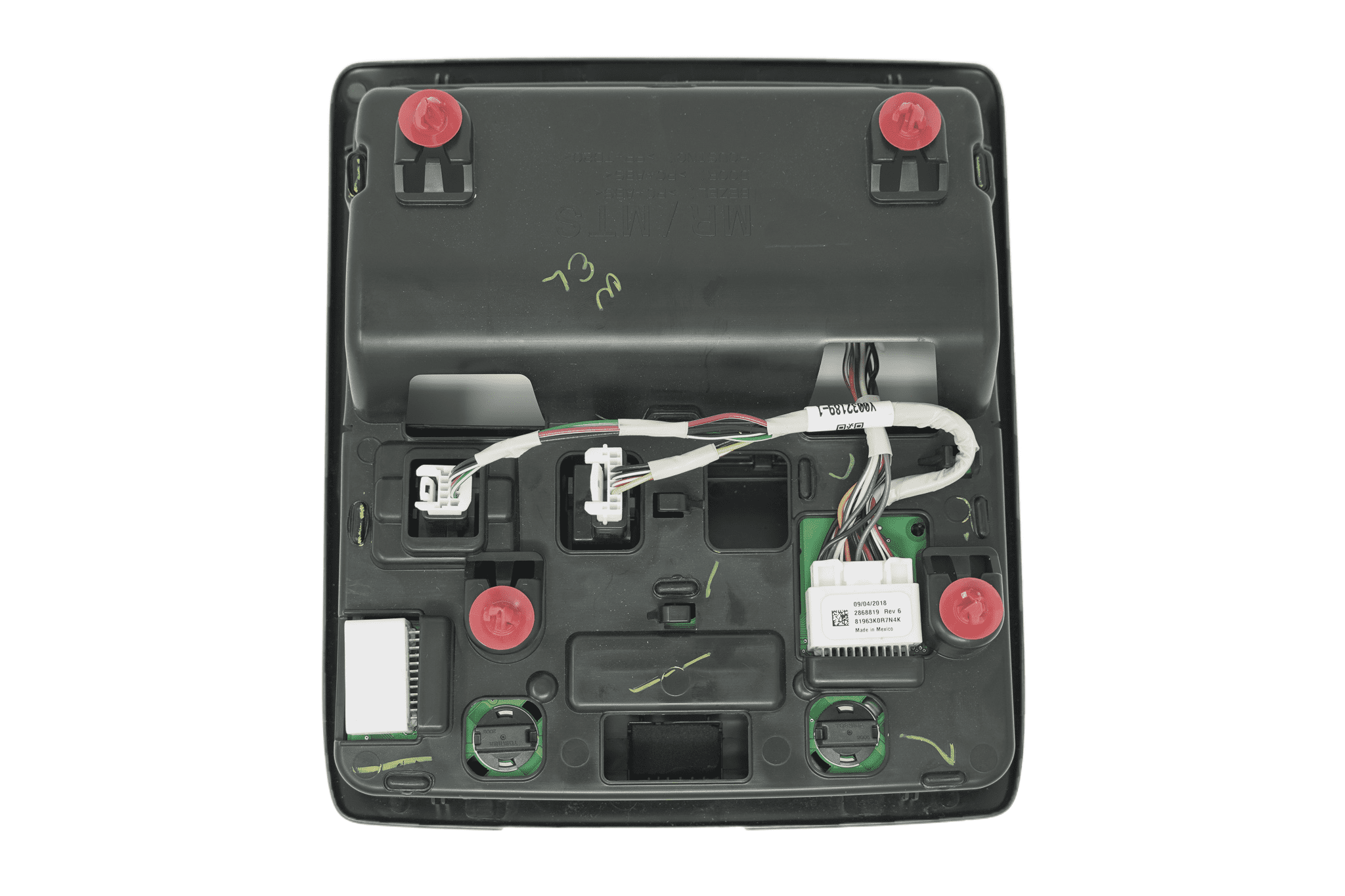

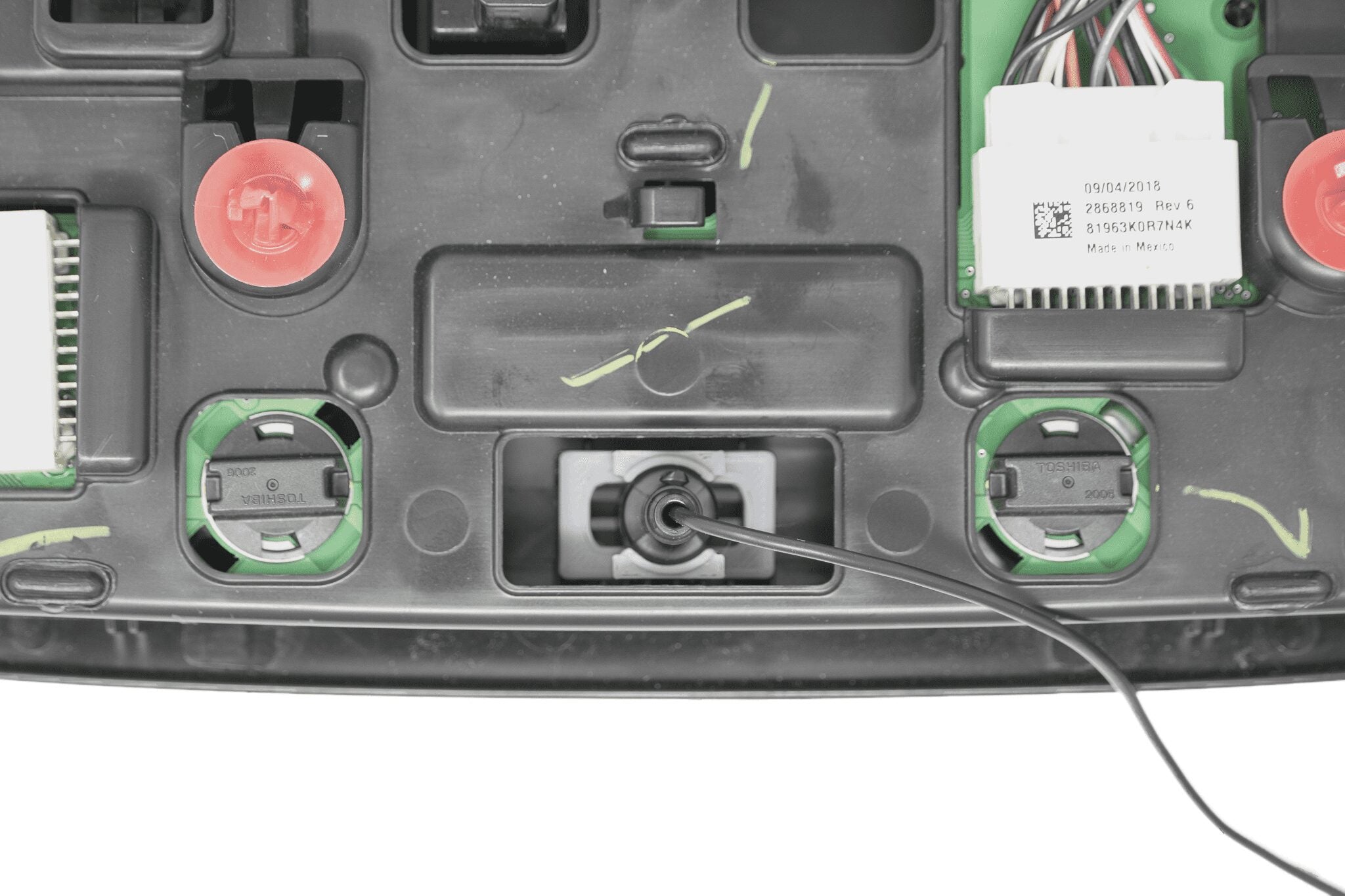

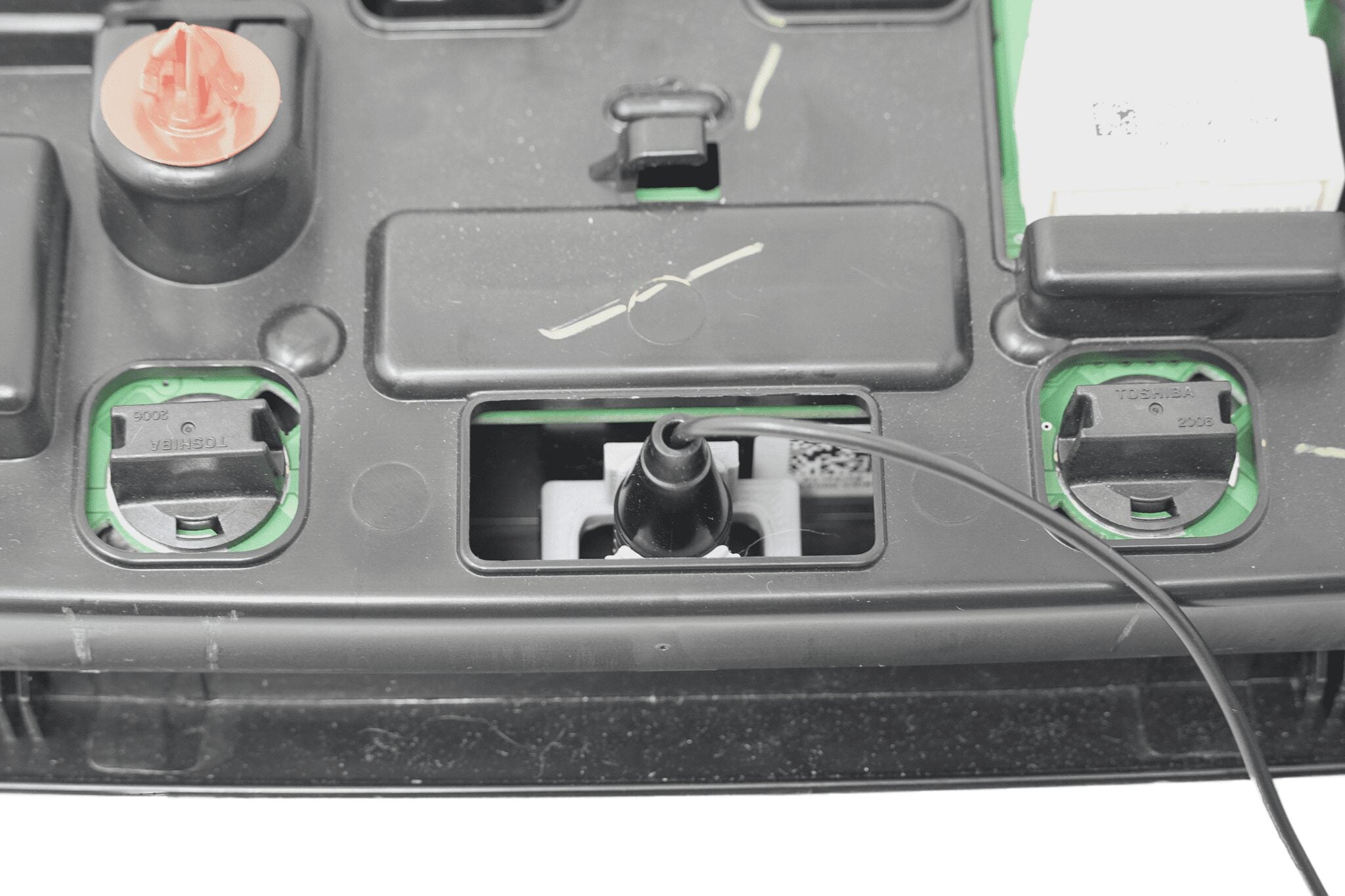

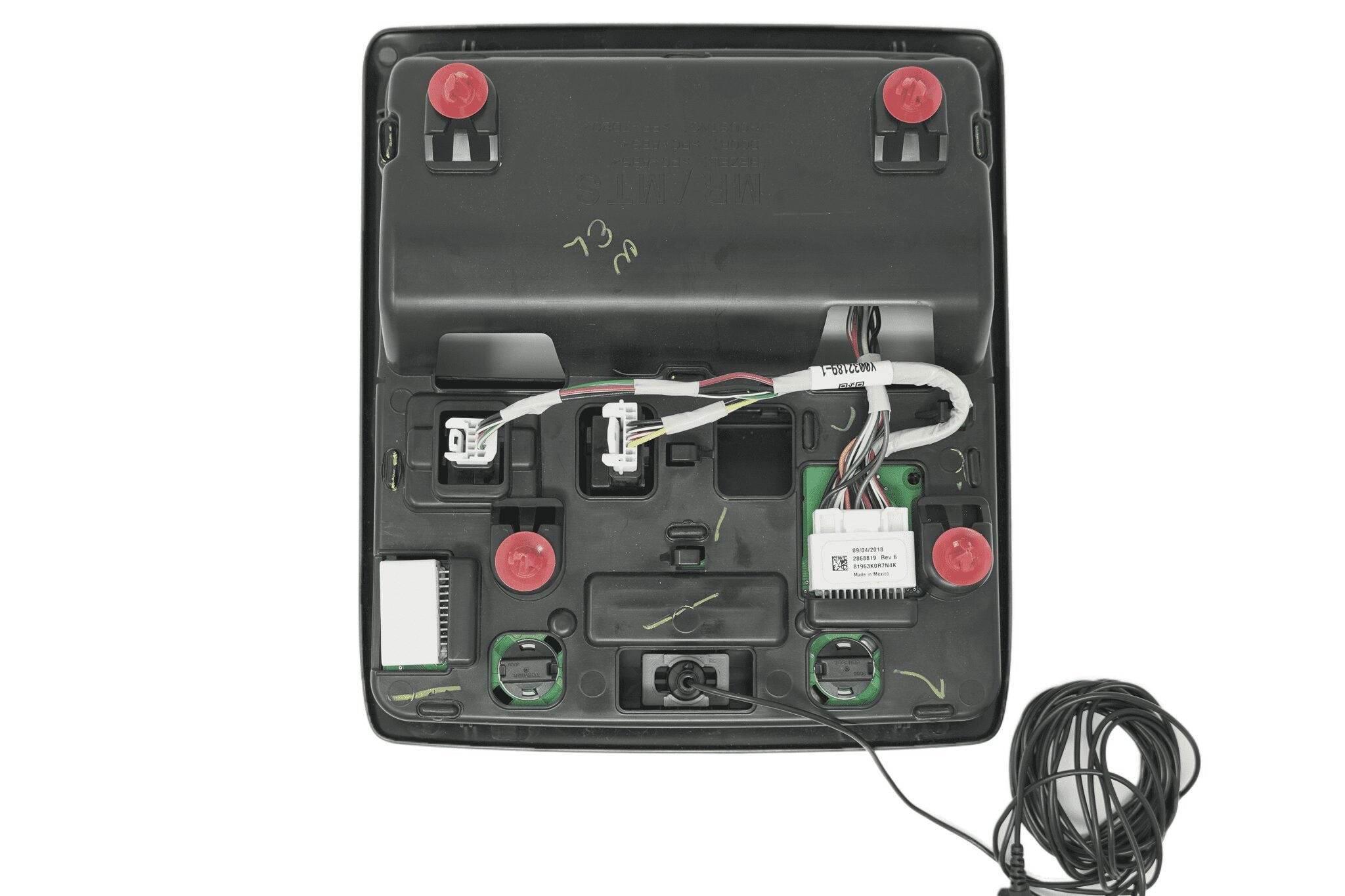

Pull the headliner console straight down to release the pressure clips, using gentle pressure with a panel tool. Unplug the console harness and remove the foam insert from the microphone port. Cut off the mounting ball. Line up the spot where the ball was with one of the upper supports so the side audio openings are not blocked. Click the mount into the console with the legs and mic end facing down. Route the wire toward the mirror, along the windshield, behind the driver-side A-pillar cover and under the dash. Plug the 3.5mm jack into the red mic port on the back of the Sony radio chassis and test.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Complete your Toyota Tacoma build
More parts that fit your Toyota Tacoma and pair well with this one — matched and ready to install.
$11.00
$49.99
$20.70
$95.00
$24.99
More for your Toyota Tacoma
Picked from the 1523 parts we carry for the Toyota Tacoma, matched to 2016–2023 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Trail Grid Pro Sony Microphone Mount FAQs
What microphone does this hold?
A Sony aftermarket microphone.
Do I need to modify the microphone?
Yes. The small mounting ball on the Sony mic is cut off with side cutters or a utility knife.
Where does the wire plug in?
The 3.5mm jack goes into the red mic port on the back of the Sony radio chassis.
Which years fit?
2016-2023 Tacoma.
