Tackform Drill Base Mount with Universal AMPS Holder - Rigid Flex Arm, 26 Series
Warranty Information
Vendor warranty summary
Tackform Warranty
At a glance: Lifetime on metal parts, 3 years on plastic, 1 year on electronics
This is Tackform's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Metal parts | Lifetime |
| Plastic/ABS parts | 3 years |
| Electronics | 1 year |
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Tackform mounts and their parts bought from Tackform or an authorized reseller
- Only the defective component is replaced, not the whole system
What's not covered
- Devices you attach (phones, GPS units, tablets)
- Abuse, misuse or exposure to extreme temperatures
- Normal wear and tear
- Modified or improperly used mounts
- Discontinued parts with no available replacement
How to make a Tackform warranty claim
- Email clear photos of the mount and the failed area
- Explain how and when it failed
- Include proof of purchase (order number, Amazon order or receipt) and your shipping address
- A small shipping charge applies based on part weight; international customers pay all shipping
Tackform contact: Email: support@tackform.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Tackform, and help it along either way.
Shop Tackform at NVMOS
TRAXX™ - Accessory Track Dash Bracket With Dual MagSafe Phone Mount | 2014-2018 Chevrolet Silverado & GMC Sierra, 2015-2019 Silverado HD & Sierra HD
TRAXX™ -Accessory Track Dash Bracket With Dual MagSafe Phone Cradles | 2009-2012 RAM 1500 & 2500/3500
TRAXX - Slim Track Dash Bracket With 20LITE Phone & Midland Magnetic CB Radio Mic Mounts | 2016 - 2023 Toyota Tacoma
See all Tackform products, lead times and FAQs →
Disclaimer: The information on this page describes Tackform's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Tackform official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Tackform has built heavy-duty device mounts in Addison, Illinois since 2012. NVMOS carries their TRAXX dash brackets, 20 Series phone mounts (including MagSafe), tablet and monitor holders, CB mic holders, camera holders and bases for trucks, vans and off-road rigs where the phone needs to stay put.
Based in: Addison, Illinois · Founded: 2012 · Lead time: In-stock ships in 24–48 hrs
Shop all 1883 TackformWarrantyAll brands
Warranty terms are set by Tackform, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

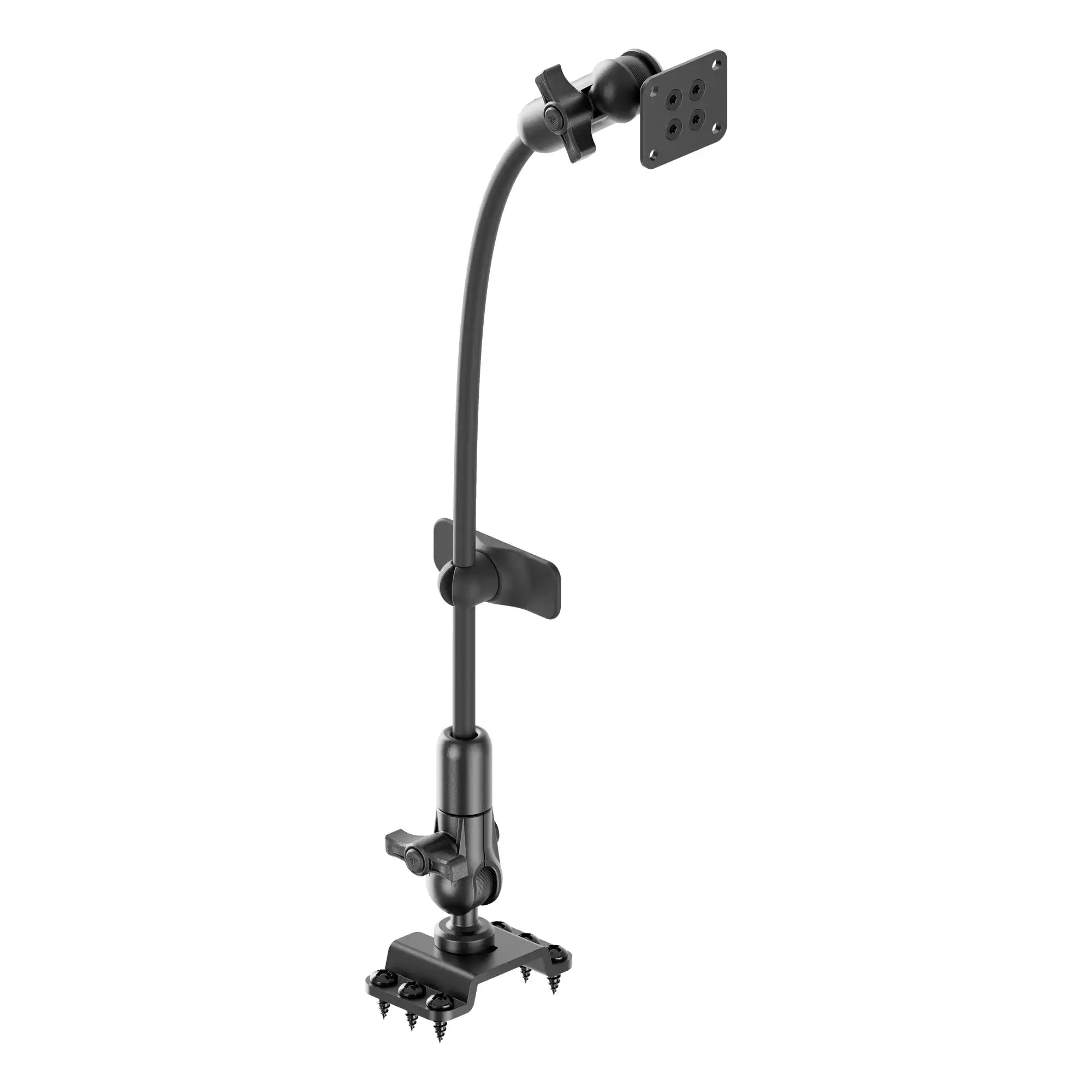

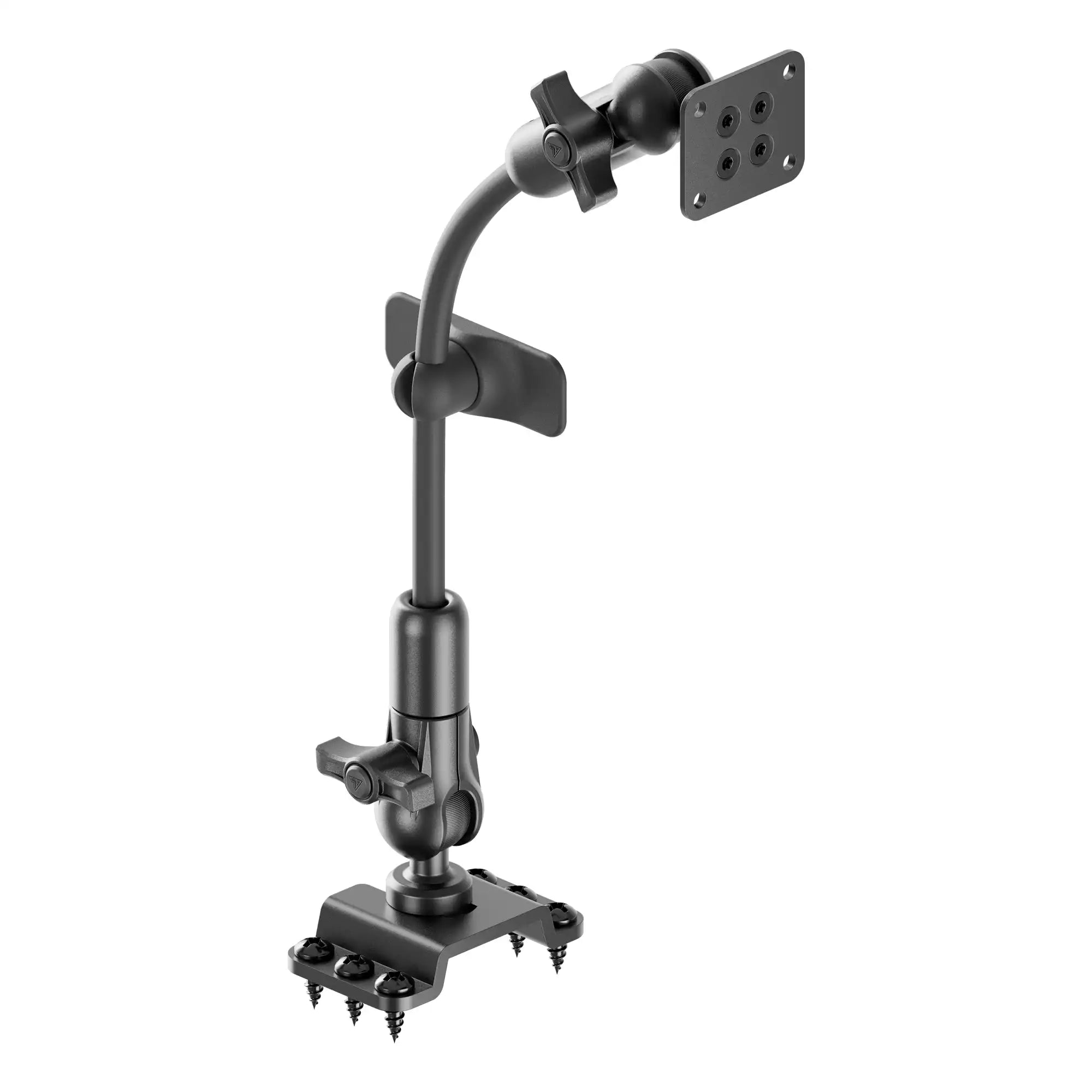

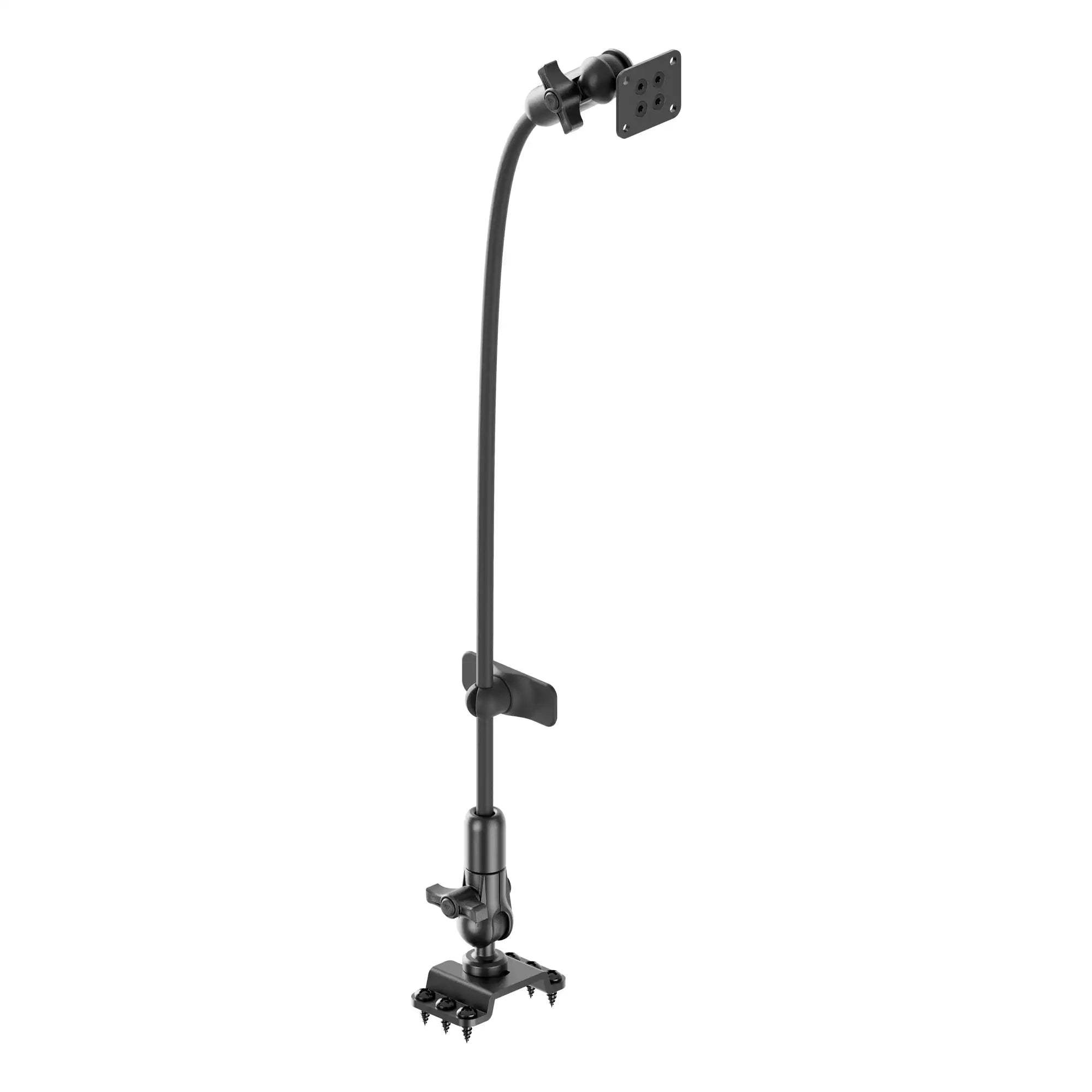

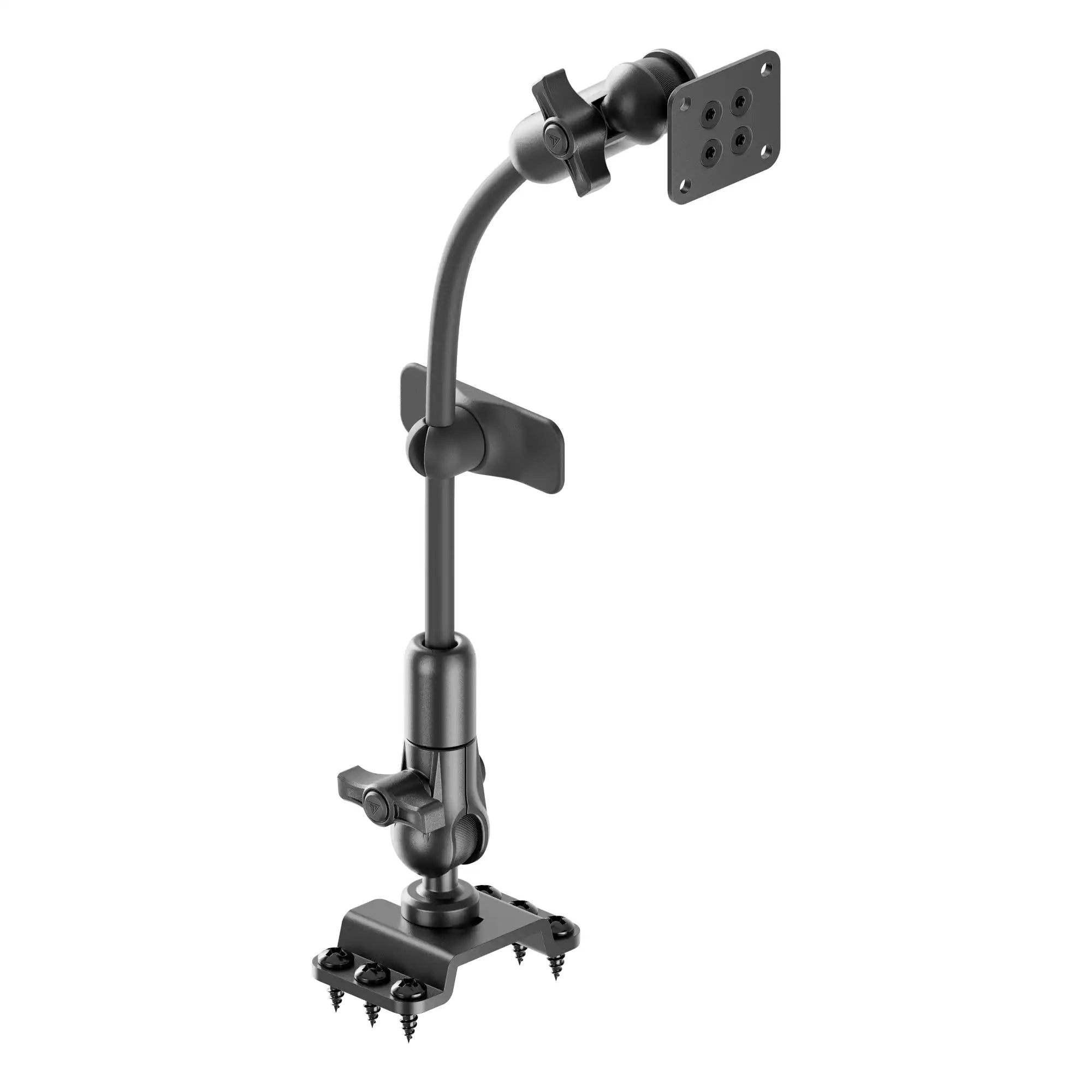

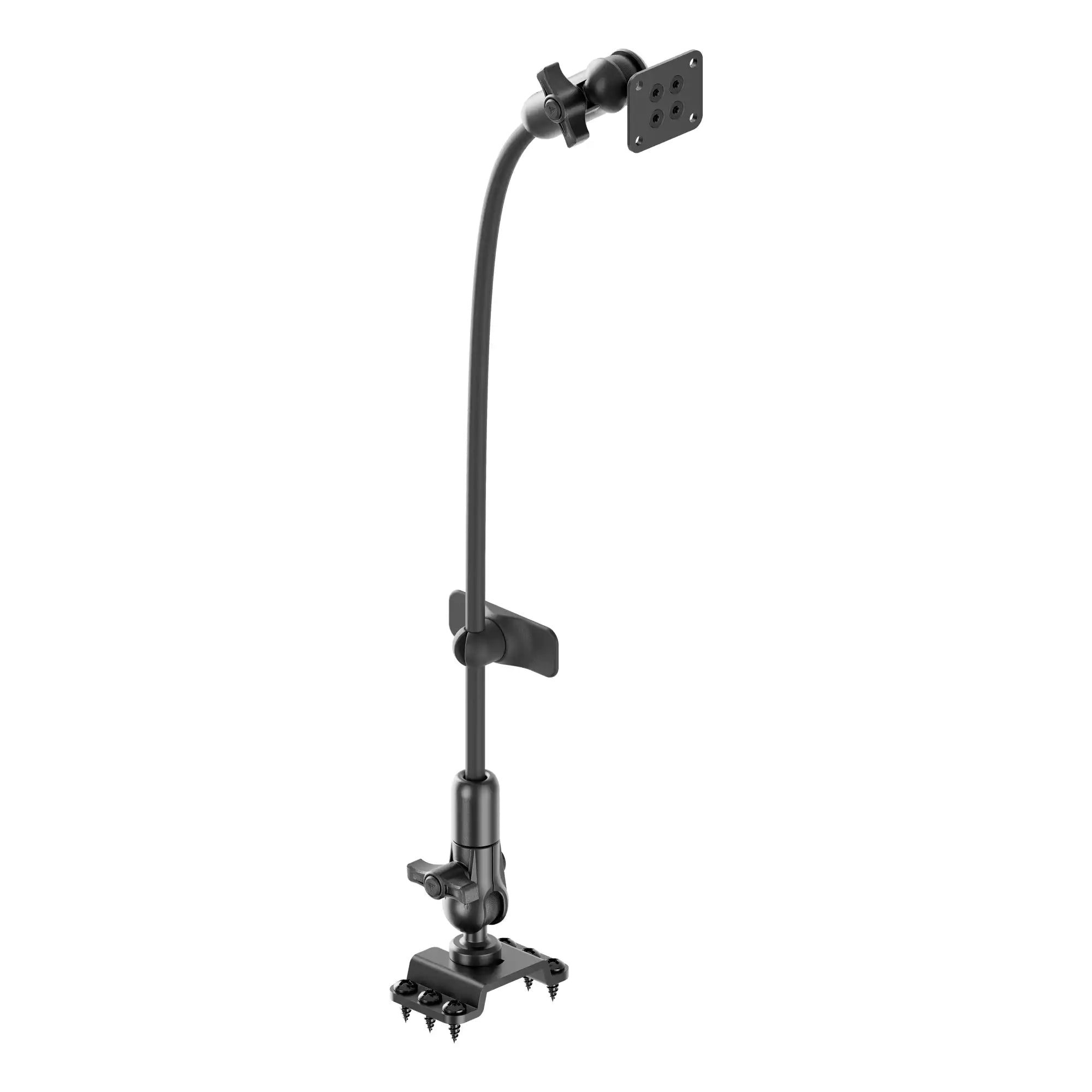

This kit bolts down to the floor of a truck or any other rigid surface and puts an AMPS-pattern device at the end of a rigid flex arm. It is for GPS units, tuners and other AMPS devices that you want held firmly and not stuck on with suction.
Installation uses the included hardware, and a drill bit is provided. Five arm lengths are offered, from 10" to 26".

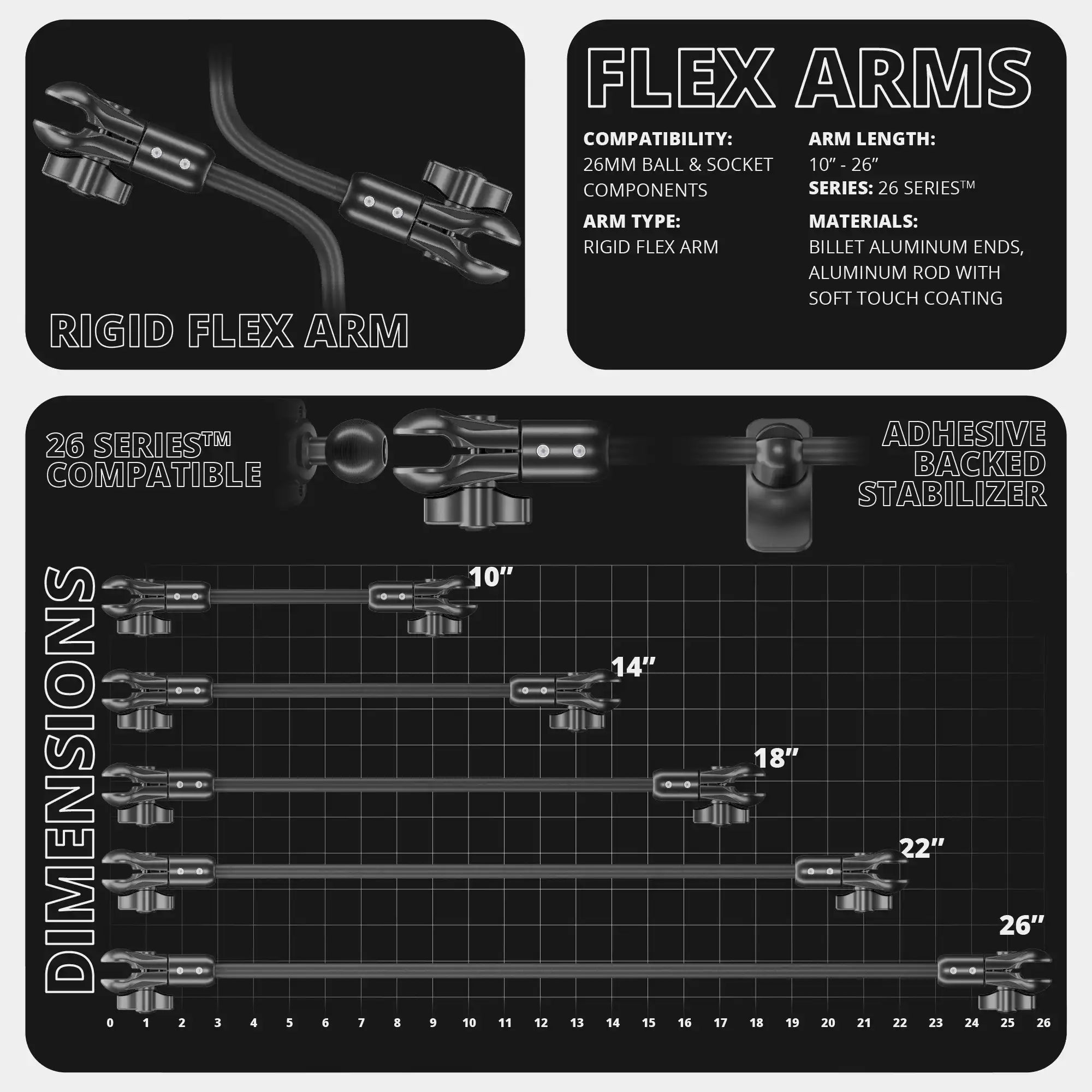

The arm is Tackform's rigid flex style: industrial-grade aluminum that holds its position without sagging. It is meant to be set up and left alone rather than moved around, and it takes two hands to adjust. Long arms can sway on a moving vehicle, so an adhesive-backed stabilizer is included to anchor the arm to your dashboard or center console.
The holder plate uses the industry-standard AMPS hole pattern of 30mm x 38mm (1.181" x 1.496"). The holes take M4, M5, 10-24, 10-32 and #8 plastic screws, plus other self-threading screws up to 5.2mm in diameter. The plate is CNC-machined 6061-T6 aluminum, works with 20mm ball and socket systems, and has a base-to-ball center measurement of 1.14 inches.
Fitment
Not vehicle-specific. It mounts to any rigid surface you can drill, and suits trucks and semis. It uses the 26 Series, 26mm ball system, and Tackform notes it is not suitable for 1" / B-sized / 25.4mm balls. Confirm your device has a 30mm x 38mm AMPS pattern.
Install notes

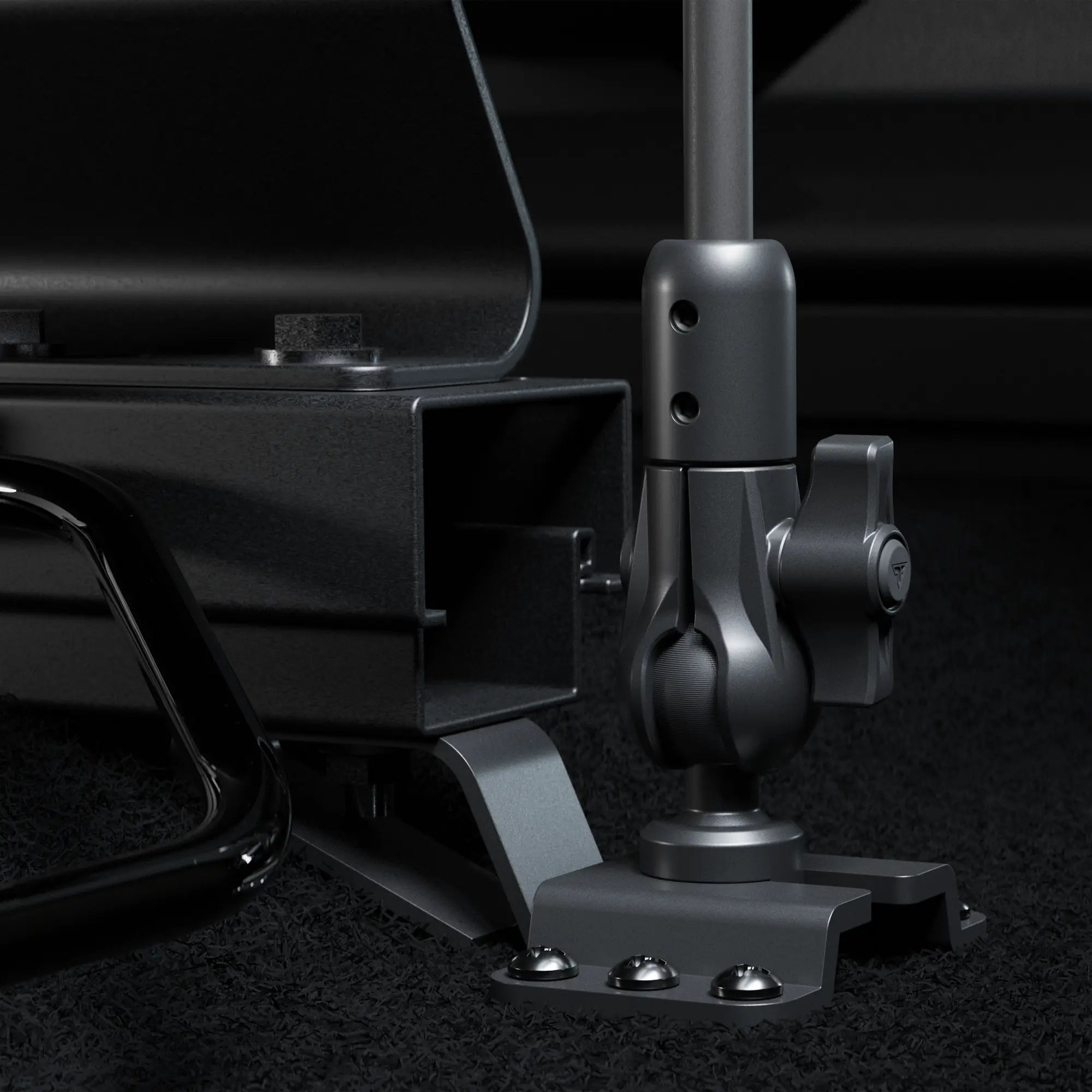

It is a drill-down install, so check what is under the floor or surface first.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Tackform Drill Base Mount with Universal AMPS Holder FAQs
Do I have to drill?
Yes. It installs to the floor or another rigid surface, and the hardware and a drill bit are included.
How long are the arms?
10, 14, 18, 22 or 26 inches.
Does the arm move easily?
No. It is rigid and takes two hands to adjust, so set it up and leave it.
Will it fit a Garmin or Dynojet?
Only if the device has a 30mm x 38mm AMPS pattern, so check yours.
