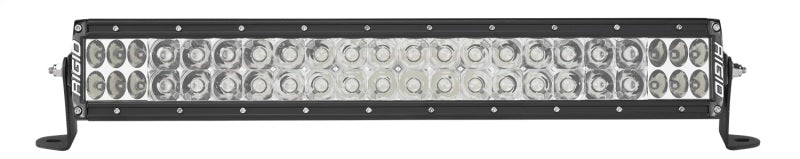

RIGID E-Series PRO 20 in. LED Light Bar, Spot/Driving Combo
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
RIGID warranty summary coming soon.
RIGID E-Series PRO 20 in. LED Light Bar, Spot/Driving Combo
A 20 in. RIGID E-Series PRO double-row light bar with a driving/hyperspot combo optic and a harness in the box. It pairs 34,848 raw lumens with a long reach of 740 m to 1 lux.
| Spec | Detail |
|---|---|
| Fitment | Universal |
| Length | 20 in. |
| Optic | Driving/Hyperspot combo |
| Raw Lumens | 34,848 |
| Power | 319 W |
| Current Draw | 22.79 A |
| Beam Spread | 25.5 degrees H x 16.5 degrees V |
| Peak Intensity | 548,042 cd |
| Weight | 6.1 lb |
Ships with mounting hardware and a harness. At 22.79 A, plan wiring, fuse and relay for the load. Runs on 9-36 V DC. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.
Is a harness included?
Yes, the package lists the light, mounting hardware and a harness.
How far does it reach?
The listed distance to 1 lux is 740 m.
How much power does it draw?
22.79 A at 319 W.
What is the warranty?
Coverage depends on the product line; see our RIGID warranty page for the term that applies.
Specifications
RIGID E-Series PRO 20 in. LED Light Bar, Spot/Driving Combo FAQs
Is a harness included?
Yes, the package lists the light, mounting hardware and a harness.
How far does it reach?
The listed distance to 1 lux is 740 m.
How much power does it draw?
22.79 A at 319 W.
What is the warranty?
Coverage depends on the product line; see our RIGID warranty page for the term that applies.
