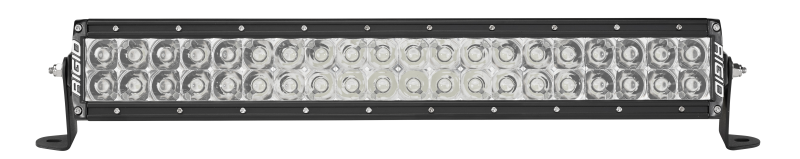

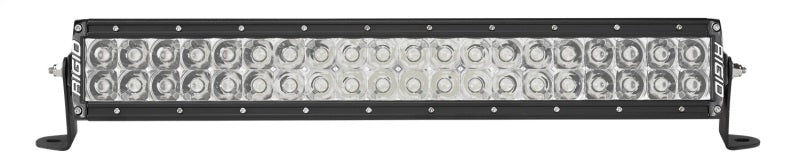

RIGID E-Series PRO 20 in. LED Light Bar, Spot
A 20 in. RIGID E-Series PRO double-row light bar with a spot optic and a harness in the box. It holds a tight 14 by 12 degree beam for the longest throw in the 20 in. E-Series range.
| Spec | Detail |
|---|---|
| Fitment | Universal |
| Length | 20 in. |
| Optic | Spot |
| Raw Lumens | 20,344 |
| Power | 156 W |
| Current Draw | 11.14 A |
| Beam Spread | 13.6 degrees H x 12.3 degrees V |
| Peak Intensity | 569,046 cd |
| Weight | 6.1 lb |
Ships with mounting hardware and a harness. Plan for the 11.14 A draw; runs on 9-36 V DC. Not sure it fits your build? Call real humans at (920) 249-7744 with your year, trim and setup and we will confirm it.
Is a harness included?
Yes, the package lists the light, mounting hardware and a harness.
How far does it reach?
The listed distance to 1 lux is 754 m.
How narrow is the beam?
About 13.6 degrees horizontal by 12.3 degrees vertical.
What is the warranty?
Coverage depends on the product line; see our RIGID warranty page for the term that applies.
Specifications
RIGID E-Series PRO 20 in. LED Light Bar, Spot FAQs
Is a harness included?
Yes, the package lists the light, mounting hardware and a harness.
How far does it reach?
The listed distance to 1 lux is 754 m.
How narrow is the beam?
About 13.6 degrees horizontal by 12.3 degrees vertical.
What is the warranty?
Coverage depends on the product line; see our RIGID warranty page for the term that applies.
