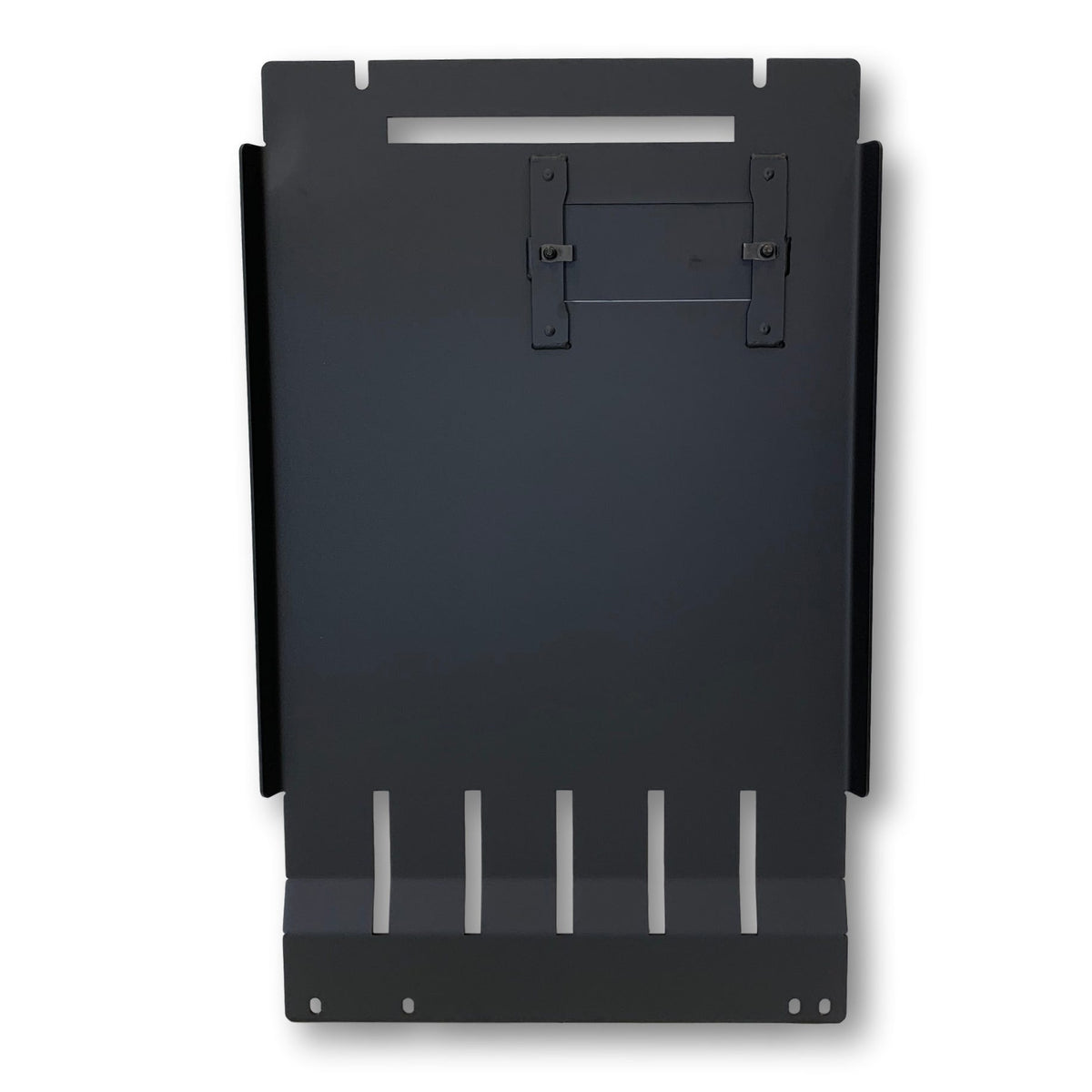

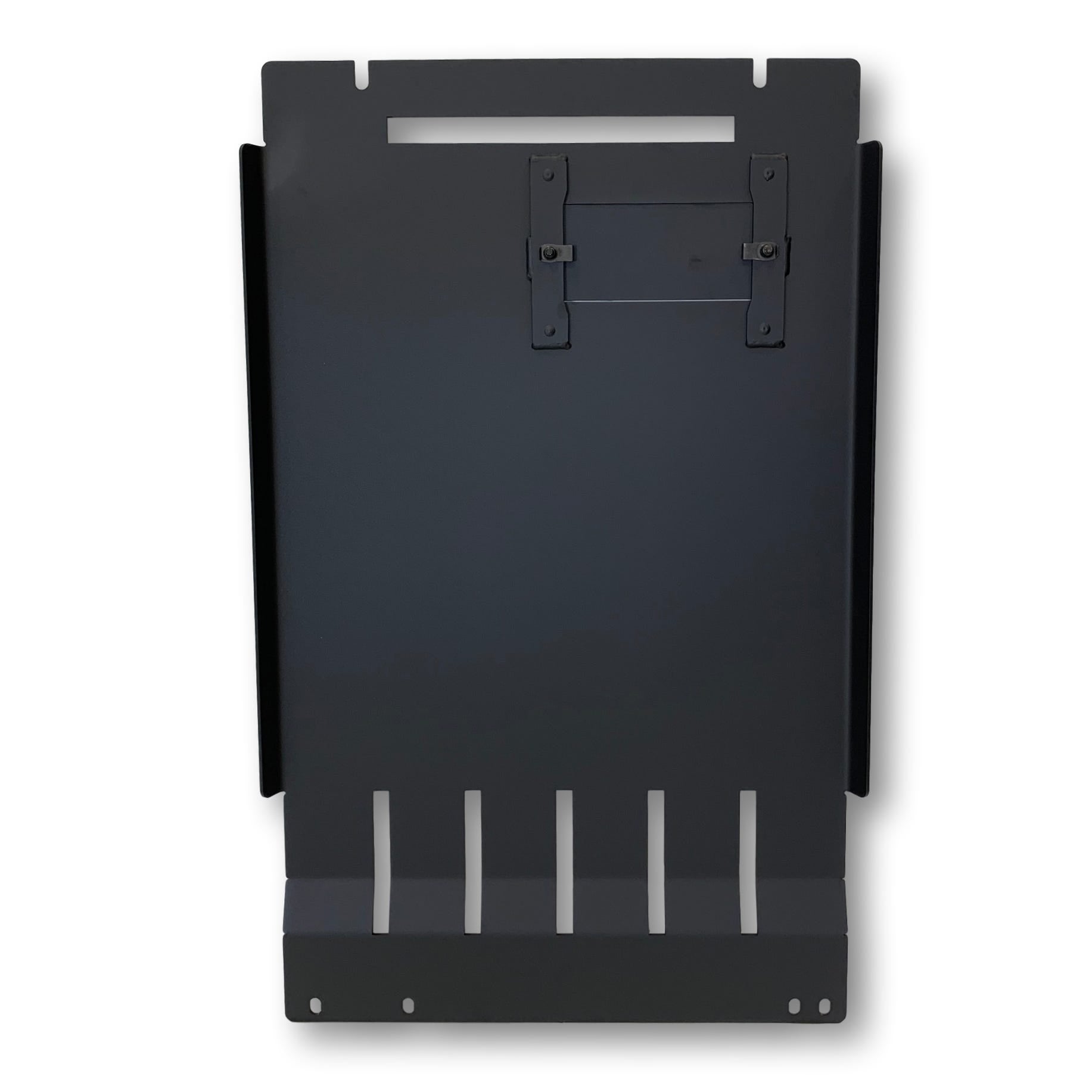

RCI Transmission Skid Plate - 2009-Present Ford F-150
Warranty Information
Vendor warranty summary
RCI Metalworks Warranty
At a glance: Lifetime structural warranty for the original purchaser; 180 days on powder coat
This is RCI Metalworks' warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 14, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Structure (skid plates, sliders, racks and other RCI-made parts) against defects in material and craftsmanship | Lifetime, original purchaser |
| Powder coat finish (peeling, bubbling, light areas) | 180 days |
What's covered
- Defects in material and craftsmanship on the part's structure, for as long as the original purchaser owns it
- Powder coat that peels, bubbles or shows light areas within 180 days, as determined by RCI
- RCI repairs or replaces the part at its discretion after inspecting it
What's not covered
- Improper installation, alteration, abuse, neglect or accidents
- Corrosion and normal wear
- Off-road damage (with some exceptions RCI decides case by case)
- Freight, labor, installation or downtime costs
- Hook marks from hanging parts for coating, unless the finish fails
How to make an RCI warranty claim
- Write a description of the damage and take clear photos
- Include a copy of the original invoice
- RCI inspects the part and decides whether to repair or replace it
RCI contact: RCI warranty page
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to RCI, and help it along either way.
See all RCI Metalworks products, lead times and FAQs →
Disclaimer: The information on this page describes RCI Metalworks' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: RCI Metalworks official warranty. Last updated on nvmos.com: October 14, 2026. See our return policy for NVMOS's own terms.

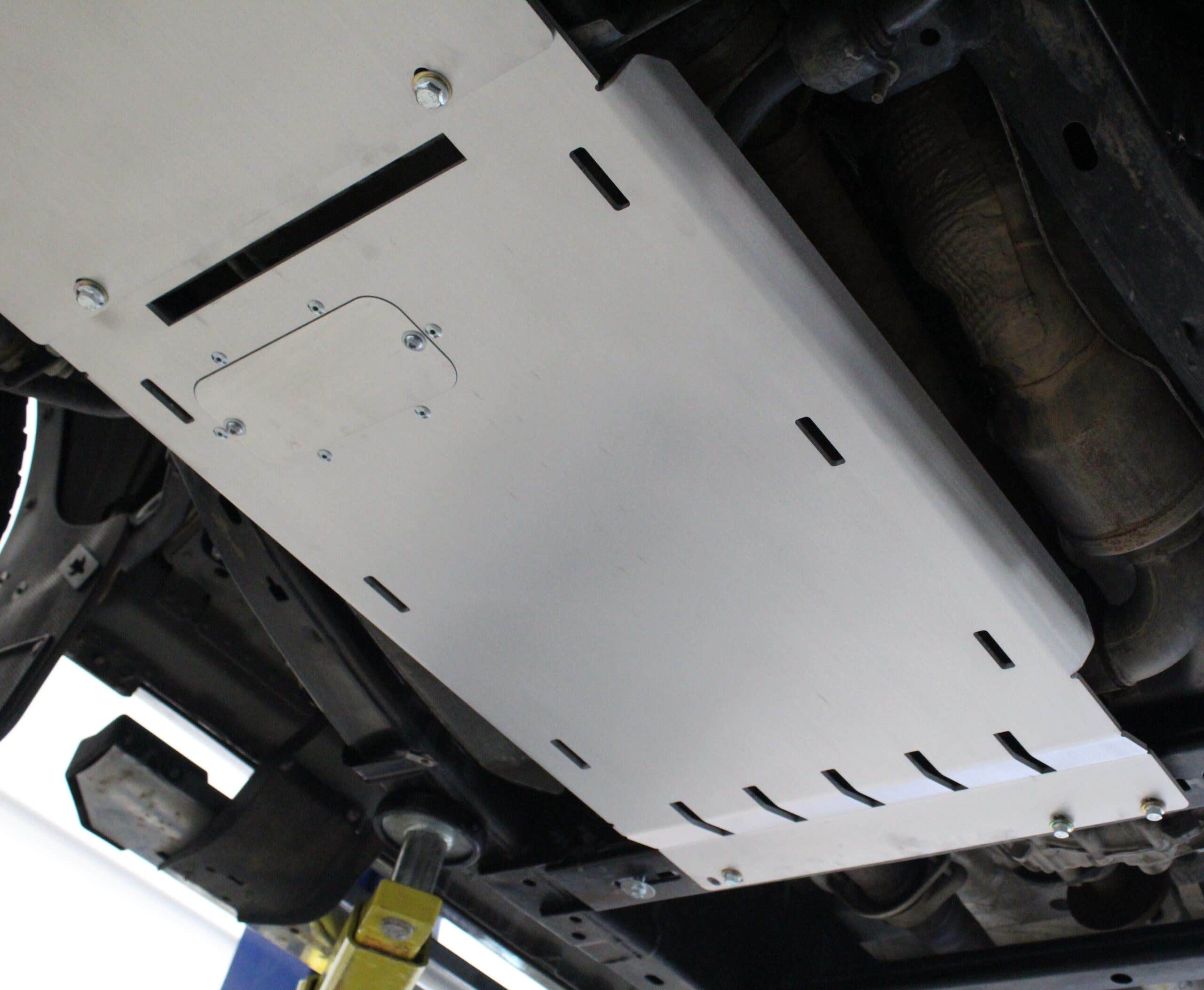

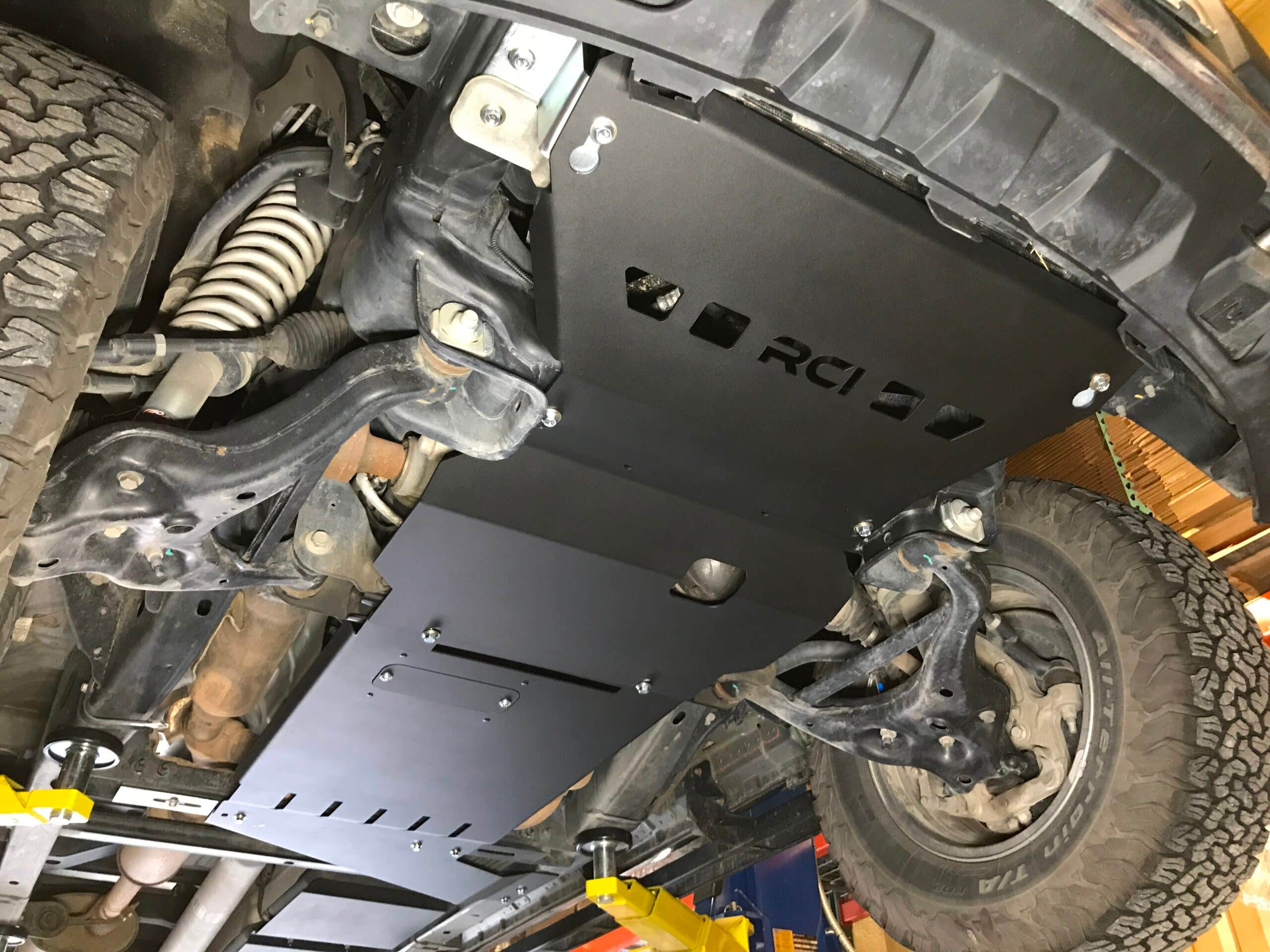

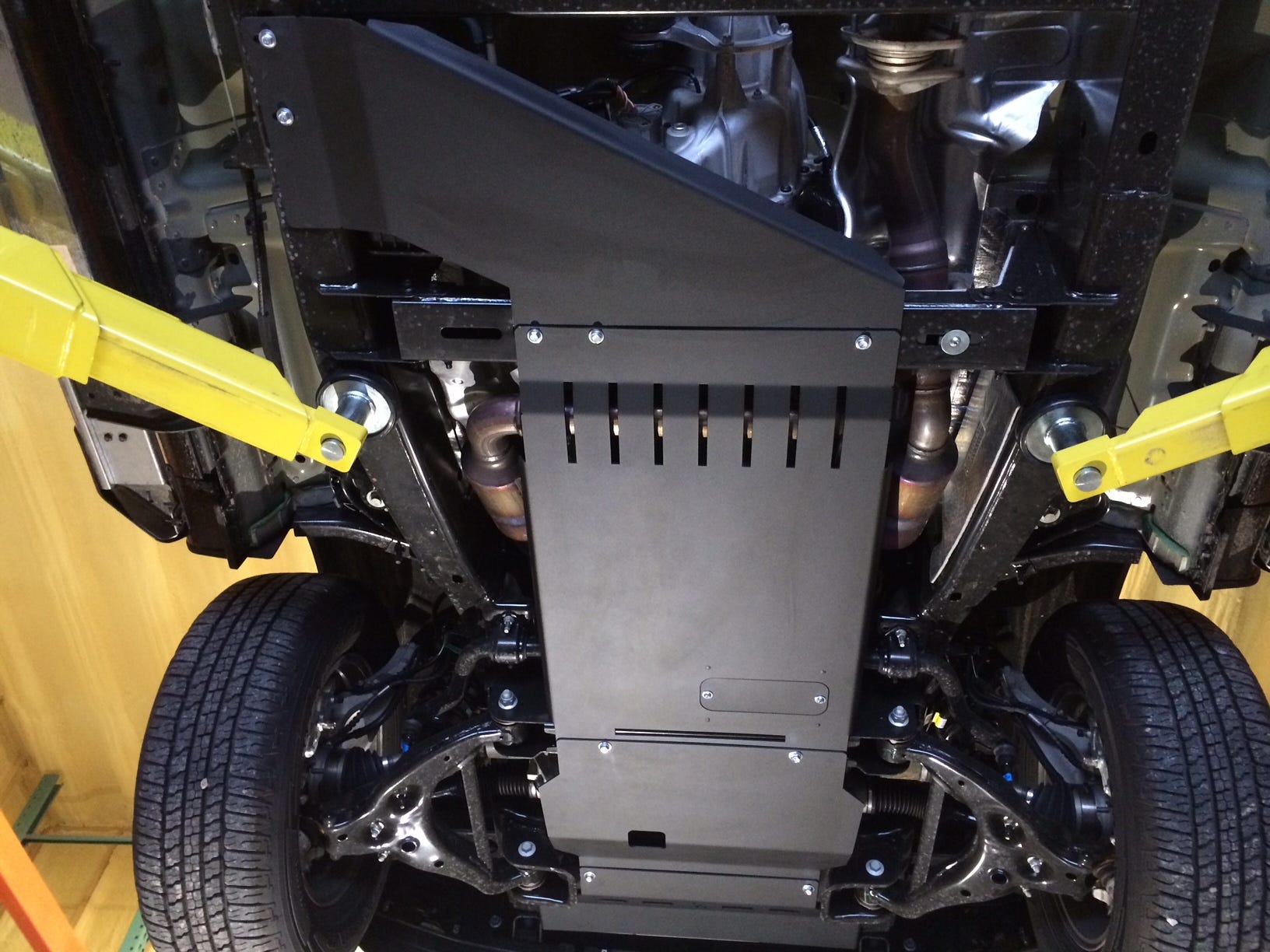

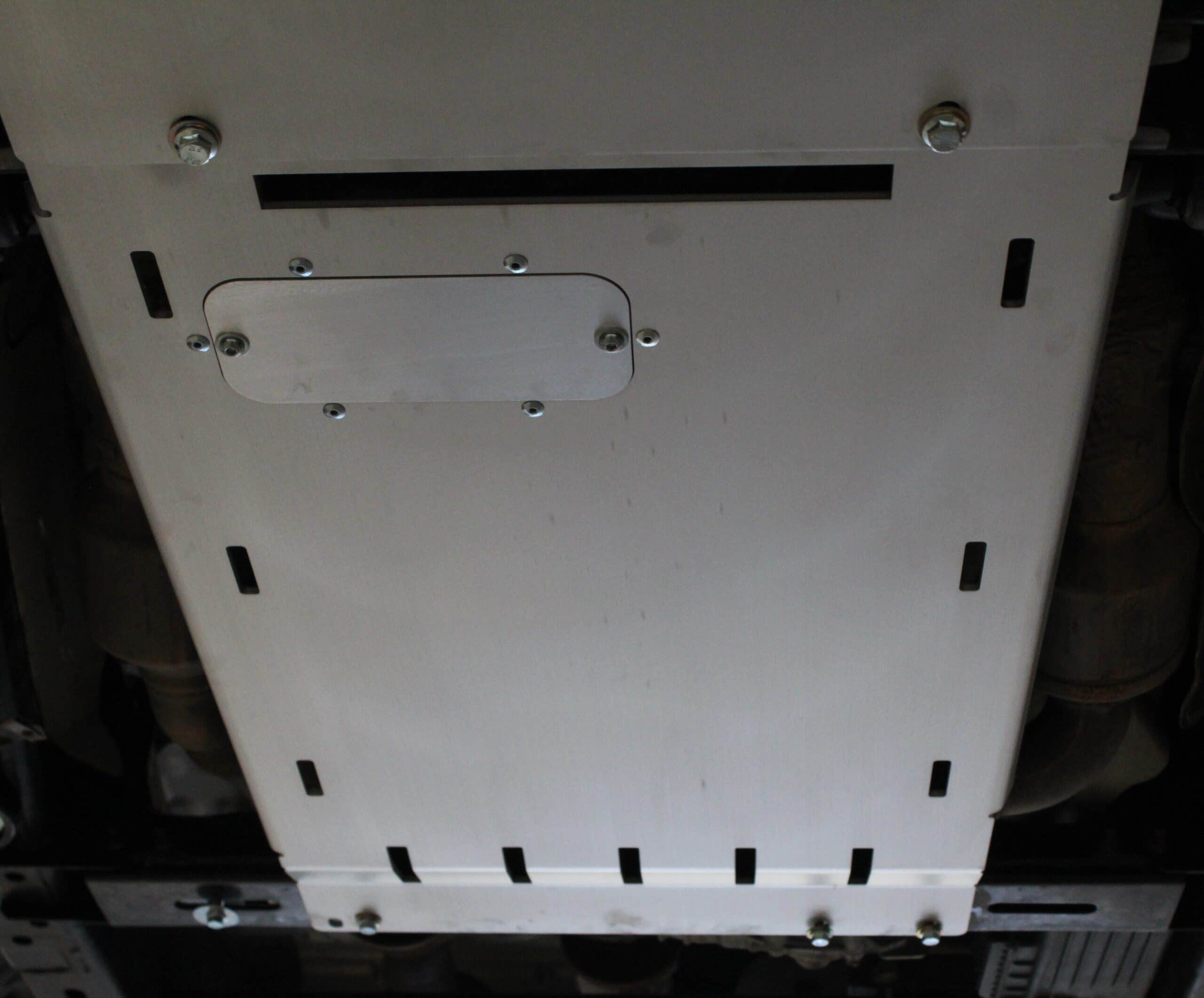

Ford's factory transmission cover on the F-150 is a compressed fiber board panel, and it has a reputation for soaking up water and dropping off. This RCI Metalworks plate replaces it with steel or aluminum that covers roughly twice the area of the partial OEM cover, protecting the transmission, exhaust and oil pan. It works as a stand-alone piece or alongside RCI front and transfer-case skid plates.

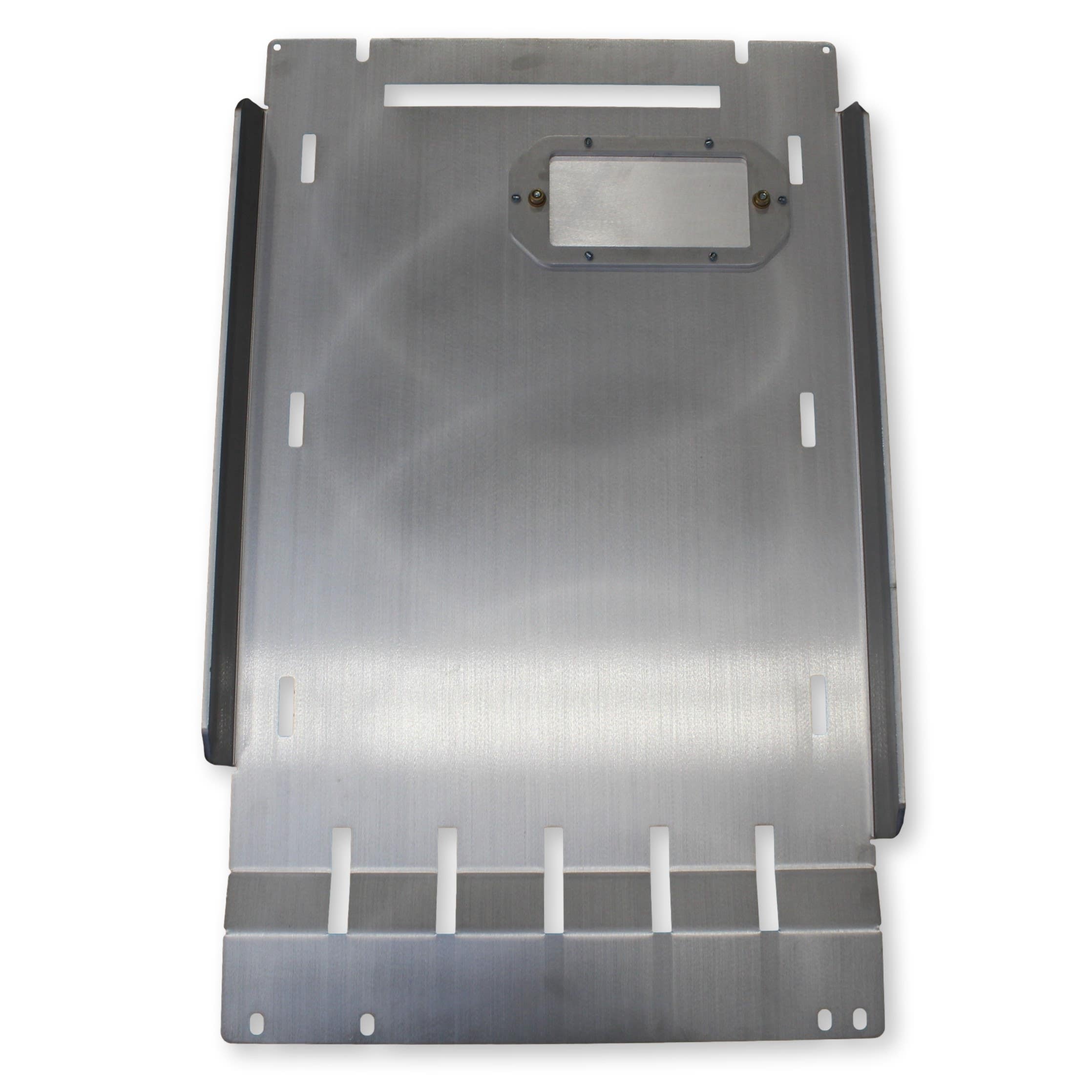

Built-in cooling vents keep air moving around the exhaust, and the underside is smooth and flat so it slides over rocks and ledges instead of catching on them. A flush-mount oil drain door means oil changes do not require pulling the plate, with one condition covered below.
Fitment
Fits 4x4 F-150s from 2009 to present with the 5.0 V8, 3.5L EcoBoost, 2.7L EcoBoost or the 3.3L engine. It does not fit PowerBoost hybrids; there is a separate PowerBoost version. It will not fit with drop bracket lift kits. EcoBoost and diesel trucks need a Fumoto or Ronin oil change valve to use the drain door, and 2.7L EcoBoost and diesel trucks must remove the plate for oil service without one.
Options

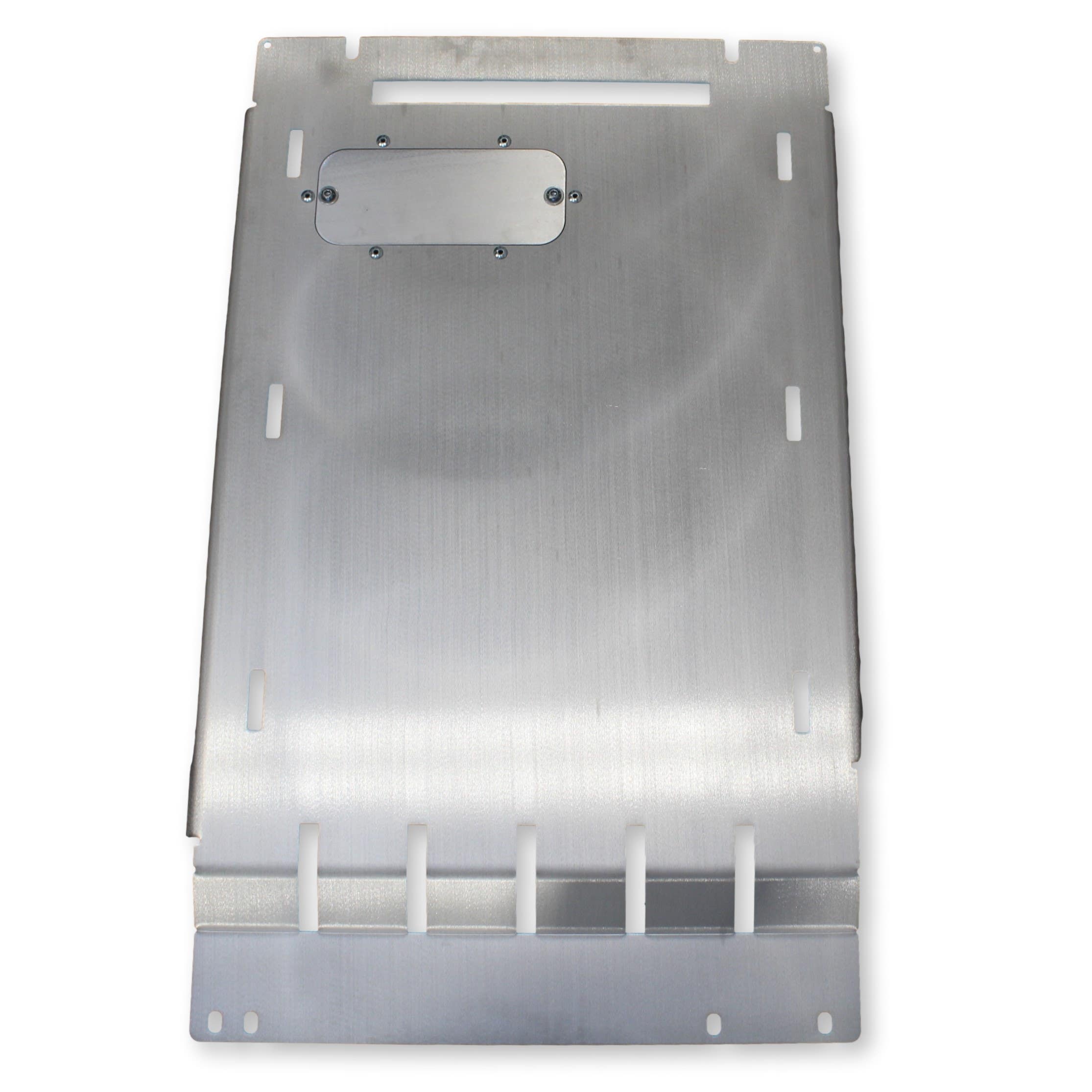

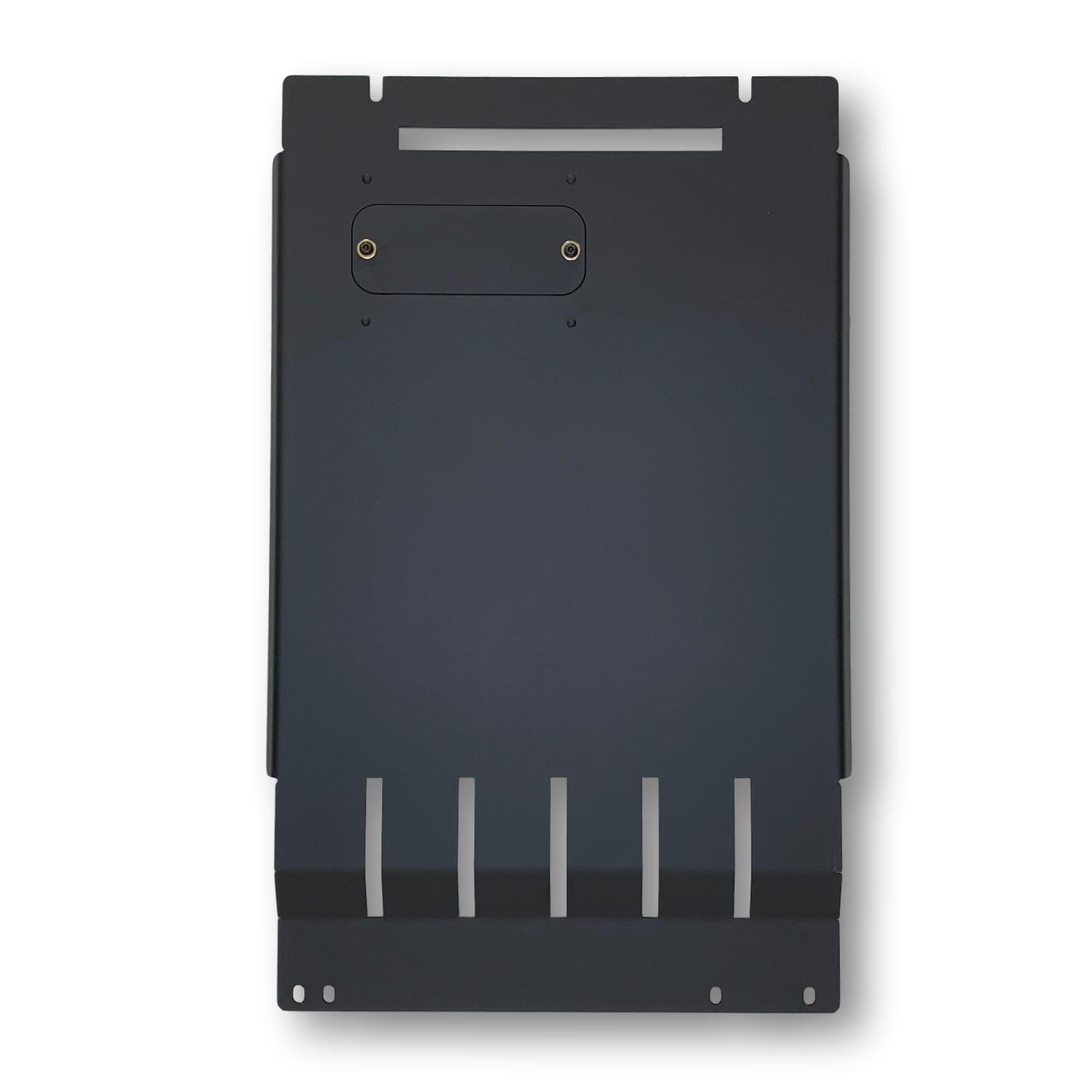

Choose 1/4" aluminum (bare or satin black powdercoat) or 10 gauge steel with a satin black powdercoat. Aluminum weighs 20 lbs and steel weighs 30 lbs.
Install notes
It bolts to factory attachment points with basic tools and no drilling. Hardware and instructions come with it. Made in the USA.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Complete your F-150 build
More parts that fit your F-150 and pair well with this one — matched and ready to install.
$369.00
$85.99
$85.99
$85.99
$85.99
More for your Ford F-150
Picked from the 592 parts we carry for the Ford F-150. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
RCI Transmission Skid Plate FAQs
Does it fit PowerBoost F-150s?
No. This plate is for the 5.0 V8, 3.5L EcoBoost, 2.7L EcoBoost and 3.3L 4x4 trucks. RCI lists a separate PowerBoost transmission skid plate.
Can I change oil with it installed?
Yes, through the flush-mount drain door. EcoBoost and diesel trucks need a Fumoto or Ronin oil change valve for that to work; 2.7L EcoBoost and diesel trucks need to remove the plate for oil service without one.
Does it need drilling?
No. It attaches to factory attachment points with basic tools.
Will it work with a lift kit?
Not with drop bracket lift kits.
