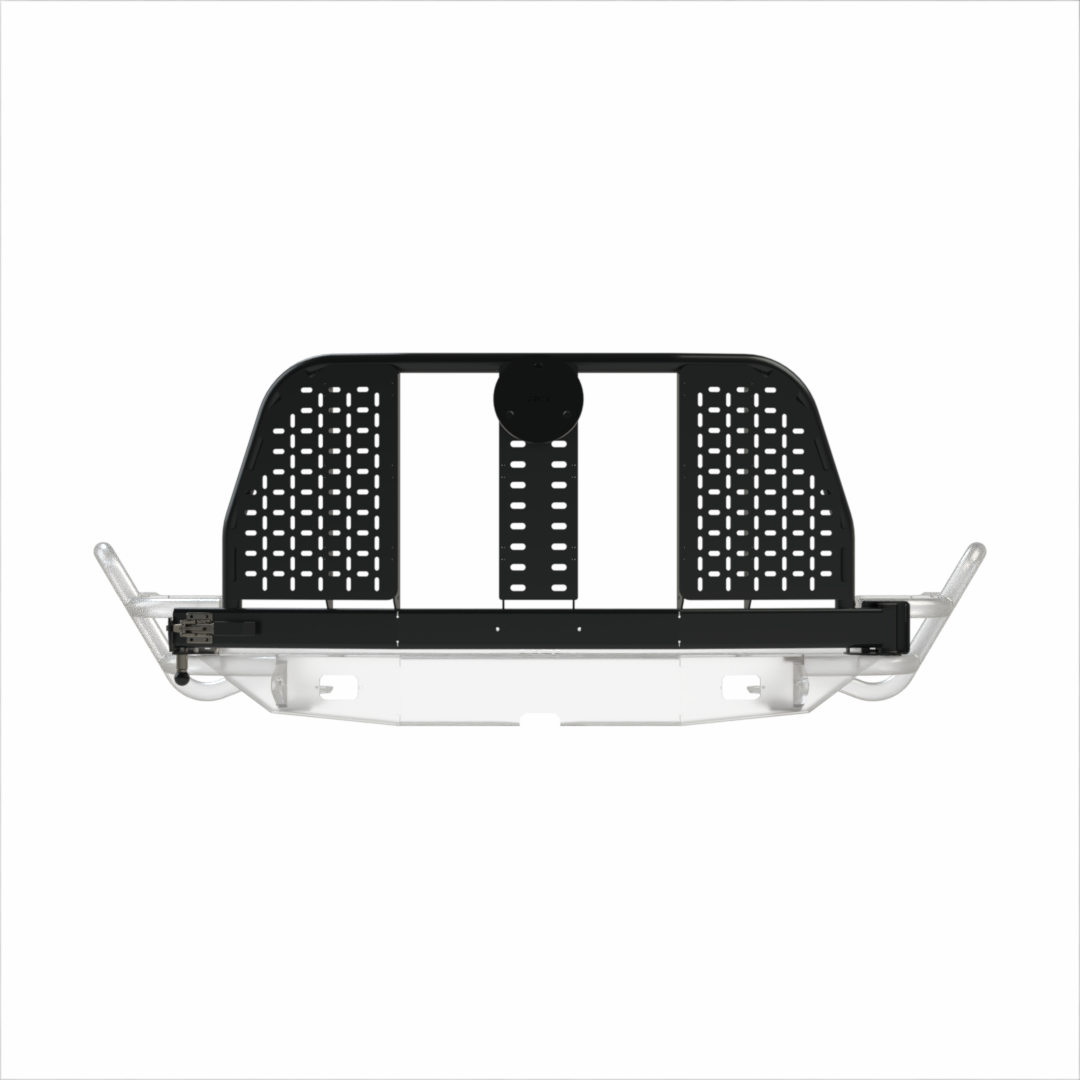

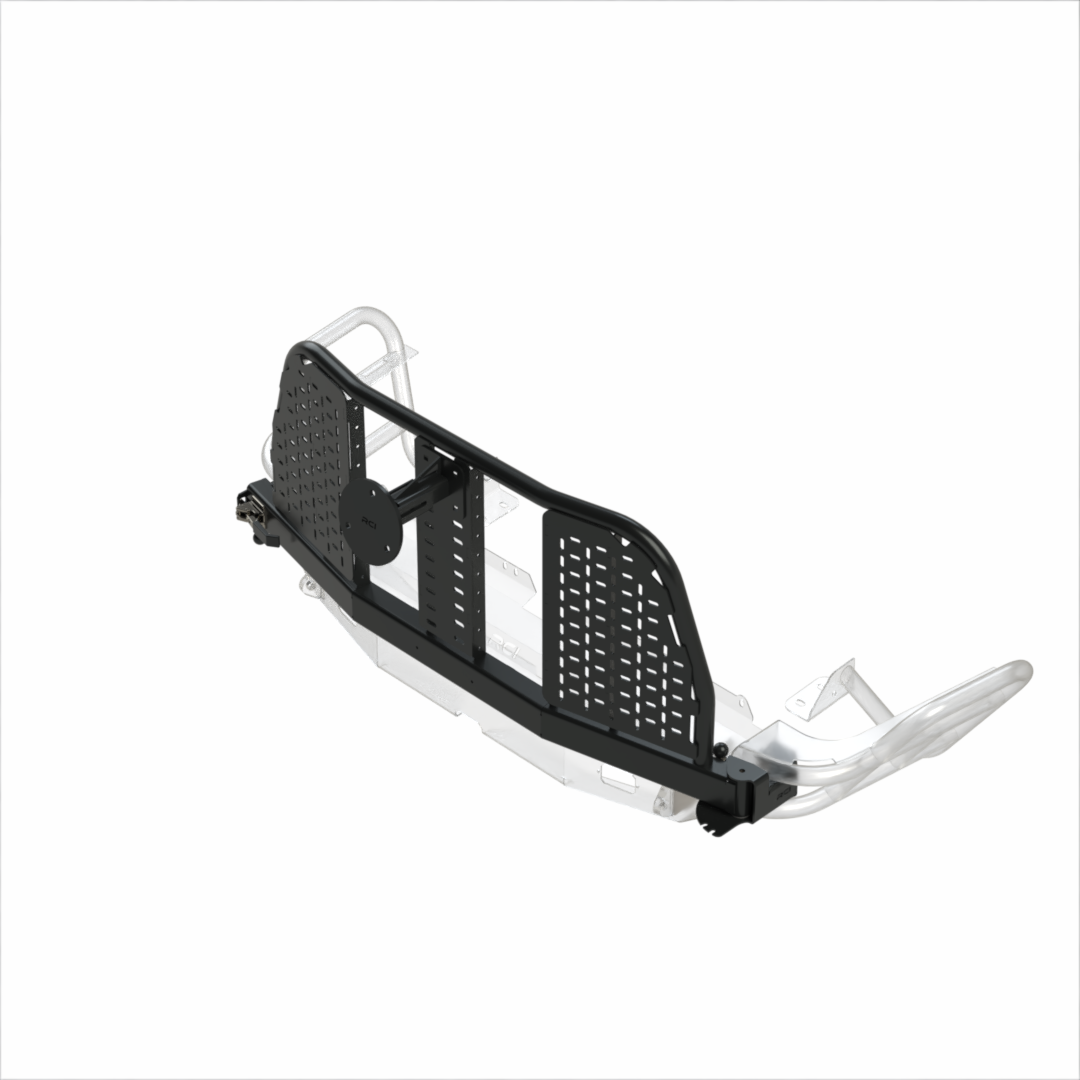

RCI Rear Bumper Swing Out - 2010-2020 Toyota 4Runner
Warranty Information
Vendor warranty summary
RCI Metalworks Warranty
At a glance: Lifetime structural warranty for the original purchaser; 180 days on powder coat
This is RCI Metalworks' warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 14, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Structure (skid plates, sliders, racks and other RCI-made parts) against defects in material and craftsmanship | Lifetime, original purchaser |
| Powder coat finish (peeling, bubbling, light areas) | 180 days |
What's covered
- Defects in material and craftsmanship on the part's structure, for as long as the original purchaser owns it
- Powder coat that peels, bubbles or shows light areas within 180 days, as determined by RCI
- RCI repairs or replaces the part at its discretion after inspecting it
What's not covered
- Improper installation, alteration, abuse, neglect or accidents
- Corrosion and normal wear
- Off-road damage (with some exceptions RCI decides case by case)
- Freight, labor, installation or downtime costs
- Hook marks from hanging parts for coating, unless the finish fails
How to make an RCI warranty claim
- Write a description of the damage and take clear photos
- Include a copy of the original invoice
- RCI inspects the part and decides whether to repair or replace it
RCI contact: RCI warranty page
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to RCI, and help it along either way.
See all RCI Metalworks products, lead times and FAQs →
Disclaimer: The information on this page describes RCI Metalworks' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: RCI Metalworks official warranty. Last updated on nvmos.com: October 14, 2026. See our return policy for NVMOS's own terms.

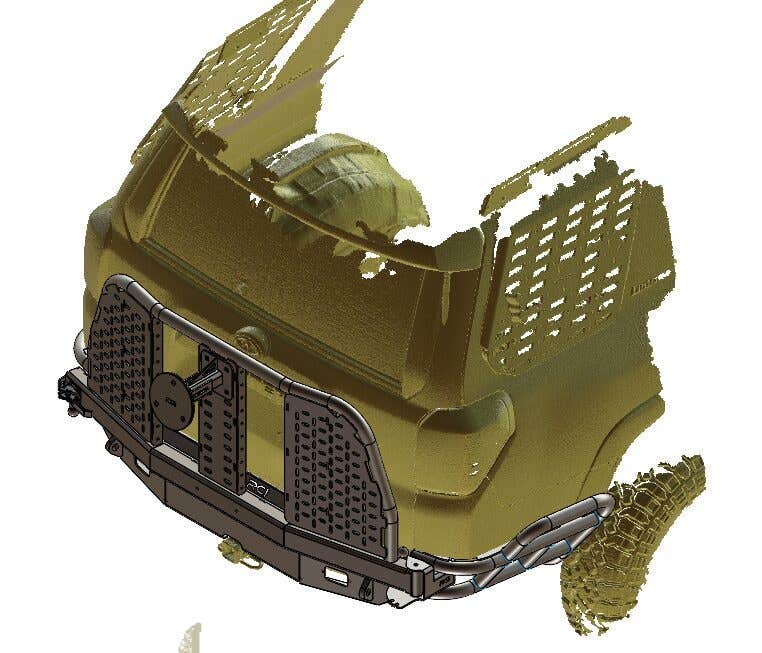

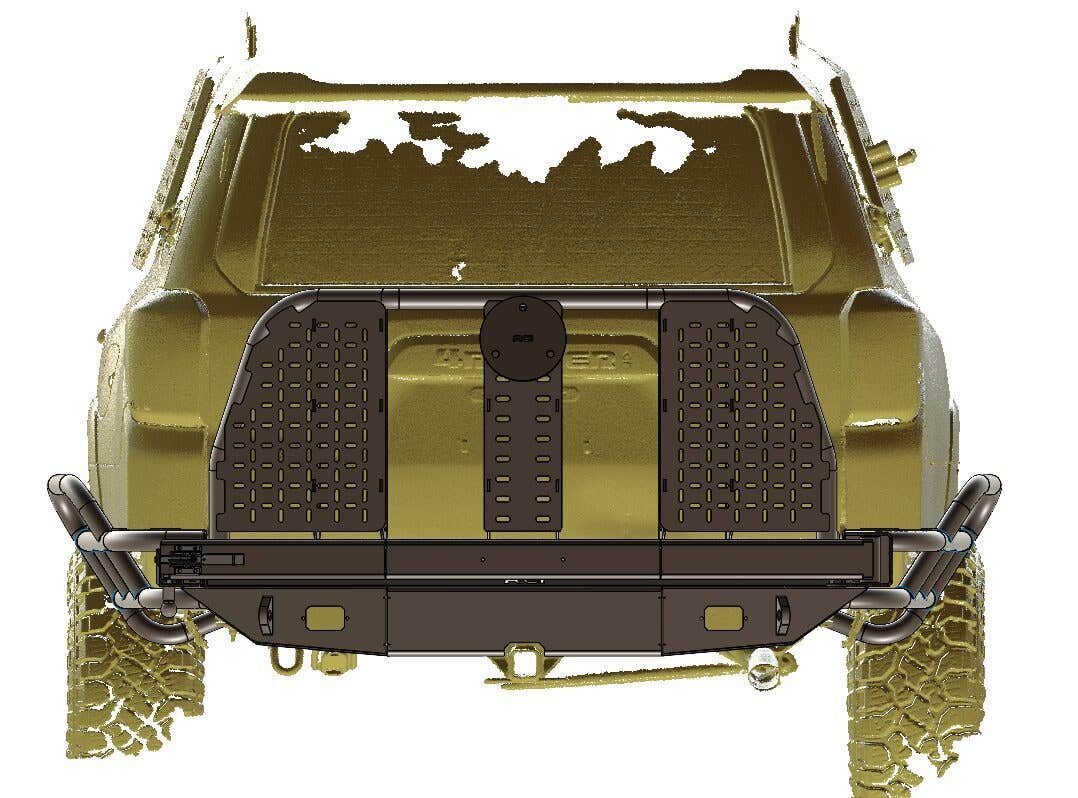

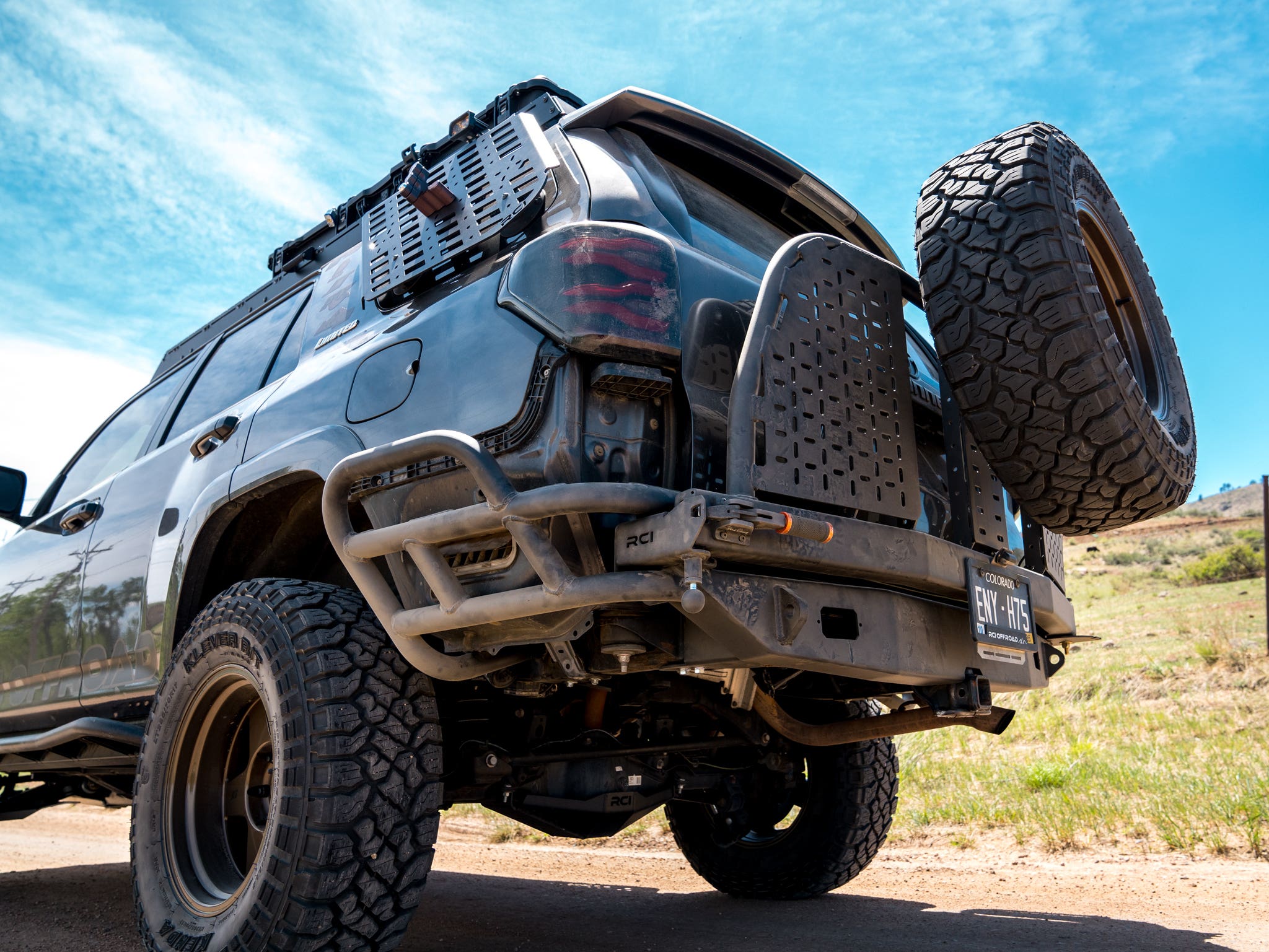

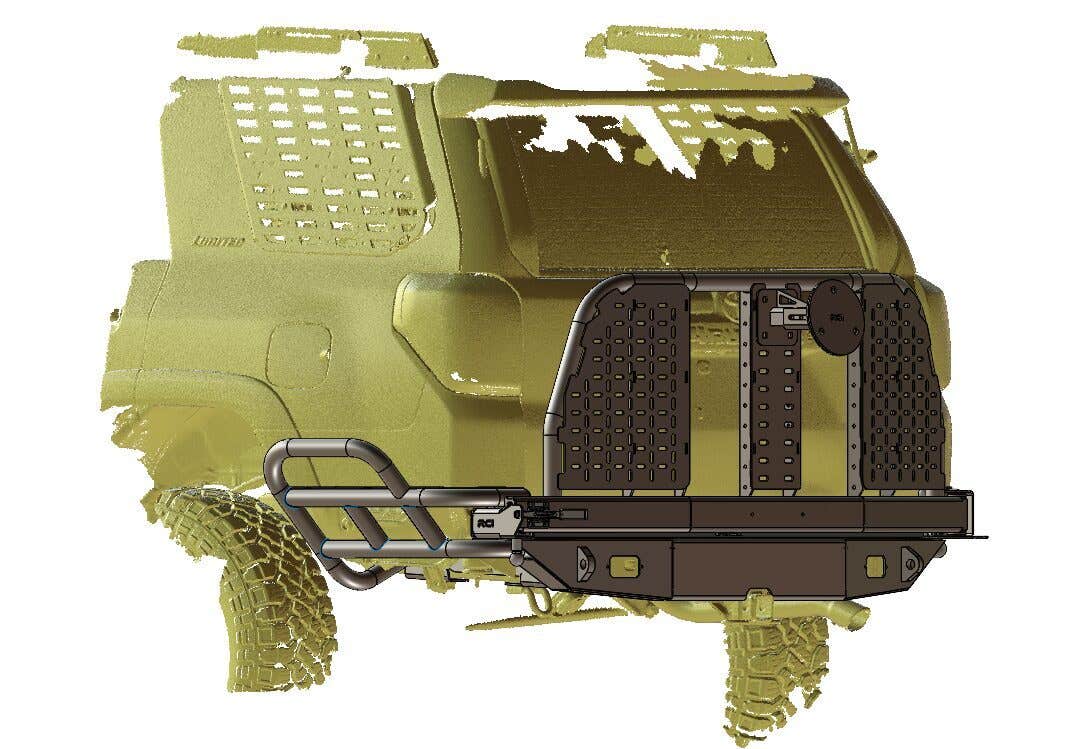

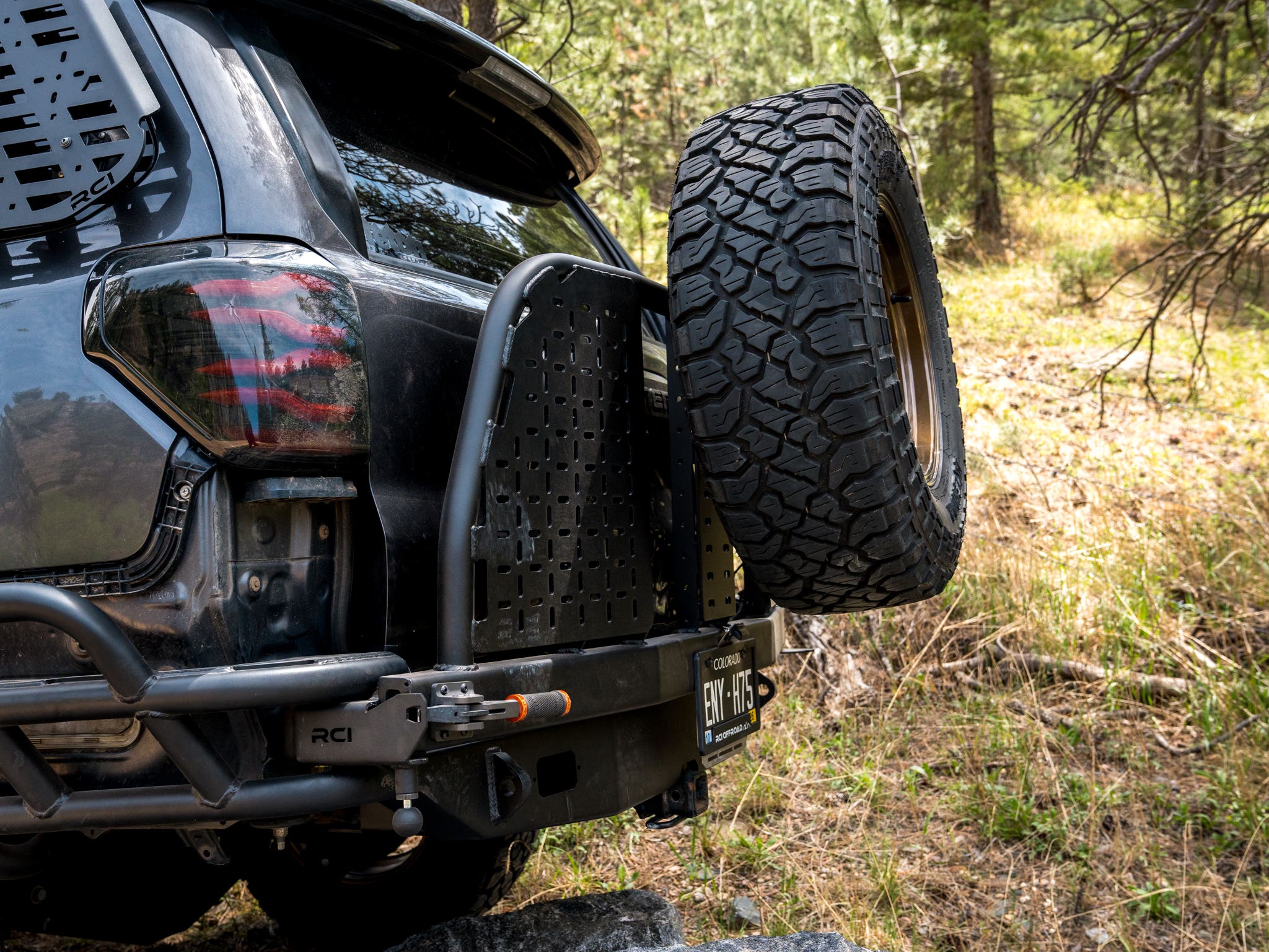

This is a swing-out rear tire carrier for the 5th generation 4Runner, built to put the spare on the back and still let the hatch open. The carrier is built from 1.75 inch DOM tubing to take the weight of a tire and whatever else you hang on it, and the pivot is a dual shear hinge with a Delrin bushing so it turns smoothly. A spring-loaded safety pin locks it closed.

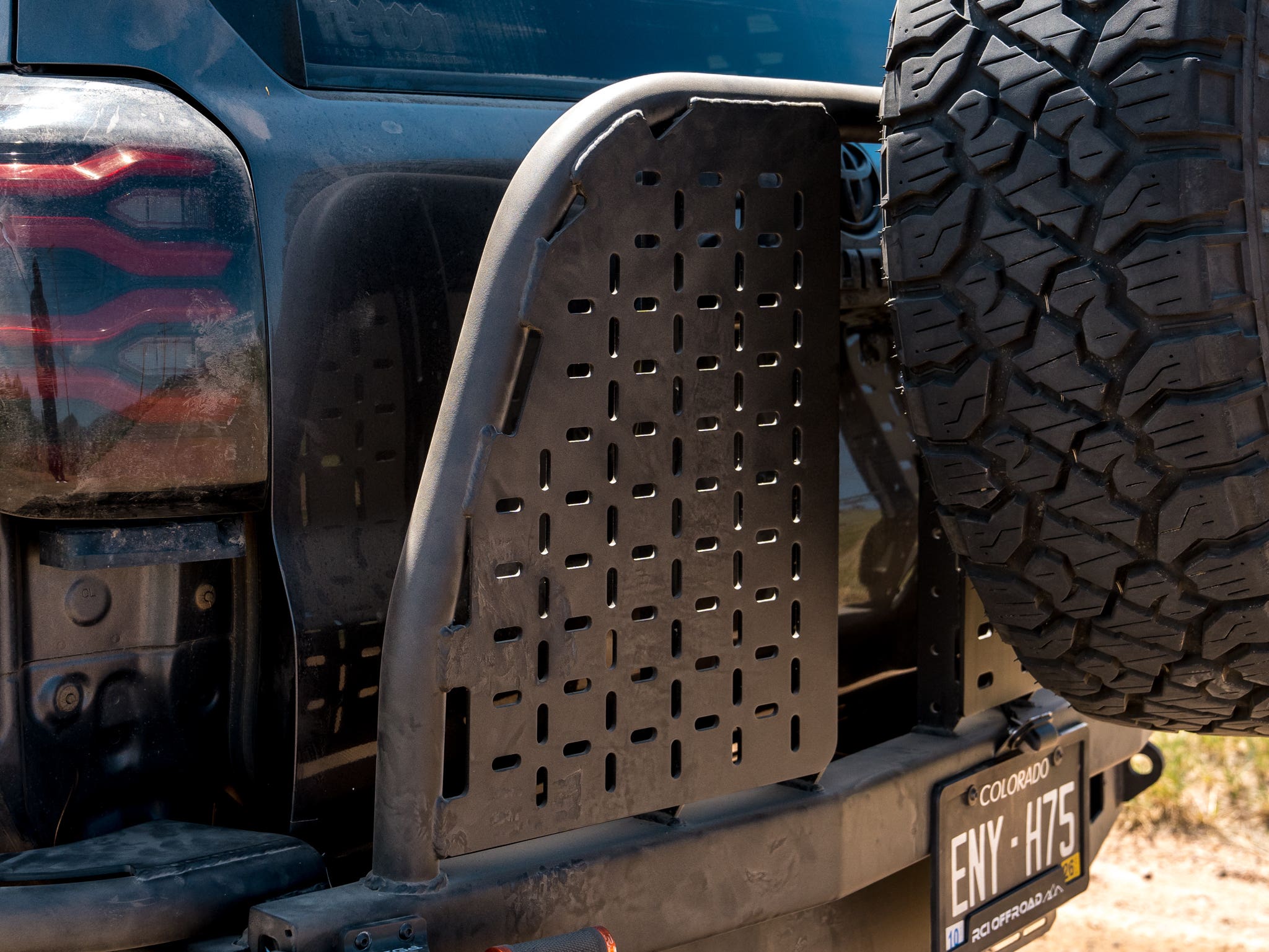

It also works as a gear platform. A rigid accessory panel is built in with RotoPax mounting locations, so you can carry fuel or water containers and other accessories alongside the tire. An adjustable tire mount is included and holds tires up to 35 inches. The finish is a heavy duty satin black textured powder coat, and bare metal is also offered. It is made in the USA and made to order, so it ships on a lead time rather than from stock.
Fitment
Listed for the 2010-2020 Toyota 4Runner, and RCI says it is compatible with its 2010-2020 RCI Offroad 4Runner rear bumper. It is a direct bolt-on to the existing attachment points on the rear bumper, with no drilling.
Install notes
The swing out alone weighs 105 lb before a tire goes on it, so plan on a helper and a jack or lift. RCI publishes an installation guide for the 10-20 4Runner rear tire swingout.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Complete your Toyota 4Runner build
More parts that fit your Toyota 4Runner and pair well with this one — matched and ready to install.
$999.00
$16.99
$1,287.00
$85.99
$85.99
More for your Toyota 4Runner
Picked from the 1118 parts we carry for the Toyota 4Runner, matched to 2010–2020 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
RCI Rear Bumper Swing Out FAQs
Do I need to drill the bumper?
No. It bolts to existing attachment points on the rear bumper.
What size tire does it hold?
The included adjustable tire mount holds up to a 35 inch tire.
Does it work with the stock bumper?
RCI lists it as compatible with its 2010-2020 RCI Offroad 4Runner rear bumper. Call us if you are running something different and we will check.
How long until it ships?
It is made to order and ships on a lead time. RCI posts current lead times on its website, and we can check the latest for you.
