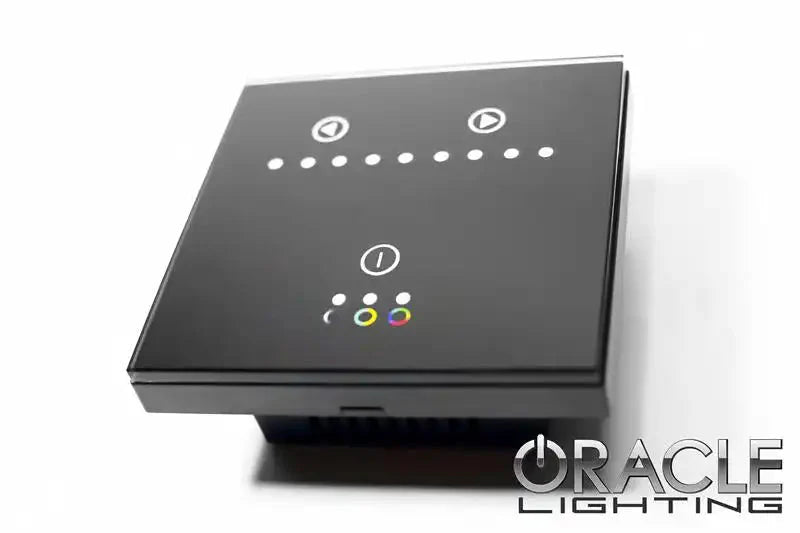

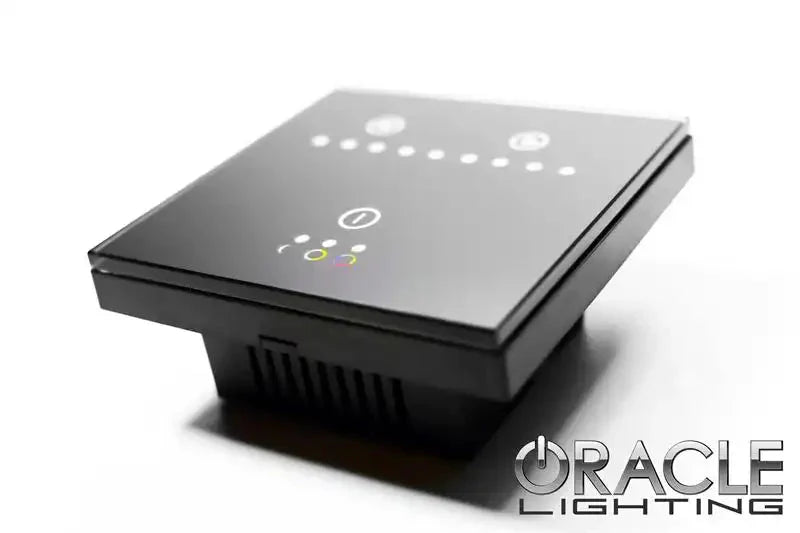

ORACLE Smart Touch Multi Function LED Controller

The ORACLE Smart Touch Multi Function LED Controller is a high-end RGB dimmer built around a sleek glass touch panel. A high-precision touch chip increases sensitivity while reducing accidental triggers, giving you responsive control over RGB flex strips, wall washers, panel lights, and other LED lighting. It supports jump and gradual color changes, strobe, flash, and additional modes.

Key Features

• Modern glass touch-panel design with a high-precision touch-control chip
• Three-channel (RGB) output with common-anode connection
• Three operating modes: RGB, color temperature, and dimmer, each with an indicator
• Effects include jump change, gradual change, strobe, and flash
• Wide DC 12–24V supply range with less than 1W static consumption
• Left/Right arrow buttons adjust modes, brightness, and speed

Fitment & Compatibility

Universal fitment for RGB LED lighting including ORACLE 2.0 RGB Flex strips, wall washers, and panel lights. Note: the controller must be mounted inside the vehicle's cabin.

Specifications

What's in the Box

• (1) ORACLE Smart Touch Multi Function LED Controller

Frequently Asked Questions

What lighting can this controller operate?
It controls a variety of RGB LED lighting, including RGB flex strips, wall washer lights, and panel lights, in three modes: RGB, color temperature, and dimmer.

How do the controls work?
A short press of the power button turns the unit on or off; a long press cycles through the RGB, color temperature, and dimmer modes. The left and right arrow buttons adjust the mode, brightness, and speed.

Where should it be mounted?
The controller must be mounted inside the vehicle's cabin. Effect behavior may vary depending on the type of RGB strip used.

What voltage does it require?
It accepts DC 12–24V, outputting up to 4A per channel — under 144W at 12V and under 288W at 24V.
