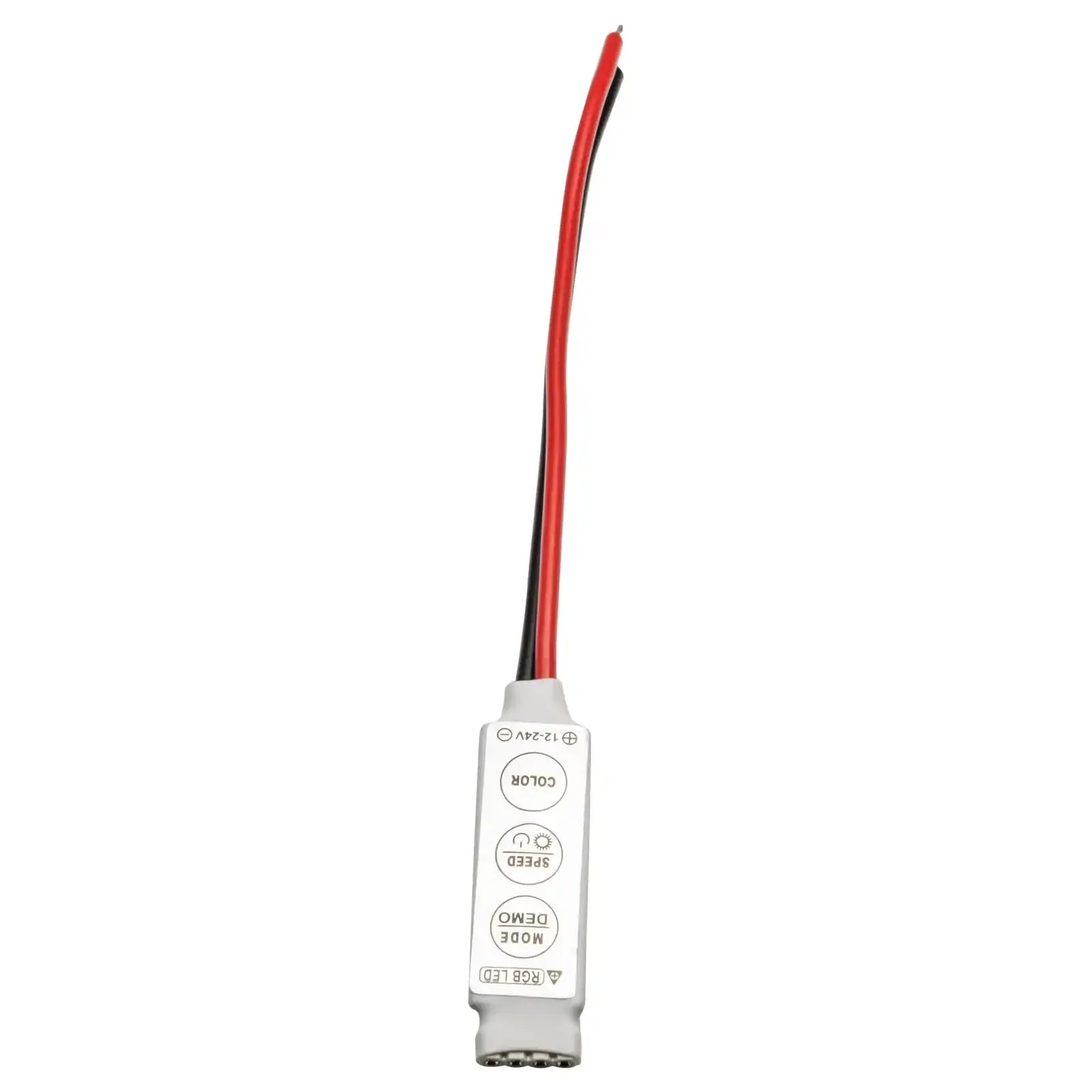

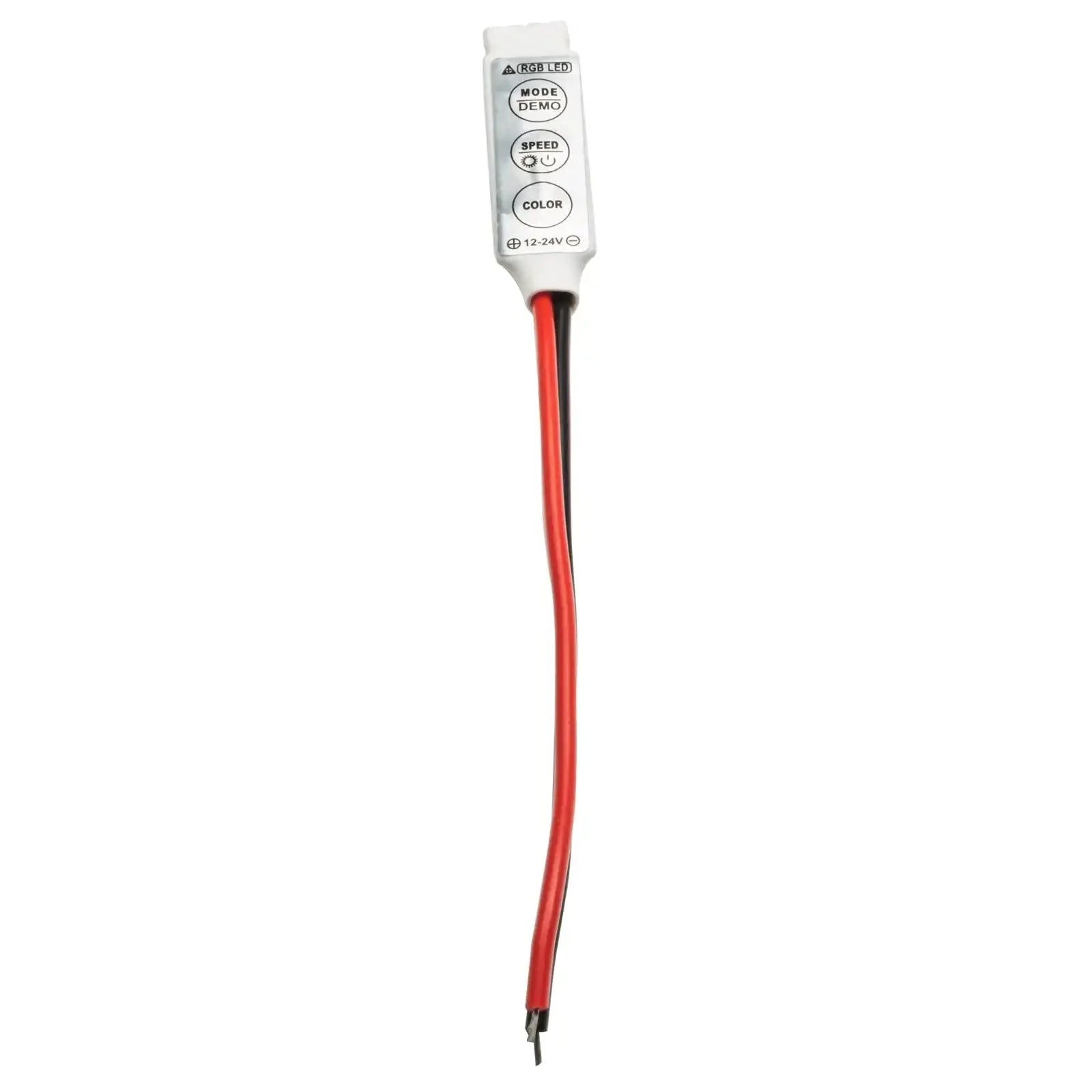

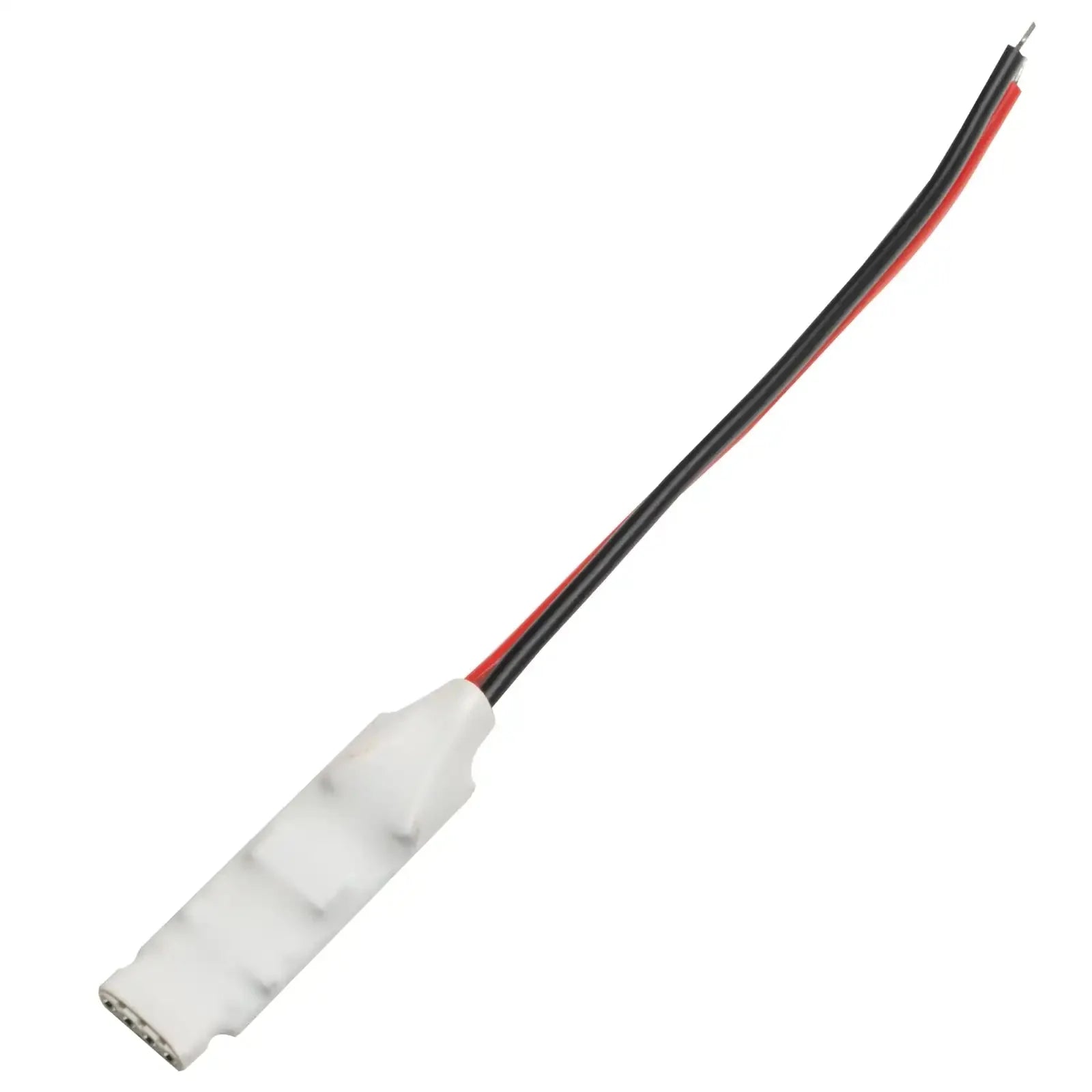

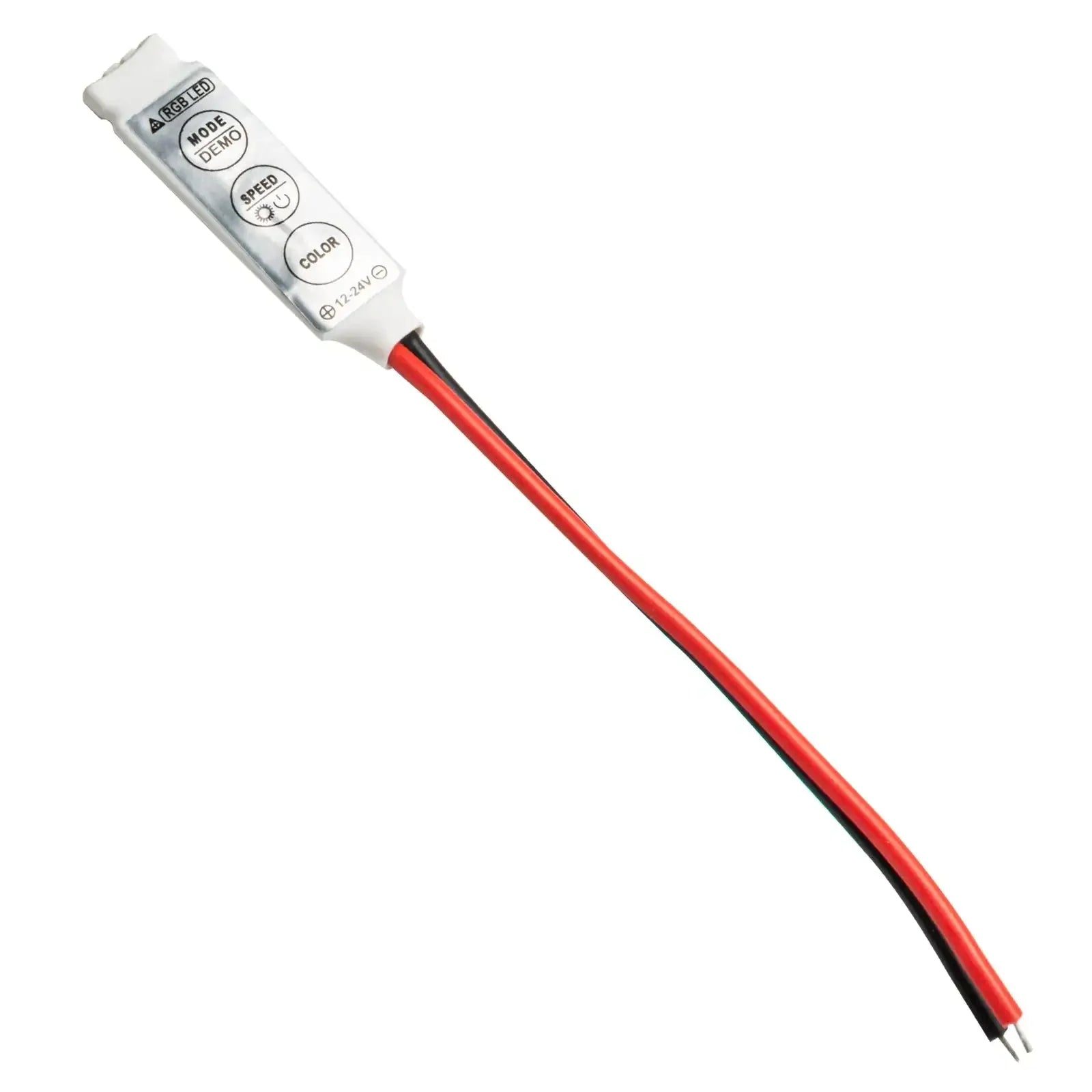

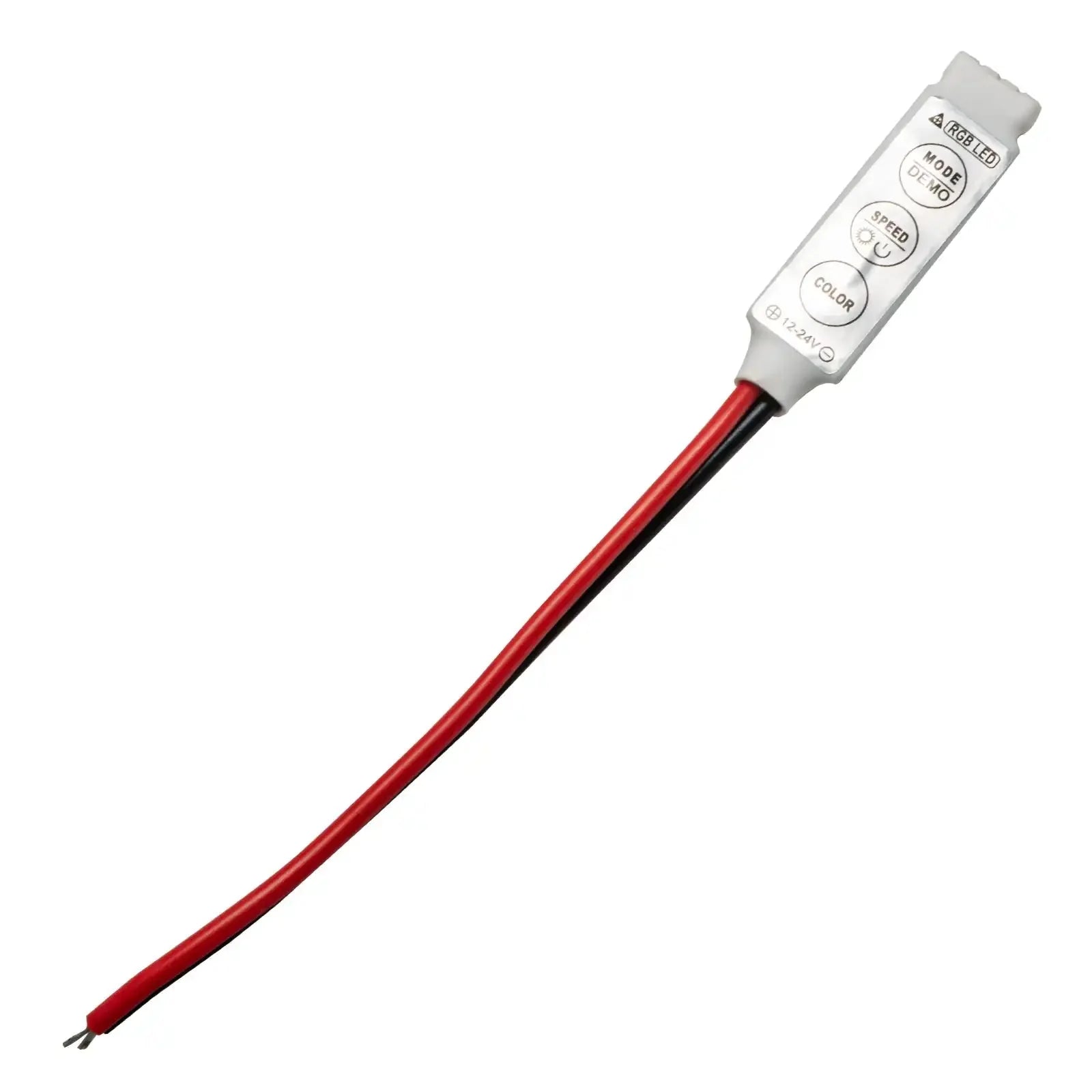

ORACLE In-Line RGB LED Controller

The ORACLE In-Line RGB LED Controller is an easy-to-install module that wires directly between your power source and an RGB LED product such as ORACLE Flex Strips. It delivers simple color control and dynamic effects over RGB lighting without a bulky switch panel — connect one end to power and the supplied RGB plug to your color-coded flex strip.

Key Features

• Three-channel RGB control wires in-line between power and the LED product
• Supplied RGB plug connects to color-coded wires on RGB flex strips
• Dynamic modes: breathing, heartbeat, primary and secondary strobe, dimming, and color control
• 20 static colors, 5 dynamic modes, and 256 levels of control
• 144-watt output with a 12-amp maximum load on 8–16V DC
• Integrated speed-variable button and clearly marked +/- 12V and LED terminals
• RoHS compliant; FCC, CE certified; cULus classified

Fitment & Compatibility

Universal fitment for RGB LED products, including ORACLE Flex Strips, on 12V systems.

Specifications

What's in the Box

• (1) ORACLE In-Line RGB LED Controller
• (1) RGB connector plug

Frequently Asked Questions

What does this controller work with?
It provides three-channel RGB control for products like ORACLE Flex Strips. The supplied RGB plug connects to the color-coded wires on your RGB flex strip.

How is it installed?
Wire one end to a 12V power source and connect the other end, using the supplied RGB plug, to the color-coded wires on the RGB flex strip. The +/- 12V and LED terminals are clearly marked.

What effects can it produce?
It offers 20 static colors plus dynamic modes including breathing, heartbeat, primary and secondary strobe, dimming, and color control, with adjustable speed and brightness.

Is it covered by a warranty?
Yes, this controller carries a 2-year warranty and is RoHS compliant, FCC and CE certified, and cULus classified.
