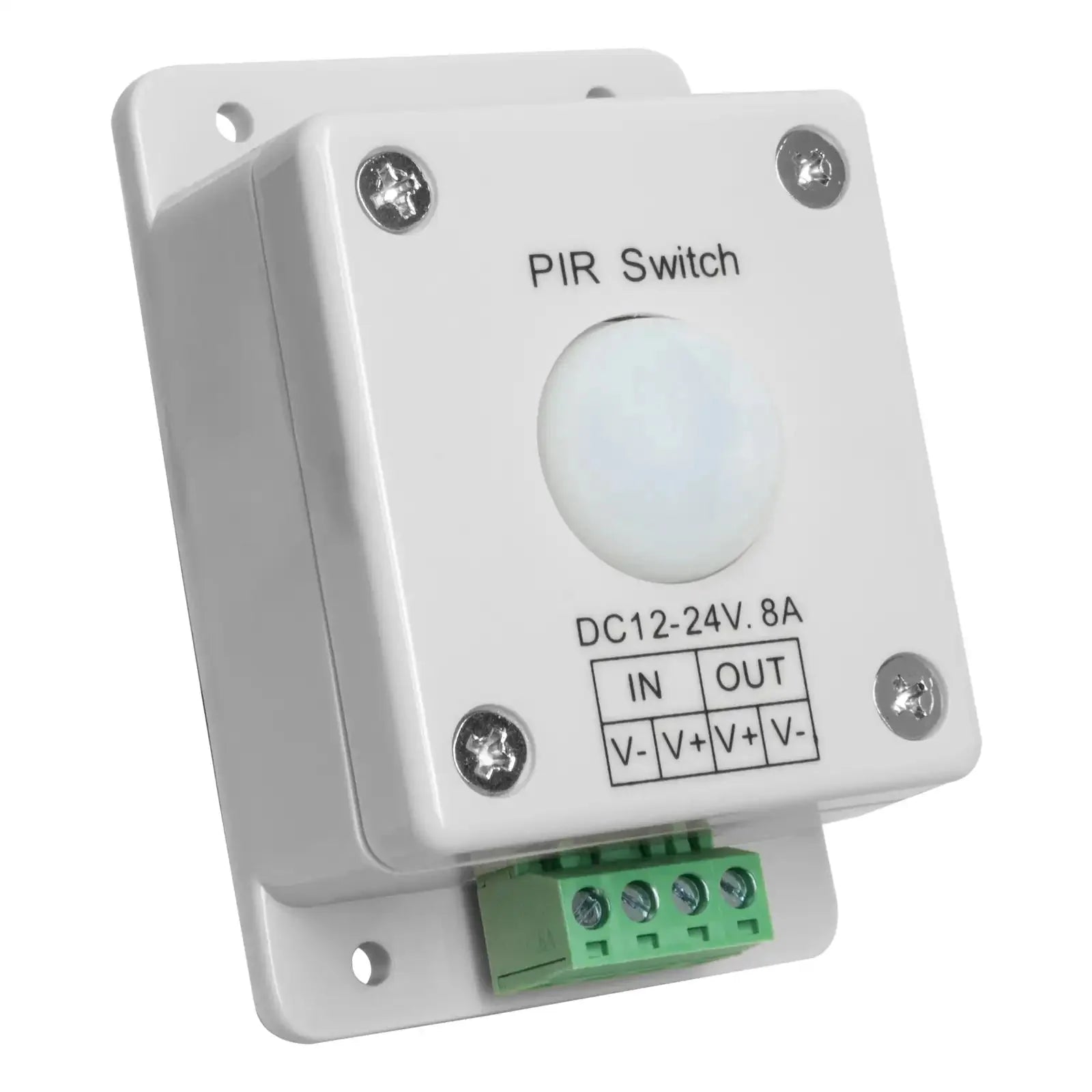

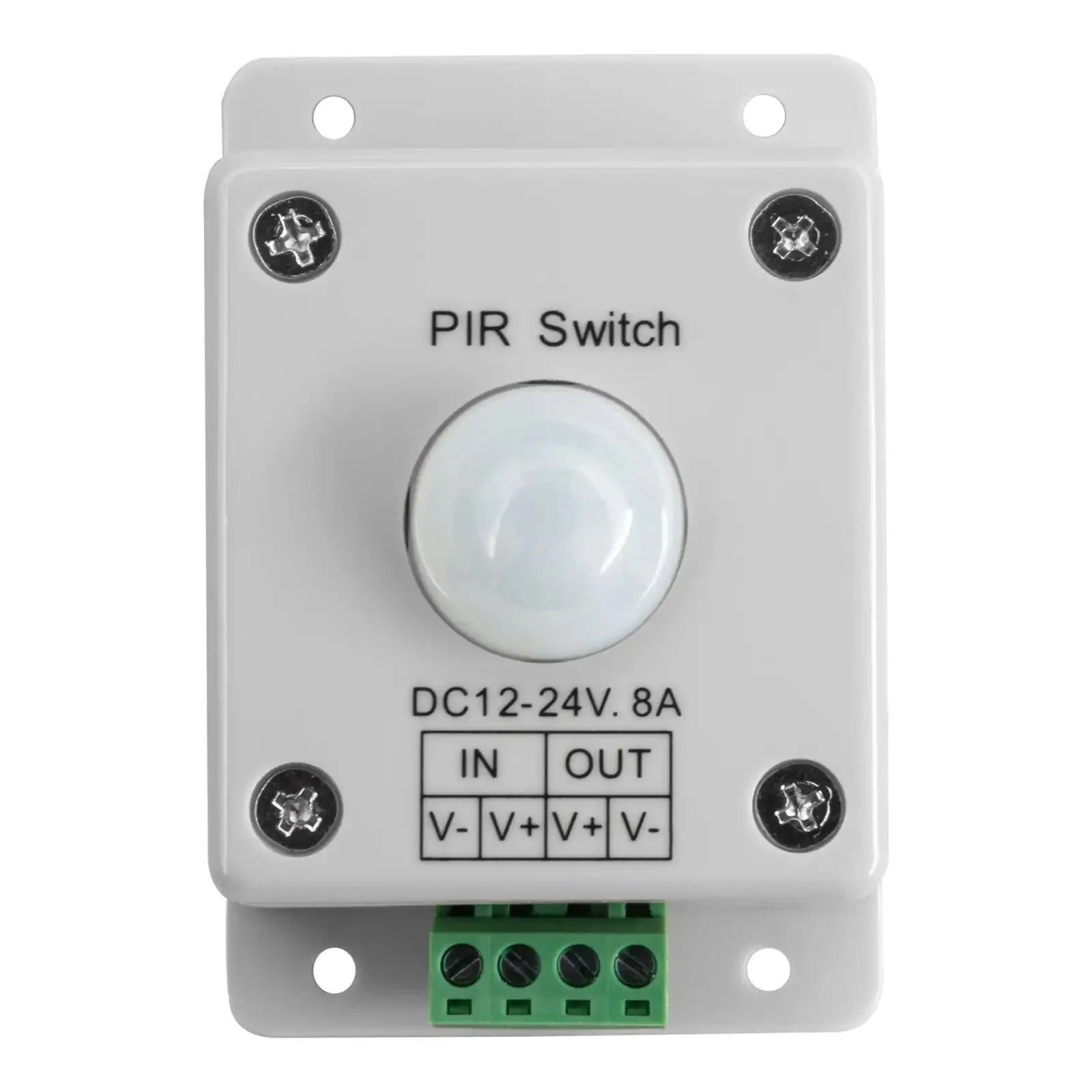

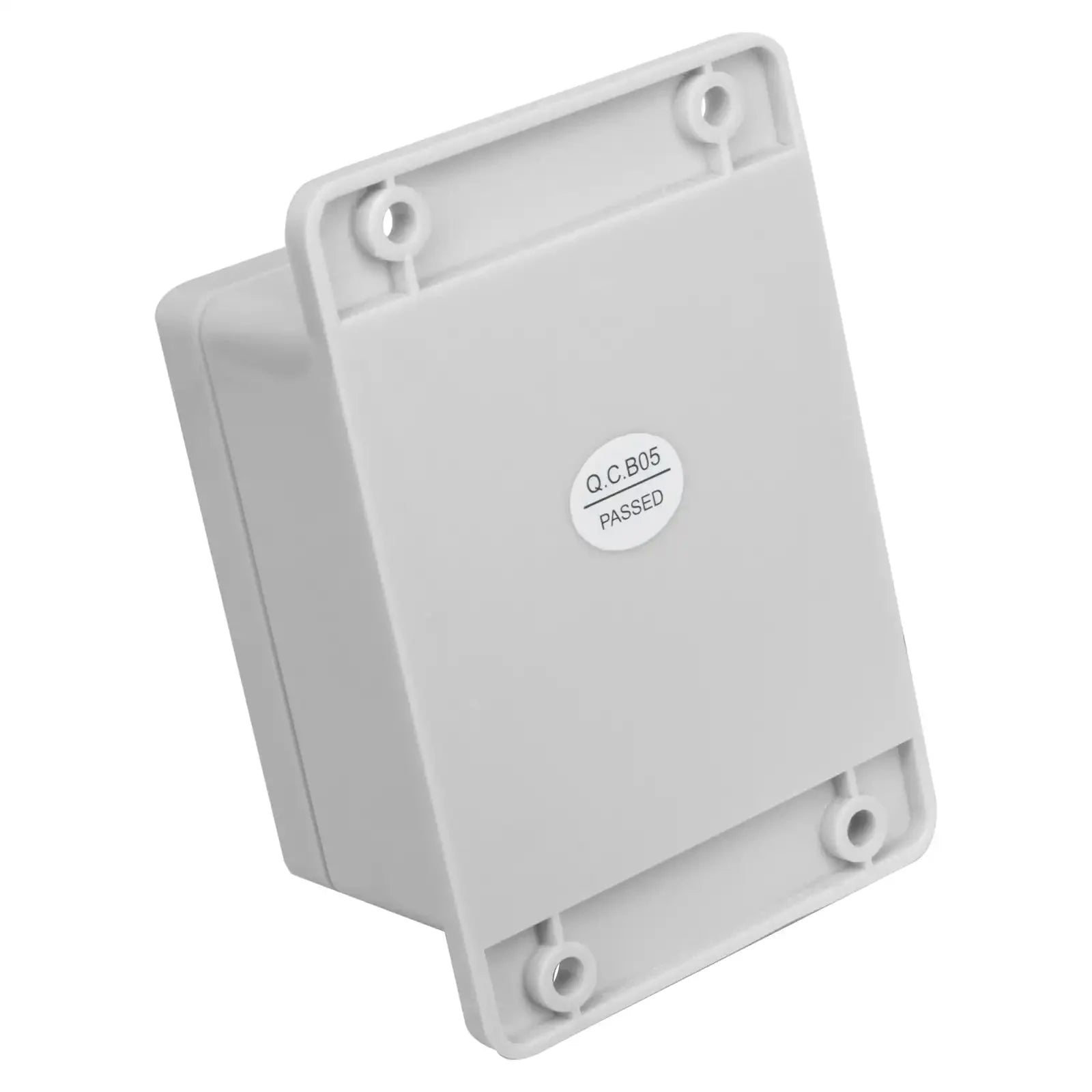

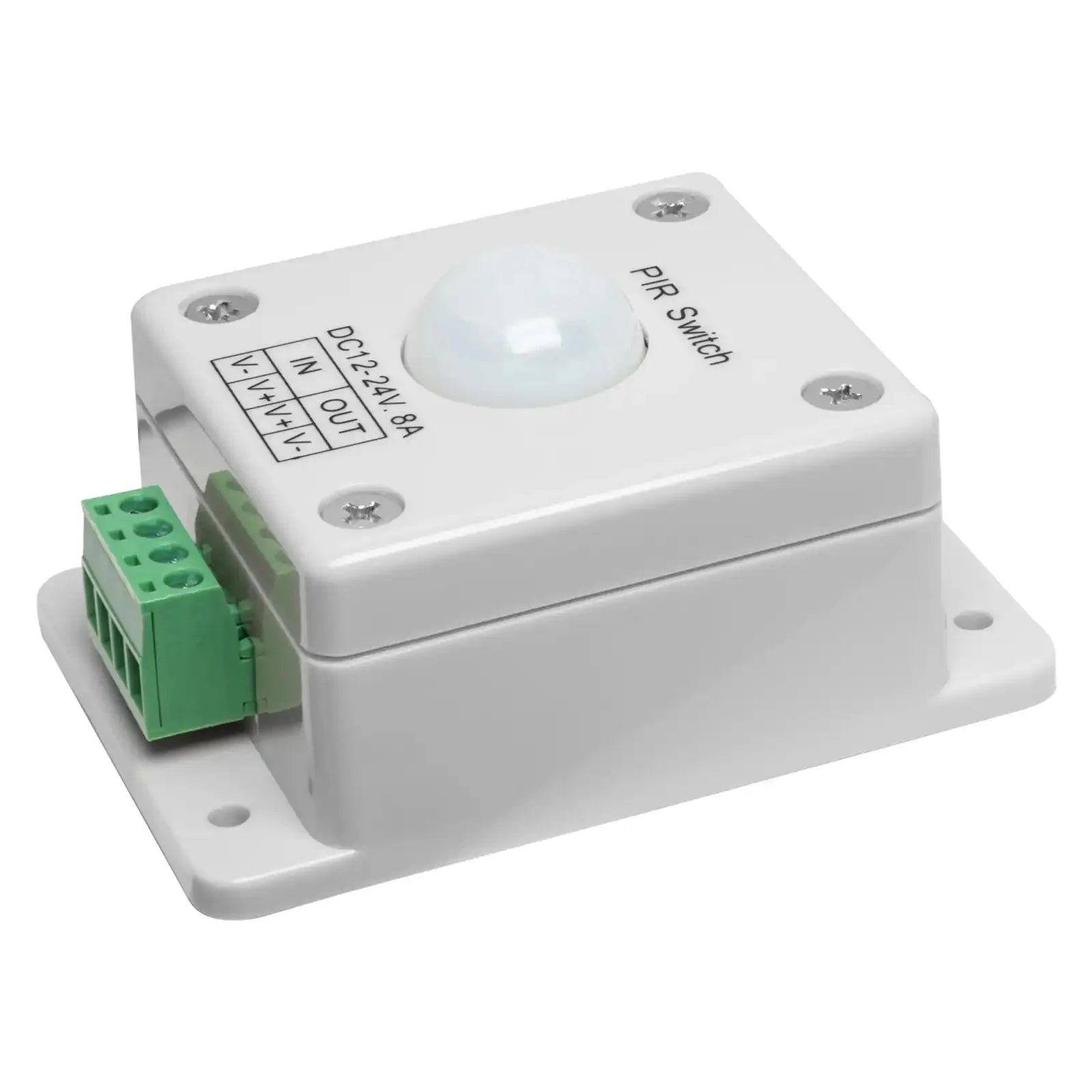

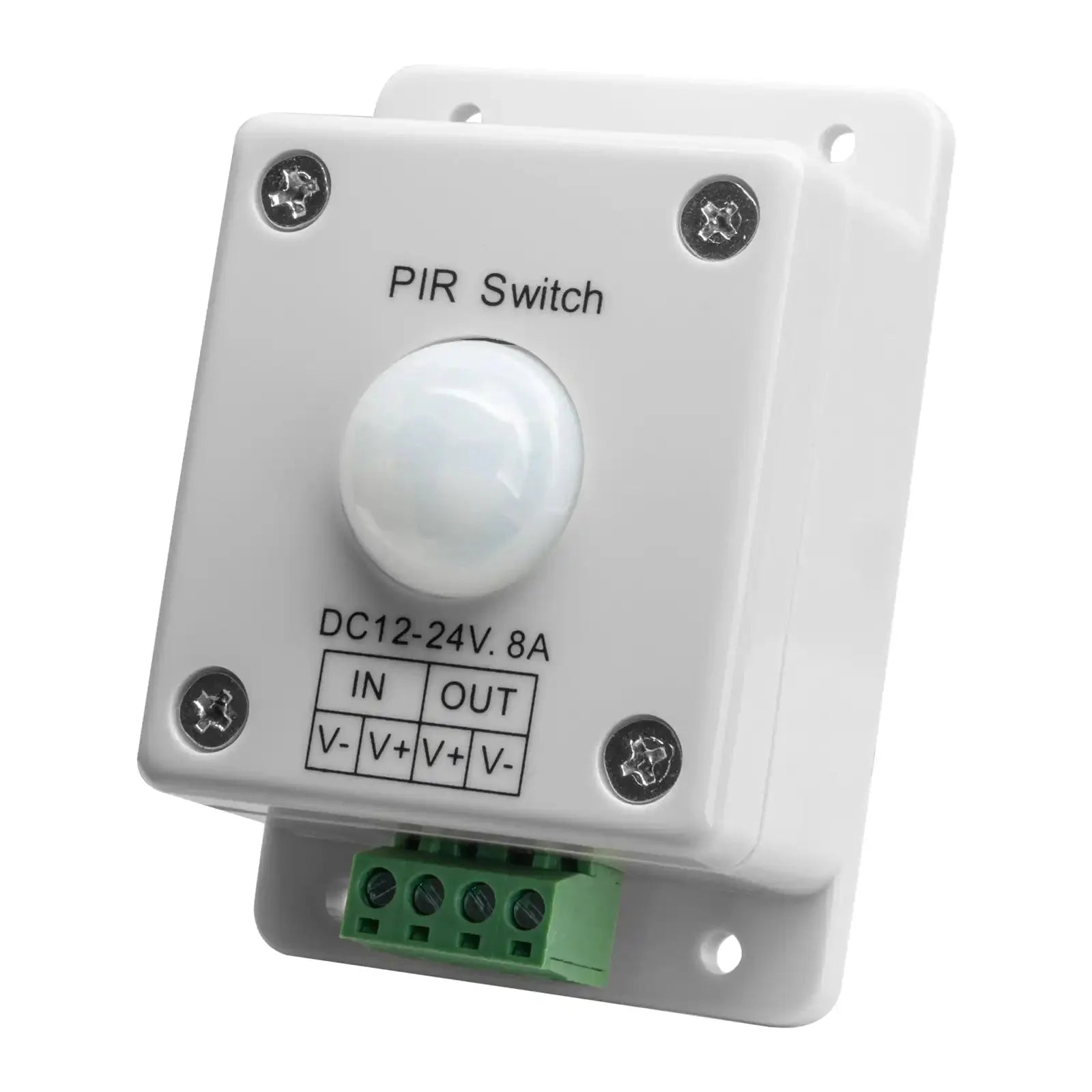

The ORACLE 8A PIR Sensor Switch automatically activates your LEDs when passive infrared motion is detected. It is a simple, hands-free way to trigger lighting — ideal for courtesy, cargo, or accessory lighting that should turn on as you approach.
Key Features
- Passive infrared (PIR) sensor activates LEDs when motion is detected
- Single-channel output rated at 100 watts with an 8-amp maximum load
- Wide 12–24V DC input range
- Temperature-sensitive infrared detection for reliable, hands-free triggering
Fitment & Compatibility
Universal fitment for 12–24V LED lighting applications where motion-activated switching is desired.
Specifications
| Specification | Detail |
|---|---|
| ORACLE Part # | 1618-504 |
| Input Voltage | 12–24V DC |
| Output | 1 channel |
| Max Load Current | 8 Amps |
| Output Power | 100 Watts |
| Sensor Type | Passive Infrared (PIR) |
What's in the Box
- (1) ORACLE 8A PIR Sensor Switch
Frequently Asked Questions
How does the switch work?
It uses a passive infrared (PIR) sensor to detect motion and automatically activates the connected LEDs, so no manual switching is required.
What load can it handle?
The single-channel output is rated for up to 8 amps and 100 watts on a 12–24V DC system.
What voltage does it need?
It accepts a wide 12–24V DC input, compatible with standard 12V automotive systems and 24V setups.
