Morimoto Ford Super Duty (11-16) XB LED Headlights, Quad Projector - LF505-ASM
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Morimoto Warranty
At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting
This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Headlight and tail light assemblies (e.g. XB) | 5 years |
| Off-road lighting | Limited lifetime |
| 2Stroke LED bulbs (per product page) | Limited lifetime |
What's covered
- Product failures and defects on headlights and tail lights for 5 years
- Off-road lights for a limited lifetime
- Products must be bought from an authorized Morimoto dealer
What's not covered
- Modifications, alterations, or misuse
- Products bought from unauthorized sellers
- Damage or problems caused by improper installation (document issues before removing lights)
How to make a Morimoto warranty claim
- If something isn't right, take photos or video of the problem before removing the lights
- Contact Morimoto support by phone or email before doing anything else
- Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)
Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.
Shop Morimoto at NVMOS
Morimoto Ford Super Duty (17-22) XB Evo+ LED Fog Lights
Morimoto Ford F-150 (18-20) XB Evo+ LED Fog Lights
Morimoto Ford F-150 (15-17) XB Evo+ LED Fog Lights
See all Morimoto products, lead times and FAQs →
Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Morimoto is an Atlanta lighting company that designs, engineers and tests its lights in-house. NVMOS carries Morimoto XB LED headlights and tail lights, fog lights, ditch light kits, Banger pods and more for Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. For owners tired of dim factory halogens.
Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 621 MorimotoWarrantyAll brands
Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

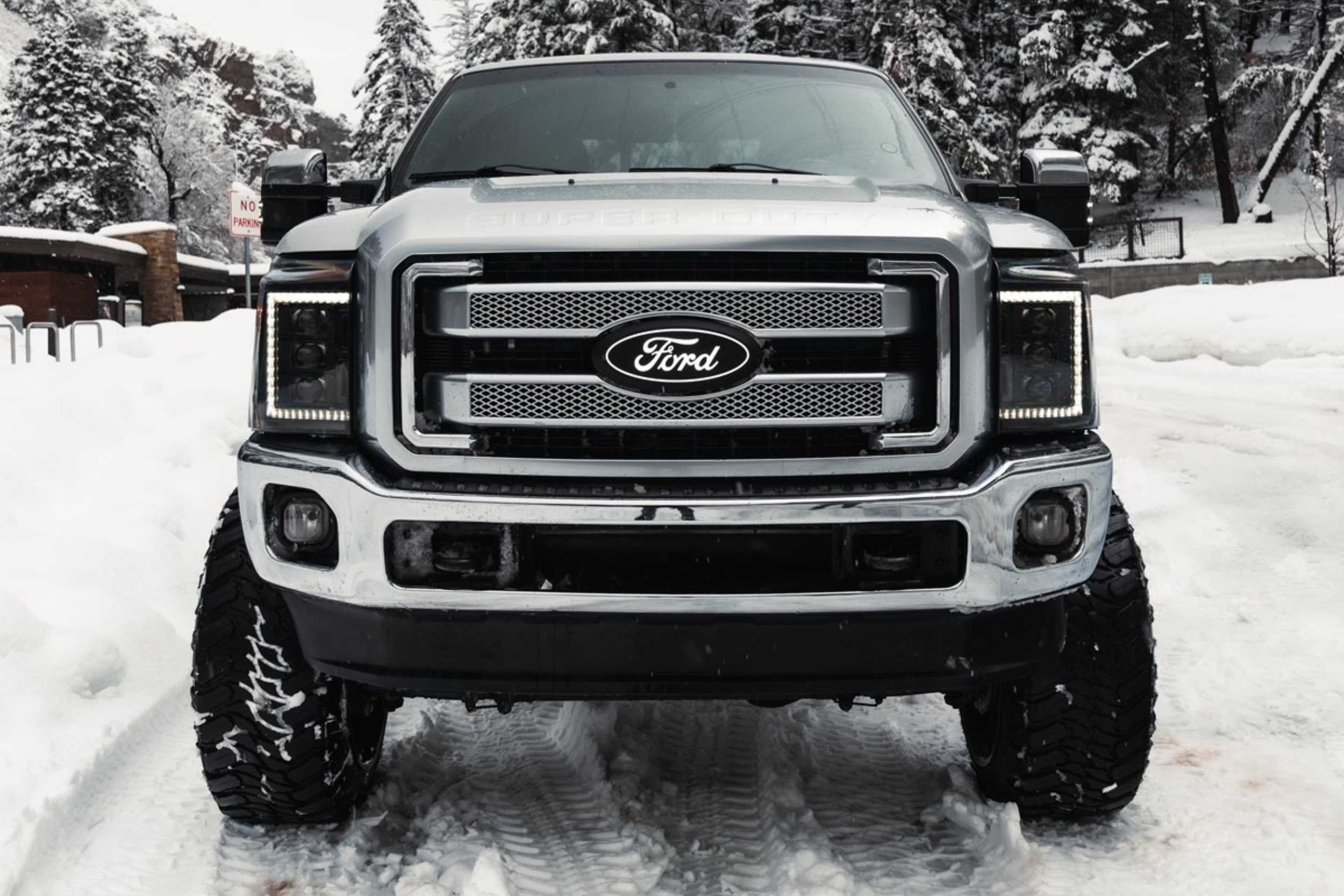

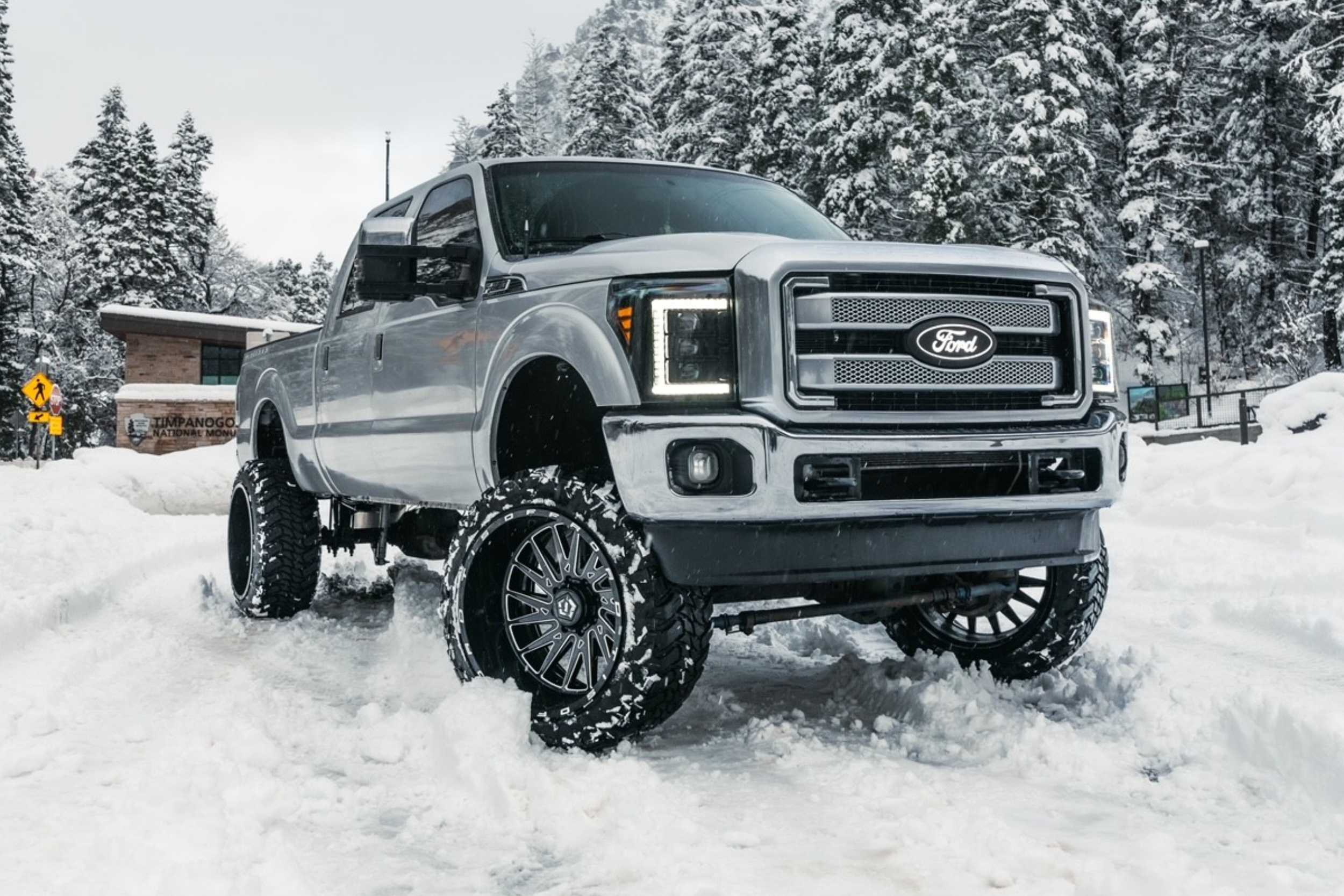

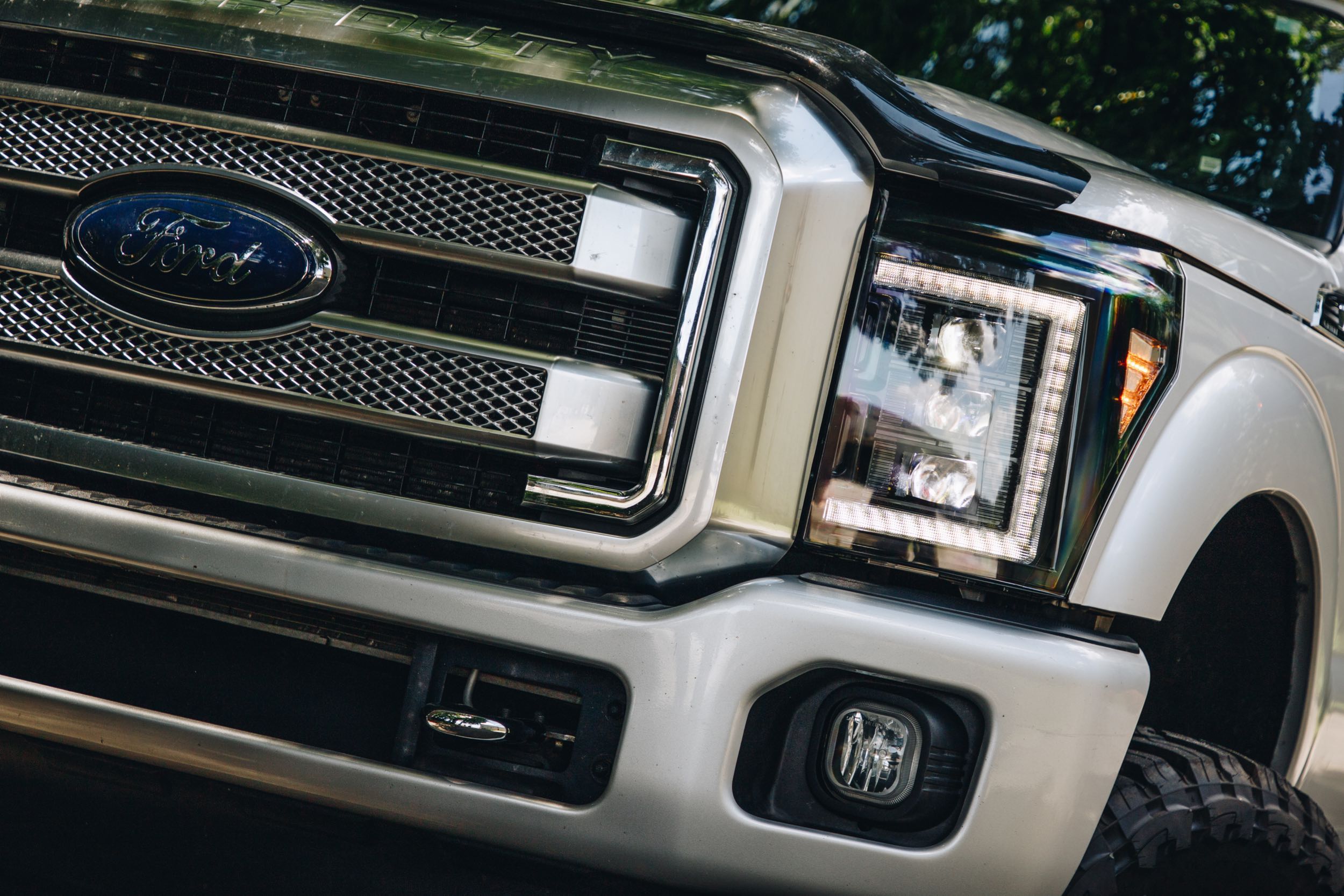

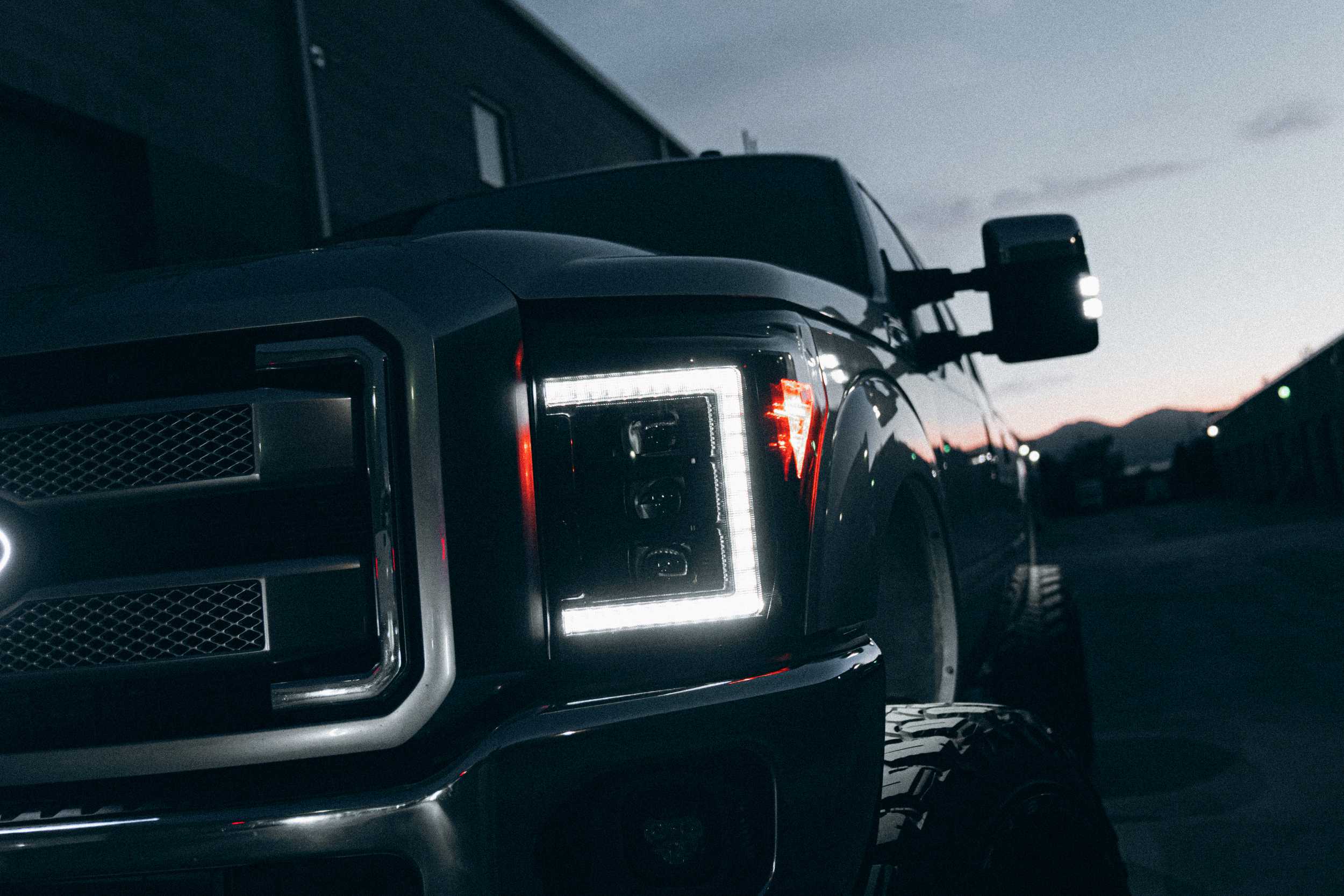

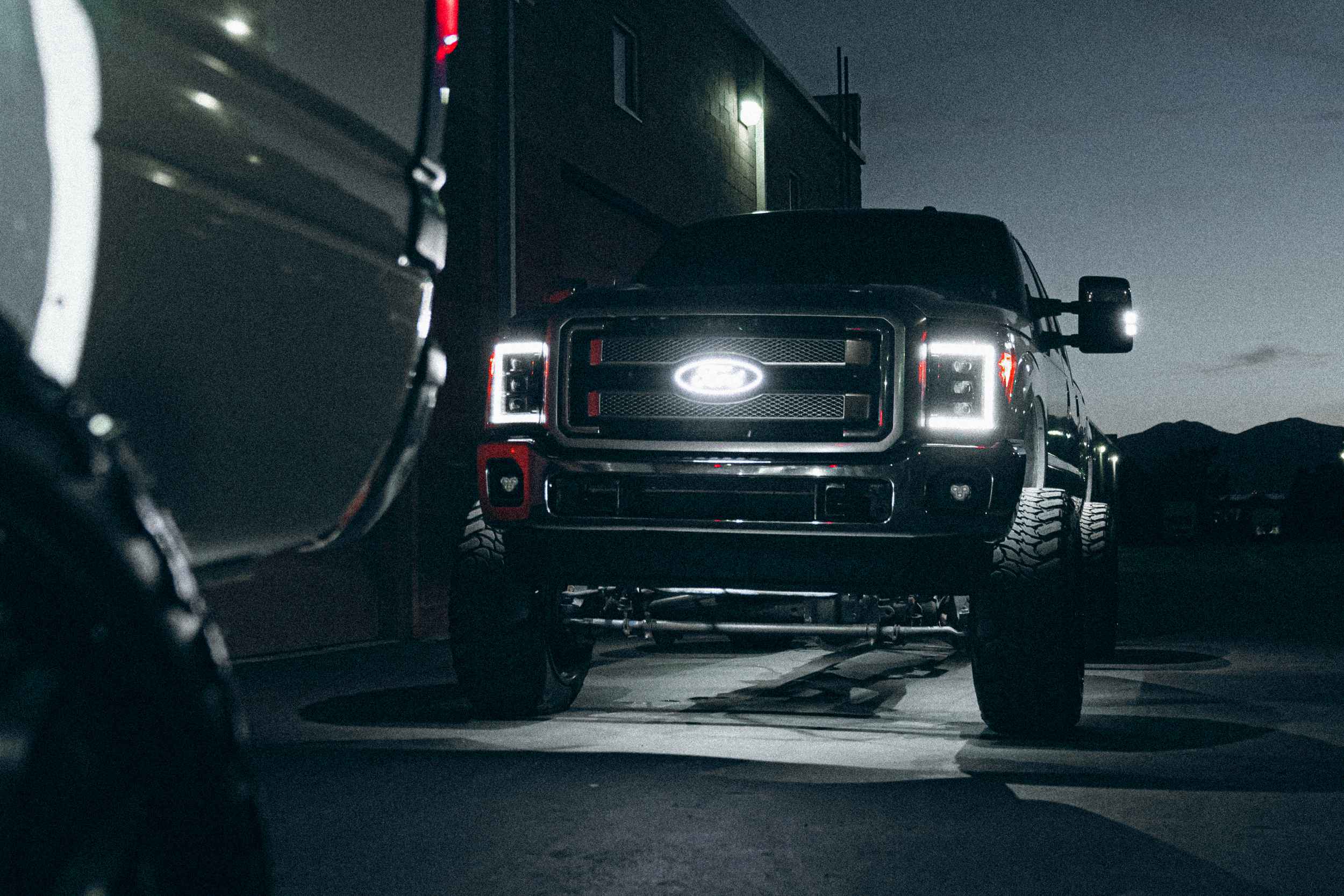

Morimoto XB LED Headlights — Ford Super Duty (2011–2016)
Quad-projector LED assemblies for the 11–16 Super Duty. The beam is well defined with exceptional width, intensity, and distribution — Morimoto positions it as performing comparably to premium OEM LED headlights.
They satisfy DOT, SAE, and FMVSS108 standards when properly aimed, and they connect directly to the factory connectors using the included wiring harnesses. No modifications, no error codes, no flickering, and no risk to your factory warranty.
| Spec | Detail |
|---|---|
| Optics | Quad projectors |
| Light source | Osram LED chips |
| Beam | Well defined, with exceptional width, intensity, and distribution |
| Daytime running light | Sequential amber LED, or traditional on/off |
| Lens | UV-coated polycarbonate; smoked reflectors |
| Housing | PPS plastic with piano black trim |
| Thermal management | Die-cast aluminum heat sinks |
| Wiring / install | Direct to factory connectors with included harnesses; no modifications |
| Compliance | DOT, SAE, and FMVSS108 when properly aimed |
| Warranty impact | Does not void the factory vehicle warranty |
| Fitment | Ford Super Duty 2011–2016; sold as a pair of complete assemblies |
Will these fit my 2011–2016 Super Duty?
Yes. These complete assemblies are built for the 2011–2016 Ford Super Duty and connect directly to the factory connectors.
Are they street legal?
Yes. The quad-projector optics satisfy DOT, SAE, and FMVSS108 standards when properly aimed.
Do I need extra wiring?
No. Wiring harnesses are included and the assemblies connect directly to the factory connectors with no modifications required.
Will installing them void my factory warranty?
No. Morimoto states that the plug-and-play installation ensures compatibility without voiding factory warranties.
Videos
Technical specifications
| Traffic Pattern | LHD Only |
|---|---|
| Input | Ford Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Optic Bi-LED |
| UV Coating | Momentive UVHC3000 |
Compatibility
| Ford Super Duty | 2011-2016* |
|---|---|
| Replaces Ford Part # | FO2503290, FO2502290, BC3Z13008E, BC3Z13008F |
| *NOTE | Unknown circumstances related to the BCM can cause the passengers side turn signal to lock-up. Click here for information on the recommended fix . Note: this fix requires a OHP ELMconfig OBD2 scanner to be purchased |
| NOTE | These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known. |
In the box
| Headlights | 2x (One Pair) 11-16 Super Duty XB LED Headlights |
|---|---|
| Wiring | Plug and Play Harness, Fuse Tap |
Installation
Bolt-on with hand tools. Grab the manufacturer’s step-by-step instructions, or watch the install first. Stuck partway? Call real humans at (920) 249-7744.
View install instructionsComplete your Super Duty build
More parts that fit your Super Duty and pair well with this one — matched and ready to install.
$1,699.00
$44.99
$69.99
$59.99
$49.99
More for your Ford Super Duty
Picked from the 1176 parts we carry for the Ford Super Duty, matched to 2011–2016 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
