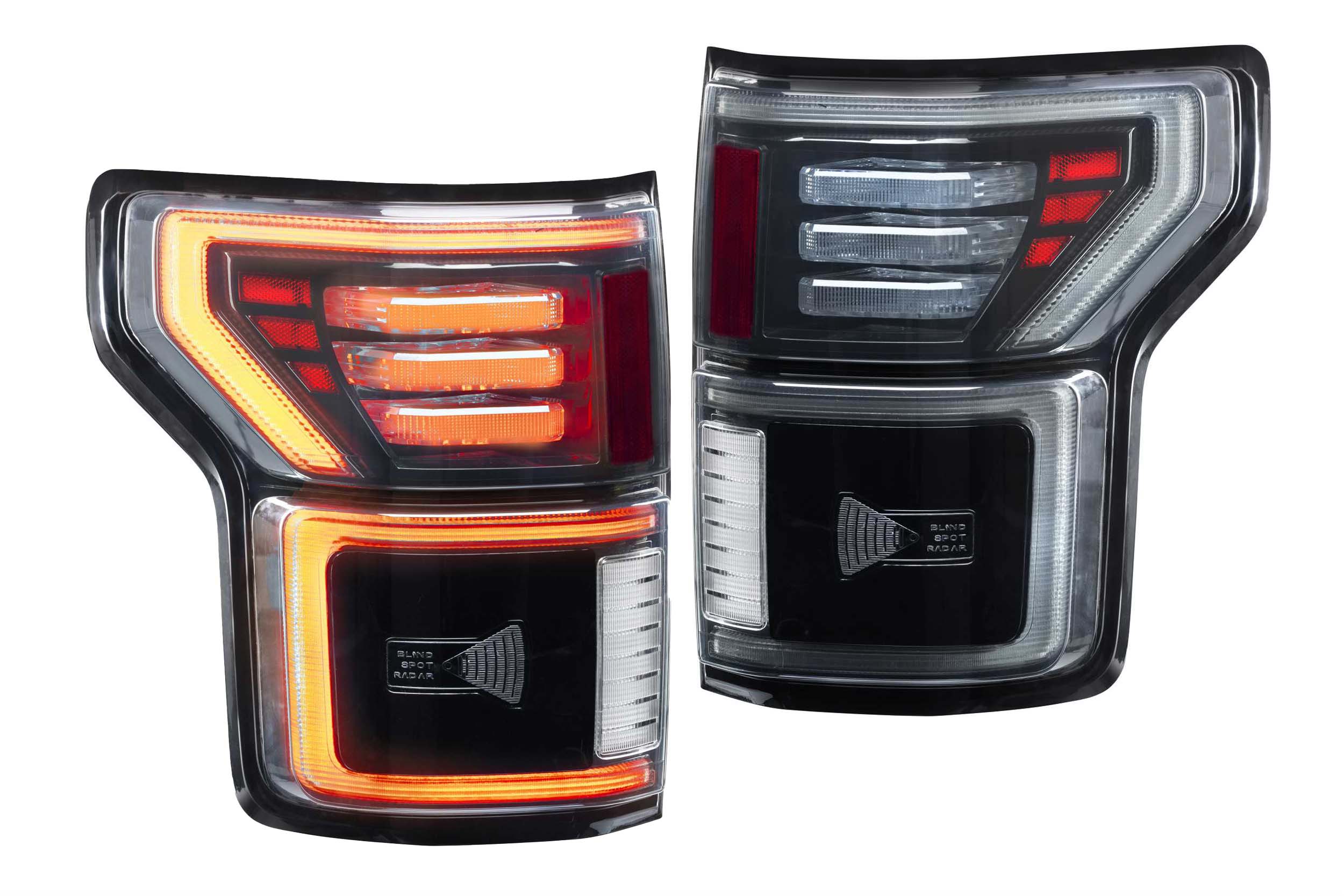

Pair of Morimoto XB LED smoked tail lights for the 2017-2020 Ford Raptor, left unit lit with amber and red LEDs

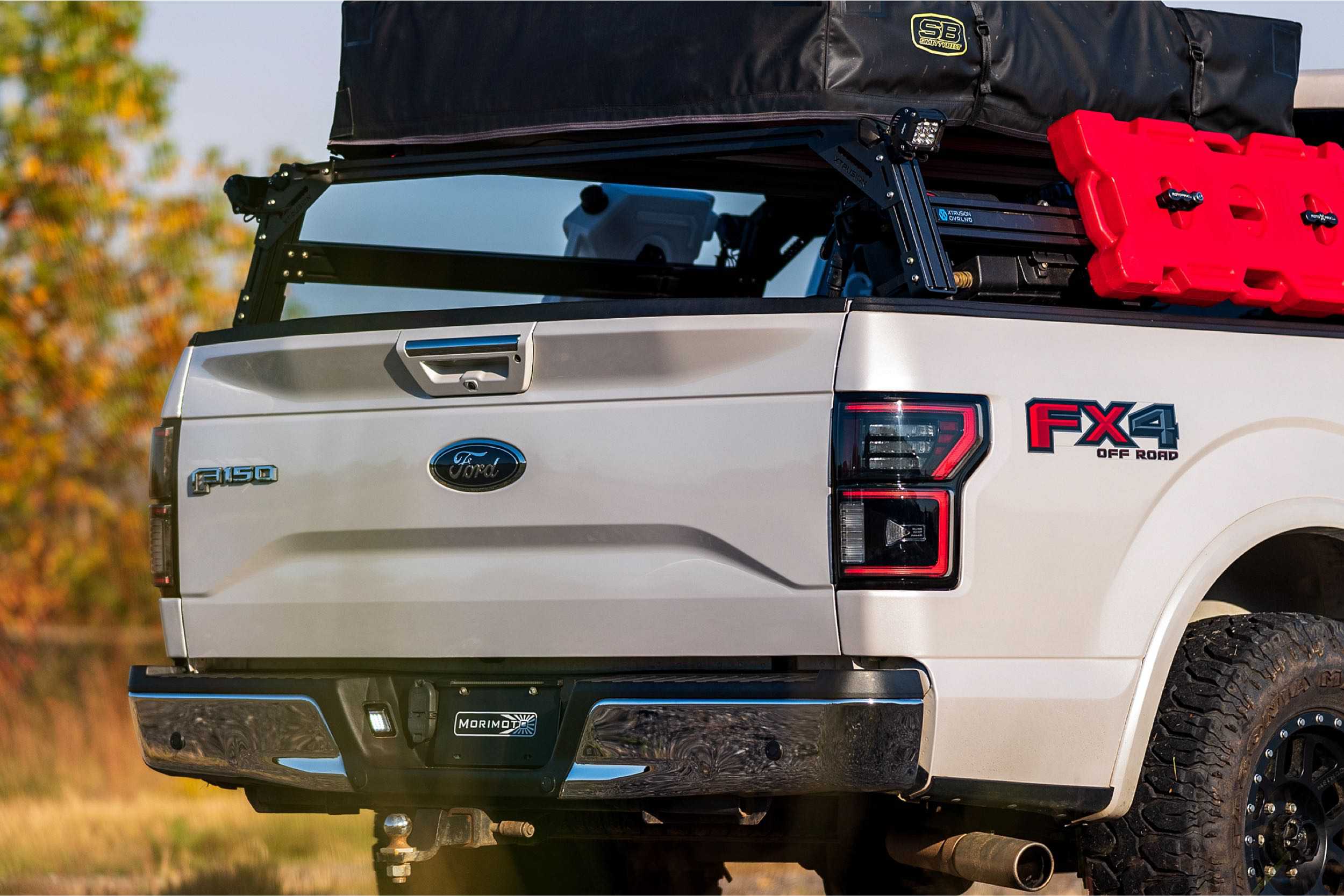

White Ford F-150 from the rear with a bed rack, roof tent and red fuel cans, Morimoto smoked XB tail light installed

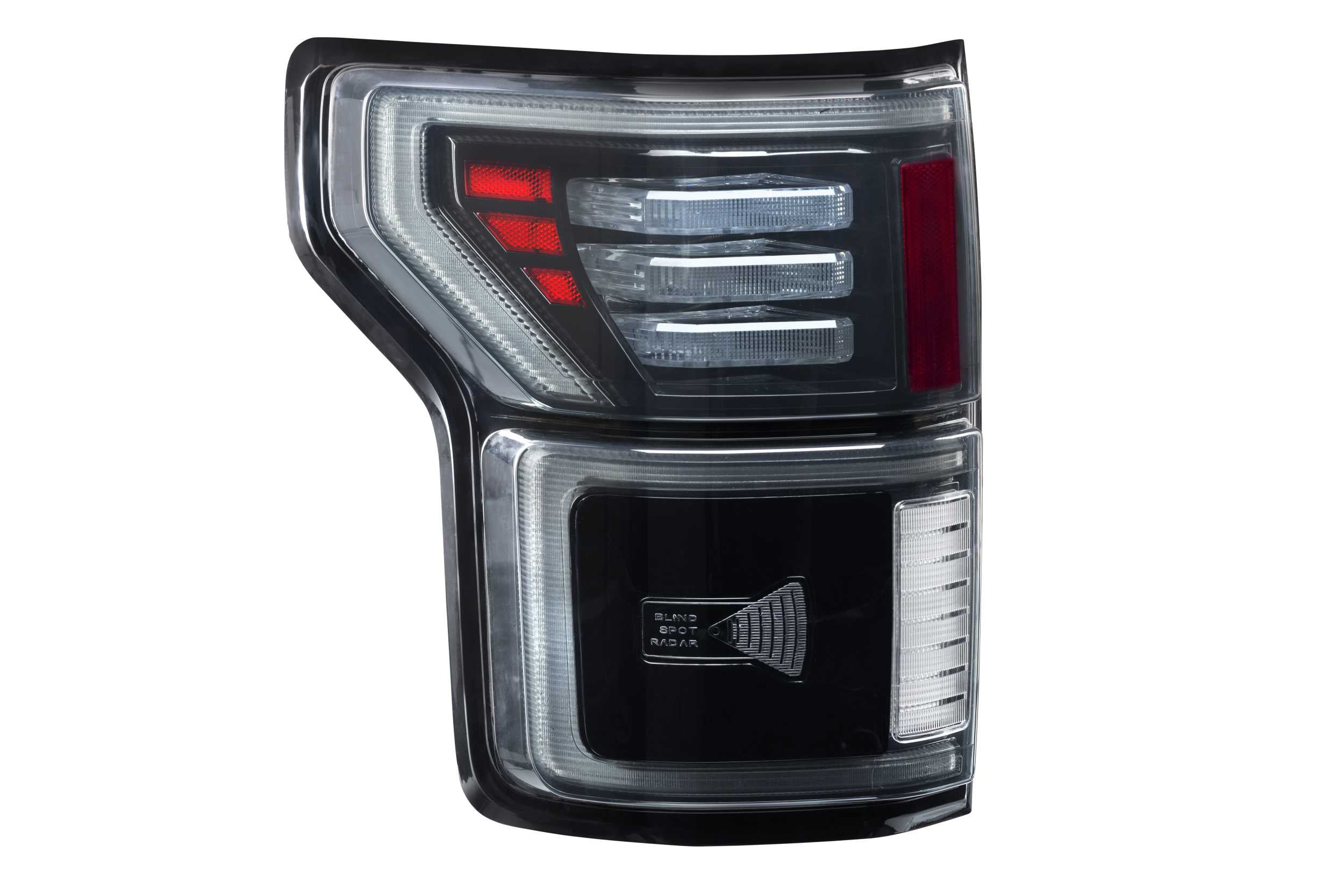

Single Morimoto XB LED smoked tail light for the 2017-2020 Ford Raptor, front view with the lights off

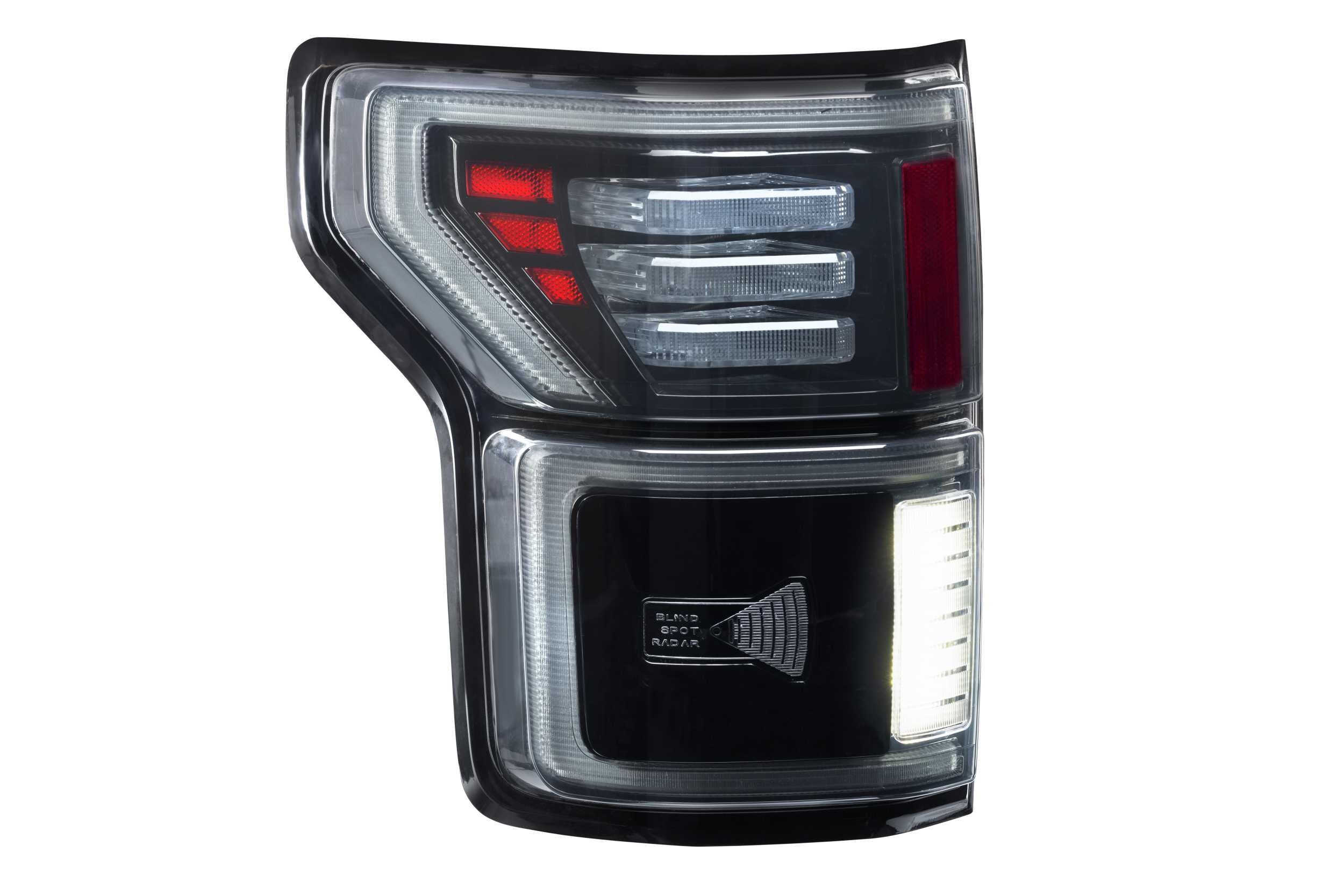

Morimoto XB smoked LED tail light for the Ford Raptor, straight-on view with the lower white reverse strip visible

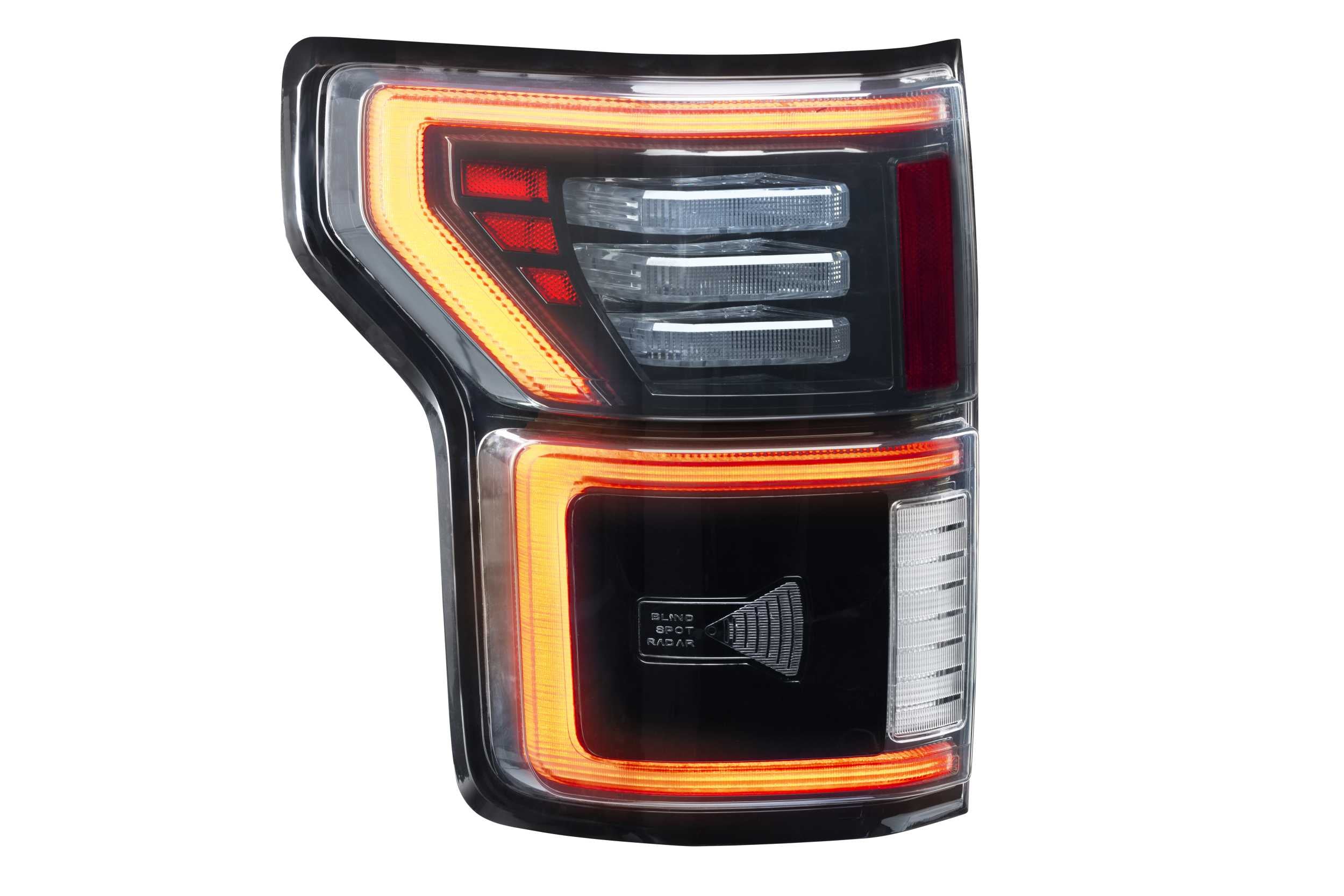

Morimoto XB smoked LED tail light for the Ford Raptor with the amber light strips and red LEDs glowing

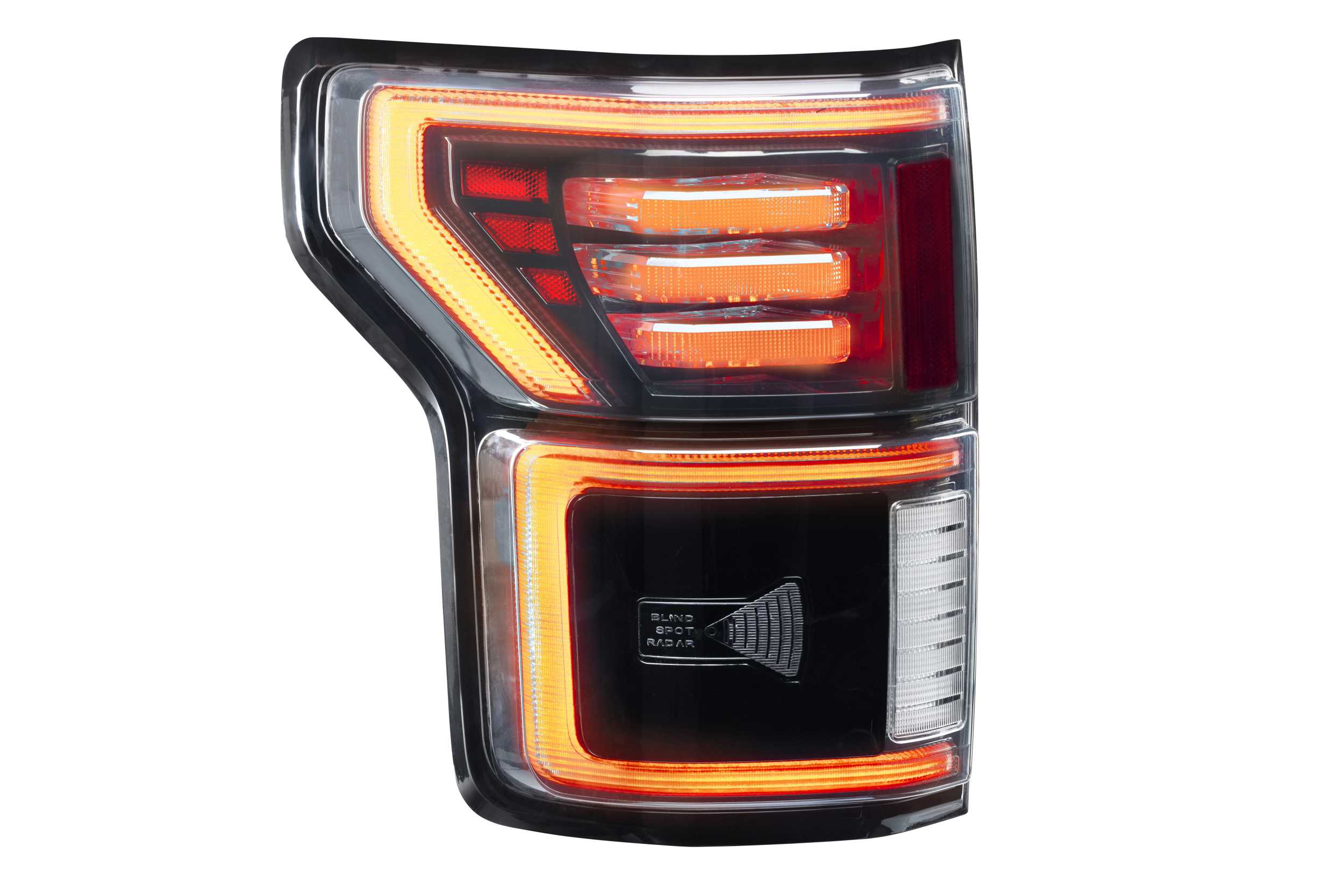

Morimoto XB smoked LED Raptor tail light, angled view with amber and red LED sections lit

SKU: LF723

Morimoto Ford Raptor (17-20) XB LED Tail Lights (Smoked)

By Morimoto

$709.00

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Confirmed fit: 2017–2020 Ford F-150

Verified to fit the 2017–2020 Ford F-150.

Warranty Information

Vendor warranty summary

Morimoto Warranty

At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting

Shop Morimoto Official Morimoto policy All warranty policies

This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Headlight and tail light assemblies (e.g. XB)	5 years
Off-road lighting	Limited lifetime
2Stroke LED bulbs (per product page)	Limited lifetime

What's covered

Product failures and defects on headlights and tail lights for 5 years
Off-road lights for a limited lifetime
Products must be bought from an authorized Morimoto dealer

What's not covered

Modifications, alterations, or misuse
Products bought from unauthorized sellers
Damage or problems caused by improper installation (document issues before removing lights)

How to make a Morimoto warranty claim

If something isn't right, take photos or video of the problem before removing the lights
Contact Morimoto support by phone or email before doing anything else
Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)

Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.

Shop Morimoto at NVMOS

Morimoto Ford Super Duty (17-22) XB Evo+ LED Fog Lights

Morimoto Ford F-150 (18-20) XB Evo+ LED Fog Lights

Morimoto Ford F-150 (15-17) XB Evo+ LED Fog Lights

See all Morimoto products, lead times and FAQs →

Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Morimoto

Morimoto is an Atlanta lighting company that designs, engineers and tests its lights in-house. NVMOS carries Morimoto XB LED headlights and tail lights, fog lights, ditch light kits, Banger pods and more for Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. For owners tired of dim factory halogens.

Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Morimoto warranty: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting. Read the full summary

Shop all 621 Morimoto Warranty All brands

Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

Morimoto XB LED Tail Lights (Smoked) — Ford F-150 & Raptor (2017–2020)

The smoked-lens XB tail lights bring a darker, cleaner look to the 2017–2020 F-150 and Raptor without giving up function. Styling follows the 2018–2020 F-150's OEM LED tail lights, with 3D optics for brake and turn signals and a bright parking light around the edge. They work with every factory configuration — OE halogen, OE LED with BLIS, or Raptor-style — and install plug-and-play in about 30 minutes.

Why it works

Fits every versionCompatible whether your truck has OE halogen, OE LED with BLIS, or Raptor-style tail lights, and works with the factory radar system.

OEM-inspired 3D opticsBrake and turn signals through 3D optics with a bright edge parking light, styled after the 2018–2020 F-150 OEM LED tails.

Real reverse lightPowerful LED reverse lights, with the option to add the LED Backup Boost Bar for an extra 2,700 lumens.

30-minute installPlug-and-play design integrates with factory wiring — about half an hour, no modifications.

✓ DOT / SAE compliant — street legal

Specifications

Spec	Detail
Lens	Smoked outer lens (red version available as LF722)
Brake / turn	3D optics with bright edge parking light
Reverse	LED reverse lights; optional Backup Boost Bar adds 2,700 lumens
Compatibility	OE halogen, OE LED with BLIS, and Raptor-style tail lights; radar-safe
Install	Plug-and-play, approx. 30 minutes
Compliance	DOT and SAE
Warranty	5 years (manufacturer)
Fitment	Ford F-150 and F-150 Raptor, 2017–2020

Frequently asked questions

Will these fit my truck's tail light configuration?

Yes — they fit 2017–2020 Ford F-150 and Raptor models with any factory setup: OE halogen, OE LED with BLIS, or Raptor-style tail lights.

Will they interfere with my blind spot radar?

No. The plug-and-play design works with your truck's factory wiring and radar system.

How long does installation take?

About 30 minutes with the plug-and-play design — no cutting or splicing.

Are they street legal, and what warranty applies?

They meet DOT and SAE safety standards and come with a five-year warranty.

Videos

Technical specifications

Input	Ford Multi-Pin OEM
Material	ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source	SSC LED
Brake Light	Red
Parking Light	Red
Turn Signal	Red

Compatibility

Ford F-150 Trucks	15-20 (all)
OE LED w/o BLIS System	Not Compatible
OE LED + BLIS System	100% Plug n Play (Requires swap of OE Modules)
Incandescent Tail Lights	100% Plug n Play (with included adapter harness)
Replaces Ford Part #	FL34-13B505-AG, KL3Z-13405-A, KL3Z-13405-B, HL3V-13B505-F, FL34-13B505-C, KL3Z-13405-B, JL3V-13B505-EE, HL3Z-13405-A, KL34-13B504-GB, HL3V-13B504-FF, FL3Z-13405-H, FL3Z-13404-A

In the box

Tail Lights	2x (One Pair) 15-20 Ford F-150 XB LED Tail Lights
Wiring	Plug and Play Harness
BLIS Brackets	Die-cast mounts / heatsinks (BLIS modules must be swapped)

Installation

Bolt-on with hand tools. Grab the manufacturer’s step-by-step instructions, or watch the install first. Stuck partway? Call real humans at (920) 249-7744.

View install instructions
