Morimoto X3B LED Third Brake Light — Ford F-150 Raptor (2017–2020)

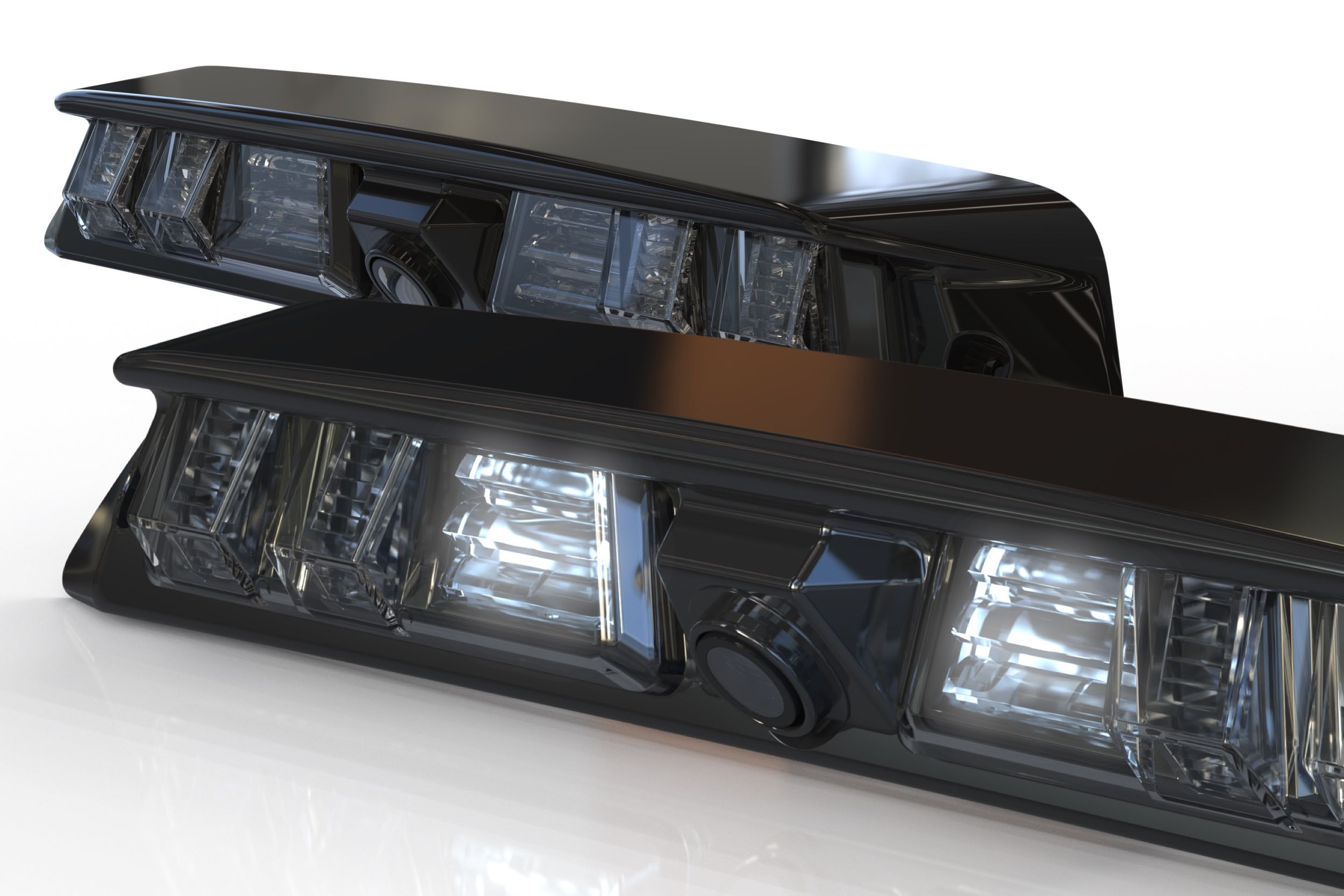

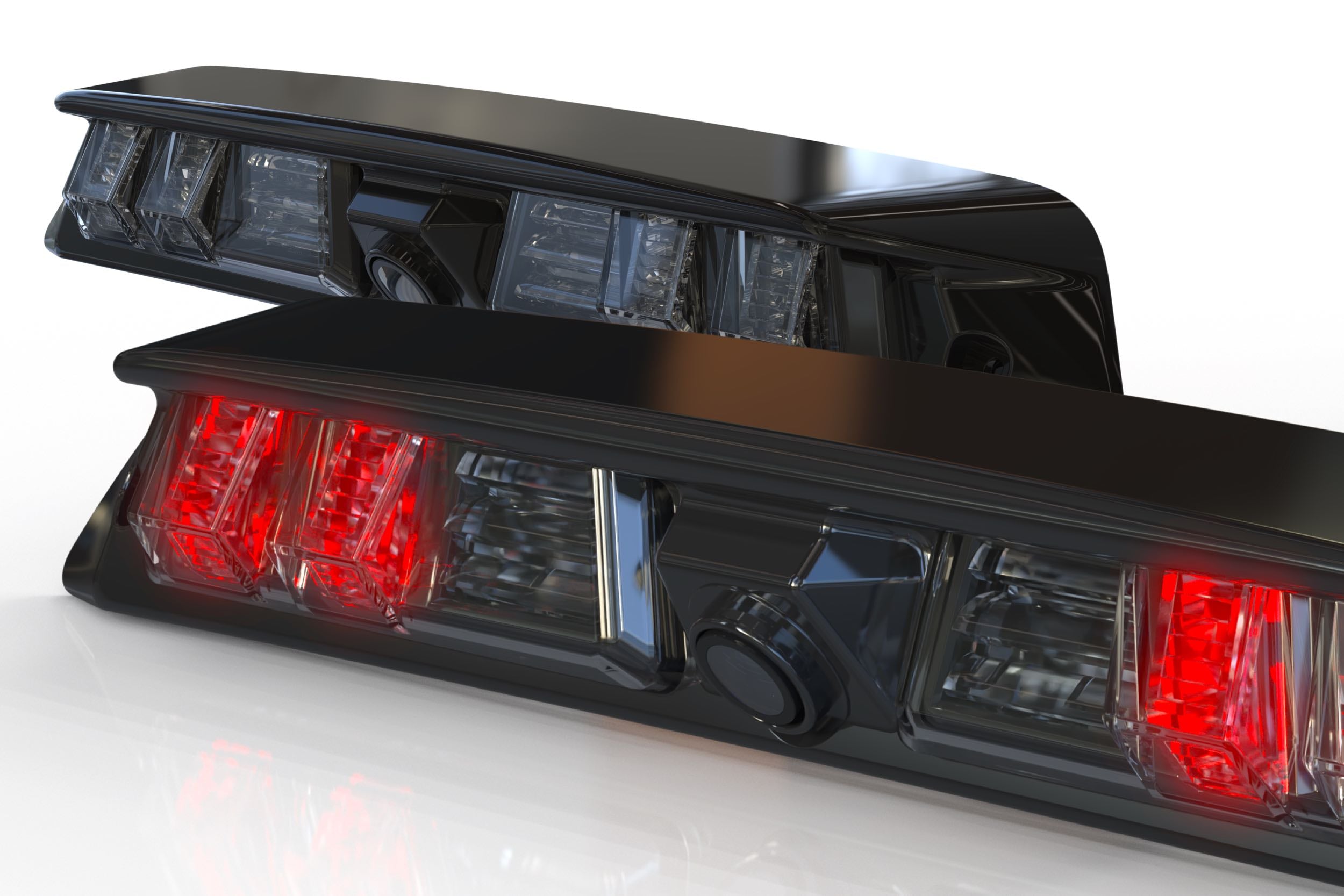

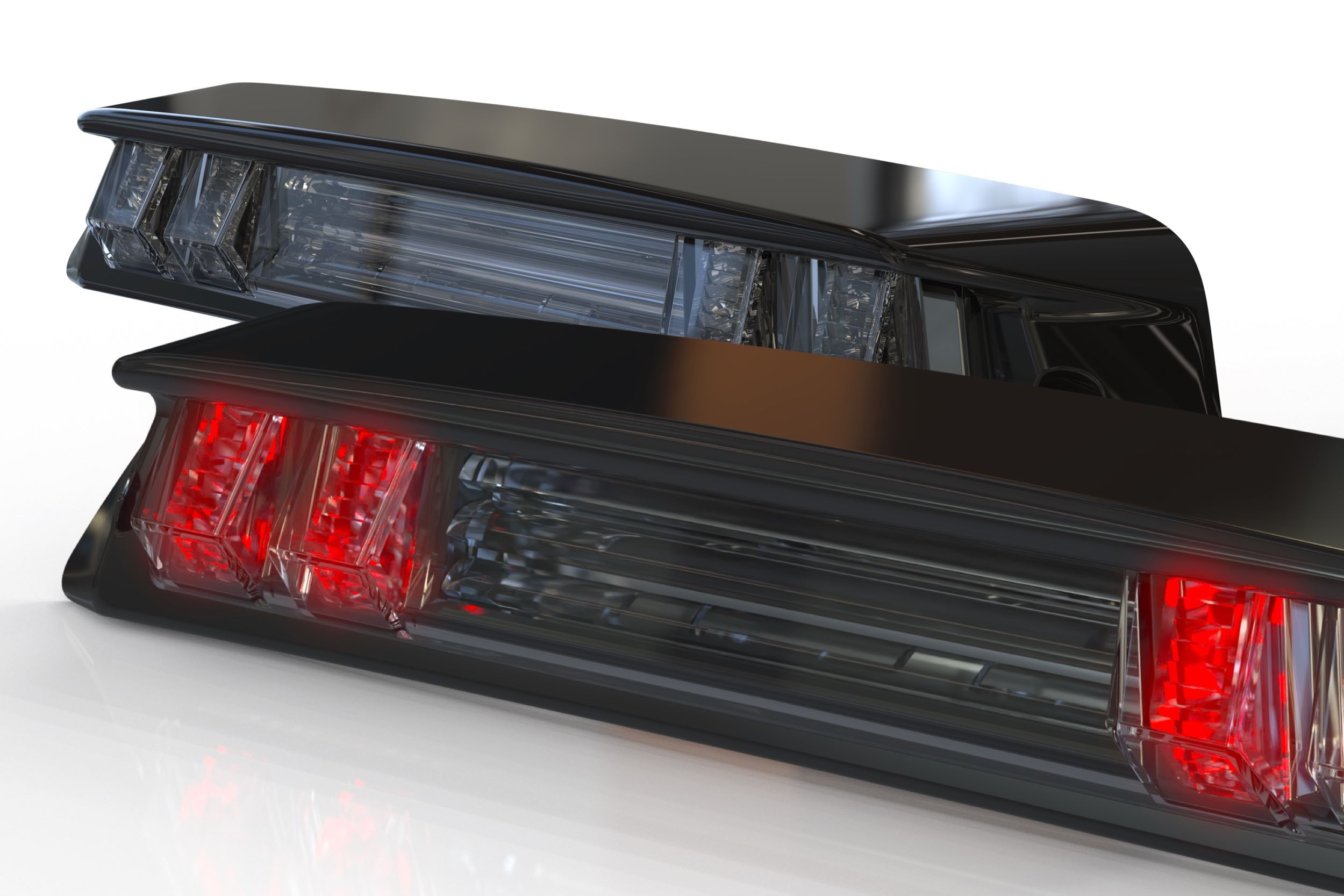

The X3B replaces the dated stock CHMSL on the Gen 2 Raptor with modern 3D red brake optics in a piano-black polycarbonate housing. Quad brake optics with 3W LEDs stay visible day or night, and the rail-style bed light optics kill the dark spots over the bed. It mounts to the original points and plugs into the stock harness — no modifications.
| Spec | Detail |
|---|---|
| Function | Third brake light (CHMSL) with integrated bed lighting |
| Brake optics | Quad 3D red optics, 3W LEDs |

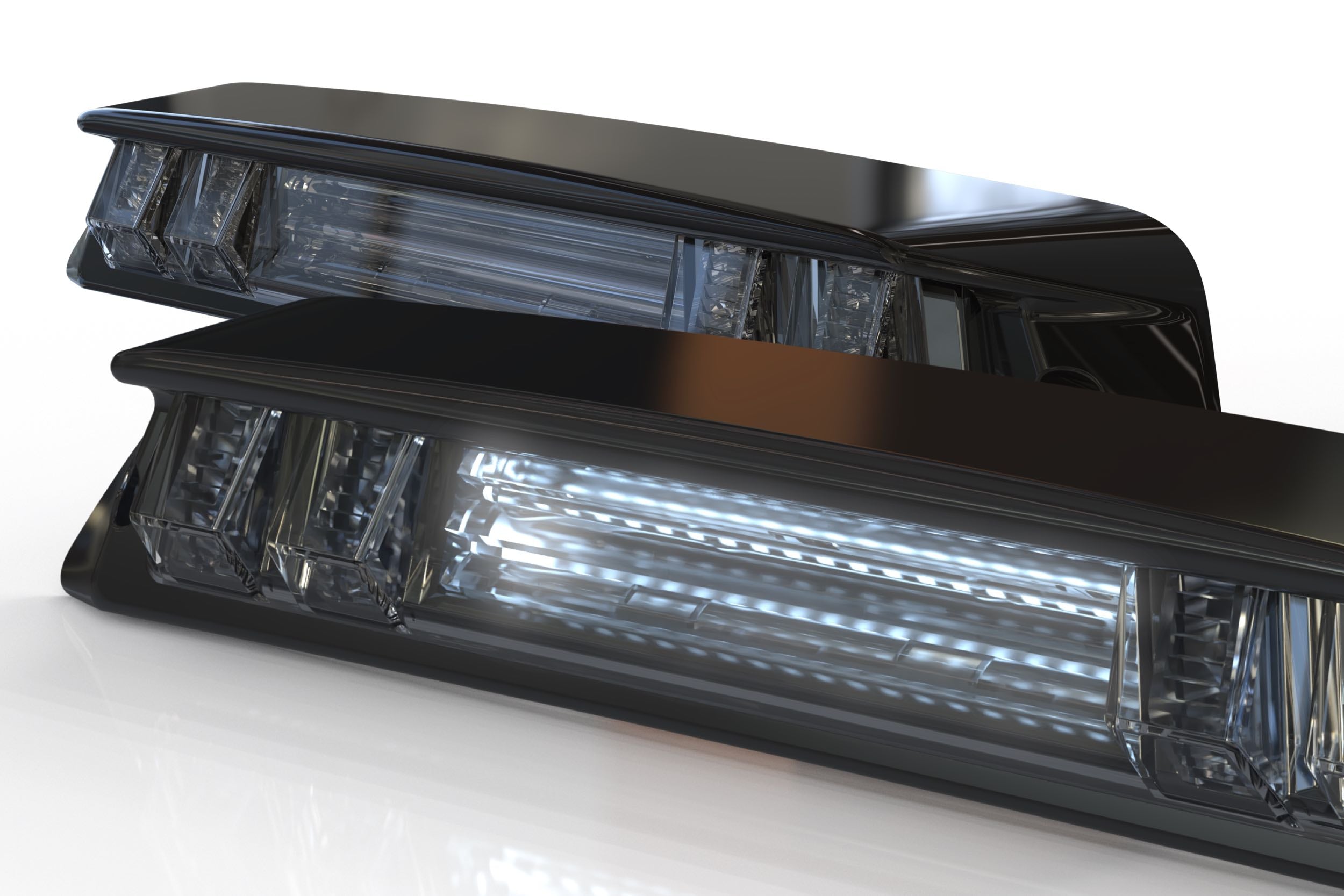

| Bed light | Rail-style optics, engineered to eliminate dark spots |
| Housing | Piano-black polycarbonate |
| Install | Original mounting points, stock wire harness, no modifications |

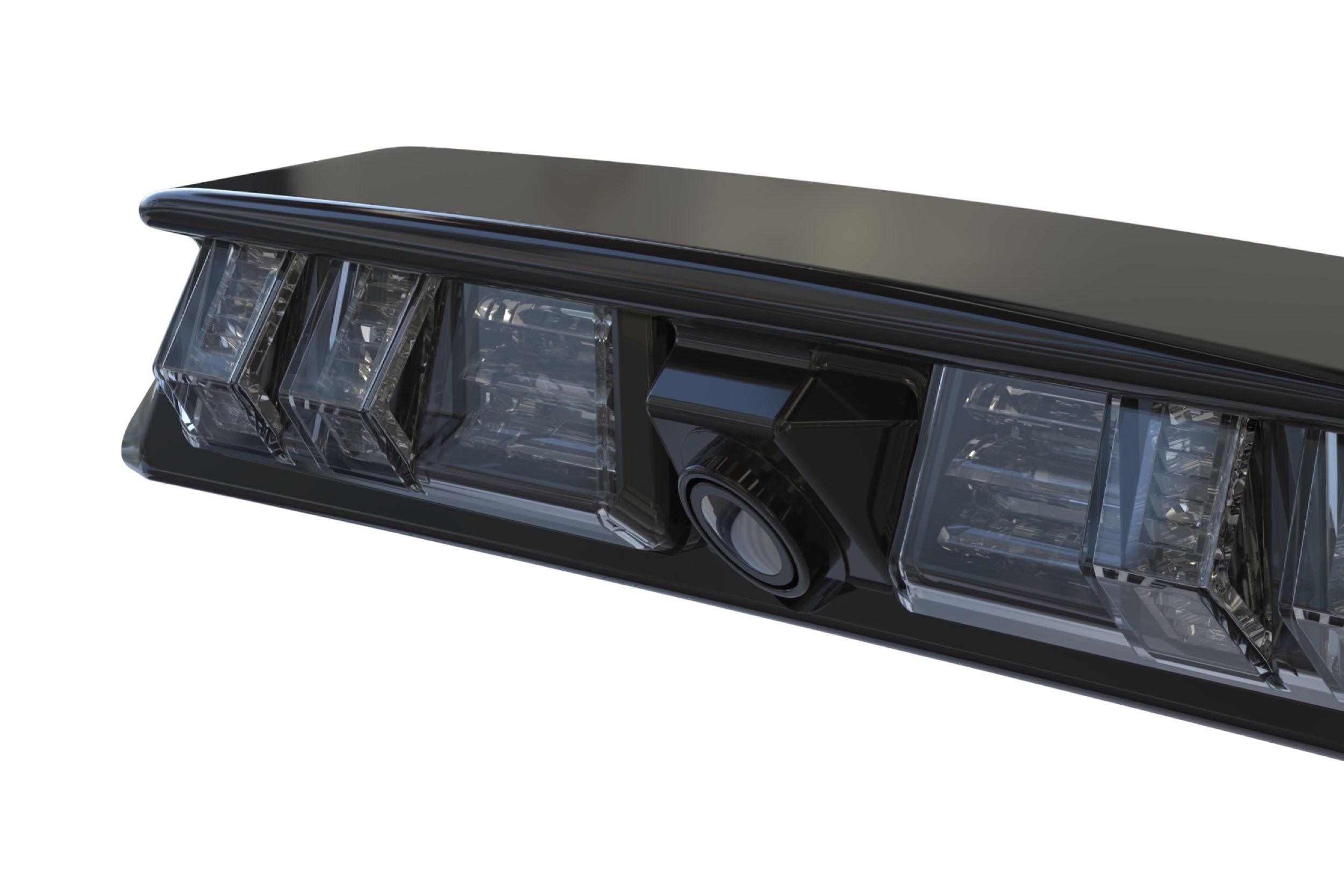

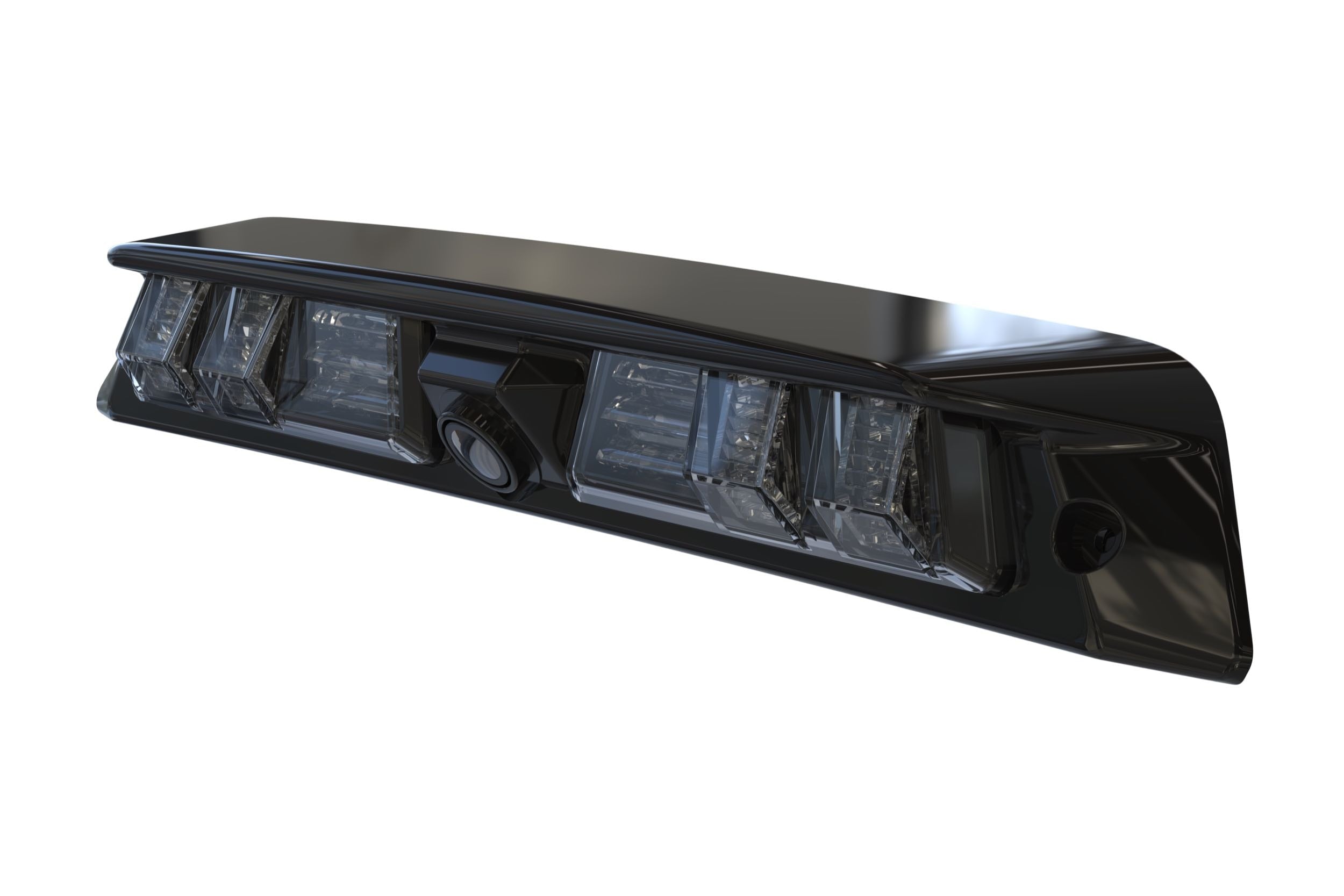

| Camera compatibility | Versions available with or without integrated reverse light camera |
| Compliance | DOT and SAE |
| Warranty | 5 years (Morimoto) |
| Fitment | Ford F-150 Raptor, 2017–2020 |
Will this fit my 2017–2020 Raptor?
Yes. The X3B is built for the Gen 2 Ford Raptor (2017–2020) and uses the original mounting points and stock wire harness.
My truck has the integrated reverse camera — will it work?
Yes. The X3B is offered in versions for trucks both with and without the integrated reverse light camera; choose the one that matches your truck.
Is it street legal?
Yes. The X3B complies with DOT and SAE regulations.
How hard is the install?
Straightforward — it mounts to the original points and connects to the stock wire harness with no modifications required.
Videos
Technical specifications
| Input | Ford Multi-Pin OEM |
|---|---|
| Housing | Piano Black Polycarbonate |
| Lens | UV-Resistant Clear Polycarbonate |
| Bed Light | White (3W) |
| Note | While physically compatible with Raptor, the X3B does not have separate LEDs for the red parking lights on the Raptor third brake light. That feature will no longer be functional. |
Compatibility
| Ford F-150 | 2015+ |
|---|---|
| Ford Lightning | 2022+ |
| Replaces Ford Part # | FL34-13A613-AM, FL3Z-13A613-B, HC3Z13A613D, HC3Z-13A613-E, HC3Z-13A613-F |
| Note | While physically compatible with Raptor, the X3B does not have separate LEDs for the red parking lights on the Raptor third brake light. That feature will no longer be functional. |
| NOTE | These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known. |
In the box
| Third Brake Light | 1x Morimoto X3B LED Module (15+ Ford F-150/Super Duty/Ranger/Maverick) |
|---|---|
| Wiring | Plug and Play Adapter Harness |
Installation
Bolt-on with hand tools. Grab the manufacturer’s step-by-step instructions, or watch the install first. Stuck partway? Call real humans at (920) 249-7744.
