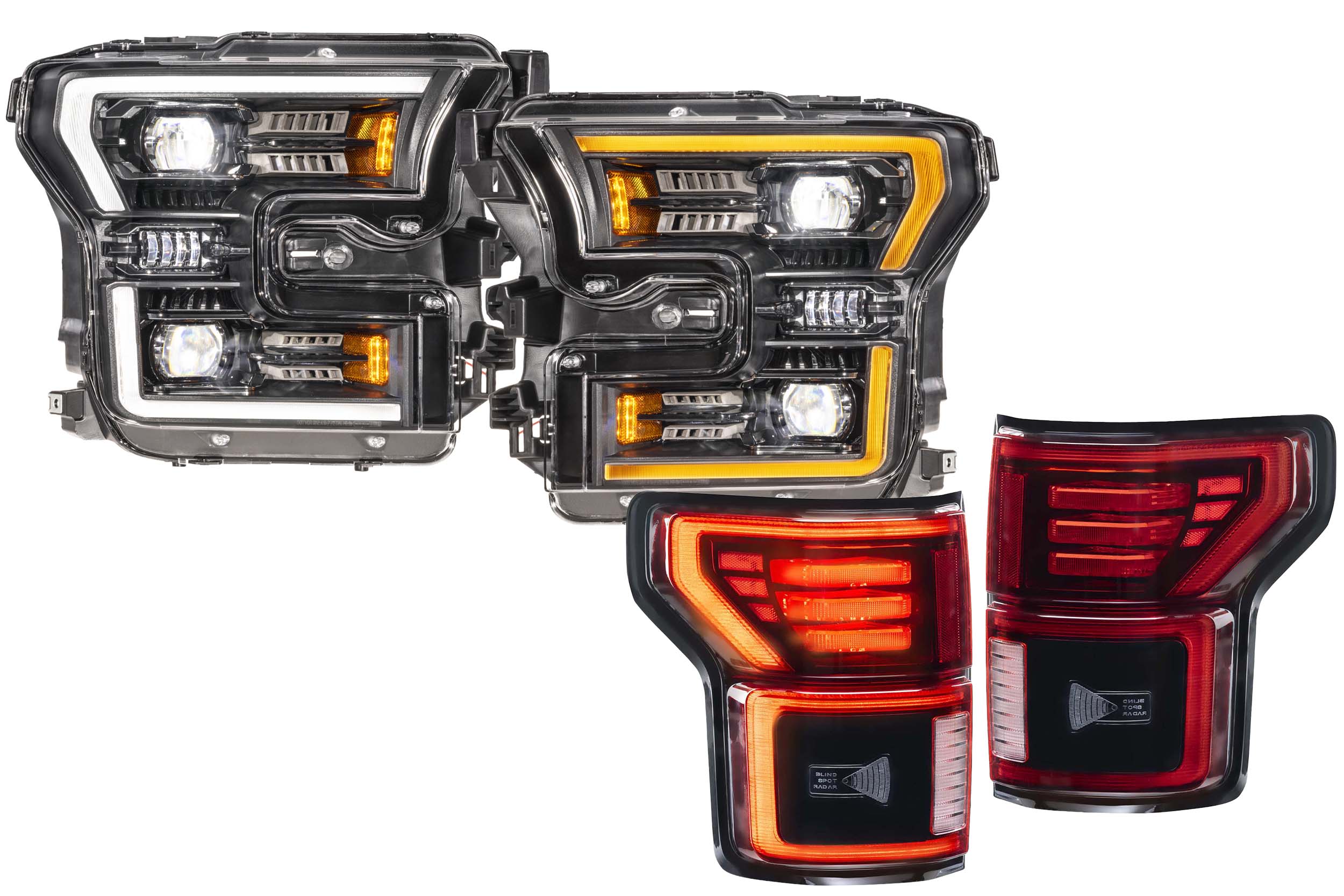

Morimoto Ford Raptor 2017-2020 headlight and tail light combo, LED headlight pair and red LED tail lights shown together

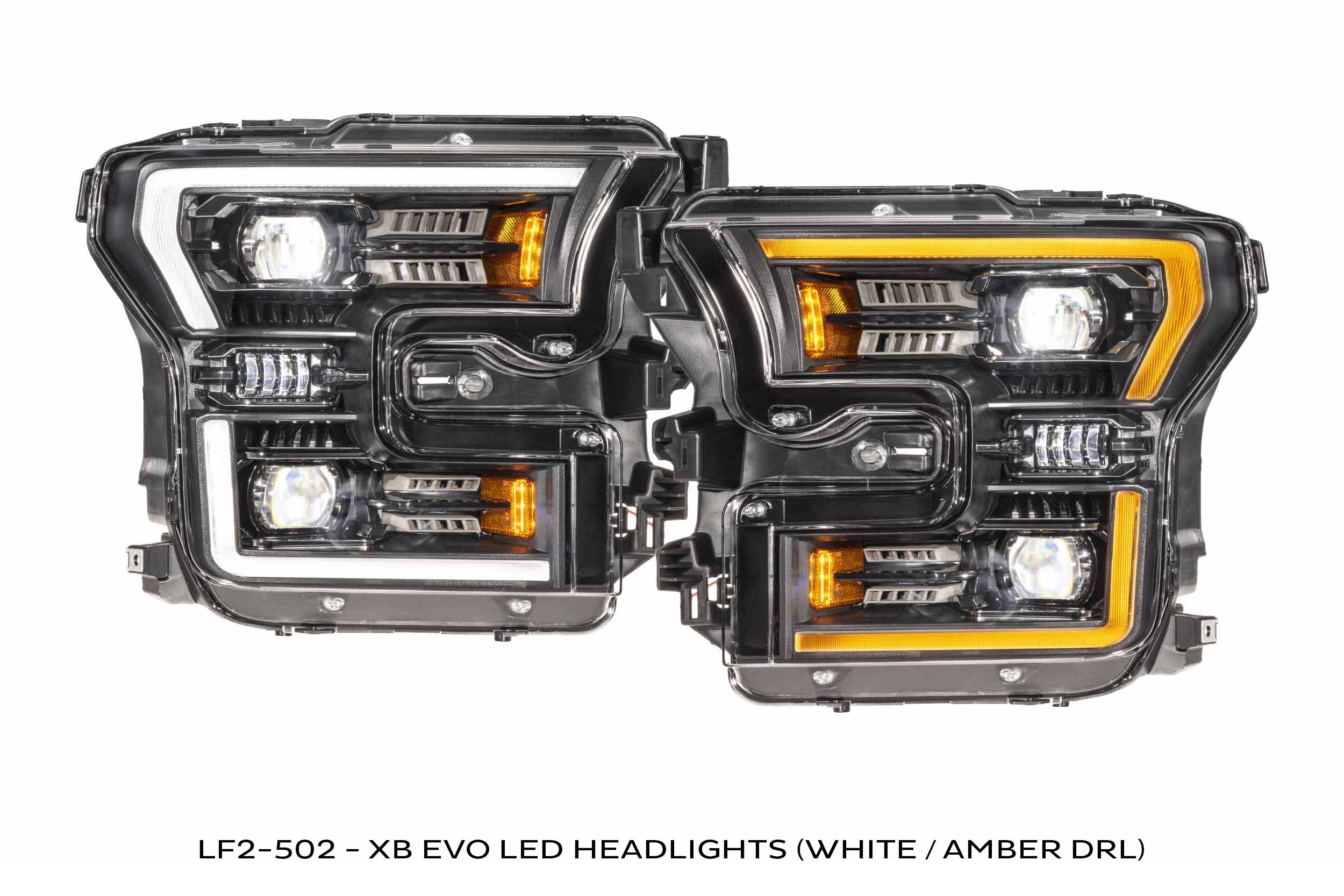

Morimoto XB Evo LED headlights for the 2017-2020 Ford Raptor with white and amber DRL, pair on a white background

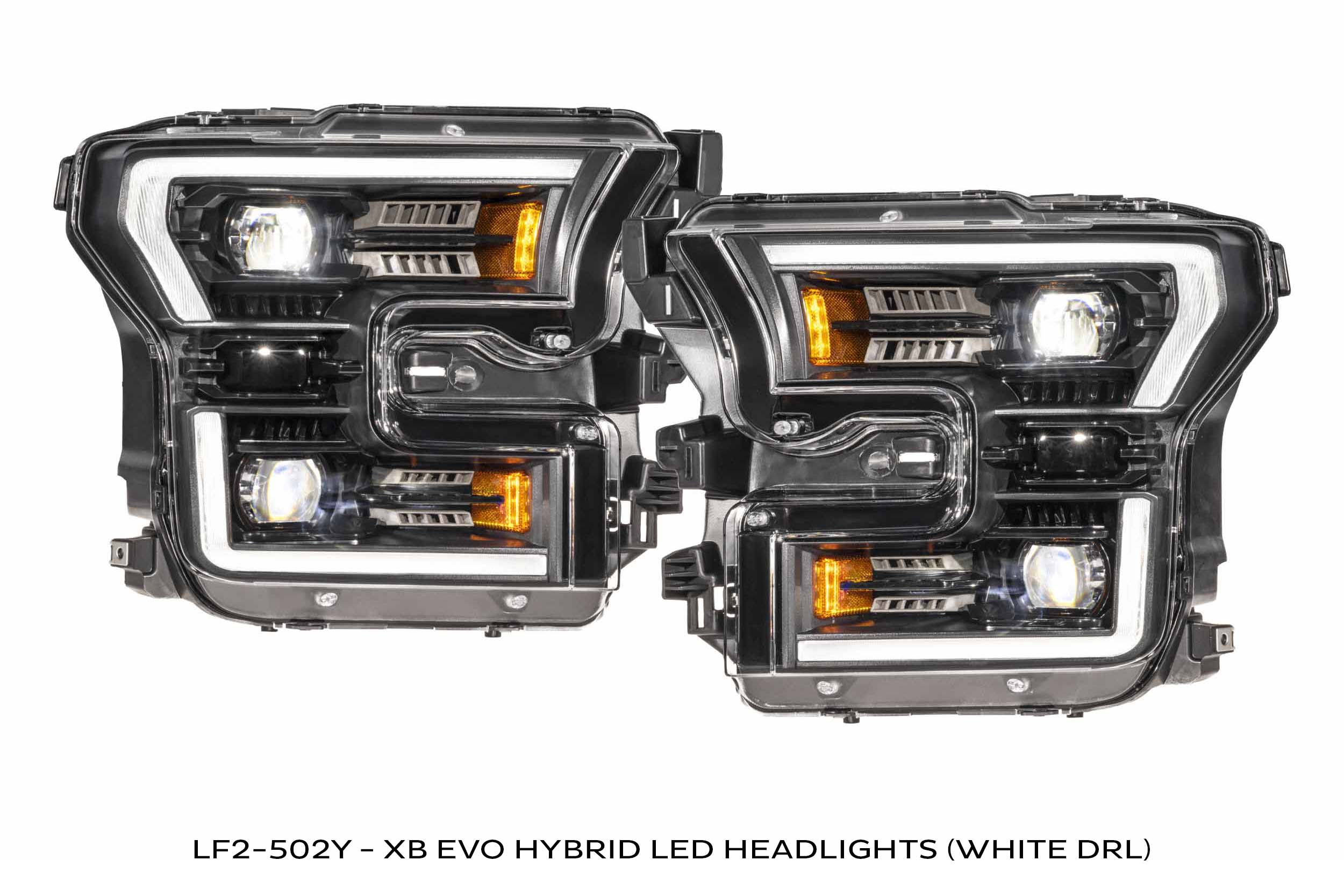

Morimoto XB Evo Hybrid LED headlights for the Ford Raptor with a white DRL bar, pair shown angled

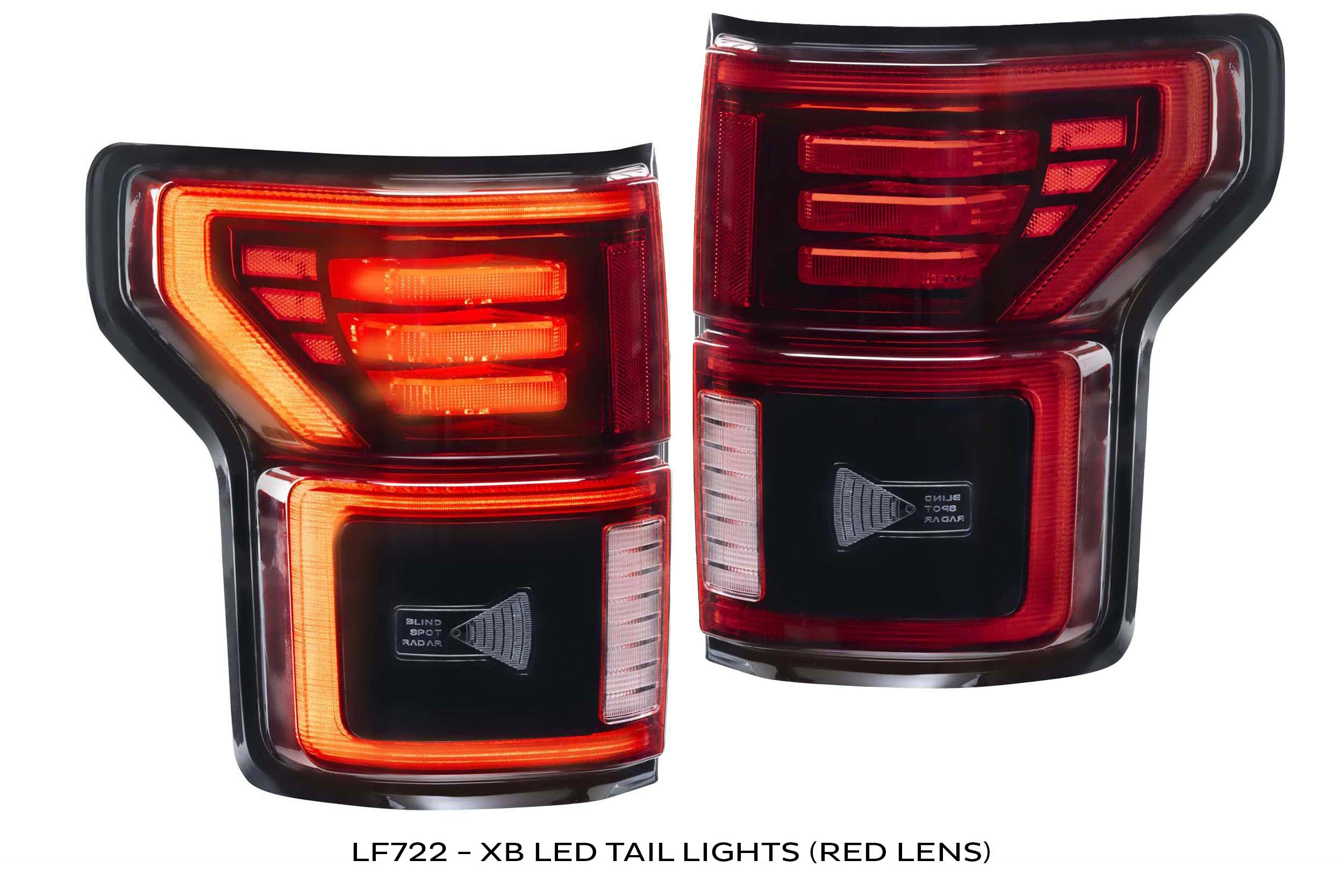

Morimoto XB LED tail lights for the Ford Raptor with red lenses and amber light bar pattern, pair labeled LF722

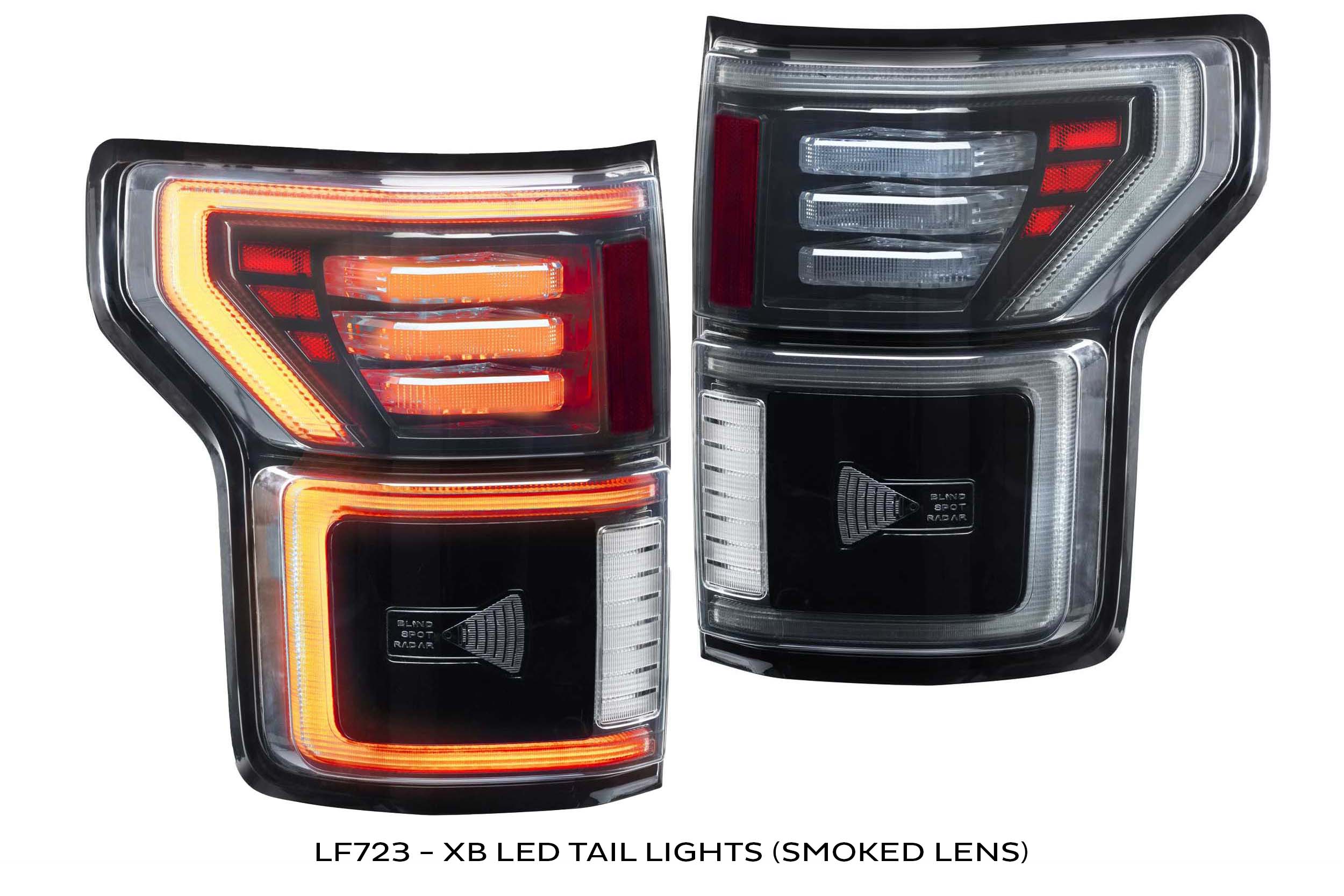

Morimoto XB LED Raptor tail lights with smoked lenses and amber light bar pattern, pair labeled LF723

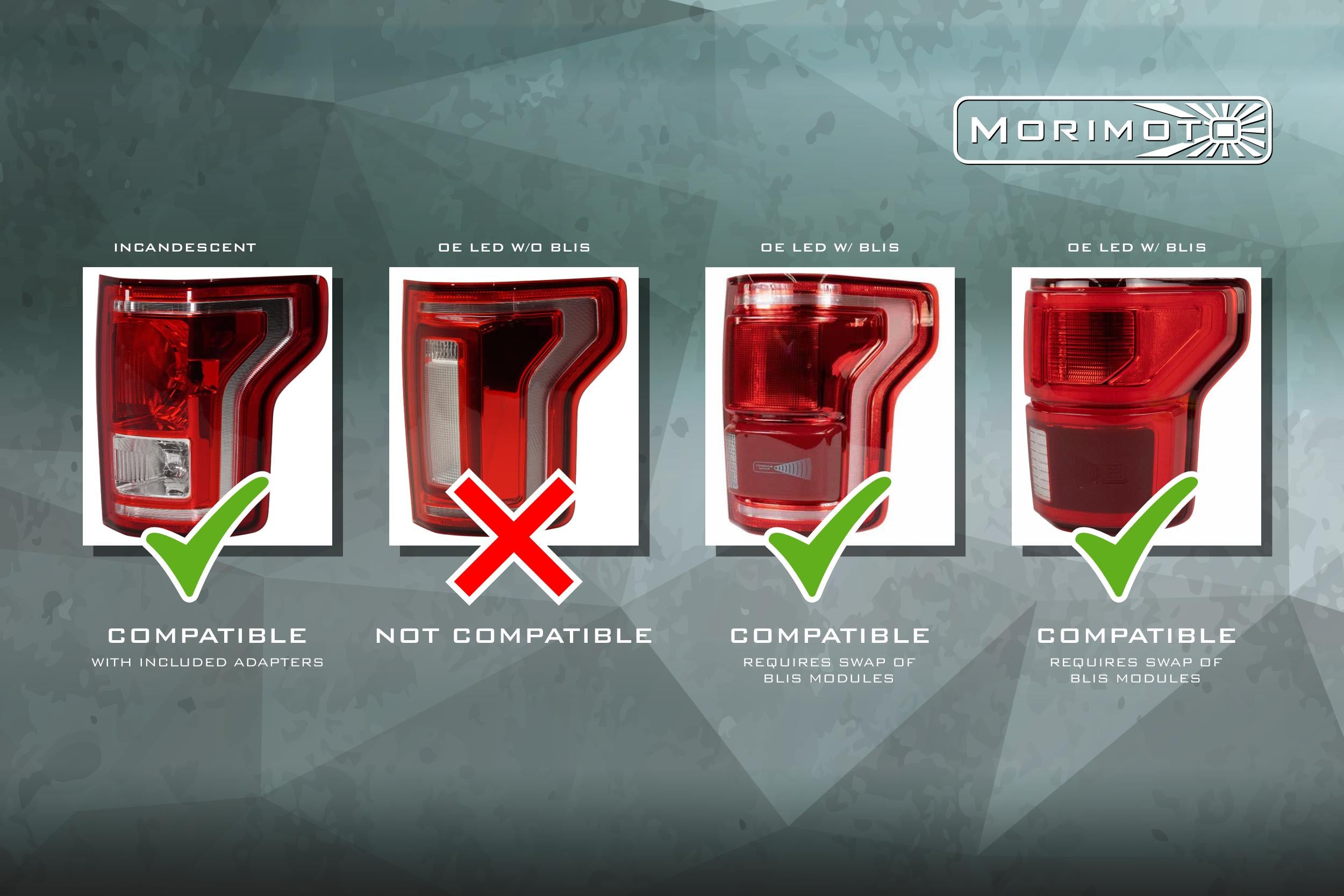

Compatibility chart for Morimoto Ford Raptor tail lights, four stock tail light types with check marks and one red X

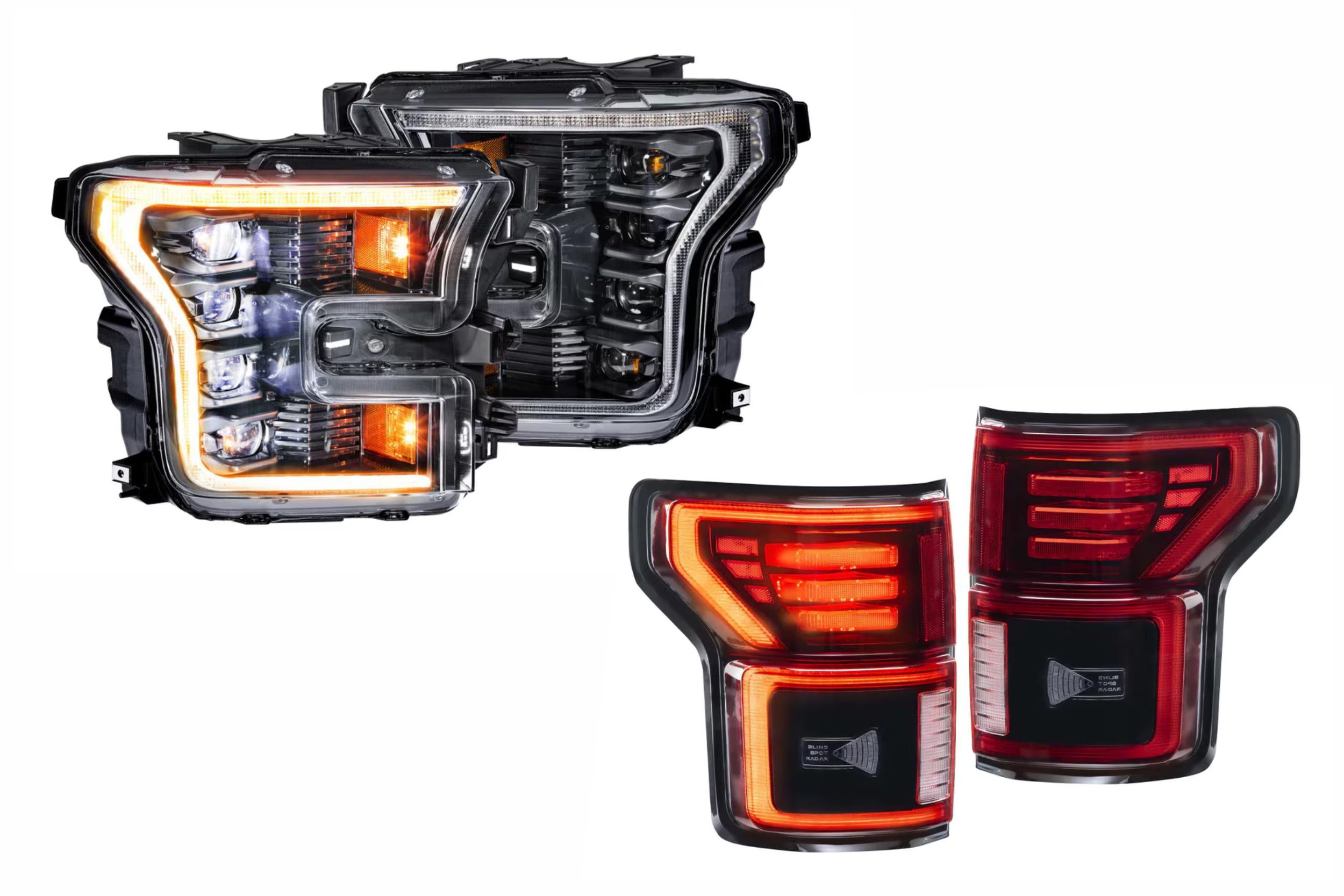

17-20 Raptor Amber DRL Heads and Red Tails

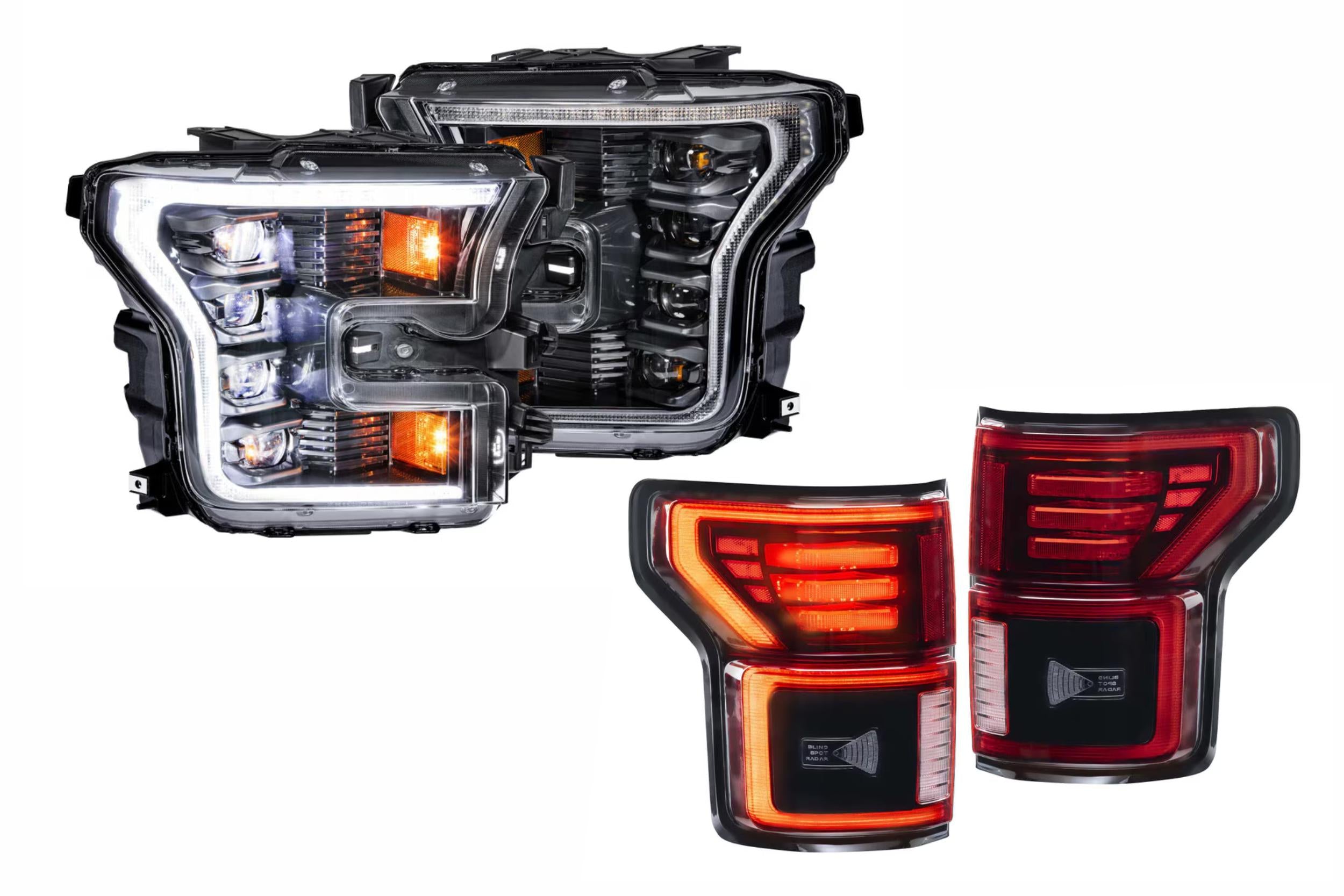

17-20 Raptor White DRL Heads and Red Tails

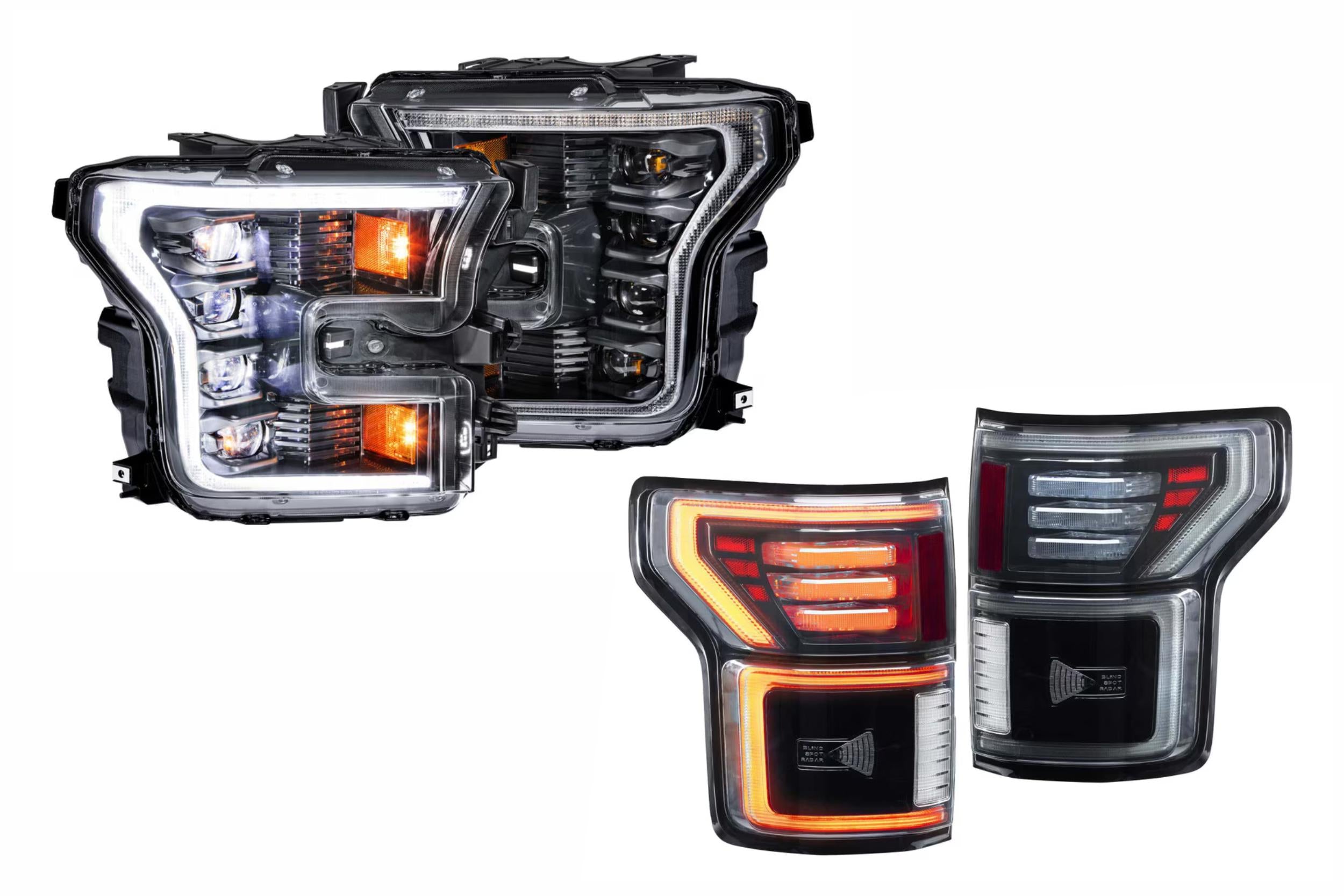

17-20 Raptor White DRL Heads and Smoked Tails

17-20 Raptor Amber DRL Heads and Smoked Tails

Morimoto Ford Raptor (17-20) Headlight & Tail Light Combo

SKU: HEADTAILKIT124

Morimoto Ford Raptor (17-20) Headlight & Tail Light Combo

By Morimoto

$2,659.00

Headlights

Tail Lights

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Confirmed fit: 2017–2020 Ford F-150

Verified to fit the 2017–2020 Ford F-150.

Warranty Information

Vendor warranty summary

Morimoto Warranty

At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting

Shop Morimoto Official Morimoto policy All warranty policies

This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Headlight and tail light assemblies (e.g. XB)	5 years
Off-road lighting	Limited lifetime
2Stroke LED bulbs (per product page)	Limited lifetime

What's covered

Product failures and defects on headlights and tail lights for 5 years
Off-road lights for a limited lifetime
Products must be bought from an authorized Morimoto dealer

What's not covered

Modifications, alterations, or misuse
Products bought from unauthorized sellers
Damage or problems caused by improper installation (document issues before removing lights)

How to make a Morimoto warranty claim

If something isn't right, take photos or video of the problem before removing the lights
Contact Morimoto support by phone or email before doing anything else
Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)

Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.

Shop Morimoto at NVMOS

Morimoto Ford Super Duty (17-22) XB Evo+ LED Fog Lights

Morimoto Ford F-150 (18-20) XB Evo+ LED Fog Lights

Morimoto Ford F-150 (15-17) XB Evo+ LED Fog Lights

See all Morimoto products, lead times and FAQs →

Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Morimoto

Morimoto is an Atlanta lighting company that designs, engineers and tests its lights in-house. NVMOS carries Morimoto XB LED headlights and tail lights, fog lights, ditch light kits, Banger pods and more for Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. For owners tired of dim factory halogens.

Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Morimoto warranty: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting. Read the full summary

Shop all 621 Morimoto Warranty All brands

Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

Morimoto XB Headlight & Tail Light Combo — Ford F-150 Raptor (2017–2020)

Front and rear in one bundle, built around Raptor fitment. On the headlight side you choose the XB Evo or the XB Evo Hybrid, which sit above the two original XB headlight options; on the rear you keep the existing red- or smoked-lens Raptor tail light choices. The Evo is the full-feature assembly — configurable DRL color, selectable turn signal behavior, welcome sequence and lens heaters. The Evo Hybrid keeps the same projectors and core beam performance in a simplified black package.

Why it works

XB Evo: Bi-LED plus high-beam assistThe XB Evo (LF2-502) runs two Type 1 Ishida Bi-LED projectors plus a dedicated D-Optic high-beam assist in each assembly.

Configurable signatureOn the Evo, daytime running lights can be set to white or amber and turn signals can run sequentially or with a fade-off effect, plus a multi-stage welcome sequence.

Lens heating for winterThe Evo adds a logic-controlled 50-watt lens-heating system to keep snow and ice off the lens.

Matching XB LED tailsComplete the package with XB LED tail lights in red (LF722) or smoked (LF723): bright LED reverse, three-dimensional optics for brake and turn, and plug-and-play factory-style wiring.

✓ DOT / SAE compliant — street legal▲ Off-road use only

Driver choice matters. The standard headlight drivers are DOT and FMVSS108 compliant. The optional LF2-DRVSC14 Supercharged Drivers are intended for off-road use only.

Specifications

Spec	Detail
Headlight options	XB Evo (LF2-502) and XB Evo Hybrid (LF2-502Y), above the two original XB headlight choices
XB Evo optics	Two Type 1 Ishida Bi-LED projectors plus a dedicated D-Optic high-beam assist per assembly
XB Evo Hybrid optics	Two of the same Type 1 Ishida Bi-LED projectors in a simplified black-finish package
Daytime running light	XB Evo: configurable white or amber. XB Evo Hybrid: fixed white
Turn signal	XB Evo: sequential or fade-off. XB Evo Hybrid: fixed fade-off
XB Evo extras	Multi-stage welcome sequence and logic-controlled 50-watt lens heating (omitted on the Hybrid, along with the D-Optic assist and mode selectors)
Compliance	Standard drivers are DOT and FMVSS108 compliant; optional LF2-DRVSC14 Supercharged Drivers are for off-road use only
Tail lights	XB LED in red (LF722) or smoked (LF723): LED reverse lights, three-dimensional brake and turn optics, plug-and-play factory-style wiring
Fitment	Ford F-150 Raptor, 2017–2020

Frequently asked questions

What is in this bundle?

A complete Morimoto lighting package for the 2017–2020 Raptor: your choice of XB Evo or XB Evo Hybrid headlights, paired with XB LED tail lights in red or smoked.

What is the difference between XB Evo and XB Evo Hybrid?

Both use two Type 1 Ishida Bi-LED projectors and share the core low- and high-beam performance. The Hybrid comes in a simplified black-finish package with a fixed white DRL and fixed fade-off turn signal, and omits the Evo's D-Optic high-beam assist, lens heaters, mode selectors and standard welcome sequence.

Are these street legal?

The standard drivers are DOT and FMVSS108 compliant. The optional LF2-DRVSC14 Supercharged Drivers are intended for off-road use only.

How do the tail lights wire in?

The XB LED tail lights use plug-and-play factory-style wiring, with bright LED reverse lights and three-dimensional optics handling the brake and turn functions.

Technical specifications

Headlights	Traffic Pattern: LHD Only
Input	Ford Multi-Pin OEM
Functions	DRL (Amber), Turn, Parking, Low, High
Material	ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic	Kuria Quad Optics
UV Coating	Momentive UVHC3000
Tail Lights	Input: Ford Multi-Pin OEM
Material	ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source	SSC LED
Brake Light	Red
Parking Light	Red
Turn Signal	Red

Compatibility

Ford F-150	2015-2017
Ford F-150 Raptor	2016-2021
Replaces Ford Part #	FL3Z-13008B, FL3Z-13008A, HL3Z-13008-A, HL3Z-13008-A, FL3Z13008B, FL3Z13008A, GL3Z13008B, GL3Z13008A, FO2502344, FO2503344, FO2502335, FO2503335, FL3Z3008M, FL3Z13008K, FL3Z13008K, FL3413006BV, FL3413006BV, FL3Z13008M, HL3V13006VC, FL3Z13008L
NOTE	These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

In the box

Headlights	XB LED Headlights: Ford F-150 (15-17 / Amber DRL / Set)
Tail Lights	XB LED Tail Lights: Ford F-150 (15-20 / Red Lens / Set)
